1. TRACK: CI/CD CONTINUOUS EVERYTHING
NOVEMBER 12, 2020
Eduardo Piairo
Why and how to
include database
changes in the
deployment
pipeline

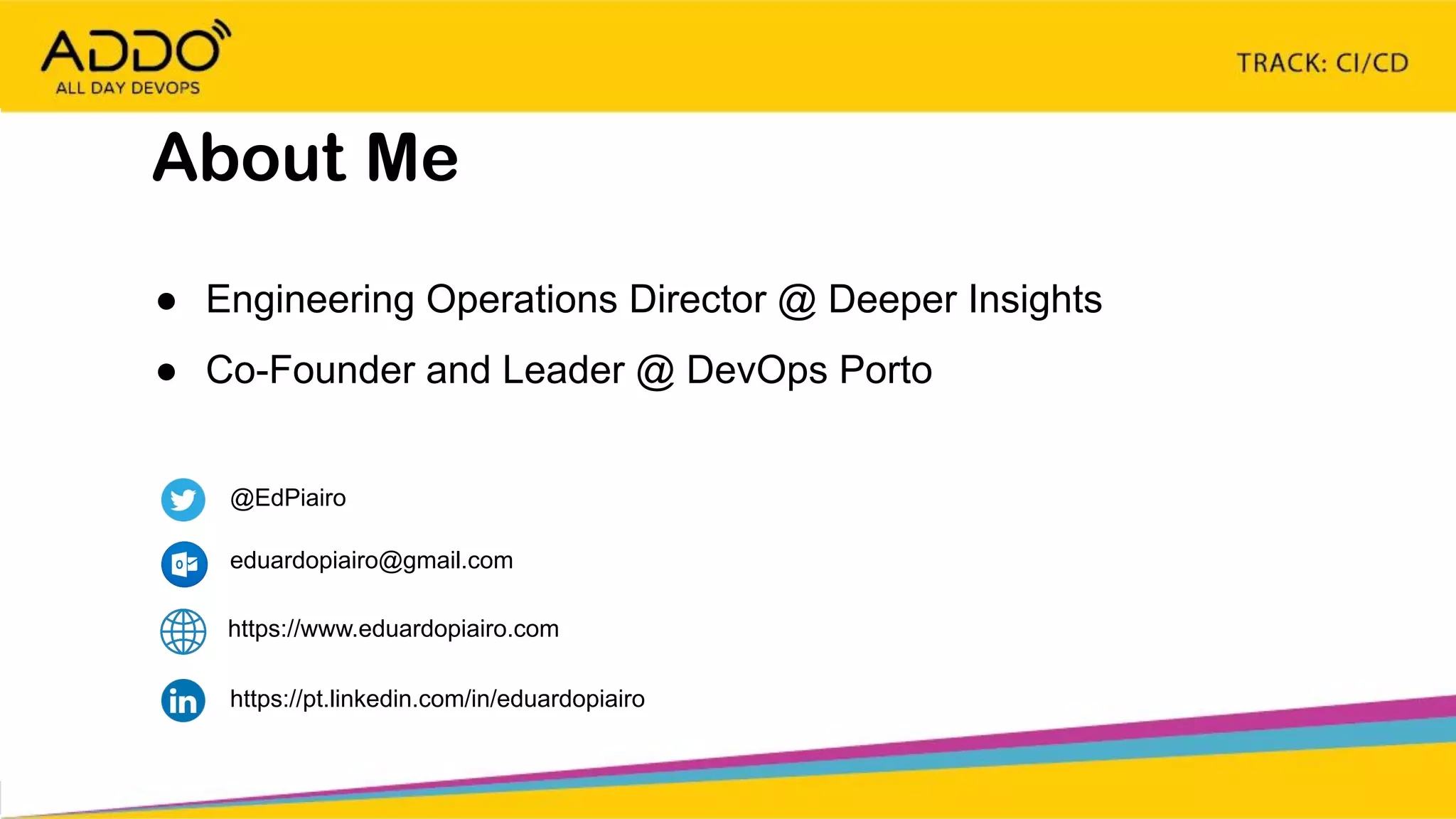

2. TRACK: CI/CD CONTINUOUS EVERYTHING
● Engineering Operations Director @ Deeper Insights
● Co-Founder and Leader @ DevOps Porto
About Me
@EdPiairo
https://pt.linkedin.com/in/eduardopiairo
eduardopiairo@gmail.com
https://www.eduardopiairo.com

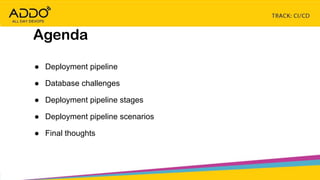

3. TRACK: CI/CD CONTINUOUS EVERYTHING
● Deployment pipeline
● Database challenges
● Deployment pipeline stages
● Deployment pipeline scenarios
● Final thoughts
Agenda

4. TRACK: CI/CD CONTINUOUS EVERYTHING

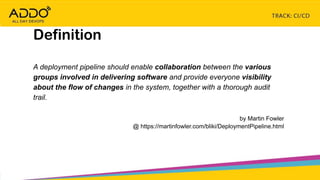

A deployment pipeline should enable collaboration between the various
groups involved in delivering software and provide everyone visibility
about the flow of changes in the system, together with a thorough audit
trail.
by Martin Fowler
@ https://martinfowler.com/bliki/DeploymentPipeline.html
Definition

5. TRACK: CI/CD CONTINUOUS EVERYTHING

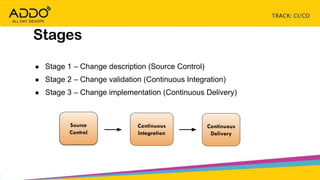

● Stage 1 – Change description (Source Control)
● Stage 2 – Change validation (Continuous Integration)
● Stage 3 – Change implementation (Continuous Delivery)
Stages
Source
Control
Continuous
Integration
Continuous
Delivery

6. TRACK: CI/CD CONTINUOUS EVERYTHING
Database & Deployment Pipeline
Source
Control
Continuous
Integration
Continuous
Delivery
Database
+
Application

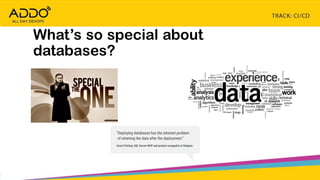

7. TRACK: CI/CD CONTINUOUS EVERYTHING
What’s so special about
databases?

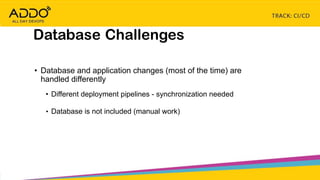

8. TRACK: CI/CD CONTINUOUS EVERYTHING
Database Challenges
• Database and application changes (most of the time) are
handled differently
• Different deployment pipelines - synchronization needed
• Database is not included (manual work)

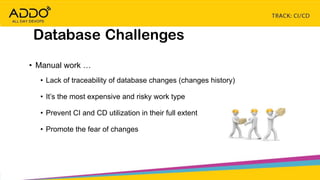

9. TRACK: CI/CD CONTINUOUS EVERYTHING
Database Challenges
• Manual work …
• Lack of traceability of database changes (changes history)
• It’s the most expensive and risky work type
• Prevent CI and CD utilization in their full extent
• Promote the fear of changes

10. TRACK: CI/CD CONTINUOUS EVERYTHING

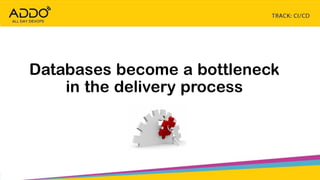

Databases become a bottleneck
in the delivery process

11. TRACK: CI/CD CONTINUOUS EVERYTHING

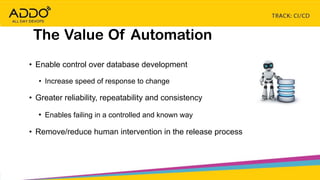

12. TRACK: CI/CD CONTINUOUS EVERYTHING
The Value Of Automation
• Enable control over database development
• Increase speed of response to change
• Greater reliability, repeatability and consistency
• Enables failing in a controlled and known way
• Remove/reduce human intervention in the release process

13. TRACK: CI/CD CONTINUOUS EVERYTHING
Fearless database changes

14. TRACK: CI/CD CONTINUOUS EVERYTHING
Source Control
• Every database change can be described with an SQL script
• Traceability through change history
• SQL as documentation
• Shared code-base and shared process
• Enforce standards to reduce conflicts

15. TRACK: CI/CD CONTINUOUS EVERYTHING
Migrations vs State
• State based solutions
• How the database should be
• Migrations based solutions
• How the database should change
Migration Migration
State
Delta

16. TRACK: CI/CD CONTINUOUS EVERYTHING

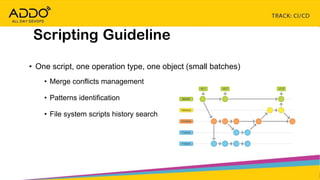

Scripting Guideline
• One script, one operation type, one object (small batches)
• Merge conflicts management
• Patterns identification
• File system scripts history search

17. TRACK: CI/CD CONTINUOUS EVERYTHING

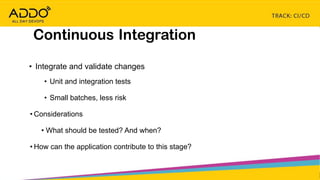

Continuous Integration
• Integrate and validate changes
• Unit and integration tests
• Small batches, less risk
• Considerations
• What should be tested? And when?
• How can the application contribute to this stage?

18. TRACK: CI/CD CONTINUOUS EVERYTHING

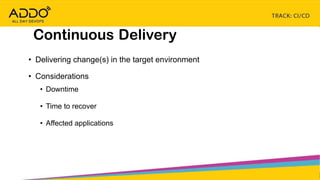

Continuous Delivery
• Delivering change(s) in the target environment
• Considerations
• Downtime
• Time to recover
• Affected applications

19. TRACK: CI/CD CONTINUOUS EVERYTHING

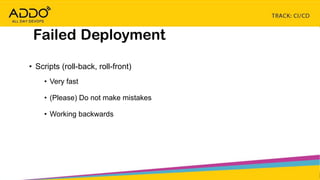

Failed Deployment
• Scripts (roll-back, roll-front)
• Very fast
• (Please) Do not make mistakes
• Working backwards

20. TRACK: CI/CD CONTINUOUS EVERYTHING

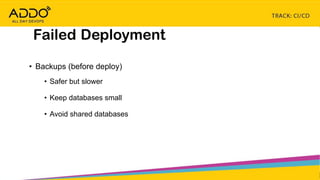

Failed Deployment
• Backups (before deploy)
• Safer but slower
• Keep databases small
• Avoid shared databases

21. TRACK: CI/CD CONTINUOUS EVERYTHING

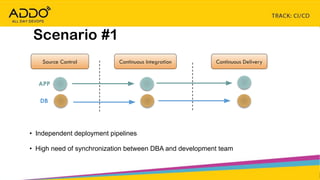

Scenario #1
Source Control Continuous Integration Continuous Delivery
APP
DB
• Independent deployment pipelines
• High need of synchronization between DBA and development team

22. TRACK: CI/CD CONTINUOUS EVERYTHING
Scenario #2
Source Control Continuous Integration Continuous Delivery
APP
DB
• Different code repositories
• Independent CI process
• The contact point will be the deployment moment

23. TRACK: CI/CD CONTINUOUS EVERYTHING

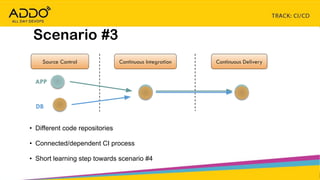

Scenario #3
Source Control Continuous Integration Continuous Delivery
APP
DB
• Different code repositories
• Connected/dependent CI process
• Short learning step towards scenario #4

24. TRACK: CI/CD CONTINUOUS EVERYTHING

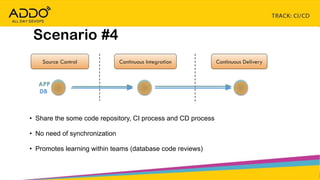

Scenario #4
Source Control Continuous Integration Continuous Delivery
APP
DB
• Share the some code repository, CI process and CD process
• No need of synchronization
• Promotes learning within teams (database code reviews)

25. TRACK: CI/CD CONTINUOUS EVERYTHING
My Definition
Pipeline: Cultural and technical tool for managing changes in the
software development process (should contemplate databases, applications
and infrastructure).

26. TRACK: CI/CD CONTINUOUS EVERYTHING

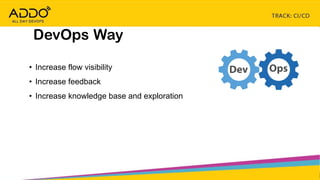

DevOps Way
• Increase flow visibility
• Increase feedback
• Increase knowledge base and exploration

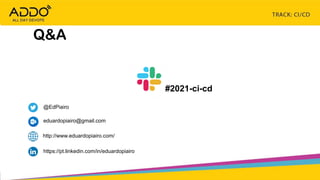

27. TRACK: CI/CD CONTINUOUS EVERYTHING
Q&A
@EdPiairo
https://pt.linkedin.com/in/eduardopiairo
eduardopiairo@gmail.com
http://www.eduardopiairo.com/
