1. The Release
Pipeline Model
Applied to Managing Windows
Server and Microsoft Cloud
Michael Greene
Principal Program Manager
Microsoft Enterprise Cloud CAT

2. whoami
Michael Greene
Principal Program Manager
Enterprise Cloud Engineering CAT Team
(Customer Feedback, Technical Enablement)
CAT PM for PowerShell & DevOps
12 yrs at Microsoft
3 yrs BPOSD/O365D Ops
@migreene
Mgreenegit
http://aka.ms/thereleasepipelinemodel

3. When does a concept become a revolution?
First, the new candidate must seem to resolve some
outstanding and generally recognized problem that can be
met in no other way.
Second, the new paradigm must promise to preserve a
relatively large part of the concrete problem-solving ability
that has accrued to science through its predecessors.
(The Structure of Scientific Revolutions, Thomas S. Kuhn)

4. Reading http://stevenmurawski.com/devops-reading-list/

5. Customer Landscape
patterns & practices
how do we include
Windows Server?
that’s a little more on
the dev side, than IT
Pro?

7. Treat Servers like PaaS
service
consistency
fabric
consistency
Software
As a Service
consume service
Platform
As a Service
deploy apps, jobs,
data
Infrastructure
As a Service
custom baseline
manage binaries
SQL Azure
Azure App
Services
Azure Virtual
Machines
application
consistency
Increasing
opportunity
for
configuration
drift
Physical/Virtual
Servers

8. Configuration as Code
• Lots of API's
• Complex scenarios should be property:value
• Living documentation
• PowerShell DSC is the PLATFORM that all solutions can use to
deploy and manage Windows Server
• Azure Resource Manager is also Configuration as Code
• Nothing replaces knowledge about the systems you intend to
manage

9. The Release Pipeline

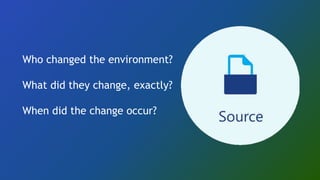

10. Who changed the environment?
What did they change, exactly?
When did the change occur?

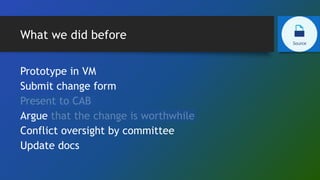

11. What we did before
Prototype in VM
Submit change form
Present to CAB
Argue that the change is worthwhile
Conflict oversight by committee
Update docs

12. What we do now
• Document everything in configuration as code
• Including automated deployment and testing
• Clone latest to workstation
• Make change
• Run tests locally
• Push to Source
• Who, What, When, Why (comments)
• Merge with Master, resolve conflicts if needed

17. How will I catch problems at the
earliest possible moment?
Can elements be combined cleanly
to produce the correct results?
How will I be notified of a problem?

18. What we did before
• Remote in on Saturday
• Make sure servers are listed in RDCMan
• Connect to servers and make changes
• Reboot in order
• Say a prayer / squeeze rabbit’s foot / perform
tribal dance
• Check that services still work correctly

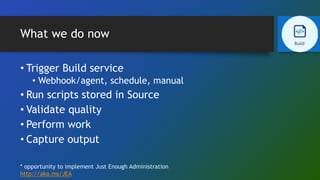

19. What we do now
• Trigger Build service
• Webhook/agent, schedule, manual
• Run scripts stored in Source
• Validate quality
• Perform work
• Capture output
* opportunity to implement Just Enough Administration
http://aka.ms/JEA

28. Engineer for Resiliency
• What will this project require on Day 2? Day 30? Day 100?
• Monitoring rules
• Monitoring alerts
• Automation runbooks
• JEA endpoints
• Onboard to backup services
• Operational Validation Tests

29. How do we check for regulatory
issues?
How do I know this change will not
cause an outage?
Will this change work across every
variation I have in my
environments?
Does this configuration meet our
business requirements?

30. What we did before
• Create VM
• Install OS
• Install app/service
• Implement change
• Manual, test OU, run script
• Try app/service
• Make an educated guess whether it still works

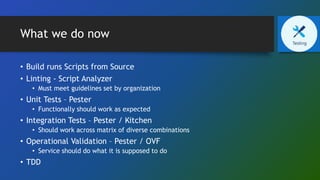

31. What we do now
• Build runs Scripts from Source
• Linting - Script Analyzer
• Must meet guidelines set by organization
• Unit Tests – Pester
• Functionally should work as expected
• Integration Tests – Pester / Kitchen
• Should work across matrix of diverse combinations
• Operational Validation – Pester / OVF
• Service should do what it is supposed to do
• TDD

32. Integration Testing with Pester
All examples courtesy of the following blog post -
https://pshirwin.wordpress.com/2016/04/08/active-directory-operations-test/
$ADConfiguration = @{
Forest = @{
FQDN = 'pshirwin.local'
ForestMode = 'Windows2012R2Forest'
GlobalCatalogs = @(
'DC-DSC-01.pshirwin.local'
)
SchemaMaster = 'DC-DSC-01.pshirwin.local'
DomainNamingMaster = 'DC-DSC-01.pshirwin.local'
}
Domain = @{
NetBIOSName = 'PSHIRWIN'
DomainMode = 'Windows2012R2Domain'
RIDMaster = 'DC-DSC-01.pshirwin.local'
PDCEmulator = 'DC-DSC-01.pshirwin.local'
InfrastructureMaster = 'DC-DSC-01.pshirwin.local'
DistinguishedName = 'DC=pshirwin,DC=local'
DNSRoot = 'pshirwin.local'
DomainControllers = @('DC-DSC-01')
}
Describe 'Active Directory configuration operational readiness' {
Context 'Verifying Forest Configuration'{
it "Forest FQDN $($ADConfiguration.Forest.FQDN)" {
$ADConfiguration.Forest.FQDN |
Should be $SavedADReport.ForestInformation.RootDomain
}
it "ForestMode $($ADConfiguration.Forest.ForestMode)"{
$ADConfiguration.Forest.ForestMode |
Should be $SavedADReport.ForestInformation.ForestMode.ToString()
}
}
Context 'Verifying GlobalCatalogs'{
$ADConfiguration.Forest.GlobalCatalogs |
ForEach-Object{
it "Server $($_) is a GlobalCatalog"{
$SavedADReport.ForestInformation.GlobalCatalogs.Contains($_) |
Should be $true
}
}
}

37. POSHSpec
Describe 'Services' {
Service w32time Status { Should Be Running }
Service bits Status { Should Be Stopped }
}
Describe 'Files' {
File C:inetpubwwwrootiisstart.htm { Should Exist }
File C:inetpubwwwrootiisstart.htm { Should Contain 'text-align:center' }
}
Describe 'Registry' {
Registry HKLM:SOFTWAREMicrosoftRpcClientProtocols { Should Exist }
Registry HKLM:SYSTEMCurrentControlSetServicesTcpipParameters "SyncDomainWithMembership" { Should Be 1 }
Registry 'HKLM:SOFTWARECallahan Auto' { Should Not Exist }
}
Describe 'Http' {
TcpPort localhost 80 PingSucceeded { Should Be $true }
TcpPort localhost 80 TcpTestSucceeded { Should Be $true }
Http http://localhost StatusCode { Should Be 200 }
Http http://localhost RawContent { Should Match 'X-Powered-By: ASP.NET' }
Http http://localhost RawContent { Should Not Match 'X-Powered-By: Cobal' }
}
Describe 'Hotfix' {
Hotfix KB3116900 { Should Not BeNullOrEmpty}
Hotfix KB1112233 { Should BeNullOrEmpty}
}
https://github.com/Ticketmaster/poshspec

38. How do I make changes without
granting long term administrative
access?
Does anyone need to sign-off before
deployment?
How do I keep services consistent
across all my environments?
Can I integrate service management?

39. What we did before
• Request/create VM
• Request/manage environmental changes
• Install OS
• Install app/service (or defer to app/service owner)
• Onboard to patching, anti-malware, backup, monitoring
• Validate app/service is working
• Go Live

40. What we do now
• Build runs scripts from Source
• Potentially automatically releases when Tests pass
• Deploy artifacts to environment
• Simplify complex work through automation
• Promote through stages
• QA, Prod, Green/Blue

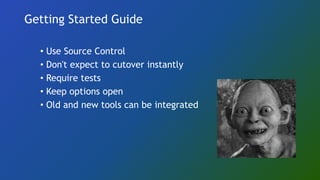

42. Getting Started Guide
• Use Source Control
• Don't expect to cutover instantly
• Require tests
• Keep options open
• Old and new tools can be integrated

43. Make change visible
• If change is happening fluidly, everyone needs to know
• Your peers are not going to go check reports, the way they
check Facebook
• Notify all stakeholders in the way they collaborate
Managing outages without randomizing servers

44. Map your requirements
Plaster
PSake
Pester
POSHSpec
OVF
PSDeploy
Lability
Community Projects
PowerShell
Slack

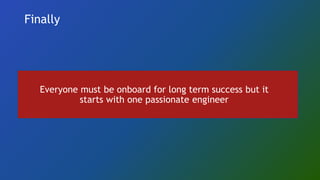

45. Finally
Everyone must be onboard for long term success but it
starts with one passionate engineer
