Delivering Changes for Applications and Databases
The document discusses strategies for managing database changes in application development, emphasizing the importance of database automation and lifecycle management. Key practices include using source control and migration tools like Flyway, as well as aligning database and application updates to improve delivery processes. It also outlines common challenges in database management, such as managing merge conflicts and maintaining disposable development environments.
More Related Content
Similar to Delivering Changes for Applications and Databases
Delivering Changes for Applications and Databases
- 1. Delivering changes for applicationsand databases “The beginning of a beautiful friendship” Eduardo Piairo Miguel Alho

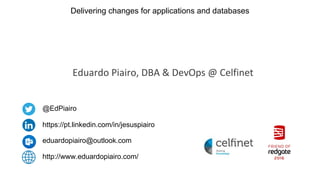

- 2. Delivering changes forapplications and databases @EdPiairo https://pt.linkedin.com/in/jesuspiairo eduardopiairo@outlook.com http://www.eduardopiairo.com/ Eduardo Piairo, DBA & DevOps @ Celfinet
- 3. Delivering changes forapplications and databases @MytyMyky https://pt.linkedin.com/in/miguelalho-982331 alho@miguelalho.com http://www.miguelalho.pt/ Miguel Alho, Software Engineer @ Faro Europe
- 4.
- 5. Delivering changes forapplications and databases Source Control Continuous Integration Continuous Delivery Database + Application
- 6. What’s so specialabout the database?
- 7. What’s so specialabout the database?

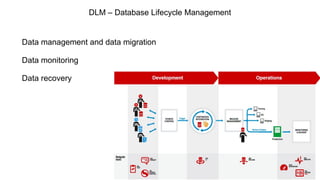

- 8. DLM – DatabaseLifecycle Management Data management and data migration Data monitoring Data recovery
- 9. Typical problems wewant to fix • Databases are out of pace with application development • Lack of traceability of database changes (changes history) • Manual databases processes prevent the CI and CD utilization • Lack of testability • Database setup time for new environments • Bugs in production

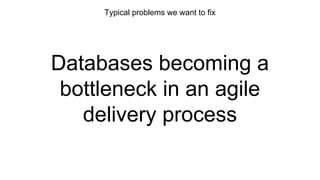

- 10. Typical problems wewant to fix Databases becoming a bottleneck in an agile delivery process

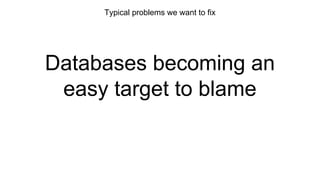

- 11. Typical problems wewant to fix Databases becoming an easy target to blame

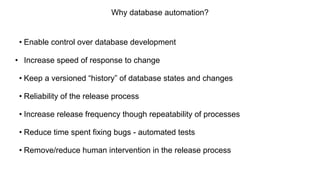

- 13. Why database automation? •Enable control over database development • Increase speed of response to change • Keep a versioned “history” of database states and changes • Reliability of the release process • Increase release frequency though repeatability of processes • Reduce time spent fixing bugs - automated tests • Remove/reduce human intervention in the release process

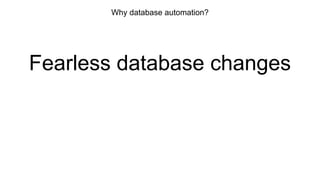

- 14. Why database automation? Fearlessdatabase changes

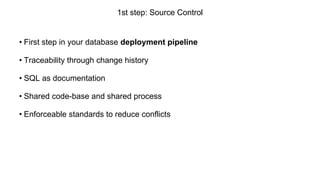

- 15. 1st step: SourceControl • First step in your database deployment pipeline • Traceability through change history • SQL as documentation • Shared code-base and shared process • Enforceable standards to reduce conflicts

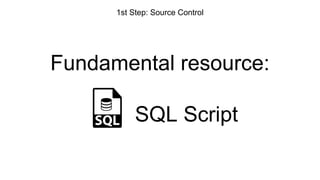

- 16. 1st Step: SourceControl Fundamental resource: SQL Script

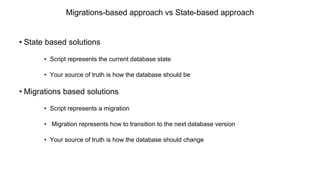

- 17. Migrations-based approach vsState-based approach • State based solutions • Script represents the current database state • Your source of truth is how the database should be • Migrations based solutions • Script represents a migration • Migration represents how to transition to the next database version • Your source of truth is how the database should change

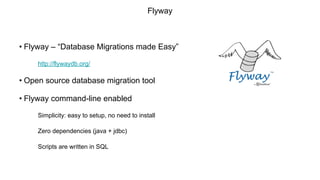

- 18. Flyway • Flyway –“Database Migrations made Easy” http://flywaydb.org/ • Open source database migration tool • Flyway command-line enabled Simplicity: easy to setup, no need to install Zero dependencies (java + jdbc) Scripts are written in SQL

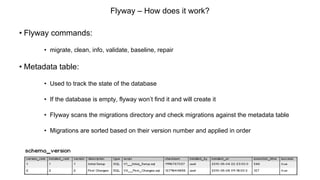

- 19. Flyway – Howdoes it work? • Flyway commands: • migrate, clean, info, validate, baseline, repair • Metadata table: • Used to track the state of the database • If the database is empty, flyway won’t find it and will create it • Flyway scans the migrations directory and check migrations against the metadata table • Migrations are sorted based on their version number and applied in order
- 20. Version Control System Twocomponents: Database scripts repository Flyway – database migrations Rule 1: Script version (timestamp) Rule 2: Operation type Rule 3: Object type Rule 4: Object name Example: V20160728.1100__Create_TB_MyTable.sql
- 21.

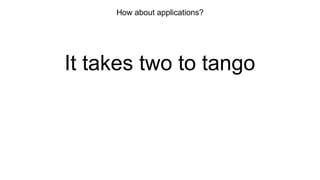

- 22. How about applications? Ittakes two to tango
- 23. Database and Applicationchange alignment ● Database schemas should evolve along with application evolution ○ deploy app => deploy changes / migrations ● (Integration) Test app and db changes together ○ should pass tests while developing, ○ should pass tests while promoting to new environments ● Ideally, one application per database ● Pipeline deployment only!

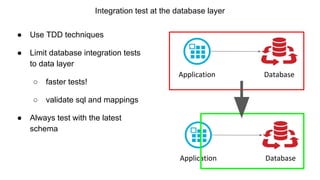

- 24. Integration test atthe database layer ● Use TDD techniques ● Limit database integration tests to data layer ○ faster tests! ○ validate sql and mappings ● Always test with the latest schema DatabaseApplication DatabaseApplication
- 25.

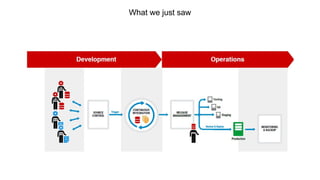

- 26. What we justsaw

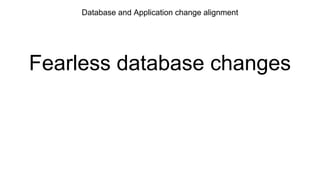

- 27. Database and Applicationchange alignment Fearless database changes

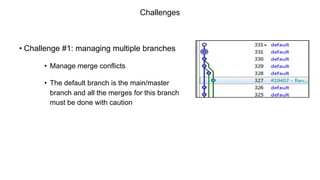

- 28. Challenges • Challenge #1:managing multiple branches • Manage merge conflicts • The default branch is the main/master branch and all the merges for this branch must be done with caution

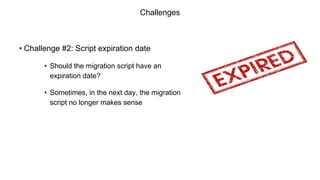

- 29. Challenges • Challenge #2:Script expiration date • Should the migration script have an expiration date? • Sometimes, in the next day, the migration script no longer makes sense

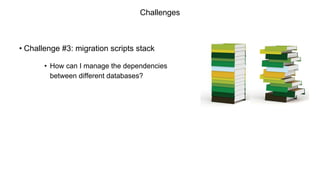

- 30. Challenges • Challenge #3:migration scripts stack • How can I manage the dependencies between different databases?

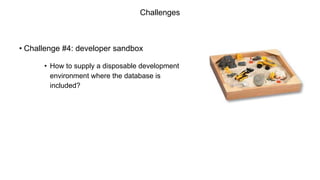

- 31. Challenges • Challenge #4:developer sandbox • How to supply a disposable development environment where the database is included?
- 32.

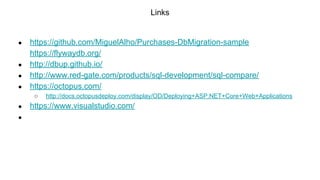

- 33. Links ● https://github.com/MiguelAlho/Purchases-DbMigration-sample https://flywaydb.org/ ● http://dbup.github.io/ ●http://www.red-gate.com/products/sql-development/sql-compare/ ● https://octopus.com/ ○ http://docs.octopusdeploy.com/display/OD/Deploying+ASP.NET+Core+Web+Applications ● https://www.visualstudio.com/ ●
- 34.
- 35. Delivering changes forapplications and databases @EdPiairo https://pt.linkedin.com/in/jesuspiairo eduardopiairo@outlook.com http://www.eduardopiairo.com/ @MytyMyky https://pt.linkedin.com/in/miguelalho-982331 alho@miguelalho.com http://www.miguelalho.pt/
