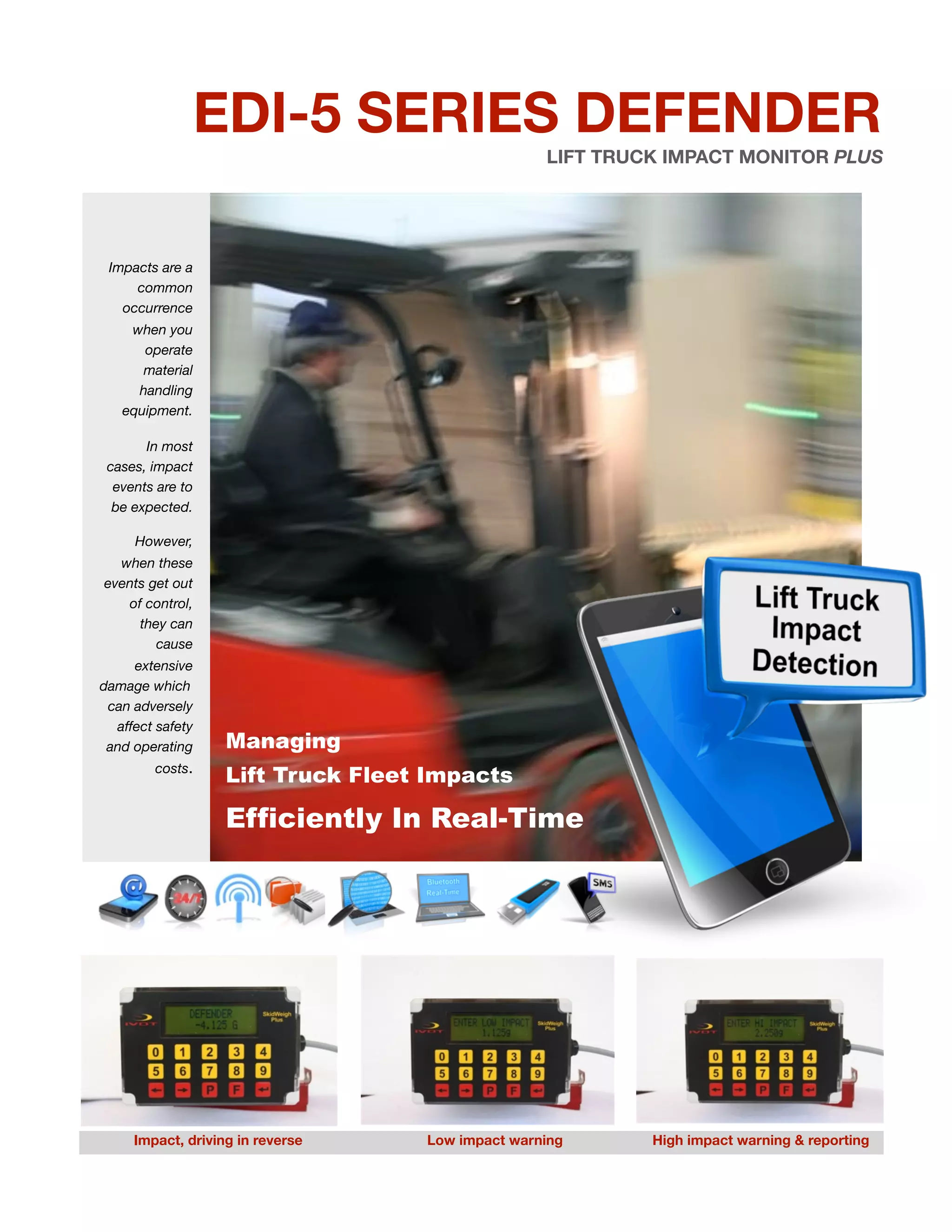

1. LIFT TRUCK IMPACT MONITOR PLUS
Managing
Lift Truck Fleet Impacts
Efficiently In Real-Time
Impacts are a
common
occurrence
when you
operate
material
handling
equipment.
In most
cases, impact
events are to
be expected.
However,
when these
events get out
of control,
they can
cause
extensive
damage which
can adversely
affect safety
and operating
costs.
EDI-5 SERIES DEFENDER
Impact, driving in reverse Low impact warning High impact warning & reporting

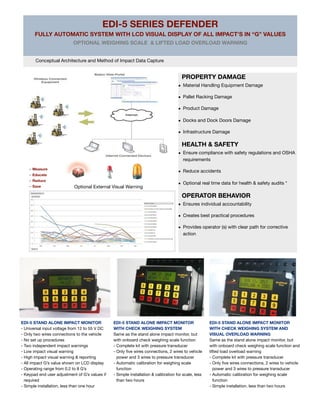

2. EDI-5 STAND ALONE IMPACT MONITOR
- Universal input voltage from 12 to 55 V DC
- Only two wires connections to the vehicle
- No set up procedures
- Two independent impact warnings
- Low impact visual warning
- High impact visual warning & reporting
- All impact G’s value shown on LCD display
- Operating range from 0.2 to 8 G’s
- Keypad end user adjustment of G’s values if
required
- Simple installation, less than one hour
EDI-5 STAND ALONE IMPACT MONITOR
WITH CHECK WEIGHING SYSTEM
Same as the stand alone impact monitor, but
with onboard check weighing scale function
- Complete kit with pressure transducer
- Only five wires connections, 2 wires to vehicle
power and 3 wires to pressure transducer
- Automatic calibration for weighing scale
function
- Simple installation & calibration for scale, less
than two hours
EDI-5 STAND ALONE IMPACT MONITOR
WITH CHECK WEIGHING SYSTEM AND
VISUAL OVERLOAD WARNING
Same as the stand alone impact monitor, but
with onboard check weighing scale function and
lifted load overload warning
- Complete kit with pressure transducer
- Only five wires connections, 2 wires to vehicle
power and 3 wires to pressure transducer
- Automatic calibration for weighing scale
function
- Simple installation, less than two hours
PROPERTY DAMAGE
• Material Handling Equipment Damage
• Pallet Racking Damage
• Product Damage
• Docks and Dock Doors Damage
• Infrastructure Damage
HEALTH & SAFETY
• Ensure compliance with safety regulations and OSHA
requirements
• Reduce accidents
• Optional real time data for health & safety audits *
OPERATOR BEHAVIOR
• Ensures individual accountability
• Creates best practical procedures
• Provides operator (s) with clear path for corrective
action
EDI-5 SERIES DEFENDER
FULLY AUTOMATIC SYSTEM WITH LCD VISUAL DISPLAY OF ALL IMPACT’S IN “G” VALUES
OPTIONAL WEIGHING SCALE & LIFTED LOAD OVERLOAD WARNING
Optional External Visual Warning
Conceptual Architecture and Method of Impact Data Capture
- Measure
- Educate
- Reduce
- Save

3. Standard EDI-5 Series “Defender”. Cellular Modem included with”high impacts event detection” reports for one year.
Optional function available. Please contact IVDT Inc. for your specific configuration.

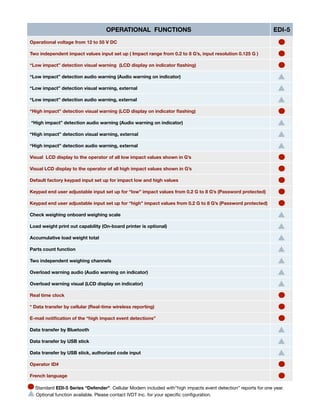

OPERATIONAL FUNCTIONS EDI-5
Operational voltage from 12 to 55 V DC
Two independent impact values input set up ( Impact range from 0.2 to 8 G’s, input resolution 0.125 G )
“Low impact” detection visual warning (LCD display on indicator flashing)
“Low impact” detection audio warning (Audio warning on indicator)
“Low impact” detection visual warning, external
“Low impact” detection audio warning, external
“High impact” detection visual warning (LCD display on indicator flashing)
“High impact” detection audio warning (Audio warning on indicator)
“High impact” detection visual warning, external
“High impact” detection audio warning, external
Visual LCD display to the operator of all low impact values shown in G’s
Visual LCD display to the operator of all high impact values shown in G’s
Default factory keypad input set up for impact low and high values
Keypad end user adjustable input set up for “low” impact values from 0.2 G to 8 G’s (Password protected)
Keypad end user adjustable input set up for “high” impact values from 0.2 G to 8 G’s (Password protected)
Check weighing onboard weighing scale
Load weight print out capability (On-board printer is optional)
Accumulative load weight total
Parts count function
Two independent weighing channels
Overload warning audio (Audio warning on indicator)
Overload warning visual (LCD display on indicator)
Real time clock
* Data transfer by cellular (Real-time wireless reporting)
E-mail notification of the “high impact event detections”
Data transfer by Bluetooth
Data transfer by USB stick
Data transfer by USB stick, authorized code input
Operator ID#
French language

4. The information provided in this brochure contains only general descriptions or performance characteristics, which do not always apply as described in case of
actual use or which may change as a result of further development of the products. This information is merely a technical description of the product. This
information is not meant or intended to be a special guarantee for a particular application or particular durability. An obligation to provide the respective
characteristics shall only exist if expressly agreed in the term of the sales contract. We reserve the right to make changes in availability as well as technical changes
without prior notice.
Your Local Material Handling Dealer
Integrated Visual Data Technology Inc.
3439 Whaleboat Terrace
Oakville, Ontario
Canada
L6L 0A7
Phone: +1 905-469-0985
Fax: +1 905-825-9494
www.skidweight.com
ED1-5 Series Impact Monitor, V1.1-2013

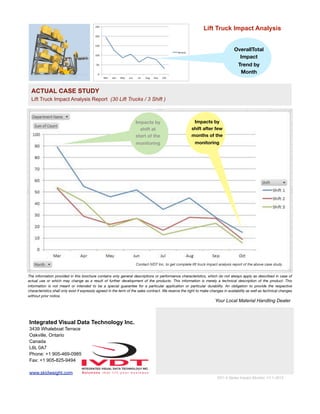

Lift Truck Impact Analysis
