The CubeFreight 200 Series is a lift truck on-board system that automatically captures palletized freight weight, dimensions, and operational events. It provides low-cost optimization of productivity, vehicle utilization, and safety compliance. The universal system works on any lift truck type or capacity and allows managers to determine freight costs in advance. The solution benefits the LTL freight transportation industry by ensuring proper billing and more accurate trailer loading planning. The compact system features a touch screen display, integrated scale, and printer for capturing freight data including weight, pallet size, and timestamps.

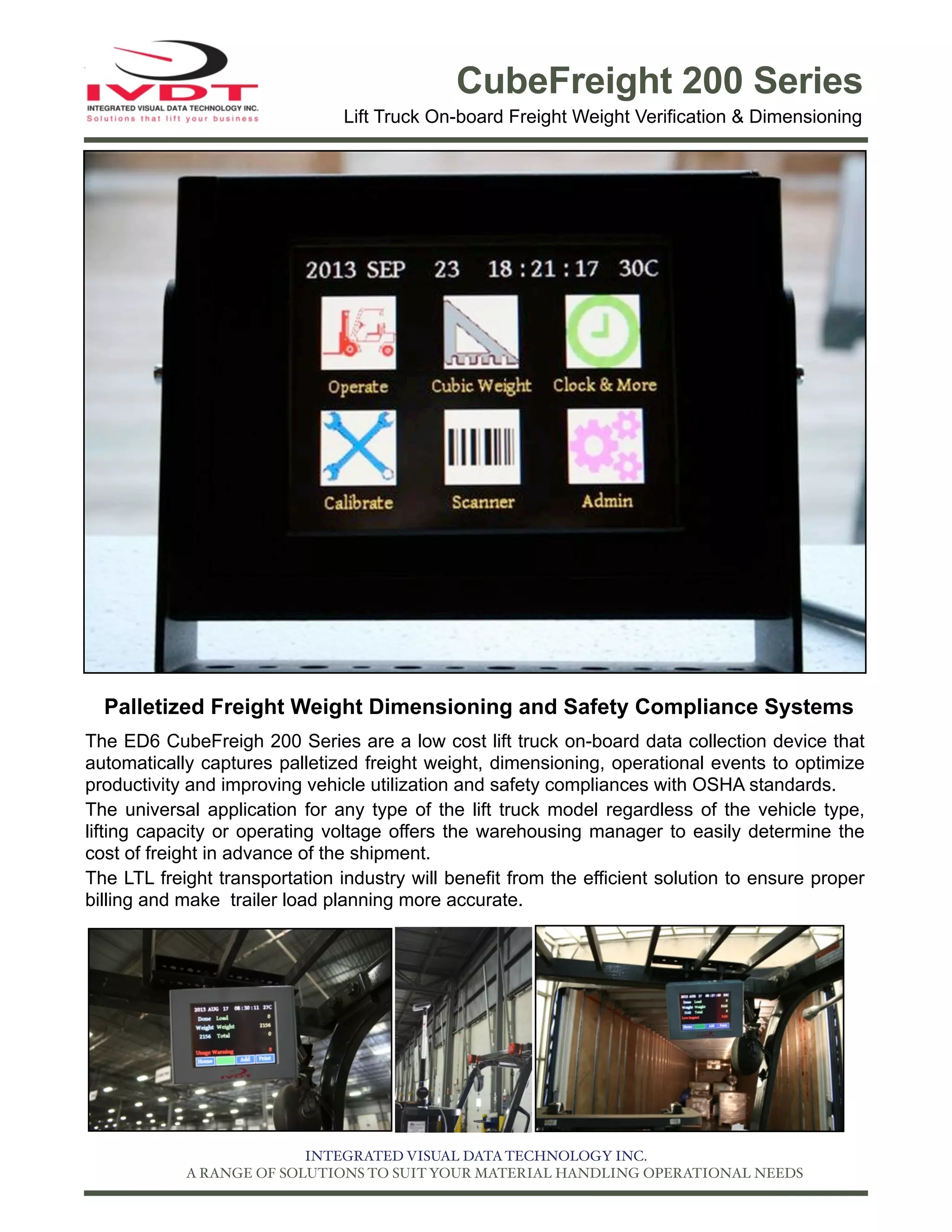

1. CubeFreight 200 Series
Lift Truck On-board Freight Weight Verification & Dimensioning
Palletized Freight Weight Dimensioning and Safety Compliance Systems
The ED6 CubeFreigh 200 Series are a low cost lift truck on-board data collection device that
automatically captures palletized freight weight, dimensioning, operational events to optimize
productivity and improving vehicle utilization and safety compliances with OSHA standards.
The universal application for any type of the lift truck model regardless of the vehicle type,
lifting capacity or operating voltage offers the warehousing manager to easily determine the
cost of freight in advance of the shipment.
The LTL freight transportation industry will benefit from the efficient solution to ensure proper
billing and make trailer load planning more accurate.
INTEGRATED VISUAL DATA TECHNOLOGY INC.
A RANGE OF SOLUTIONS TO SUIT YOUR MATERIAL HANDLING OPERATIONAL NEEDS

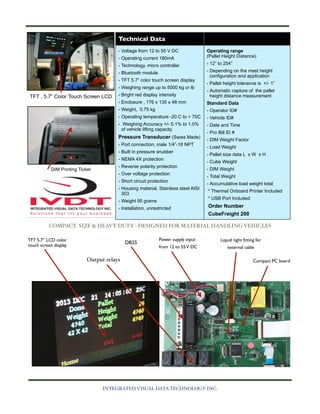

2. Technical Data
- Voltage from 12 to 55 V DC
- Operating current 180mA
- Technology, micro controller
- Bluetooth module
- TFT 5.7” color touch screen display
- Weighing range up to 5000 kg or lb
Operating range
(Pallet Height Distance)
- 12” to 254”
- Depending on the mast height
configuration and application
- Pallet height tolerance is +/- 1”
- Bright red display intensity
- Automatic capture of the pallet
height distance measurement
- Enclosure , 176 x 135 x 48 mm
Standard Data
- Weight, 0.75 kg
- Operator ID#
- Operating temperature -20 C to + 70C
- Vehicle ID#
- Weighing Accuracy +/- 0.1% to 1.0%
of vehicle lifting capacity
TFT , 5.7” Color Touch Screen LCD
- Date and Time
Pressure Transducer (Swiss Made)
- Port connection, male 1/4”-18 NPT
- Built in pressure snubber
- NEMA 4X protection
DIM Printing Ticket
- Reverse polarity protection
- Over voltage protection
- Short circuit protection
- Housing material, Stainless steel AISI
303
- Weight 95 grams
- Installation, unrestricted
- Pro Bill ID #
- DIM Weight Factor
- Load Weight
- Pallet size data L x W x H
- Cube Weight
- DIM Weight
- Total Weight
- Accumulative load weight total
* Thermal Onboard Printer Included
* USB Port Included
Order Number
CubeFreight 200
COMPACT SIZE & HEAVY DUTY - DESIGNED FOR MATERIAL HANDLING VEHICLES
TFT 5.7” LCD color
touch screen display
DB25
Power supply input
Liquid tight fitting for
from 12 to 55 V DC
external cable
Output relays
INTEGRATED VISUAL DATA TECHNOLOGY INC.
Compact PC board
