The CubeFreight 400 Series is a low-cost lift truck onboard system that automatically captures palletized freight weight, dimensions, and operational events. This information can optimize productivity, improve vehicle utilization and safety compliance with OSHA standards. The universal system works with any lift truck type or capacity, and allows managers to determine freight costs in advance. The system will benefit the LTL freight transportation industry by ensuring proper billing and more accurate trailer load planning. The compact device measures between 12-254 inches to determine pallet height and provides a printed ticket with weight, size, and other standard data details.

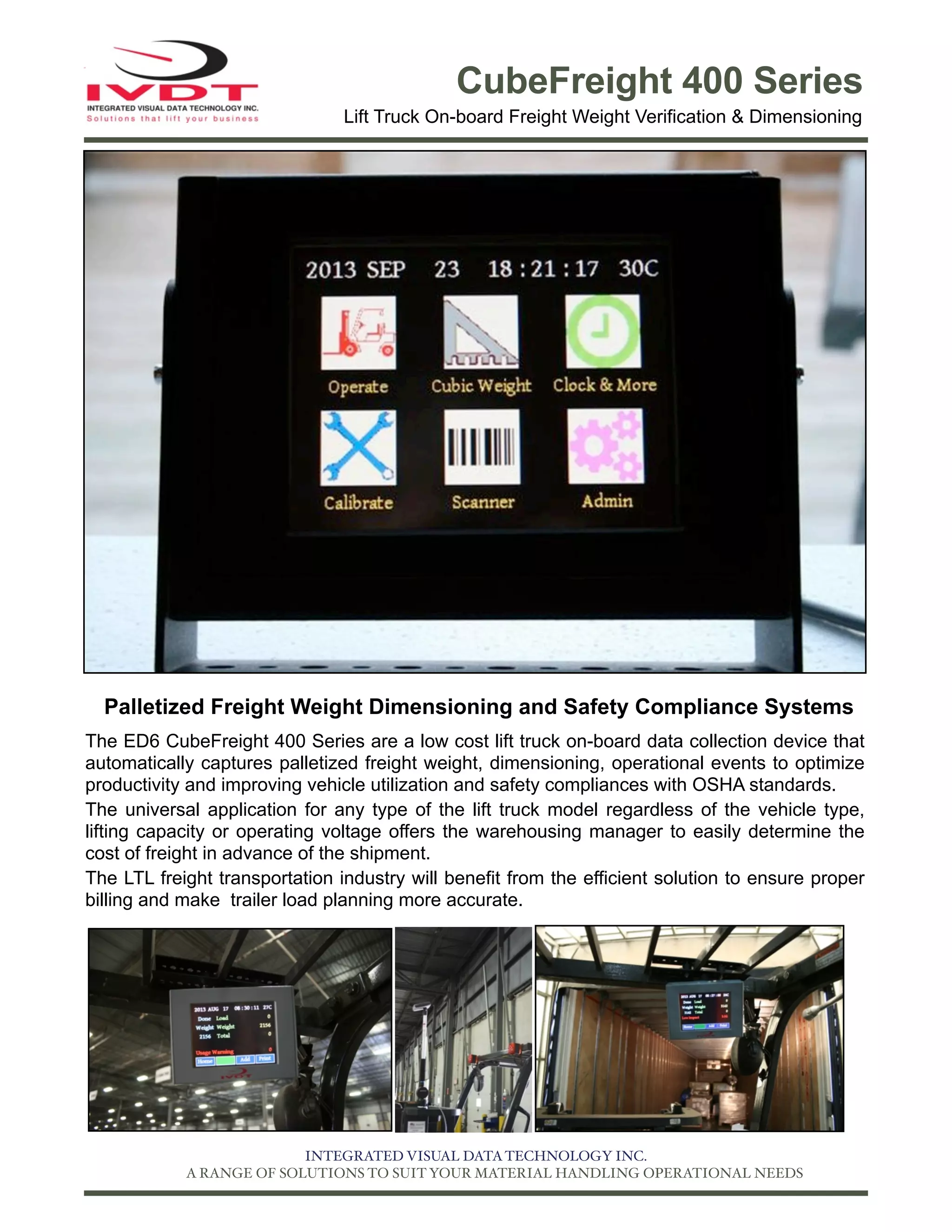

1. CubeFreight 400 Series
Lift Truck On-board Freight Weight Verification & Dimensioning
Palletized Freight Weight Dimensioning and Safety Compliance Systems
The ED6 CubeFreight 400 Series are a low cost lift truck on-board data collection device that
automatically captures palletized freight weight, dimensioning, operational events to optimize
productivity and improving vehicle utilization and safety compliances with OSHA standards.
The universal application for any type of the lift truck model regardless of the vehicle type,
lifting capacity or operating voltage offers the warehousing manager to easily determine the
cost of freight in advance of the shipment.
The LTL freight transportation industry will benefit from the efficient solution to ensure proper
billing and make trailer load planning more accurate.
INTEGRATED VISUAL DATA TECHNOLOGY INC.
A RANGE OF SOLUTIONS TO SUIT YOUR MATERIAL HANDLING OPERATIONAL NEEDS

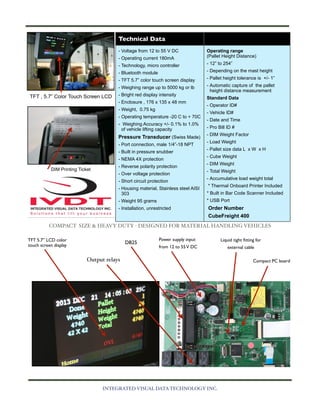

2. Technical Data
- Voltage from 12 to 55 V DC
- Operating current 180mA
- Technology, micro controller
- Bluetooth module
- TFT 5.7” color touch screen display
- Weighing range up to 5000 kg or lb
TFT , 5.7” Color Touch Screen LCD
- Bright red display intensity
- Enclosure , 176 x 135 x 48 mm
- Weight, 0.75 kg
- Operating temperature -20 C to + 70C
- Weighing Accuracy +/- 0.1% to 1.0%
of vehicle lifting capacity
Pressure Transducer (Swiss Made)
- Port connection, male 1/4”-18 NPT
- Built in pressure snubber
- NEMA 4X protection
DIM Printing Ticket
- Reverse polarity protection
- Over voltage protection
- Short circuit protection
Operating range
(Pallet Height Distance)
- 12” to 254”
- Depending on the mast height
- Pallet height tolerance is +/- 1”
- Automatic capture of the pallet
height distance measurement
Standard Data
- Operator ID#
- Vehicle ID#
- Date and Time
- Pro Bill ID #
- DIM Weight Factor
- Load Weight
- Pallet size data L x W x H
- Cube Weight
- DIM Weight
- Total Weight
- Accumulative load weight total
* Thermal Onboard Printer Included
- Housing material, Stainless steel AISI
303
* Built in Bar Code Scanner Included
- Weight 95 grams
* USB Port
- Installation, unrestricted
Order Number
CubeFreight 400
COMPACT SIZE & HEAVY DUTY - DESIGNED FOR MATERIAL HANDLING VEHICLES
TFT 5.7” LCD color
touch screen display
DB25
Power supply input
Liquid tight fitting for
from 12 to 55 V DC
external cable
Output relays
INTEGRATED VISUAL DATA TECHNOLOGY INC.
Compact PC board
