Example of how BPM (Business Process Management) can be used to automate social media monitoring & feedback.This presentation identifies a business problem, common business process challenges, and an approach using BPM to automate a process to improve customer satisfaction. Presentation and demo delivered at RMOUG Training Days February 2014.

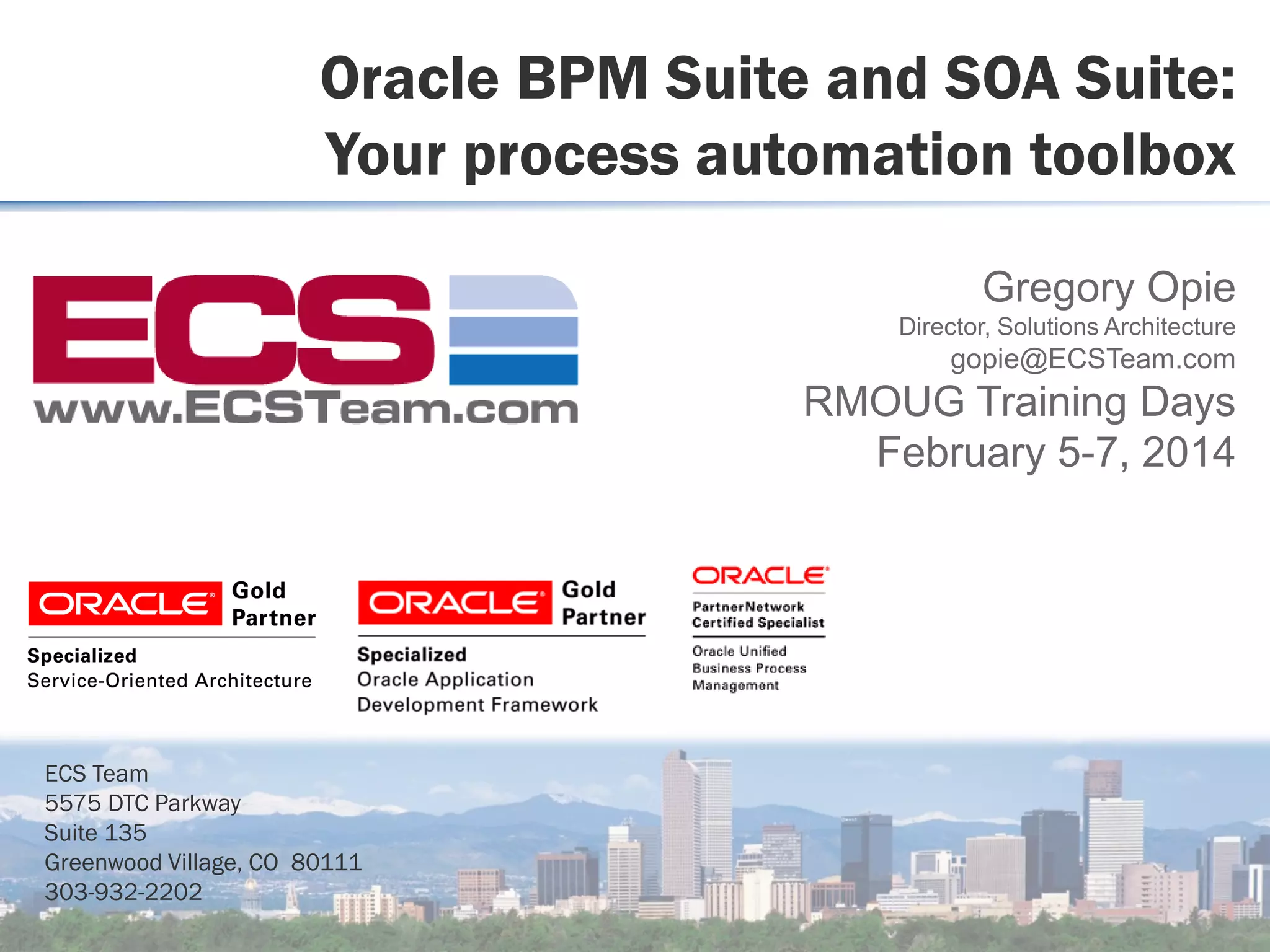

1. Oracle BPM Suite and SOA Suite:
Your process automation toolbox
Gregory Opie
Director, Solutions Architecture
gopie@ECSTeam.com
RMOUG Training Days
February 5-7, 2014
ECS Team
5575 DTC Parkway
Suite 135
Greenwood Village, CO 80111
303-932-2202

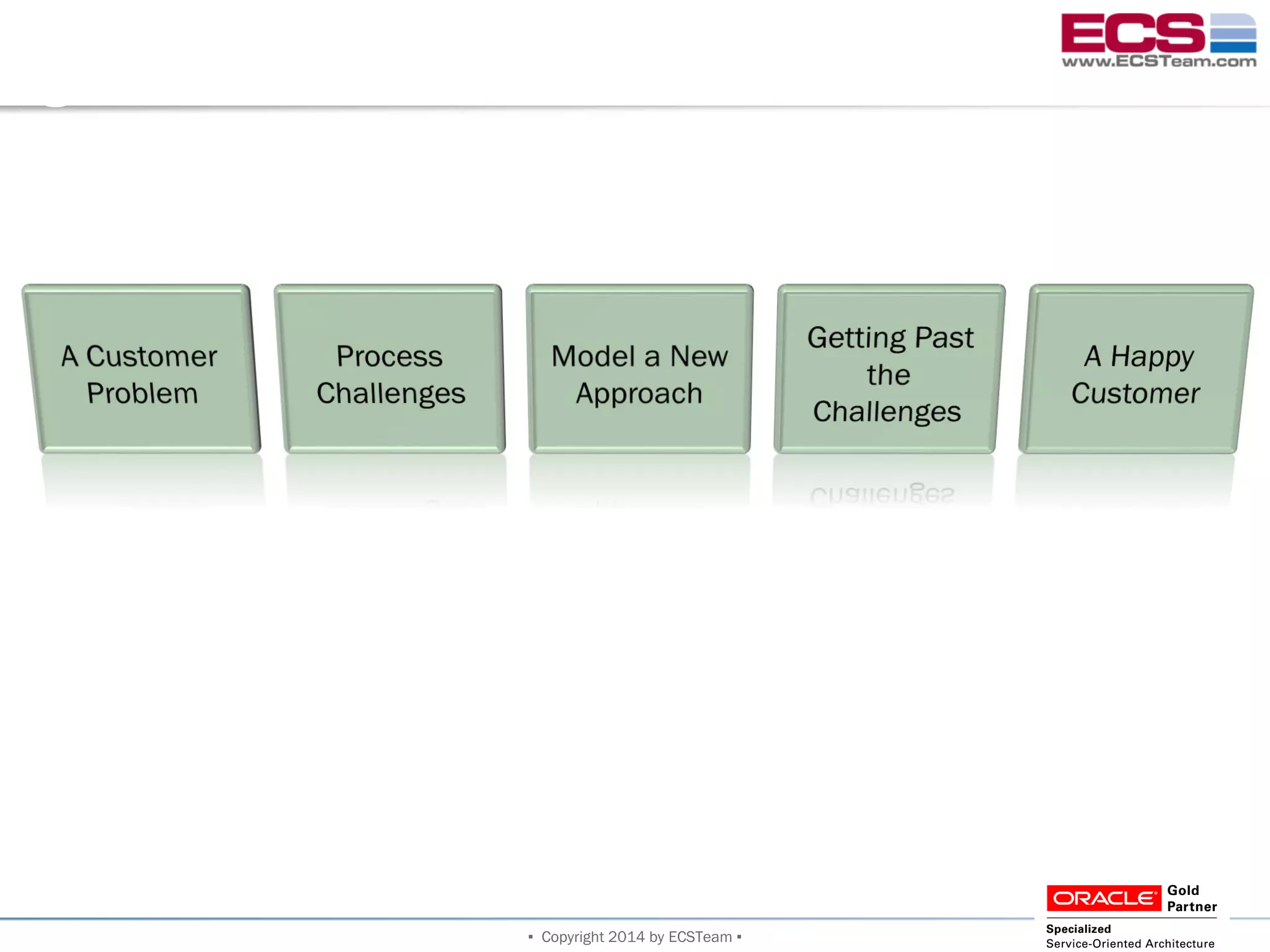

2. Agenda
▪ Copyright 2014 by ECSTeam ▪

3. Process Challenges
▪ Copyright 2014 by ECSTeam ▪

4. A Customer Problem
28 Jan
@eStore #fail Ordered diamond solitaires
for wife bday, received a vacuum. Two
days to panic.
30 Jan
Still shopping. @eStore you have messed
me up.
30 Jan
You’re not alone @eCustomer, @eStore
#fails me all time.
1 Feb
What a nightmare @eStore. 3 trips to the
mall, still not right. Birthday not a happy
one. Do you care?
▪ Copyright 2014 by ECSTeam ▪
4

5. Demo: Audience Feedback
• In our demo, we will use real Twitter feedback
• Three audience volunteers needed to Tweet*
(make it positive please!)
Attending Process Automation with
#OracleBPM and #OracleSOA at #RMOUG
Training Days 2014 by @g_opie
*Include one of the following tags: #RMOUGdemo, #OracleBPM, or @g_opie
▪ Copyright 2014 by ECSTeam ▪
5

6. Model a New Approach
▪ Copyright 2014 by ECSTeam ▪

7. The Challenge:
Business Processes are Complex
Operations
Executive
Management
Sales
Fulfillment
Customer
Service
Temp
Worker
ERP
CRM
!
! !
Order
Mgmt
!
! !
!
! !
▪ Copyright 2014 by ECSTeam ▪
Logistics
?
??
•Unstructured tasks
and communication
(i.e., paper or e-mail)
•Inefficient Working
Environment Spans
Systems
•Inconsistent
Prioritization
•Incomplete or
Inaccurate Data Flow
Between Systems
•Lack of Control Over
System and Business
Events (Exceptions)
•Poor Visibility Into
Process Performance
7

8. Common Business Process Challenges
• Empowerment and inclusion of business users
• People as middleware
•
•
•
•
Work is completed through unstructured, ad-hoc activities
Emails back and forth
Limited accountability
Offline Collaboration
• Poor visibility into processes
• Slow response times
• Continuous improvisation instead of
process improvement and automation
• IT resource constraints and lack of tools
▪ Copyright 2014 by ECSTeam ▪
8

9. BPM Streamlines Processes
Operations
Executive
Management
Sales
Fulfillment
Customer
Service
Contracts
Temp
Worker
?
??
•Automate workflow &
decision making
•Reduce errors and
improve consistency
•Standardize resolution
across geographies
•Leverage existing
systems and data
•Monitor for business
events and initiate
actions
•Real-time visibility and
process control
ERP
CRM
!
! !
Order
Billing
Mgmt
!
! !
!
! !
▪ Copyright 2014 by ECSTeam ▪
Logistics
9

10. Getting Past the Challenges
▪ Copyright 2014 by ECSTeam ▪

11. Model the Flow
• A Sequence Flow is used to show the order that activities will be
performed in a Process
• Three main flow objects:
• Activity: Represents work to be done
• Gateway: Controls flow logic of the process. Used for splitting and merging
paths.
• Event: Supports asynchronous communication with other processes, error
handling, and controlling flow logic
Review
Feedback
X
Compose
Response
▪ Copyright 2014 by ECSTeam ▪
Post
Response
Save to
CRM

12. Connect the Flow Objects
• Connecting objects connect Flow objects
• A Sequence Flow shows the order in which the activities will be
performed.
• A Message Flow shows which messages flow across organizational
boundaries
Review
Feedback
No Action Needed
X
Positive or
Negative
Compose
Response
+
▪ Copyright 2014 by ECSTeam ▪
Post
Response
Save to
CRM

13. Put Tasks in Swimlanes
• Swimlanes group activities based upon organization, roles, and
responsibilities
eStore Cust Service
CSR
Admin
• A Pool represents major participants in a process, typically separating
different organizations
• A lane is used to organize activities within a pool according to function or
role.
Review
Feedback
No Action Needed
X
Positive or
Negative
Compose
Response
+
▪ Copyright 2014 by ECSTeam ▪
Post
Response
Save to
CRM

14. A Happy Customer
▪ Copyright 2014 by ECSTeam ▪

15. Demo: Manage Social Media Feedback
Implement the automated business process with
Oracle BPM Suite and Oracle SOA Suite
▪ Copyright 2014 by ECSTeam ▪

16. A Happy Customer
▪ Copyright 2014 by ECSTeam ▪

17. A Happy Customer
16 min
@eStore #fail Ordered diamond solitaires
for wife bday, received a vacuum. Two
days to panic.
12 min
We are so sorry @eCustomer, please call
cust serv and we will fix the problem
ASAP!
2 min
Wow, @eStore has awesome service –
order fixed in 5 mins; right product coming
overnight. Wife’s gonna love it!
▪ Copyright 2014 by ECSTeam ▪
17

18. Conclusion
• BPM Focuses on the Business Process
and Workflow
• BPM aligns the business and IT
• BPMN provides a standardized modeling
notation
• Oracle BPM Suite + Oracle SOA Suite
make it easy to automate your processes
▪ Copyright 2014 by ECSTeam ▪
