Dynamic memory allocation

Dynamic Memory Allocation
&
Linked Lists
Prepared by: Moniruzzaman_CSE_KU_190231

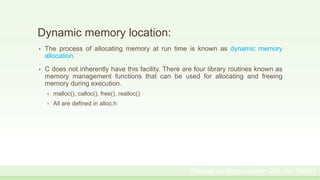

Dynamic memory location:
• The process of allocating memory at run time is known as dynamic memory
allocation.
• C does not inherently have this facility. There are four library routines known as
memory management functions that can be used for allocating and freeing
memory during execution.
• malloc(), calloc(), free(), realloc()
• All are defined in alloc.h

malloc: Allocating a block of memory
• General form
• ptr = (cast-type *) malloc(byte-size);
• ptr is a pointer of type cast-type
• The malloc() returns a pointer (of cast-type) to an area of memory with size byte-size. If
there is not enough space a NULL pointer is returned.
• Example
• x=(int *) malloc(100*sizeof(int));
• cptr=(char *) malloc(10);
• st= (struct *) malloc(sizeof(struct store));
• Storage space allocated dynamically has no name and therefore its contents can be
accessed only through a pointer.

calloc: Allocating multiple block of memory
• While malloc() allocates a single block of storage space, calloc() allocates
multiple blocks of storage, each of the same size, and then set all bytes to zero.
If there is not enough space a NULL pointer is returned.
• General form
• ptr=(cast-type *) calloc(n, element-size);
• we

free( ); Releasing the used space
• With dynamic run-time allocation, we need to release the space when it is not
required
• free(ptr);
• Frees previously allocated space created by malloc() or calloc()

realloc( ); Altering the size of a block
• It is likely that the previous allocated memory is not sufficient and we need
additional space for more elements.
• It is also possible that the memory allocated is much larger than necessary and
we want to reduce it.
• ptr=realloc(ptr, newsize);
• Modifies the size of previously allocated space by malloc() or calloc().

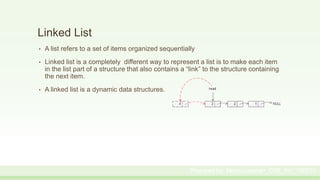

Linked List
• A list refers to a set of items organized sequentially
• Linked list is a completely different way to represent a list is to make each item
in the list part of a structure that also contains a “link” to the structure containing
the next item.
• A linked list is a dynamic data structures.

Difference between array and linked list
Basic It is a consistent set of a fixed number of data
items.
It is an ordered set comprising a variable
number of data items.
Size Specified during declaration. No need to specify; grow and shrink during
execution
Storage
Allocation
Element location is allocated during compile
time.
Element position is assigned during run time.
Order of the
elements
Stored consecutively Stored randomly
Accessing the
element
Direct or randomly accessed, i.e., Specify the
array index or subscript.
Sequentially accessed, i.e., Traverse starting
from the first node in the list by the pointer.
Array Linked List

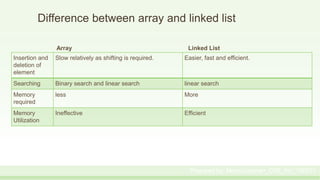

Difference between array and linked list
Insertion and
deletion of
element
Slow relatively as shifting is required. Easier, fast and efficient.
Searching Binary search and linear search linear search
Memory
required
less More
Memory
Utilization
Ineffective Efficient
Array Linked List

Advantages of linked list
• Can grow or shrink in size during the execution of a program
• Does not waste memory space
• Here it is not necessary to specify the number of nodes to be used in the list
• It provides flexibility is allowing the items to be rearranged efficiently
• It is easier to insert or delete items by rearranging the links

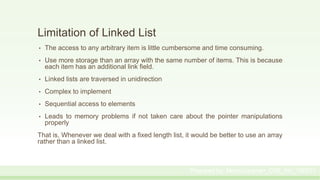

Limitation of Linked List
• The access to any arbitrary item is little cumbersome and time consuming.
• Use more storage than an array with the same number of items. This is because
each item has an additional link field.
• Linked lists are traversed in unidirection
• Complex to implement
• Sequential access to elements
• Leads to memory problems if not taken care about the pointer manipulations
properly
That is, Whenever we deal with a fixed length list, it would be better to use an array
rather than a linked list.

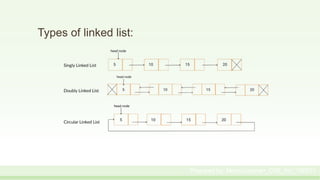

Types of linked list:

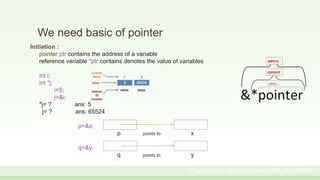

We need basic of pointer
Initiation :
pointer ptr contains the address of a variable
reference variable *ptr contains denotes the value of variables
int i;
int *j;
i=5;
j=&i;
*j= ? ans: 5
j= ? ans: 65524
p=&x;
p points to x
q=&y;
q points to y

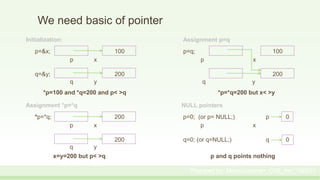

We need basic of pointer
Initialization: Assignment p=q
p=&x; 100 p=q; 100
p x p x
q=&y; 200 200
q y q y
*p=100 and *q=200 and p< >q *p=*q=200 but x< >y
Assignment *p=*q NULL pointers
*p=*q; 200 p=0; (or p= NULL;) p 0
p x p x
200 q=0; (or q=NULL;) q 0
q y
x=y=200 but p< >q p and q points nothing

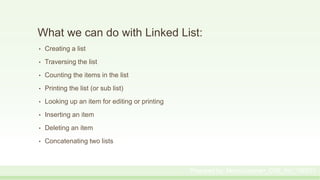

What we can do with Linked List:
• Creating a list
• Traversing the list
• Counting the items in the list
• Printing the list (or sub list)
• Looking up an item for editing or printing
• Inserting an item
• Deleting an item
• Concatenating two lists

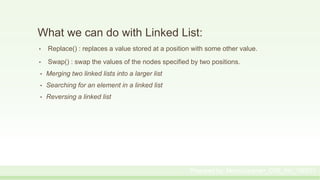

What we can do with Linked List:
• Replace() : replaces a value stored at a position with some other value.
• Swap() : swap the values of the nodes specified by two positions.
• Merging two linked lists into a larger list
• Searching for an element in a linked list
• Reversing a linked list

Program: (creating a linked list) Singly_1
#include<stdio.h>
#include<stdlib.h>
void createList(int);
struct node
{
int data;
struct node *right;
} *start=NULL, *end;
//typedef node x; // node type defined
//x *start=0, *end; //start r head 1
int main( )
{
int x;
printf("Enter the no. of data: ");
createList(x);
return 0;
}

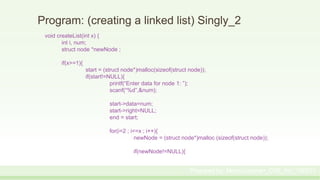

void createList(int x) {
int i, num;
struct node *newNode ;
if(x>=1){
start = (struct node*)malloc(sizeof(struct node));
if(start!=NULL){
printf(“Enter data for node 1: ”);
scanf(“%d”,&num);
start->data=num;
start->right=NULL;
end = start;
for(i=2 ; i<=x ; i++){
newNode = (struct node*)malloc (sizeof(struct node));
if(newNode!=NULL){

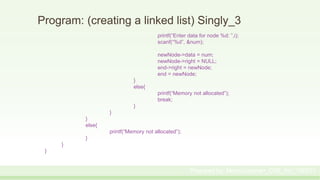

printf(“Enter data for node %d: ”,i);
scanf(“%d”, &num);
newNode->data = num;
newNode->right = NULL;
end->right = newNode;
end = newNode;
}
else{
printf(“Memory not allocated”);
break;
}
}
}
else{
}
}
}

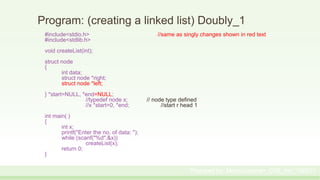

Program: (creating a linked list) Doubly_1
#include<stdio.h> //same as singly changes shown in red text
#include<stdlib.h>
void createList(int);
struct node
{
int data;
struct node *right;
struct node *left;
} *start=NULL, *end=NULL;
//typedef node x; // node type defined
//x *start=0, *end; //start r head 1
int main( )
{
int x;
printf("Enter the no. of data: ");
while (scanf("%d",&x))
createList(x);
return 0;
}

void createList(int x) { //same as singly changes shown in red text
int i, num;
struct node *newNode ;
if(x>=1){
start = (struct node*)malloc(sizeof(struct node));
if(start!=NULL){
printf(“Enter data for node 1: ”);
scanf(“%d”,&num);
start->data=num;
start->right=NULL;
start->left=NULL;
end = start;
for(i=2 ; i<=x ; i++){
newNode = (struct node*)malloc (sizeof(struct node));
if(newNode!=NULL){

printf(“Enter data for node %d: ”,i);
scanf(“%d”, &num);
newNode->data = num;
newNode-> left = end;
newNode->right = NULL;
end->right = newNode;
end = newNode;
}
else{
break;
}
}
}
else{
}
}
}

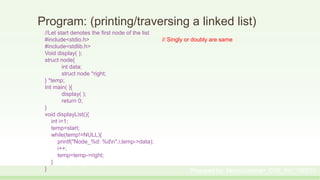

Program: (printing/traversing a linked list)
//Let start denotes the first node of the list
#include<stdio.h> // Singly or doubly are same
#include<stdlib.h>
Void display( );
struct node{
int data;
struct node *right;
} *temp;
Int main( ){
display( );
return 0;
}
void displayList(){
int i=1;
temp=start;
while(temp!=NULL){
printf("Node_%d: %dn",i,temp->data);
i++;
temp=temp->right;
}
} Prepared by: Moniruzzaman_CSE_KU_190231

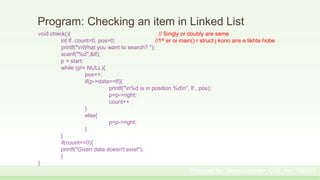

Program: Checking an item in Linked List
void check(){ // Singly or doubly are same
int lf, count=0, pos=0; //1st er oi main() r struct j kono ans e likhte hobe
printf("nWhat you want to search? ");
scanf("%d",&lf);
p = start;
while (p!= NULL){
pos++;
if(p->data==lf){
printf("n%d is in position %dn", lf , pos);
p=p->right;
count++ ;
}
else{
p=p->right;
}
}
if(count==0){
printf("Given data doesn't exist");
}
}

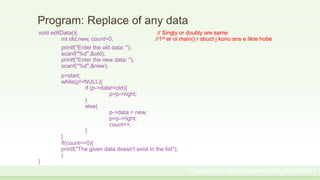

Program: Replace of any data
void editData(){ // Singly or doubly are same
int old,new, count=0; //1st er oi main() r struct j kono ans e likte hobe
printf("Enter the old data: ");
scanf("%d",&old);
printf("Enter the new data: ");
scanf("%d",&new);
p=start;
while(p!=NULL){
if (p->data!=old){
p=p->right;
}
else{
p->data = new;
p=p->right;
count++;
}
}
if(count==0){
printf("The given data doesn't exist in the list");
}
}

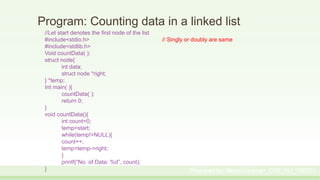

Program: Counting data in a linked list
#include<stdlib.h>
Void countData( );
struct node{
int data;
struct node *right;
} *temp;
Int main( ){
countData( );
return 0;
}
void countData(){
int count=0;
temp=start;
while(temp!=NULL){
count++;
temp=temp->right;
}
printf(“No. of Data: %d”, count);

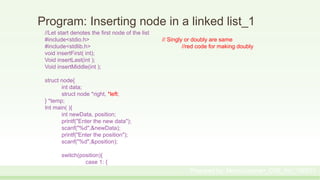

Program: Inserting node in a linked list_1
#include<stdlib.h> //red code for making doubly
void insertFirst( int);
Void insertLast(int );
Void insertMiddle(int );
struct node{
int data;
struct node *right, *left;
} *temp;
Int main( ){
int newData, position;
printf("Enter the new data");
scanf("%d",&newData);
printf("Enter the position");
scanf("%d",&position);
switch(position){
case 1: {

insertFirst(newData);
break; //red code for making doubly
}
case 2: {
insertLast(newData);
break ;
}
case 3: {
insertMiddle(newData);
break;
}
default: exit(0);
}
}
void insertFirst(int x){
struct node *newInsert = (struct node *)malloc(sizeof(struct node));
newInsert->data=x;
newInsert->right=start;
newInsert->left = NULL;
start=newInsert;

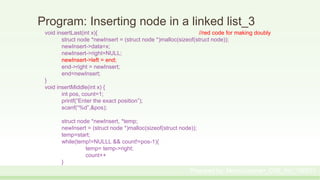

void insertLast(int x){ //red code for making doubly
struct node *newInsert = (struct node *)malloc(sizeof(struct node));
newInsert->data=x;
newInsert->right=NULL;
newInsert->left = end;
end->right = newInsert;
end=newInsert;
}
void insertMiddle(int x) {
int pos, count=1;
printf(“Enter the exact position”);
scanf(“%d”,&pos);
struct node *newInsert, *temp;
newInsert = (struct node *)malloc(sizeof(struct node));
temp=start;
while(temp!=NULLL && count!=pos-1){
temp= temp->right;
count++
}

newInsert->data= x ; //red code for making doubly
newInsert->right= temp->right ;
newInsert->left = temp ;
temp-> right = newInsert ;
newInsert->right->left = newInsert; //newInsert->right ei tuku jeta add korbo
} //tar porer node indicate kore r tar->left
//Diagram:

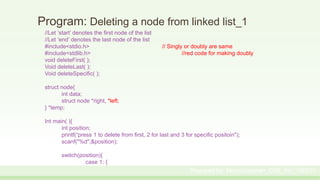

Program: Deleting a node from linked list_1
//Let ‘start’ denotes the first node of the list
//Let ‘end’ denotes the last node of the list
#include<stdlib.h> //red code for making doubly
void deleteFirst( );
Void deleteLast( );
Void deleteSpecific( );
struct node{
int data;
struct node *right, *left;
} *temp;
Int main( ){
int position;
printf(“press 1 to delete from first, 2 for last and 3 for specific positoin");
scanf("%d",&position);
switch(position){
case 1: {

deleteFirst( );
break; //red code for making doubly
}
case 2: {
deleteLast( );
break ;
}
case 3: {
deleteSpecific(newData);
break;
}
default: exit(0);
}
}
void deleteFirst( ){
temp=start;
start= start->right;
start->left = NULL;
free(temp);
}

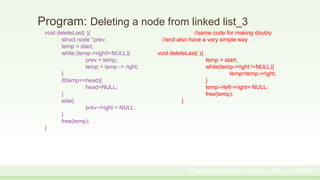

void deleteLast( ){ //same code for making doubly
struct node *prev; //and also have a very simple way
temp = start;
while (temp->right!=NULL){ void deleteLast( ){
prev = temp; temp = start;
temp = temp -> right; while(temp->right !=NULL){
} temp=temp->right;
if(temp==head){ }
head=NULL; temp->left->right= NULL;
} free(temp);
else{ }
prev->right = NULL;
}
free(temp);
}

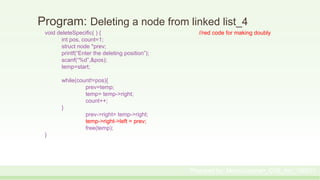

void deleteSpecific( ) { //red code for making doubly
int pos, count=1;
struct node *prev;
printf(“Enter the deleting position”);
scanf(“%d”,&pos);
temp=start;
while(count!=pos){
prev=temp;
temp= temp->right;
count++;
}
prev->right= temp->right;
temp->right->left = prev;
free(temp);
}

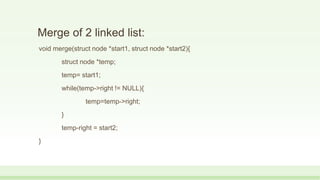

Merge of 2 linked list:
void merge(struct node *start1, struct node *start2){
struct node *temp;
temp= start1;
while(temp->right != NULL){
temp=temp->right;
}
temp-right = start2;
}

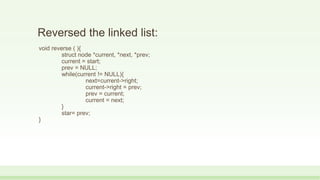

Reversed the linked list:
void reverse ( ){
struct node *current, *next, *prev;
current = start;
prev = NULL;
while(current != NULL){
next=current->right;
current->right = prev;
prev = current;
current = next;
}
star= prev;
}

Dynamic memory allocation

More Related Content

What's hot

Similar to Dynamic memory allocation

Recently uploaded

Dynamic memory allocation
