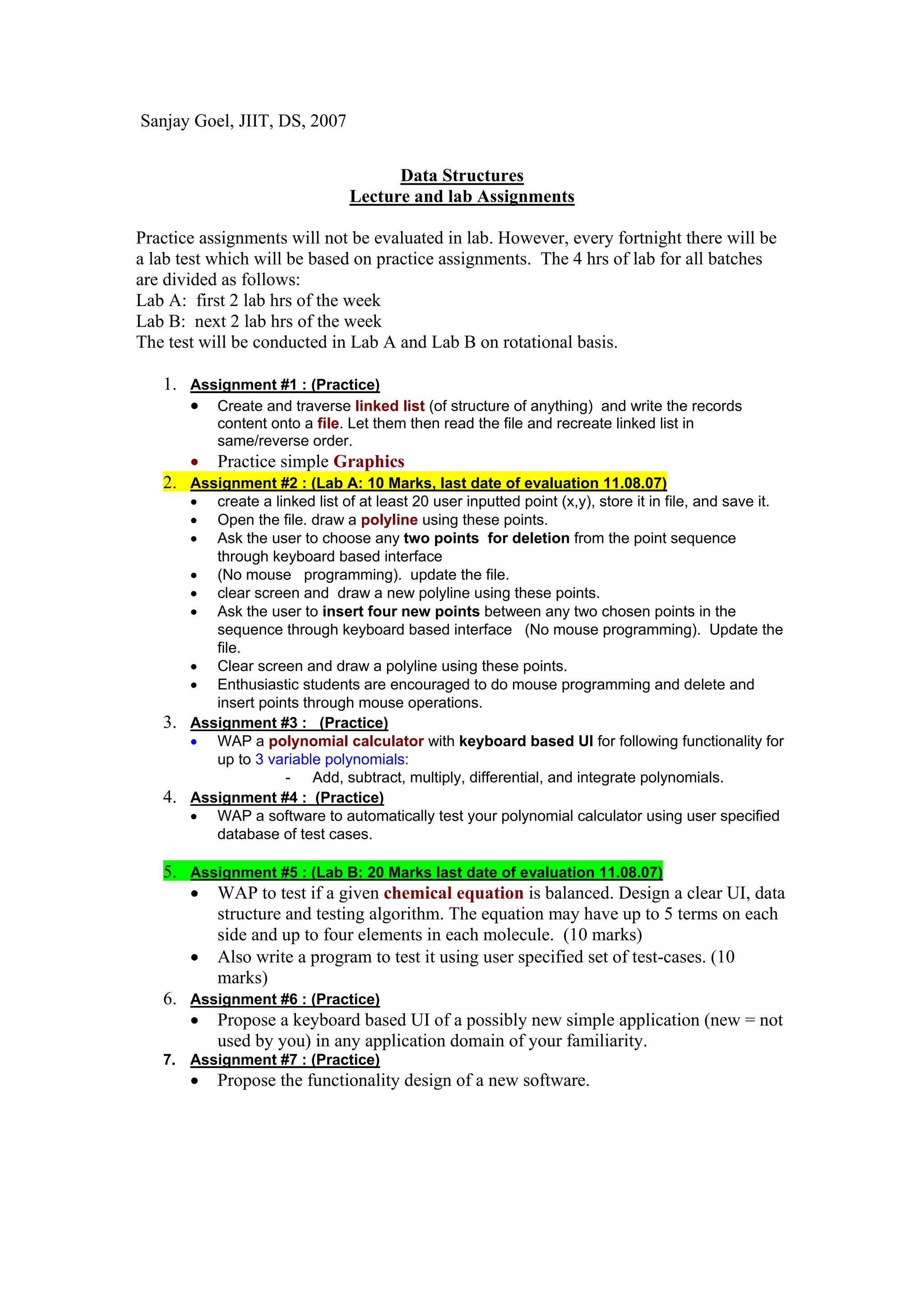

Data Structures 2007

Sanjay Goel, JIIT, DS, 2007

Data Structures
Lecture and lab Assignments

Practice assignments will not be evaluated in lab. However, every fortnight there will be
a lab test which will be based on practice assignments. The 4 hrs of lab for all batches
are divided as follows:
Lab A: first 2 lab hrs of the week
Lab B: next 2 lab hrs of the week
The test will be conducted in Lab A and Lab B on rotational basis.

1. Assignment #1 : (Practice)
• Create and traverse linked list (of structure of anything) and write the records
content onto a file. Let them then read the file and recreate linked list in
same/reverse order.
• Practice simple Graphics
2. Assignment #2 : (Lab A: 10 Marks, last date of evaluation 11.08.07)
• create a linked list of at least 20 user inputted point (x,y), store it in file, and save it.
• Open the file. draw a polyline using these points.
• Ask the user to choose any two points for deletion from the point sequence
through keyboard based interface
• (No mouse programming). update the file.
• clear screen and draw a new polyline using these points.
• Ask the user to insert four new points between any two chosen points in the
sequence through keyboard based interface (No mouse programming). Update the
file.
• Clear screen and draw a polyline using these points.
• Enthusiastic students are encouraged to do mouse programming and delete and
insert points through mouse operations.
• WAP a polynomial calculator with keyboard based UI for following functionality for
up to 3 variable polynomials:
- Add, subtract, multiply, differential, and integrate polynomials.
• WAP a software to automatically test your polynomial calculator using user specified
database of test cases.

5. Assignment #5 : (Lab B: 20 Marks last date of evaluation 11.08.07)
• WAP to test if a given chemical equation is balanced. Design a clear UI, data
structure and testing algorithm. The equation may have up to 5 terms on each
side and up to four elements in each molecule. (10 marks)
• Also write a program to test it using user specified set of test-cases. (10
marks)
• Propose a keyboard based UI of a possibly new simple application (new = not
used by you) in any application domain of your familiarity.
• Propose the functionality design of a new software.

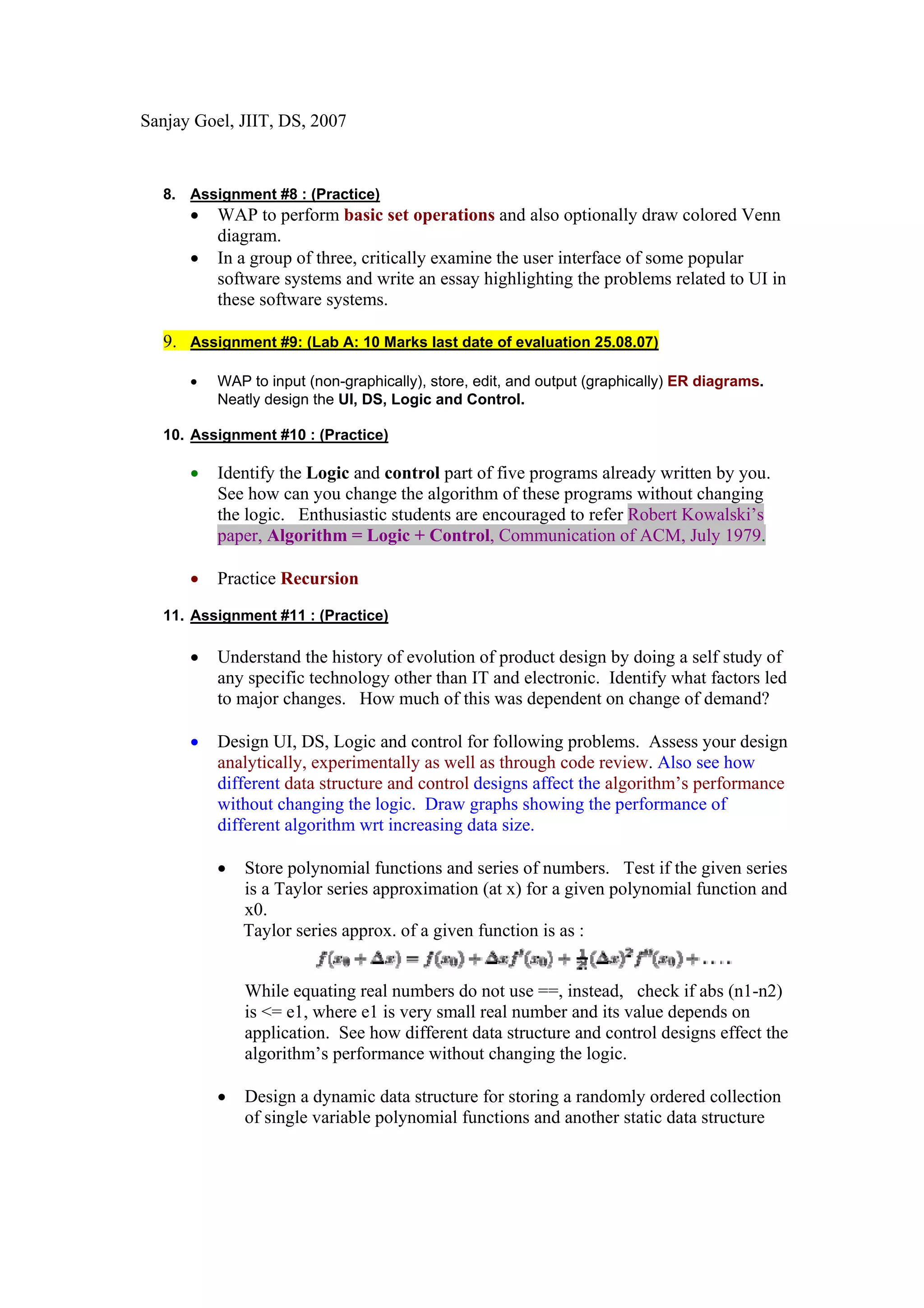

• WAP to perform basic set operations and also optionally draw colored Venn
diagram.
• In a group of three, critically examine the user interface of some popular
software systems and write an essay highlighting the problems related to UI in
these software systems.

9. Assignment #9: (Lab A: 10 Marks last date of evaluation 25.08.07)

• WAP to input (non-graphically), store, edit, and output (graphically) ER diagrams.
Neatly design the UI, DS, Logic and Control.


• Identify the Logic and control part of five programs already written by you.
See how can you change the algorithm of these programs without changing
the logic. Enthusiastic students are encouraged to refer Robert Kowalski’s
paper, Algorithm = Logic + Control, Communication of ACM, July 1979.

• Practice Recursion


• Understand the history of evolution of product design by doing a self study of
any specific technology other than IT and electronic. Identify what factors led
to major changes. How much of this was dependent on change of demand?

• Design UI, DS, Logic and control for following problems. Assess your design
analytically, experimentally as well as through code review. Also see how
different data structure and control designs affect the algorithm’s performance
without changing the logic. Draw graphs showing the performance of
different algorithm wrt increasing data size.

• Store polynomial functions and series of numbers. Test if the given series
is a Taylor series approximation (at x) for a given polynomial function and
x0.
Taylor series approx. of a given function is as :

While equating real numbers do not use ==, instead, check if abs (n1-n2)
is <= e1, where e1 is very small real number and its value depends on
application. See how different data structure and control designs effect the
algorithm’s performance without changing the logic.

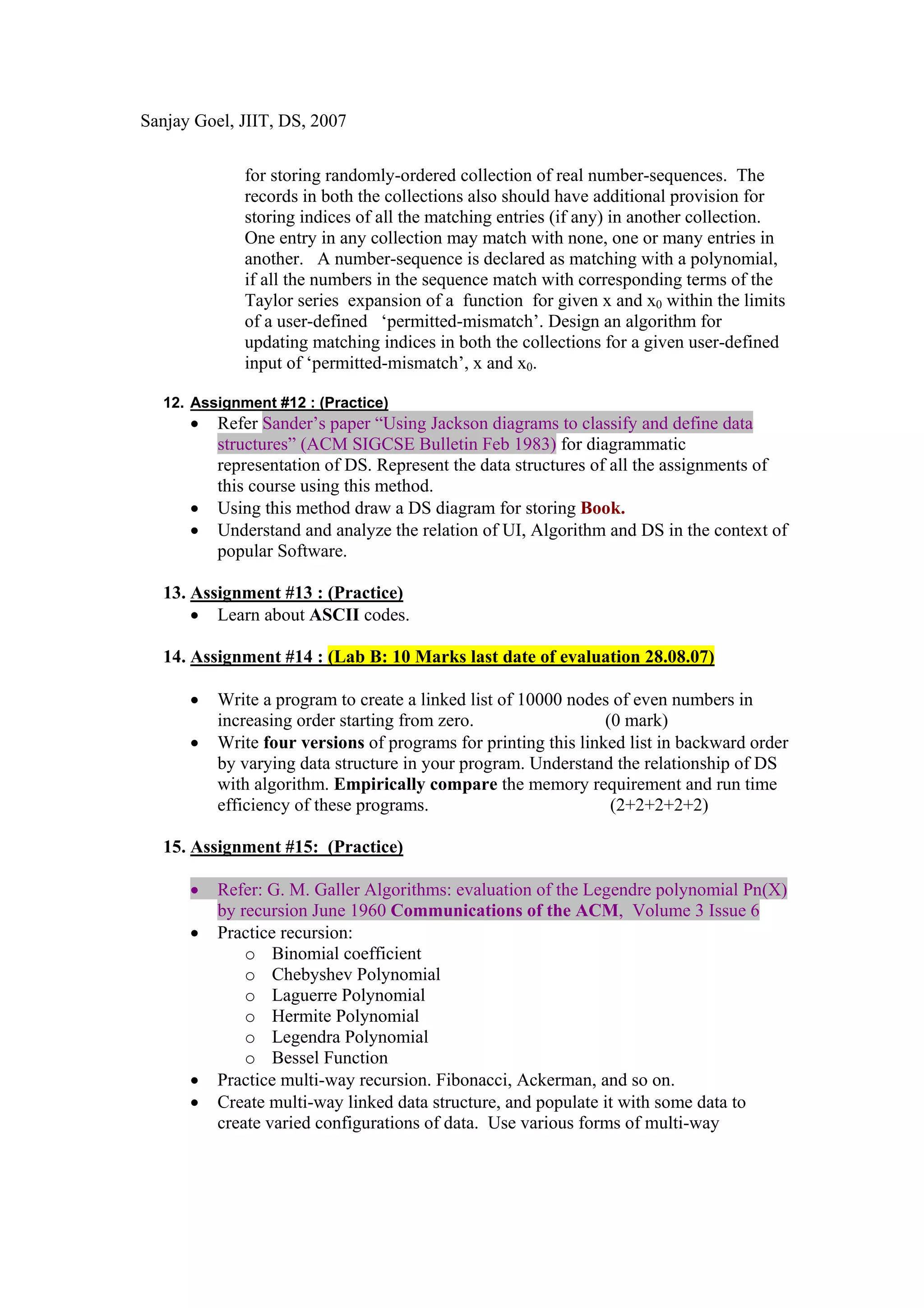

• Design a dynamic data structure for storing a randomly ordered collection
of single variable polynomial functions and another static data structure


for storing randomly-ordered collection of real number-sequences. The
records in both the collections also should have additional provision for
storing indices of all the matching entries (if any) in another collection.
One entry in any collection may match with none, one or many entries in
another. A number-sequence is declared as matching with a polynomial,
if all the numbers in the sequence match with corresponding terms of the
Taylor series expansion of a function for given x and x0 within the limits
of a user-defined ‘permitted-mismatch’. Design an algorithm for
updating matching indices in both the collections for a given user-defined
input of ‘permitted-mismatch’, x and x0.

• Refer Sander’s paper “Using Jackson diagrams to classify and define data
structures” (ACM SIGCSE Bulletin Feb 1983) for diagrammatic
representation of DS. Represent the data structures of all the assignments of
this course using this method.
• Using this method draw a DS diagram for storing Book.
• Understand and analyze the relation of UI, Algorithm and DS in the context of
popular Software.

• Learn about ASCII codes.

14. Assignment #14 : (Lab B: 10 Marks last date of evaluation 28.08.07)

• Write a program to create a linked list of 10000 nodes of even numbers in
increasing order starting from zero. (0 mark)
• Write four versions of programs for printing this linked list in backward order
by varying data structure in your program. Understand the relationship of DS
with algorithm. Empirically compare the memory requirement and run time
efficiency of these programs. (2+2+2+2+2)

15. Assignment #15: (Practice)

• Refer: G. M. Galler Algorithms: evaluation of the Legendre polynomial Pn(X)
by recursion June 1960 Communications of the ACM, Volume 3 Issue 6
• Practice recursion:
o Binomial coefficient
o Chebyshev Polynomial
o Laguerre Polynomial
o Hermite Polynomial
o Legendra Polynomial
o Bessel Function
• Practice multi-way recursion. Fibonacci, Ackerman, and so on.

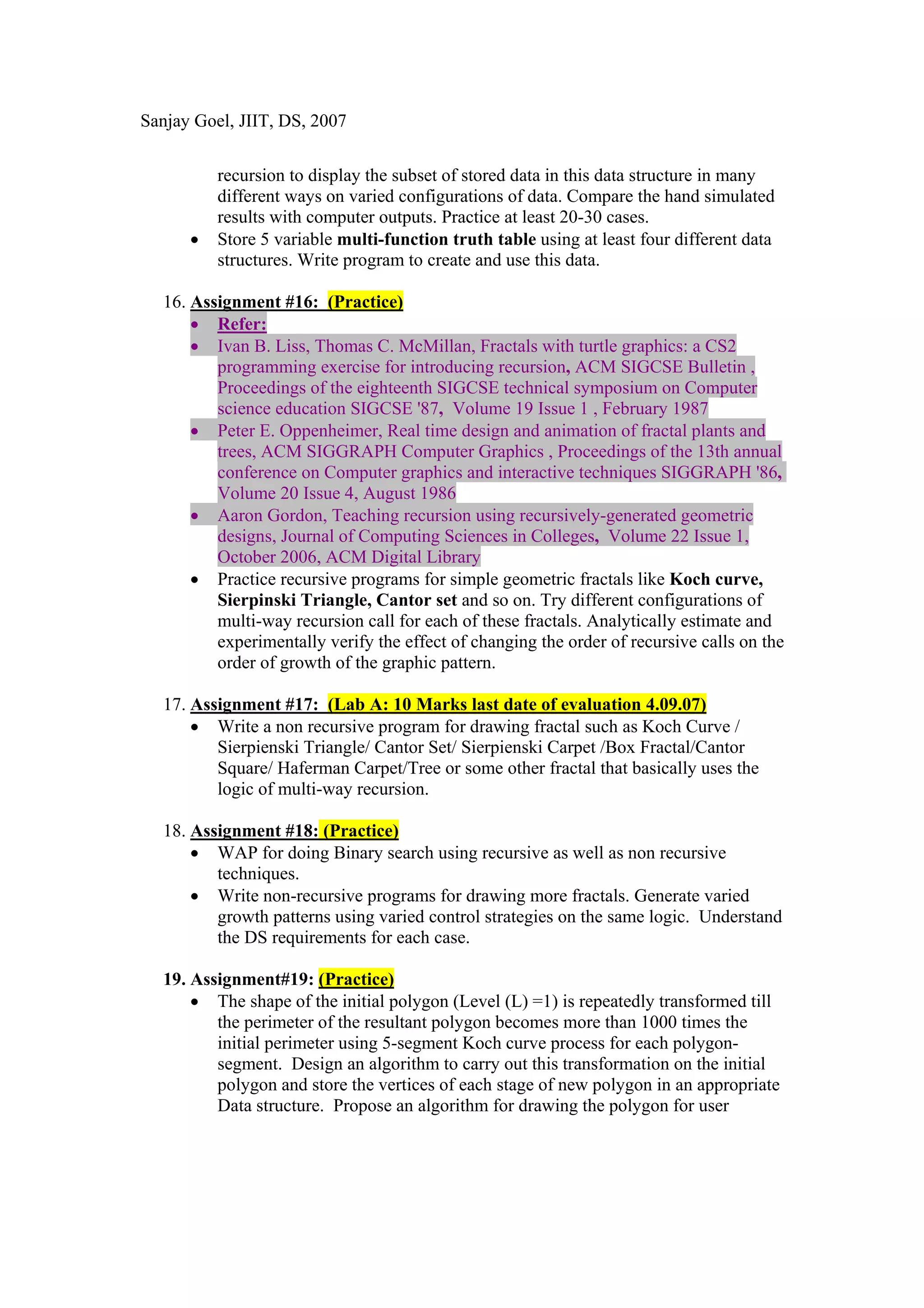

• Create multi-way linked data structure, and populate it with some data to
create varied configurations of data. Use various forms of multi-way


recursion to display the subset of stored data in this data structure in many
different ways on varied configurations of data. Compare the hand simulated
results with computer outputs. Practice at least 20-30 cases.
• Store 5 variable multi-function truth table using at least four different data
structures. Write program to create and use this data.

• Refer:
• Ivan B. Liss, Thomas C. McMillan, Fractals with turtle graphics: a CS2
programming exercise for introducing recursion, ACM SIGCSE Bulletin ,
Proceedings of the eighteenth SIGCSE technical symposium on Computer
science education SIGCSE '87, Volume 19 Issue 1 , February 1987
• Peter E. Oppenheimer, Real time design and animation of fractal plants and
trees, ACM SIGGRAPH Computer Graphics , Proceedings of the 13th annual
conference on Computer graphics and interactive techniques SIGGRAPH '86,
Volume 20 Issue 4, August 1986
• Aaron Gordon, Teaching recursion using recursively-generated geometric
designs, Journal of Computing Sciences in Colleges, Volume 22 Issue 1,
October 2006, ACM Digital Library
• Practice recursive programs for simple geometric fractals like Koch curve,
Sierpinski Triangle, Cantor set and so on. Try different configurations of
multi-way recursion call for each of these fractals. Analytically estimate and
experimentally verify the effect of changing the order of recursive calls on the
order of growth of the graphic pattern.

17. Assignment #17: (Lab A: 10 Marks last date of evaluation 4.09.07)
• Write a non recursive program for drawing fractal such as Koch Curve /
Sierpienski Triangle/ Cantor Set/ Sierpienski Carpet /Box Fractal/Cantor
Square/ Haferman Carpet/Tree or some other fractal that basically uses the
logic of multi-way recursion.

• WAP for doing Binary search using recursive as well as non recursive
techniques.
• Write non-recursive programs for drawing more fractals. Generate varied
growth patterns using varied control strategies on the same logic. Understand
the DS requirements for each case.

19. Assignment#19: (Practice)
• The shape of the initial polygon (Level (L) =1) is repeatedly transformed till
the perimeter of the resultant polygon becomes more than 1000 times the
initial perimeter using 5-segment Koch curve process for each polygon-
segment. Design an algorithm to carry out this transformation on the initial
polygon and store the vertices of each stage of new polygon in an appropriate

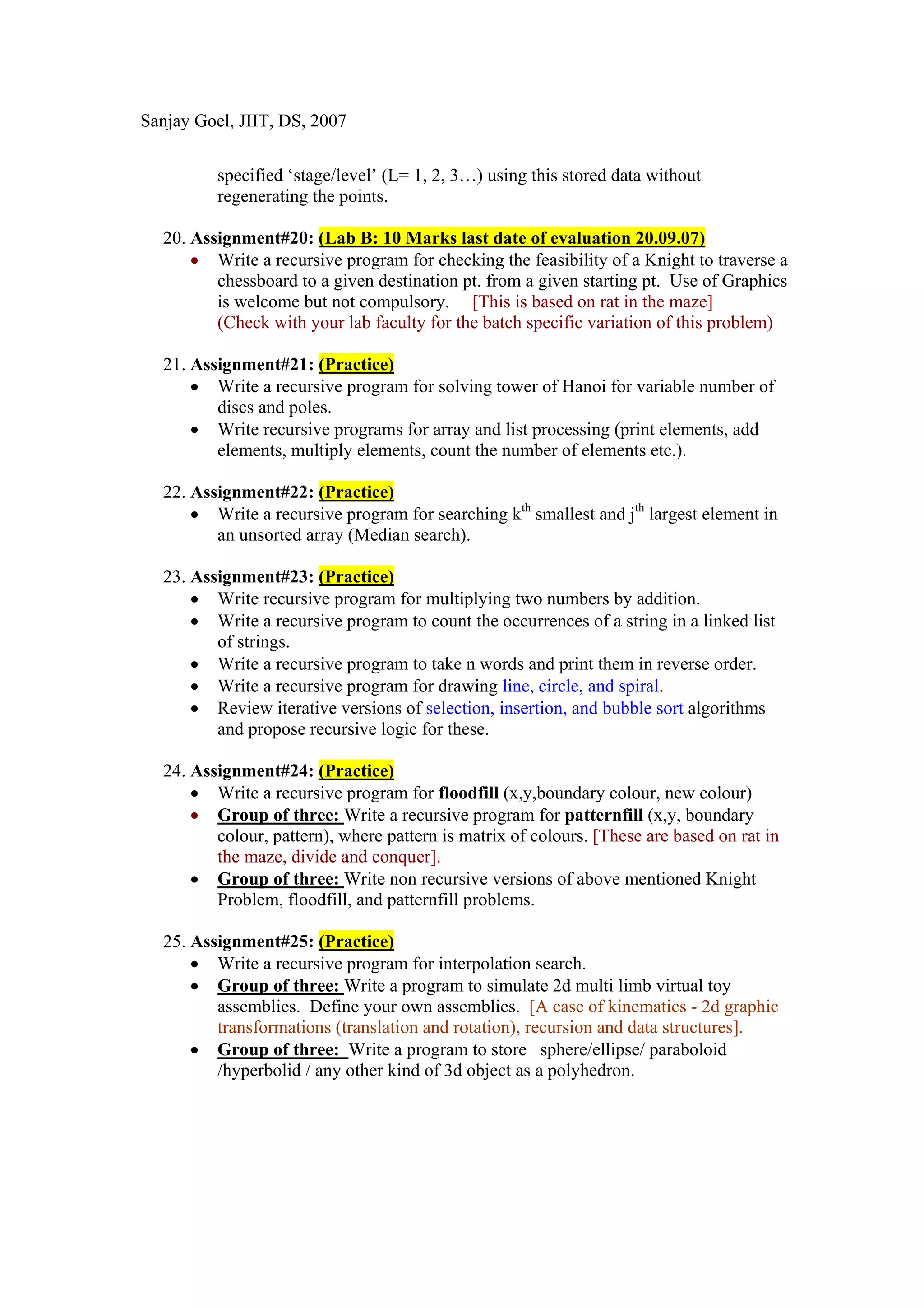

Data structure. Propose an algorithm for drawing the polygon for user


specified ‘stage/level’ (L= 1, 2, 3…) using this stored data without
regenerating the points.

20. Assignment#20: (Lab B: 10 Marks last date of evaluation 20.09.07)
• Write a recursive program for checking the feasibility of a Knight to traverse a
chessboard to a given destination pt. from a given starting pt. Use of Graphics
is welcome but not compulsory. [This is based on rat in the maze]
(Check with your lab faculty for the batch specific variation of this problem)

• Write a recursive program for solving tower of Hanoi for variable number of
discs and poles.
• Write recursive programs for array and list processing (print elements, add
elements, multiply elements, count the number of elements etc.).

• Write a recursive program for searching kth smallest and jth largest element in
an unsorted array (Median search).

• Write recursive program for multiplying two numbers by addition.
• Write a recursive program to count the occurrences of a string in a linked list
of strings.
• Write a recursive program to take n words and print them in reverse order.
• Write a recursive program for drawing line, circle, and spiral.
• Review iterative versions of selection, insertion, and bubble sort algorithms
and propose recursive logic for these.

• Write a recursive program for floodfill (x,y,boundary colour, new colour)
• Group of three: Write a recursive program for patternfill (x,y, boundary
colour, pattern), where pattern is matrix of colours. [These are based on rat in
the maze, divide and conquer].
• Group of three: Write non recursive versions of above mentioned Knight
Problem, floodfill, and patternfill problems.

• Write a recursive program for interpolation search.
• Group of three: Write a program to simulate 2d multi limb virtual toy
assemblies. Define your own assemblies. [A case of kinematics - 2d graphic
transformations (translation and rotation), recursion and data structures].
• Group of three: Write a program to store sphere/ellipse/ paraboloid
/hyperbolid / any other kind of 3d object as a polyhedron.

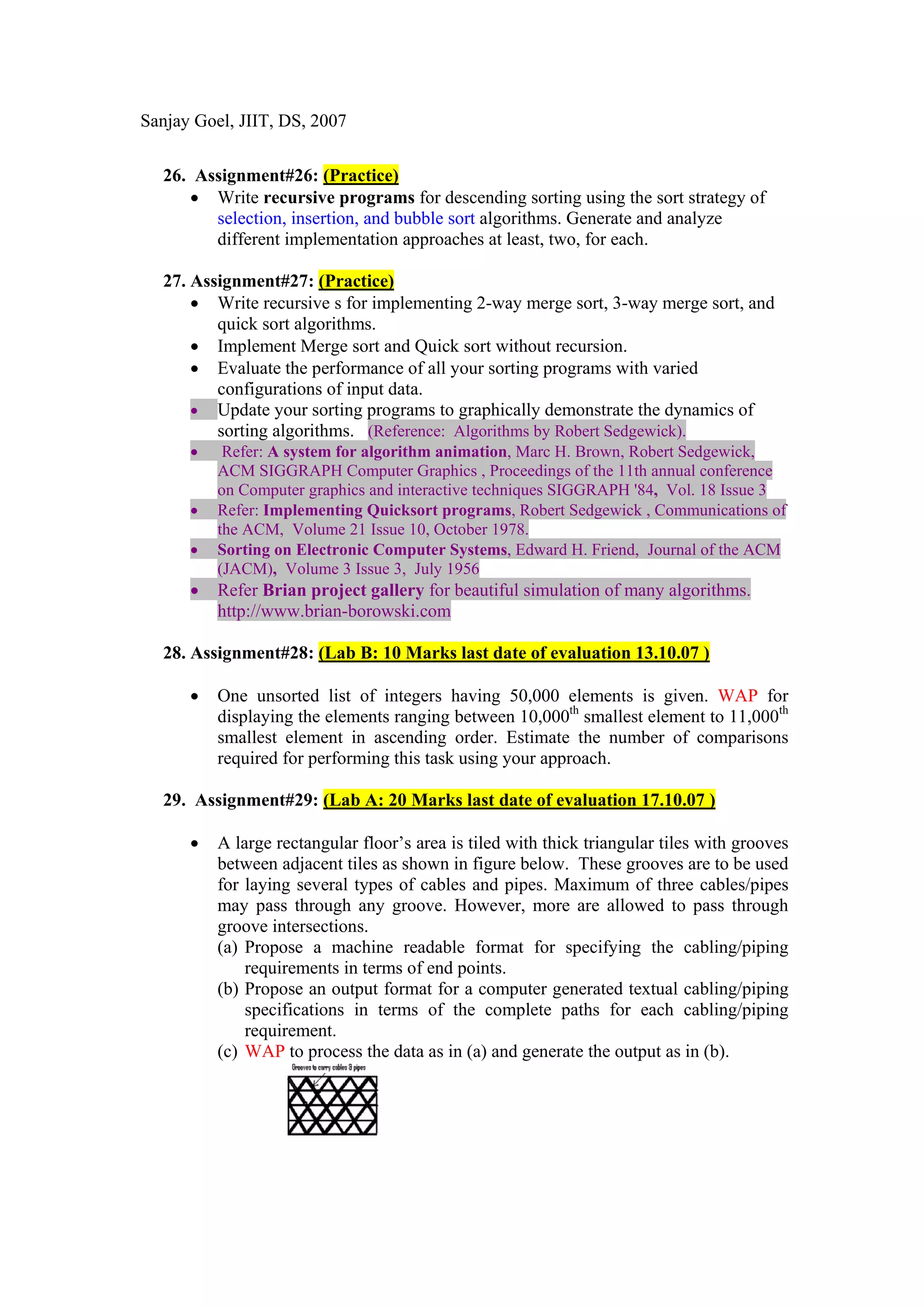

• Write recursive programs for descending sorting using the sort strategy of
selection, insertion, and bubble sort algorithms. Generate and analyze
different implementation approaches at least, two, for each.

• Write recursive s for implementing 2-way merge sort, 3-way merge sort, and
quick sort algorithms.
• Implement Merge sort and Quick sort without recursion.
• Evaluate the performance of all your sorting programs with varied
configurations of input data.
• Update your sorting programs to graphically demonstrate the dynamics of
sorting algorithms. (Reference: Algorithms by Robert Sedgewick).
• Refer: A system for algorithm animation, Marc H. Brown, Robert Sedgewick,
ACM SIGGRAPH Computer Graphics , Proceedings of the 11th annual conference
on Computer graphics and interactive techniques SIGGRAPH '84, Vol. 18 Issue 3
• Refer: Implementing Quicksort programs, Robert Sedgewick , Communications of
the ACM, Volume 21 Issue 10, October 1978.
• Sorting on Electronic Computer Systems, Edward H. Friend, Journal of the ACM
(JACM), Volume 3 Issue 3, July 1956
• Refer Brian project gallery for beautiful simulation of many algorithms.
http://www.brian-borowski.com

28. Assignment#28: (Lab B: 10 Marks last date of evaluation 13.10.07 )

• One unsorted list of integers having 50,000 elements is given. WAP for
displaying the elements ranging between 10,000th smallest element to 11,000th
smallest element in ascending order. Estimate the number of comparisons
required for performing this task using your approach.

29. Assignment#29: (Lab A: 20 Marks last date of evaluation 17.10.07 )

• A large rectangular floor’s area is tiled with thick triangular tiles with grooves
between adjacent tiles as shown in figure below. These grooves are to be used
for laying several types of cables and pipes. Maximum of three cables/pipes
may pass through any groove. However, more are allowed to pass through
groove intersections.
(a) Propose a machine readable format for specifying the cabling/piping
requirements in terms of end points.
(b) Propose an output format for a computer generated textual cabling/piping
specifications in terms of the complete paths for each cabling/piping
requirement.
(c) WAP to process the data as in (a) and generate the output as in (b).

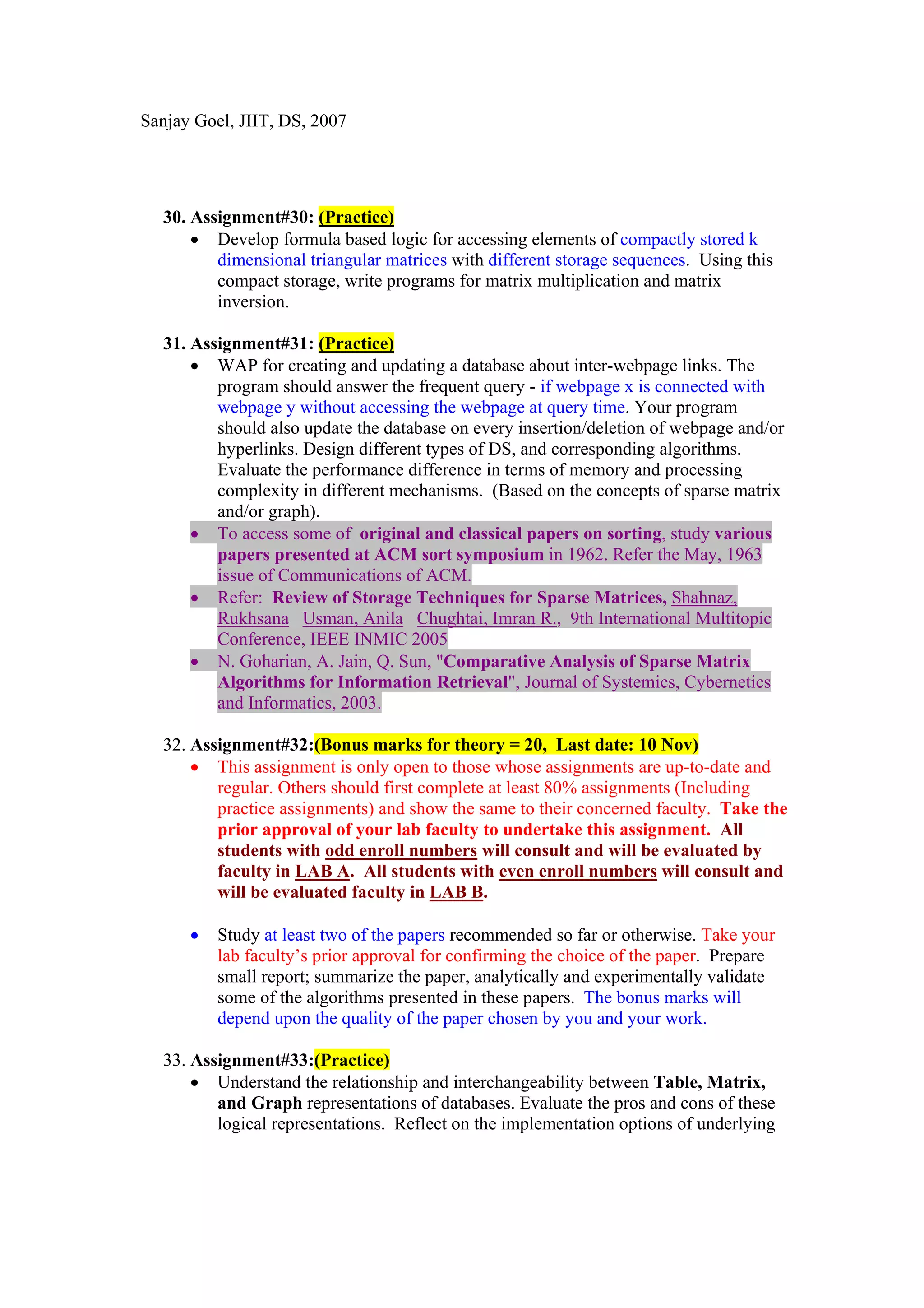

• Develop formula based logic for accessing elements of compactly stored k
dimensional triangular matrices with different storage sequences. Using this
compact storage, write programs for matrix multiplication and matrix
inversion.

• WAP for creating and updating a database about inter-webpage links. The
program should answer the frequent query - if webpage x is connected with
webpage y without accessing the webpage at query time. Your program
should also update the database on every insertion/deletion of webpage and/or
hyperlinks. Design different types of DS, and corresponding algorithms.
Evaluate the performance difference in terms of memory and processing
complexity in different mechanisms. (Based on the concepts of sparse matrix
and/or graph).
• To access some of original and classical papers on sorting, study various
papers presented at ACM sort symposium in 1962. Refer the May, 1963
issue of Communications of ACM.
• Refer: Review of Storage Techniques for Sparse Matrices, Shahnaz,
Rukhsana Usman, Anila Chughtai, Imran R., 9th International Multitopic
Conference, IEEE INMIC 2005
• N. Goharian, A. Jain, Q. Sun, "Comparative Analysis of Sparse Matrix
Algorithms for Information Retrieval", Journal of Systemics, Cybernetics
and Informatics, 2003.

32. Assignment#32:(Bonus marks for theory = 20, Last date: 10 Nov)
• This assignment is only open to those whose assignments are up-to-date and
regular. Others should first complete at least 80% assignments (Including
practice assignments) and show the same to their concerned faculty. Take the
prior approval of your lab faculty to undertake this assignment. All
students with odd enroll numbers will consult and will be evaluated by
faculty in LAB A. All students with even enroll numbers will consult and
will be evaluated faculty in LAB B.

• Study at least two of the papers recommended so far or otherwise. Take your
lab faculty’s prior approval for confirming the choice of the paper. Prepare
small report; summarize the paper, analytically and experimentally validate
some of the algorithms presented in these papers. The bonus marks will
depend upon the quality of the paper chosen by you and your work.

33. Assignment#33:(Practice)
• Understand the relationship and interchangeability between Table, Matrix,
and Graph representations of databases. Evaluate the pros and cons of these
logical representations. Reflect on the implementation options of underlying


data structures for these logical representations. Evaluate the performance of
different options in terms of memory usage and processing efficiency.
Validate your analysis with the help few real life (real life like) examples.

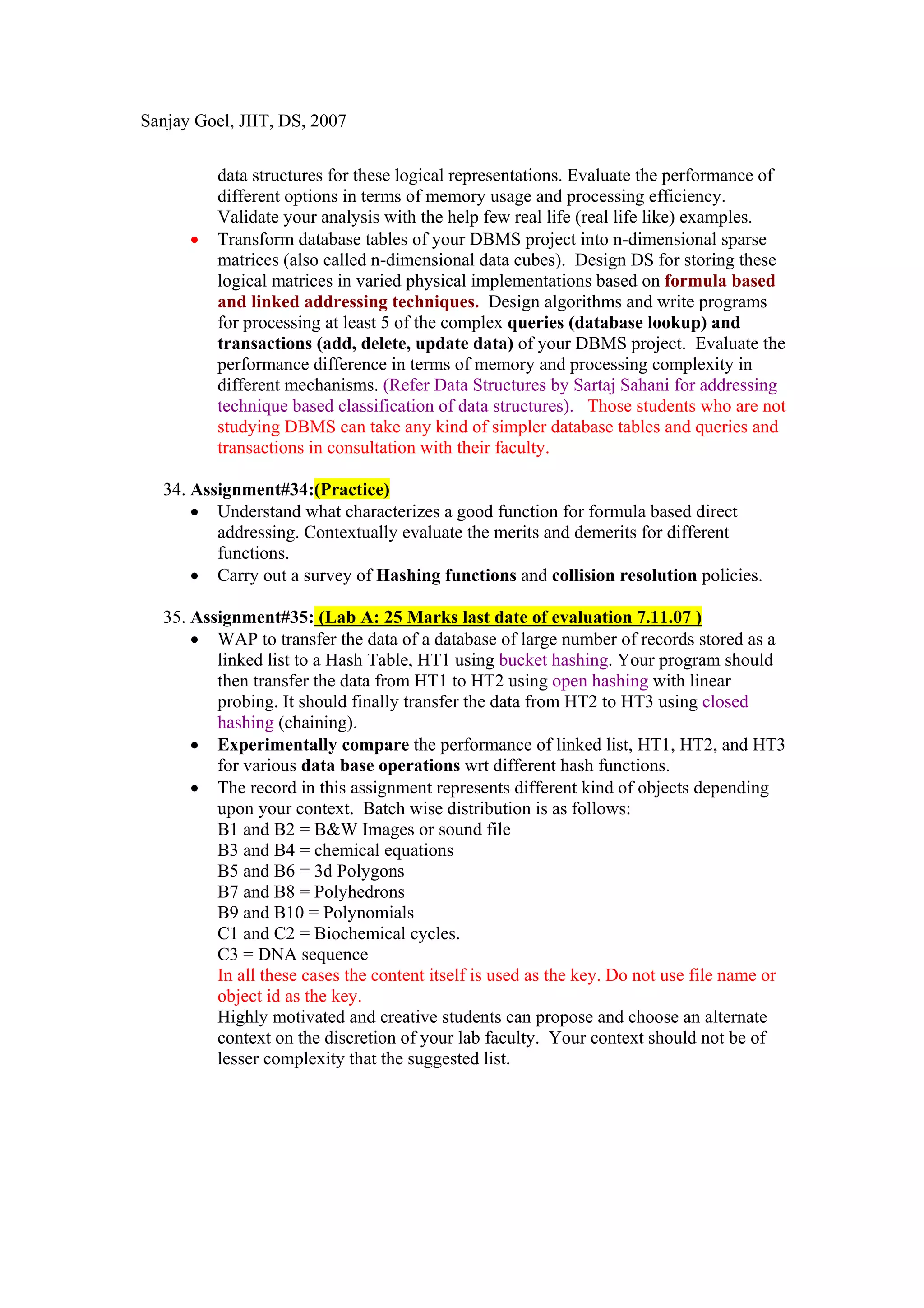

• Transform database tables of your DBMS project into n-dimensional sparse
matrices (also called n-dimensional data cubes). Design DS for storing these
logical matrices in varied physical implementations based on formula based
and linked addressing techniques. Design algorithms and write programs
for processing at least 5 of the complex queries (database lookup) and
transactions (add, delete, update data) of your DBMS project. Evaluate the
performance difference in terms of memory and processing complexity in
different mechanisms. (Refer Data Structures by Sartaj Sahani for addressing
technique based classification of data structures). Those students who are not
studying DBMS can take any kind of simpler database tables and queries and
transactions in consultation with their faculty.

34. Assignment#34:(Practice)
• Understand what characterizes a good function for formula based direct
addressing. Contextually evaluate the merits and demerits for different
functions.
• Carry out a survey of Hashing functions and collision resolution policies.

35. Assignment#35: (Lab A: 25 Marks last date of evaluation 7.11.07 )
• WAP to transfer the data of a database of large number of records stored as a
linked list to a Hash Table, HT1 using bucket hashing. Your program should
then transfer the data from HT1 to HT2 using open hashing with linear
probing. It should finally transfer the data from HT2 to HT3 using closed
hashing (chaining).
• Experimentally compare the performance of linked list, HT1, HT2, and HT3
for various data base operations wrt different hash functions.
• The record in this assignment represents different kind of objects depending
upon your context. Batch wise distribution is as follows:
B1 and B2 = B&W Images or sound file
B3 and B4 = chemical equations
B5 and B6 = 3d Polygons
B7 and B8 = Polyhedrons
B9 and B10 = Polynomials
C1 and C2 = Biochemical cycles.
C3 = DNA sequence
In all these cases the content itself is used as the key. Do not use file name or
object id as the key.
Highly motivated and creative students can propose and choose an alternate
context on the discretion of your lab faculty. Your context should not be of
lesser complexity that the suggested list.

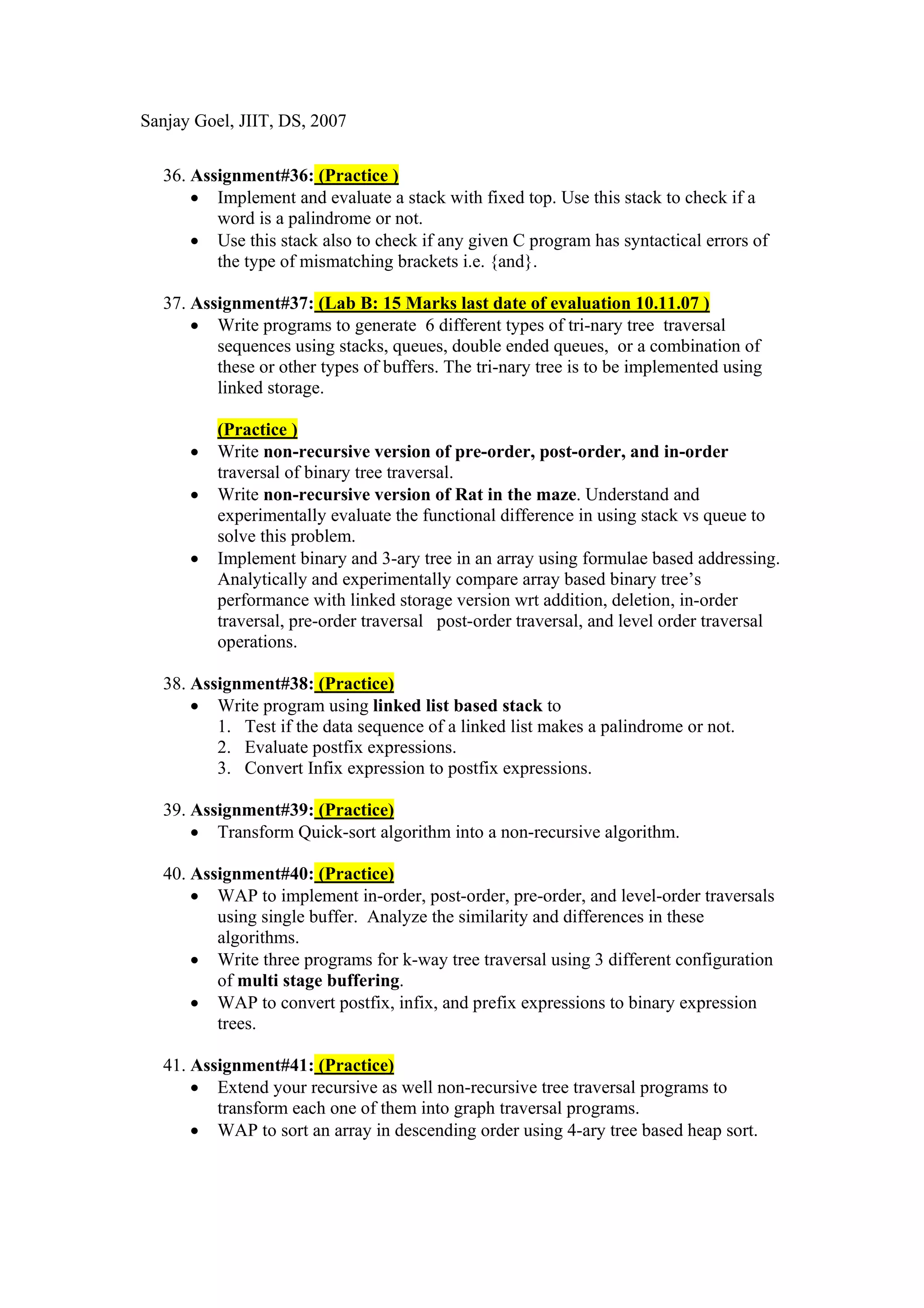

36. Assignment#36: (Practice )
• Implement and evaluate a stack with fixed top. Use this stack to check if a
word is a palindrome or not.
• Use this stack also to check if any given C program has syntactical errors of
the type of mismatching brackets i.e. {and}.

37. Assignment#37: (Lab B: 15 Marks last date of evaluation 10.11.07 )
• Write programs to generate 6 different types of tri-nary tree traversal
sequences using stacks, queues, double ended queues, or a combination of
these or other types of buffers. The tri-nary tree is to be implemented using
linked storage.

(Practice )
• Write non-recursive version of pre-order, post-order, and in-order
traversal of binary tree traversal.
• Write non-recursive version of Rat in the maze. Understand and
experimentally evaluate the functional difference in using stack vs queue to
solve this problem.
• Implement binary and 3-ary tree in an array using formulae based addressing.
Analytically and experimentally compare array based binary tree’s
performance with linked storage version wrt addition, deletion, in-order
traversal, pre-order traversal post-order traversal, and level order traversal
operations.

• Write program using linked list based stack to
1. Test if the data sequence of a linked list makes a palindrome or not.
2. Evaluate postfix expressions.
3. Convert Infix expression to postfix expressions.

• Transform Quick-sort algorithm into a non-recursive algorithm.

• WAP to implement in-order, post-order, pre-order, and level-order traversals
using single buffer. Analyze the similarity and differences in these
algorithms.
• Write three programs for k-way tree traversal using 3 different configuration
of multi stage buffering.
• WAP to convert postfix, infix, and prefix expressions to binary expression
trees.

• Extend your recursive as well non-recursive tree traversal programs to
transform each one of them into graph traversal programs.
• WAP to sort an array in descending order using 4-ary tree based heap sort.

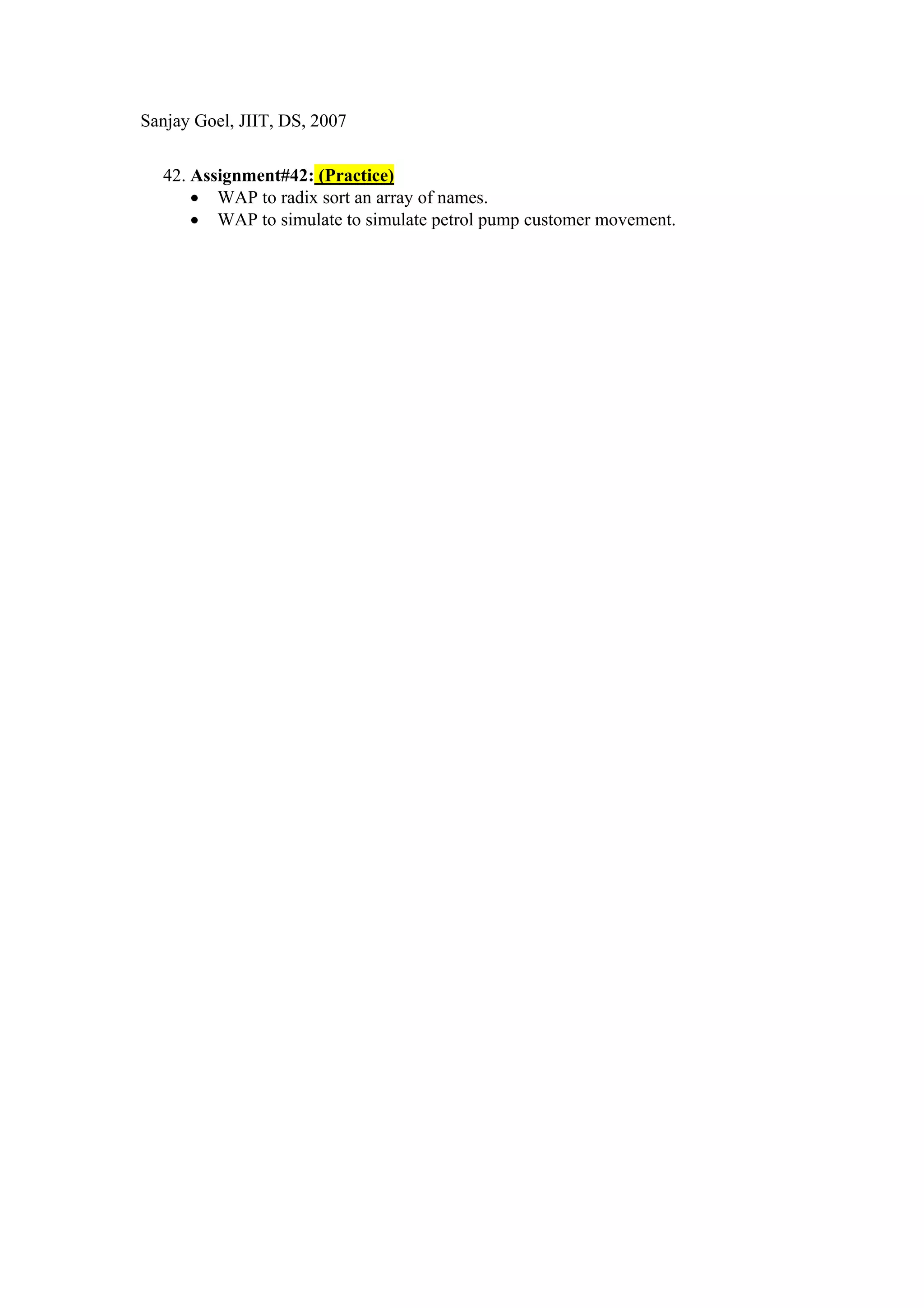

• WAP to radix sort an array of names.
• WAP to simulate to simulate petrol pump customer movement.

Data Structures 2007

More Related Content

Viewers also liked

Similar to Data Structures 2007

More from Sanjay Goel

Recently uploaded

Data Structures 2007
