The document provides an overview of key concepts in Apache Maven, a build automation tool. It discusses that Maven uses conventions over configuration, relies on a pom.xml file to define a project, supports multi-module projects, and executes builds through a hierarchy of lifecycles, phases, plugins, and goals. It also describes common Maven concepts like dependencies, repositories, profiles, and plugins.

1. Maven Nutshell
The Main Concepts
Valerio Capozio 1 of 14

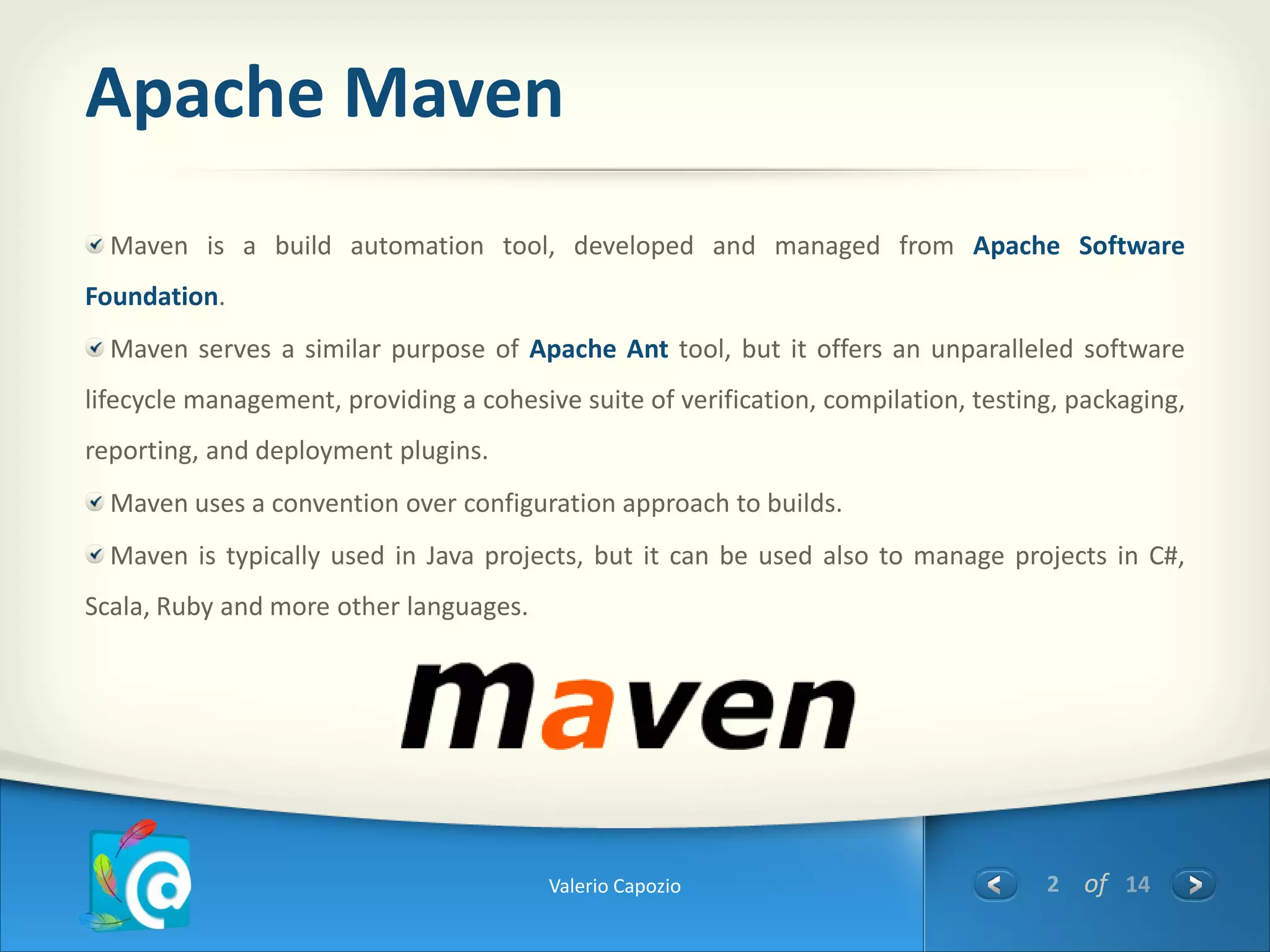

2. Apache Maven
Maven is a build automation tool, developed and managed from Apache Software
Foundation.
Maven serves a similar purpose of Apache Ant tool, but it offers an unparalleled software
lifecycle management, providing a cohesive suite of verification, compilation, testing, packaging,
reporting, and deployment plugins.
Maven uses a convention over configuration approach to builds.
Maven is typically used in Java projects, but it can be used also to manage projects in C#,
Scala, Ruby and more other languages.
Valerio Capozio 2 of 14

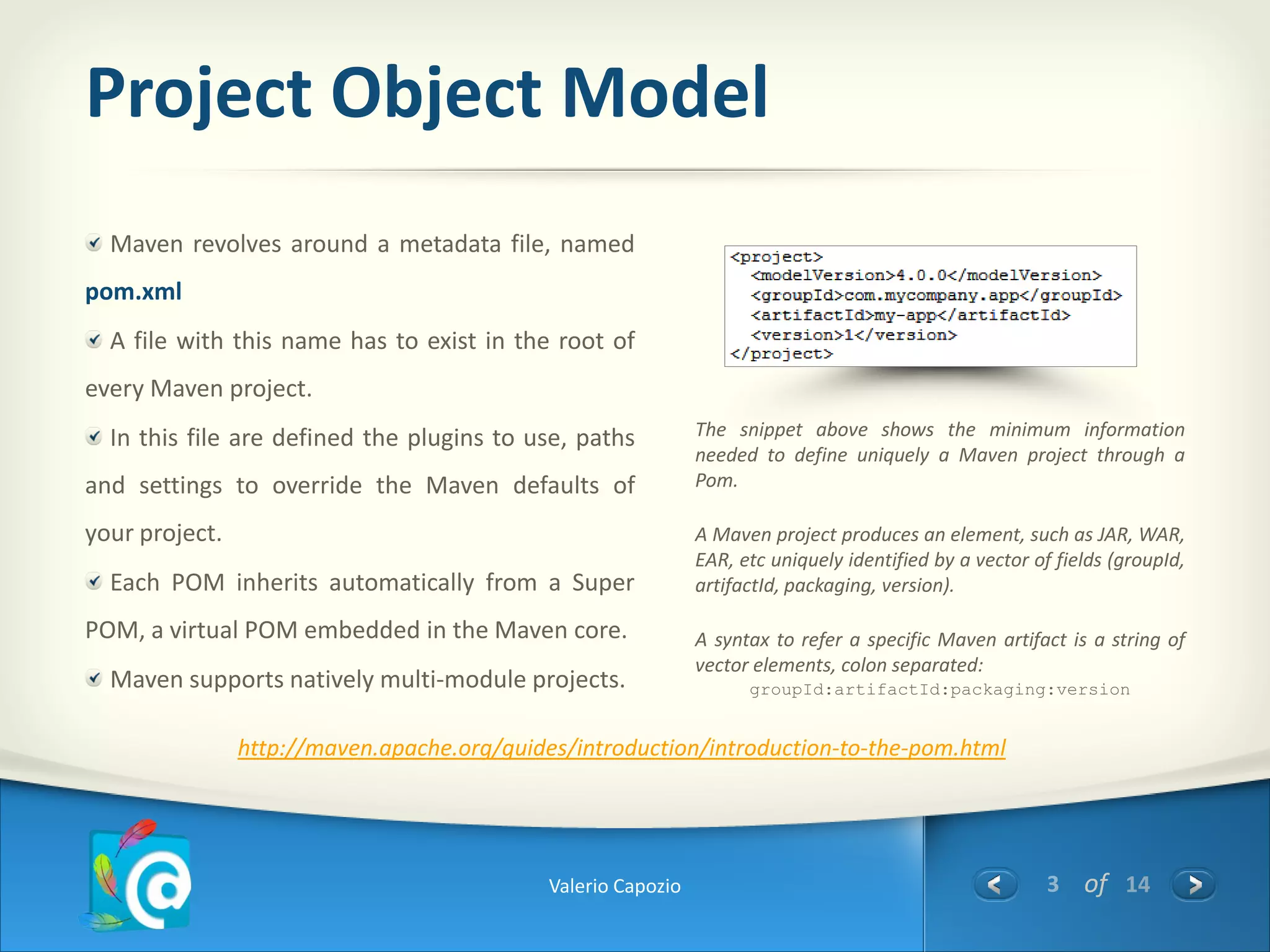

3. Project Object Model
Maven revolves around a metadata file, named
pom.xml
A file with this name has to exist in the root of
every Maven project.
In this file are defined the plugins to use, paths The snippet above shows the minimum information
needed to define uniquely a Maven project through a
and settings to override the Maven defaults of Pom.
your project. A Maven project produces an element, such as JAR, WAR,
EAR, etc uniquely identified by a vector of fields (groupId,
Each POM inherits automatically from a Super artifactId, packaging, version).
POM, a virtual POM embedded in the Maven core. A syntax to refer a specific Maven artifact is a string of
vector elements, colon separated:
Maven supports natively multi-module projects. groupId:artifactId:packaging:version
http://maven.apache.org/guides/introduction/introduction-to-the-pom.html
Valerio Capozio 3 of 14

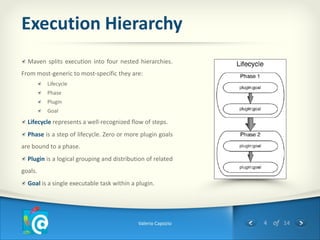

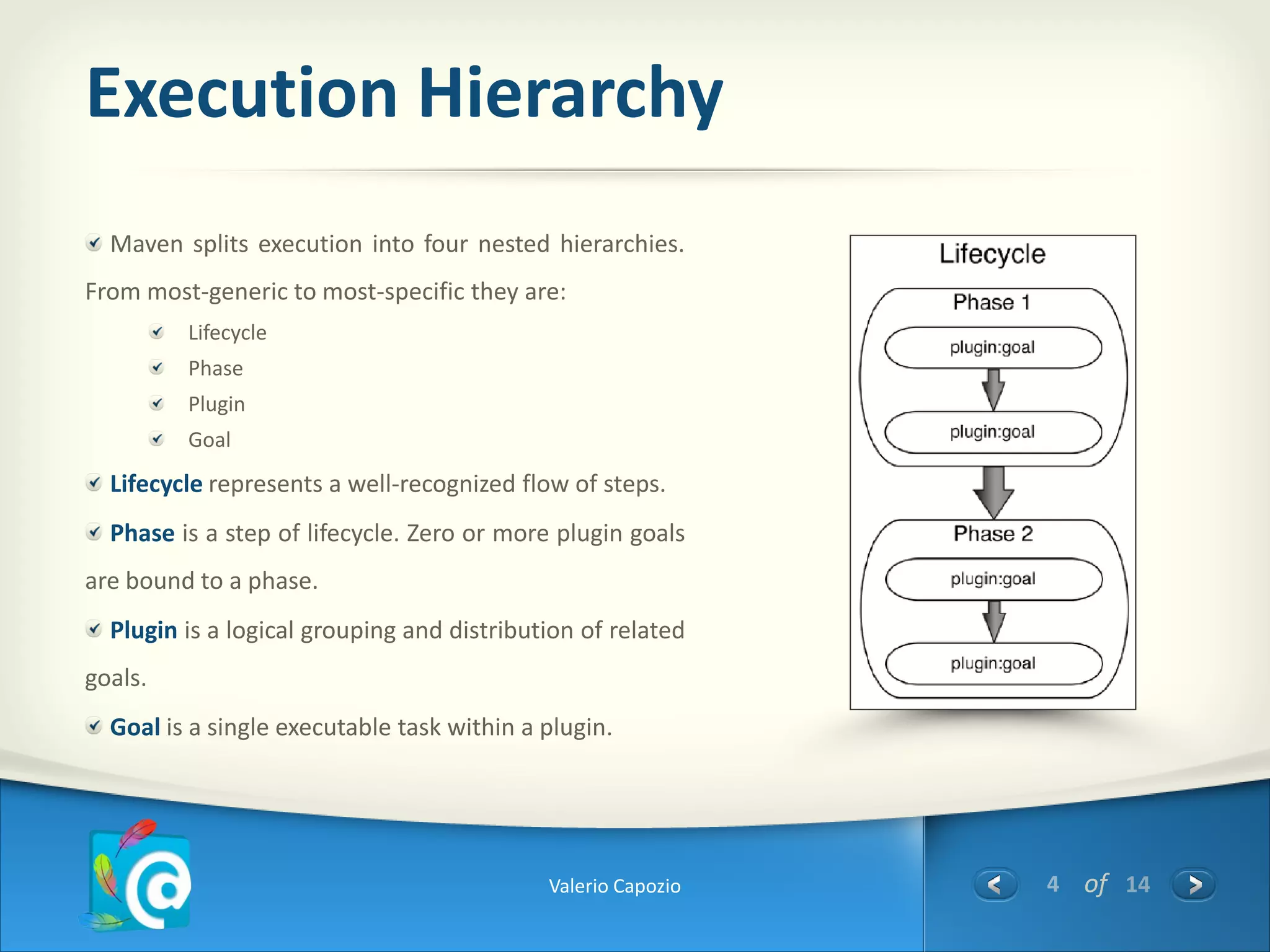

4. Execution Hierarchy
Maven splits execution into four nested hierarchies.
From most-generic to most-specific they are:
Lifecycle
Phase
Plugin
Goal
Lifecycle represents a well-recognized flow of steps.
Phase is a step of lifecycle. Zero or more plugin goals
are bound to a phase.
Plugin is a logical grouping and distribution of related
goals.
Goal is a single executable task within a plugin.
Valerio Capozio 4 of 14

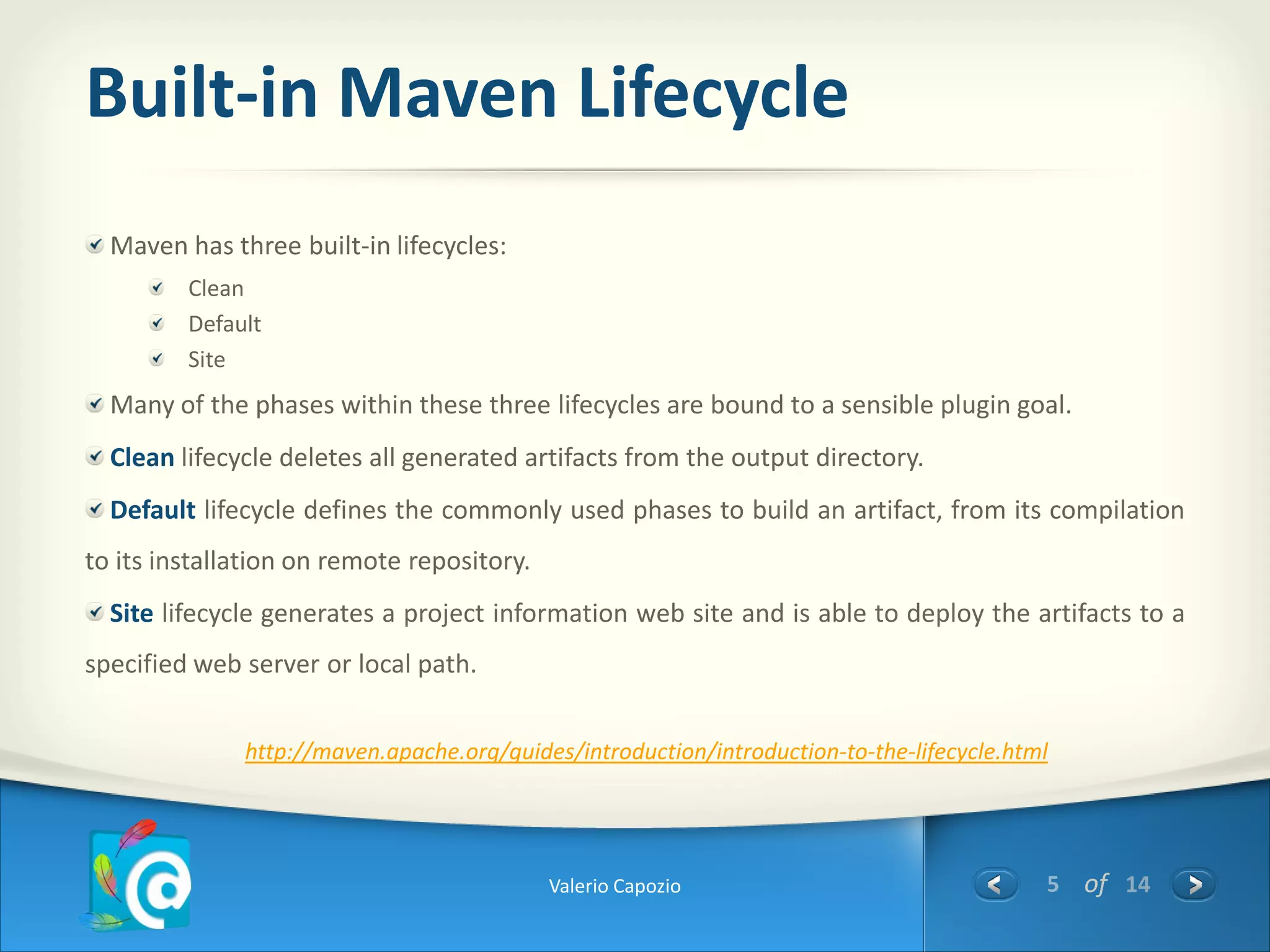

5. Built-in Maven Lifecycle
Maven has three built-in lifecycles:
Clean
Default
Site
Many of the phases within these three lifecycles are bound to a sensible plugin goal.
Clean lifecycle deletes all generated artifacts from the output directory.
Default lifecycle defines the commonly used phases to build an artifact, from its compilation
to its installation on remote repository.
Site lifecycle generates a project information web site and is able to deploy the artifacts to a
specified web server or local path.
http://maven.apache.org/guides/introduction/introduction-to-the-lifecycle.html
Valerio Capozio 5 of 14

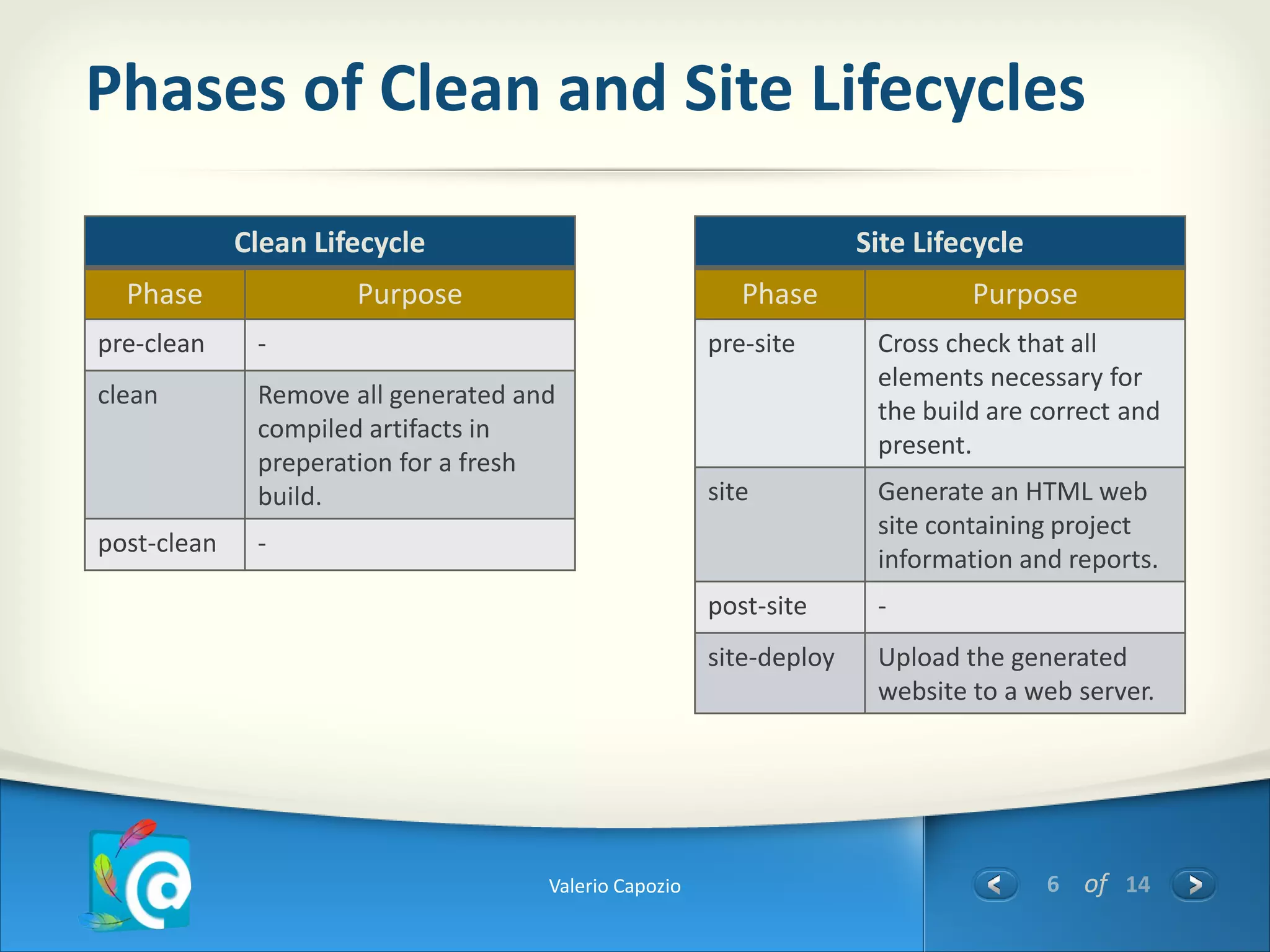

6. Phases of Clean and Site Lifecycles
Clean Lifecycle Site Lifecycle
Phase Purpose Phase Purpose
pre-clean - pre-site Cross check that all
elements necessary for
clean Remove all generated and
the build are correct and
compiled artifacts in
present.
preperation for a fresh
build. site Generate an HTML web
site containing project
post-clean -
information and reports.
post-site -
site-deploy Upload the generated
website to a web server.
Valerio Capozio 6 of 14

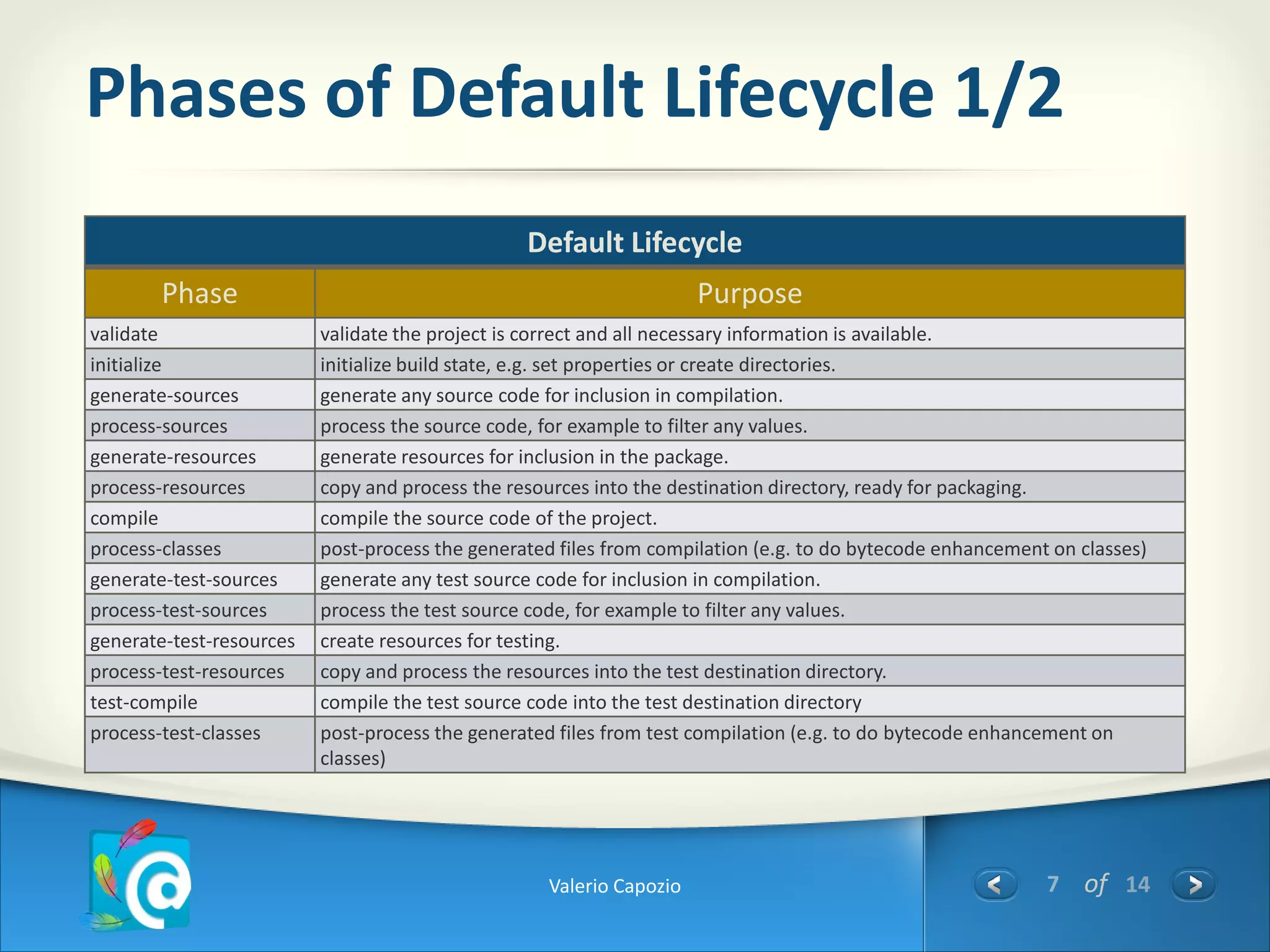

7. Phases of Default Lifecycle 1/2
Default Lifecycle
Phase Purpose
validate validate the project is correct and all necessary information is available.
initialize initialize build state, e.g. set properties or create directories.
generate-sources generate any source code for inclusion in compilation.
process-sources process the source code, for example to filter any values.
generate-resources generate resources for inclusion in the package.
process-resources copy and process the resources into the destination directory, ready for packaging.
compile compile the source code of the project.
process-classes post-process the generated files from compilation (e.g. to do bytecode enhancement on classes)
generate-test-sources generate any test source code for inclusion in compilation.
process-test-sources process the test source code, for example to filter any values.
generate-test-resources create resources for testing.
process-test-resources copy and process the resources into the test destination directory.
test-compile compile the test source code into the test destination directory
process-test-classes post-process the generated files from test compilation (e.g. to do bytecode enhancement on
classes)
Valerio Capozio 7 of 14

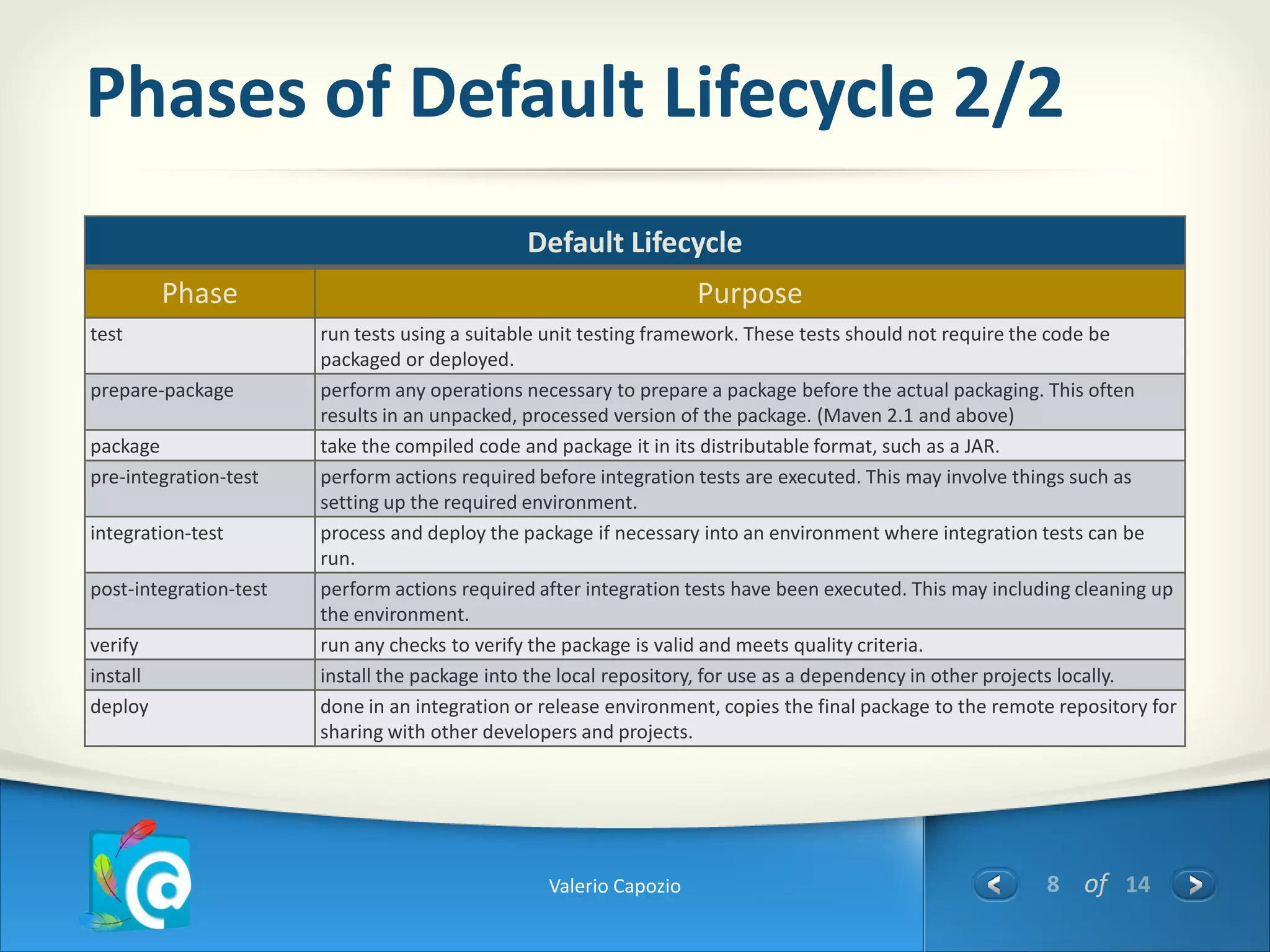

8. Phases of Default Lifecycle 2/2
Default Lifecycle
Phase Purpose
test run tests using a suitable unit testing framework. These tests should not require the code be
packaged or deployed.
prepare-package perform any operations necessary to prepare a package before the actual packaging. This often
results in an unpacked, processed version of the package. (Maven 2.1 and above)
package take the compiled code and package it in its distributable format, such as a JAR.
pre-integration-test perform actions required before integration tests are executed. This may involve things such as
setting up the required environment.
integration-test process and deploy the package if necessary into an environment where integration tests can be
run.
post-integration-test perform actions required after integration tests have been executed. This may including cleaning up
the environment.
verify run any checks to verify the package is valid and meets quality criteria.
install install the package into the local repository, for use as a dependency in other projects locally.
deploy done in an integration or release environment, copies the final package to the remote repository for
sharing with other developers and projects.
Valerio Capozio 8 of 14

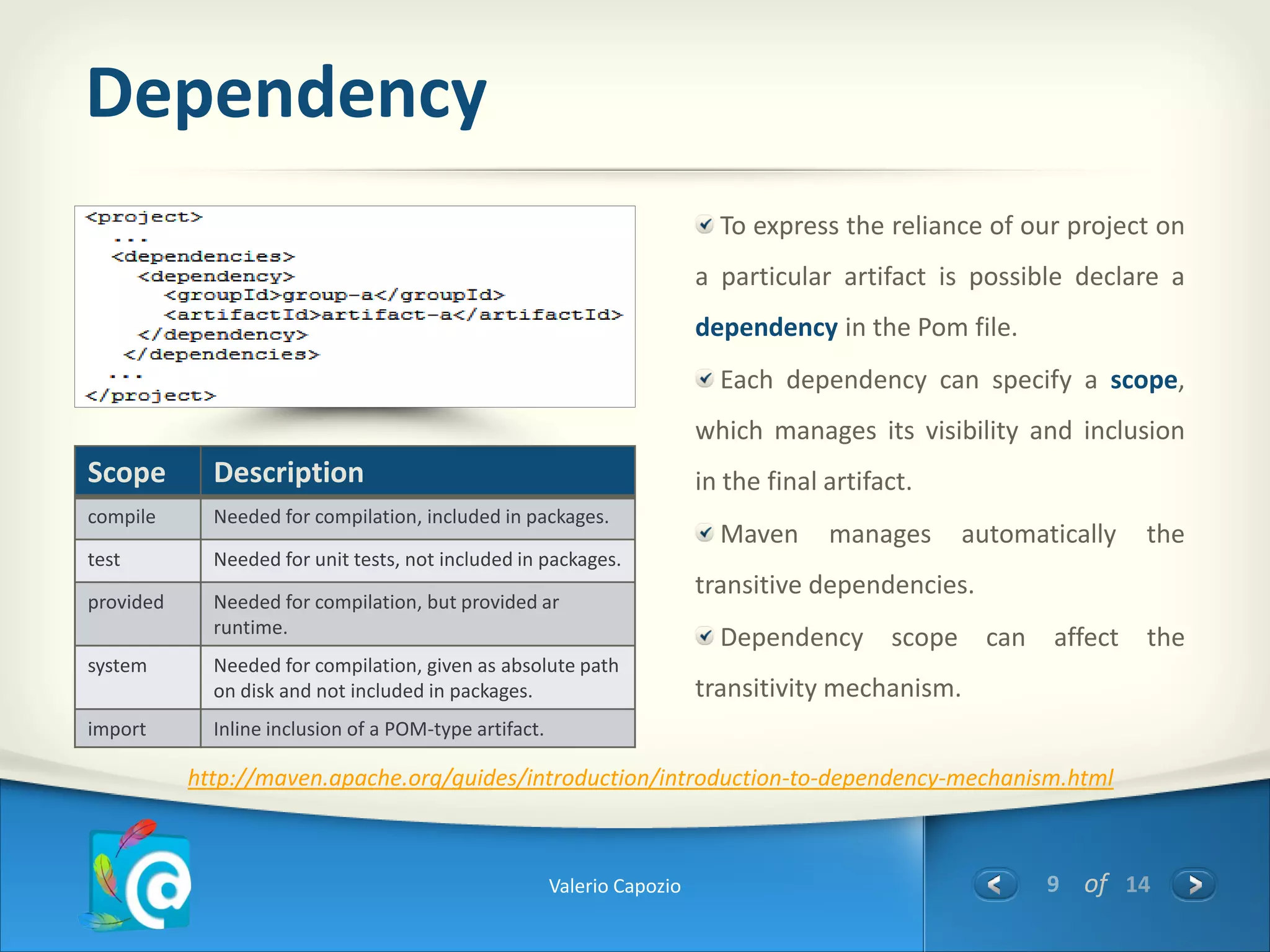

9. Dependency
To express the reliance of our project on
a particular artifact is possible declare a
dependency in the Pom file.
Each dependency can specify a scope,
which manages its visibility and inclusion
Scope Description in the final artifact.
compile Needed for compilation, included in packages.
Maven manages automatically the
test Needed for unit tests, not included in packages.
transitive dependencies.
provided Needed for compilation, but provided ar
runtime.
Dependency scope can affect the
system Needed for compilation, given as absolute path
on disk and not included in packages. transitivity mechanism.
import Inline inclusion of a POM-type artifact.
http://maven.apache.org/guides/introduction/introduction-to-dependency-mechanism.html
Valerio Capozio 9 of 14

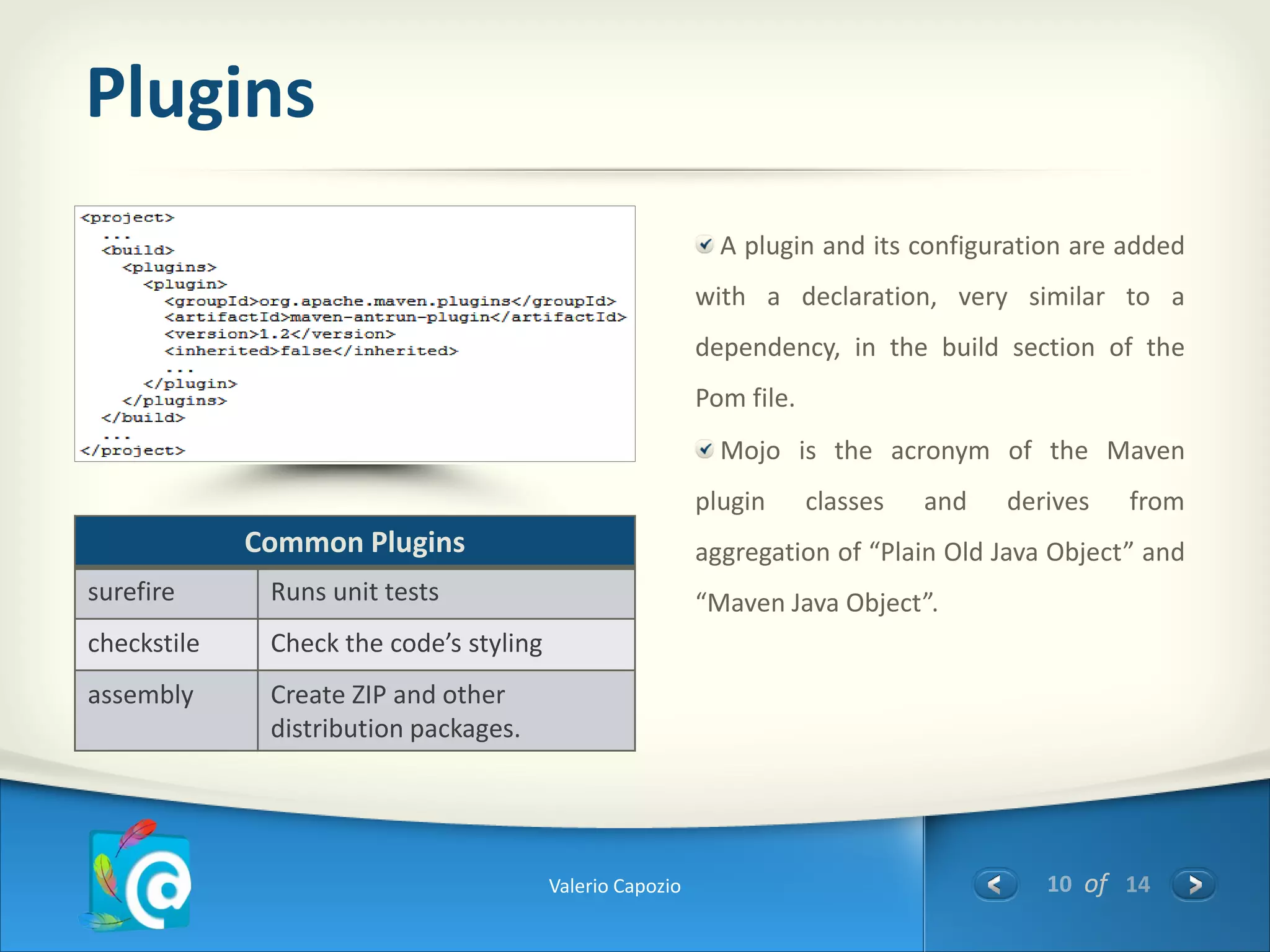

10. Plugins
A plugin and its configuration are added
with a declaration, very similar to a
dependency, in the build section of the
Pom file.
Mojo is the acronym of the Maven
plugin classes and derives from
Common Plugins aggregation of “Plain Old Java Object” and
surefire Runs unit tests “Maven Java Object”.
checkstile Check the code’s styling
assembly Create ZIP and other
distribution packages.
Valerio Capozio 10 of 14

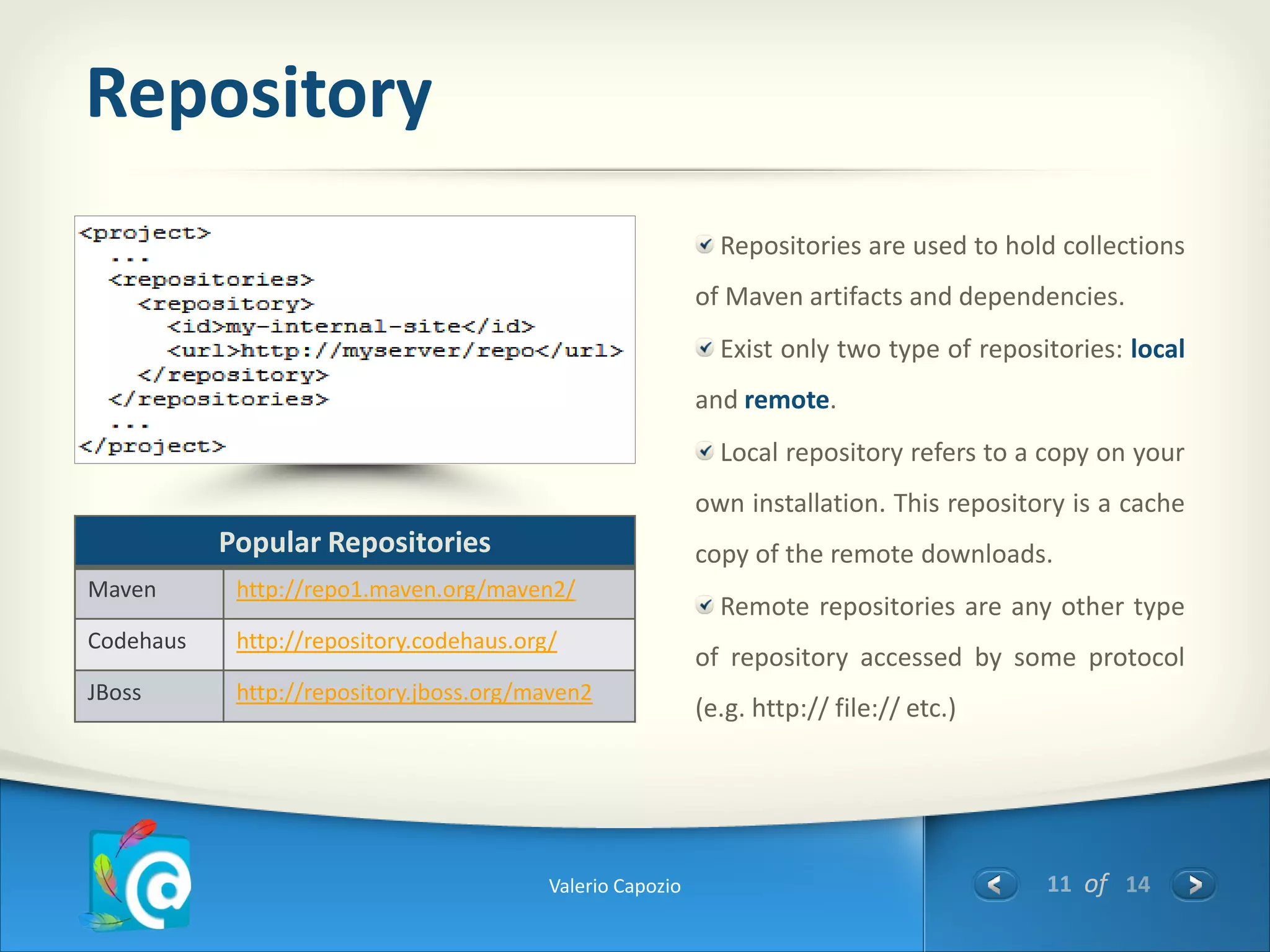

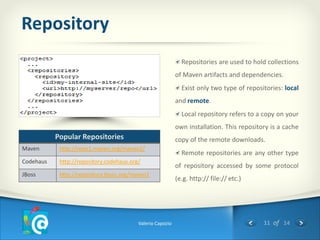

11. Repository
Repositories are used to hold collections
of Maven artifacts and dependencies.
Exist only two type of repositories: local
and remote.
Local repository refers to a copy on your
own installation. This repository is a cache
Popular Repositories copy of the remote downloads.
Maven http://repo1.maven.org/maven2/
Remote repositories are any other type
Codehaus http://repository.codehaus.org/
of repository accessed by some protocol
JBoss http://repository.jboss.org/maven2
(e.g. http:// file:// etc.)
Valerio Capozio 11 of 14

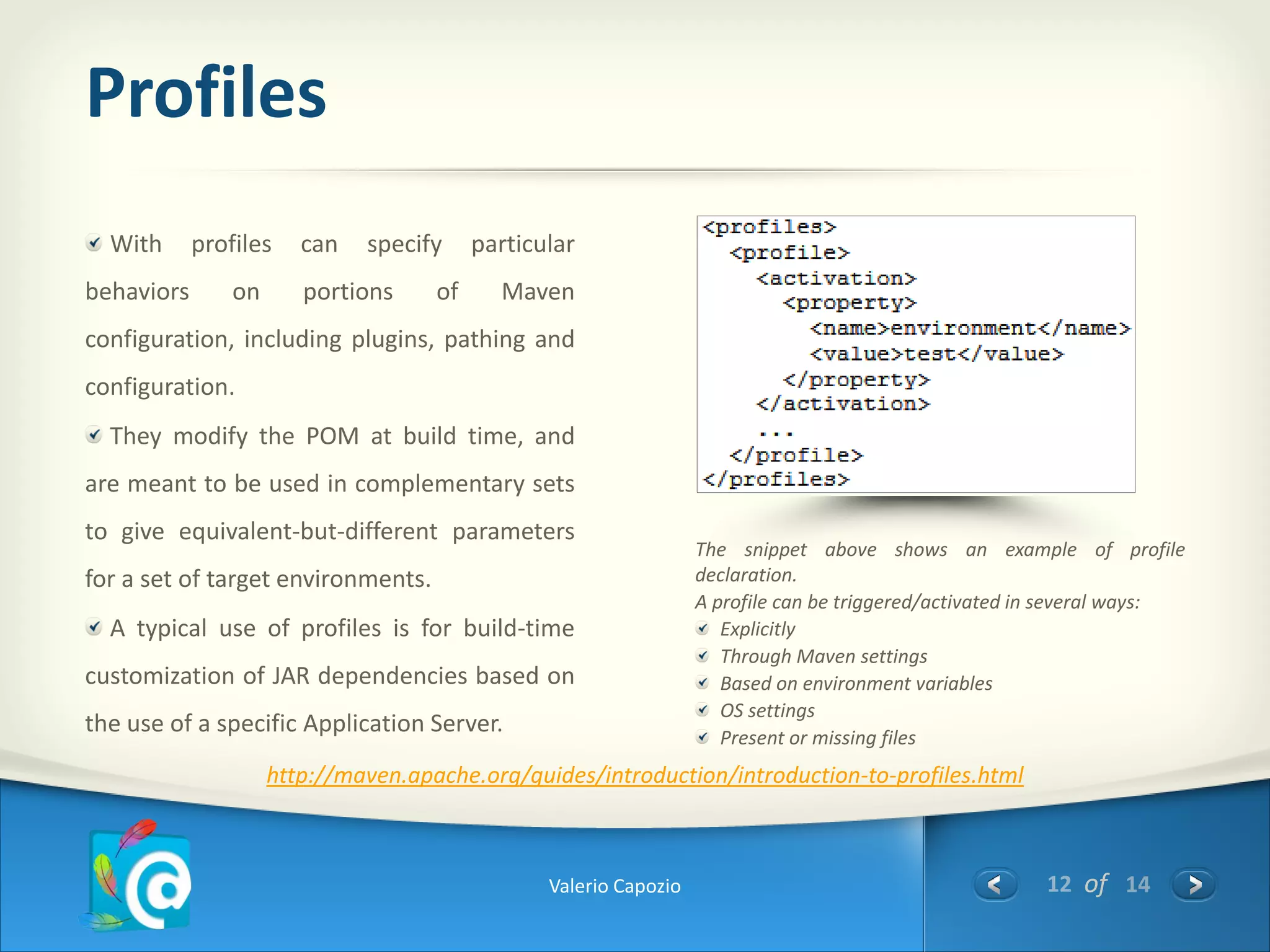

12. Profiles
With profiles can specify particular
behaviors on portions of Maven
configuration, including plugins, pathing and
configuration.
They modify the POM at build time, and
are meant to be used in complementary sets
to give equivalent-but-different parameters
The snippet above shows an example of profile
for a set of target environments. declaration.
A profile can be triggered/activated in several ways:
A typical use of profiles is for build-time Explicitly
Through Maven settings
customization of JAR dependencies based on Based on environment variables
OS settings
the use of a specific Application Server. Present or missing files
http://maven.apache.org/guides/introduction/introduction-to-profiles.html
Valerio Capozio 12 of 14

13. About me
Valerio Capozio Website
angelusworld.com
Linkedin
linkendin.com
Slideshare
slideshare.net
Twitter
twitter.com
Valerio Capozio 13 of 14

14. Thanks
Valerio Capozio 14 of 14
