1. Deep dive
into Android async operations
Mateusz Grzechociński
@mgrzechocinski
Demo app source code
https://github.com/mgrzechocinski/DroidconKrakow2014

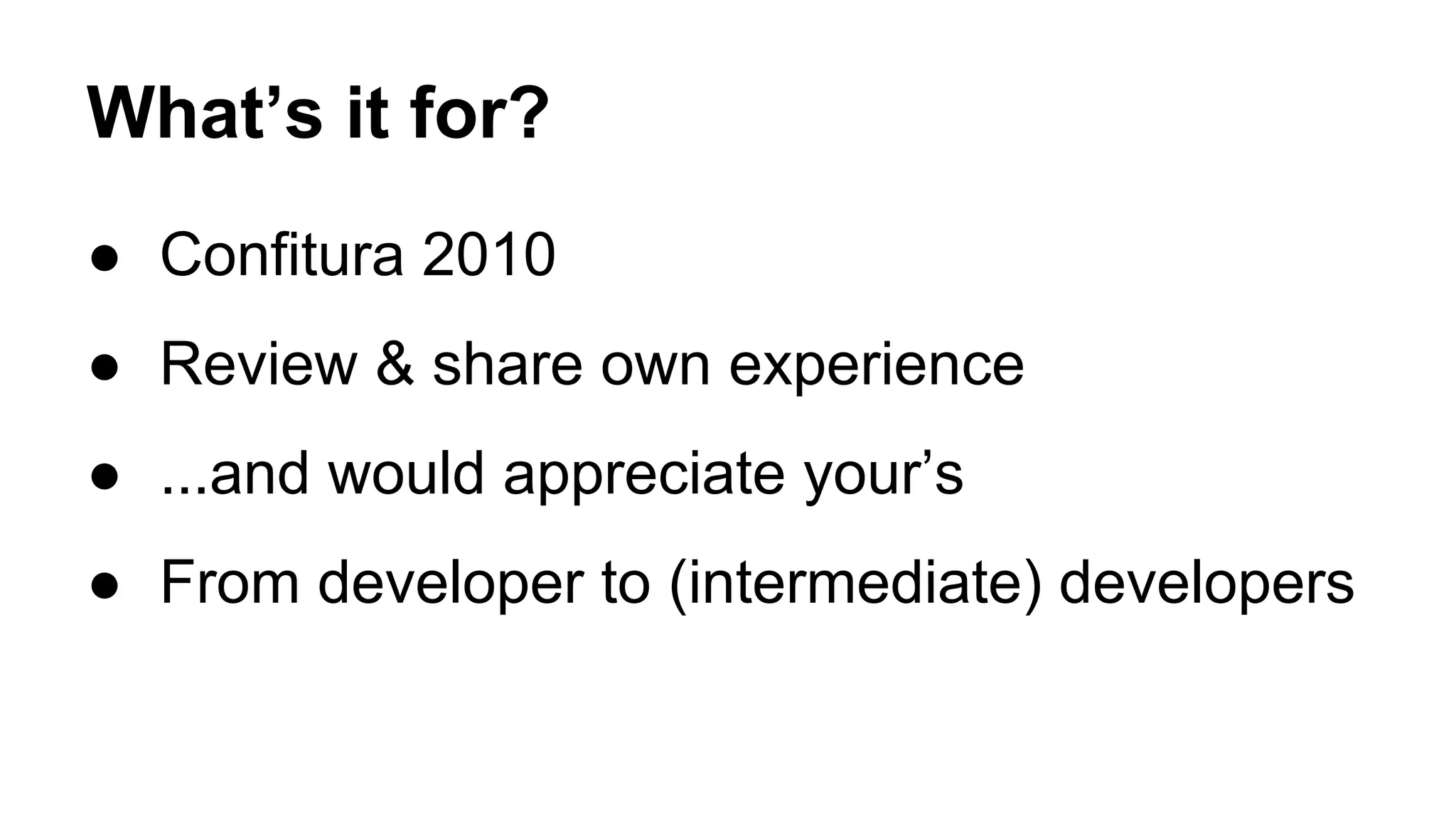

2. What’s it for?
● Confitura 2010
● Review & share own experience
● ...and would appreciate your’s
● From developer to (intermediate) developers

3. Meet Adam

4. ...and his story

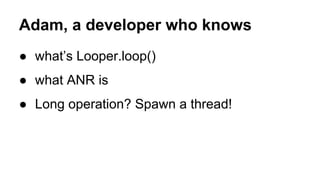

5. Adam, a developer who knows
● what’s Looper.loop()
● what ANR is
● Long operation? Spawn a thread!

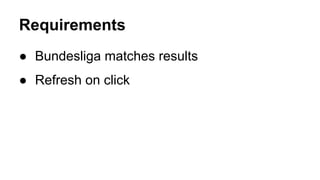

6. Requirements
● Bundesliga matches results
● Refresh on click

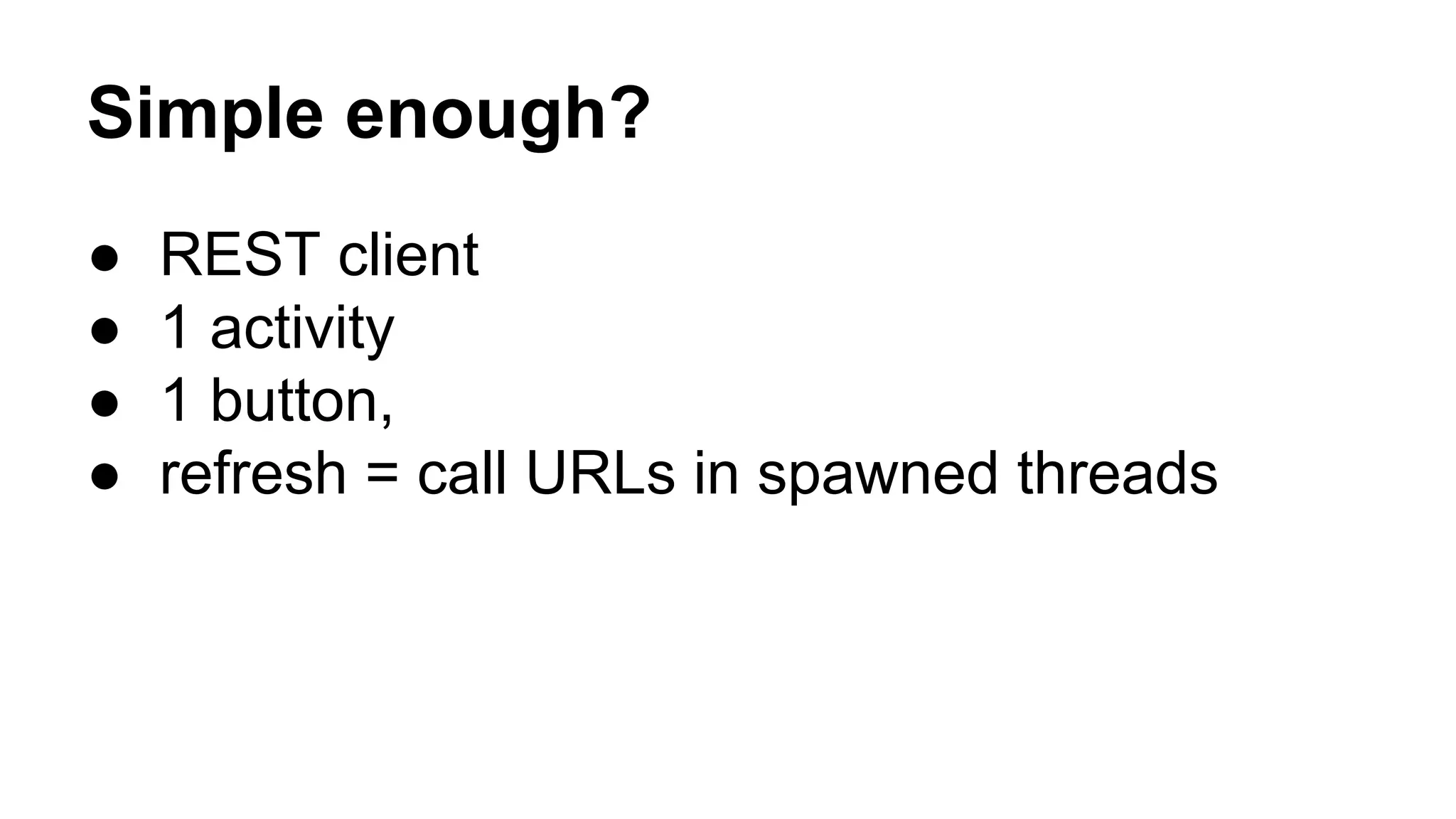

7. Simple enough?
● REST client
● 1 activity
● 1 button,
● refresh = call URLs in spawned threads

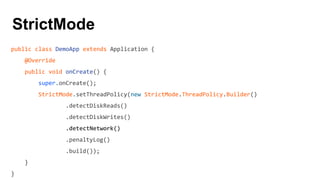

8. StrictMode
public class DemoApp extends Application {
@Override
public void onCreate() {
super.onCreate();
StrictMode.setThreadPolicy(new StrictMode.ThreadPolicy.Builder()
.detectDiskReads()
.detectDiskWrites()
.detectNetwork()
.penaltyLog()
.build());
}
}

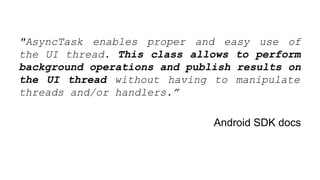

9. "AsyncTask enables proper and easy use of
the UI thread. This class allows to perform
background operations and publish results on
the UI thread without having to manipulate
threads and/or handlers.”
Android SDK docs

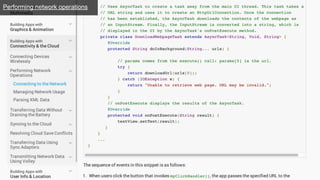

10. Performing network operations

11. DEMO 1
AsyncTask - multiple calls

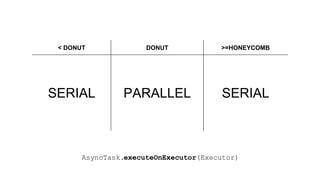

12. < DONUT DONUT >=HONEYCOMB
SERIAL PARALLEL SERIAL
AsyncTask.executeOnExecutor(Executor)

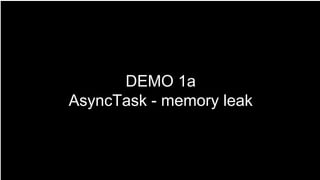

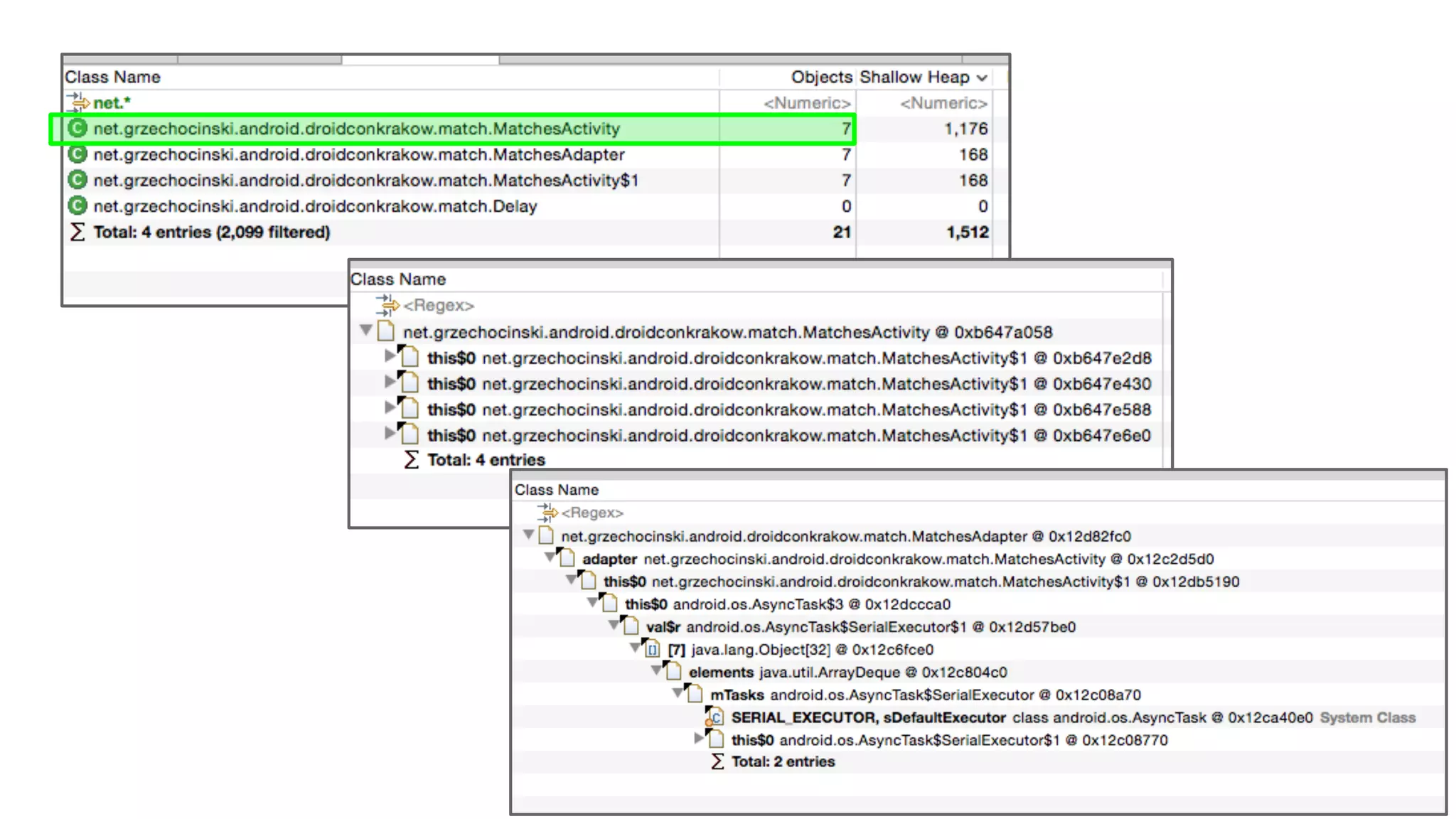

13. DEMO 1a
AsyncTask - memory leak

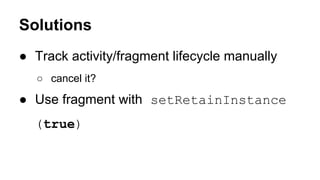

15. Solutions
● Track activity/fragment lifecycle manually
○ cancel it?
● Use fragment with setRetainInstance
(true)

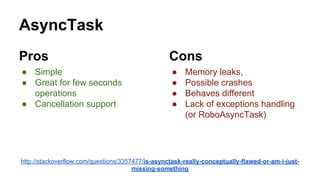

16. AsyncTask
Pros
● Simple
● Great for few seconds
operations
● Cancellation support
Cons
● Memory leaks,
● Possible crashes
● Behaves different
● Lack of exceptions handling
(or RoboAsyncTask)
http://stackoverflow.com/questions/3357477/is-asynctask-really-conceptually-flawed-or-am-i-just-
missing-something

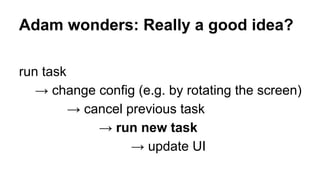

17. Adam wonders: Really a good idea?
run task
→ change config (e.g. by rotating the screen)
→ cancel previous task
→ run new task
→ update UI

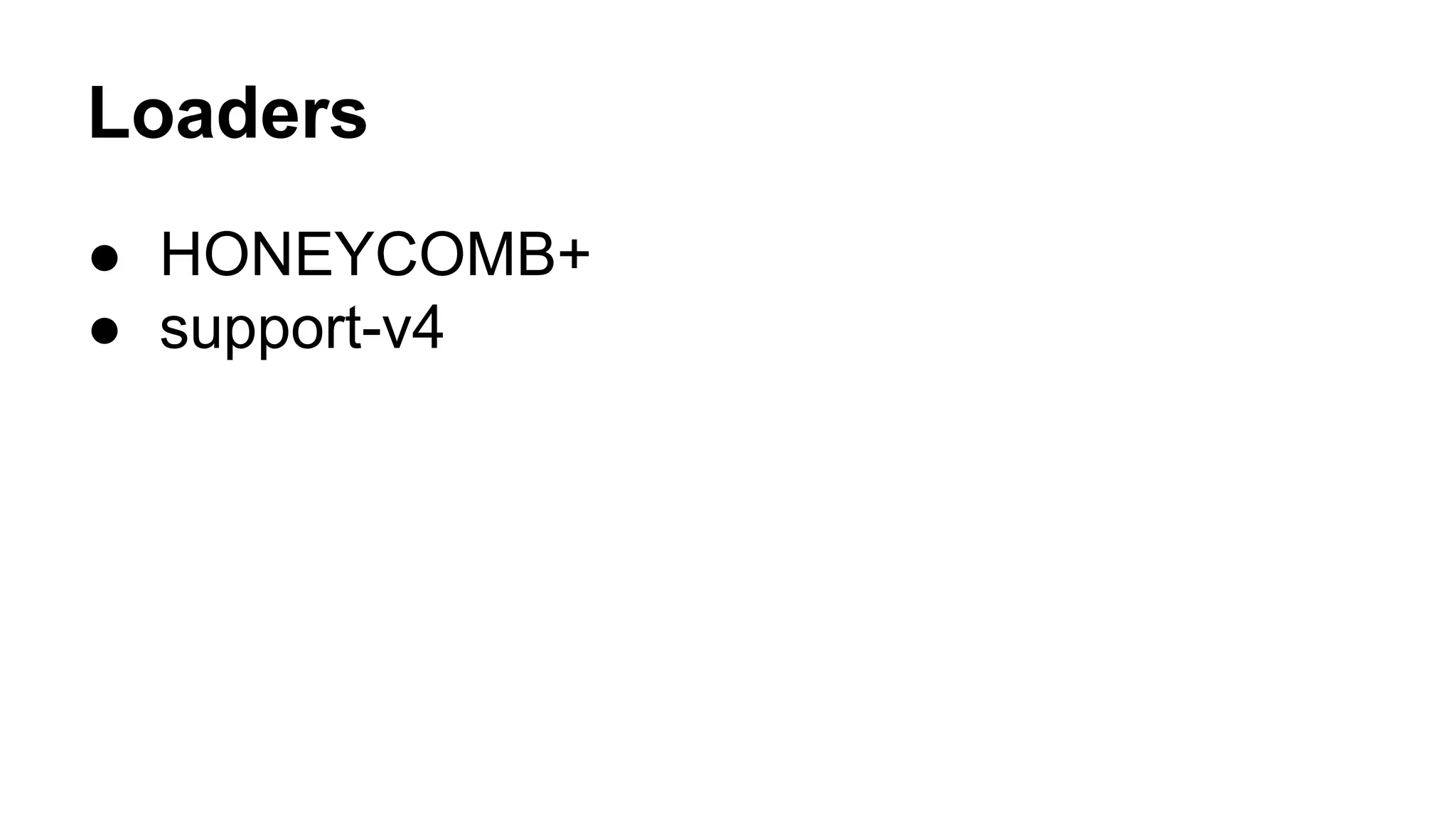

18. Loaders
● HONEYCOMB+
● support-v4

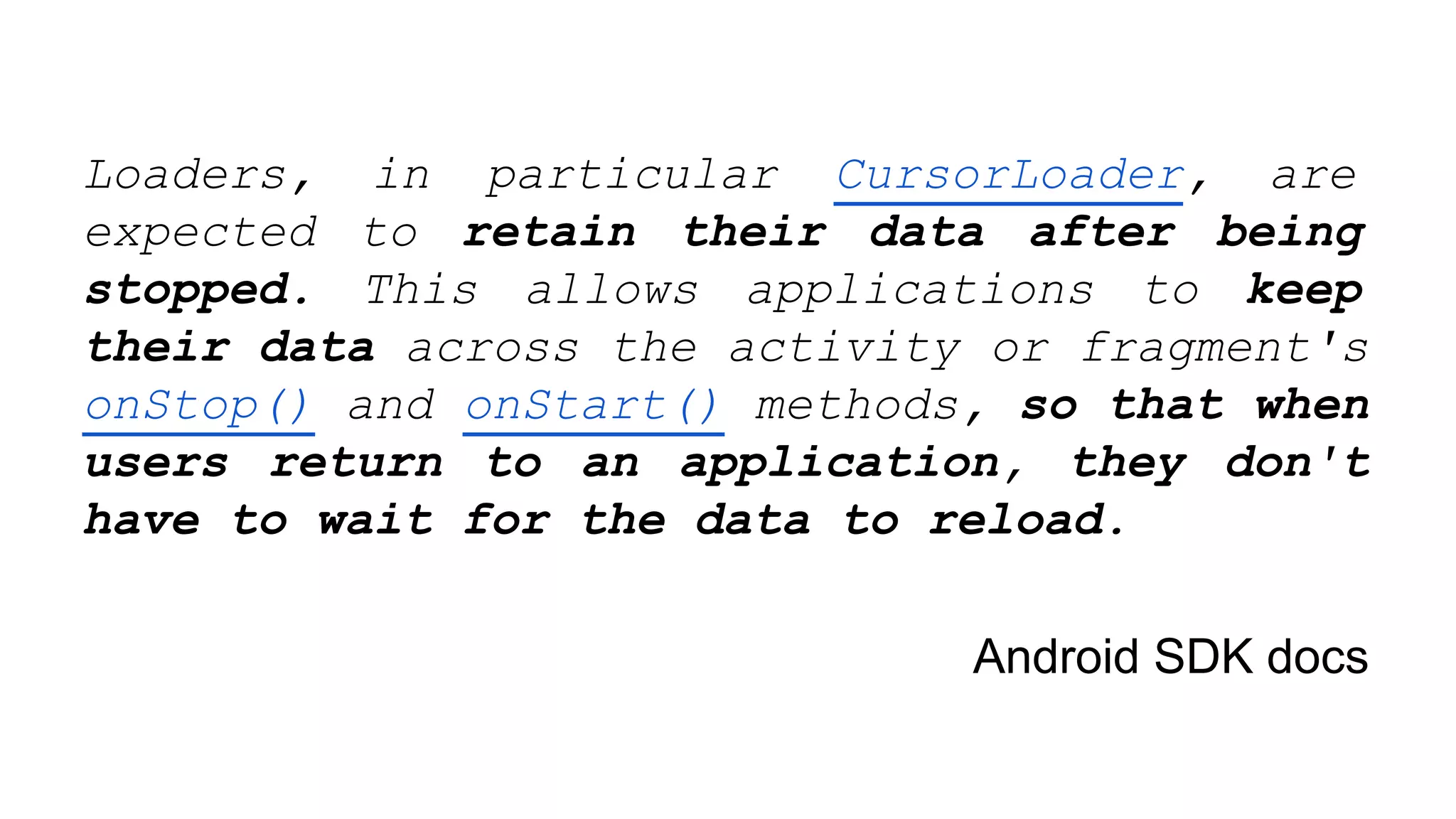

19. Loaders, in particular CursorLoader, are
expected to retain their data after being
stopped. This allows applications to keep
their data across the activity or fragment's
onStop() and onStart() methods, so that when
users return to an application, they don't
have to wait for the data to reload.
Android SDK docs

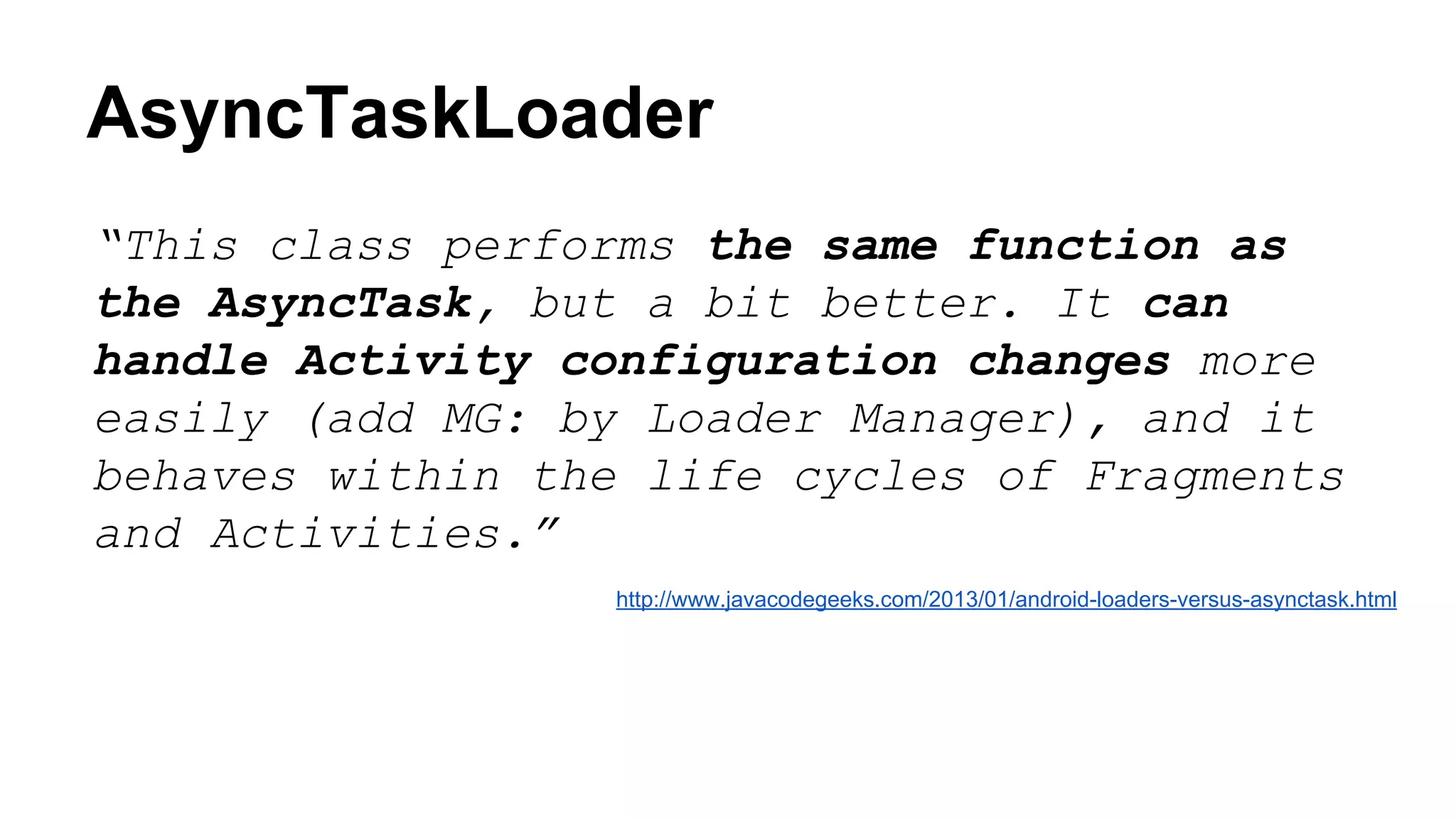

20. AsyncTaskLoader
“This class performs the same function as
the AsyncTask, but a bit better. It can
handle Activity configuration changes more
easily (add MG: by Loader Manager), and it
behaves within the life cycles of Fragments
and Activities.”
http://www.javacodegeeks.com/2013/01/android-loaders-versus-asynctask.html

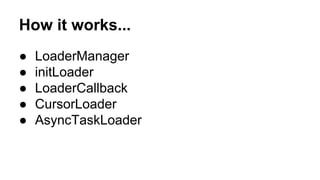

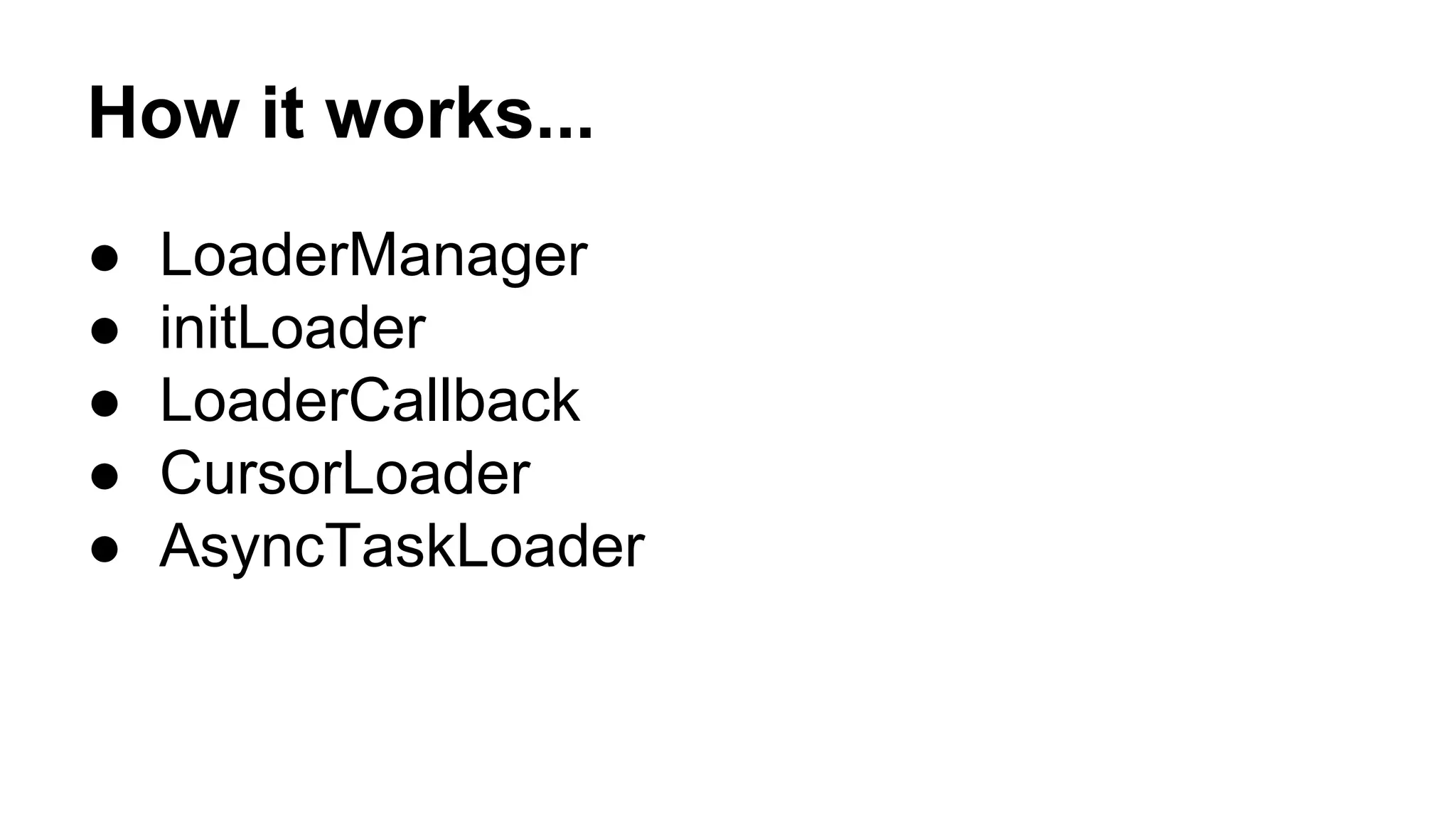

21. How it works...
● LoaderManager
● initLoader
● LoaderCallback
● CursorLoader
● AsyncTaskLoader

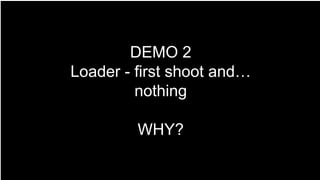

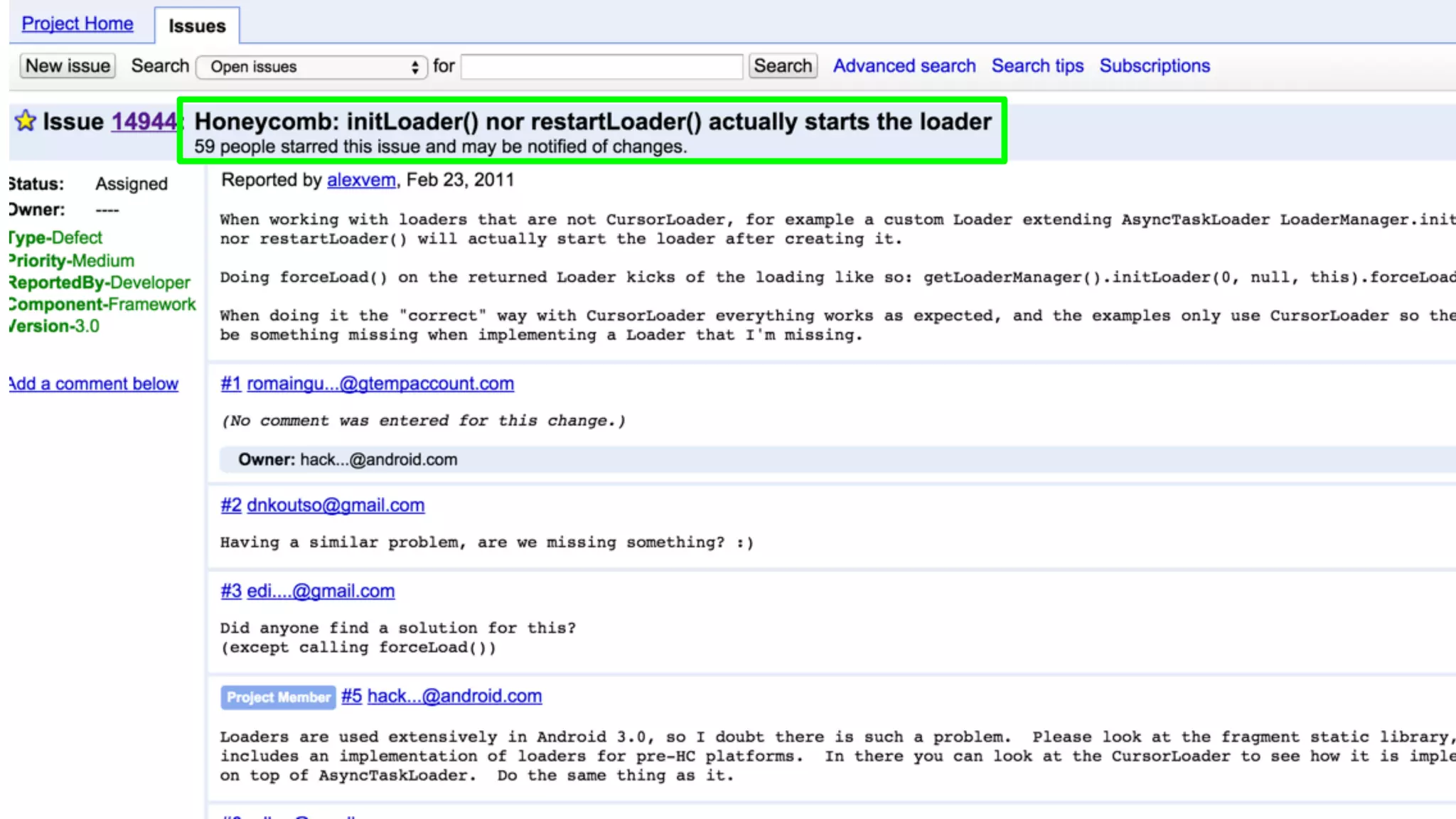

22. DEMO 2
Loader - first shoot and…
nothing
WHY?

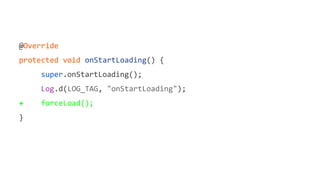

24. @Override
protected void onStartLoading() {
super.onStartLoading();
Log.d(LOG_TAG, "onStartLoading");
+ forceLoad();
}

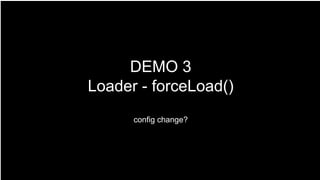

25. DEMO 3
Loader - forceLoad()
config change?

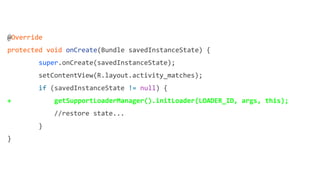

26. @Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_matches);
if (savedInstanceState != null) {
+ getSupportLoaderManager().initLoader(LOADER_ID, args, this);
//restore state...
}
}

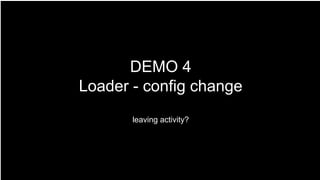

27. DEMO 4
Loader - config change
leaving activity?

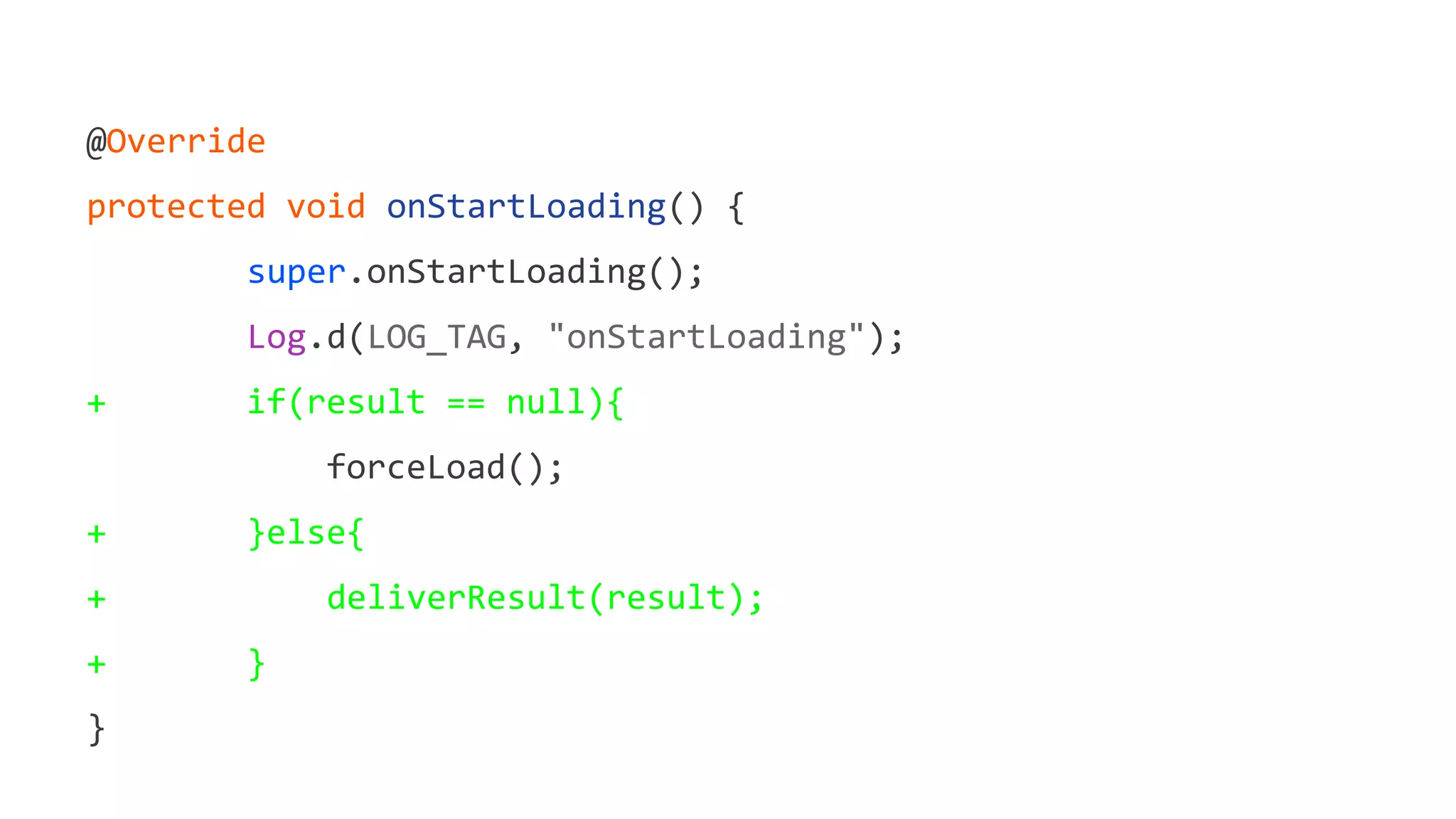

28. @Override
protected void onStartLoading() {
super.onStartLoading();
Log.d(LOG_TAG, "onStartLoading");
+ if(result == null){
forceLoad();
+ }else{
+ deliverResult(result);
+ }
}

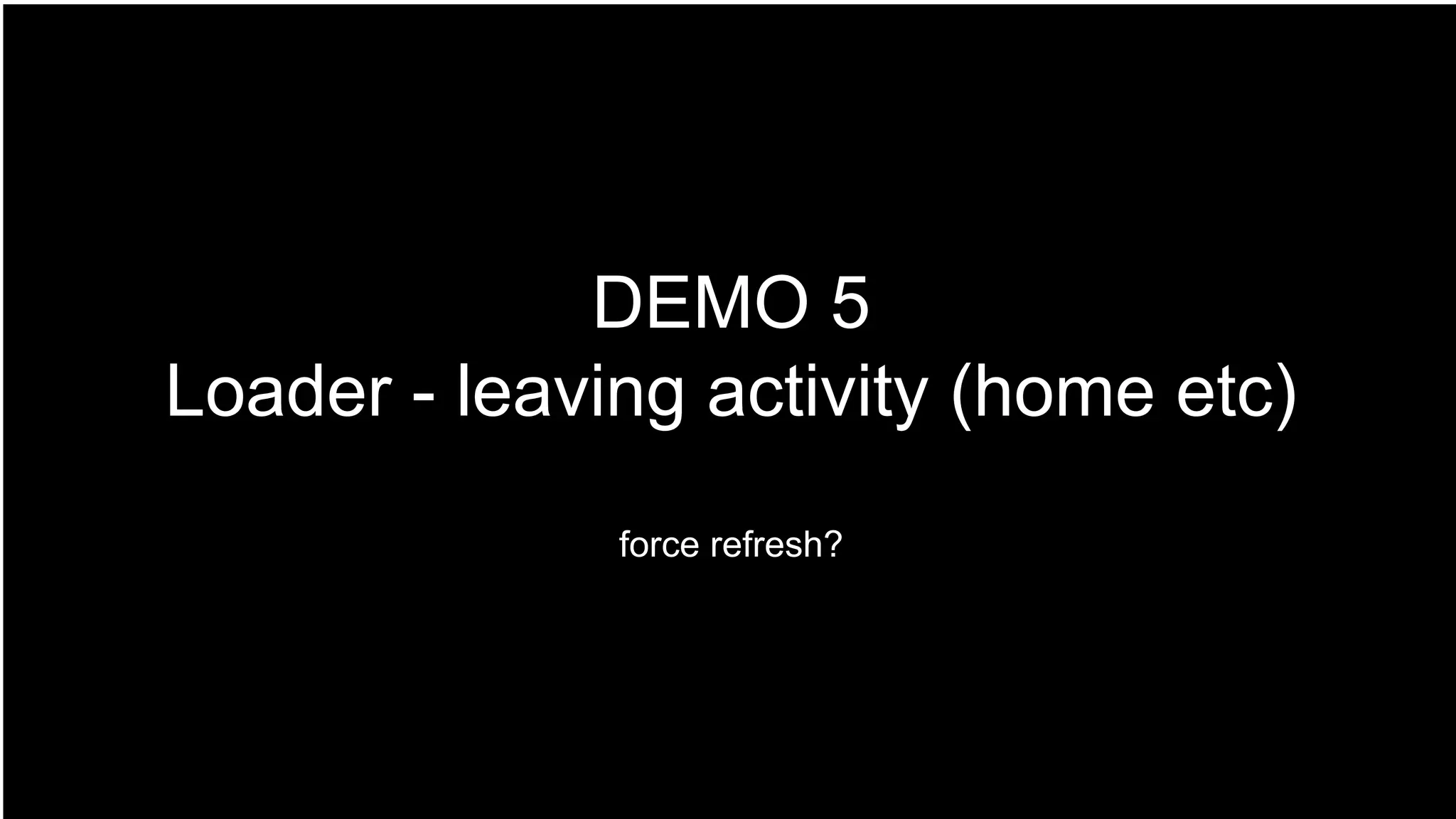

29. DEMO 5
Loader - leaving activity (home etc)
force refresh?

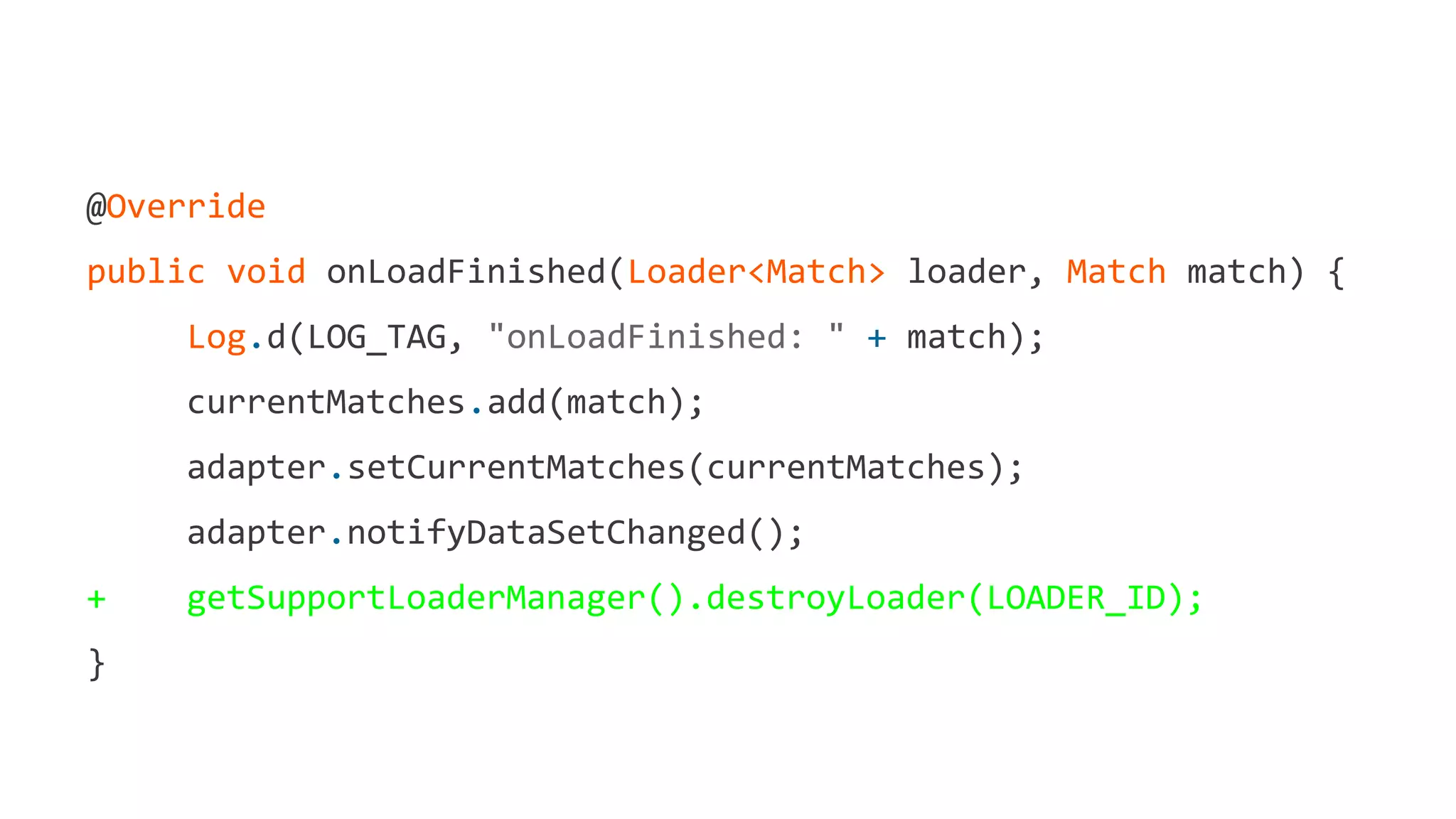

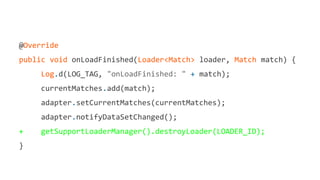

30. @Override
public void onLoadFinished(Loader<Match> loader, Match match) {
Log.d(LOG_TAG, "onLoadFinished: " + match);
currentMatches.add(match);
adapter.setCurrentMatches(currentMatches);
adapter.notifyDataSetChanged();
+ getSupportLoaderManager().destroyLoader(LOADER_ID);
}

31. DEMO 6
Loader - force refresh

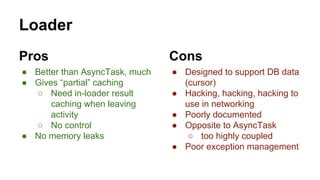

32. Loader
Pros
● Better than AsyncTask, much
● Gives “partial” caching
○ Need in-loader result
caching when leaving
activity
○ No control
● No memory leaks
Cons
● Designed to support DB data
(cursor)
● Hacking, hacking, hacking to
use in networking
● Poorly documented
● Opposite to AsyncTask
○ too highly coupled
● Poor exception management

33. https://github.com/stephanenicolas/robospice/wiki/A-User's-Perspective-on-RoboSpice

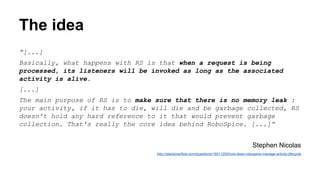

34. The idea
“[...]
Basically, what happens with RS is that when a request is being
processed, its listeners will be invoked as long as the associated
activity is alive.
[...]
The main purpose of RS is to make sure that there is no memory leak :
your activity, if it has to die, will die and be garbage collected, RS
doesn't hold any hard reference to it that would prevent garbage
collection. That's really the core idea behind RoboSpice. [...]”
Stephen Nicolas
http://stackoverflow.com/questions/19011200/how-does-robospice-manage-activity-lifecycle

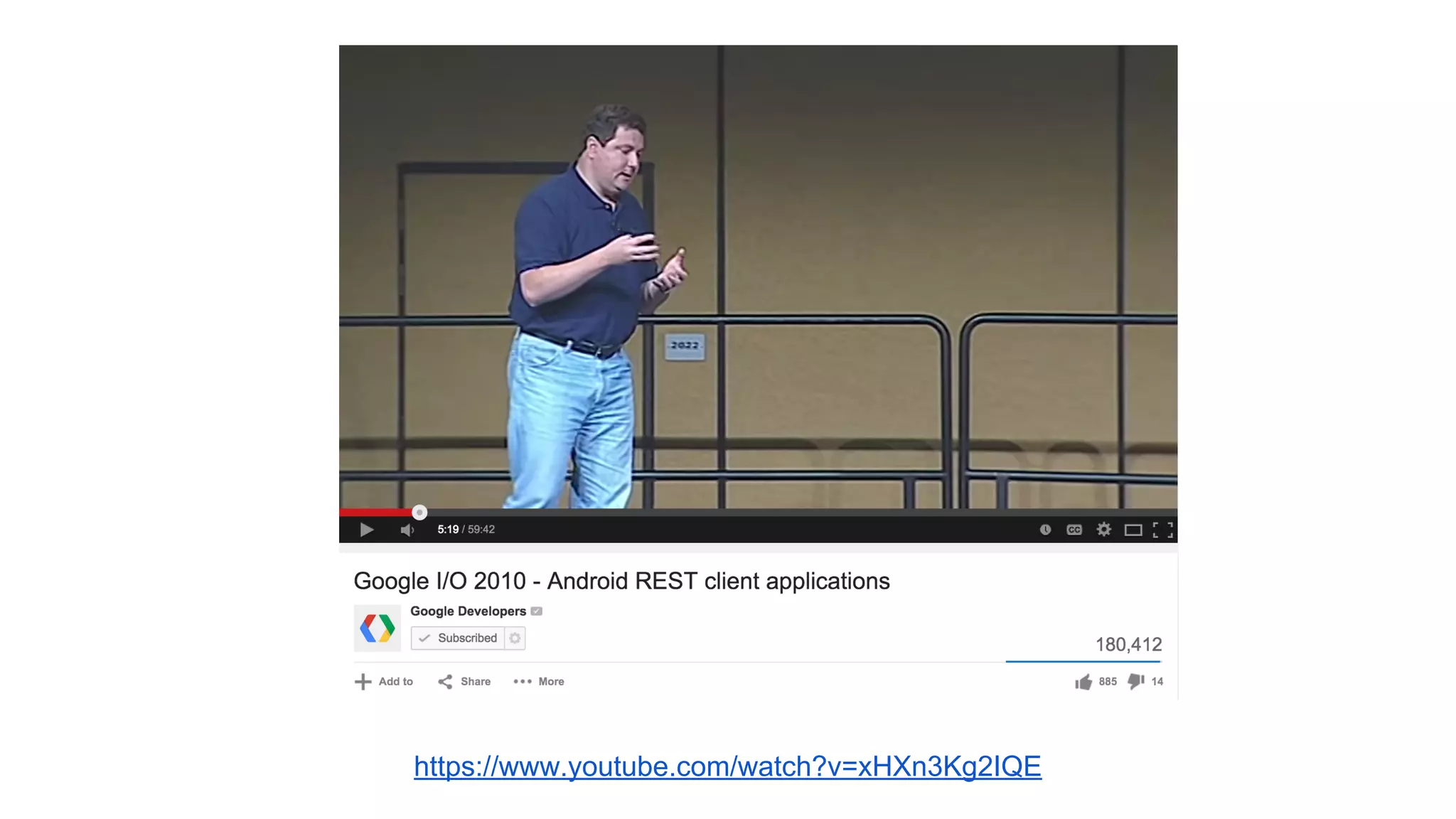

35. https://www.youtube.com/watch?v=xHXn3Kg2IQE

36. Show me do code!

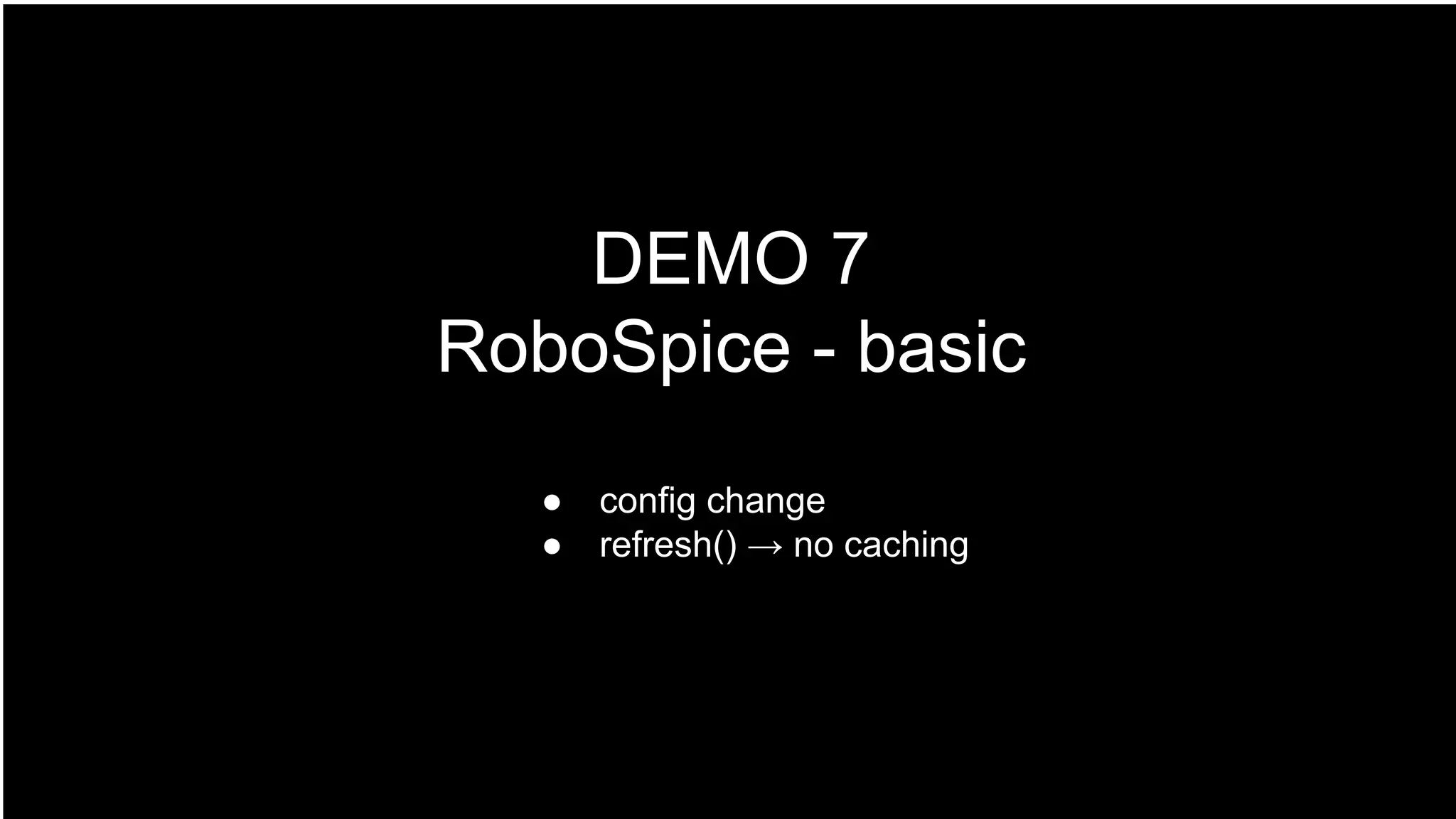

37. DEMO 7
RoboSpice - basic
● config change
● refresh() → no caching

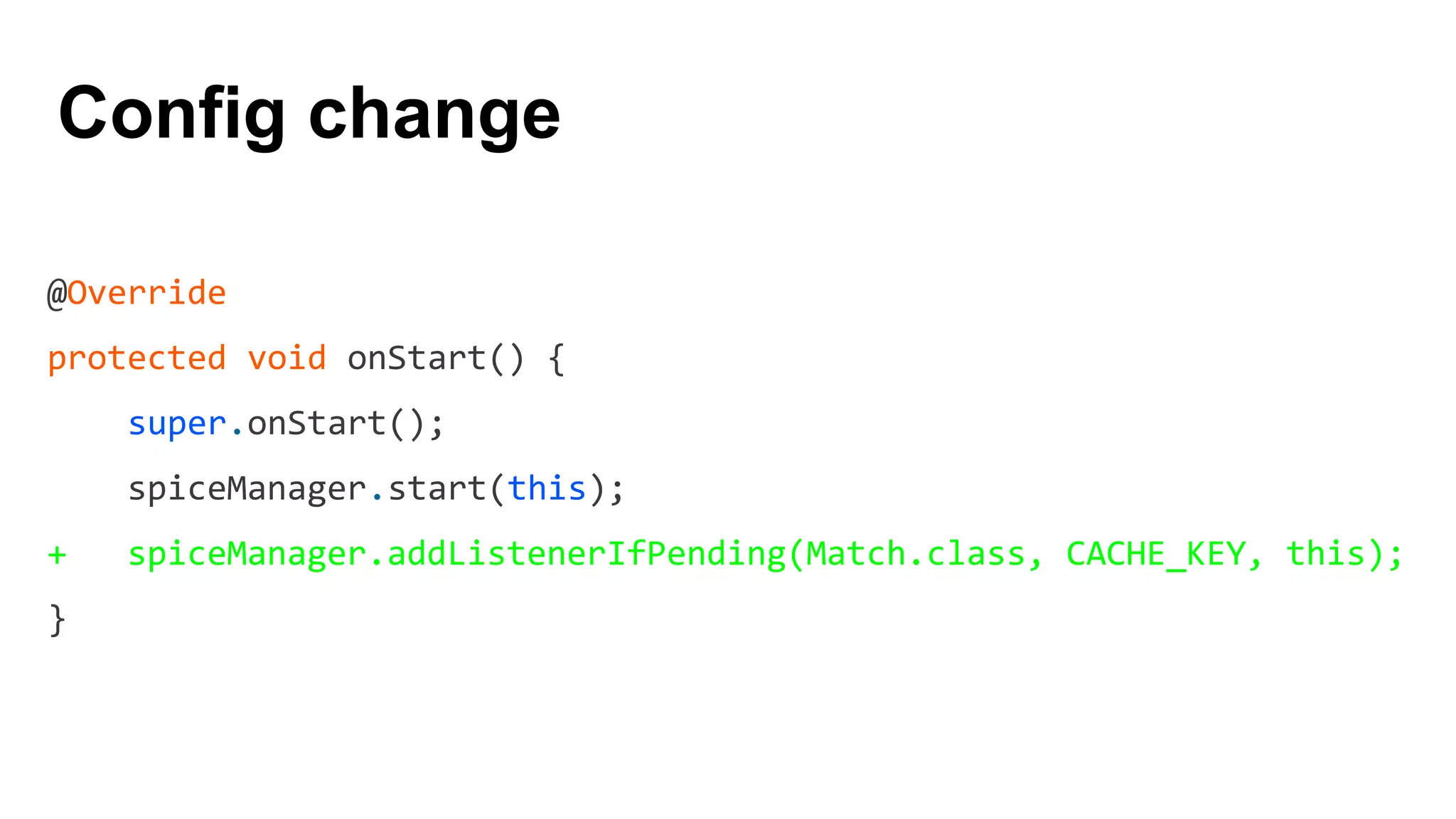

38. @Override
protected void onStart() {
super.onStart();
spiceManager.start(this);
+ spiceManager.addListenerIfPending(Match.class, CACHE_KEY, this);
}
Config change

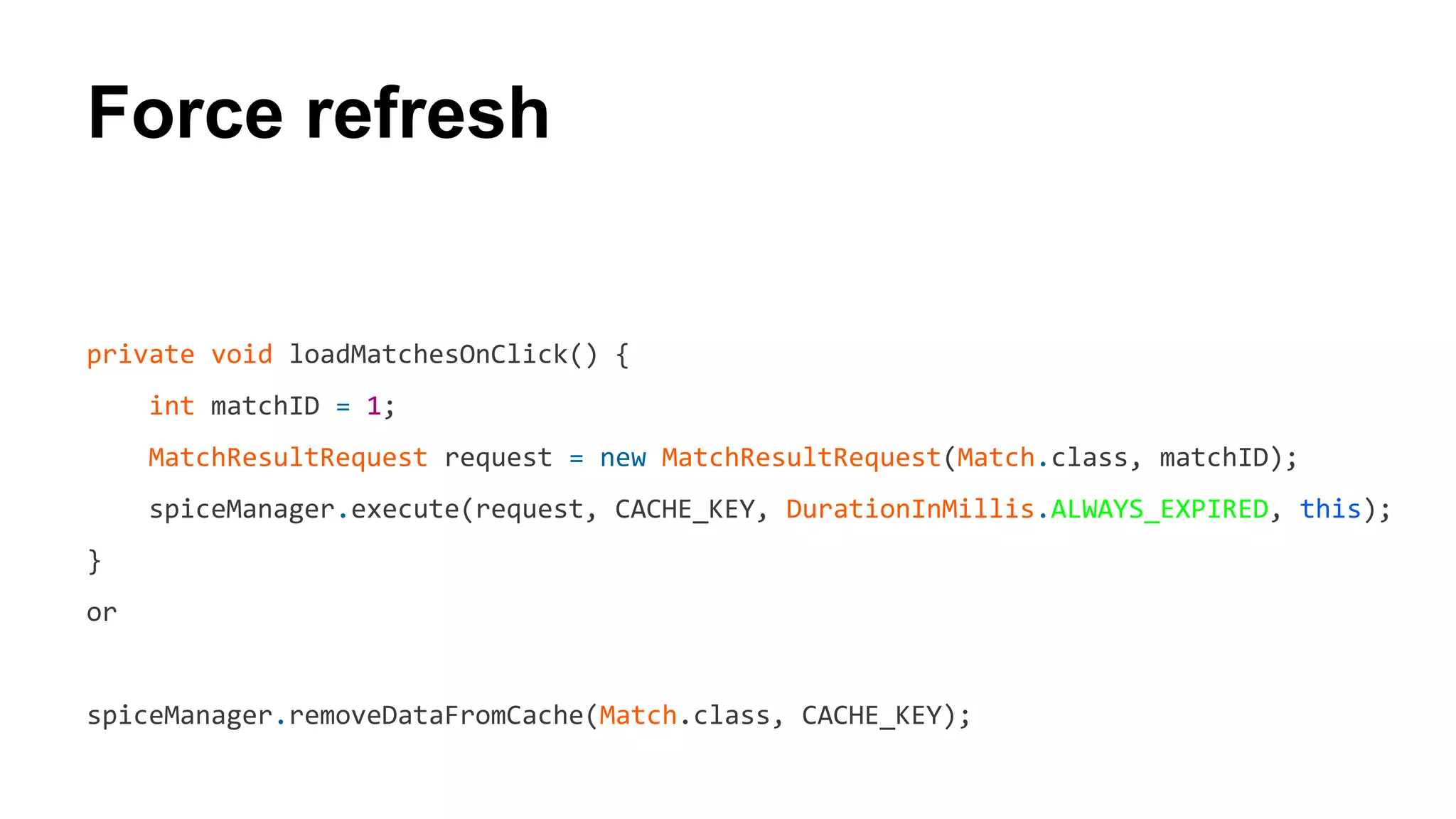

39. Force refresh
private void loadMatchesOnClick() {
int matchID = 1;
MatchResultRequest request = new MatchResultRequest(Match.class, matchID);
spiceManager.execute(request, CACHE_KEY, DurationInMillis.ALWAYS_EXPIRED, this);
}
or
spiceManager.removeDataFromCache(Match.class, CACHE_KEY);

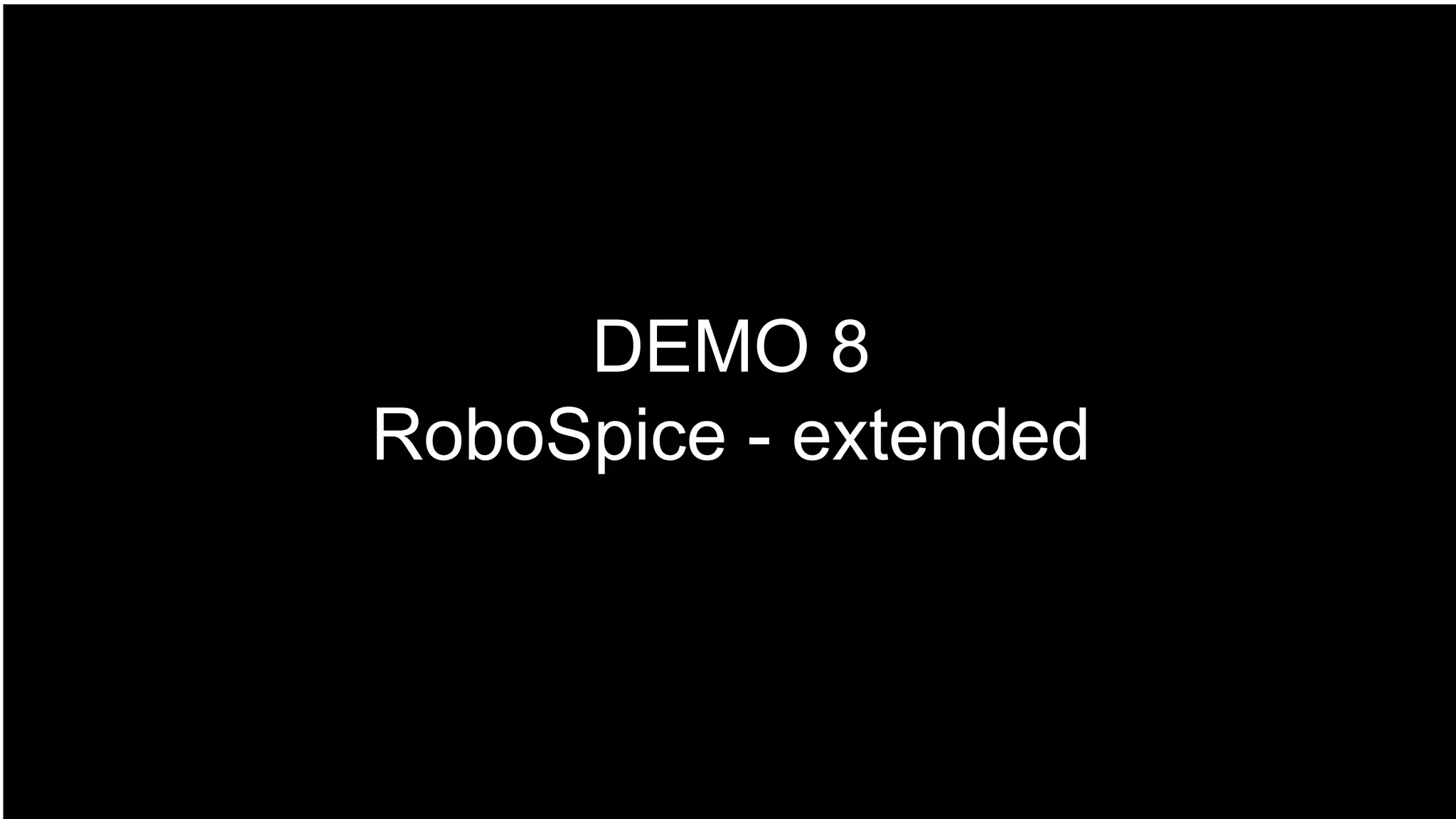

40. DEMO 8
RoboSpice - extended

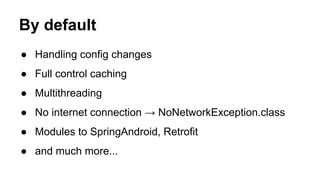

41. By default
● Handling config changes
● Full control caching
● Multithreading
● No internet connection → NoNetworkException.class
● Modules to SpringAndroid, Retrofit
● and much more...

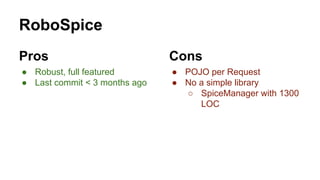

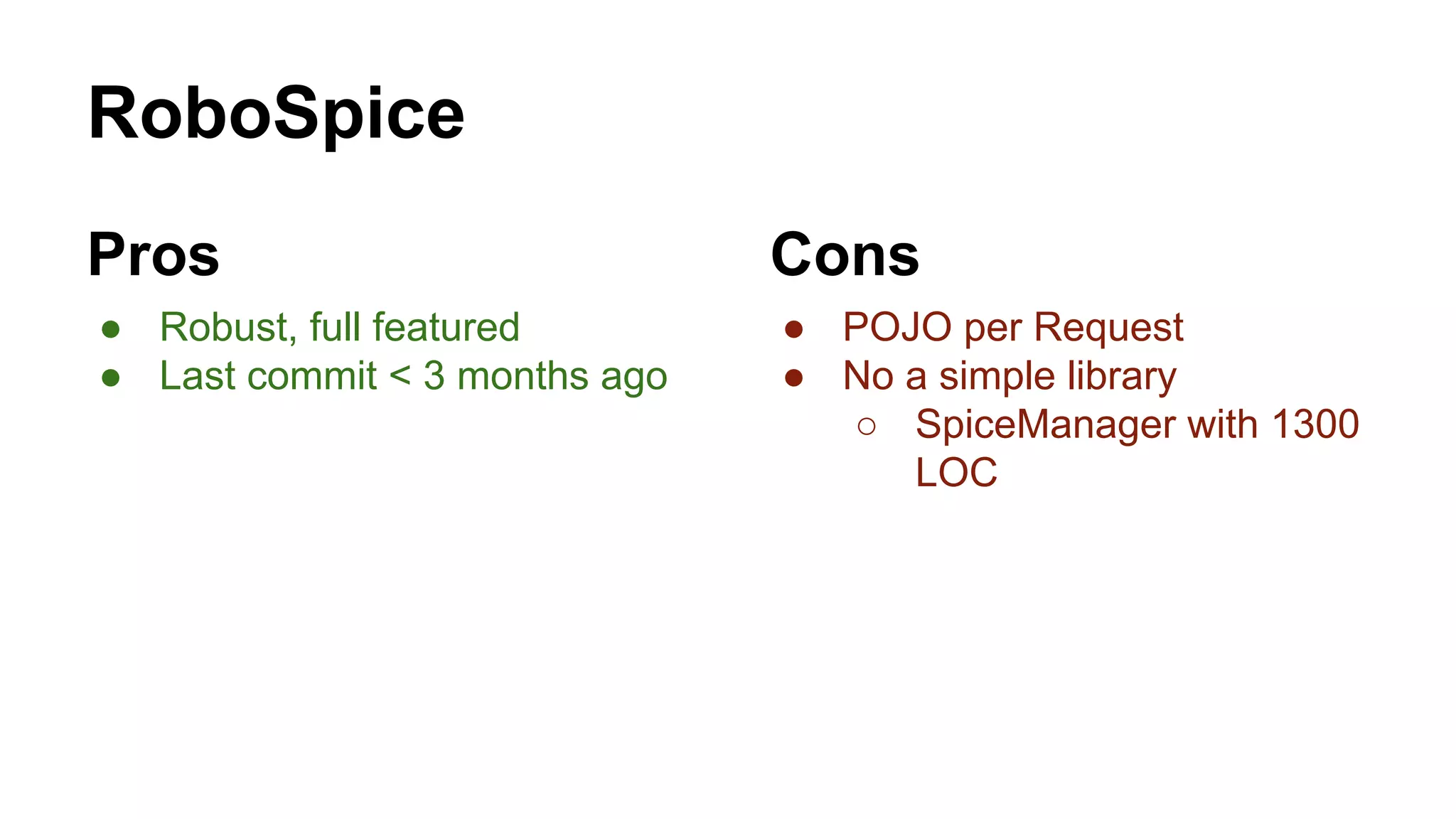

42. RoboSpice
Pros
● Robust, full featured
● Last commit < 3 months ago
Cons
● POJO per Request
● No a simple library
○ SpiceManager with 1300
LOC

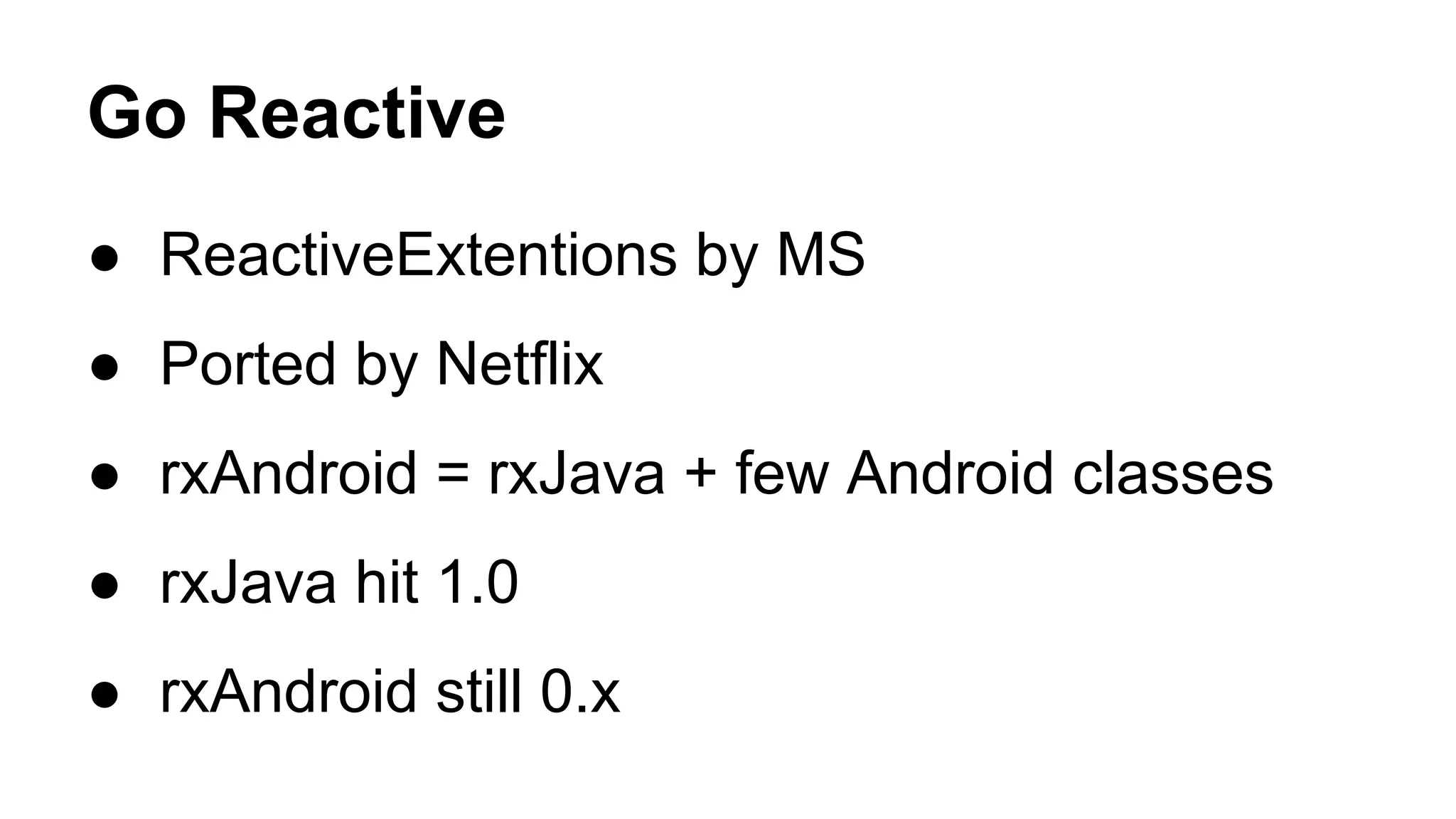

43. Go Reactive
● ReactiveExtentions by MS
● Ported by Netflix
● rxAndroid = rxJava + few Android classes
● rxJava hit 1.0
● rxAndroid still 0.x

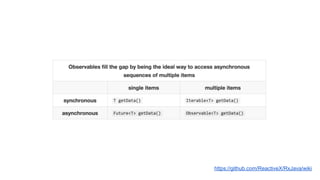

44. https://github.com/ReactiveX/RxJava/wiki

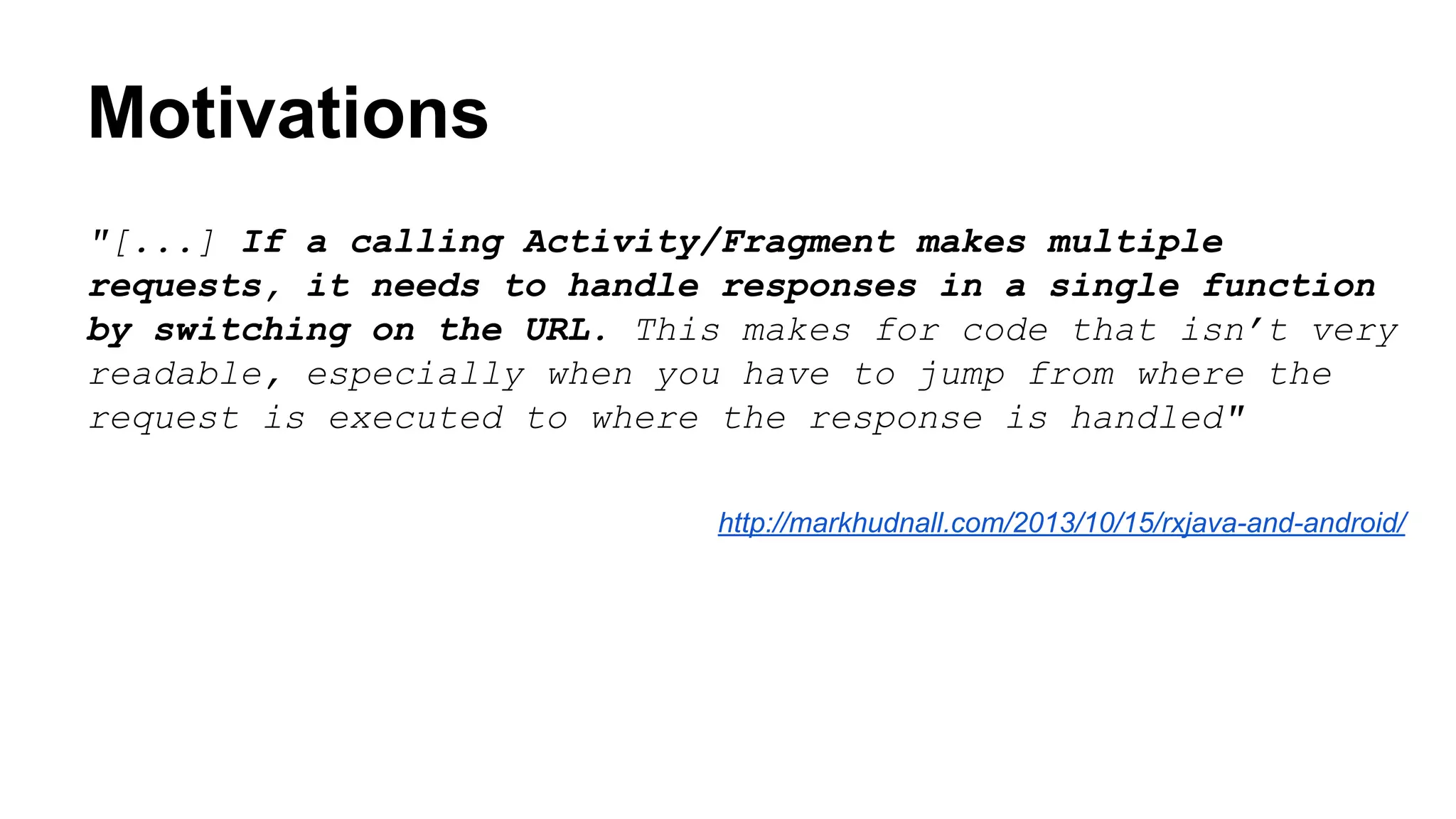

45. Motivations
"[...] If a calling Activity/Fragment makes multiple
requests, it needs to handle responses in a single function
by switching on the URL. This makes for code that isn’t very
readable, especially when you have to jump from where the
request is executed to where the response is handled"
http://markhudnall.com/2013/10/15/rxjava-and-android/

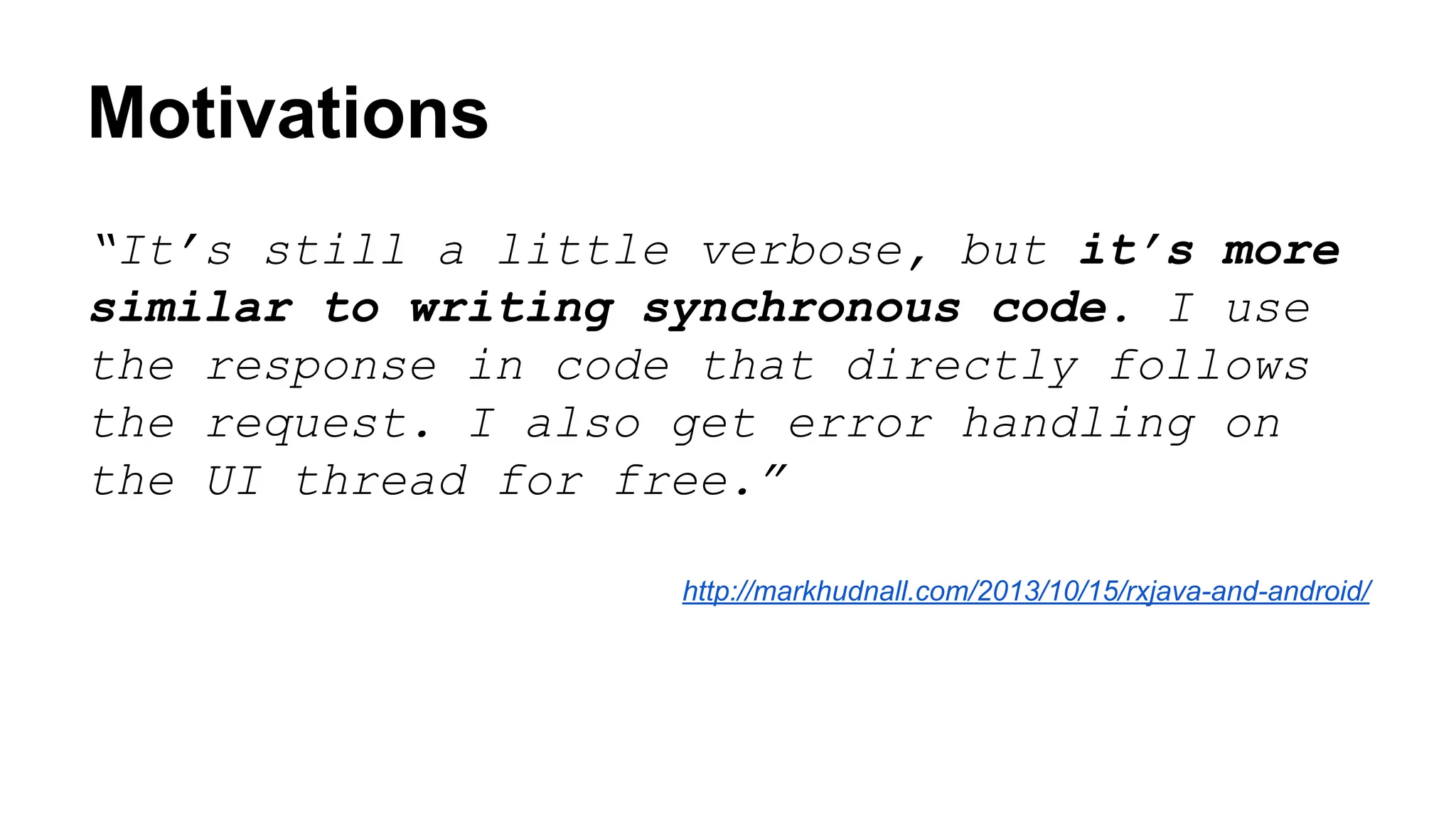

46. Motivations
“It’s still a little verbose, but it’s more
similar to writing synchronous code. I use
the response in code that directly follows
the request. I also get error handling on
the UI thread for free.”
http://markhudnall.com/2013/10/15/rxjava-and-android/

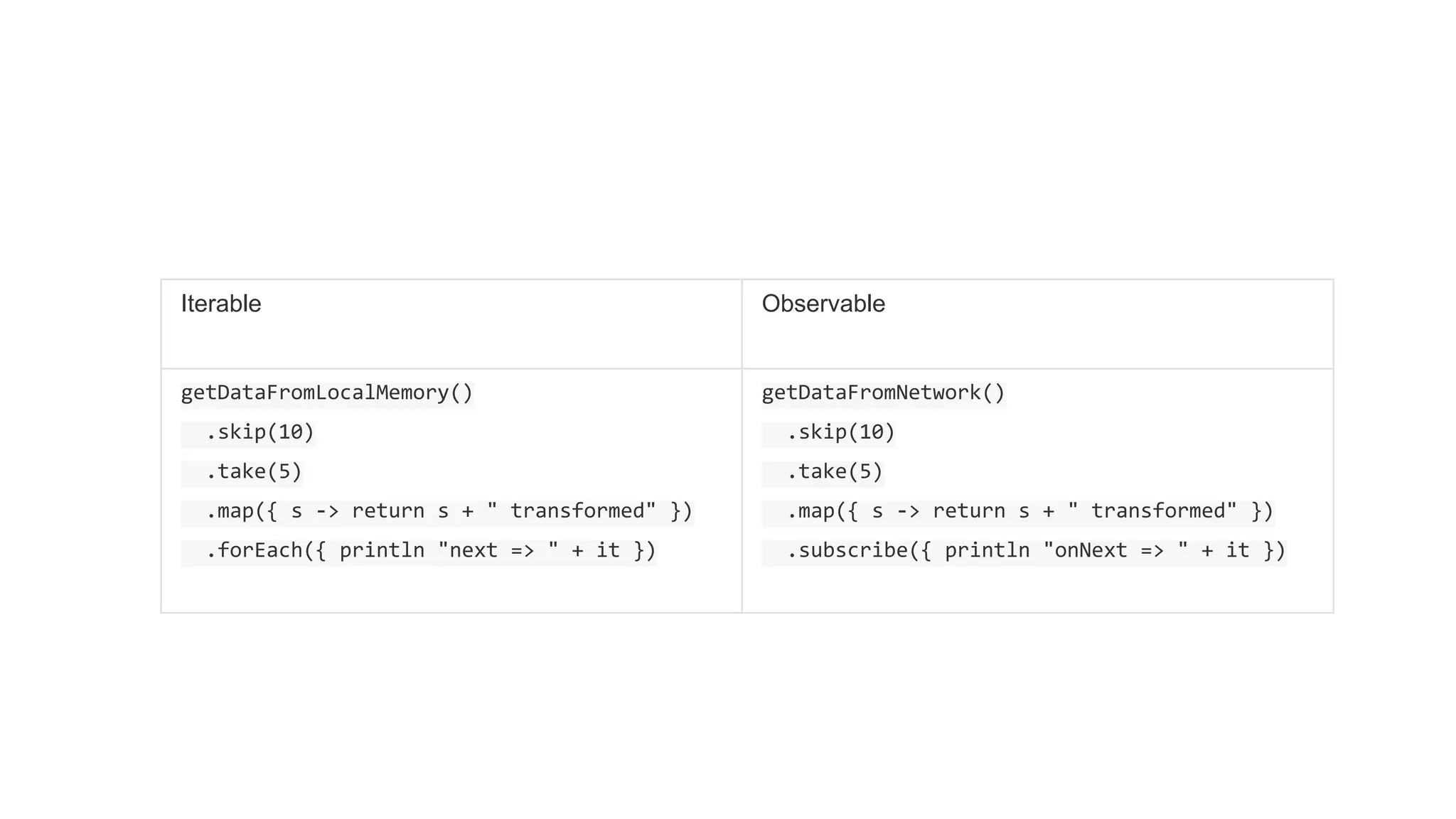

47. Iterable Observable
getDataFromLocalMemory()
.skip(10)
.take(5)
.map({ s -> return s + " transformed" })
.forEach({ println "next => " + it })
getDataFromNetwork()
.skip(10)
.take(5)
.map({ s -> return s + " transformed" })
.subscribe({ println "onNext => " + it })

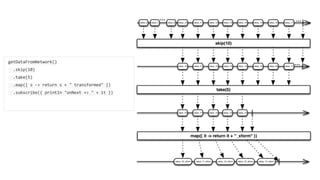

48. getDataFromNetwork()
.skip(10)
.take(5)
.map({ s -> return s + " transformed" })
.subscribe({ println "onNext => " + it })

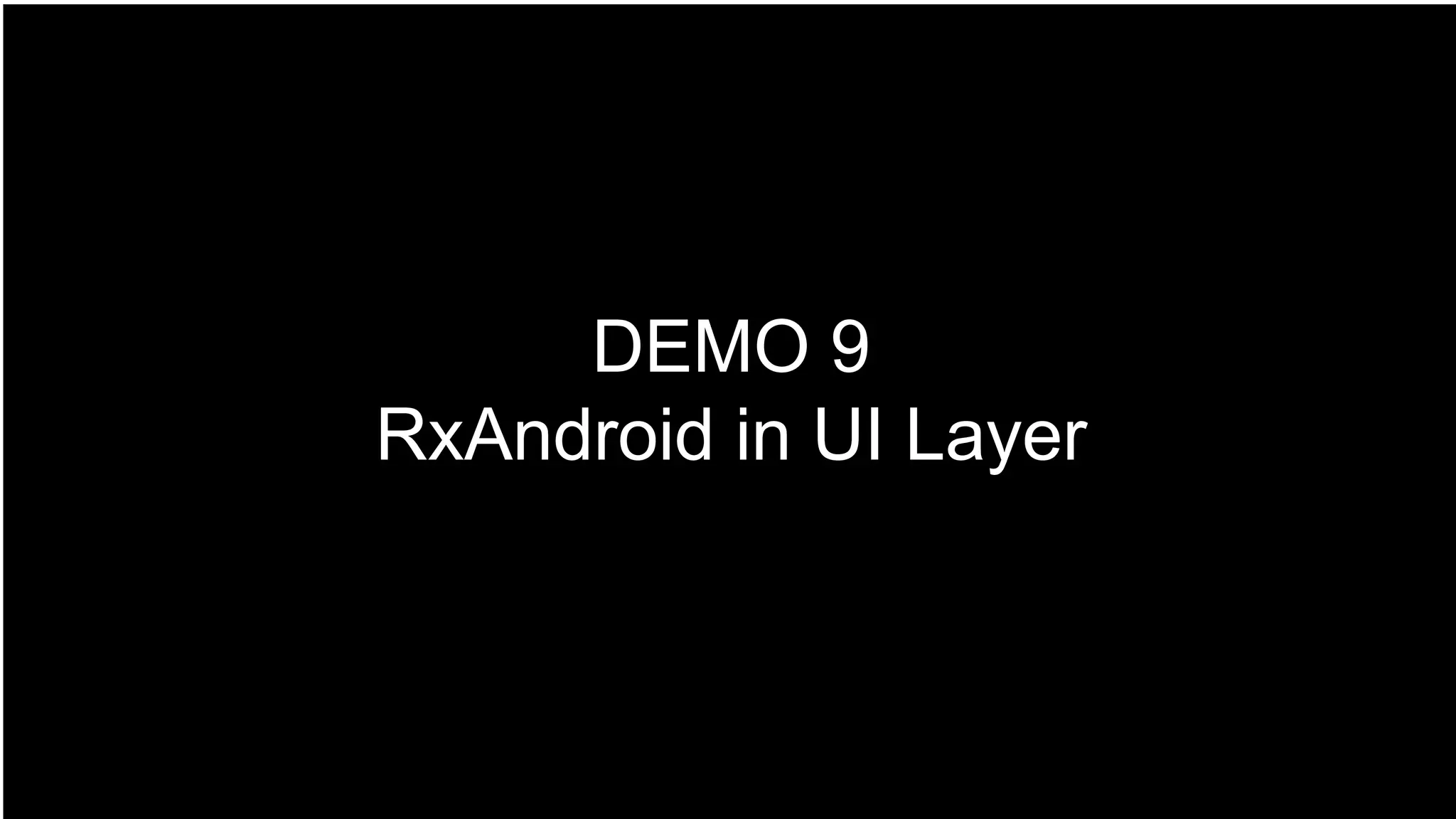

49. DEMO 9
RxAndroid in UI Layer

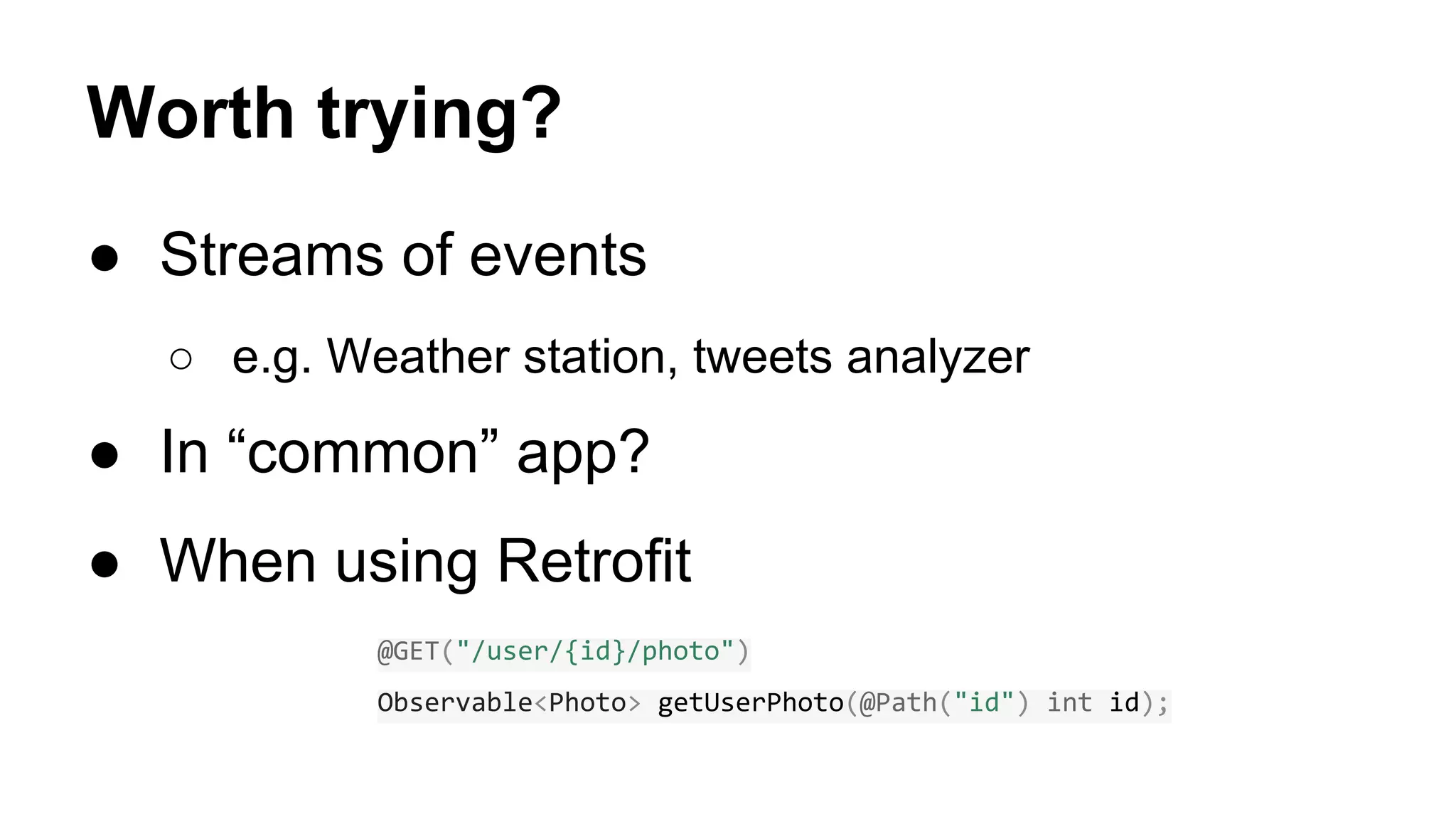

50. Worth trying?
● Streams of events
○ e.g. Weather station, tweets analyzer
● In “common” app?
● When using Retrofit
@GET("/user/{id}/photo")
Observable<Photo> getUserPhoto(@Path("id") int id);

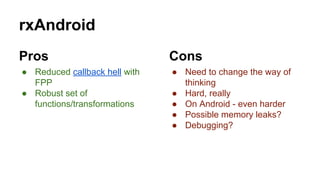

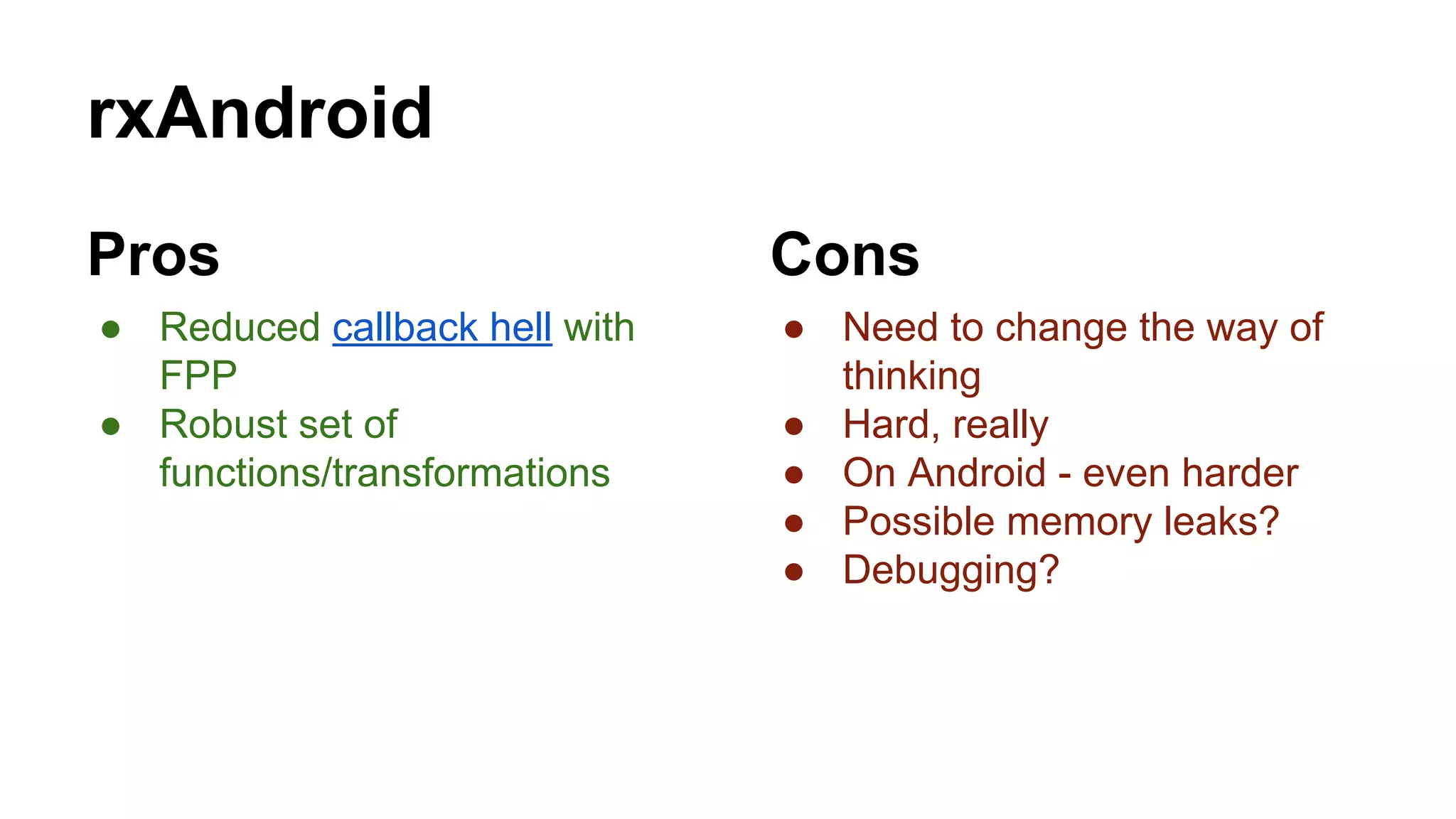

51. rxAndroid
Pros
● Reduced callback hell with
FPP
● Robust set of
functions/transformations
Cons
● Need to change the way of
thinking
● Hard, really
● On Android - even harder
● Possible memory leaks?
● Debugging?

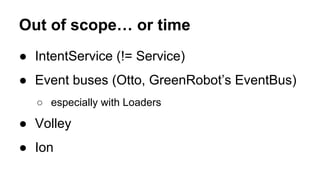

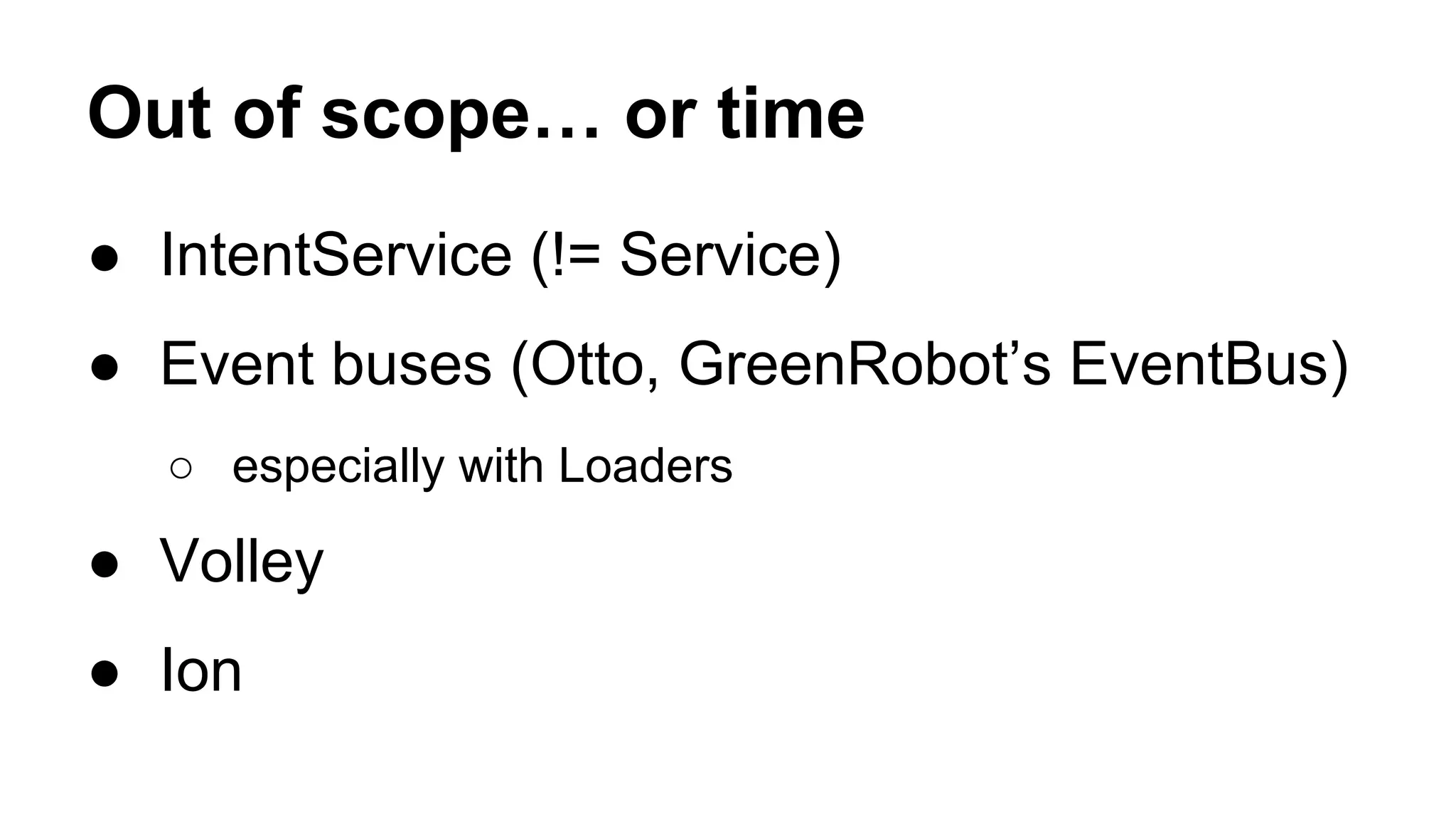

52. Out of scope… or time
● IntentService (!= Service)
● Event buses (Otto, GreenRobot’s EventBus)
○ especially with Loaders
● Volley
● Ion

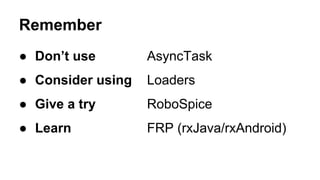

53. Remember
● Don’t use AsyncTask
● Consider using Loaders
● Give a try RoboSpice
● Learn FRP (rxJava/rxAndroid)

54. Thanks
Mateusz Grzechociński
@mgrzechocinski
http://grzechocinski.net
