1. Improved Text Layout for
Localisation
Charles Harley & Robert Hewitt 25/10/12

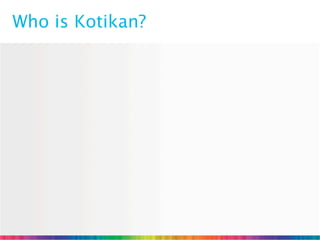

2. Who is Kotikan?

3. Who is Kotikan?
• Mobile development consultancy based in
Edinburgh

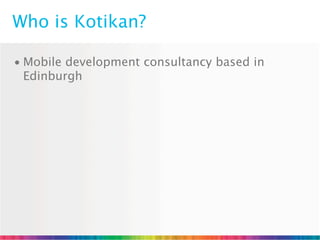

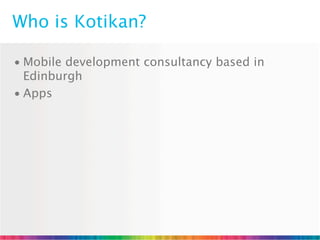

4. Who is Kotikan?
• Mobile development consultancy based in
Edinburgh
• Apps

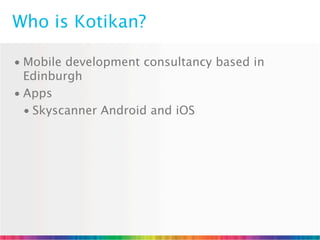

5. Who is Kotikan?
• Mobile development consultancy based in
Edinburgh
• Apps
• Skyscanner Android and iOS

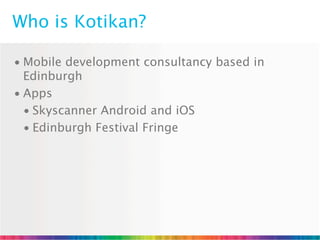

6. Who is Kotikan?
• Mobile development consultancy based in
Edinburgh
• Apps
• Skyscanner Android and iOS
• Edinburgh Festival Fringe

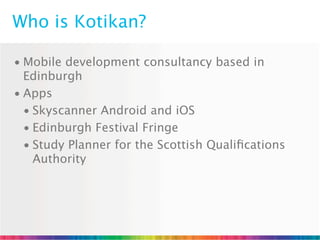

7. Who is Kotikan?
• Mobile development consultancy based in
Edinburgh
• Apps
• Skyscanner Android and iOS
• Edinburgh Festival Fringe
• Study Planner for the Scottish Qualifications
Authority

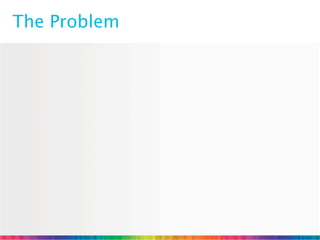

8. The Problem

9. The Problem
• Languages, they’re so different!

10. The Problem
• Languages, they’re so different!
• Skyscanner app has >3 million downloads

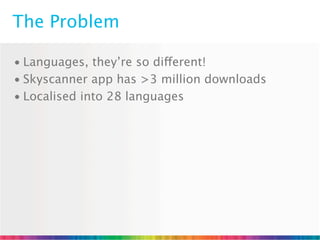

11. The Problem
• Languages, they’re so different!
• Skyscanner app has >3 million downloads
• Localised into 28 languages

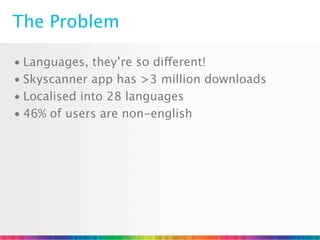

12. The Problem
• Languages, they’re so different!
• Skyscanner app has >3 million downloads
• Localised into 28 languages
• 46% of users are non-english

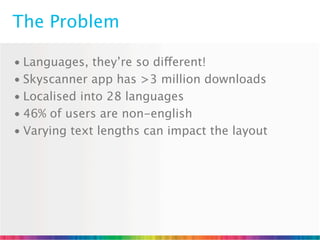

13. The Problem
• Languages, they’re so different!
• Skyscanner app has >3 million downloads
• Localised into 28 languages
• 46% of users are non-english
• Varying text lengths can impact the layout

14. The Problem
• Languages, they’re so different!
• Skyscanner app has >3 million downloads
• Localised into 28 languages
• 46% of users are non-english
• Varying text lengths can impact the layout
• Examples

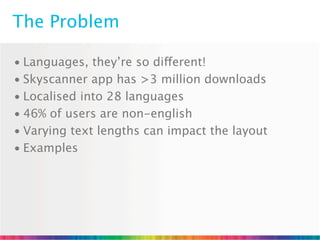

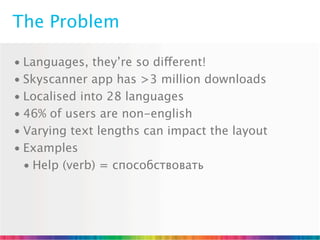

15. The Problem
• Languages, they’re so different!
• Skyscanner app has >3 million downloads
• Localised into 28 languages
• 46% of users are non-english
• Varying text lengths can impact the layout
• Examples
• Help (verb) = способствовать

16. The Problem
• Languages, they’re so different!
• Skyscanner app has >3 million downloads
• Localised into 28 languages
• 46% of users are non-english
• Varying text lengths can impact the layout
• Examples
• Help (verb) = способствовать
• Done (adjective) = Ολοκληρώθηκε

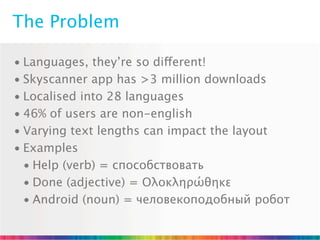

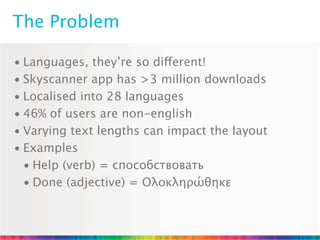

17. The Problem
• Languages, they’re so different!
• Skyscanner app has >3 million downloads
• Localised into 28 languages
• 46% of users are non-english
• Varying text lengths can impact the layout
• Examples
• Help (verb) = способствовать
• Done (adjective) = Ολοκληρώθηκε
• Android (noun) = человекоподобный робот

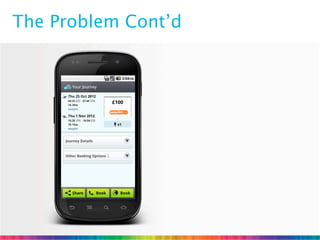

18. The Problem Cont’d

19. The Problem Cont’d

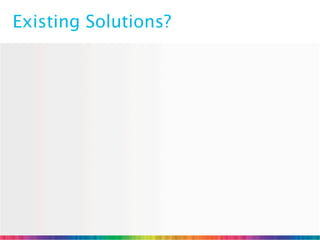

20. Existing Solutions?

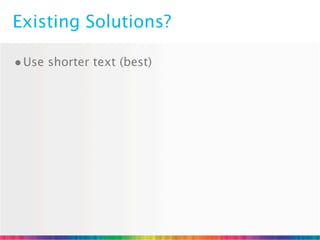

21. Existing Solutions?
• Use shorter text (best)

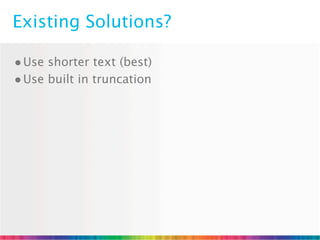

22. Existing Solutions?
• Use shorter text (best)
• Use built in truncation

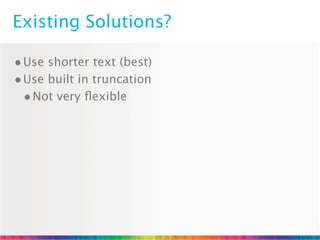

23. Existing Solutions?
• Use shorter text (best)
• Use built in truncation
• Not very flexible

24. Existing Solutions?
• Use shorter text (best)
• Use built in truncation
• Not very flexible
• Has potential to hide valuable information

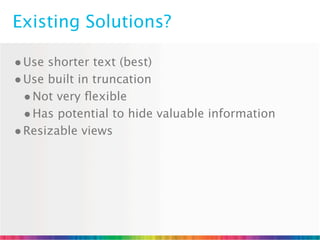

25. Existing Solutions?
• Use shorter text (best)
• Use built in truncation
• Not very flexible
• Has potential to hide valuable information
• Resizable views

26. Existing Solutions?
• Use shorter text (best)
• Use built in truncation
• Not very flexible
• Has potential to hide valuable information
• Resizable views
• Can have negative impact on screen design

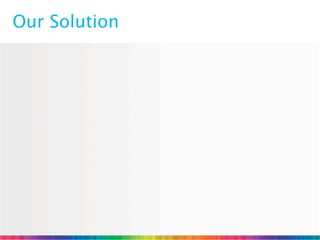

27. Our Solution

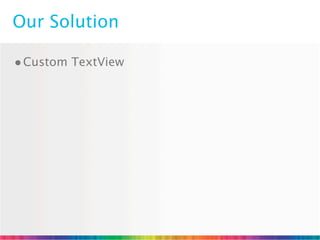

28. Our Solution
• Custom TextView

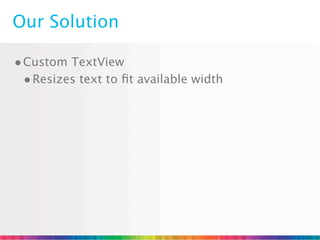

29. Our Solution
• Custom TextView
• Resizes text to fit available width

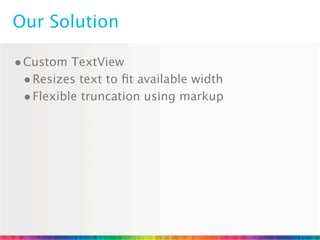

30. Our Solution
• Custom TextView
• Resizes text to fit available width
• Flexible truncation using markup

31. Implementing Auto Resizing

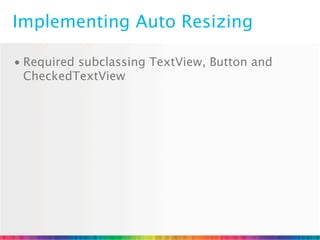

32. Implementing Auto Resizing
• Required subclassing TextView, Button and
CheckedTextView

33. Implementing Auto Resizing
• Required subclassing TextView, Button and
CheckedTextView
• Resizing logic implemented separately from
subclasses

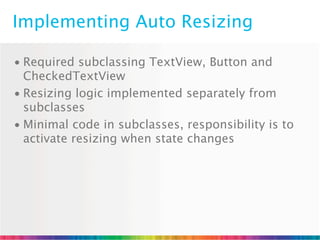

34. Implementing Auto Resizing
• Required subclassing TextView, Button and
CheckedTextView
• Resizing logic implemented separately from
subclasses
• Minimal code in subclasses, responsibility is to
activate resizing when state changes

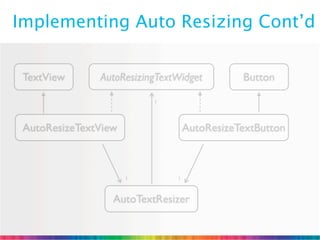

35. Implementing Auto Resizing Cont’d
TextView AutoResizingTextWidget Button
1
AutoResizeTextView AutoResizeTextButton
1 1
AutoTextResizer

36. Implementing Auto Resizing Cont’d
TextView AutoResizingTextWidget Button
1
AutoResizeTextView AutoResizeTextButton
1 1
AutoTextResizer

37. Implementing Auto Resizing Cont’d
TextView AutoResizingTextWidget Button
1
AutoResizeTextView AutoResizeTextButton
1 1
AutoTextResizer

38. Implementing Auto Resizing Cont’d
TextView AutoResizingTextWidget Button
1
AutoResizeTextView AutoResizeTextButton
1 1
AutoTextResizer

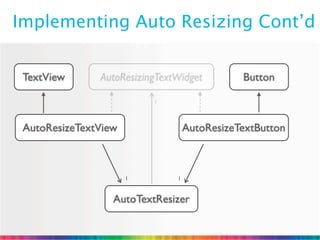

39. Implementing Auto Resizing Cont’d
TextView AutoResizingTextWidget Button
1
AutoResizeTextView AutoResizeTextButton
1 1
AutoTextResizer

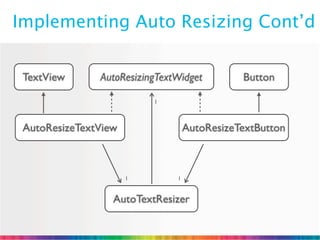

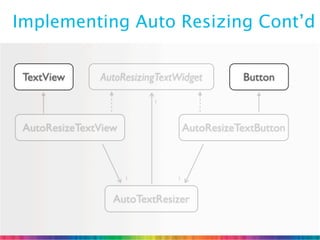

40. Implementing Auto Resizing Cont’d
TextView AutoResizingTextWidget Button
1
AutoResizeTextView AutoResizeTextButton
1 1
AutoTextResizer

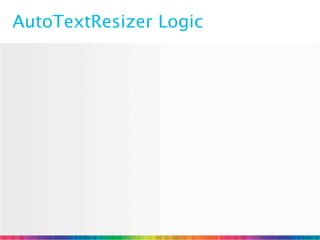

41. AutoTextResizer Logic

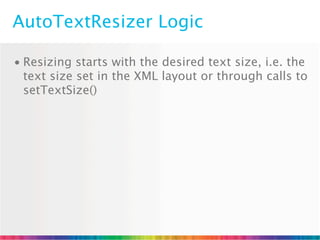

42. AutoTextResizer Logic
• Resizing starts with the desired text size, i.e. the
text size set in the XML layout or through calls to
setTextSize()

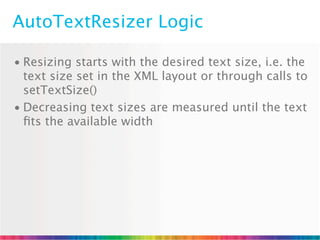

43. AutoTextResizer Logic
• Resizing starts with the desired text size, i.e. the
text size set in the XML layout or through calls to
setTextSize()
• Decreasing text sizes are measured until the text
fits the available width

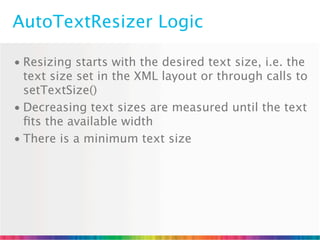

44. AutoTextResizer Logic
• Resizing starts with the desired text size, i.e. the
text size set in the XML layout or through calls to
setTextSize()
• Decreasing text sizes are measured until the text
fits the available width
• There is a minimum text size

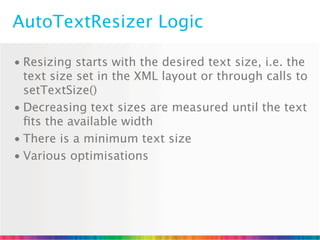

45. AutoTextResizer Logic
• Resizing starts with the desired text size, i.e. the
text size set in the XML layout or through calls to
setTextSize()
• Decreasing text sizes are measured until the text
fits the available width
• There is a minimum text size
• Various optimisations

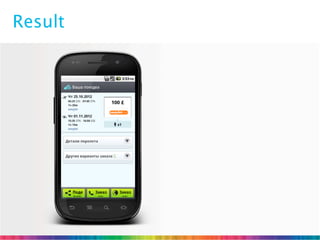

46. Result

47. Result

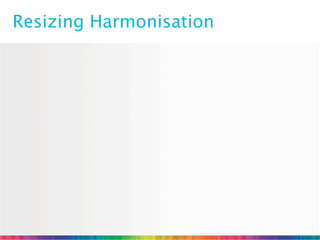

48. Resizing Harmonisation

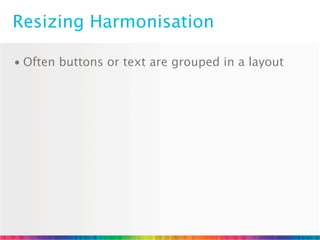

49. Resizing Harmonisation
• Often buttons or text are grouped in a layout

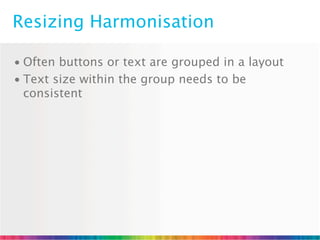

50. Resizing Harmonisation
• Often buttons or text are grouped in a layout
• Text size within the group needs to be
consistent

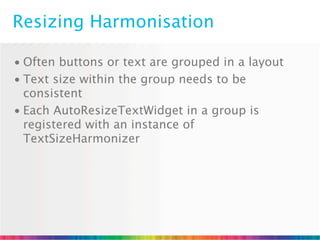

51. Resizing Harmonisation
• Often buttons or text are grouped in a layout
• Text size within the group needs to be
consistent
• Each AutoResizeTextWidget in a group is
registered with an instance of
TextSizeHarmonizer

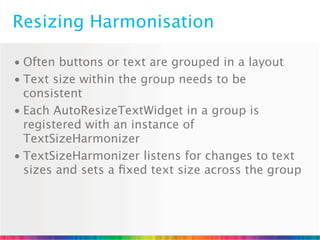

52. Resizing Harmonisation
• Often buttons or text are grouped in a layout
• Text size within the group needs to be
consistent
• Each AutoResizeTextWidget in a group is
registered with an instance of
TextSizeHarmonizer
• TextSizeHarmonizer listens for changes to text
sizes and sets a fixed text size across the group

53. Resizing Harmonisation
• Often buttons or text are grouped in a layout
• Text size within the group needs to be
consistent
• Each AutoResizeTextWidget in a group is
registered with an instance of
TextSizeHarmonizer
• TextSizeHarmonizer listens for changes to text
sizes and sets a fixed text size across the group
• Uses the smallest text size used in the group

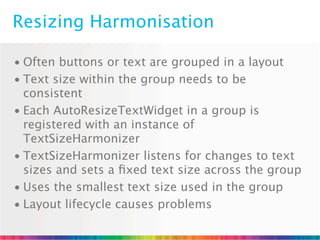

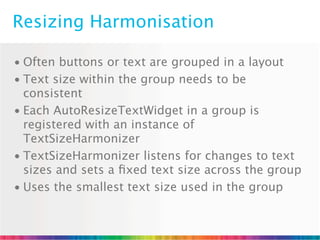

54. Resizing Harmonisation
• Often buttons or text are grouped in a layout
• Text size within the group needs to be
consistent
• Each AutoResizeTextWidget in a group is
registered with an instance of
TextSizeHarmonizer
• TextSizeHarmonizer listens for changes to text
sizes and sets a fixed text size across the group
• Uses the smallest text size used in the group
• Layout lifecycle causes problems

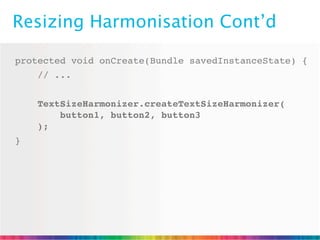

55. Resizing Harmonisation Cont’d
protected void onCreate(Bundle savedInstanceState) {
// ...
TextSizeHarmonizer.createTextSizeHarmonizer(
button1, button2, button3
);
}

56. Result

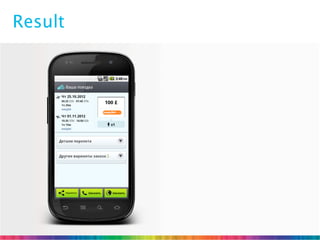

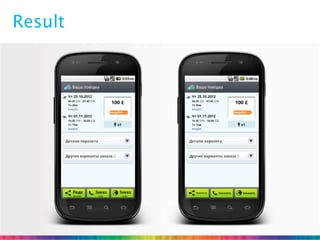

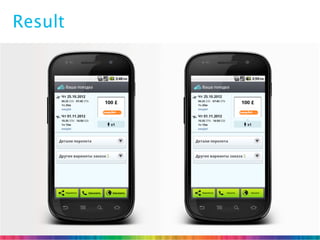

57. Result

58. XML Harmonisation

59. XML Harmonisation
• We can make it better

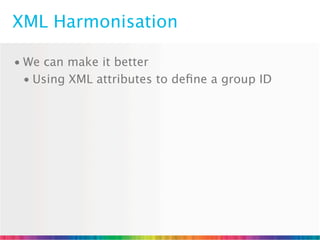

60. XML Harmonisation
• We can make it better
• Using XML attributes to define a group ID

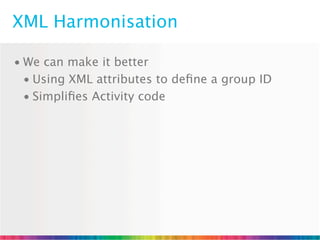

61. XML Harmonisation
• We can make it better
• Using XML attributes to define a group ID
• Simplifies Activity code

62. XML Harmonisation
• We can make it better
• Using XML attributes to define a group ID
• Simplifies Activity code
• Separation of layout logic from business logic

63. XML Harmonisation Cont’d
<LinearLayout
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:harmonise="http://schemas.android.com/apk/res-auto"
>
<com.kotikan.android.ui.AutoResizeTextButton
harmonise:harmonizingGroupId="footerButtons"
...
/>
<com.kotikan.android.ui.AutoResizeTextButton
harmonise:harmonizingGroupId="footerButtons"
...
/>
<com.kotikan.android.ui.AutoResizeTextButton
harmonise:harmonizingGroupId="footerButtons"
...
/>
</LinearLayout>

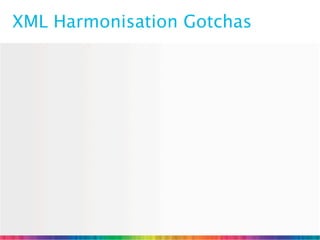

64. XML Harmonisation Gotchas

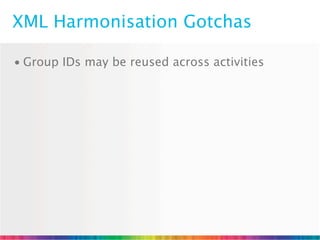

65. XML Harmonisation Gotchas
• Group IDs may be reused across activities

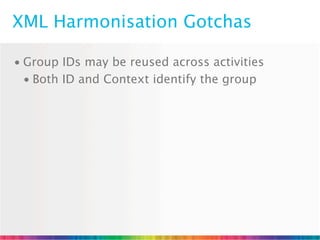

66. XML Harmonisation Gotchas
• Group IDs may be reused across activities
• Both ID and Context identify the group

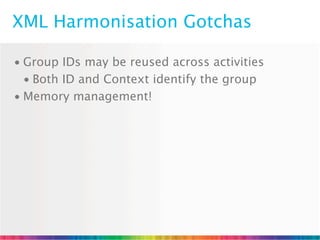

67. XML Harmonisation Gotchas
• Group IDs may be reused across activities
• Both ID and Context identify the group
• Memory management!

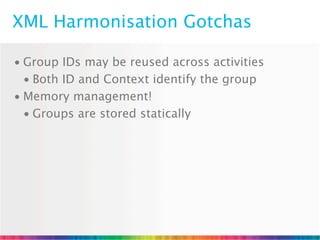

68. XML Harmonisation Gotchas
• Group IDs may be reused across activities
• Both ID and Context identify the group
• Memory management!
• Groups are stored statically

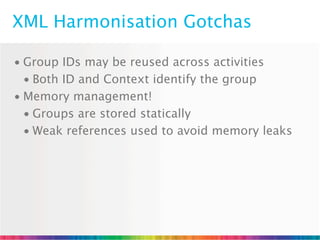

69. XML Harmonisation Gotchas
• Group IDs may be reused across activities
• Both ID and Context identify the group
• Memory management!
• Groups are stored statically
• Weak references used to avoid memory leaks

70. Flexible Truncation

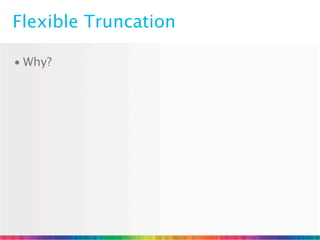

71. Flexible Truncation
• Why?

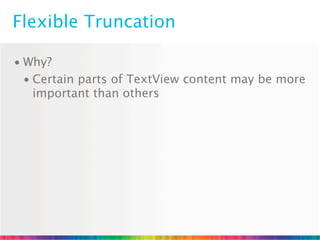

72. Flexible Truncation
• Why?
• Certain parts of TextView content may be more
important than others

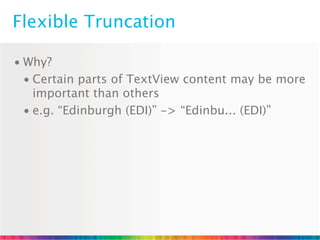

73. Flexible Truncation
• Why?
• Certain parts of TextView content may be more
important than others
• e.g. “Edinburgh (EDI)” -> “Edinbu... (EDI)”

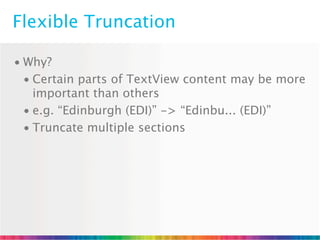

74. Flexible Truncation
• Why?
• Certain parts of TextView content may be more
important than others
• e.g. “Edinburgh (EDI)” -> “Edinbu... (EDI)”
• Truncate multiple sections

75. Flexible Truncation
• Why?
• Certain parts of TextView content may be more
important than others
• e.g. “Edinburgh (EDI)” -> “Edinbu... (EDI)”
• Truncate multiple sections
• Truncation defined using markup

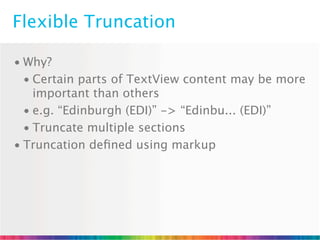

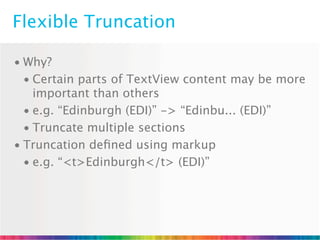

76. Flexible Truncation
• Why?
• Certain parts of TextView content may be more
important than others
• e.g. “Edinburgh (EDI)” -> “Edinbu... (EDI)”
• Truncate multiple sections
• Truncation defined using markup
• e.g. “<t>Edinburgh</t> (EDI)”

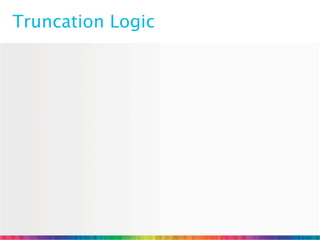

77. Truncation Logic

78. Truncation Logic
• Quick exit if no truncation required

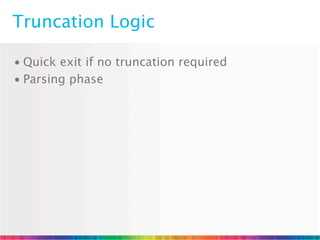

79. Truncation Logic
• Quick exit if no truncation required
• Parsing phase

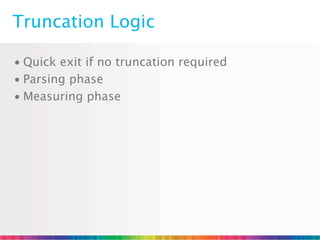

80. Truncation Logic
• Quick exit if no truncation required
• Parsing phase
• Measuring phase

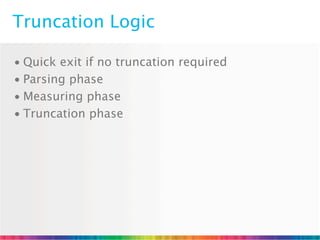

81. Truncation Logic
• Quick exit if no truncation required
• Parsing phase
• Measuring phase
• Truncation phase

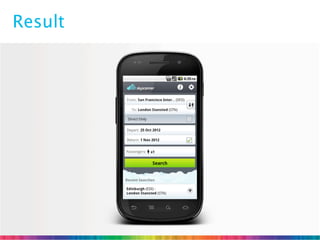

82. Result

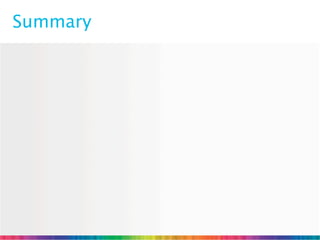

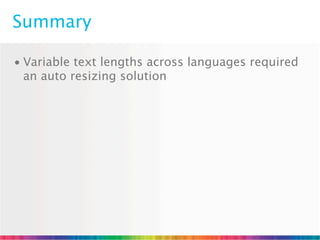

83. Summary

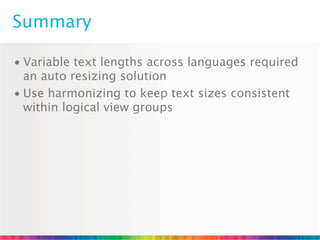

84. Summary
• Variable text lengths across languages required
an auto resizing solution

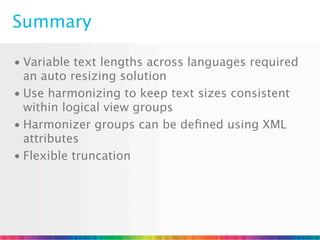

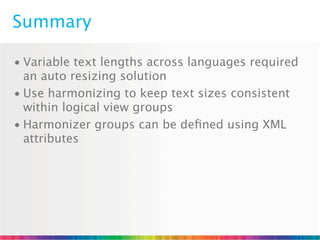

85. Summary
• Variable text lengths across languages required
an auto resizing solution
• Use harmonizing to keep text sizes consistent
within logical view groups

86. Summary
• Variable text lengths across languages required
an auto resizing solution
• Use harmonizing to keep text sizes consistent
within logical view groups
• Harmonizer groups can be defined using XML
attributes

87. Summary
• Variable text lengths across languages required
an auto resizing solution
• Use harmonizing to keep text sizes consistent
within logical view groups
• Harmonizer groups can be defined using XML
attributes
• Flexible truncation

88. Q&A / Feedback
?
charles@kotikan.com robert@kotikan.com
@charlesharley
