Porting Tips:
                         iOS to Android

                         OpenMIC #16
                             @ Exeter University
                                15 Feb 2013




   Elliot Long
   @elroid
Monday, 18 February 13

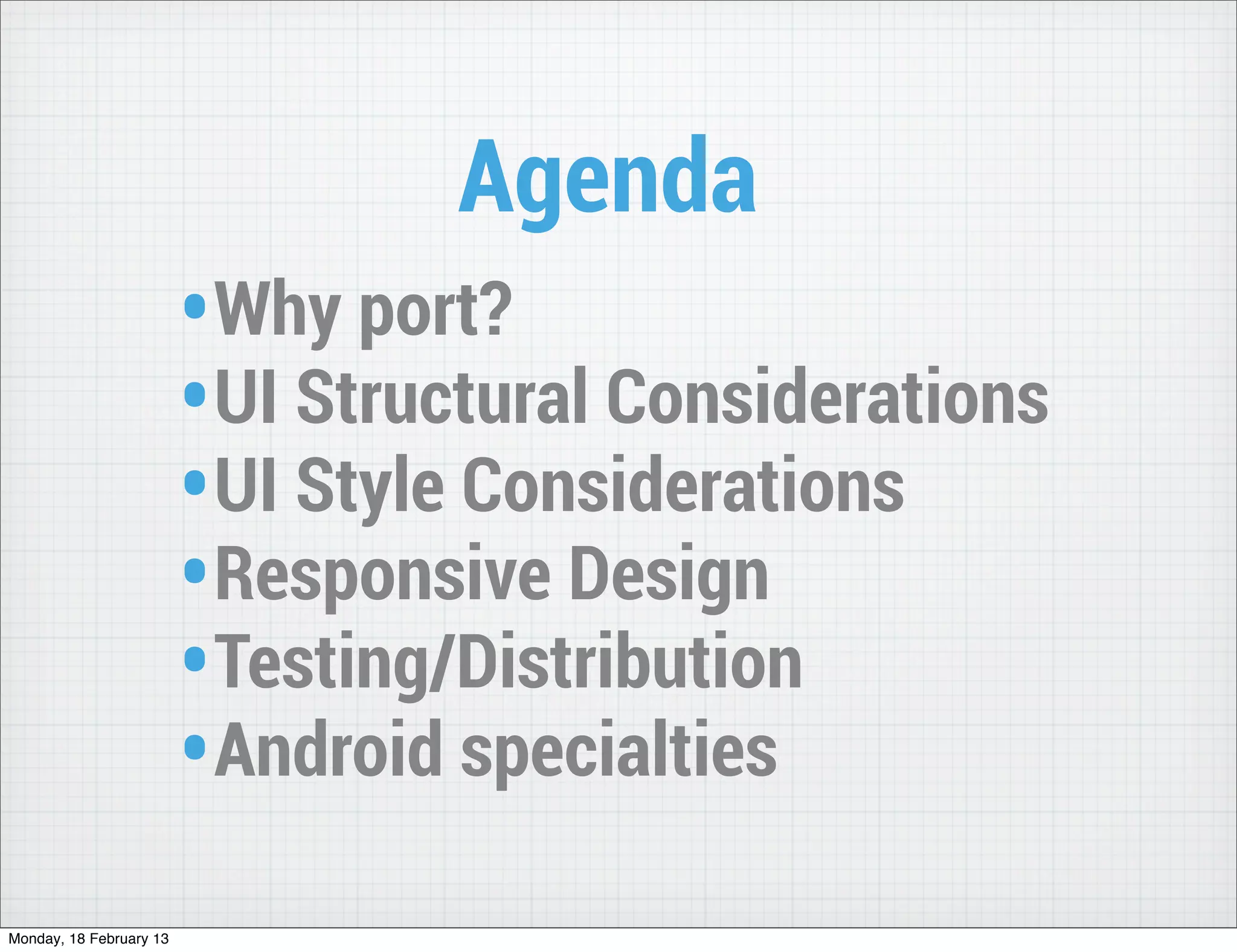

Agenda
                         • Why port?
                         • UI Structural Considerations
                         • UI Style Considerations
                         • Responsive Design
                         • Testing/Distribution
                         • Android specialties
Monday, 18 February 13
Porting?

                         Port [pohrt] Vb
                         To translate software to run on a different
                         computer and/or operating system.




Monday, 18 February 13
Porting?

                         Port [pohrt] Vb
                         To rewrite an application so it works on a
                         different platform, using some common
                         assets where possible




Monday, 18 February 13
Why Android?




Monday, 18 February 13
Why not web-apps?

                              e.g.
                           PhoneGap
                          Appcelerator
                             Corona
                          FlashBuilder




Monday, 18 February 13
One size does not fit all



Monday, 18 February 13
One size does not fit all*



Monday, 18 February 13
*...unless you’re making a
                     game




Monday, 18 February 13
So what’s so different?




Monday, 18 February 13
So what’s so different?
                         Buttons, mainly.




Monday, 18 February 13
#1: We don’t need that on-screen back button




Monday, 18 February 13
#2: Menu options are there if you need them




                         [with menu key]   [without menu key]
Monday, 18 February 13
#2: Menu options are there if you need them

                         ...and for compatibilty
                            with older apps....




Monday, 18 February 13
#3a Tabs: Should be at the very least
                                be moved to the top...




Monday, 18 February 13
#3b Tabs: ...and preferably look more android like...




              ActionbarSherlock
                      +
               HoloEverywhere



Monday, 18 February 13
#3b Tabs: ...and preferably look more android like...




            jgilfelt.github.com/android-actionbarstylegenerator
Monday, 18 February 13
#3c Tabs: ...or ideally ditched altogether




Monday, 18 February 13
#3d: Life without tabs: the 3rd way




Monday, 18 February 13
#3d: Life without tabs: the 3rd way




                         github.com/jfeinstein10/SlidingMenu
Monday, 18 February 13
Style: General guidelines


                            •Not quite so rounded
                            •16:9 not 3:2




Monday, 18 February 13
Style: UITableView vs LinearLayout



                                 •No rounded corners
                                 •No lines to the edge!
                                 •No chevrons
                                 •Accordions? Hmm...




Monday, 18 February 13
Style: UITableView vs ListView


                                Separate each row
                                      --or--
                                  Put them in a
                                scrolling rounded
                                     window




Monday, 18 February 13
Style: 9Patch images




                    http://weblookandfeel.com/nine-patch-editor/
         iOS5 equivalent:
         cap insets

Monday, 18 February 13
Style: 9Patch images




               http://weblookandfeel.com/nine-patch-editor/

Monday, 18 February 13
Style: Button states

            In iOS you get lovely
            blueness for free




               No free lunch for
               android, need
               several states for
               all buttons


Monday, 18 February 13
Style: Icons




        http://developer.android.com/guide/practices/ui_guidelines/icon_design_launcher.html

     Tip: Android tablets icons come from the “next bucket
     up” e.g. the Nexus 10 is an xhdpi device, but will use
     icons from the xxhdpi bucket

Monday, 18 February 13
Style: Switch Buttons


                  Not supported by ABS or
                  HoloEverywhere (yet)

                  Pretty easy to do with
                  images (extend
                  CompoundButton or use an
                  ImageView)




Monday, 18 February 13
Style: Fonts


  Can use TrueType fonts
  (like iOS5)

  Not straightforward...

  But do you really need
  them....?




Monday, 18 February 13
Roboto in ICS+




Monday, 18 February 13
Roboto before ICS

                            Roboto Regular
                             Roboto Bold
                             Roboto Italic

                         But you can use roboto.ttf for < ICS


Monday, 18 February 13
Style: Densities




                                     ldpi - 0.5x
                                     mdpi - 1x
                                     hdpi - 1.5x
                                     xhdpi - 2x
                                     xxhdpi - 2.5x?
                         http://developer.android.com/guide/practices/
                                      screens_support.html
Monday, 18 February 13
iPhone 3
                         HTC Dream (G1)
Monday, 18 February 13
Nexus 1
Monday, 18 February 13
HTC Sensation
Monday, 18 February 13
HTC Sensation   iPhone 4s (640x960)
Monday, 18 February 13
Galaxy Nexus
Monday, 18 February 13
Sony Xperia Z
Monday, 18 February 13
Android   iPhone




Monday, 18 February 13
Vodafone 858

Monday, 18 February 13
Responsive Design
                         Do Use:
                         •LinearLayout, RelativeLayout
                         •layout_weight, match_parent, wrap_content
                         •dps for measurements, sp for fonts

                         Do not use:
                         •AbsoluteLayout
                         •px for interface measurements
                         •dp for fonts
                           (sp takes user font size pref into account)


Monday, 18 February 13
Testing & Distribution

                                                iPhone                       Android


                            Type              Simulator                     Emulator

                                        Quicker, not as suitable for      Slower, more
                          Suitability     debugging, esp multi-
                                                 threaded                   accurate

                                            Provisioning                 Share a link to
                         Beta Testing
                                               (doh!)                        APK

                                                                              Up to 50mb
                         Binary Size         Up to 2GB                 +2 x 2GB extension packs



Monday, 18 February 13
Don’t forget - Android
                 does things iOS doesn’t!


Monday, 18 February 13
Android Specialties
    •Background processes




Monday, 18 February 13
Android Specialties
    •Background processes
    •Intent-filter: BROWSABLE




Monday, 18 February 13
Android Specialties
    •Background processes
    •Intent-filter: BROWSABLE
    •Widgets




Monday, 18 February 13
Android Specialties
    •Background processes
    •Intent-filter: BROWSABLE
    •Widgets
    •Rich notifications




Monday, 18 February 13
Android Specialties
    •Background processes
    •Intent-filter: BROWSABLE
    •Widgets
    •Rich notifications
    •NFC




Monday, 18 February 13
Useful Resources
        actionbarsherlock.com                        www.holoeverywhere.com
                           developer.android.com/design
             developer.android.com/guide/practices/ui_guidelines/icon_design_launcher.html


                               www.androidpatterns.com

                                    Sliding Menu
                         github.com/jfeinstein10/SlidingMenu


                                Actionbar Style Generator
                 jgilfelt.github.com/android-actionbarstylegenerator

Monday, 18 February 13
Useful Resources




                                www.jetbrains.com/idea




Monday, 18 February 13
Questions?



   Elliot Long
   @elroid




Monday, 18 February 13
