The document provides an overview of Docker basics, including an introduction to containers, why containers are needed, how Docker differs from virtual machines, and explanations of common Docker commands like build, run, push and pull. It also includes examples demonstrating how to build a Python app into a Docker image and run/deploy it as a container, as well as an example using Nginx.

1. Docker Basics
Panuwat Boonrod (New)

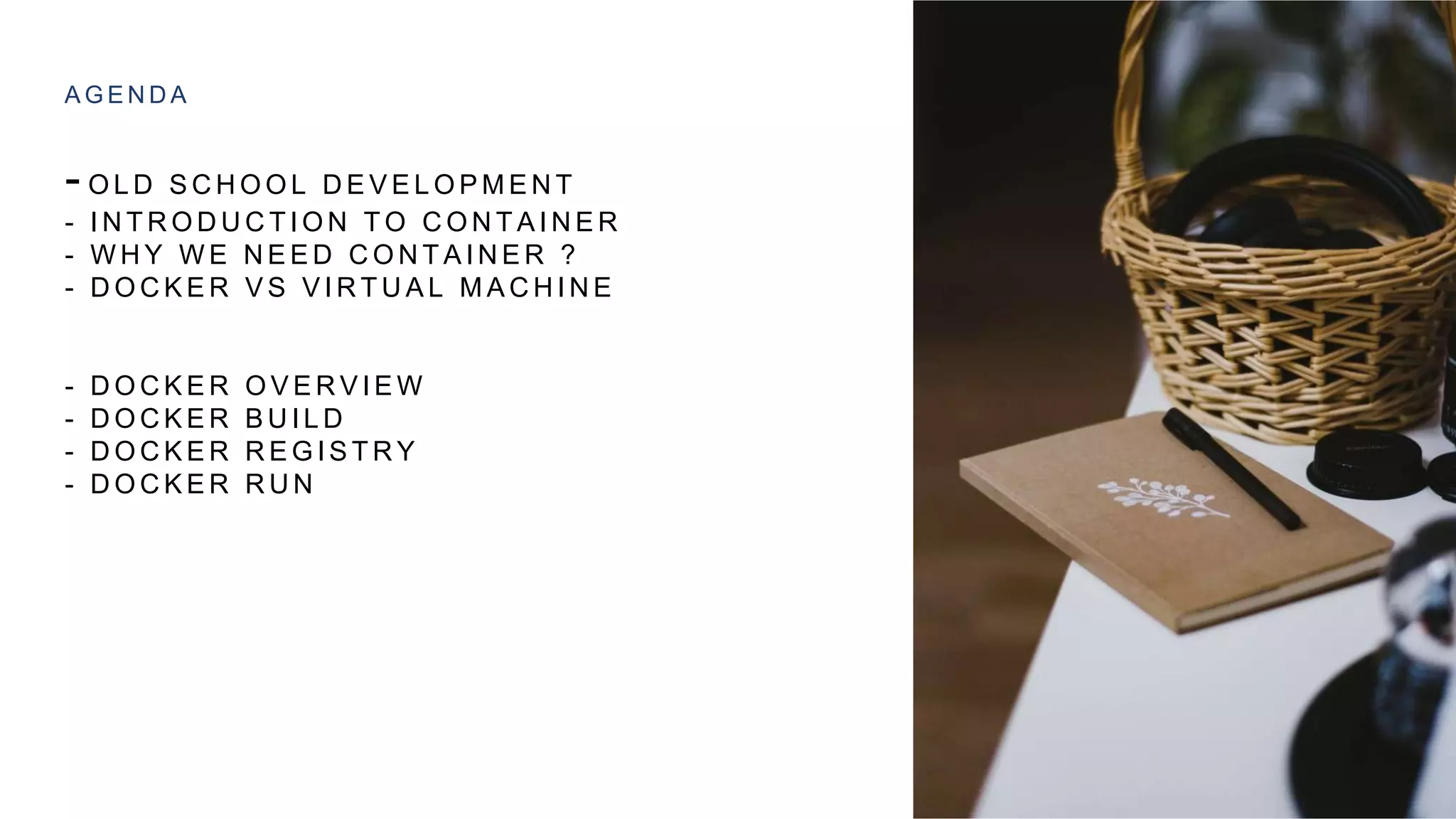

2. - O L D S C H O O L D E V E L O P M E N T
- I N T R O D U C T I O N T O C O N T A I N E R
- W H Y W E N E E D C O N T A I N E R ?
- D O C K E R V S V I R T U A L M A C H I N E
- D O C K E R O V E R V I E W
- D O C K E R B U I L D
- D O C K E R R E G I S T R Y
- D O C K E R R U N
A G E N D A

3. O L D S C H O O L D E P L O Y M E N T
D E V E L O P E R O P E R A T O R
I sent a copy into
SMTP server
already
Got it!, I will
deploy soon.
Deployment day

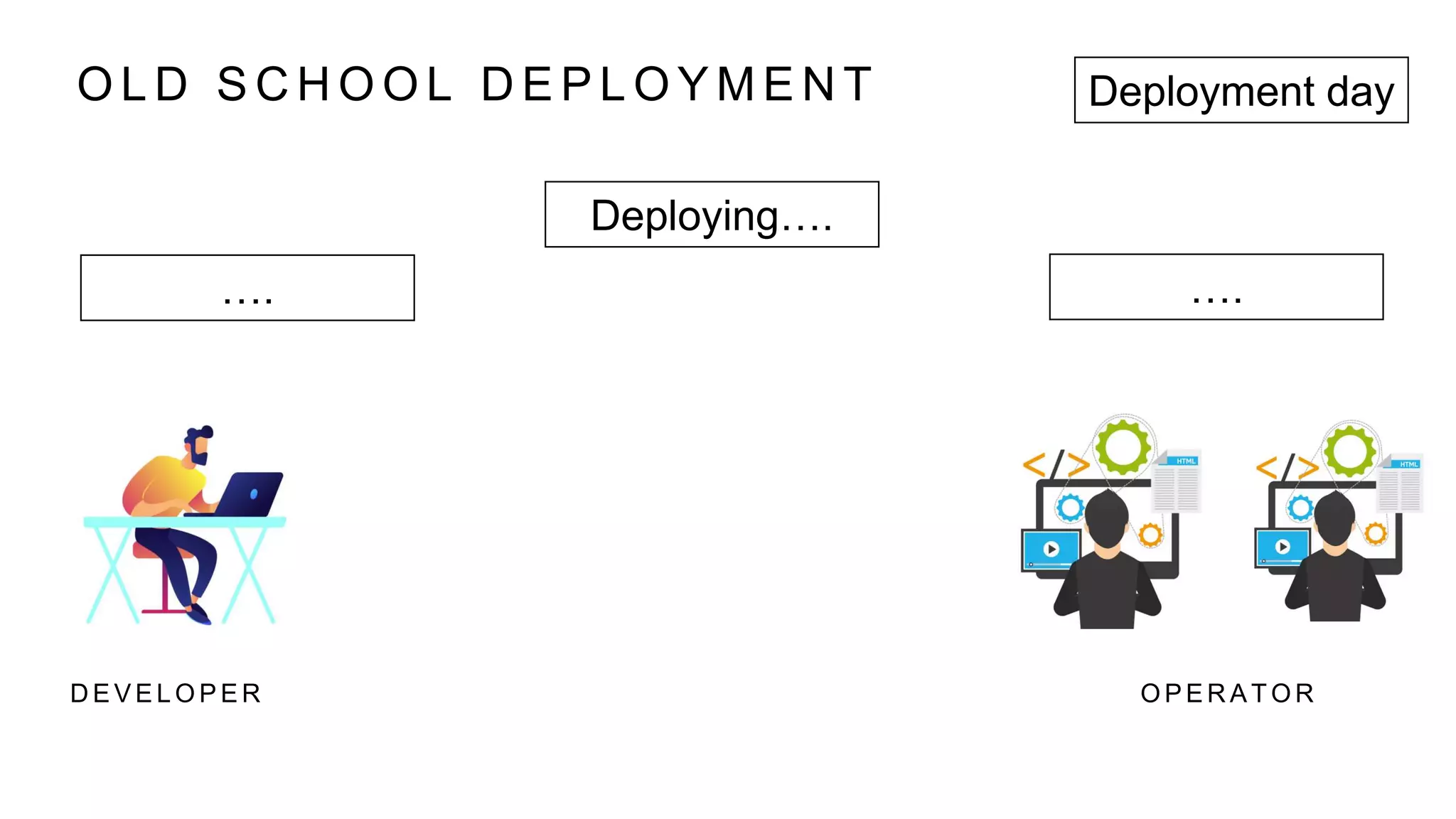

4. O L D S C H O O L D E P L O Y M E N T
D E V E L O P E R O P E R A T O R
…. ….
Deploying….
Deployment day

5. O L D S C H O O L D E P L O Y M E N T
D E V E L O P E R O P E R A T O R
Yepp!!
Let see the
results
Deployment day
Deploy
completed !!

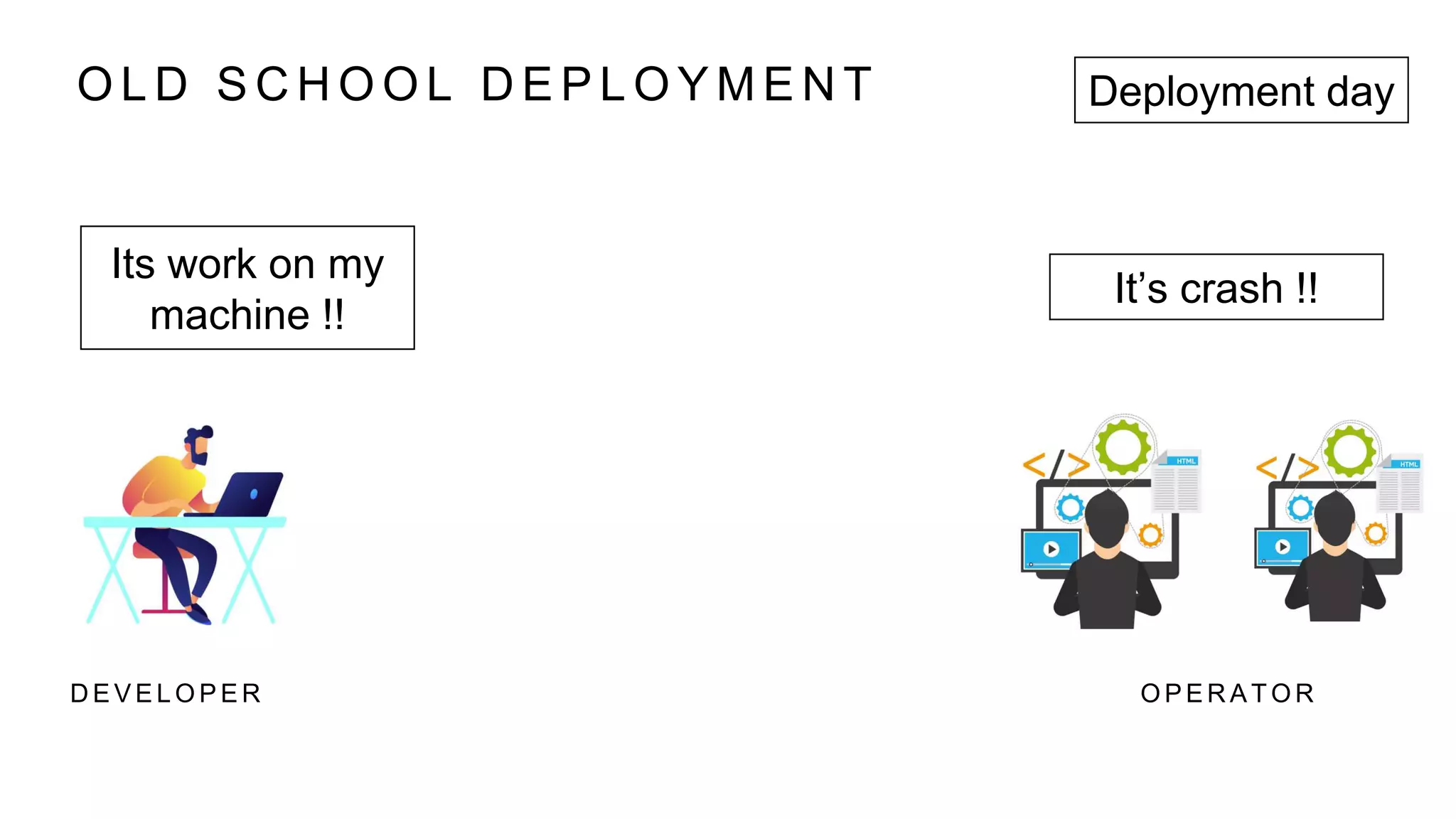

6. O L D S C H O O L D E P L O Y M E N T
D E V E L O P E R O P E R A T O R
Its work on my
machine !!
It’s crash !!
Deployment day

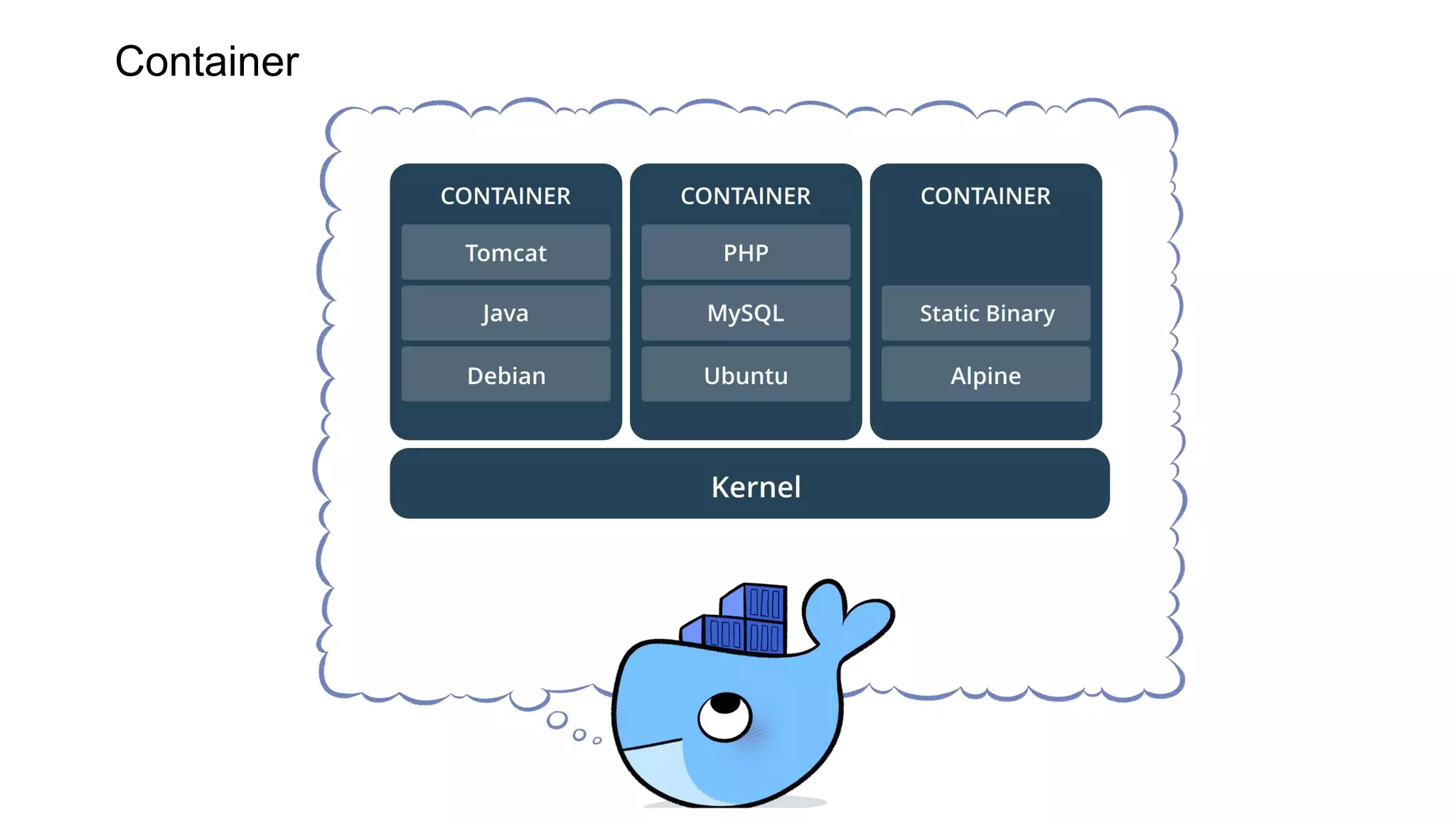

8. Container

9. T H E M O S T
P O P U L A R
C O N T A I N E R
M A N A G E R .
D O C K E R

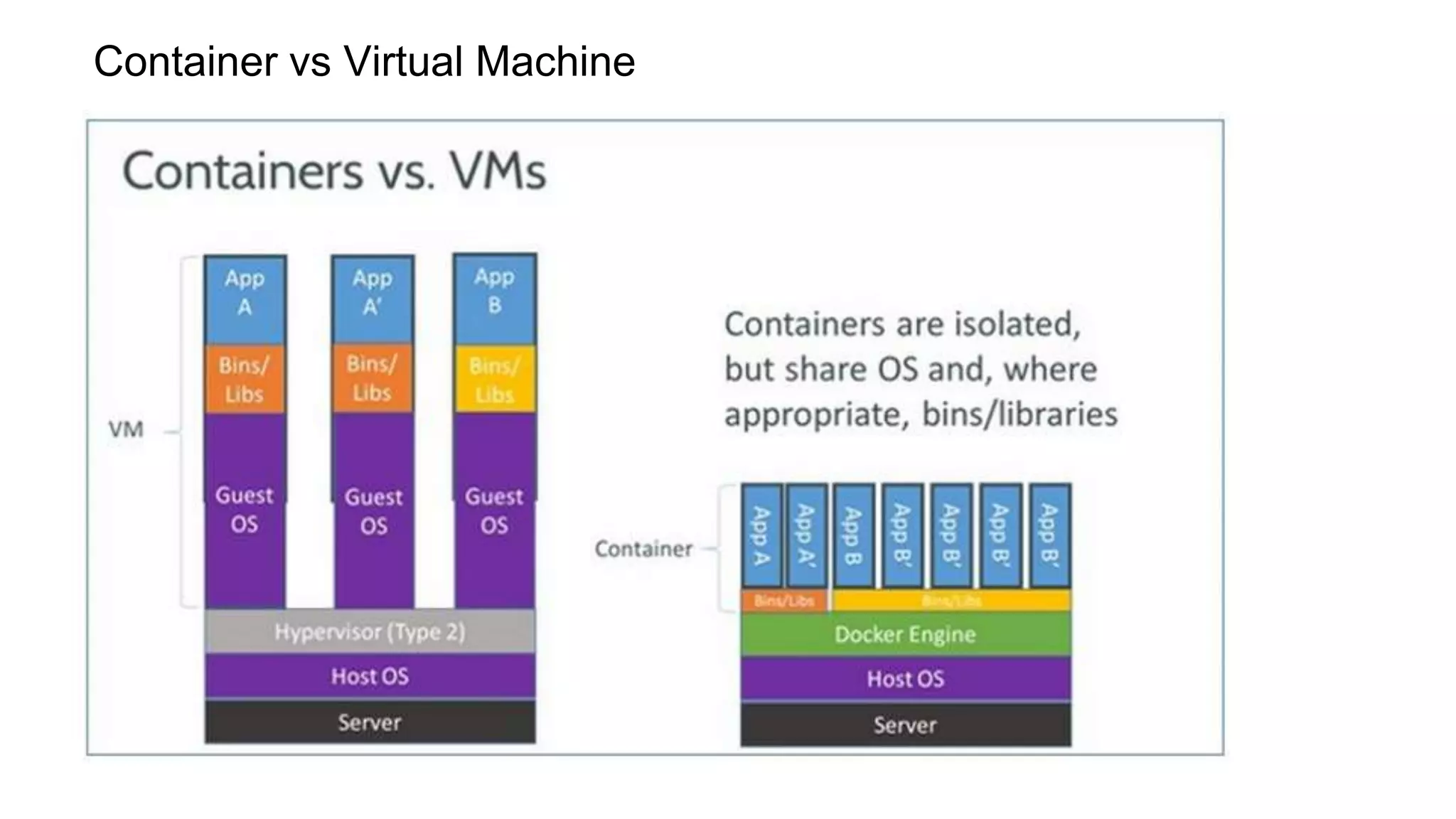

10. Container vs Virtual Machine

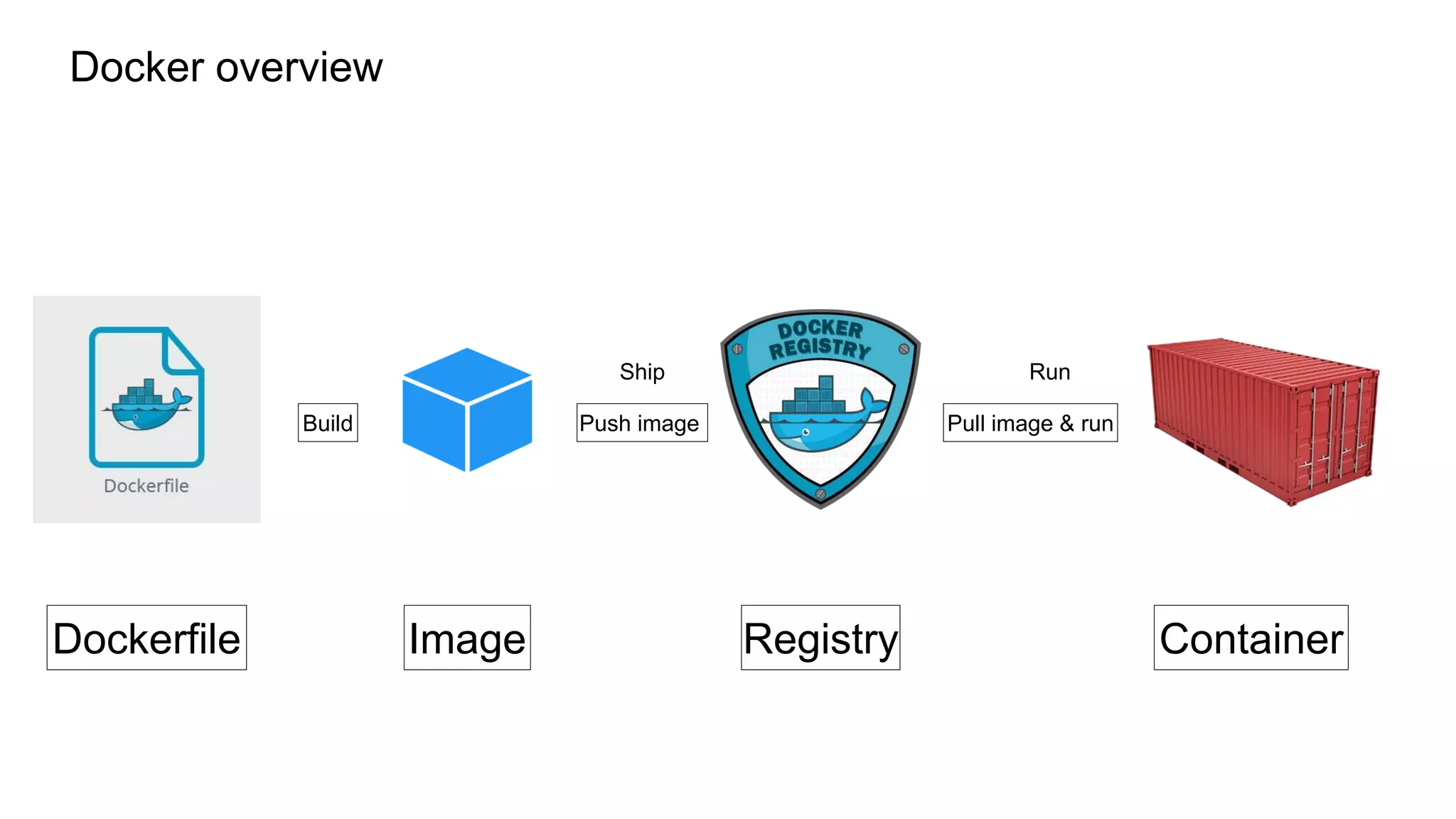

11. Docker overview
Dockerfile Image Registry Container
Push image Pull image & run
Build
Ship Run

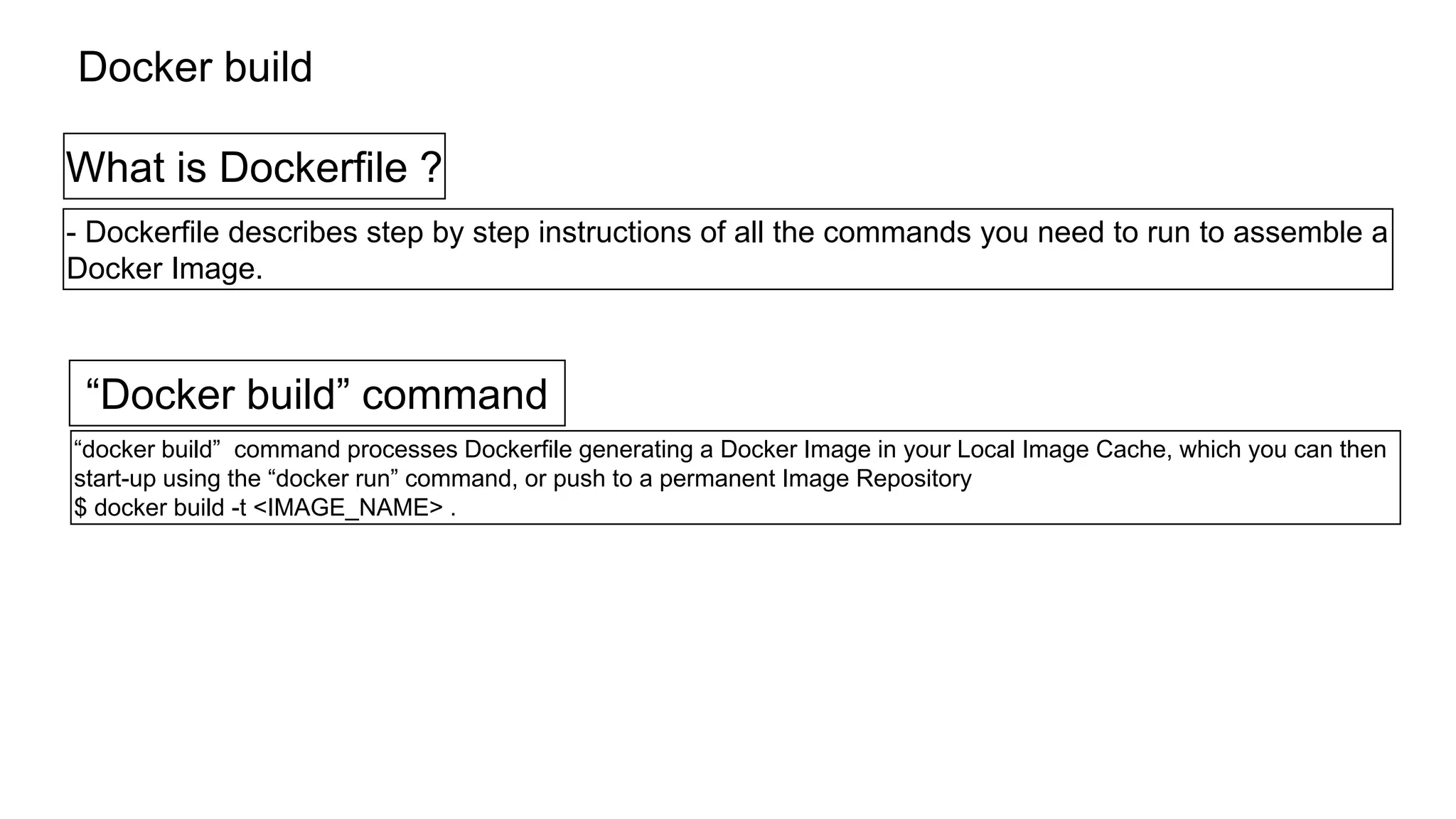

12. Docker build
What is Dockerfile ?
- Dockerfile describes step by step instructions of all the commands you need to run to assemble a
Docker Image.
“Docker build” command
“docker build” command processes Dockerfile generating a Docker Image in your Local Image Cache, which you can then
start-up using the “docker run” command, or push to a permanent Image Repository
$ docker build -t <IMAGE_NAME> .

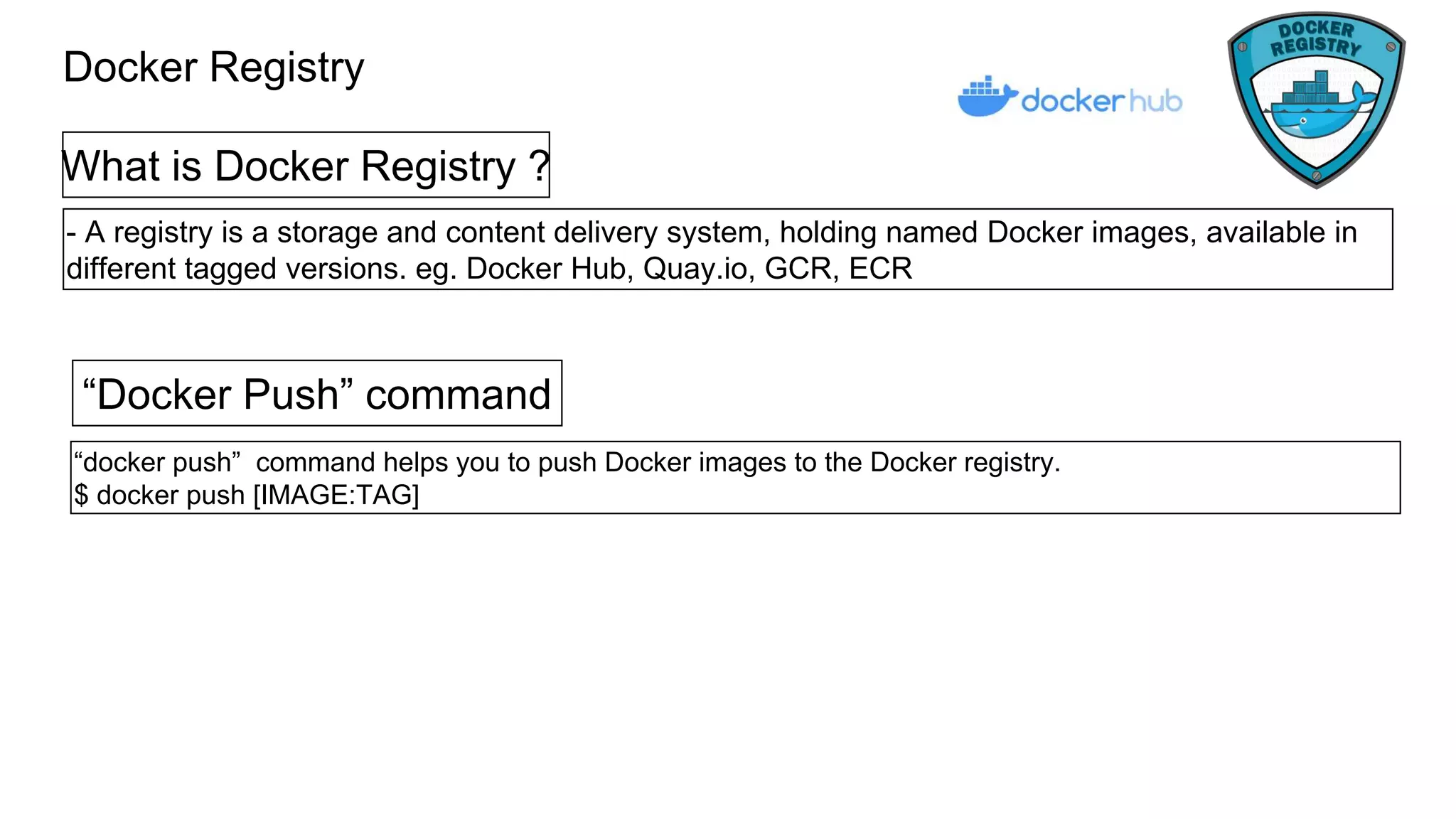

13. Docker Registry
What is Docker Registry ?
- A registry is a storage and content delivery system, holding named Docker images, available in
different tagged versions. eg. Docker Hub, Quay.io, GCR, ECR
“Docker Push” command
“docker push” command helps you to push Docker images to the Docker registry.
$ docker push [IMAGE:TAG]

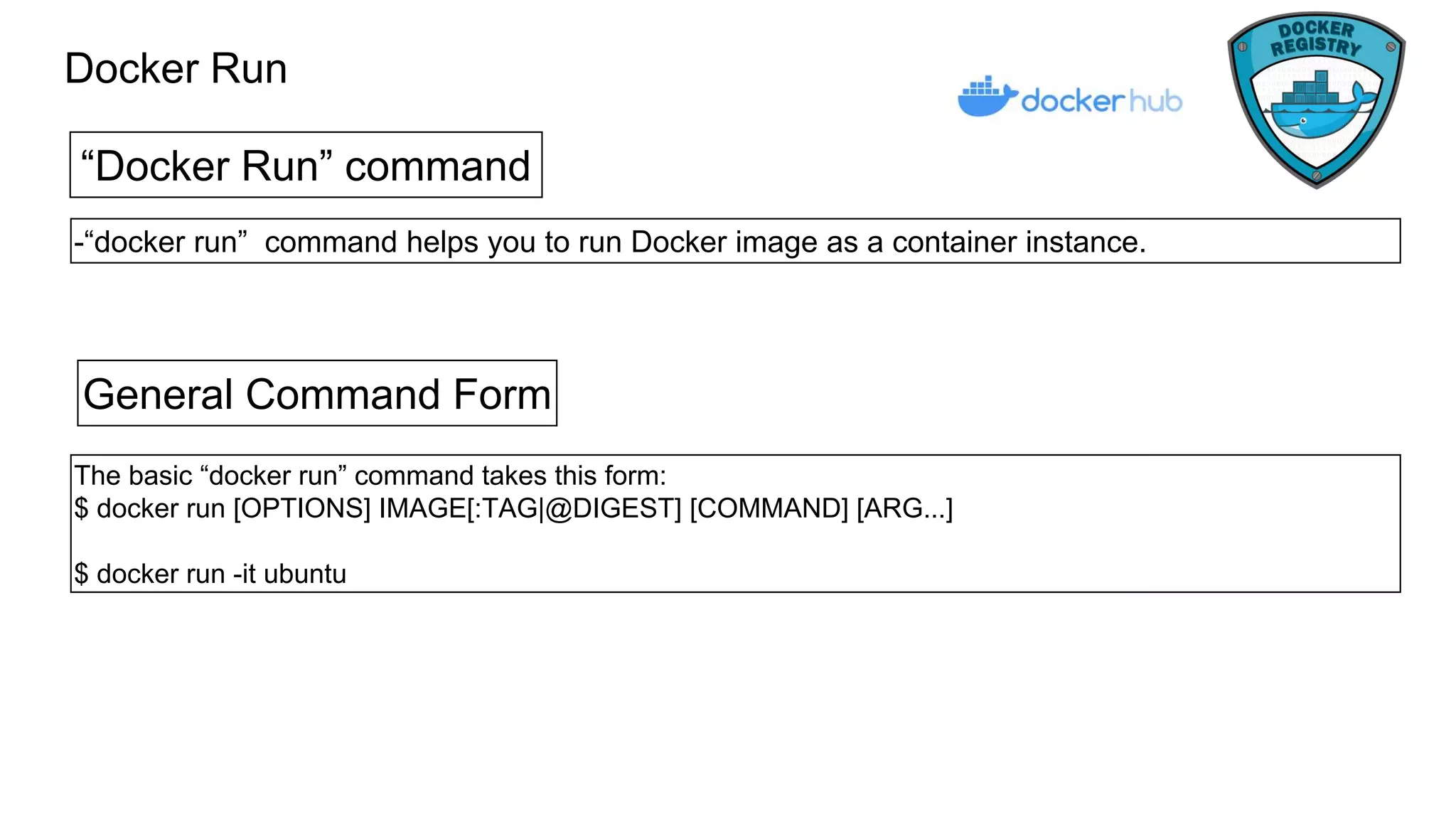

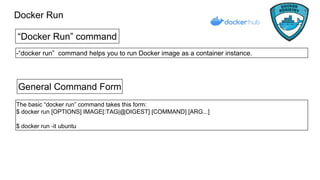

14. Docker Run
“Docker Run” command
-“docker run” command helps you to run Docker image as a container instance.
General Command Form
The basic “docker run” command takes this form:
$ docker run [OPTIONS] IMAGE[:TAG|@DIGEST] [COMMAND] [ARG...]
$ docker run -it ubuntu

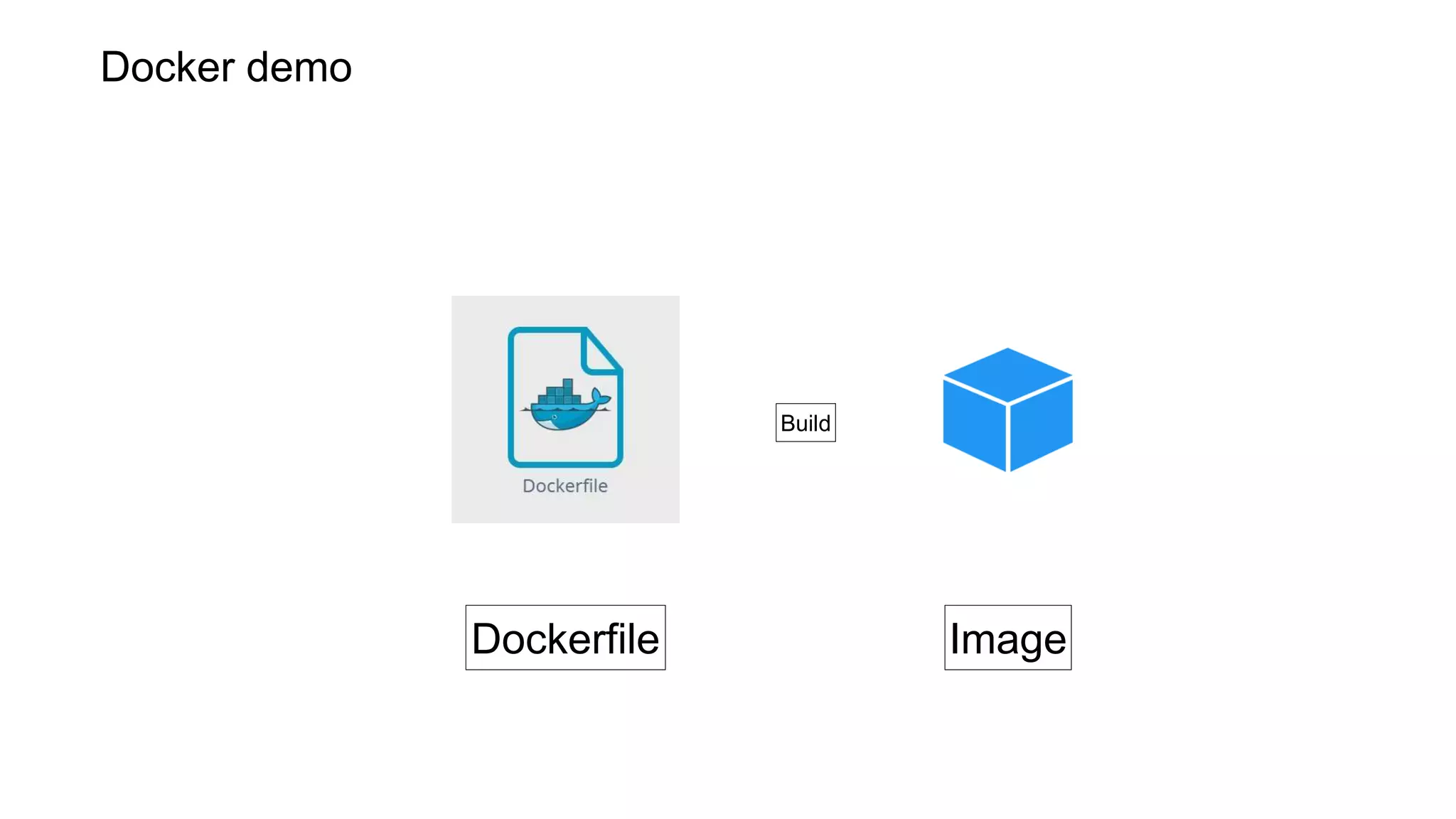

15. Docker demo
Dockerfile Image
Build

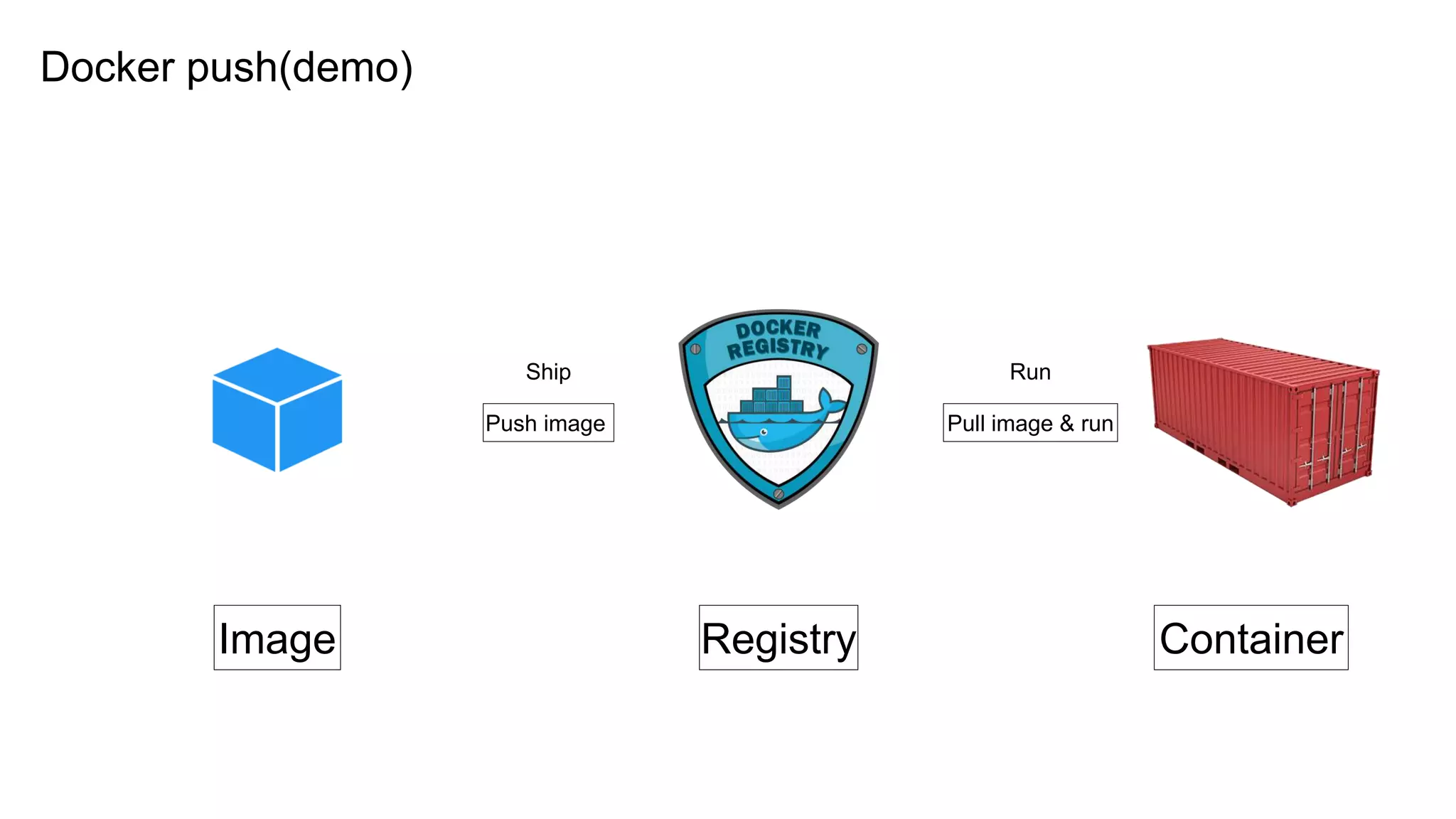

16. Docker push(demo)
Image Registry Container
Push image Pull image & run
Ship Run

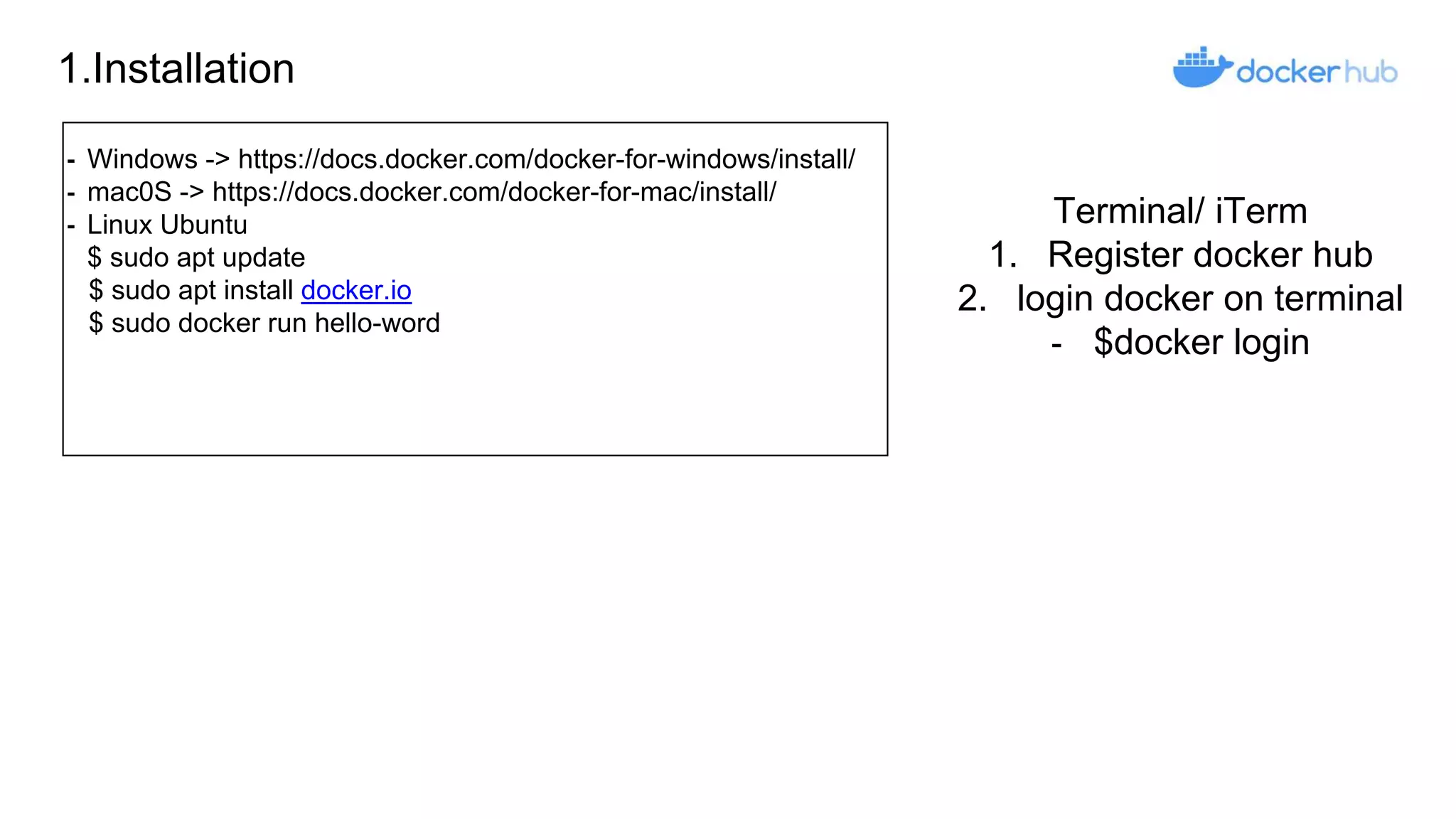

17. 1.Installation
⁃ Windows -> https://docs.docker.com/docker-for-windows/install/
⁃ mac0S -> https://docs.docker.com/docker-for-mac/install/
⁃ Linux Ubuntu
$ sudo apt update
$ sudo apt install docker.io
$ sudo docker run hello-word
Terminal/ iTerm
1. Register docker hub
2. login docker on terminal
- $docker login

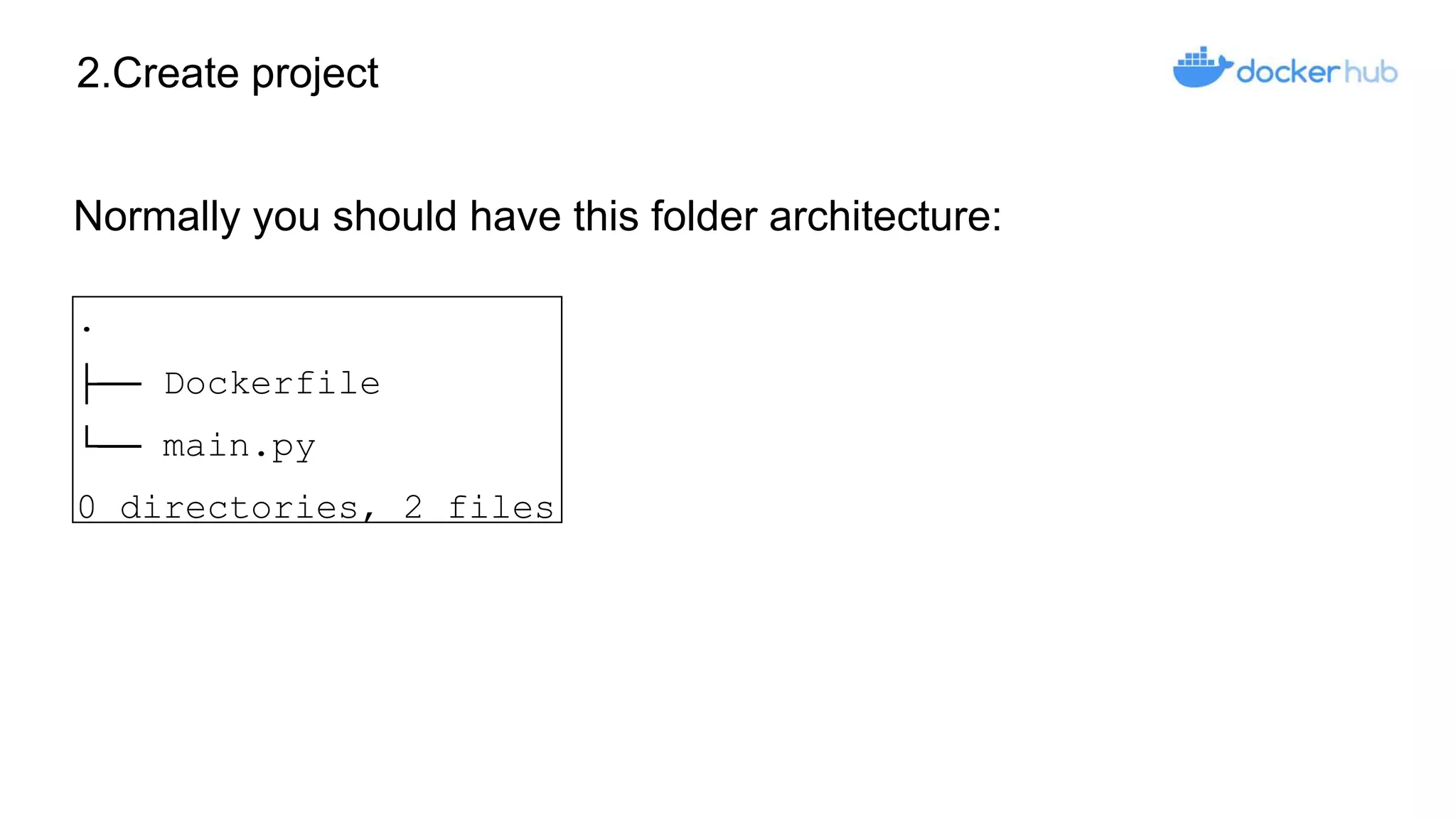

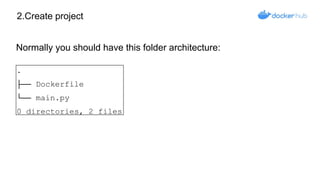

18. 2.Create project
.
├── Dockerfile
└── main.py
0 directories, 2 files
Normally you should have this folder architecture:

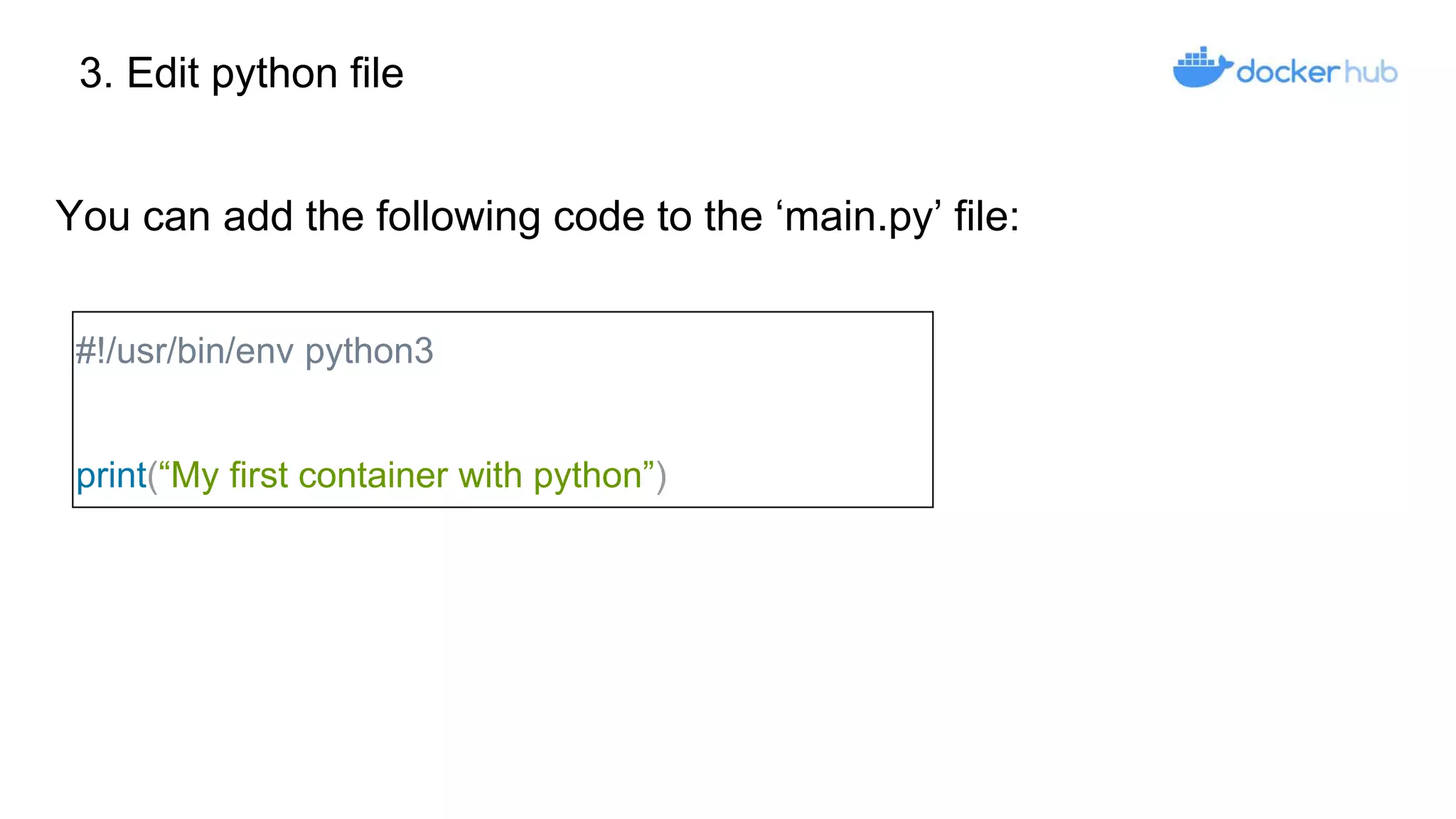

19. 3. Edit python file
#!/usr/bin/env python3
print(“My first container with python”)
You can add the following code to the ‘main.py’ file:

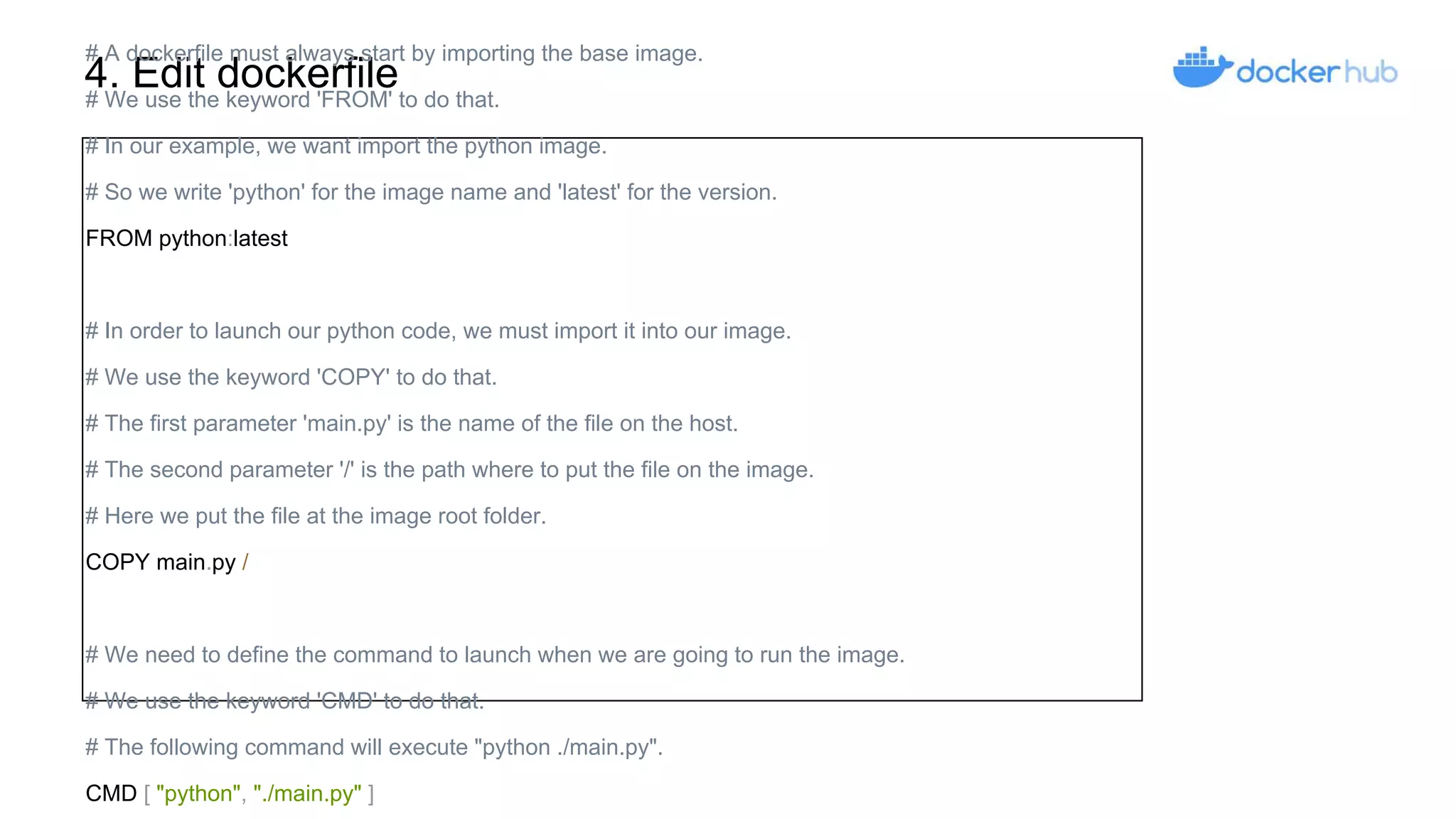

20. 4. Edit dockerfile
# A dockerfile must always start by importing the base image.
# We use the keyword 'FROM' to do that.
# In our example, we want import the python image.
# So we write 'python' for the image name and 'latest' for the version.
FROM python:latest
# In order to launch our python code, we must import it into our image.
# We use the keyword 'COPY' to do that.
# The first parameter 'main.py' is the name of the file on the host.
# The second parameter '/' is the path where to put the file on the image.
# Here we put the file at the image root folder.
COPY main.py /
# We need to define the command to launch when we are going to run the image.
# We use the keyword 'CMD' to do that.
# The following command will execute "python ./main.py".
CMD [ "python", "./main.py" ]

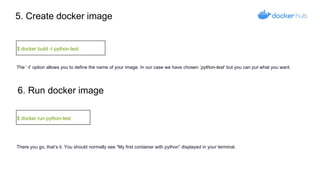

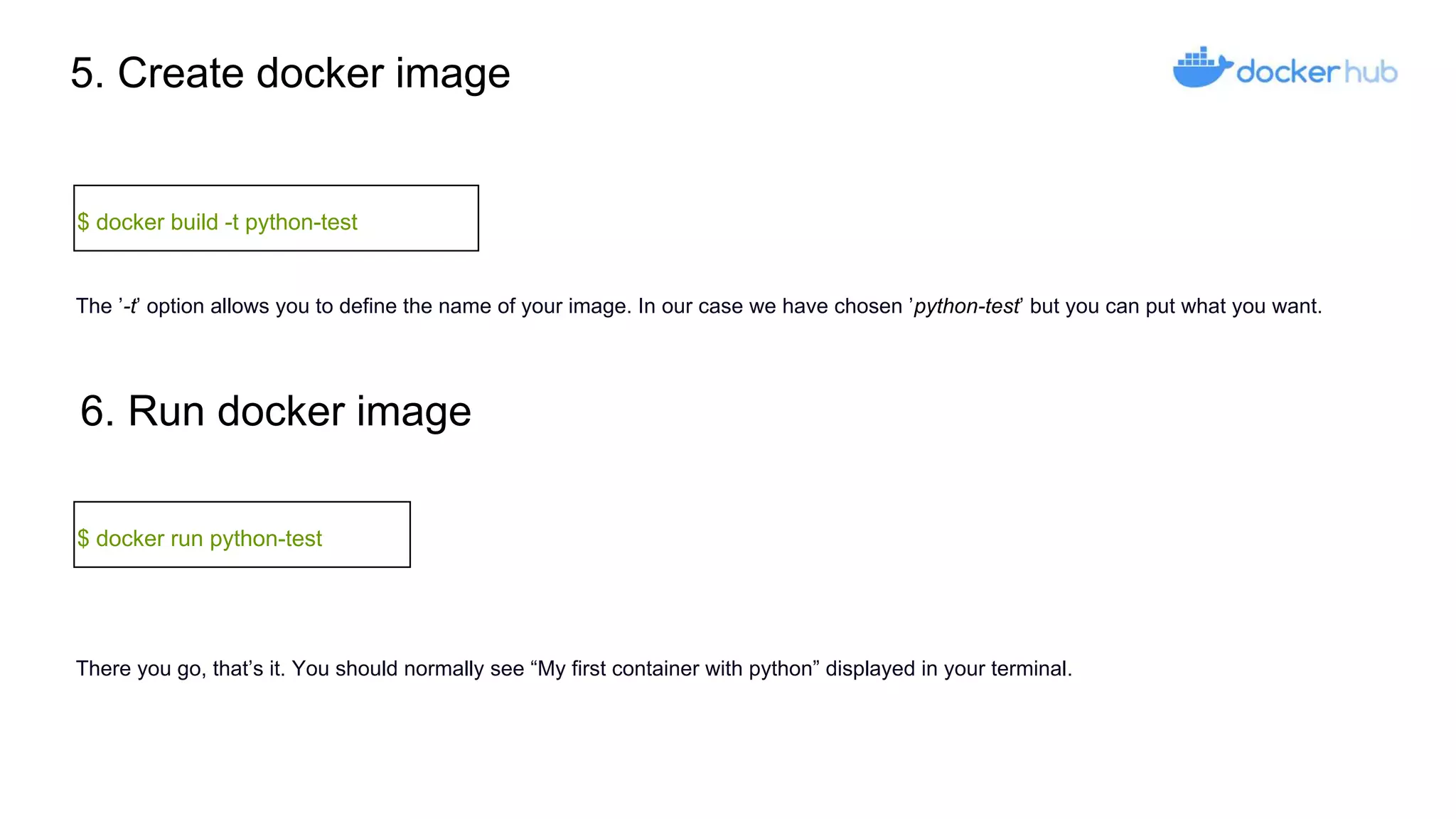

21. 5. Create docker image
$ docker build -t python-test
6. Run docker image
$ docker run python-test
The ’-t’ option allows you to define the name of your image. In our case we have chosen ’python-test’ but you can put what you want.
There you go, that’s it. You should normally see “My first container with python” displayed in your terminal.

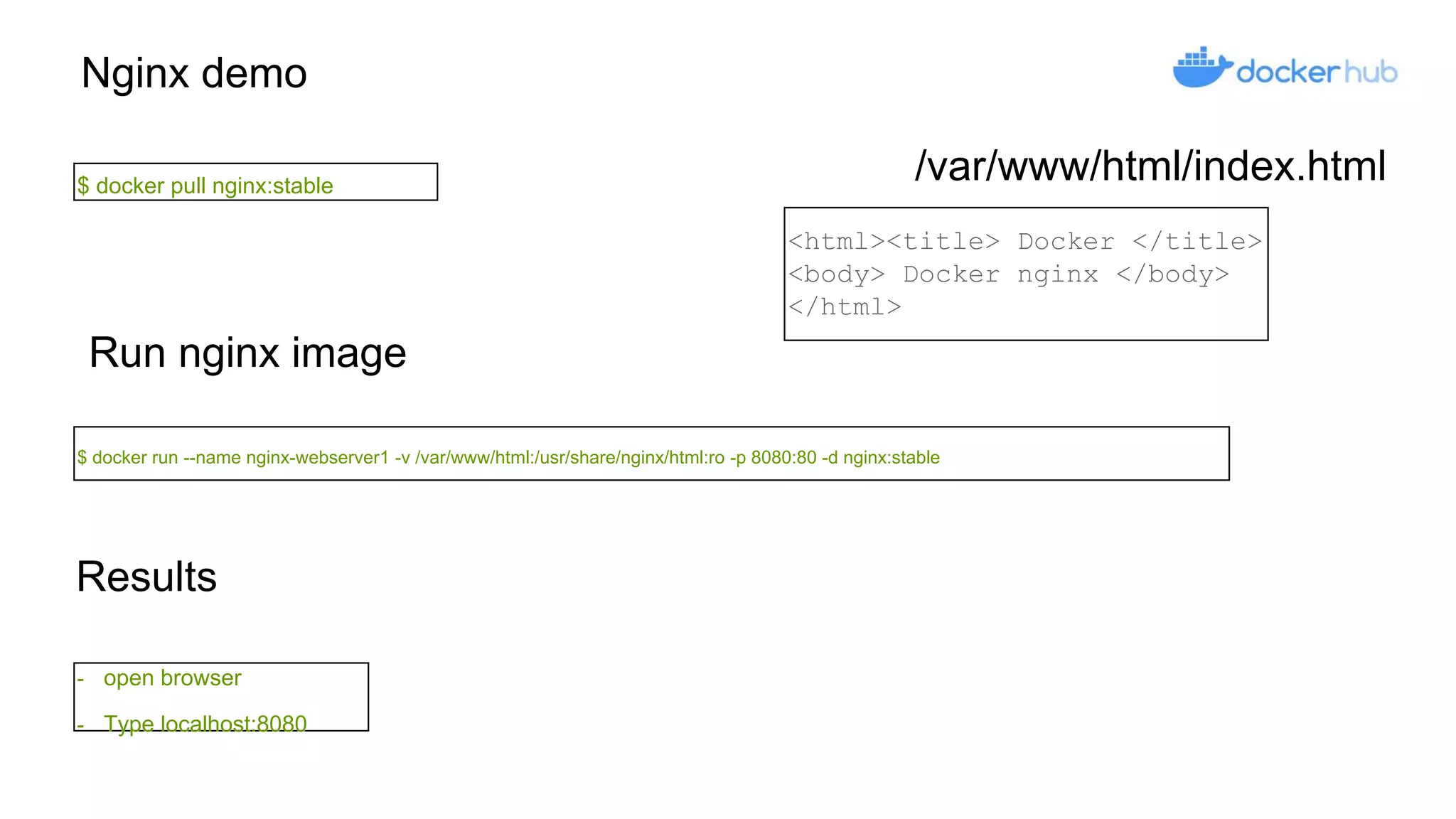

22. Nginx demo
$ docker pull nginx:stable
Run nginx image
$ docker run --name nginx-webserver1 -v /var/www/html:/usr/share/nginx/html:ro -p 8080:80 -d nginx:stable
Results
- open browser
- Type localhost:8080
<html><title> Docker </title>
<body> Docker nginx </body>
</html>
/var/www/html/index.html

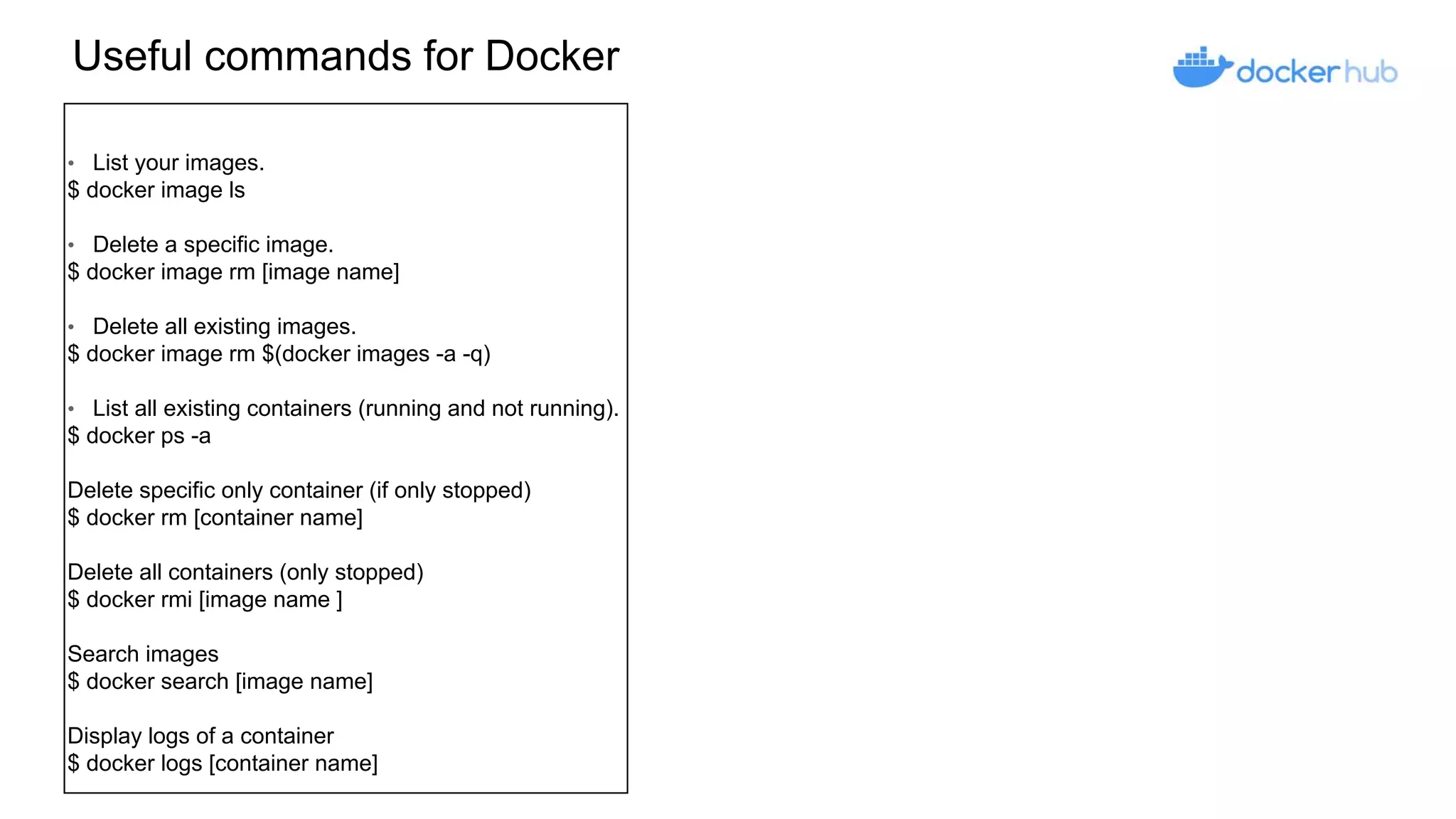

23. Useful commands for Docker
• List your images.
$ docker image ls
• Delete a specific image.
$ docker image rm [image name]
• Delete all existing images.
$ docker image rm $(docker images -a -q)
• List all existing containers (running and not running).
$ docker ps -a
Delete specific only container (if only stopped)
$ docker rm [container name]
Delete all containers (only stopped)
$ docker rmi [image name ]
Search images
$ docker search [image name]
Display logs of a container
$ docker logs [container name]

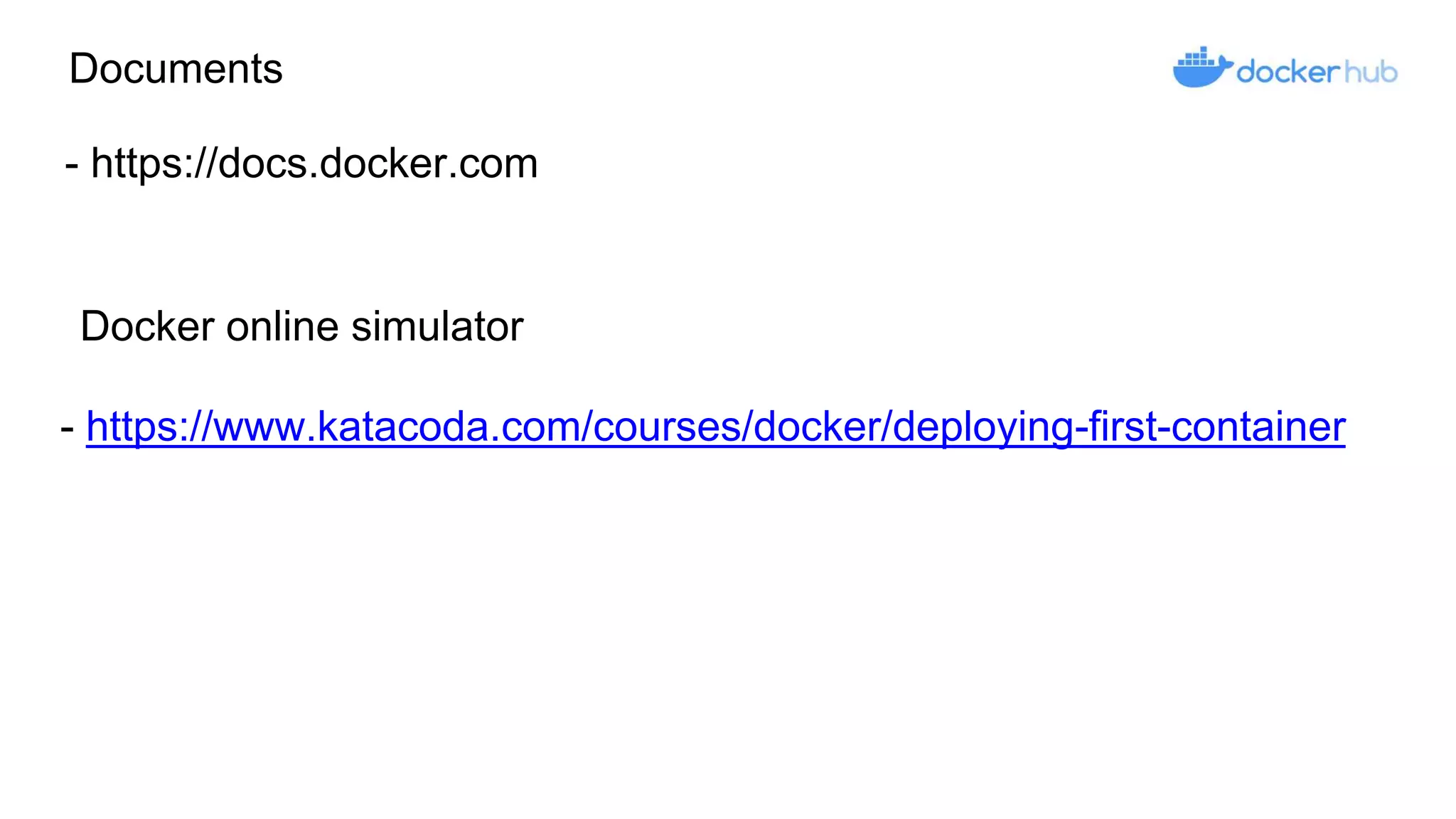

24. Documents
- https://docs.docker.com
Docker online simulator
- https://www.katacoda.com/courses/docker/deploying-first-container

25. Thank you.
