This document discusses building microservice architectures using Docker, Ansible, and Symfony micro-kernels. It presents potential microservices for a Drupal site including third party data synchronization, data analysis/reports, data scraping, and heavy calculations. It then outlines the benefits of moving from a monolithic to modular and microservices architecture in terms of scalability and environment issues. Finally, it provides an overview of using Docker, Ansible, and a Symfony micro-kernel to build a sample microservices application with services that can be deployed and scaled horizontally and vertically.

1. WITH
DOCKER, ANSIBLE
AND SYMFONY MICRO-KERNEL
BUILDING SOLID MICRO-SERVICE
ARCHITECTURE

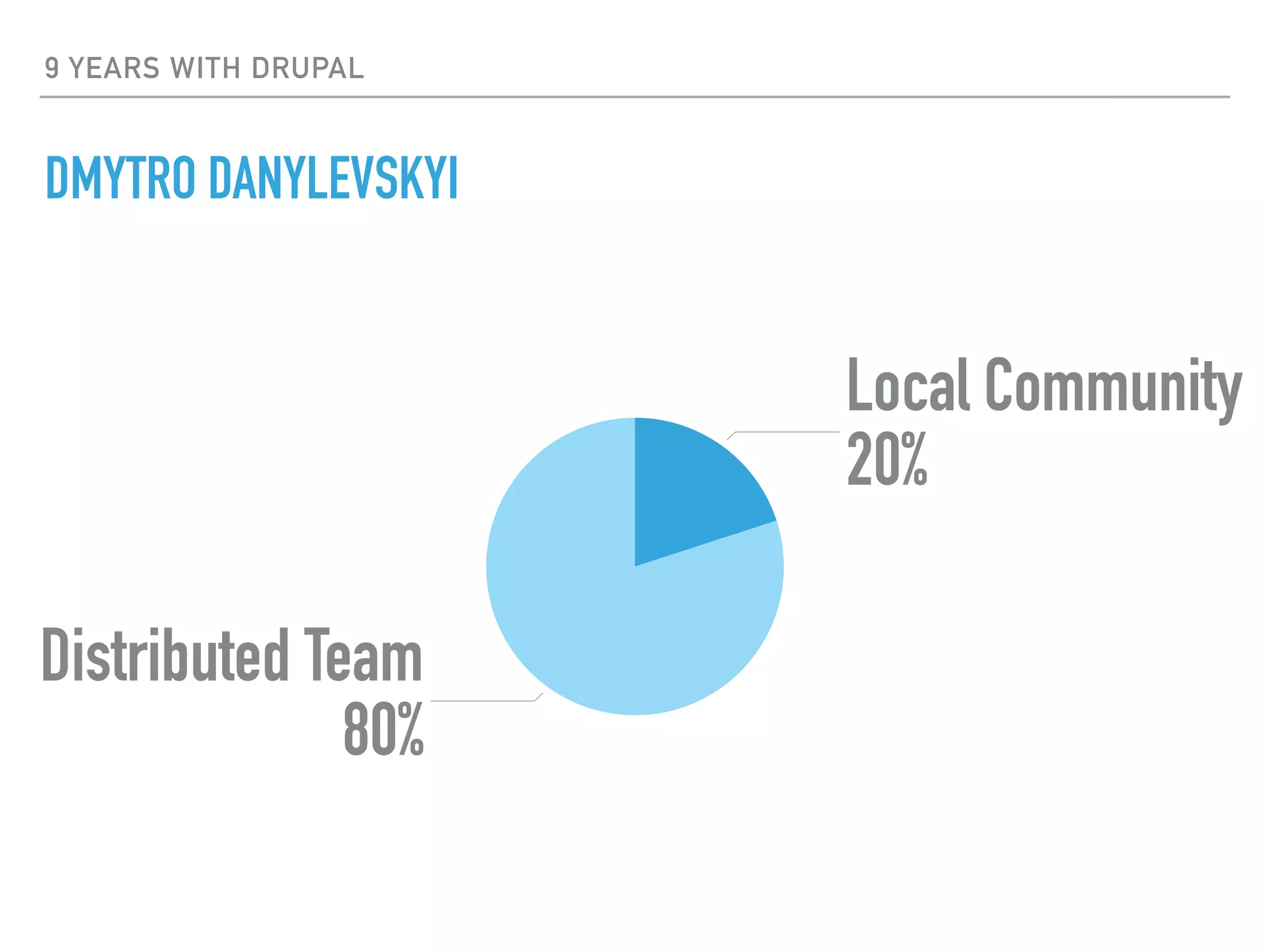

2. 9 YEARS WITH DRUPAL
DMYTRO DANYLEVSKYI
Distributed Team
80%
Local Community
20%

3. PHP DEVELOPER ADDICTED TO DEVOPS
DMYTRO DANYLEVSKYI
Back-End
80%
DevOps
20%

4. LET’S DECOUPLE IT
POTENTIAL MICRO-SERVICES FOR DRUPAL SITE
▸ Third party data synchronization tasks
▸ Data analysis and reports building
▸ Data scraping
▸ Heavy calculations performing
▸ Drush command

5. THAT PAIN…
REMEMBER IT?
▸ Performing hook_updates (shared database)
▸ Mismatching of environment requirements
▸ Management of bloated composer.json file
▸ Your story?

6. MONOLITHIC
Image by kanbansolutions.com

7. MODULAR
Image by kanbansolutions.com

8. MICRO-SERVICES
Image by kanbansolutions.com

9. SOLUTION
OVERVIEW

10. SOLUTION
WHAT ARE YOU TALKING ABOUT?
APP APPAPP
APP APPAPP
APP APPAPP

11. SOLUTION
IS IT VERTICALLY SCALABLE?
APP APPAPP
APP APPAPP
APP APPAPP
APP APPAPP
APP APPAPP
APP APPAPP
APP APPAPP

12. SOLUTION
IS IT HORIZONTALLY SCALABLE?
APP APPAPP
APP APPAPP
APP APPAPP
APP

13. SOLUTION
EXAMPLE APPLICATION
DB / FILES
SYMFONY MICRO KERNEL
Docker container
Volume

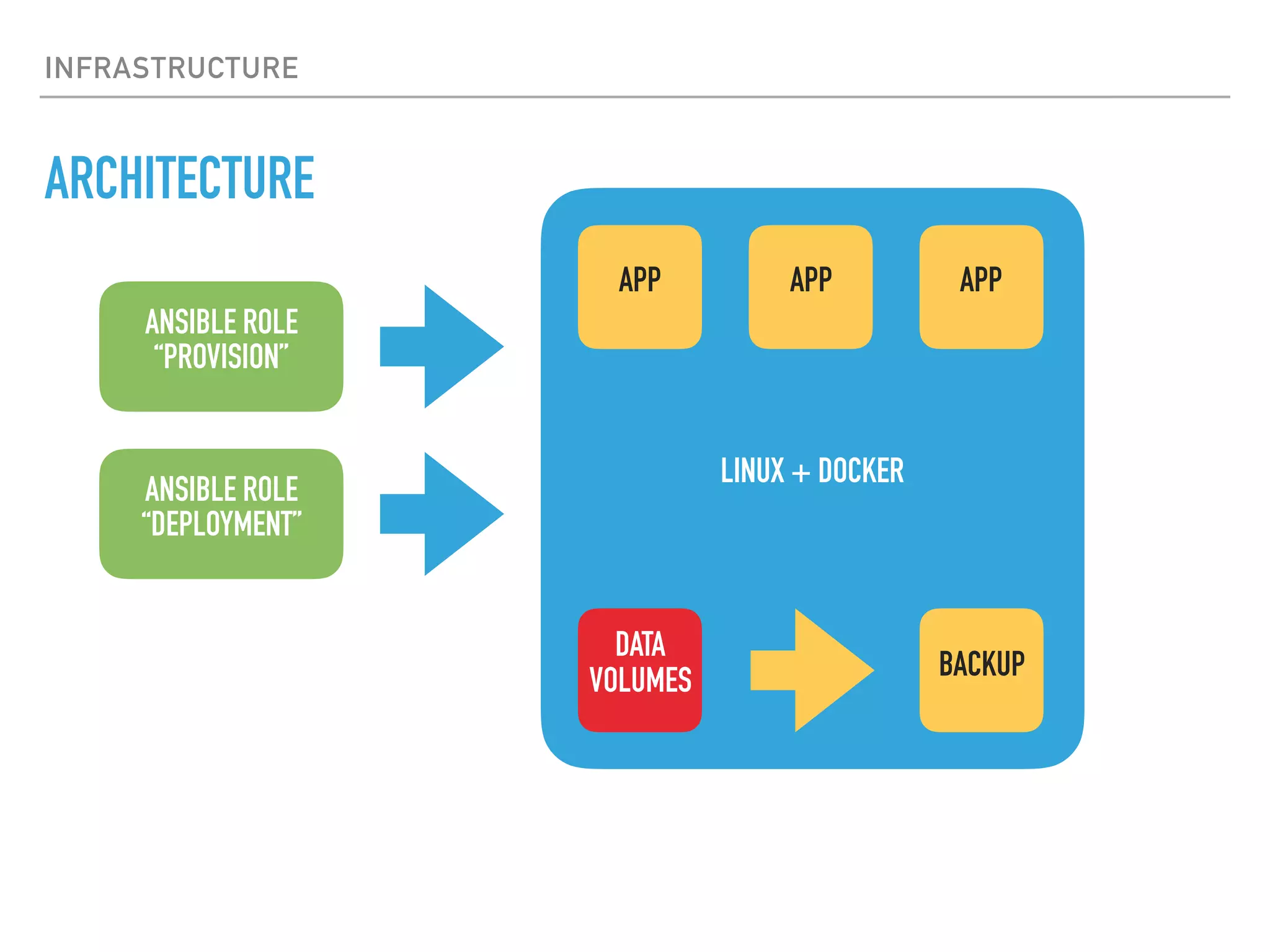

14. INFRASTRUCTURE
ARCHITECTURE
ANSIBLE ROLE
“PROVISION”
LINUX + DOCKER
DATA
VOLUMES BACKUP
ANSIBLE ROLE
“DEPLOYMENT”
APP APP APP

15. LET’S BUILD IT!

16. DEVELOPMENT
FILE STRUCTURE FOR PARTICULAR SERVICE
.
!"" Makefile
!"" ansible
# %"" deployment
# %"" playbook.yml
!"" docker
# !"" conf
# %"" dockerfiles
# %"" php
# !"" dockerfile__dev
# %"" dockerfile__prod
!"" docker-compose.dev.yml
!"" docker-compose.prod.yml
!"" docker-compose.yml
!"" hosts
!"" requirements.yml
%"" volumes

17. DEVELOPMENT
MAKEFILE IS UNIVERSAL INTERFACE
include .env
APP_ENV ?= dev
DC = docker-compose -f dc.yml -f dc.$(APP_ENV).yml
ANSIBLE = ansible-playbook -i hosts
build:
$(DOCKER_COMPOSE) build
up:
$(DOCKER_COMPOSE) up -d
deploy:
$(ANSIBLE) ansible/deployment/playbook.yml

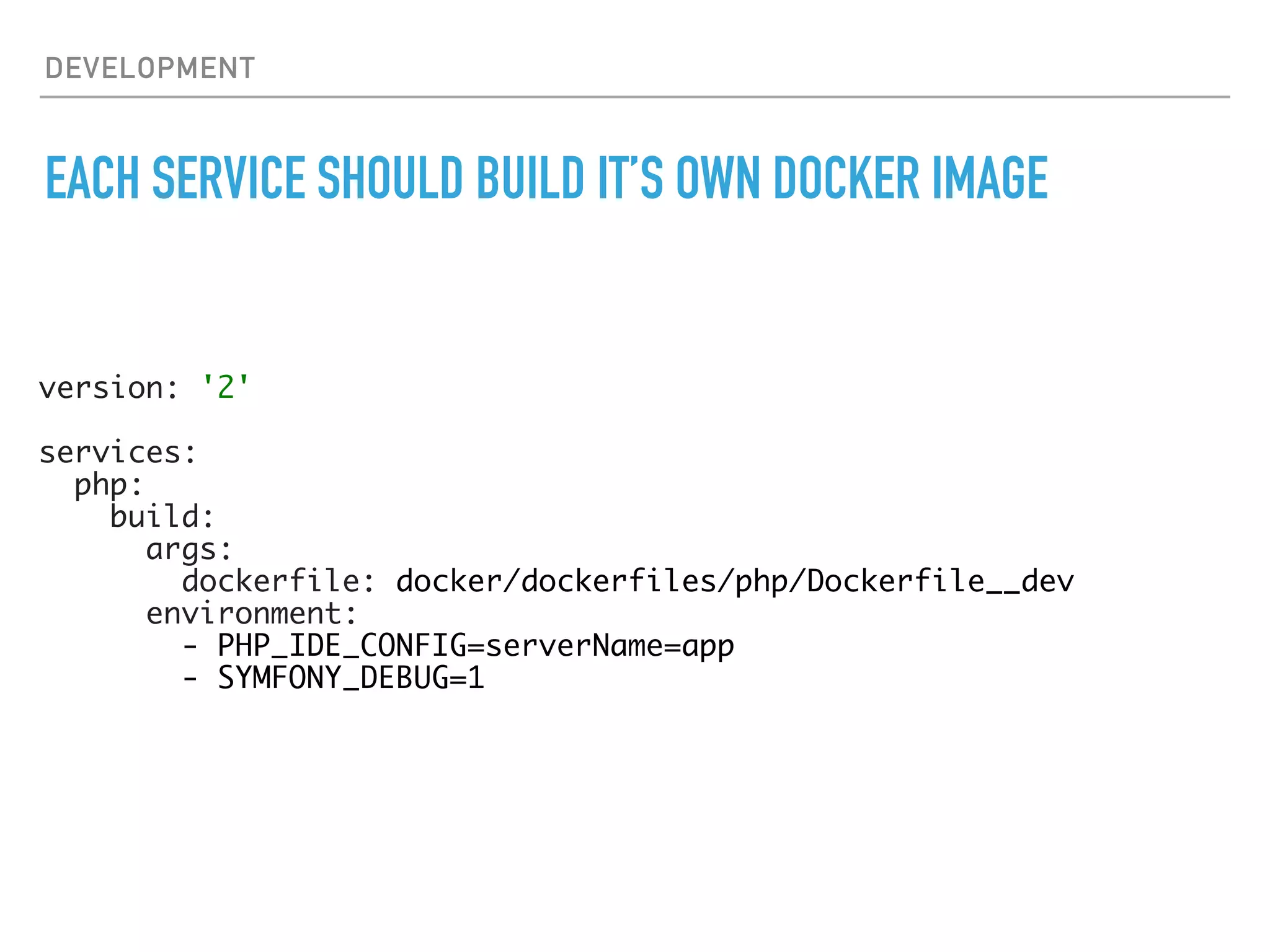

18. DEVELOPMENT
EACH SERVICE SHOULD BUILD IT’S OWN DOCKER IMAGE
version: '2'
services:
php:
build:
args:
dockerfile: docker/dockerfiles/php/Dockerfile__dev
environment:
- PHP_IDE_CONFIG=serverName=app
- SYMFONY_DEBUG=1

19. DEVELOPMENT

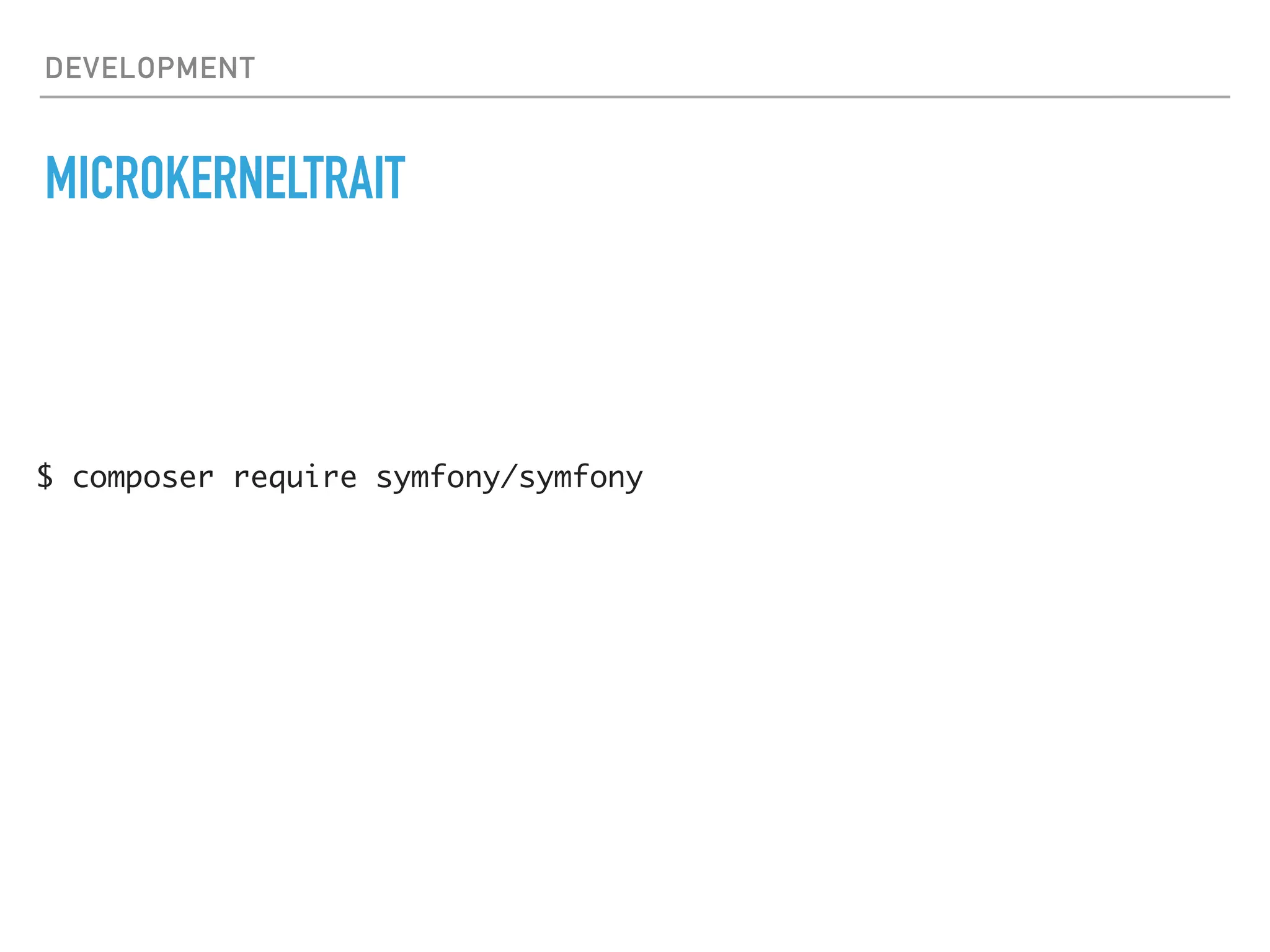

MICROKERNELTRAIT
$ composer require symfony/symfony

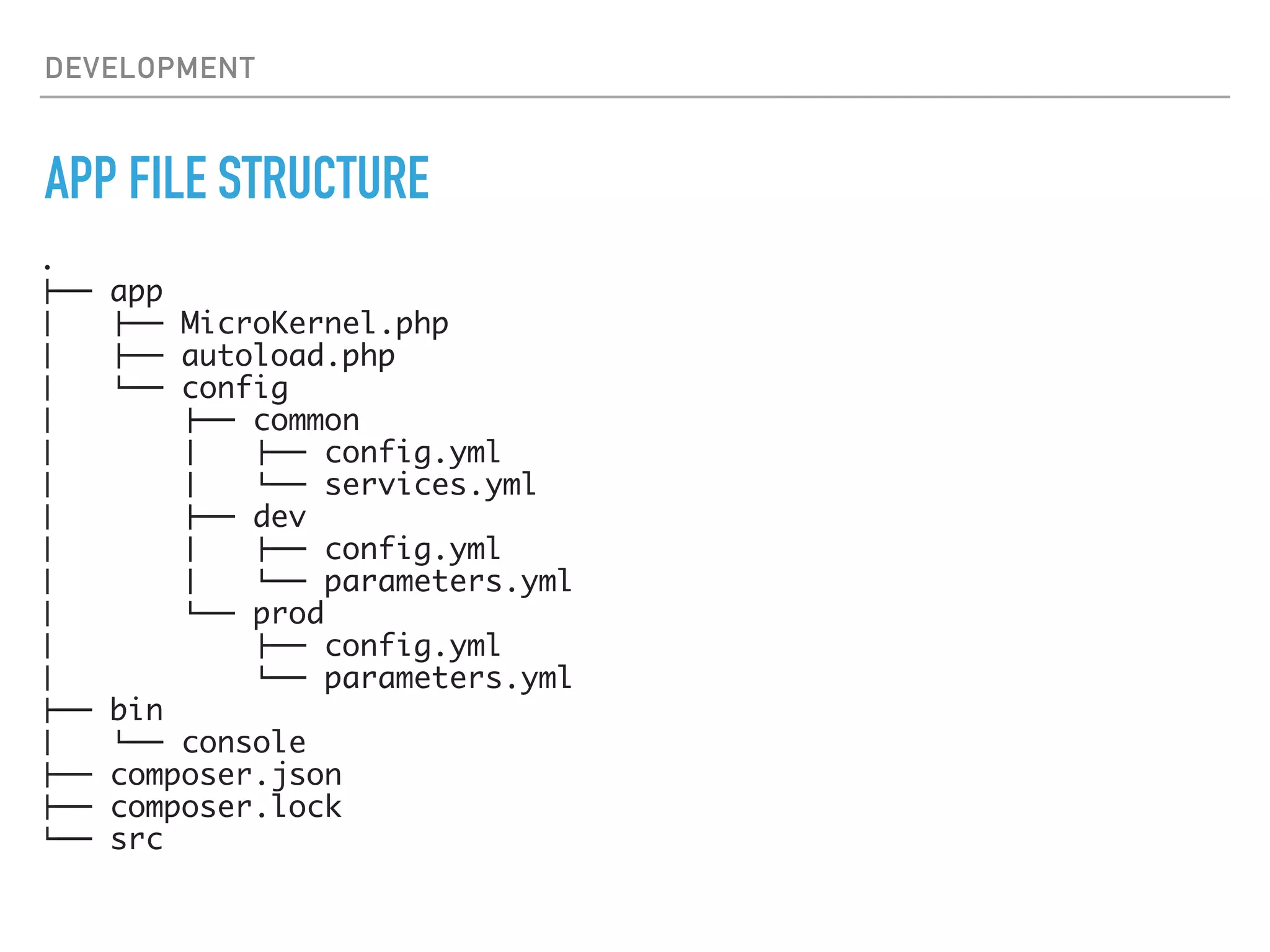

20. DEVELOPMENT
APP FILE STRUCTURE
.
!"" app
# !"" MicroKernel.php
# !"" autoload.php
# %"" config
# !"" common
# # !"" config.yml
# # %"" services.yml
# !"" dev
# # !"" config.yml
# # %"" parameters.yml
# %"" prod
# !"" config.yml
# %"" parameters.yml
!"" bin
# %"" console
!"" composer.json
!"" composer.lock
%"" src

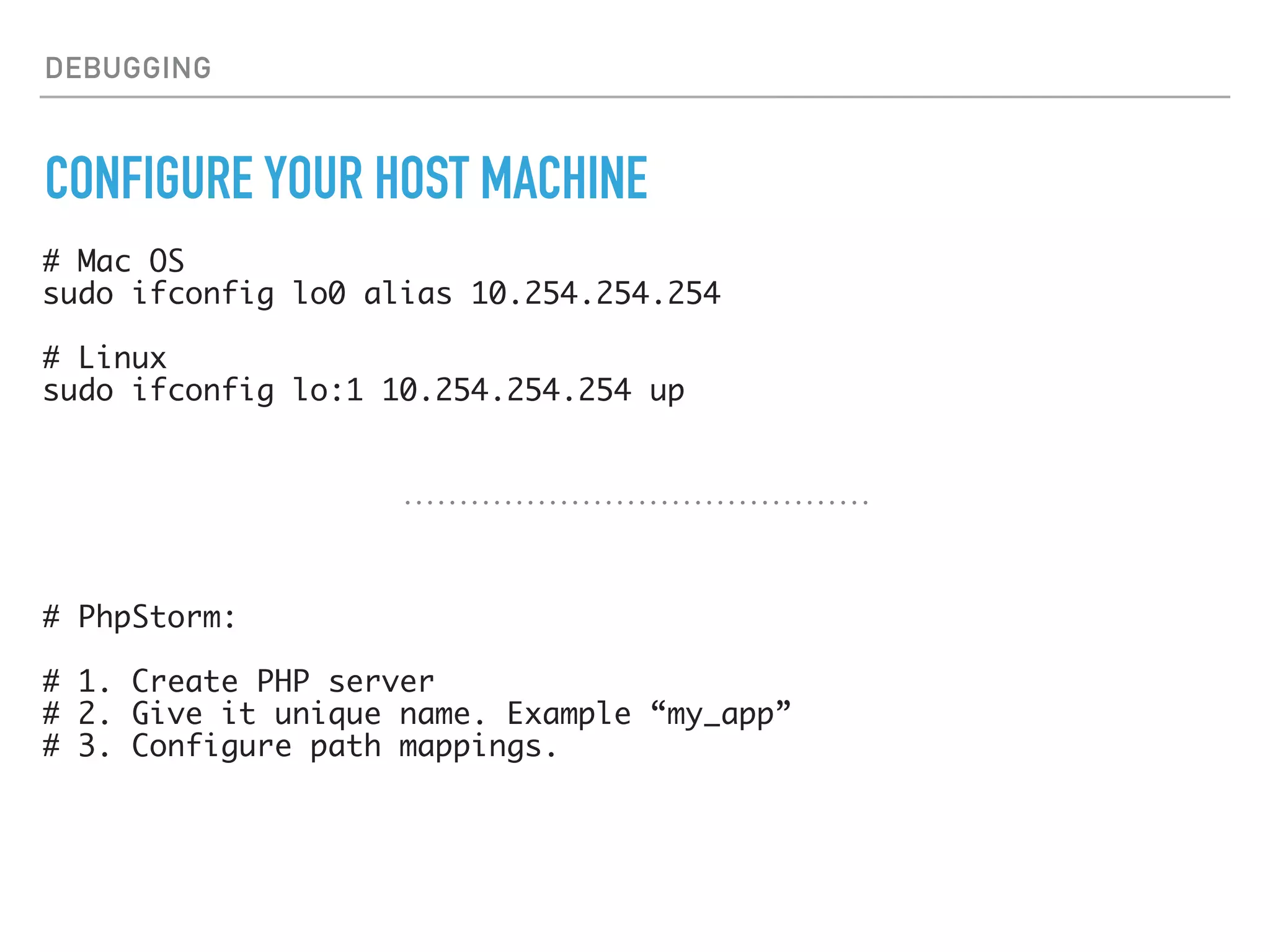

21. DEBUGGING
CONFIGURE YOUR HOST MACHINE
# Mac OS
sudo ifconfig lo0 alias 10.254.254.254
# Linux
sudo ifconfig lo:1 10.254.254.254 up
# PhpStorm:
# 1. Create PHP server
# 2. Give it unique name. Example “my_app”
# 3. Configure path mappings.

22. DEBUGGING
CONFIGURE PHP IMAGE
# Configure XDebug
xdebug.remote_host=10.254.254.254
xdebug.remote_enable=on
xdebug.remote_autostart=on
version: '2'
services:
php:
build:
dockerfile: docker/dockerfiles/php/Dockerfile__dev
environment:
- PHP_IDE_CONFIG=serverName=my_app
- SYMFONY_DEBUG=1

23. DEPLOYMENT

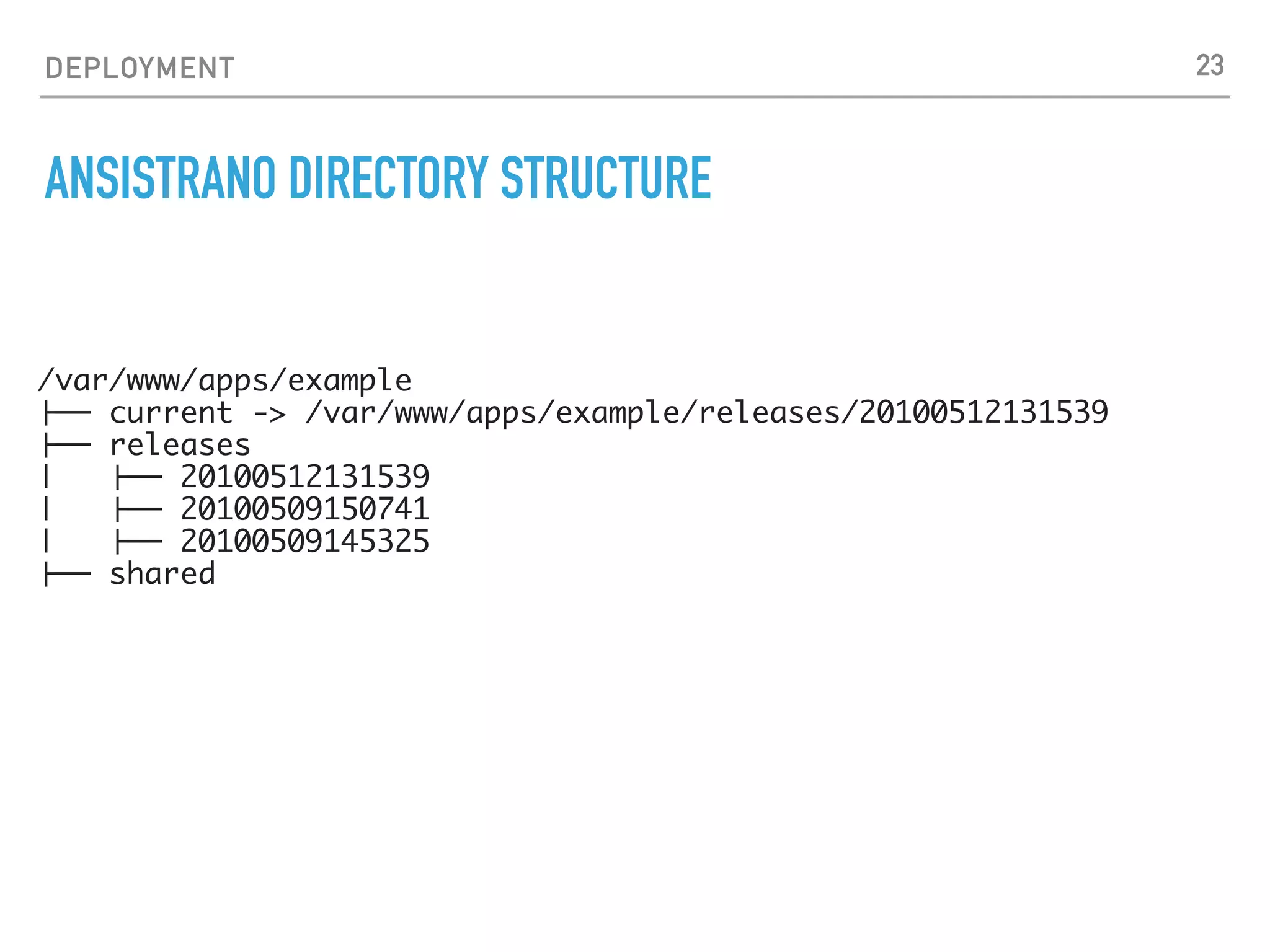

ANSISTRANO DIRECTORY STRUCTURE
/var/www/apps/example
!"" current -> /var/www/apps/example/releases/20100512131539
!"" releases
| !"" 20100512131539
| !"" 20100509150741
| !"" 20100509145325
!"" shared
23

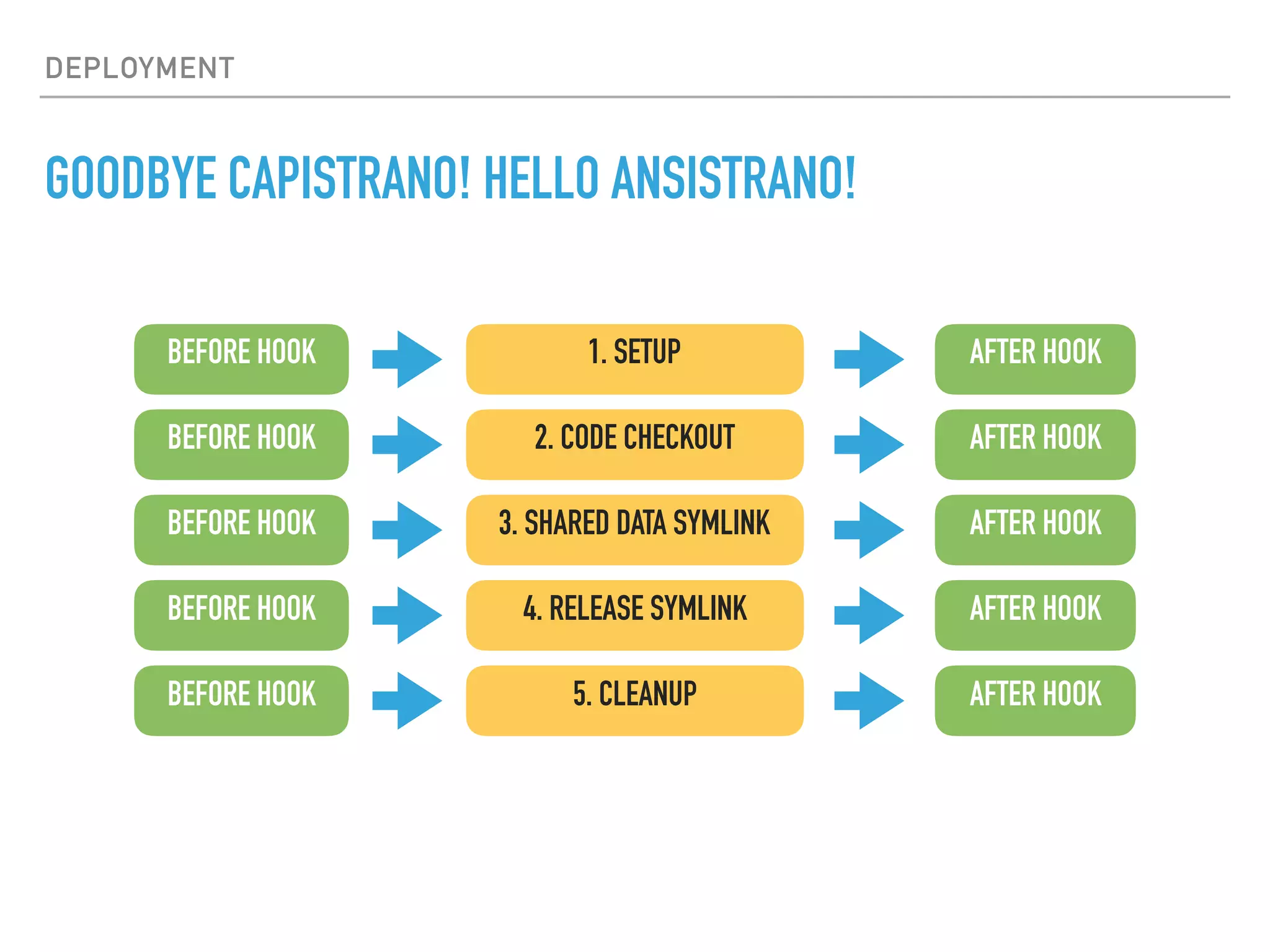

24. DEPLOYMENT
GOODBYE CAPISTRANO! HELLO ANSISTRANO!
1. SETUP
2. CODE CHECKOUT
3. SHARED DATA SYMLINK
4. RELEASE SYMLINK
5. CLEANUP
BEFORE HOOK AFTER HOOK
BEFORE HOOK
BEFORE HOOK
BEFORE HOOK
BEFORE HOOK
AFTER HOOK
AFTER HOOK
AFTER HOOK
AFTER HOOK

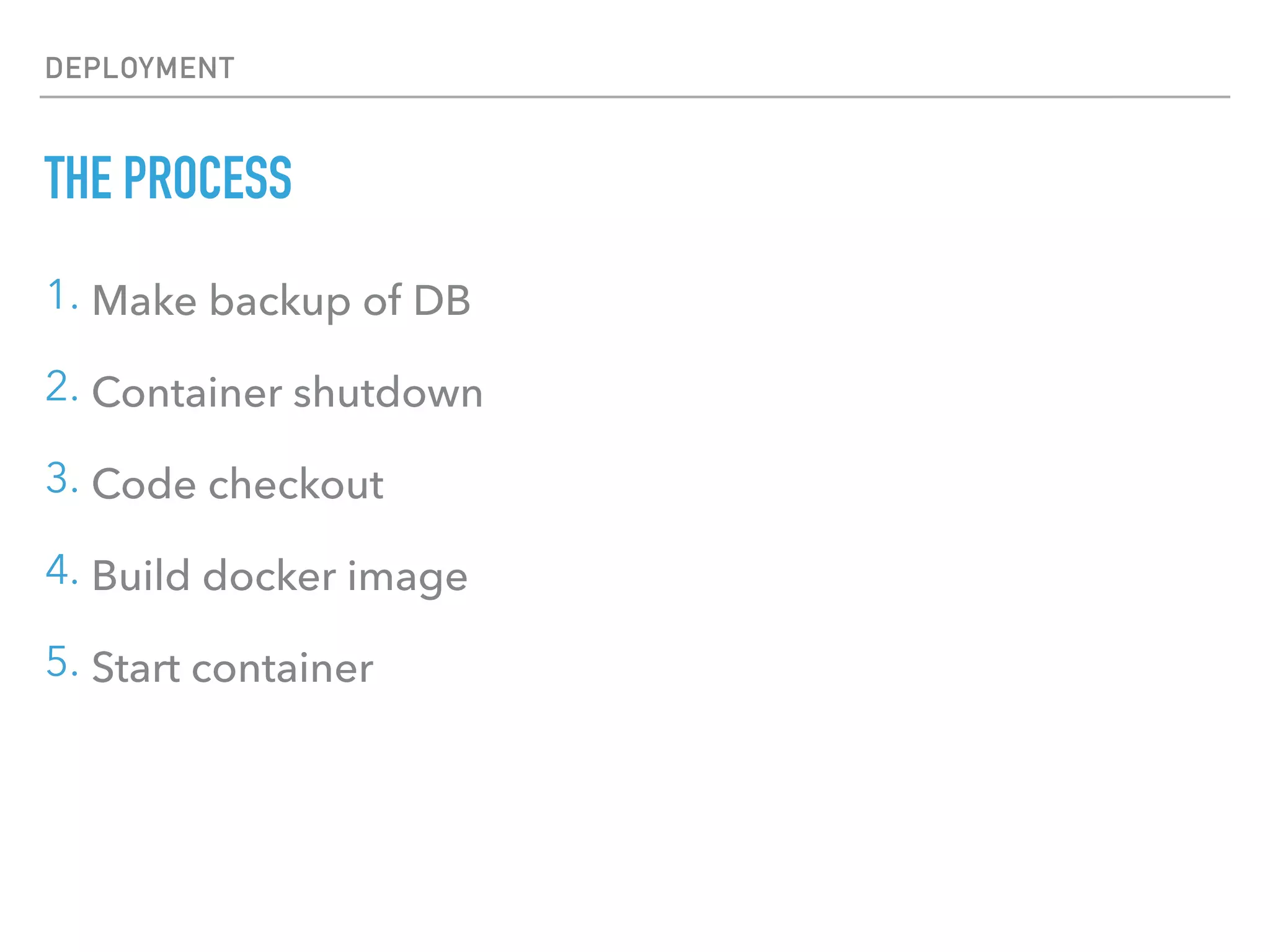

25. DEPLOYMENT
THE PROCESS
1. Make backup of DB
2. Container shutdown
3. Code checkout
4. Build docker image
5. Start container

26. SERVER PROVISIONING
ANSIBLE PLAYBOOK
✓ Install Docker
✓ Configure Backup (backupninja + duplicity)
✓ Configure stale data cleaning (docker images)

27. INFRASTRUCTURE
ARCHITECTURE
ANSIBLE ROLE
“PROVISION”
LINUX + DOCKER
DATA
VOLUMES BACKUP
ANSIBLE ROLE
“DEPLOYMENT”
APP APP APP

28. JEFF GEERLING
ANSIBLE FOR DEVOPS
Ansible is a simple, but
powerful, server and
configuration management
tool. Learn to use Ansible
effectively, whether you
manage one server — or
thousands.
https://leanpub.com/ansible-
for-devops

29. THANK YOU FOR THE LISTENING
DMYTRO DANYLEVSKYI
dmytro@danylevskyi.com
