Mobile & Desktop Cache 2.0: How To Create A Scriptable Cache
This document provides an overview of how to build a scriptable cache for mobile and desktop applications. It discusses: - The benefits of a scriptable cache like improved performance and ability to implement advanced optimizations. - A 6 step process for building a basic scriptable cache using localStorage and dynamically loading/storing resources. - Additional techniques like handling errors, tracking cache state and size, and implementing an LRU cache. The document is intended to introduce the concept of a scriptable cache but notes that implementing one is not trivial and requires modifications to HTML and resources. Pseudocode is provided but may have errors and not cover all cases.
More Related Content
Similar to Mobile & Desktop Cache 2.0: How To Create A Scriptable Cache
Mobile & Desktop Cache 2.0: How To Create A Scriptable Cache
- 1. DIY Scriptable Cache Guy Podjarny, CTO guypo@blaze.io twi;er: @guypod

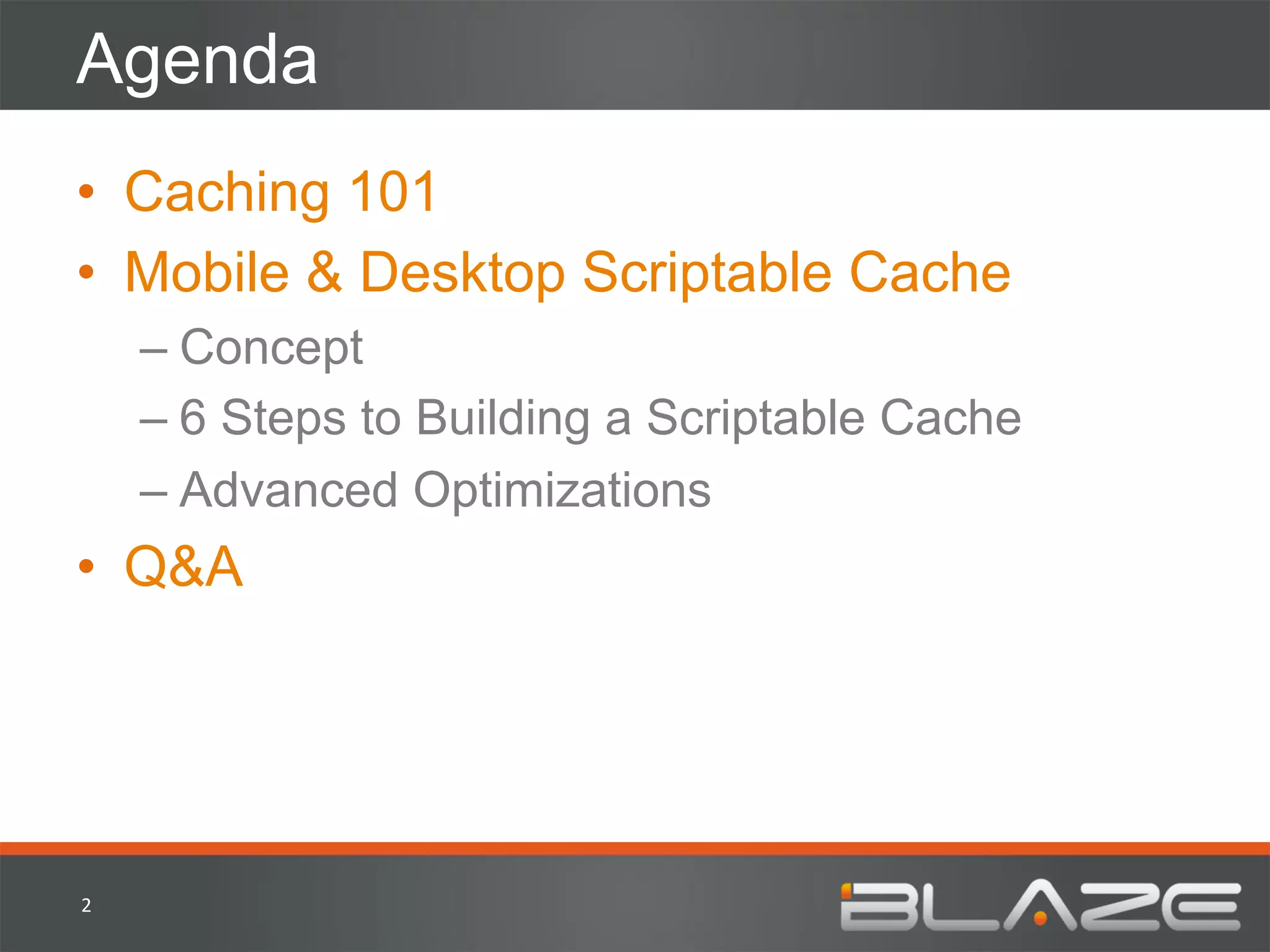

- 2. Agenda • Caching 101 • Mobile & Desktop Scriptable Cache – Concept – 6 Steps to Building a Scriptable Cache – Advanced Optimizations • Q&A 2

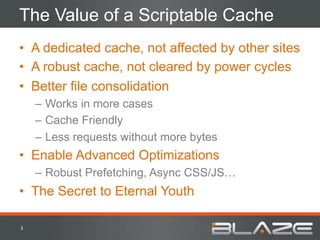

- 3. The Value ofa Scriptable Cache • A dedicated cache, not affected by other sites • A robust cache, not cleared by power cycles • Better file consolidation – Works in more cases – Cache Friendly – Less requests without more bytes • Enable Advanced Optimizations – Robust Prefetching, Async CSS/JS… • The Secret to Eternal Youth 3

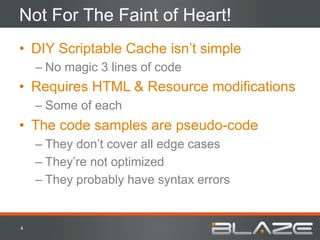

- 4. Not For TheFaint of Heart! • DIY Scriptable Cache isn’t simple – No magic 3 lines of code • Requires HTML & Resource modifications – Some of each • The code samples are pseudo-code – They don’t cover all edge cases – They’re not optimized – They probably have syntax errors 4
- 5.

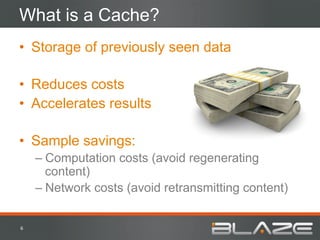

- 6. What is aCache? • Storage of previously seen data • Reduces costs • Accelerates results • Sample savings: – Computation costs (avoid regenerating content) – Network costs (avoid retransmitting content) 6

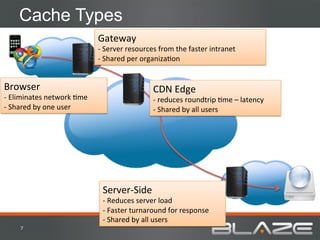

- 7. Cache Types Gateway -‐ Server resources from the faster intranet -‐ Shared per organizaHon Browser CDN Edge -‐ Eliminates network Hme -‐ reduces roundtrip Hme – latency -‐ Shared by one user -‐ Shared by all users Server-‐Side -‐ Reduces server load -‐ Faster turnaround for response -‐ Shared by all users 7
- 8. Caching - Expiry • Cache Expiry Controlled by Headers – HTTP/1.0: Expires – HTTP/1.1: Cache-Control • ETAG/Last-Modified Enables Conditional GET – Fetch Resource “If-Modified-Since” • CDN/Server Cache can be manually purged 8
- 9. Stale Cache • Outdateddata in cache – Affects Browser Cache the most • Versioning – Add a version number to the filename – Change the version when the file changes – Unique filename = long caching – stale cache file.v1.js file.v2.js var today = “11/10/26” var today = “11/10/27” 9

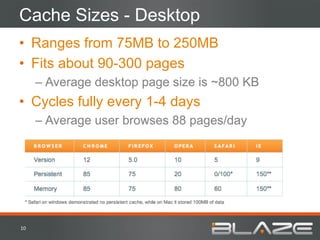

- 10. Cache Sizes -Desktop • Ranges from 75MB to 250MB • Fits about 90-300 pages – Average desktop page size is ~800 KB • Cycles fully every 1-4 days – Average user browses 88 pages/day 10

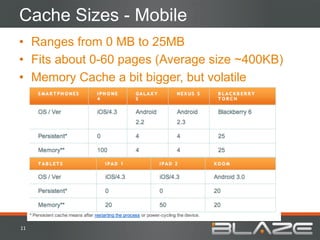

- 11. Cache Sizes -Mobile • Ranges from 0 MB to 25MB • Fits about 0-60 pages (Average size ~400KB) • Memory Cache a bit bigger, but volatile 11

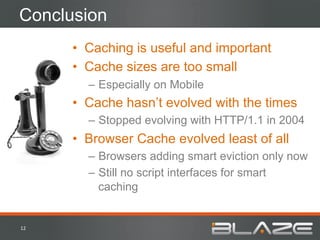

- 12. Conclusion • Caching is useful and important • Cache sizes are too small – Especially on Mobile • Cache hasn’t evolved with the times – Stopped evolving with HTTP/1.1 in 2004 • Browser Cache evolved least of all – Browsers adding smart eviction only now – Still no script interfaces for smart caching 12
- 13.
- 14. Scriptable Browser Cache- Concept • A cache accessible via JavaScript – Get/Put/Delete Actions • What is it good for? – Cache parts of a page/resource – Adapt to cache state – Load resources in different ways • Why don’t browsers support it today? – Most likely never saw the need – Useful only for advanced websites – Not due to security concerns (at least not good ones) 14

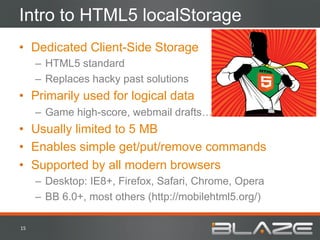

- 15. Intro to HTML5localStorage • Dedicated Client-Side Storage – HTML5 standard – Replaces hacky past solutions • Primarily used for logical data – Game high-score, webmail drafts… • Usually limited to 5 MB • Enables simple get/put/remove commands • Supported by all modern browsers – Desktop: IE8+, Firefox, Safari, Chrome, Opera – BB 6.0+, most others (http://mobilehtml5.org/) 15

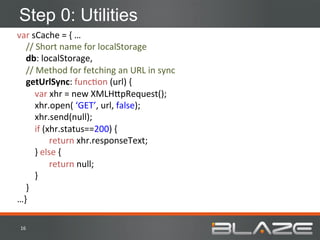

- 16. Step 0: Utilities var sCache = { … // Short name for localStorage db: localStorage, // Method for fetching an URL in sync getUrlSync: funcHon (url) { var xhr = new XMLH;pRequest(); xhr.open( ‘GET’, url, false); xhr.send(null); if (xhr.status==200) { return xhr.responseText; } else { return null; } } …} 16

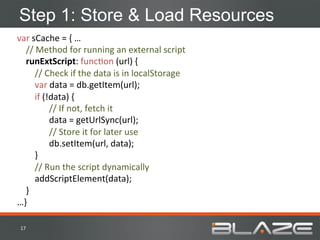

- 17. Step 1: Store& Load Resources var sCache = { … // Method for running an external script runExtScript: funcHon (url) { // Check if the data is in localStorage var data = db.getItem(url); if (!data) { // If not, fetch it data = getUrlSync(url); // Store it for later use db.setItem(url, data); } // Run the script dynamically addScriptElement(data); } …} 17

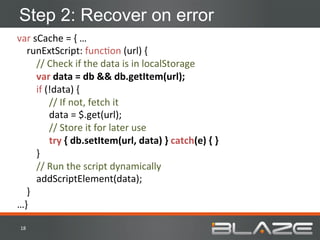

- 18. Step 2: Recoveron error var sCache = { … runExtScript: funcHon (url) { // Check if the data is in localStorage var data = db && db.getItem(url); if (!data) { // If not, fetch it data = $.get(url); // Store it for later use try { db.setItem(url, data) } catch(e) { } } // Run the script dynamically addScriptElement(data); } …} 18
- 19. Step 3: LRUCache – Cache State var sCache = { … // Meta-‐Data about the cache capacity and state dat: {size: 0, capacity: 2*1024*1024, items: {} }, // Load the cache state and items from localStorage load: funcHon() { var str = db && db.getItem(“cacheData”); if (data) { dat = JSON.parse(x); } }, // Persist an updated state to localStorage save: funcHon() { var str = JSON.stringify(dat); try {db.setItem(“cacheData”, str); } catch(e) { } }, … } 19

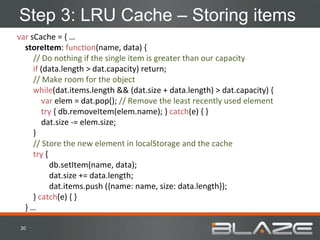

- 20. Step 3: LRUCache – Storing items var sCache = { … storeItem: funcHon(name, data) { // Do nothing if the single item is greater than our capacity if (data.length > dat.capacity) return; // Make room for the object while(dat.items.length && (dat.size + data.length) > dat.capacity) { var elem = dat.pop(); // Remove the least recently used element try { db.removeItem(elem.name); } catch(e) { } dat.size -‐= elem.size; } // Store the new element in localStorage and the cache try { db.setItem(name, data); dat.size += data.length; dat.items.push ({name: name, size: data.length}); } catch(e) { } } … 20
- 21. Step 3: LRUCache – Getting items var sCache = { … getItem: funcHon(name) { // Try to get the item var data = db && db.getItem(name); if (!data) return null; // Move the element to the top of the array, marking it as used for(var i=0;i<dat.items.length;i++) { if (dat.items[i].name === name) { dat.items.unshiw(dat.items.splice(i,-‐1)); break; } } return data; } …} 21

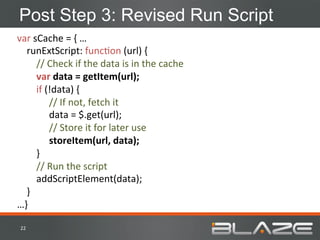

- 22. Post Step 3:Revised Run Script var sCache = { … runExtScript: funcHon (url) { // Check if the data is in the cache var data = getItem(url); if (!data) { // If not, fetch it data = $.get(url); // Store it for later use storeItem(url, data); } // Run the script addScriptElement(data); } …} 22

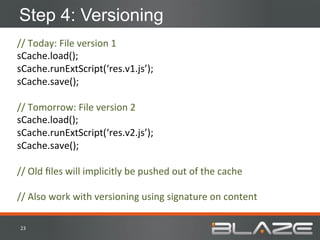

- 23. Step 4: Versioning // Today: File version 1 sCache.load(); sCache.runExtScript(‘res.v1.js’); sCache.save(); // Tomorrow: File version 2 sCache.load(); sCache.runExtScript(‘res.v2.js’); sCache.save(); // Old files will implicitly be pushed out of the cache // Also work with versioning using signature on content 23
- 24. What Have WeCreated So Far? • Scriptable LRU Cache – Enforces size limits – Recovers from errors • Dedicated Cache – Not affected by browsing other sites • Robust Cache – Not affected by Mobile Cache Sizes – Survives Power Cycle and Process Reset • Still Has Limitations: – Only works on same domain – Resources fetched sequentially 24

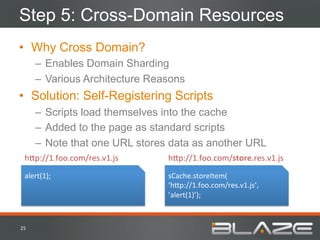

- 25. Step 5: Cross-DomainResources • Why Cross Domain? – Enables Domain Sharding – Various Architecture Reasons • Solution: Self-Registering Scripts – Scripts load themselves into the cache – Added to the page as standard scripts – Note that one URL stores data as another URL h;p://1.foo.com/res.v1.js h;p://1.foo.com/store.res.v1.js alert(1); sCache.storeItem( ‘h;p://1.foo.com/res.v1.js’, ’alert(1)’); 25

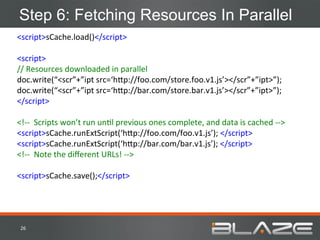

- 26. Step 6: FetchingResources In Parallel <script>sCache.load()</script> <script> // Resources downloaded in parallel doc.write(“<scr”+”ipt src=‘h;p://foo.com/store.foo.v1.js’></scr”+”ipt>”); doc.write(“<scr”+”ipt src=‘h;p://bar.com/store.bar.v1.js’></scr”+”ipt>”); </script> <!-‐-‐ Scripts won’t run unHl previous ones complete, and data is cached -‐-‐> <script>sCache.runExtScript(‘h;p://foo.com/foo.v1.js’); </script> <script>sCache.runExtScript(‘h;p://bar.com/bar.v1.js’); </script> <!-‐-‐ Note the different URLs! -‐-‐> <script>sCache.save();</script> 26

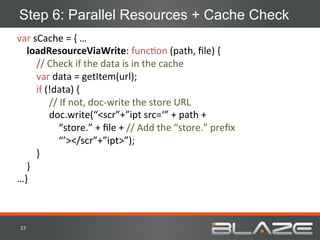

- 27. Step 6: ParallelResources + Cache Check var sCache = { … loadResourceViaWrite: funcHon (path, file) { // Check if the data is in the cache var data = getItem(url); if (!data) { // If not, doc-‐write the store URL doc.write(“<scr”+”ipt src=‘” + path + “store.” + file + // Add the “store.” prefix “’></scr”+”ipt>”); } } …} 27
- 28. Step 6: ParallelDownloads, with Cache <script>sCache.load()</script> <script> // Resources downloaded in parallel, only if needed sCache.loadResourceViaWrite("h;p://foo.com/”,”foo.v1.js”); sCache.loadResourceViaWrite("h;p://bar.com/”,”bar.v1.js”); </script> <!-‐-‐ Scripts won’t run unHl previous ones complete, and data is cached -‐-‐> <script>sCache.runExtScript(‘h;p://foo.com/foo.v1.js’); </script> <script>sCache.runExtScript(‘h;p://bar.com/bar.v1.js’); </script> <!-‐-‐ Note the different URLs! -‐-‐> <script>sCache.save();</script> 28

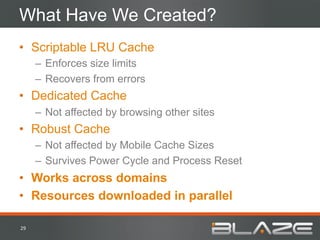

- 29. What Have WeCreated? • Scriptable LRU Cache – Enforces size limits – Recovers from errors • Dedicated Cache – Not affected by browsing other sites • Robust Cache – Not affected by Mobile Cache Sizes – Survives Power Cycle and Process Reset • Works across domains • Resources downloaded in parallel 29

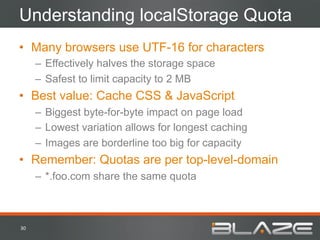

- 30. Understanding localStorage Quota • Many browsers use UTF-16 for characters – Effectively halves the storage space – Safest to limit capacity to 2 MB • Best value: Cache CSS & JavaScript – Biggest byte-for-byte impact on page load – Lowest variation allows for longest caching – Images are borderline too big for capacity • Remember: Quotas are per top-level-domain – *.foo.com share the same quota 30
- 31.
- 32. Adaptive Consolidation • FetchSeveral Resources with One Request – Store them as Fragments • Adapt to Browser Cache State – If resources aren’t in cache, fetch them as one file – If some resources are in cache, fetch separate files – Optionally consolidate missing pieces h;p://1.foo.com/foo.v1.js h;p://1.foo.com/store.res.v1.js alert(1); sCache.storeItem(‘/foo.v1.js’, ’alert(1)’); h;p://1.foo.com/bar.v1.js sCache.storeItem(‘/bar.v1.js’, ’alert(2)’); alert(2); 32
- 33. Adaptive vs. SimpleConsolidation - #2 • User browsers Page A, then Page B – Assume each JS file is 20KB in Size OpGmizaGon Total JS Requests Total JS Bytes None 3 60KB Simple ConsolidaHon 2 100KB AdapHve ConsolidaHon 1 60KB Page A Page B <script src=“a.js”></script> <script src=“a.js”></script> <script src=“b.js”></script> <script src=“b.js”></script> <script src=“c.js”></script> 33

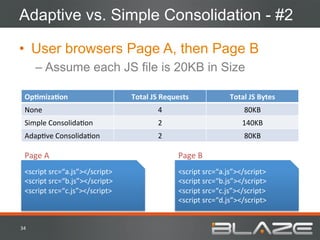

- 34. Adaptive vs. SimpleConsolidation - #2 • User browsers Page A, then Page B – Assume each JS file is 20KB in Size OpGmizaGon Total JS Requests Total JS Bytes None 4 80KB Simple ConsolidaHon 2 140KB AdapHve ConsolidaHon 2 80KB Page A Page B <script src=“a.js”></script> <script src=“a.js”></script> <script src=“b.js”></script> <script src=“b.js”></script> <script src=“c.js”></script> <script src=“c.js”></script> <script src=“d.js”></script> 34

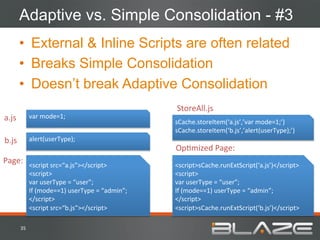

- 35. Adaptive vs. SimpleConsolidation - #3 • External & Inline Scripts are often related • Breaks Simple Consolidation • Doesn’t break Adaptive Consolidation StoreAll.js a.js var mode=1; sCache.storeItem(‘a.js’,’var mode=1;’) sCache.storeItem(‘b.js’,’alert(userType);’) b.js alert(userType); OpHmized Page: Page: <script src=“a.js”></script> <script>sCache.runExtScript(‘a.js’)</script> <script> <script> var userType = “user”; var userType = “user”; If (mode==1) userType = “admin”; If (mode==1) userType = “admin”; </script> </script> <script src=“b.js”></script> <script>sCache.runExtScript(‘b.js’)</script> 35

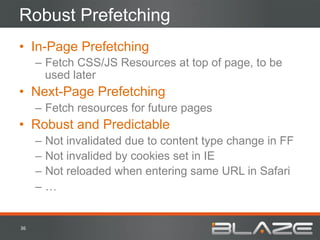

- 36. Robust Prefetching • In-PagePrefetching – Fetch CSS/JS Resources at top of page, to be used later • Next-Page Prefetching – Fetch resources for future pages • Robust and Predictable – Not invalidated due to content type change in FF – Not invalided by cookies set in IE – Not reloaded when entering same URL in Safari – … 36

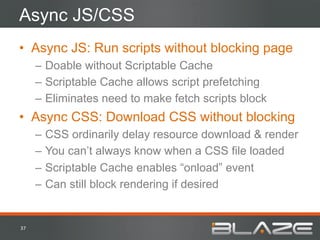

- 37. Async JS/CSS • AsyncJS: Run scripts without blocking page – Doable without Scriptable Cache – Scriptable Cache allows script prefetching – Eliminates need to make fetch scripts block • Async CSS: Download CSS without blocking – CSS ordinarily delay resource download & render – You can’t always know when a CSS file loaded – Scriptable Cache enables “onload” event – Can still block rendering if desired 37

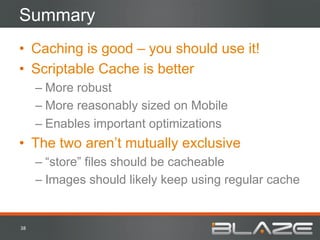

- 38. Summary • Caching isgood – you should use it! • Scriptable Cache is better – More robust – More reasonably sized on Mobile – Enables important optimizations • The two aren’t mutually exclusive – “store” files should be cacheable – Images should likely keep using regular cache 38
- 39. Or… Use theBlaze Scriptable Cache! • Blaze automates Front-End Optimization – No Software, Hardware or Code Changes needed – All the pitfalls and complexities taken care of • Blaze optimizes Mobile & Desktop Websites – Applying the right optimizations for each client See how much faster Blaze can make your site with our Free Report: www.blaze.io Contact Us: contact@blaze.io 39
- 40. QuesGons? DIY ScriptableCache Guy Podjarny, CTO guypo@blaze.io twitter: @guypod
