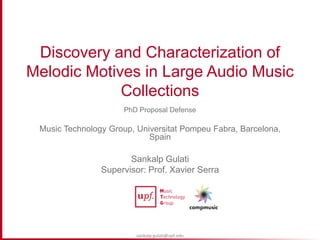

Discovery and Characterization of
Melodic Motives in Large Audio Music
Collections
PhD Proposal Defense
Music Technology Group, Universitat Pompeu Fabra, Barcelona,
Spain
Sankalp Gulati
Supervisor: Prof. Xavier Serra

Patterns
Images at right half taken from- (Mueen & Keogh, 2009) and (Mueen & Keogh, 2010)

Melodic Patterns
Top right image taken from - (Mueen & Keogh, 2009) and (Mueen & Keogh, 2010)

Melodic Motives
(Patterns)
Melodic Motives
Top right image taken from - (Mueen & Keogh, 2009) and (Mueen & Keogh, 2010)

Melodic Motives
Discovery
Induction
Extraction
Matching
Retrieval
Discovery Melodic Motives
+
Image taken from - (Mueen & Keogh, 2009)

Large Audio Music Collections
Discovery Melodic Motives
> 500,000
> 550 hours

Characterizatio
n
Discovery Characterization Melodic Motives
Transform
N
dimensions

Discovery and Characterization of
Melodic Motives in Large Audio Music
Collections
PhD Proposal Defense
Music Technology Group, Universitat Pompeu
Fabra, Barcelona, Spain
Sankalp Gulati
Supervisor: Prof. Xavier Serra

 Music Information Research (MIR)
Introduction

Introduction
 Music->Melody (pitch, loudness, timbre)
 “It is melody that enables us to distinguish one work from
another. It is melody that human beings are innately able to
reproduce by singing, humming, and whistling. It is melody that
makes music memorable: we are likely to recall a tune long after
we have forgotten its text” -(Selfridge-Field, 1998)
 Audio example:

Introduction
 Melodic Analysis : Melodic Motives
 Computational Melodic Motivic Analysis
Hungarian, Slovak, French, Sicilian, Bulgaria
n and Appalachian Folk Melodies -
(Juhász, 2006)
Cretan, Nova scotia and Essen Folk Melodies
– (Conklin and Anagnostopoulou, 2010, 2006)
Tunisian modal music
-(Lartillot & Ayari, 2006).

Introduction
 Melodic Motivic Discovery in Audio Music
Signals?
 Is it needed?
 Why so little work?
 Solution?

Introduction
 Indian Art Music: Opportunities
 Heterophonic Music
 Melodic framework (Rāg)
 Importance of melodic phrases (Pakads, Chalans)
 Available audio music repertoire

Introduction: Broad Research
Goals
 Broad Research Goals:
 Computational methodology for melodic motivic
discovery in large audio music collection utilizing
domain specific knowledge.
 Melodic motivic analysis methodology
 Similarity measures based on melodic motives
 Compilation of sizeable audio music collection of
Indian art music
 Summarize and compile existing literature

Introduction: Goals and Motivation
 Motivation:
 Lack of approaches for melodic motif extraction in
audio signal
 Lack of utilization of domain specific knowledge in
computational methodologies
 Further state of the art in pattern processing in MIR

Proposed Methodology

Proposed Methodology: Overview
Block Diagram for proposed methodology

Proposed Methodology: Data Collection
 Audio
 Metadata
 Annotations > 550 hours

Proposed Methodology: Melodic Feature
Extraction
 Pitch, loudness and timbre features
 Pitch: F0 frequency contour of predominant melodic source. Use -
(Salamon & Gómez, 2012)
 Loudness: Perceptual loudness computed using only predominant
melodic source. Use - (Zwicker, 1977)
 Timbre: Centroid of the spectral envelope of the predominant melodic
source. Use - (Röbel & Rodet, 2005).
Predominant F0
Frequency
estimation
Synthesize
predominant melodic
source
Loudness
feature
extraction
Timbre feature
extraction
Audio

 Evaluation: predominant F0 frequency
estimation
 6 Hindustani music pieces ~45 mins
Proposed Methodology: Melodic Feature
Extraction

 Compact + Abstract/reduced
 Challenges:
 Heavy meandering around notes (Gamakas)
 Svar intonation
 Aroh-Avroh dependent svar intonation
 F0 frequency contour musical pitch perception
2.215 2.22 2.225 2.23 2.235 2.24
x 10
4
1300
1400
1500
1600
1700
1800
1900
2000
Time (1 sample = 10 ms)
PredominantF0frequency(Cents)
Proposed Methodology: Melodic
Representation

 Continuous time varying values of
pitch, loudness and timbral features
 Possibilities
 Melody transcription
 SAX based symbolic representation
 Parametric representation (no studies!!)
 Saddle point based representation
 Domain knowledge
 Svar intonation profiles
Proposed Methodology: Melodic
Representation

Proposed Methodology: Melodic Similarity
 Challenges
 Melodic representation
 Large timing variations
 Pitch variations (ornamentations)
 Differentiating a characteristic phrase from a melodic
sequence using same svars
 Fixing similarity threshold
 Audio example:
 Dynamic Time Warping (Initial experiments)
 DTW > (SAX + Euclidean distances) (Ross, Vinutha, and
Rao,2012)

 Possibilities
 Euclidian and Mahalanobis distance measures
 HMM based distance measures
 Dynamic time warping based distances
 Step and boundary conditions
 Constraints
 Context dependent DTW
 Domain Knowledge
 DTW constraint parameters
 Pattern dependent similarity threshold
 Weighted distance measures
Proposed Methodology: Melodic Similarity

Proposed Methodology: Pattern Extraction
 Challenges:
 Melodic segmentation
 Different motif lengths
 Large volume of audio data
 Exact melodic similarity ~ parametric melodic
representation
1000 1200 1400 1600 1800 2000 2200
160
180
200
220
240
260
280
300
320
PredominantF0frequency(Hz)
Match Matrix

 Ongoing work
 Music parallelismMelodic segmentation
 Motif discovery in time series analysis domain
 Fast brute force exhaustive pattern search
 Pruning strategies
1000 1200 1400 1600 1800 2000 2200
160
180
200
220
240
260
280
300
320
PredominantF0frequency(Hz)

 Possibilities
 Sparse similarity matrices
 Lower bounds on distance measures
 Phase space embedding/recurrent plots
 Suffix trees (~parametric representation)
 Domain knowledge
 Probable phrase boundaries
 Pruning rules
 Motif characteristics

Proposed Methodology: Melodic Motivic
Analysis
 Challenges
 Non uniform length of motives
 Directions
 Clustering
 K-mean clustering
 Self organizing maps
 Fractal Analysis
 Application
 Rāg characterization
 Rāg specific motives
 Shared motives
Transform
N dimensions

Proposed Methodology: Evaluation
 Challenges
 No annotated corpus
 Human subjectivity in similarity related tasks
 Listening tests
 Feedback through Dunya users

References
 Selfridge-Field, E. (1998). Conceptual and representational issues in melodic comparison.
Computing in musicology: a directory of research(11), 3–64.
 Juhász, Z. (2006, June). A systematic comparison of different European folk music
traditions using self-organizing maps. Journal of New Music Research, 35(2), 95–112.
 Conklin, D., & Anagnostopoulou, C. (2006). Segmental pattern discovery in music.
INFORMS Journal on Computing, 18(3), 285–293.
 Lartillot, O., & Ayari, M. (2006). Motivic pattern extraction in music, and application to the
study of Tunisian modal music. South African Computer Journal, 36, 16–28.
 Salamon, J., & Gómez, E. (2012, August). Melody Extraction From Polyphonic Music
Signals Using Pitch Contour Characteristics. IEEE Transactions on Audio, Speech, and
Language Processing, 20(6), 1759–1770.
 Zwicker, E. (1977). Procedure for calculating loudness of temporally variable sounds. The
Journal of the Acoustical Society of America, 62(3), 675–682.
 Röbel, A., & Rodet, X. (2005). Efficient spectral envelope estimation and its application to
pitch shifting and envelope preservation. In Proc. dafx.
 Ross, J. C., Vinutha, T., & Rao, P. (2012). Detecting melodic motifs from audio for
hindustani classical music. In Proceedings of the 13th international society for music
information retrieval conference, porto, portugal.
 Mueen, A., Keogh, E. J., Zhu, Q., Cash, S., & Westover, M. B. (2009, April). Exact
Discovery of Time Series Motifs. In SDM (pp. 473-484).
 Mueen, A., & Keogh, E. (2010, July). Online discovery and maintenance of time series
motifs. In Proceedings of the 16th ACM SIGKDD international conference on Knowledge
discovery and data mining (pp. 1089-1098). ACM.

Work Plan
