Digitizing in GIS is the process of converting geographic data either from a hardcopy or a scanned image into vector data by tracing the features. During the digitzing process, features from the traced map or image are captured as coordinates in either point, line, or polygon format.

1. Digitizing features
MASHHOOD ARIF

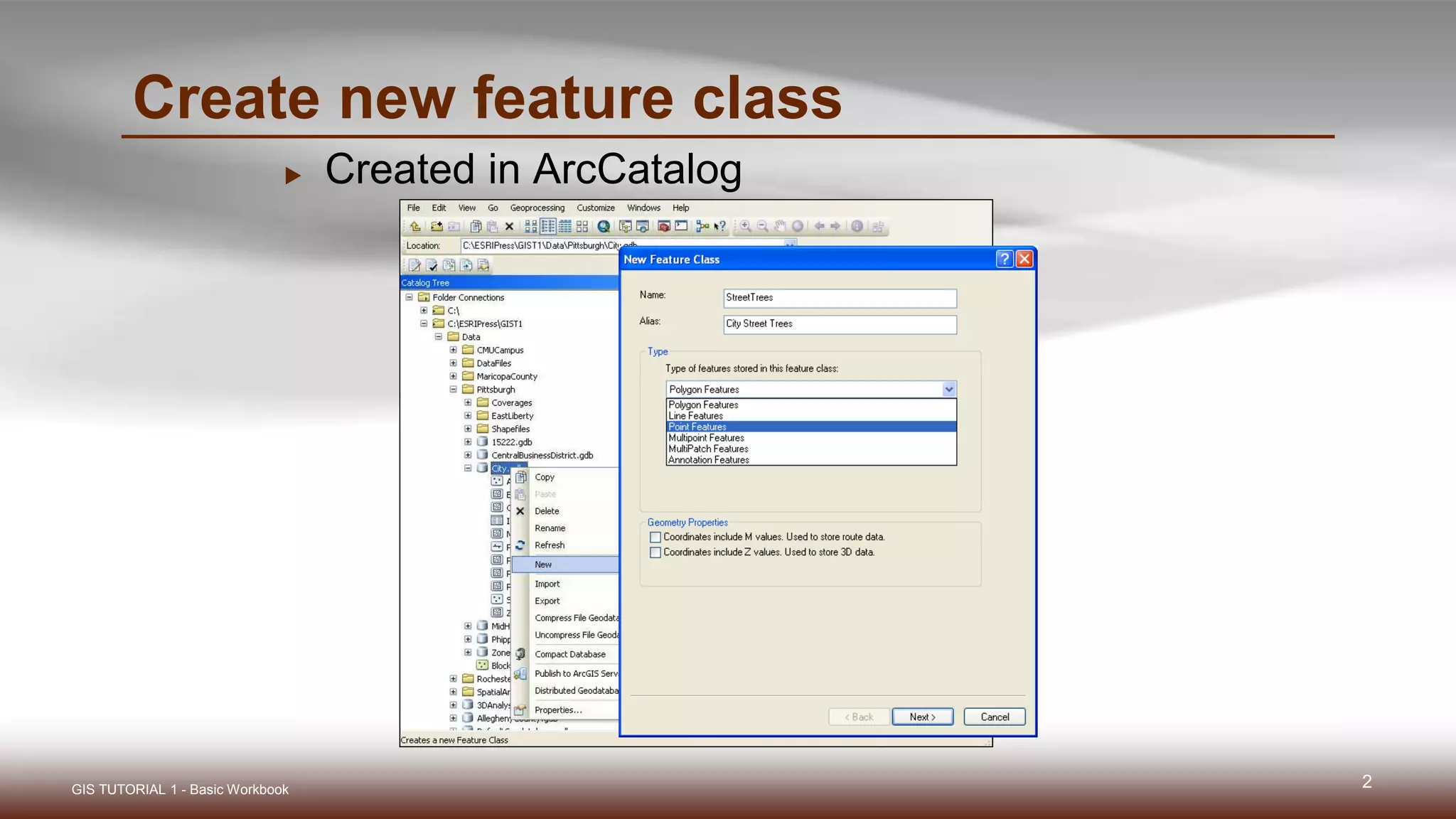

2. Create new feature class
 Created in ArcCatalog
GIS TUTORIAL 1 - Basic Workbook 2

3. Create new feature class
 Add spatial reference information
GIS TUTORIAL 1 - Basic Workbook 3

4. Create new feature class
 Add new fields
GIS TUTORIAL 1 - Basic Workbook 4

5. Create new feature class
 Feature class created
GIS TUTORIAL 1 - Basic Workbook 5

6. Creating Feature Layers or Shapefiles in ArcMap
GIS TUTORIAL 1 - Basic Workbook 6
Within ArcMap:
-Locate an existing data layer that is similar to the layer that
you wish to create.
-Start editing the existing layer, then digitize the new feature
-Select the new feature
-Export the selection to a shapefile
-Add the shapefile- fields already present and map projection
is already defined
-Examples in the instructor exercise

7. Digitize new features
 Create base map
 Add feature in ArcMap
 Start editing (Editor toolbar)
 Digitize feature
 Stop editing and save
GIS TUTORIAL 1 - Basic Workbook 7

8. Create base map for digitizing
 Vector features or raster images
GIS TUTORIAL 1 - Basic Workbook 8

9. Add new feature class
GIS TUTORIAL 1 - Basic Workbook 9

10. Add Editor toolbar
 Customize, Toolbars, Editor toolbar
GIS TUTORIAL 1 - Basic Workbook 10

11. Start editing
 Editor, Start editing
GIS TUTORIAL 1 - Basic Workbook 11

12. Begin digitizing
GIS TUTORIAL 1 - Basic Workbook 12

13. Click point (tree) locations
GIS TUTORIAL 1 - Basic Workbook 13

14. Stop editing
 Editor, Stop editing
GIS TUTORIAL 1 - Basic Workbook 14

15. Edit attribute data
 Start editing, populate fields in table
GIS TUTORIAL 1 - Basic Workbook 15
1 2

16. ADVANCED DIGITIZING TOOLS
16GIS TUTORIAL 1 - Basic Workbook

17. Specify angle and length
 Lines and polygons
 Straight segment tool
 Type length and angle
GIS TUTORIAL 1 - Basic Workbook 17

18. Snapping tools
 Snapping toolbar
GIS TUTORIAL 1 - Basic Workbook 18
Point Snapping
Endpoint Snapping
Vertex Snapping
Edge Snapping

19. Trace tool
 Good for complicated shapes
 Editor toolbar, Trace tool
GIS TUTORIAL 1 - Basic Workbook 19

20. Generalize tool
 Creates features for use at small scales with less detail while
preserving basic shapes
 U.S. Census cartographic boundary files
GIS TUTORIAL 1 - Basic Workbook 20
Census TIGER water feature City planning rivers

21. Smooth tool
 Smoothes sharp angles in polygon outlines to improve
aesthetic or cartographic quality
GIS TUTORIAL 1 - Basic Workbook 21
Smooth before Smooth after

22. Cut polygons
 Creates two polygons from one original
 Cut polygon tool
GIS TUTORIAL 1 - Basic Workbook 22
Polygon before Polygon after
