Digital Signature Message Digest Network Security
- 1. Hash Functions Hash Functionsand Message Authentication Code

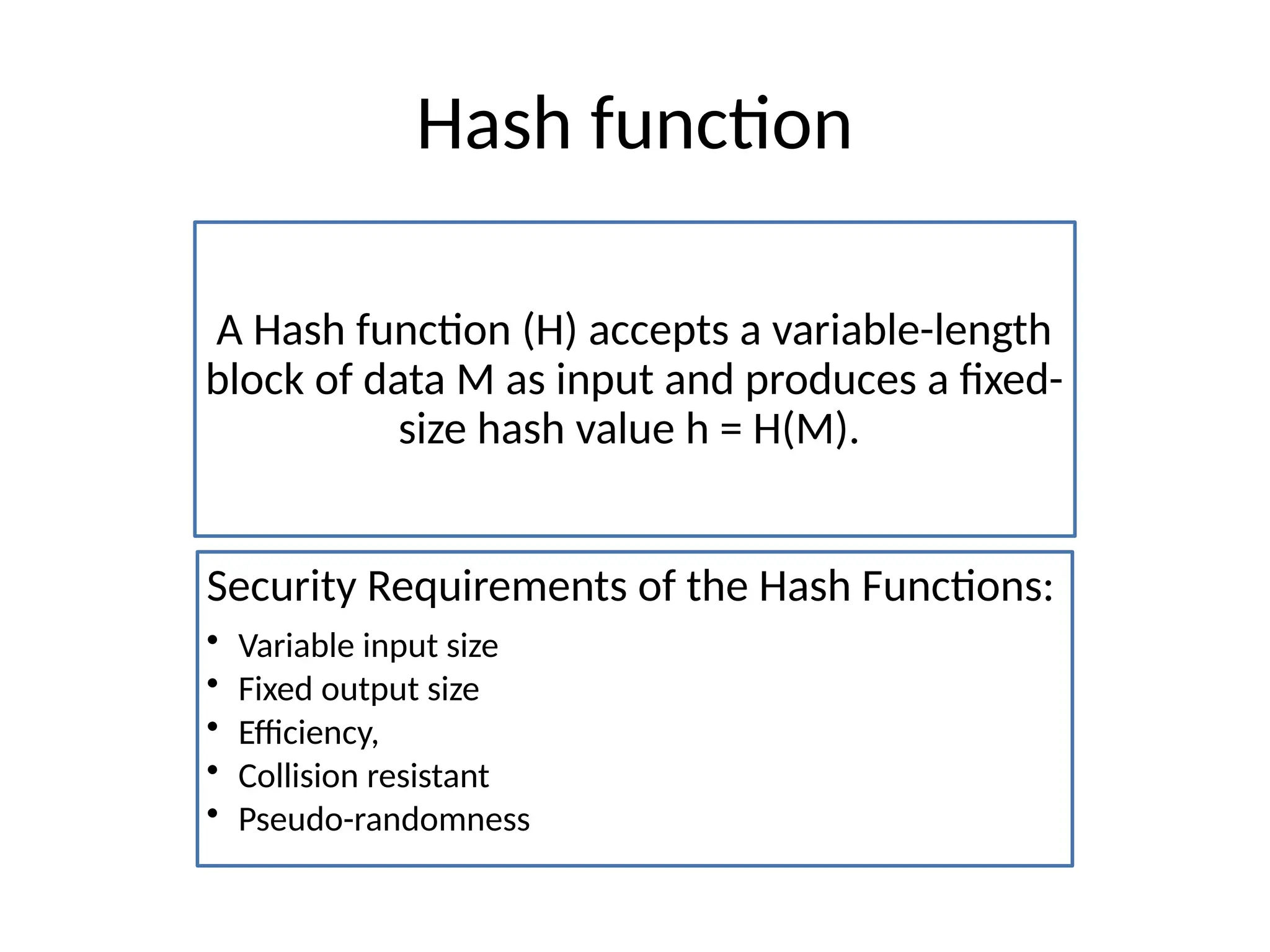

- 2. Hash function A Hashfunction (H) accepts a variable-length block of data M as input and produces a fixed- size hash value h = H(M). Security Requirements of the Hash Functions: • Variable input size • Fixed output size • Efficiency, • Collision resistant • Pseudo-randomness
- 3. Hash function • A“good” hash function has the property that the results of applying the function to a large set of inputs will produce outputs that are evenly distributed and apparently random. • In general terms, the principal object of a hash function is data integrity.

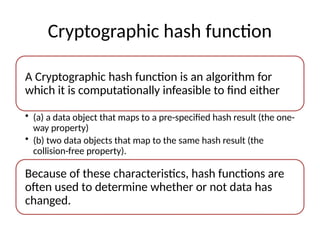

- 4. Cryptographic hash function ACryptographic hash function is an algorithm for which it is computationally infeasible to find either • (a) a data object that maps to a pre-specified hash result (the one- way property) • (b) two data objects that map to the same hash result (the collision-free property). Because of these characteristics, hash functions are often used to determine whether or not data has changed.

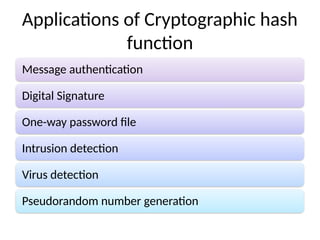

- 5. Applications of Cryptographichash function Message authentication Digital Signature One-way password file Intrusion detection Virus detection Pseudorandom number generation
- 6. Applications of Cryptographichash function Message Authentication • A mechanism or service used to verify the integrity of a message. • It assures that data received are exactly as sent (i.e., contain no modification, insertion, deletion, or replay). • When a hash function is used to provide message authentication, the hash function value is often referred to as a message digest.
- 7. Applications of Cryptographichash function One-way password file • In which a hash of a password is stored by an operating system rather than the password itself. • When a user enters a password, the hash of that password is compared to the stored hash value for verification.

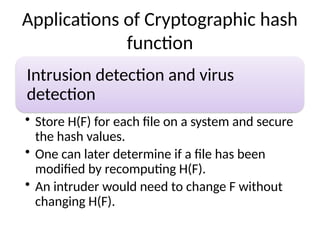

- 8. Applications of Cryptographichash function Intrusion detection and virus detection • Store H(F) for each file on a system and secure the hash values. • One can later determine if a file has been modified by recomputing H(F). • An intruder would need to change F without changing H(F).

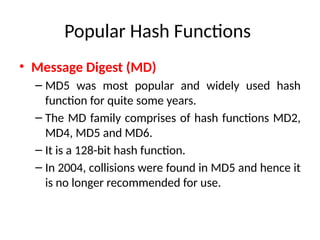

- 9. Popular Hash Functions •Message Digest (MD) – MD5 was most popular and widely used hash function for quite some years. – The MD family comprises of hash functions MD2, MD4, MD5 and MD6. – It is a 128-bit hash function. – In 2004, collisions were found in MD5 and hence it is no longer recommended for use.
- 10. Popular Hash Functions •Secure Hash Algorithm (SHA): – It is the most widely used hash function. – SHA was developed by NIST and published in 1993. – It has several versions such as SHA-1, SHA-256, SHA-512,…..etc.
- 11.

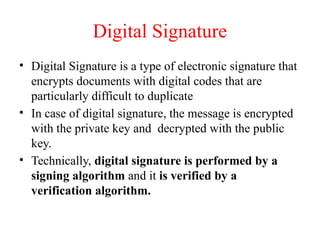

- 12. Digital Signature • DigitalSignature is a type of electronic signature that encrypts documents with digital codes that are particularly difficult to duplicate • In case of digital signature, the message is encrypted with the private key and decrypted with the public key. • Technically, digital signature is performed by a signing algorithm and it is verified by a verification algorithm.
- 14.
- 15.

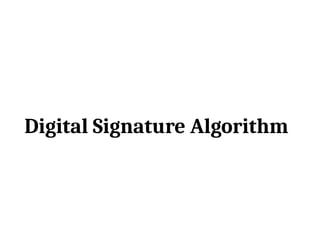

- 17.
- 19. At Sender Side 1.Message digest is generated using a set of Hash functions. 2. A message digest is encrypted using senders private key. 3. The resulting encrypted message is known as digital signature. 4. Digital signature is attached with data or message and send to receiver.
- 20. At Receiver Side Receiveruses senders public key to decrypt senders digital signature to obtain message digest send by receiver. Receiver uses same message digest algorithm, which is used by sender Now, receiver will compare these two message digest If message digest are equal then signature is valid else not.

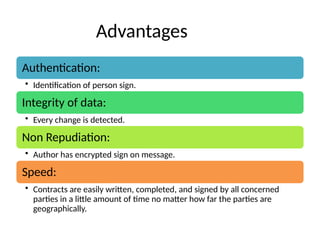

- 21. Advantages Authentication: • Identification ofperson sign. Integrity of data: • Every change is detected. Non Repudiation: • Author has encrypted sign on message. Speed: • Contracts are easily written, completed, and signed by all concerned parties in a little amount of time no matter how far the parties are geographically.

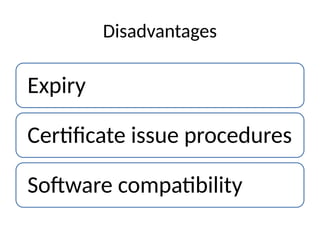

- 22.
