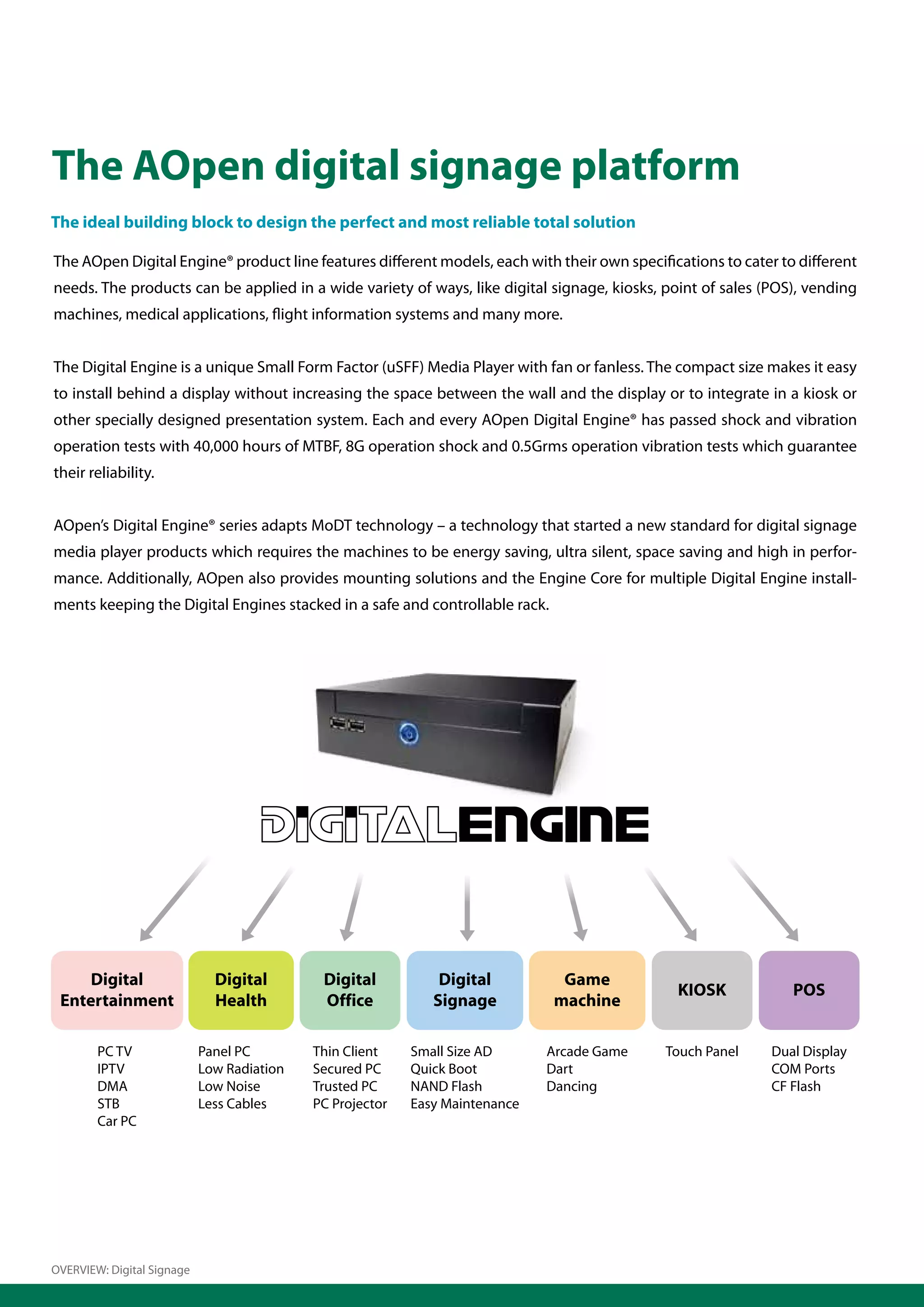

The AOpen digital signage platform
The ideal building block to design the perfect and most reliable total solution

The AOpen Digital Engine® product line features different models, each with their own specifications to cater to different
needs. The products can be applied in a wide variety of ways, like digital signage, kiosks, point of sales (POS), vending
machines, medical applications, flight information systems and many more.


The Digital Engine is a unique Small Form Factor (uSFF) Media Player with fan or fanless. The compact size makes it easy
to install behind a display without increasing the space between the wall and the display or to integrate in a kiosk or
other specially designed presentation system. Each and every AOpen Digital Engine® has passed shock and vibration
operation tests with 40,000 hours of MTBF, 8G operation shock and 0.5Grms operation vibration tests which guarantee
their reliability.


AOpen’s Digital Engine® series adapts MoDT technology – a technology that started a new standard for digital signage
media player products which requires the machines to be energy saving, ultra silent, space saving and high in perfor-
mance. Additionally, AOpen also provides mounting solutions and the Engine Core for multiple Digital Engine install-
ments keeping the Digital Engines stacked in a safe and controllable rack.




     Digital                  Digital        Digital           Digital         Game
                                                                                              KIOSK             POS
 Entertainment                Health         Office           Signage         machine

        PC TV               Panel PC        Thin Client    Small Size AD      Arcade Game   Touch Panel      Dual Display
        IPTV                Low Radiation   Secured PC     Quick Boot         Dart                           COM Ports
        DMA                 Low Noise       Trusted PC     NAND Flash         Dancing                        CF Flash
        STB                 Less Cables     PC Projector   Easy Maintenance
        Car PC




OVERVIEW: Digital Signage
The No.1 Small Form Factor
                                                                                                                                                              Components & Platform Provider



DE67-HA
                   USB2.0               Power Button                                                                                                      COM port    Antenna Hole




                                                                                                                                                                                              Speaker Out
                                                                                                                                                                                              Kensington
                                                                                                                                                                                              Lock Hole
                                                                                                                                                                                              Microphone In

                                                                                                                     DC20V/12V      DVI-I       Displayport   LAN USB 3.0




 Model name                                                           DE67-HA                                Storage           S-ATA Connector                           x 1 (for 2.5” HDD and slim ODD)

Feature                                                           Intel AMT 7.0 support                                        Power Button                                             x1

Housing Material                                                      SECC t=0.8 mm                                            HDD indicator (blue)                                     x1
                                                                                                             Front Panel
                                                                                                             IO
                  W x H x D (mm)                                    166 x 48 x 157 mm                                          Power indicator (blue)                                   x1
Dimension
                  W x H x D (in)                                  6.54 x 1.89 x 6.18 inch                                      USB 2.0 Port                                             x2

Volume(liters)                                                              1.25L                                              DC Jack                                                  x1

Weight(Kg/Pound)                                                1.25 kg/2.75 pound (N.W.)                                      DVI Port                                     x 1 (include HDMI + VGA)

Form Factor                                                              mini-ATX                                              Display Port                                             x1

                  Socket                                                 RPGA988B                                              USB 3.0 Port                                             x2
CPU                                                                                                                            RJ45 LAN Jack                                            x1
                                                           Supports Intel Core i3,i5,i7 mobile
                  Type
                                                                processor TDP≤35W                            Rear Panel
                                                                                                                               Legacy RS232 Serial Port
                                                                                                             IO                                                                         x1
                  NB                                                                                                           (COM Port)
Chipset                                                             Intel QM67 Chipset
                  SB                                                                                                                             Line-Out                               x1
                                                                                                                               Audio Set
                  Dual Channel                                         Dual Channel                                                              Mic-in                                 x1

                  Type                                             DDRIII SO-DIMM x 2                                          Upgrade for Antenna
                                                                                                                                                                                        x2
Memory                                                                                                                         Port
                  DDR                                                       1333
                                                                                                                               Kensington Lock Hole                                     x1
                  Max Memory                                    8G (based on OS support)
                                                                                                                               Module                                        AOpen Thermal Module
                  Chip                                         Integrated in CPU + QM67                      CPU Thermal
                                                                                                                               Noise                                                   27dB
Graphics          DVI Port                                                   x1
                                                                                                             WatchDog Timer                                                     1 ~ 255 SEC./min
                  Display Port                                               x1
                                                                                                             Adapter                                                       90W (20V, 4.5A) AC Adapter
Expansion         Mini Card Slot                                 Full size x 1, half size x 1
                                                                                                             Input Voltage                                                 AC 100 ~ 240V/DC 12V/20V
                  Type                                      Realtek HD Audio Codec ALC662
Audio                                                                                                                                                 Environment
                  Channel                                       Stereo/5.1 CH with HDMI
                                                                                                             MTBF                                                                    40,000hrs
                                                          Intel Gigabit Ethernet WG82579LM
LAN                                                                                                          Operating Temperature                                            0 ~ 50ºC (32 ~ 122ºF)
                                                                       10/100/1000
                                                                                                             Storage Temperature                                            -30 ~ 60ºC (-22 ~ 140ºF)
 USB                                                       USB 2.0 x 2, Front/USB3.0 x 2, Rear
                                                                                                             Relative Humidity                                           95% RH (50ºC non-Condensing)
Storage           S-ATA Connector                            x 1 (for 2.5”HDD and slim ODD)
                                                                                                                                                                     0.5Gms, Random, 10 ~ 500Hz,X,Y,Z 3Axes,
                                                                                                             Operating Vibration
                                                                                                                                                                                  0.5hr/Axis
                  Trusted Platform Modules
                                                                   SLB9635TT1.2V1.03
                  (TPM v1.2)
Security                                                                                                                                                             2Gms, Random, 10 ~ 300Hz,X,Y,Z 3Axes,
                                                                                                             Non-Operating Vibration
                  Kensington Lock Hole                                   x 1 (Rear)                                                                                               1hr/Axis

                  Slot-in Slim ODD Bay                                       x1                              Operating Shock                                               8G, Half sine, 11ms duration
Storage Bay
                  2.5” SATA II HDD Bay                                       x1                              Non-Operating Shock                                          50G, Half sine, 11ms duration
AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without prior notice.

                                                                                                              3.0

                                                                                                          USB 3.0




                                                                                                                                                                                     Digital Engine DE67-HA

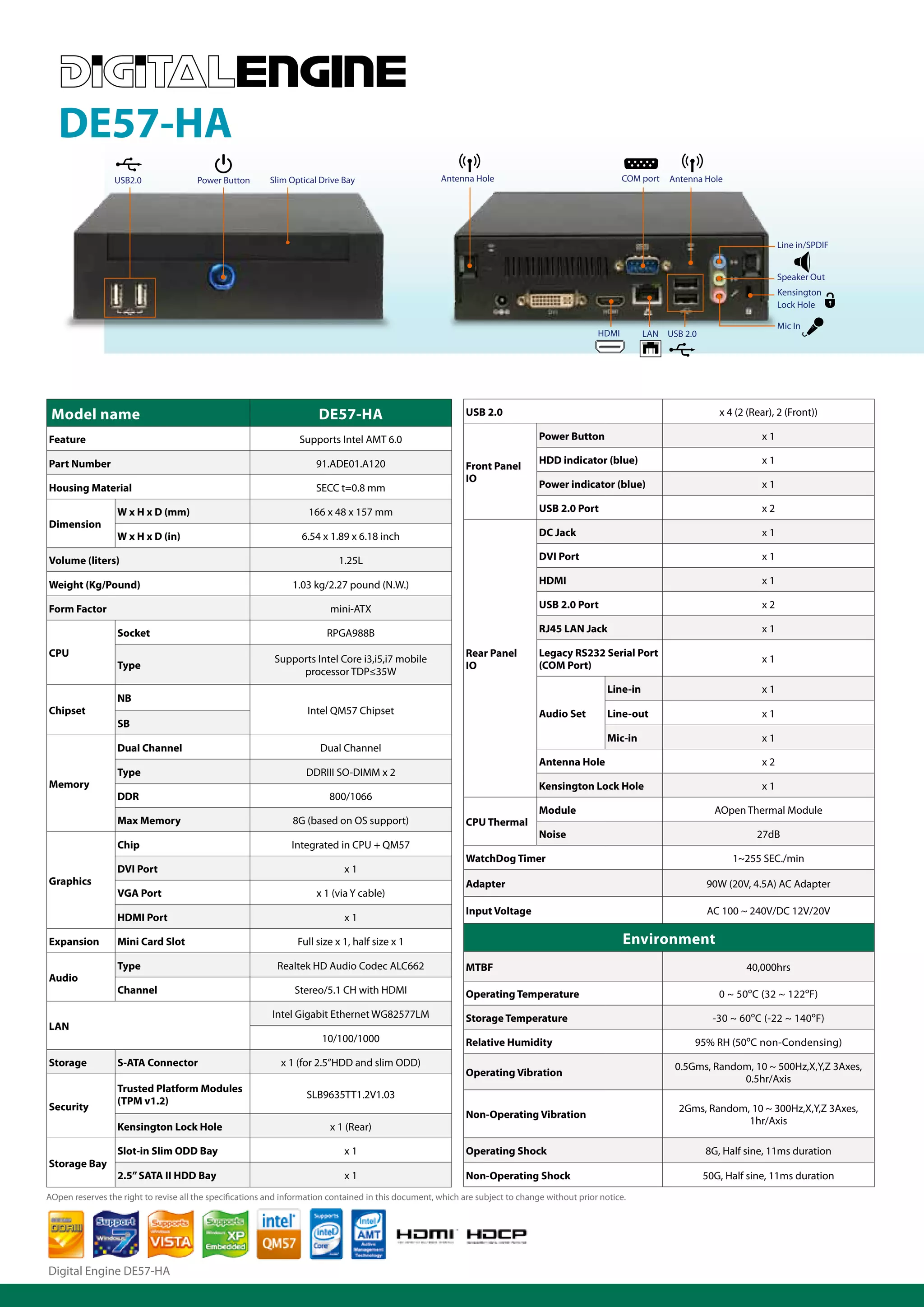

DE57-HA
                 USB2.0                Power Button       Slim Optical Drive Bay                      Antenna Hole                                    COM port   Antenna Hole




                                                                                                                                                                                            Line in/SPDIF


                                                                                                                                                                                            Speaker Out
                                                                                                                                                                                            Kensington
                                                                                                                                                                                            Lock Hole

                                                                                                                                                                                            Mic In
                                                                                                                                               HDMI         LAN USB 2.0




 Model name                                                            DE57-HA                               USB 2.0                                                         x 4 (2 (Rear), 2 (Front))

Feature                                                          Supports Intel AMT 6.0                                         Power Button                                           x1

Part Number                                                           91.ADE01.A120                                             HDD indicator (blue)                                   x1
                                                                                                             Front Panel
                                                                                                             IO
Housing Material                                                      SECC t=0.8 mm                                             Power indicator (blue)                                 x1

                  W x H x D (mm)                                    166 x 48 x 157 mm                                           USB 2.0 Port                                           x2
Dimension
                  W x H x D (in)                                  6.54 x 1.89 x 6.18 inch                                       DC Jack                                                x1

Volume (liters)                                                             1.25L                                               DVI Port                                               x1

Weight (Kg/Pound)                                               1.03 kg/2.27 pound (N.W.)                                       HDMI                                                   x1

Form Factor                                                              mini-ATX                                               USB 2.0 Port                                           x2

                  Socket                                                 RPGA988B                                               RJ45 LAN Jack                                          x1

CPU                                                                                                          Rear Panel         Legacy RS232 Serial Port
                                                           Supports Intel Core i3,i5,i7 mobile                                                                                         x1
                  Type                                                                                       IO                 (COM Port)
                                                                processor TDP≤35W
                                                                                                                                                  Line-in                              x1
                  NB
Chipset                                                             Intel QM57 Chipset                                          Audio Set         Line-out                             x1
                  SB
                                                                                                                                                  Mic-in                               x1
                  Dual Channel                                         Dual Channel
                                                                                                                                Antenna Hole                                           x2
                  Type                                             DDRIII SO-DIMM x 2
Memory                                                                                                                          Kensington Lock Hole                                   x1
                  DDR                                                    800/1066
                                                                                                                                Module                                      AOpen Thermal Module
                  Max Memory                                    8G (based on OS support)                     CPU Thermal
                                                                                                                                Noise                                                 27dB
                  Chip                                         Integrated in CPU + QM57
                                                                                                             WatchDog Timer                                                     1~255 SEC./min
                  DVI Port                                                   x1
Graphics                                                                                                     Adapter                                                      90W (20V, 4.5A) AC Adapter
                  VGA Port                                            x 1 (via Y cable)
                                                                                                             Input Voltage                                                AC 100 ~ 240V/DC 12V/20V
                  HDMI Port                                                  x1

Expansion         Mini Card Slot                                 Full size x 1, half size x 1                                                         Environment
                  Type                                      Realtek HD Audio Codec ALC662                    MTBF                                                                  40,000hrs
Audio
                  Channel                                       Stereo/5.1 CH with HDMI                      Operating Temperature                                           0 ~ 50ºC (32 ~ 122ºF)
                                                          Intel Gigabit Ethernet WG82577LM                   Storage Temperature                                            -30 ~ 60ºC (-22 ~ 140ºF)
LAN
                                                                       10/100/1000                           Relative Humidity                                        95% RH (50ºC non-Condensing)
Storage           S-ATA Connector                            x 1 (for 2.5”HDD and slim ODD)                                                                       0.5Gms, Random, 10 ~ 500Hz,X,Y,Z 3Axes,
                                                                                                             Operating Vibration
                                                                                                                                                                               0.5hr/Axis
                  Trusted Platform Modules
                                                                   SLB9635TT1.2V1.03
                  (TPM v1.2)
Security                                                                                                                                                           2Gms, Random, 10 ~ 300Hz,X,Y,Z 3Axes,
                                                                                                             Non-Operating Vibration
                                                                                                                                                                                1hr/Axis
                  Kensington Lock Hole                                   x 1 (Rear)

                  Slot-in Slim ODD Bay                                       x1                              Operating Shock                                              8G, Half sine, 11ms duration
Storage Bay
                  2.5” SATA II HDD Bay                                       x1                              Non-Operating Shock                                          50G, Half sine, 11ms duration
AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without prior notice.




Digital Engine DE57-HA
The No.1 Small Form Factor
                                                                                                                                                           Components & Platform Provider

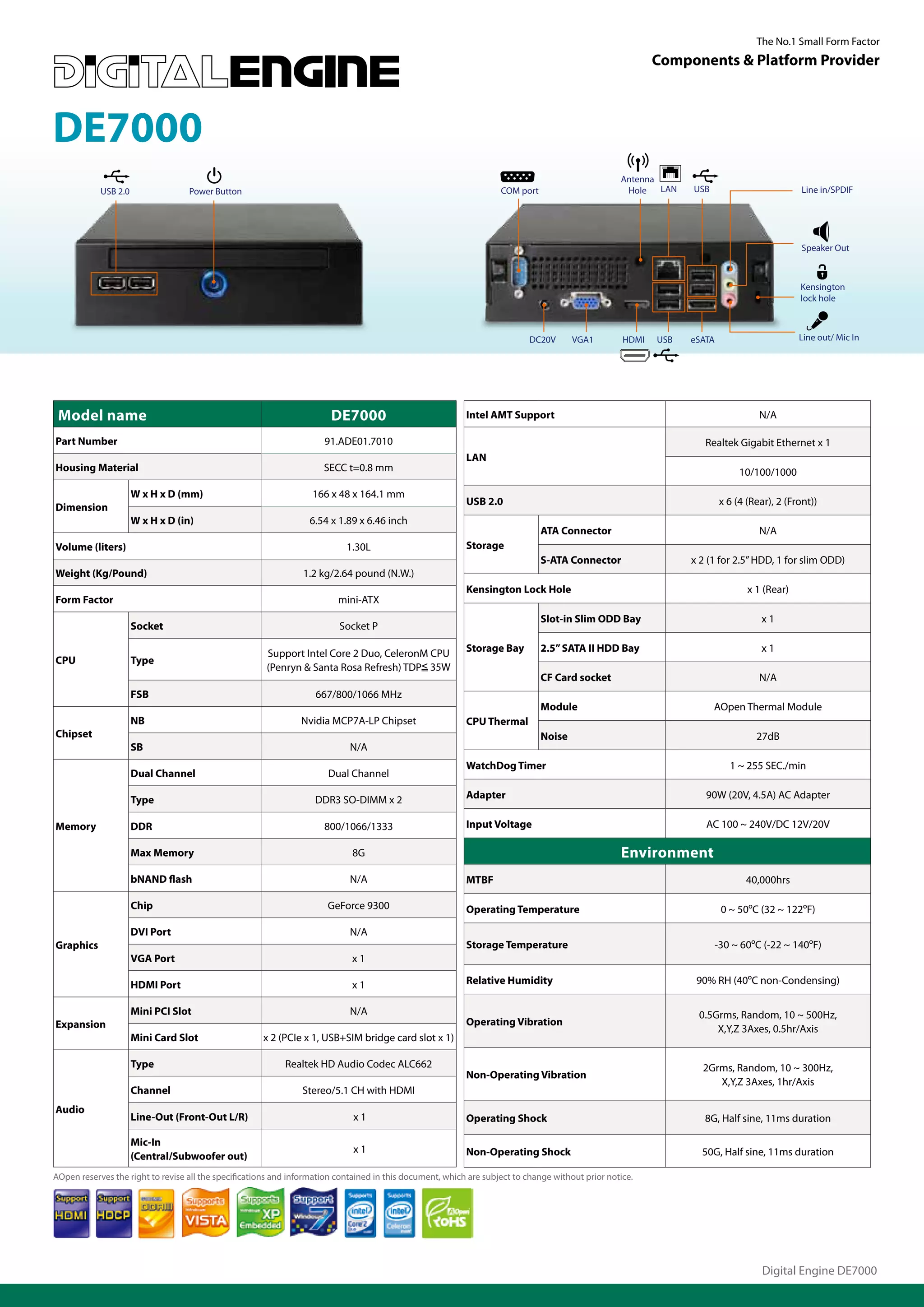

DE7000
                                                                                                                                                   Antenna
            USB 2.0                Power Button                                                                     COM port                        Hole   LAN   USB                          Line in/SPDIF




                                                                                                                                                                                              Speaker Out



                                                                                                                                                                                             Kensington
                                                                                                                                                                                             lock hole



                                                                                                                            DC20V      VGA1         HDMI   USB   eSATA                       Line out/ Mic In




 Model name                                                             DE7000                             Intel AMT Support                                                       N/A

Part Number                                                           91.ADE01.7010                                                                                 Realtek Gigabit Ethernet x 1
                                                                                                           LAN
Housing Material                                                      SECC t=0.8 mm                                                                                           10/100/1000

                      W x H x D (mm)                               166 x 48 x 164.1 mm
                                                                                                           USB 2.0                                                       x 6 (4 (Rear), 2 (Front))
Dimension
                      W x H x D (in)                              6.54 x 1.89 x 6.46 inch
                                                                                                                               ATA Connector                                       N/A
Volume (liters)                                                             1.30L                          Storage
                                                                                                                               S-ATA Connector                   x 2 (1 for 2.5” HDD, 1 for slim ODD)
Weight (Kg/Pound)                                                1.2 kg/2.64 pound (N.W.)
                                                                                                           Kensington Lock Hole                                                 x 1 (Rear)
Form Factor                                                               mini-ATX
                                                                                                                               Slot-in Slim ODD Bay                                x1
                      Socket                                              Socket P

                                                       Support Intel Core 2 Duo, CeleronM CPU              Storage Bay         2.5” SATA II HDD Bay                                x1
CPU                   Type
                                                       (Penryn & Santa Rosa Refresh) TDP 35W
                                                                                                                               CF Card socket                                      N/A
                      FSB                                           667/800/1066 MHz
                                                                                                                               Module                                  AOpen Thermal Module
                      NB                                        Nvidia MCP7A-LP Chipset                    CPU Thermal
Chipset                                                                                                                        Noise                                              27dB
                      SB                                                     N/A
                                                                                                           WatchDog Timer                                                  1 ~ 255 SEC./min
                      Dual Channel                                     Dual Channel

                      Type                                          DDR3 SO-DIMM x 2                       Adapter                                                  90W (20V, 4.5A) AC Adapter

Memory                DDR                                             800/1066/1333                        Input Voltage                                            AC 100 ~ 240V/DC 12V/20V

                      Max Memory                                             8G                                                                    Environment
                      bNAND flash                                            N/A                           MTBF                                                                40,000hrs

                      Chip                                             GeForce 9300                        Operating Temperature                                         0 ~ 50ºC (32 ~ 122ºF)

                      DVI Port                                               N/A
Graphics                                                                                                   Storage Temperature                                         -30 ~ 60ºC (-22 ~ 140ºF)
                      VGA Port                                               x1

                      HDMI Port                                              x1                            Relative Humidity                                      90% RH (40ºC non-Condensing)

                      Mini PCI Slot                                          N/A                                                                                  0.5Grms, Random, 10 ~ 500Hz,
Expansion                                                                                                  Operating Vibration
                                                                                                                                                                      X,Y,Z 3Axes, 0.5hr/Axis
                      Mini Card Slot                  x 2 (PCIe x 1, USB+SIM bridge card slot x 1)

                      Type                                  Realtek HD Audio Codec ALC662                                                                          2Grms, Random, 10 ~ 300Hz,
                                                                                                           Non-Operating Vibration
                                                                                                                                                                      X,Y,Z 3Axes, 1hr/Axis
                      Channel                                   Stereo/5.1 CH with HDMI
Audio
                      Line-Out (Front-Out L/R)                                x1                           Operating Shock                                          8G, Half sine, 11ms duration

                      Mic-In
                                                                              x1                           Non-Operating Shock                                     50G, Half sine, 11ms duration
                      (Central/Subwoofer out)
AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without prior notice.

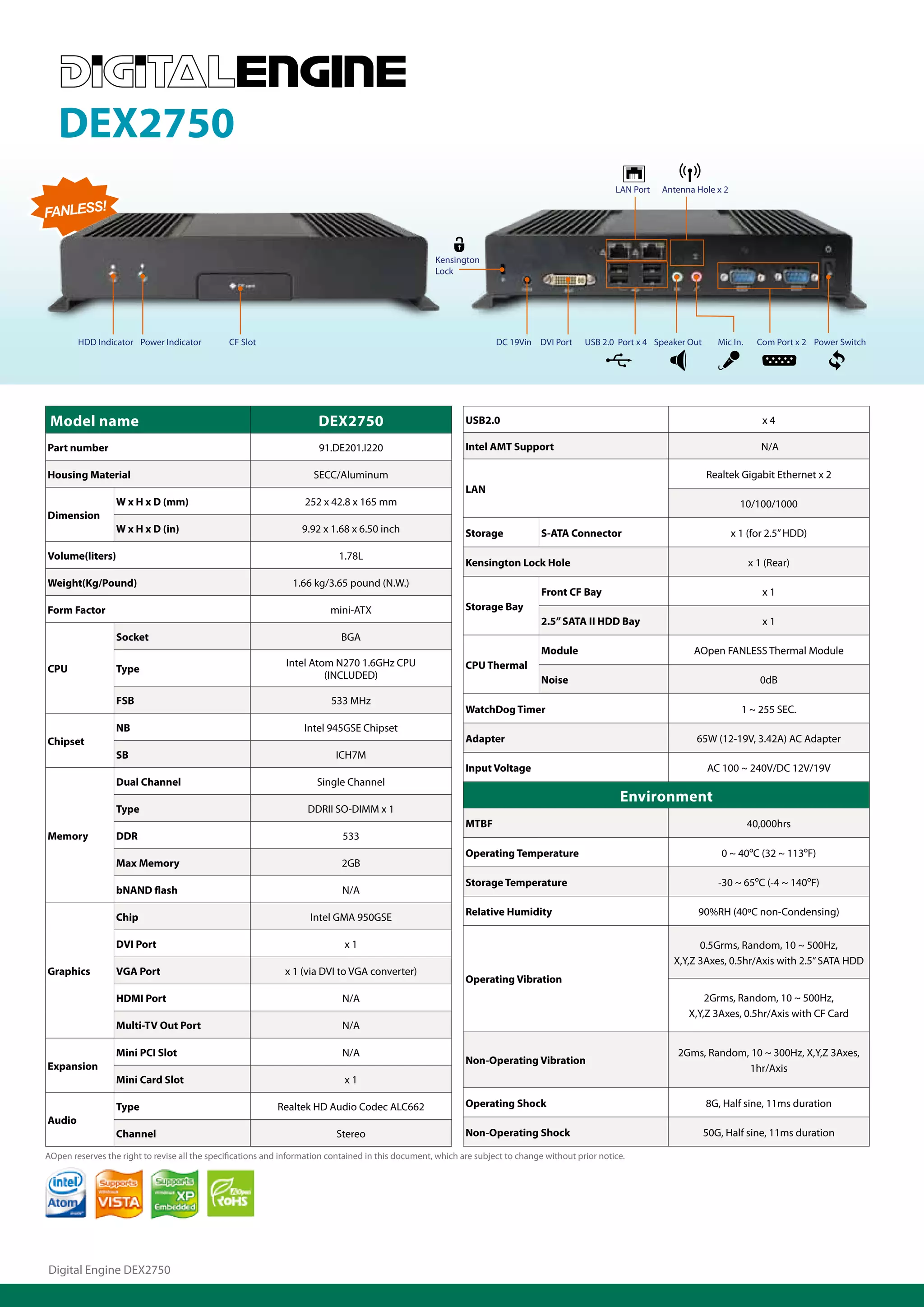

                                                                                                                                                                                   Digital Engine DE7000
DEX2750
                                                                                                                                                    LAN Port   Antenna Hole x 2

FANLESS!


                                                                                                     Kensington
                                                                                                     Lock




        HDD Indicator Power Indicator          CF Slot                                                               DC 19Vin DVI Port      USB 2.0 Port x 4 Speaker Out      Mic In.     Com Port x 2 Power Switch




 Model name                                                            DEX2750                               USB2.0                                                                        x4

Part number                                                            91.DE201.I220                         Intel AMT Support                                                             N/A

Housing Material                                                     SECC/Aluminum                                                                                         Realtek Gigabit Ethernet x 2
                                                                                                             LAN
                  W x H x D (mm)                                   252 x 42.8 x 165 mm                                                                                              10/100/1000
Dimension
                  W x H x D (in)                                  9.92 x 1.68 x 6.50 inch                    Storage             S-ATA Connector                                  x 1 (for 2.5” HDD)

Volume(liters)                                                              1.78L
                                                                                                             Kensington Lock Hole                                                       x 1 (Rear)
Weight(Kg/Pound)                                                1.66 kg/3.65 pound (N.W.)
                                                                                                                                 Front CF Bay                                              x1
Form Factor                                                               mini-ATX                           Storage Bay
                                                                                                                                 2.5” SATA II HDD Bay                                      x1
                  Socket                                                     BGA
                                                                                                                                 Module                               AOpen FANLESS Thermal Module
                                                              Intel Atom N270 1.6GHz CPU                     CPU Thermal
CPU               Type
                                                                       (INCLUDED)                                                Noise                                                    0dB
                  FSB                                                     533 MHz
                                                                                                             WatchDog Timer                                                         1 ~ 255 SEC.
                  NB                                               Intel 945GSE Chipset
Chipset                                                                                                      Adapter                                                   65W (12-19V, 3.42A) AC Adapter
                  SB                                                       ICH7M
                                                                                                             Input Voltage                                                 AC 100 ~ 240V/DC 12V/19V
                  Dual Channel                                        Single Channel
                                                                                                                                                     Environment
                  Type                                              DDRII SO-DIMM x 1
                                                                                                             MTBF                                                                       40,000hrs
Memory            DDR                                                        533
                                                                                                             Operating Temperature                                             0 ~ 40ºC (32 ~ 113ºF)
                  Max Memory                                                 2GB
                                                                                                             Storage Temperature                                              -30 ~ 65ºC (-4 ~ 140ºF)
                  bNAND flash                                                N/A
                                                                                                             Relative Humidity                                         90%RH (40ºC non-Condensing)
                  Chip                                               Intel GMA 950GSE

                  DVI Port                                                   x1                                                                                        0.5Grms, Random, 10 ~ 500Hz,
                                                                                                                                                                 X,Y,Z 3Axes, 0.5hr/Axis with 2.5” SATA HDD
Graphics          VGA Port                                    x 1 (via DVI to VGA converter)
                                                                                                             Operating Vibration
                  HDMI Port                                                  N/A                                                                                         2Grms, Random, 10 ~ 500Hz,
                                                                                                                                                                     X,Y,Z 3Axes, 0.5hr/Axis with CF Card
                  Multi-TV Out Port                                          N/A

                  Mini PCI Slot                                              N/A                                                                                  2Gms, Random, 10 ~ 300Hz, X,Y,Z 3Axes,
                                                                                                             Non-Operating Vibration
Expansion                                                                                                                                                                      1hr/Axis
                  Mini Card Slot                                             x1

                  Type                                      Realtek HD Audio Codec ALC662                    Operating Shock                                               8G, Half sine, 11ms duration
Audio
                  Channel                                                  Stereo                            Non-Operating Shock                                           50G, Half sine, 11ms duration

AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without prior notice.




Digital Engine DEX2750
The No.1 Small Form Factor
                                                                                                                                                                                                                 Components & Platform Provider



DEX4502
                                                        USB                  HDD LED   Power LED                                                COM 1                                    Antenna Hole            USB              LAN        Power Switch


        FANLESS!




                                                                                                                                                                                                                                                                                   Kensington
                                                                                                                                                                                                                                                                                   Lock Hole



                                                                                                                                                           DC input               DVI             HDMI e-SATA                            Audio




 Model name                                                                        DEX4502                    Storage                                                 S-ATA Connector                                                                      x3

 Part Number                                                                       91.DE201.I520              Security                                              Kensington Lock Hole                                                         x 1 (Rear)
 Housing Material                                                                SECC/Aluminum                Storage Bay                                           2.5” SATA II HDD Bay                                                                   x1
                             W x H x D (mm)                                     200 x 60 x 200 mm             CPU                                                                        Module                      AOpen Proprietary Fanless Thermal Solution
 Dimension                                                                                                    Hermal
                             W x H x D (in)                                    7.87 x 2.36 x 7.87 inch                                                                                   Noise                                                         0dB
 Volume (liters)                                                                         2.4L                 Adapter                                                                                                               90W (20V, 4.5A) AC Adapter
 Weight (Kg/Pound)                                                           2.85 kg/6.27 pound (N.W.)        Input Voltage                                                                                                         AC 100 ~ 240V/DC 12V/20V
 Form Factor                                                                           mini-ITX                                                                                                     Environment
                             Socket                                                    Socket P               MTBF                                                                                                                               40,000hrs
                                                                        Support intel Penryn Core 2 Duo CPU   Operating Temperature                                                                                                     -5 ~ 40ºC (23 ~ 104ºF)
 CPU                         Type
                                                                                      TDP=35W
                                                                                                              Storage Temperature                                                                                                       -20 ~ 60ºC (-4 ~ 140ºF)
                             FSB                                                667/800/1066 MHz
                                                                                                              Relative Humidity                                                                                                   90% RH (40ºC non-Condensing)
                             NB                                                 Intel GM45 chipset
 Chipset
                             SB                                                        ICH9M                                                                                                                           0.5Grms, random, 10 ~ 500Hz, X,Y,Z 3Axes,
                                                                                                              Operating Vibration
                             Dual Channel                                          Dual Channel                                                                                                                                      0.5hr/Axis
                             Type                                               DDRII SO-DIMM x 2
 Memory                                                                                                                                                                                                                  2Grms, random, 10 ~ 300Hz, X,Y,Z 3Axes,
                             DDR                                                       667/800                Non-Operating Vibration
                                                                                                                                                                                                                                       1hr/Axis
                             Max Memory                                                  8GB
                                                                                                              Operating Shock                                                                                                      8G, Half sine, 11 ms duration
                             Chip                                              Intel GMA X4500 MHD
                                                                                                              Non-Operating Shock                                                                                                  50G, Half sine, 11ms duration
                             DVI Port                                                     x1
 Graphics
                             VGA Port                                      x 1 (via DVI-to-VGA converter)
                                                                                                                                                                                                        Accessory
                                                                                                              HDMI To DVI Cable (1500mm)                                                                                                                   x1
                             HDMI Port                                                    x1
                                                                                                              SATA to CF Bridge Board                                                                                                                      x1
 Expansion Slot              Mini Card Slot                                               x2
                                                                                                              AC Adapter                                                                                                             90W PWR 20V Adapter x 1
                             Type                                         Realtek HD Audio Codec ALC888
 Audio                                                                                                        Power Cord                                                                                                                                   x1
                             Channel                                                   7.1 CH
                                                                                                              L Type Holder                                                                                                                                x1
                                                                               Intel Gigabit Ethernet
 LAN                                                                                                          DVI to VGA converter                                                                                                                         x1
                                                                                   10/100/1000
 USB 2.0                                                                        x 8 (4 Rear, 4 Front)         Power Clamp                                                                                                                                  x2

 Intel AMT Support                                                                       N/A                  Utilities & Drivers CD                                                                                                                       x1
 WatchDog Timer                                                                  1 ~ 255 SEC./min             Assembly Guide                                                                                                                               x1
AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without prior notice.




                                                                                                                                                                                                 70.50 [2.78”]
                                                                                                                                                                                                 61.50 [2.42”]


                                                                                   228.80 [9.01”]
                                                                                   215.80 [8.50”]
                                                         6.00 [0.24”]




                                                                                                                                            Ø7.6
                                                                                                                                                                        199.80 [7.87”]




                                                                                                                        4.00 [0.16”]
                                        67.00 [2.64”]

                                                         6.00 [0.24”]




                                                                                                                               Ø4.2
                       134.00 [5.28”]




                                                                                                                                                   167.65 [6.60”]
                                                         6.00 [0.24”]




                                                                                                               33.65 [1.32”]




                                                                                                                                                                                                                 200.00 [7.87”]
                                                                                                                               100.65 [3.96”]




                                                                                                                                                                                                                                                   61.50 [2.42”]

                                                                                                                                                                                                                                                                   70.50 [2.78”]
                                                         6.00 [0.24”]

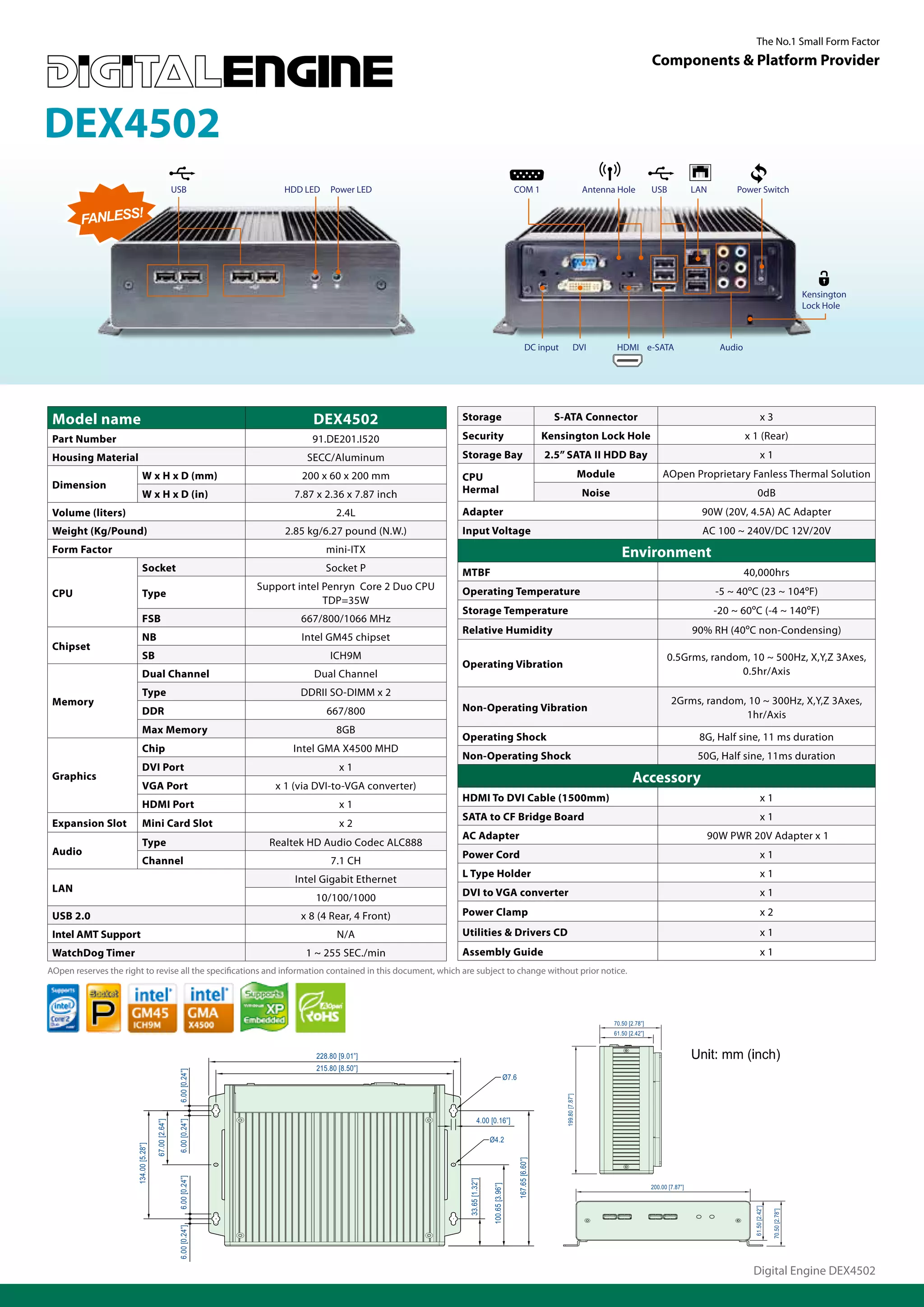

                                                                                                                                                                                                                                                  Digital Engine DEX4502
DE45-HA/DE45-Pro
                                                                                                                                                          TV Tuner or
                USB                  Power Button     Slim Optical Drive Bay                                Kensington Lock Hole          VGA 1     VGA 2 Wireless Antenna Hole                  COM


                                                                                                                                                                                                 USB




                                                                                                                                                                                                Speaker Out

                                                                                                      DV 19V
                                                                                                                                                                                                Micro In

                                                                                                                                     HDMI                      LAN




 Model name                                               DE45-HA                    DE45-Pro                                                                        Intel Gigabit Ethernet W82567LM
                                                                                                            LAN
Part Number                                              91.ADE01.V520               91.ADE01.I520                                                                                10/100/1000

Housing Material                                                       SECC t=0.8 mm                                            ATA Connector                                        N/A
                                                                                                            Storage
                  W x H x D (mm)                                    166 x 45 x 157 mm                                           S-ATA Connector                      x 2 (for 2.5” HDD and Slim Optical)
Dimension
                  W x H x D (in)                                  6.54 x 1.89 x 6.18 inch
                                                                                                                                Trusted Platform Modules
                                                                                                                                                                                     N/A
Volume (liters)                                                             1.25L                                               (TPM v1.2)
                                                                                                            Security
                                                      1.22 kg/2.68 pound        1.23 kg/2.72 pound                              Kensington Lock Hole                               x 1 (Rear)
Weight (Kg/Pound)
                                                      (N.W.)                    (N.W.)
                                                                                                                                Front CF Bay                                          x1
Form Factor                                                               mini-ATX
                                                                                                            Storage Bay         2.5” SATA II HDD Bay                                  x1
                  Socket                                                  Socket P
                                                                                                                                CF card socket                                       N/A
                                                       Support Intel Core 2 Duo, CeleronM CPU
CPU               Type
                                                       (Penryn & Santa Rosa Refresh) TDP 35W
                                                                                                                                Module                                    AOpen Thermal Module
                                                                                                            CPU Thermal
                  FSB                                               667/800/1066 MHz
                                                                                                                                Noise                                                27dB
                  NB                                                Intel GM45 Chipset
Chipset                                                                                                     WatchDog Timer                                                   1 ~ 255 SEC./min
                  SB                                         ICH9M-E                     ICH9M
                                                                                                            Adapter                                                     90W (20V, 4.5A) AC Adapter
Intel AMT Support                                        Support AMT4.0                   N/A
                                                                                                            Input Voltage                                               AC 100 ~ 240V/DC 12V/20V
                  Dual Channel                                         Dual Channel

                  Type                                              DDRII SO-DIMM x 2
                                                                                                                                                     Environment

Memory            DDR                                                     667/800                           MTBF                                                                   40,000hrs

                  Max Memory                                    8GB                       4GB               Operating Temperature                                          0 ~ 50ºC (32 ~ 122ºF)

                  bNAND flash                                                  N/A                          Storage Temperature                                           -30 ~ 65ºC (-22 ~ 149ºF)
                  Chip                                            Intel GMA X4500MHD
                                                                                                            Relative Humidity                                         95% RH (50ºC non-Condensing)
                  DVI Port                                                     N/A
Graphics
                  VGA Port                                                     x2                                                                                     0.5Grms, Random, 10 ~ 500Hz,
                                                                                                            Operating Vibration
                                                                                                                                                                          X,Y,Z 3Axes, 0.5hr/Axis
                  HDMI Port                                                    x1

                  Mini PCI Slot                                                N/A                                                                                     2Grms, Random, 10 ~ 500Hz,
Expansion                                                                                                   Non-Operating Vibration
                                                                                                                                                                          X,Y,Z 3Axes, 0.5hr/Axis
Slot
                  Mini Card Slot                                               x1
                                                                                                            Non-Operating Vibration                               2Gms, Random, 10 ~ 300Hz, X,Y,Z 3Axes
                  Type                                      Realtek HD Audio Codec ALC662
Audio
                  Channel                                             5.1 CH with HDMI                      Operating Shock                                             8G, Half sine, 11ms duration

USB2.0                                                            x 4 (2 (Rear), 2 (Front))                 Non-Operating Shock                                        50G, Half sine, 11ms duration

AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without prior notice.

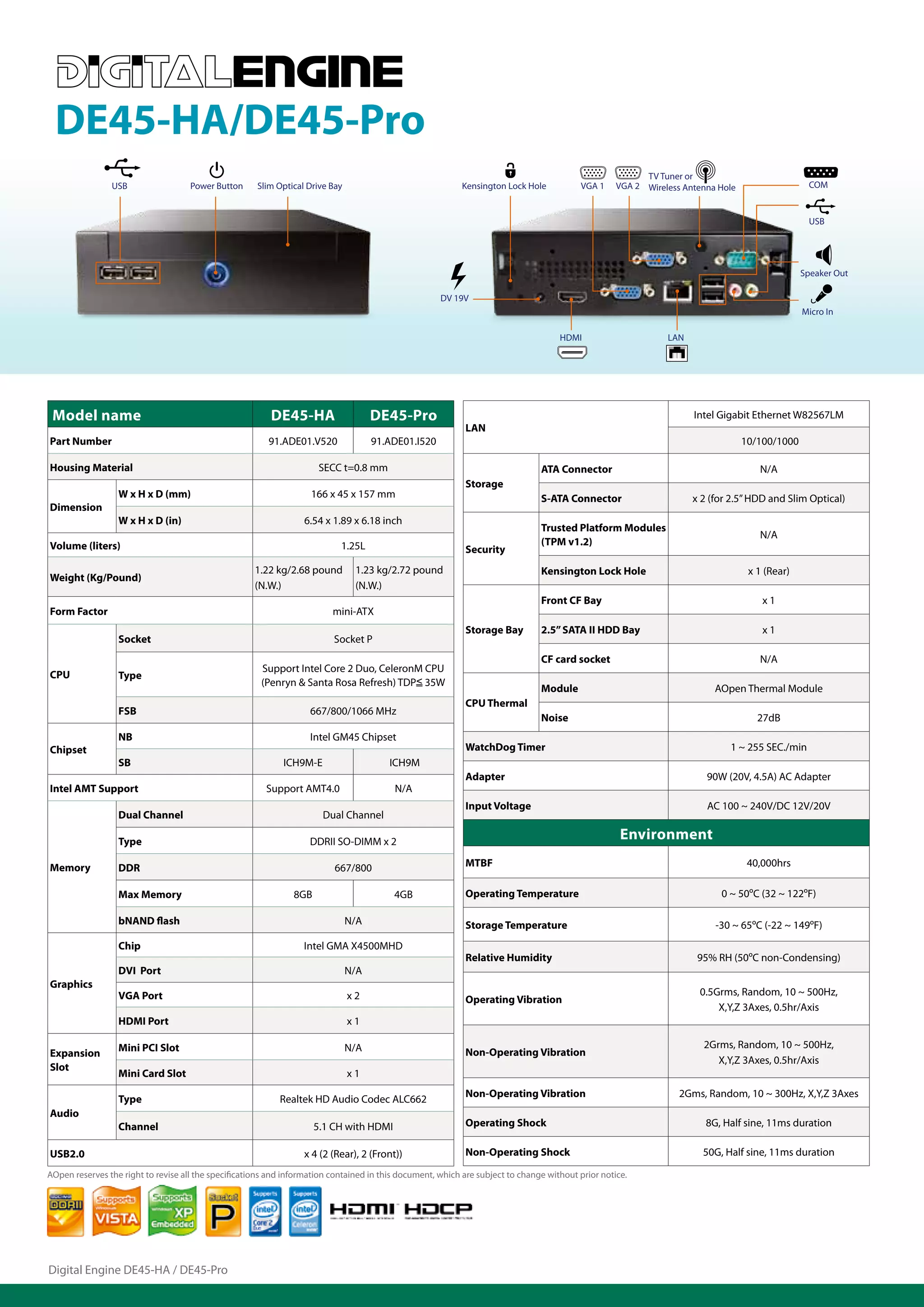

Digital Engine DE45-HA / DE45-Pro
The No.1 Small Form Factor
                                                                                                                                                          Components & Platform Provider

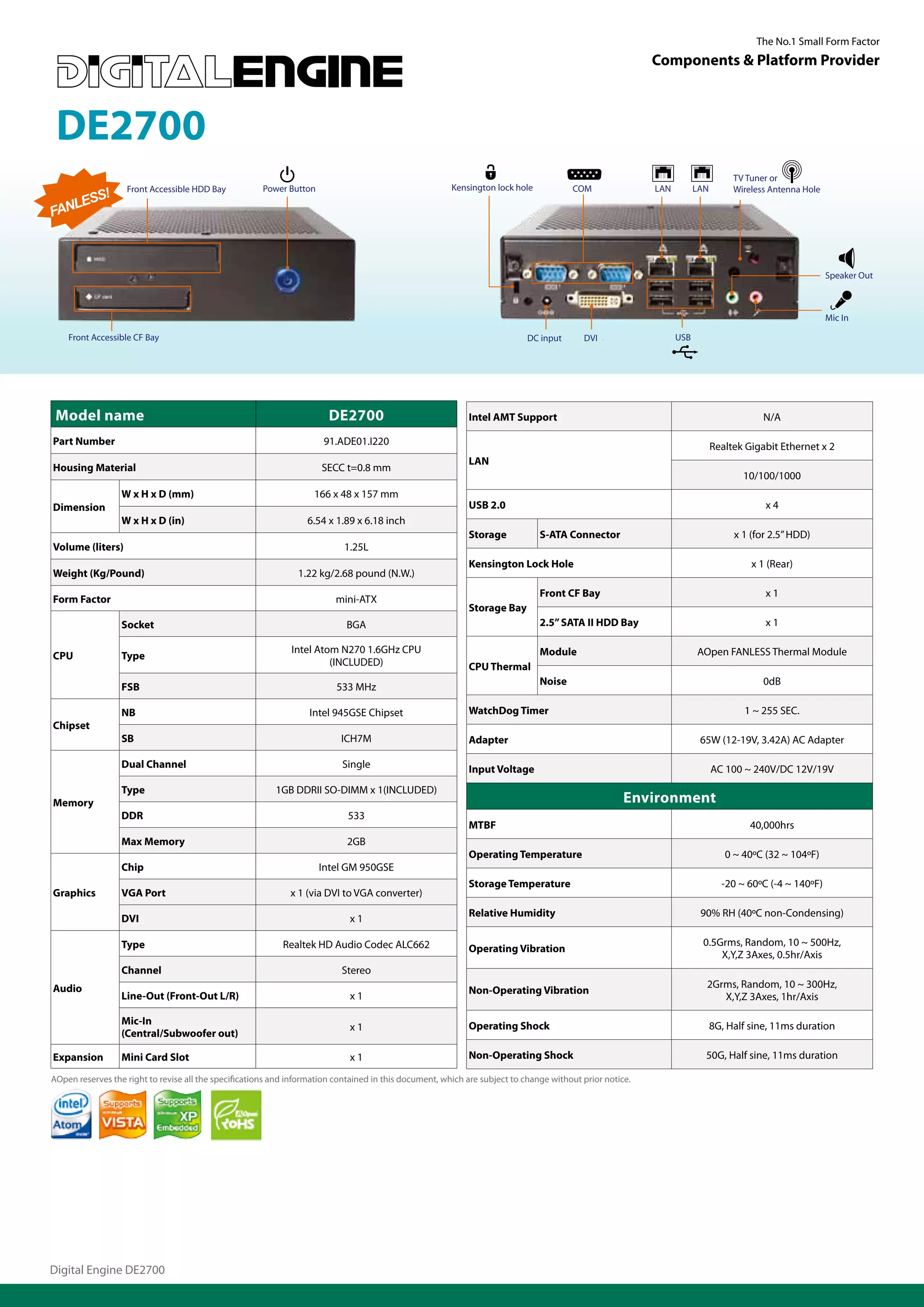

 DE2700
                                                                                                                                                                                 TV Tuner or
                   Front Accessible HDD Bay            Power Button                                     Kensington lock hole           COM                LAN         LAN        Wireless Antenna Hole
      S!
   LES
FAN



                                                                                                                                                                                                         Speaker Out



                                                                                                                                                                                                         Mic In

    Front Accessible CF Bay                                                                                                 DC input      DVI                   USB




 Model name                                                             DE2700                              Intel AMT Support                                                           N/A

Part Number                                                            91.ADE01.I220                                                                                        Realtek Gigabit Ethernet x 2
                                                                                                            LAN
Housing Material                                                      SECC t=0.8 mm
                                                                                                                                                                                   10/100/1000
                  W x H x D (mm)                                    166 x 48 x 157 mm
Dimension                                                                                                   USB 2.0                                                                     x4
                  W x H x D (in)                                  6.54 x 1.89 x 6.18 inch
                                                                                                            Storage            S-ATA Connector                                   x 1 (for 2.5” HDD)
Volume (liters)                                                             1.25L
                                                                                                            Kensington Lock Hole                                                     x 1 (Rear)
Weight (Kg/Pound)                                               1.22 kg/2.68 pound (N.W.)
                                                                                                                               Front CF Bay                                             x1
Form Factor                                                               mini-ATX
                                                                                                            Storage Bay
                  Socket                                                     BGA                                               2.5” SATA II HDD Bay                                     x1

                                                              Intel Atom N270 1.6GHz CPU                                       Module                                 AOpen FANLESS Thermal Module
CPU               Type
                                                                       (INCLUDED)                           CPU Thermal
                                                                                                                               Noise                                                    0dB
                  FSB                                                     533 MHz

                  NB                                               Intel 945GSE Chipset                     WatchDog Timer                                                         1 ~ 255 SEC.
Chipset
                  SB                                                       ICH7M                            Adapter                                                    65W (12-19V, 3.42A) AC Adapter

                  Dual Channel                                             Single                           Input Voltage                                                   AC 100 ~ 240V/DC 12V/19V
                  Type                                    1GB DDRII SO-DIMM x 1(INCLUDED)
Memory                                                                                                                                               Environment
                  DDR                                                        533
                                                                                                            MTBF                                                                     40,000hrs
                  Max Memory                                                 2GB
                                                                                                            Operating Temperature                                              0 ~ 40ºC (32 ~ 104ºF)
                  Chip                                                Intel GM 950GSE
                                                                                                            Storage Temperature                                               -20 ~ 60ºC (-4 ~ 140ºF)
Graphics          VGA Port                                    x 1 (via DVI to VGA converter)
                                                                                                            Relative Humidity                                          90% RH (40ºC non-Condensing)
                  DVI                                                        x1

                  Type                                      Realtek HD Audio Codec ALC662                                                                              0.5Grms, Random, 10 ~ 500Hz,
                                                                                                            Operating Vibration
                                                                                                                                                                           X,Y,Z 3Axes, 0.5hr/Axis
                  Channel                                                  Stereo
Audio                                                                                                                                                                   2Grms, Random, 10 ~ 300Hz,
                                                                                                            Non-Operating Vibration
                  Line-Out (Front-Out L/R)                                   x1                                                                                            X,Y,Z 3Axes, 1hr/Axis

                  Mic-In                                                                                    Operating Shock                                                 8G, Half sine, 11ms duration
                                                                             x1
                  (Central/Subwoofer out)

Expansion         Mini Card Slot                                             x1                             Non-Operating Shock                                         50G, Half sine, 11ms duration

AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without prior notice.




Digital Engine DE2700

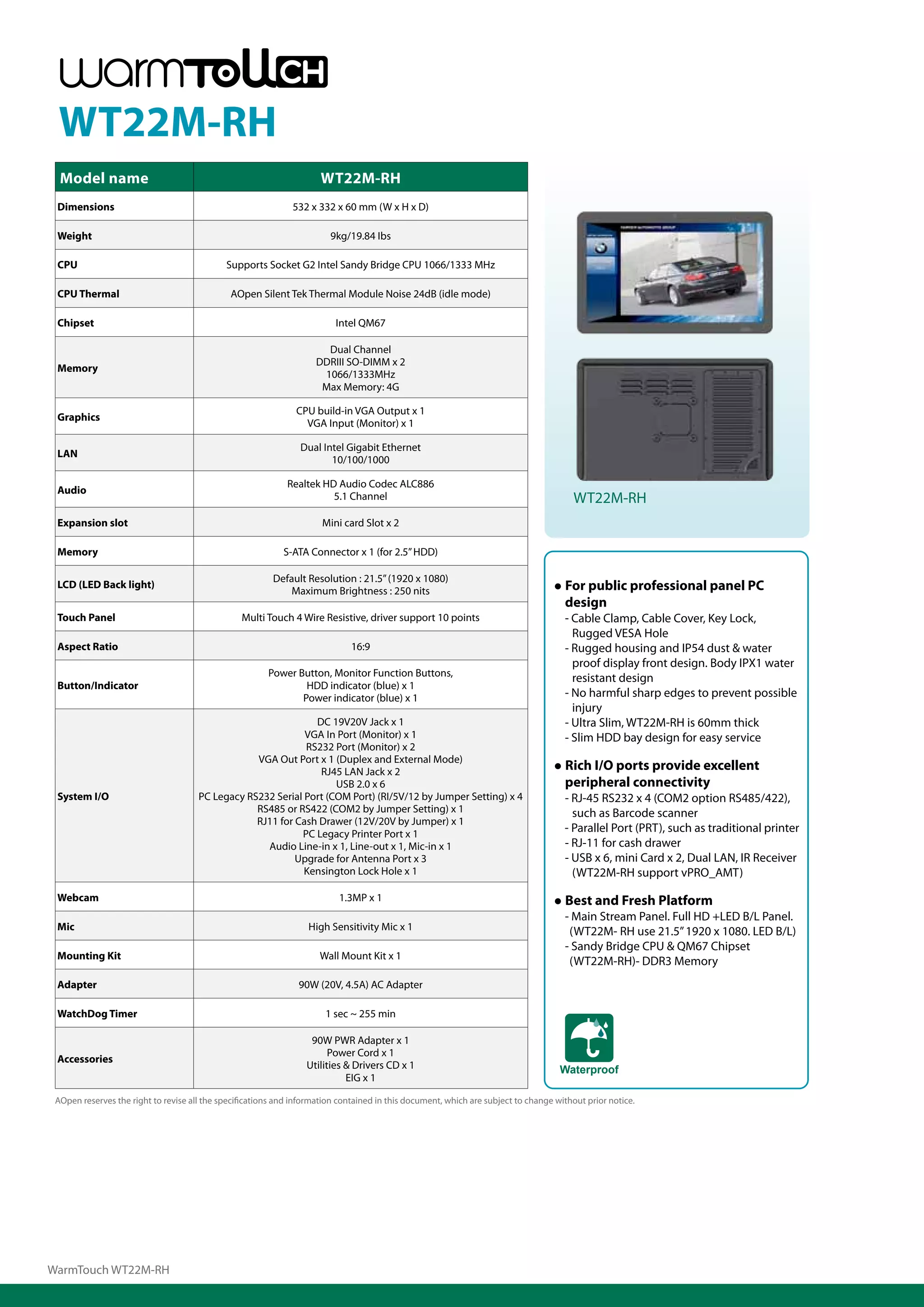

WT22M-RH
  Model name                                                          WT22M-RH
 Dimensions                                                   532 x 332 x 60 mm (W x H x D)

 Weight                                                                 9kg/19.84 Ibs

 CPU                                         Supports Socket G2 Intel Sandy Bridge CPU 1066/1333 MHz

 CPU Thermal                                  AOpen Silent Tek Thermal Module Noise 24dB (idle mode)

 Chipset                                                                  Intel QM67

                                                                       Dual Channel
                                                                     DDRIII SO-DIMM x 2
 Memory
                                                                      1066/1333MHz
                                                                      Max Memory: 4G

                                                               CPU build-in VGA Output x 1
 Graphics
                                                                 VGA Input (Monitor) x 1

                                                                Dual Intel Gigabit Ethernet
 LAN
                                                                       10/100/1000

                                                             Realtek HD Audio Codec ALC886
 Audio
                                                                       5.1 Channel                                                      WT22M-RH
 Expansion slot                                                       Mini card Slot x 2

 Memory                                                     S-ATA Connector x 1 (for 2.5” HDD)

                                                         Default Resolution : 21.5” (1920 x 1080)
 LCD (LED Back light)
                                                             Maximum Brightness : 250 nits                                        ● For public professional panel PC
                                                                                                                                    design
 Touch Panel                                     Multi Touch 4 Wire Resistive, driver support 10 points                              - Cable Clamp, Cable Cover, Key Lock,
                                                                                                                                       Rugged VESA Hole
 Aspect Ratio                                                                 16:9                                                   - Rugged housing and IP54 dust & water
                                                                                                                                       proof display front design. Body IPX1 water
                                                        Power Button, Monitor Function Buttons,                                        resistant design
 Button/Indicator                                               HDD indicator (blue) x 1
                                                               Power indicator (blue) x 1                                            - No harmful sharp edges to prevent possible
                                                                                                                                       injury
                                                               DC 19V20V Jack x 1                                                    - Ultra Slim, WT22M-RH is 60mm thick
                                                             VGA In Port (Monitor) x 1                                               - Slim HDD bay design for easy service
                                                             RS232 Port (Monitor) x 2
                                                  VGA Out Port x 1 (Duplex and External Mode)
                                                                RJ45 LAN Jack x 2                                                 ● Rich I/O ports provide excellent
                                                                    USB 2.0 x 6                                                     peripheral connectivity
 System I/O                           PC Legacy RS232 Serial Port (COM Port) (RI/5V/12 by Jumper Setting) x 4                        - RJ-45 RS232 x 4 (COM2 option RS485/422),
                                                  RS485 or RS422 (COM2 by Jumper Setting) x 1                                          such as Barcode scanner
                                                  RJ11 for Cash Drawer (12V/20V by Jumper) x 1
                                                            PC Legacy Printer Port x 1
                                                                                                                                     - Parallel Port (PRT), such as traditional printer
                                                    Audio Line-in x 1, Line-out x 1, Mic-in x 1                                      - RJ-11 for cash drawer
                                                           Upgrade for Antenna Port x 3                                              - USB x 6, mini Card x 2, Dual LAN, IR Receiver
                                                             Kensington Lock Hole x 1                                                  (WT22M-RH support vPRO_AMT)
 Webcam                                                                    1.3MP x 1                                              ● Best and Fresh Platform
                                                                                                                                     - Main Stream Panel. Full HD +LED B/L Panel.
 Mic                                                               High Sensitivity Mic x 1                                           (WT22M- RH use 21.5” 1920 x 1080. LED B/L)
                                                                                                                                     - Sandy Bridge CPU & QM67 Chipset
 Mounting Kit                                                         Wall Mount Kit x 1
                                                                                                                                      (WT22M-RH)- DDR3 Memory
 Adapter                                                        90W (20V, 4.5A) AC Adapter

 WatchDog Timer                                                        1 sec ~ 255 min

                                                                   90W PWR Adapter x 1
                                                                        Power Cord x 1
 Accessories
                                                                  Utilities & Drivers CD x 1                                        Waterproof
                                                                            EIG x 1

 AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without prior notice.




WarmTouch WT22M-RH
The No.1 Small Form Factor
                                                                                                                                                          Components & Platform Provider

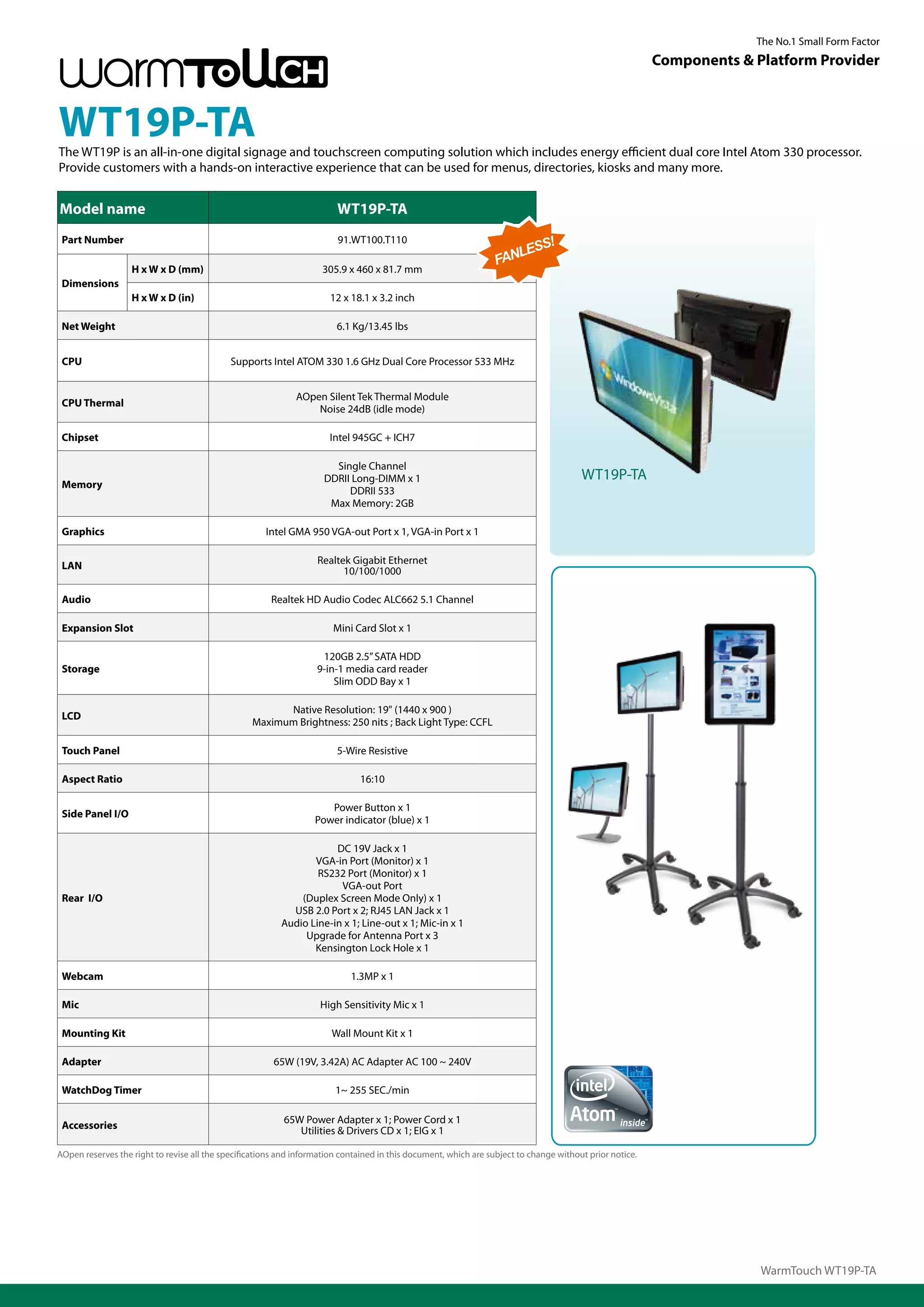

WT19P-TA
The WT19P is an all-in-one digital signage and touchscreen computing solution which includes energy efficient dual core Intel Atom 330 processor.
Provide customers with a hands-on interactive experience that can be used for menus, directories, kiosks and many more.


Model name                                                              WT19P-TA
 Part Number                                                             91.WT100.T110
                                                                                                                        S!
                                                                                                                     LES
                                                                                                                  FAN
                   H x W x D (mm)                                    305.9 x 460 x 81.7 mm
 Dimensions
                   H x W x D (in)                                      12 x 18.1 x 3.2 inch

 Net Weight                                                             6.1 Kg/13.45 lbs


 CPU                                         Supports Intel ATOM 330 1.6 GHz Dual Core Processor 533 MHz


                                                              AOpen Silent Tek Thermal Module
 CPU Thermal
                                                                  Noise 24dB (idle mode)

 Chipset                                                               Intel 945GC + ICH7

                                                                       Single Channel
                                                                     DDRII Long-DIMM x 1                                                WT19P-TA
 Memory
                                                                          DDRII 533
                                                                      Max Memory: 2GB

 Graphics                                             Intel GMA 950 VGA-out Port x 1, VGA-in Port x 1

                                                                   Realtek Gigabit Ethernet
 LAN                                                                     10/100/1000

 Audio                                                 Realtek HD Audio Codec ALC662 5.1 Channel

 Expansion Slot                                                        Mini Card Slot x 1

                                                                    120GB 2.5” SATA HDD
 Storage                                                           9-in-1 media card reader
                                                                       Slim ODD Bay x 1

                                                        Native Resolution: 19" (1440 x 900 )
 LCD
                                                  Maximum Brightness: 250 nits ; Back Light Type: CCFL

 Touch Panel                                                            5-Wire Resistive

 Aspect Ratio                                                                 16:10

                                                                      Power Button x 1
 Side Panel I/O
                                                                   Power indicator (blue) x 1

                                                                      DC 19V Jack x 1
                                                                 VGA-in Port (Monitor) x 1
                                                                  RS232 Port (Monitor) x 1
                                                                       VGA-out Port
 Rear I/O                                                     (Duplex Screen Mode Only) x 1
                                                            USB 2.0 Port x 2; RJ45 LAN Jack x 1
                                                          Audio Line-in x 1; Line-out x 1; Mic-in x 1
                                                               Upgrade for Antenna Port x 3
                                                                 Kensington Lock Hole x 1

 Webcam                                                                     1.3MP x 1

 Mic                                                                High Sensitivity Mic x 1

 Mounting Kit                                                          Wall Mount Kit x 1

 Adapter                                                65W (19V, 3.42A) AC Adapter AC 100 ~ 240V

 WatchDog Timer                                                         1~ 255 SEC./min

                                                           65W Power Adapter x 1; Power Cord x 1
 Accessories                                                  Utilities & Drivers CD x 1; EIG x 1

AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without prior notice.




                                                                                                                                                                        WarmTouch WT19P-TA
Small Display
WT10P-TS




                •   10.1”signage board with 16:9 resolution, 300 nits high brightness LCD
                •   Auto-play starts playing scheduled content automatically when power is re-established
                •   Automatic error recovery with built-in WDT
                •   Real-time clock keeps time for up to 1 year unplugged
                •   Automatic NTP keeps time and date in sync
                •   Supported media
                    - Image: JPEG baseline, up to 12 megapixels
                    - Audio: MPEG L2 or MP3, to 320Kbps
                    - Video: Divx, MPEG-1 or MPEG-4 ASP, 500-~200Kbps (720 x 400)
                                                                                                                 • 75mm x75mm VESA          • DC Clamp (power Jack latch)   • Wi-Fi 802.11 b/g/b build-in.
                      resolution 16:9 content recommended                                                          mount built-in             to prevent power being          USB to wire 10/100 LAN
                      *NOTE: MPEG 2 video is NOT supported                                                                                    unplugged



  Model name                                                 WT10P-TS                                                                               Hardware
 Ethernet                                             VIA PDE-100 Adapter to RJ45                         Sound                                                        1.5W x 2

 Wi-Fi                                                 Wireless b/g (2.4GHz only)                         Mounting                                    VESA MIS-D 75 mounting point (75 x 75 mm)

                               Media format support                                                       Local storage
                                                                                                                                                      On-board 2 GB flash memory (120 min of SD
                                                                                                                                                       video@2Mbps) SDHC card slot (Ma x 4 GB)
 SML compatible                                                     YES
                                                                                                          Power consumption                                             9 watts
 Performance                                                 720 x 400 video
                                                                                                          Power supply                                                 12V 1.5A

                                                  MPEG-4 ASP (720 x 400)/(640 x 480)                                                                             271 x 185 x 29 mm
 Video codec (optimal)                                         MPEG-1                                     Dimensions (W x H x D)
                                                                                                                                                                10.6 x 7.28 x 1.14 inch
                                                        Bitrates up to 2Mbps
                                                                                                          Weight                                                    663g/1.46Ibs.
 Image codec (optiomal)                                      JPEG (800 x 480)
                                                                                                                                                          Operating temperature: 0 ~ 40ºC
                                                                                                          Environment
                                                                                                                                                       Humidity 5 ~ 85% @40ºC non-condensing
 Audio codec                                         MPEG L2/MP3 up to 320Kbps
                                                                                                          WatchDog Timer                                            CE/FCC/RoHS
                                           Hardware
                                                                                                                                                                   Power adapter
                                                            10” LCD 800 x 480                             Standard accessories                               PDE-100 with Ethernet cable
 Display
                                                           300-nits brightness                                                                                     Display stand
 AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without prior notice.




Small Display WT10P-TS
The No.1 Small Form Factor
                                                                                                                                                               Components & Platform Provider


 All-in-One Digital Signage Management System                                                                                                         Digital Engine Holder
                                                                                                                                                                                    Convenient cable
                                                                                                                                                                                   management solution
 Universal mounting and cable management solution for displays and Digital
 Engines, which are protected inside a lockable embedded compartment.
                                                                                                                                     Key lock
 • Supports 32”- 65” digital signage displays
 • Max weight capacity:                                                                                                                                                                                      Clasp for cable
                                                                                                                                                                                                             management


   50kg (for Titan One 530 model) and 80kg (for Titan One 800 model)
 • Choose portrait or landscape mounting
 • Embeds Digital Engine, power adapter, cable management and wireless kits                                                 Handle


 • Adjustable display angle: 0 - 20 degrees (ceiling mount/wall mount)
 • Protects Digital Engines from dust
 • All-in-one design allows for easy maintenance
                                                                                                                                                                                                     Adapter cable
                                                                                                                                                                                                     management




                                                                                                                                                Slide in accessory
                                                                                                                                                management
                                                                                                                                                holder                        Bubble level

                          Display
                          fix frame




 Accessory
 management
 holder




                                                                                      Professional mounting solution                 Titan One: Ceiling-mount type                  Titan One: Wall-mount type
                                                                                      with embedded Digital Engine inside


            Main holder




 4U Rack for Digital Engine
                       System door with
                       dust filter on back
                                                        Key lock
                                                                                                                  Consolidate Digital Engines™ with the Engine Core - an
                                                                                                                  innovative central control solution for network environ-
                                                                              Handle
                                                                                                                  ments. Enhances security, monitoring and protection
                                                                            (Rack type)
                                                                                                                  from data loss via a hardware-centric approach. Also pro-
     Adapter cable
     management                                                                                                   vides a green IT, easy-maintenance solution for cluster
                                                                                                                  (parallel) computing.

                                                                                                                  • Dimensions:
                                                                                             Slide in guide for
                                                                                                                   177(H) x 440(W) x 405(D) mm (rack-mount type)
Slide in                                                                                     digital Engine
fan guide                                                                                                          177(H) x 440(W) x 445(D) mm (stand-alone type)
                                                                                                                  • Six Digital Engine Slots
                                                                                                                   Digital Engine Slots: 48(H) x 167(W) x 158(D) mm
                                                                                                                   Power Adapter (95W) x 6
                                                                                                                  • Cooling Fans (12cm) x 2
                                                                                                                  • 12V Adapter x 1 (for cooling fans)
                                                                                                                  • Key Locks for Front Door and Upper Case

                                                                   Digital Engine holder screws
                                                                                                                  • Changeable Dust Filter Behind the Front Door
             AC power cord inlet
                                                                                                                  • Front USB 2.0 and A/V Access (optional)
                                             System cable
                                             management
                                                                                                                  • Detachable Front Handle for Rack-Mount or Stand-Alone
                                                                                                                   Engine Cores
                                                                                                                  • Fits 19” 4U Rack-Mount Cases or can be used as a Stand-Alone
                                                                                                                   Engine Core Server
                                                                                                                  • Slide-In/Out Digital Engine Slots: Easy System Assembly and
                                                                                                                   Maintenance
                                                                                                                  • Cable Management Solutions

                                                                                                                                                                                         Titan One / Engine Core
Holders

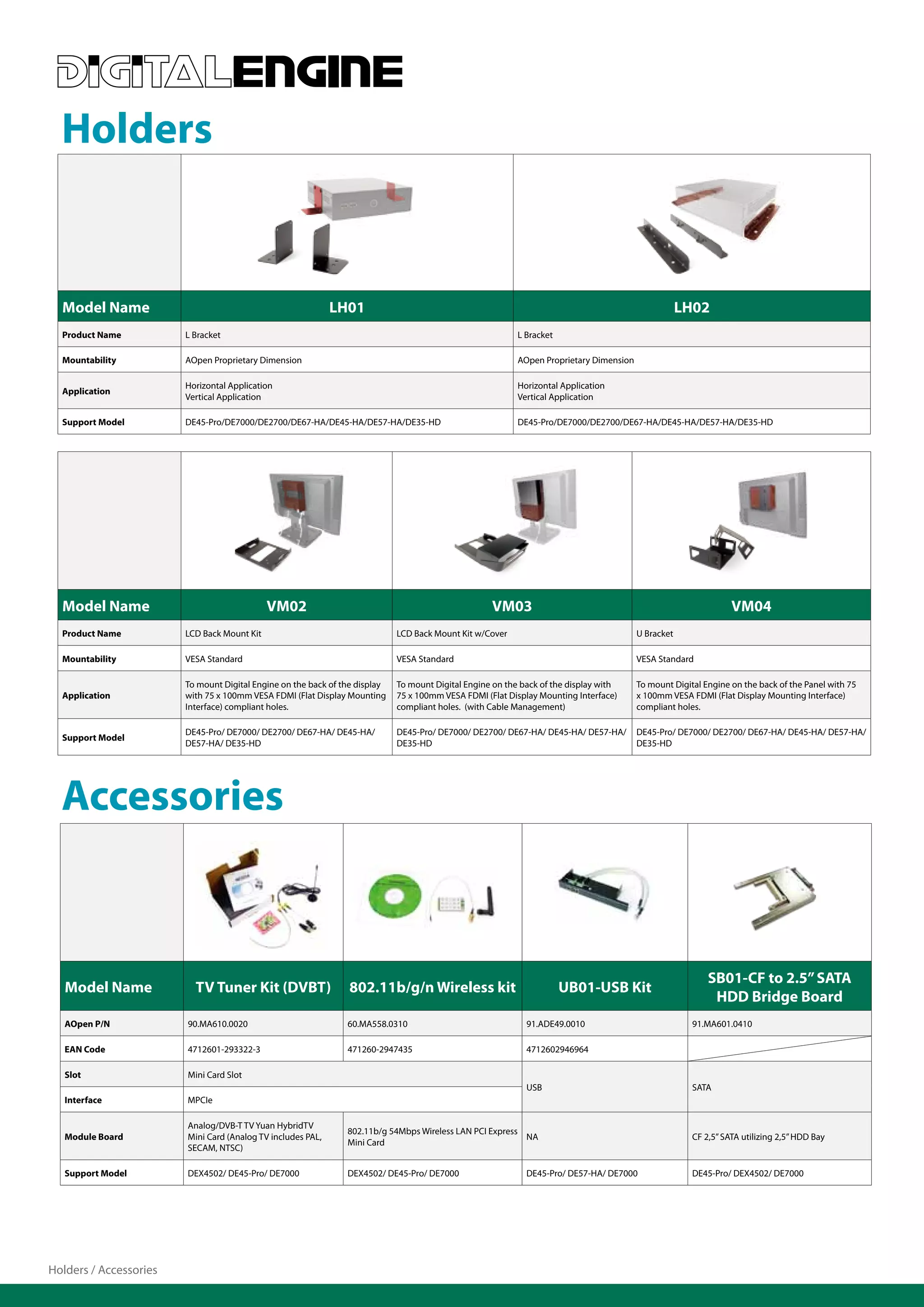

  Model Name                                                 LH01                                                                                    LH02
  Product Name          L Bracket                                                                          L Bracket

  Mountability          AOpen Proprietary Dimension                                                        AOpen Proprietary Dimension

                        Horizontal Application                                                             Horizontal Application
  Application
                        Vertical Application                                                               Vertical Application

  Support Model         DE45-Pro/DE7000/DE2700/DE67-HA/DE45-HA/DE57-HA/DE35-HD                             DE45-Pro/DE7000/DE2700/DE67-HA/DE45-HA/DE57-HA/DE35-HD




  Model Name                                 VM02                                                   VM03                                                         VM04
  Product Name          LCD Back Mount Kit                                   LCD Back Mount Kit w/Cover                                  U Bracket

  Mountability          VESA Standard                                        VESA Standard                                               VESA Standard

                        To mount Digital Engine on the back of the display   To mount Digital Engine on the back of the display with     To mount Digital Engine on the back of the Panel with 75
  Application           with 75 x 100mm VESA FDMI (Flat Display Mounting     75 x 100mm VESA FDMI (Flat Display Mounting Interface)      x 100mm VESA FDMI (Flat Display Mounting Interface)
                        Interface) compliant holes.                          compliant holes. (with Cable Management)                    compliant holes.

                        DE45-Pro/ DE7000/ DE2700/ DE67-HA/ DE45-HA/          DE45-Pro/ DE7000/ DE2700/ DE67-HA/ DE45-HA/ DE57-HA/        DE45-Pro/ DE7000/ DE2700/ DE67-HA/ DE45-HA/ DE57-HA/
  Support Model
                        DE57-HA/ DE35-HD                                     DE35-HD                                                     DE35-HD




  Accessories


                                                                                                                                                           SB01-CF to 2.5” SATA
   Model Name             TV Tuner Kit (DVBT)                   802.11b/g/n Wireless kit                               UB01-USB Kit
                                                                                                                                                            HDD Bridge Board
   AOpen P/N            90.MA610.0020                           60.MA558.0310                                91.ADE49.0010                             91.MA601.0410

   EAN Code             4712601-293322-3                        471260-2947435                               4712602946964

   Slot                 Mini Card Slot
                                                                                                             USB                                       SATA
   Interface            MPCIe

                        Analog/DVB-T TV Yuan HybridTV
                                                                802.11b/g 54Mbps Wireless LAN PCI Express
   Module Board         Mini Card (Analog TV includes PAL,                                                NA                                           CF 2,5” SATA utilizing 2,5” HDD Bay
                                                                Mini Card
                        SECAM, NTSC)

   Support Model        DEX4502/ DE45-Pro/ DE7000               DEX4502/ DE45-Pro/ DE7000                    DE45-Pro/ DE57-HA/ DE7000                 DE45-Pro/ DEX4502/ DE7000




Holders / Accessories

Digital Signage Platform Aoe

  • 1.
    AOpen Computer BVEurope Tel: +31(0)73-646-6400 E-mail: digital_signage@aopen.com www.aopen.com
  • 2.
    The AOpen digitalsignage platform The ideal building block to design the perfect and most reliable total solution The AOpen Digital Engine® product line features different models, each with their own specifications to cater to different needs. The products can be applied in a wide variety of ways, like digital signage, kiosks, point of sales (POS), vending machines, medical applications, flight information systems and many more. The Digital Engine is a unique Small Form Factor (uSFF) Media Player with fan or fanless. The compact size makes it easy to install behind a display without increasing the space between the wall and the display or to integrate in a kiosk or other specially designed presentation system. Each and every AOpen Digital Engine® has passed shock and vibration operation tests with 40,000 hours of MTBF, 8G operation shock and 0.5Grms operation vibration tests which guarantee their reliability. AOpen’s Digital Engine® series adapts MoDT technology – a technology that started a new standard for digital signage media player products which requires the machines to be energy saving, ultra silent, space saving and high in perfor- mance. Additionally, AOpen also provides mounting solutions and the Engine Core for multiple Digital Engine install- ments keeping the Digital Engines stacked in a safe and controllable rack. Digital Digital Digital Digital Game KIOSK POS Entertainment Health Office Signage machine PC TV Panel PC Thin Client Small Size AD Arcade Game Touch Panel Dual Display IPTV Low Radiation Secured PC Quick Boot Dart COM Ports DMA Low Noise Trusted PC NAND Flash Dancing CF Flash STB Less Cables PC Projector Easy Maintenance Car PC OVERVIEW: Digital Signage
  • 3.
    The No.1 SmallForm Factor Components & Platform Provider DE67-HA USB2.0 Power Button COM port Antenna Hole Speaker Out Kensington Lock Hole Microphone In DC20V/12V DVI-I Displayport LAN USB 3.0 Model name DE67-HA Storage S-ATA Connector x 1 (for 2.5” HDD and slim ODD) Feature Intel AMT 7.0 support Power Button x1 Housing Material SECC t=0.8 mm HDD indicator (blue) x1 Front Panel IO W x H x D (mm) 166 x 48 x 157 mm Power indicator (blue) x1 Dimension W x H x D (in) 6.54 x 1.89 x 6.18 inch USB 2.0 Port x2 Volume(liters) 1.25L DC Jack x1 Weight(Kg/Pound) 1.25 kg/2.75 pound (N.W.) DVI Port x 1 (include HDMI + VGA) Form Factor mini-ATX Display Port x1 Socket RPGA988B USB 3.0 Port x2 CPU RJ45 LAN Jack x1 Supports Intel Core i3,i5,i7 mobile Type processor TDP≤35W Rear Panel Legacy RS232 Serial Port IO x1 NB (COM Port) Chipset Intel QM67 Chipset SB Line-Out x1 Audio Set Dual Channel Dual Channel Mic-in x1 Type DDRIII SO-DIMM x 2 Upgrade for Antenna x2 Memory Port DDR 1333 Kensington Lock Hole x1 Max Memory 8G (based on OS support) Module AOpen Thermal Module Chip Integrated in CPU + QM67 CPU Thermal Noise 27dB Graphics DVI Port x1 WatchDog Timer 1 ~ 255 SEC./min Display Port x1 Adapter 90W (20V, 4.5A) AC Adapter Expansion Mini Card Slot Full size x 1, half size x 1 Input Voltage AC 100 ~ 240V/DC 12V/20V Type Realtek HD Audio Codec ALC662 Audio Environment Channel Stereo/5.1 CH with HDMI MTBF 40,000hrs Intel Gigabit Ethernet WG82579LM LAN Operating Temperature 0 ~ 50ºC (32 ~ 122ºF) 10/100/1000 Storage Temperature -30 ~ 60ºC (-22 ~ 140ºF) USB USB 2.0 x 2, Front/USB3.0 x 2, Rear Relative Humidity 95% RH (50ºC non-Condensing) Storage S-ATA Connector x 1 (for 2.5”HDD and slim ODD) 0.5Gms, Random, 10 ~ 500Hz,X,Y,Z 3Axes, Operating Vibration 0.5hr/Axis Trusted Platform Modules SLB9635TT1.2V1.03 (TPM v1.2) Security 2Gms, Random, 10 ~ 300Hz,X,Y,Z 3Axes, Non-Operating Vibration Kensington Lock Hole x 1 (Rear) 1hr/Axis Slot-in Slim ODD Bay x1 Operating Shock 8G, Half sine, 11ms duration Storage Bay 2.5” SATA II HDD Bay x1 Non-Operating Shock 50G, Half sine, 11ms duration AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without prior notice. 3.0 USB 3.0 Digital Engine DE67-HA
  • 4.
    DE57-HA USB2.0 Power Button Slim Optical Drive Bay Antenna Hole COM port Antenna Hole Line in/SPDIF Speaker Out Kensington Lock Hole Mic In HDMI LAN USB 2.0 Model name DE57-HA USB 2.0 x 4 (2 (Rear), 2 (Front)) Feature Supports Intel AMT 6.0 Power Button x1 Part Number 91.ADE01.A120 HDD indicator (blue) x1 Front Panel IO Housing Material SECC t=0.8 mm Power indicator (blue) x1 W x H x D (mm) 166 x 48 x 157 mm USB 2.0 Port x2 Dimension W x H x D (in) 6.54 x 1.89 x 6.18 inch DC Jack x1 Volume (liters) 1.25L DVI Port x1 Weight (Kg/Pound) 1.03 kg/2.27 pound (N.W.) HDMI x1 Form Factor mini-ATX USB 2.0 Port x2 Socket RPGA988B RJ45 LAN Jack x1 CPU Rear Panel Legacy RS232 Serial Port Supports Intel Core i3,i5,i7 mobile x1 Type IO (COM Port) processor TDP≤35W Line-in x1 NB Chipset Intel QM57 Chipset Audio Set Line-out x1 SB Mic-in x1 Dual Channel Dual Channel Antenna Hole x2 Type DDRIII SO-DIMM x 2 Memory Kensington Lock Hole x1 DDR 800/1066 Module AOpen Thermal Module Max Memory 8G (based on OS support) CPU Thermal Noise 27dB Chip Integrated in CPU + QM57 WatchDog Timer 1~255 SEC./min DVI Port x1 Graphics Adapter 90W (20V, 4.5A) AC Adapter VGA Port x 1 (via Y cable) Input Voltage AC 100 ~ 240V/DC 12V/20V HDMI Port x1 Expansion Mini Card Slot Full size x 1, half size x 1 Environment Type Realtek HD Audio Codec ALC662 MTBF 40,000hrs Audio Channel Stereo/5.1 CH with HDMI Operating Temperature 0 ~ 50ºC (32 ~ 122ºF) Intel Gigabit Ethernet WG82577LM Storage Temperature -30 ~ 60ºC (-22 ~ 140ºF) LAN 10/100/1000 Relative Humidity 95% RH (50ºC non-Condensing) Storage S-ATA Connector x 1 (for 2.5”HDD and slim ODD) 0.5Gms, Random, 10 ~ 500Hz,X,Y,Z 3Axes, Operating Vibration 0.5hr/Axis Trusted Platform Modules SLB9635TT1.2V1.03 (TPM v1.2) Security 2Gms, Random, 10 ~ 300Hz,X,Y,Z 3Axes, Non-Operating Vibration 1hr/Axis Kensington Lock Hole x 1 (Rear) Slot-in Slim ODD Bay x1 Operating Shock 8G, Half sine, 11ms duration Storage Bay 2.5” SATA II HDD Bay x1 Non-Operating Shock 50G, Half sine, 11ms duration AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without prior notice. Digital Engine DE57-HA
  • 5.
    The No.1 SmallForm Factor Components & Platform Provider DE7000 Antenna USB 2.0 Power Button COM port Hole LAN USB Line in/SPDIF Speaker Out Kensington lock hole DC20V VGA1 HDMI USB eSATA Line out/ Mic In Model name DE7000 Intel AMT Support N/A Part Number 91.ADE01.7010 Realtek Gigabit Ethernet x 1 LAN Housing Material SECC t=0.8 mm 10/100/1000 W x H x D (mm) 166 x 48 x 164.1 mm USB 2.0 x 6 (4 (Rear), 2 (Front)) Dimension W x H x D (in) 6.54 x 1.89 x 6.46 inch ATA Connector N/A Volume (liters) 1.30L Storage S-ATA Connector x 2 (1 for 2.5” HDD, 1 for slim ODD) Weight (Kg/Pound) 1.2 kg/2.64 pound (N.W.) Kensington Lock Hole x 1 (Rear) Form Factor mini-ATX Slot-in Slim ODD Bay x1 Socket Socket P Support Intel Core 2 Duo, CeleronM CPU Storage Bay 2.5” SATA II HDD Bay x1 CPU Type (Penryn & Santa Rosa Refresh) TDP 35W CF Card socket N/A FSB 667/800/1066 MHz Module AOpen Thermal Module NB Nvidia MCP7A-LP Chipset CPU Thermal Chipset Noise 27dB SB N/A WatchDog Timer 1 ~ 255 SEC./min Dual Channel Dual Channel Type DDR3 SO-DIMM x 2 Adapter 90W (20V, 4.5A) AC Adapter Memory DDR 800/1066/1333 Input Voltage AC 100 ~ 240V/DC 12V/20V Max Memory 8G Environment bNAND flash N/A MTBF 40,000hrs Chip GeForce 9300 Operating Temperature 0 ~ 50ºC (32 ~ 122ºF) DVI Port N/A Graphics Storage Temperature -30 ~ 60ºC (-22 ~ 140ºF) VGA Port x1 HDMI Port x1 Relative Humidity 90% RH (40ºC non-Condensing) Mini PCI Slot N/A 0.5Grms, Random, 10 ~ 500Hz, Expansion Operating Vibration X,Y,Z 3Axes, 0.5hr/Axis Mini Card Slot x 2 (PCIe x 1, USB+SIM bridge card slot x 1) Type Realtek HD Audio Codec ALC662 2Grms, Random, 10 ~ 300Hz, Non-Operating Vibration X,Y,Z 3Axes, 1hr/Axis Channel Stereo/5.1 CH with HDMI Audio Line-Out (Front-Out L/R) x1 Operating Shock 8G, Half sine, 11ms duration Mic-In x1 Non-Operating Shock 50G, Half sine, 11ms duration (Central/Subwoofer out) AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without prior notice. Digital Engine DE7000
  • 6.
    DEX2750 LAN Port Antenna Hole x 2 FANLESS! Kensington Lock HDD Indicator Power Indicator CF Slot DC 19Vin DVI Port USB 2.0 Port x 4 Speaker Out Mic In. Com Port x 2 Power Switch Model name DEX2750 USB2.0 x4 Part number 91.DE201.I220 Intel AMT Support N/A Housing Material SECC/Aluminum Realtek Gigabit Ethernet x 2 LAN W x H x D (mm) 252 x 42.8 x 165 mm 10/100/1000 Dimension W x H x D (in) 9.92 x 1.68 x 6.50 inch Storage S-ATA Connector x 1 (for 2.5” HDD) Volume(liters) 1.78L Kensington Lock Hole x 1 (Rear) Weight(Kg/Pound) 1.66 kg/3.65 pound (N.W.) Front CF Bay x1 Form Factor mini-ATX Storage Bay 2.5” SATA II HDD Bay x1 Socket BGA Module AOpen FANLESS Thermal Module Intel Atom N270 1.6GHz CPU CPU Thermal CPU Type (INCLUDED) Noise 0dB FSB 533 MHz WatchDog Timer 1 ~ 255 SEC. NB Intel 945GSE Chipset Chipset Adapter 65W (12-19V, 3.42A) AC Adapter SB ICH7M Input Voltage AC 100 ~ 240V/DC 12V/19V Dual Channel Single Channel Environment Type DDRII SO-DIMM x 1 MTBF 40,000hrs Memory DDR 533 Operating Temperature 0 ~ 40ºC (32 ~ 113ºF) Max Memory 2GB Storage Temperature -30 ~ 65ºC (-4 ~ 140ºF) bNAND flash N/A Relative Humidity 90%RH (40ºC non-Condensing) Chip Intel GMA 950GSE DVI Port x1 0.5Grms, Random, 10 ~ 500Hz, X,Y,Z 3Axes, 0.5hr/Axis with 2.5” SATA HDD Graphics VGA Port x 1 (via DVI to VGA converter) Operating Vibration HDMI Port N/A 2Grms, Random, 10 ~ 500Hz, X,Y,Z 3Axes, 0.5hr/Axis with CF Card Multi-TV Out Port N/A Mini PCI Slot N/A 2Gms, Random, 10 ~ 300Hz, X,Y,Z 3Axes, Non-Operating Vibration Expansion 1hr/Axis Mini Card Slot x1 Type Realtek HD Audio Codec ALC662 Operating Shock 8G, Half sine, 11ms duration Audio Channel Stereo Non-Operating Shock 50G, Half sine, 11ms duration AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without prior notice. Digital Engine DEX2750
  • 7.
    The No.1 SmallForm Factor Components & Platform Provider DEX4502 USB HDD LED Power LED COM 1 Antenna Hole USB LAN Power Switch FANLESS! Kensington Lock Hole DC input DVI HDMI e-SATA Audio Model name DEX4502 Storage S-ATA Connector x3 Part Number 91.DE201.I520 Security Kensington Lock Hole x 1 (Rear) Housing Material SECC/Aluminum Storage Bay 2.5” SATA II HDD Bay x1 W x H x D (mm) 200 x 60 x 200 mm CPU Module AOpen Proprietary Fanless Thermal Solution Dimension Hermal W x H x D (in) 7.87 x 2.36 x 7.87 inch Noise 0dB Volume (liters) 2.4L Adapter 90W (20V, 4.5A) AC Adapter Weight (Kg/Pound) 2.85 kg/6.27 pound (N.W.) Input Voltage AC 100 ~ 240V/DC 12V/20V Form Factor mini-ITX Environment Socket Socket P MTBF 40,000hrs Support intel Penryn Core 2 Duo CPU Operating Temperature -5 ~ 40ºC (23 ~ 104ºF) CPU Type TDP=35W Storage Temperature -20 ~ 60ºC (-4 ~ 140ºF) FSB 667/800/1066 MHz Relative Humidity 90% RH (40ºC non-Condensing) NB Intel GM45 chipset Chipset SB ICH9M 0.5Grms, random, 10 ~ 500Hz, X,Y,Z 3Axes, Operating Vibration Dual Channel Dual Channel 0.5hr/Axis Type DDRII SO-DIMM x 2 Memory 2Grms, random, 10 ~ 300Hz, X,Y,Z 3Axes, DDR 667/800 Non-Operating Vibration 1hr/Axis Max Memory 8GB Operating Shock 8G, Half sine, 11 ms duration Chip Intel GMA X4500 MHD Non-Operating Shock 50G, Half sine, 11ms duration DVI Port x1 Graphics VGA Port x 1 (via DVI-to-VGA converter) Accessory HDMI To DVI Cable (1500mm) x1 HDMI Port x1 SATA to CF Bridge Board x1 Expansion Slot Mini Card Slot x2 AC Adapter 90W PWR 20V Adapter x 1 Type Realtek HD Audio Codec ALC888 Audio Power Cord x1 Channel 7.1 CH L Type Holder x1 Intel Gigabit Ethernet LAN DVI to VGA converter x1 10/100/1000 USB 2.0 x 8 (4 Rear, 4 Front) Power Clamp x2 Intel AMT Support N/A Utilities & Drivers CD x1 WatchDog Timer 1 ~ 255 SEC./min Assembly Guide x1 AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without prior notice. 70.50 [2.78”] 61.50 [2.42”] 228.80 [9.01”] 215.80 [8.50”] 6.00 [0.24”] Ø7.6 199.80 [7.87”] 4.00 [0.16”] 67.00 [2.64”] 6.00 [0.24”] Ø4.2 134.00 [5.28”] 167.65 [6.60”] 6.00 [0.24”] 33.65 [1.32”] 200.00 [7.87”] 100.65 [3.96”] 61.50 [2.42”] 70.50 [2.78”] 6.00 [0.24”] Digital Engine DEX4502
  • 8.
    DE45-HA/DE45-Pro TV Tuner or USB Power Button Slim Optical Drive Bay Kensington Lock Hole VGA 1 VGA 2 Wireless Antenna Hole COM USB Speaker Out DV 19V Micro In HDMI LAN Model name DE45-HA DE45-Pro Intel Gigabit Ethernet W82567LM LAN Part Number 91.ADE01.V520 91.ADE01.I520 10/100/1000 Housing Material SECC t=0.8 mm ATA Connector N/A Storage W x H x D (mm) 166 x 45 x 157 mm S-ATA Connector x 2 (for 2.5” HDD and Slim Optical) Dimension W x H x D (in) 6.54 x 1.89 x 6.18 inch Trusted Platform Modules N/A Volume (liters) 1.25L (TPM v1.2) Security 1.22 kg/2.68 pound 1.23 kg/2.72 pound Kensington Lock Hole x 1 (Rear) Weight (Kg/Pound) (N.W.) (N.W.) Front CF Bay x1 Form Factor mini-ATX Storage Bay 2.5” SATA II HDD Bay x1 Socket Socket P CF card socket N/A Support Intel Core 2 Duo, CeleronM CPU CPU Type (Penryn & Santa Rosa Refresh) TDP 35W Module AOpen Thermal Module CPU Thermal FSB 667/800/1066 MHz Noise 27dB NB Intel GM45 Chipset Chipset WatchDog Timer 1 ~ 255 SEC./min SB ICH9M-E ICH9M Adapter 90W (20V, 4.5A) AC Adapter Intel AMT Support Support AMT4.0 N/A Input Voltage AC 100 ~ 240V/DC 12V/20V Dual Channel Dual Channel Type DDRII SO-DIMM x 2 Environment Memory DDR 667/800 MTBF 40,000hrs Max Memory 8GB 4GB Operating Temperature 0 ~ 50ºC (32 ~ 122ºF) bNAND flash N/A Storage Temperature -30 ~ 65ºC (-22 ~ 149ºF) Chip Intel GMA X4500MHD Relative Humidity 95% RH (50ºC non-Condensing) DVI Port N/A Graphics VGA Port x2 0.5Grms, Random, 10 ~ 500Hz, Operating Vibration X,Y,Z 3Axes, 0.5hr/Axis HDMI Port x1 Mini PCI Slot N/A 2Grms, Random, 10 ~ 500Hz, Expansion Non-Operating Vibration X,Y,Z 3Axes, 0.5hr/Axis Slot Mini Card Slot x1 Non-Operating Vibration 2Gms, Random, 10 ~ 300Hz, X,Y,Z 3Axes Type Realtek HD Audio Codec ALC662 Audio Channel 5.1 CH with HDMI Operating Shock 8G, Half sine, 11ms duration USB2.0 x 4 (2 (Rear), 2 (Front)) Non-Operating Shock 50G, Half sine, 11ms duration AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without prior notice. Digital Engine DE45-HA / DE45-Pro
  • 9.
    The No.1 SmallForm Factor Components & Platform Provider DE2700 TV Tuner or Front Accessible HDD Bay Power Button Kensington lock hole COM LAN LAN Wireless Antenna Hole S! LES FAN Speaker Out Mic In Front Accessible CF Bay DC input DVI USB Model name DE2700 Intel AMT Support N/A Part Number 91.ADE01.I220 Realtek Gigabit Ethernet x 2 LAN Housing Material SECC t=0.8 mm 10/100/1000 W x H x D (mm) 166 x 48 x 157 mm Dimension USB 2.0 x4 W x H x D (in) 6.54 x 1.89 x 6.18 inch Storage S-ATA Connector x 1 (for 2.5” HDD) Volume (liters) 1.25L Kensington Lock Hole x 1 (Rear) Weight (Kg/Pound) 1.22 kg/2.68 pound (N.W.) Front CF Bay x1 Form Factor mini-ATX Storage Bay Socket BGA 2.5” SATA II HDD Bay x1 Intel Atom N270 1.6GHz CPU Module AOpen FANLESS Thermal Module CPU Type (INCLUDED) CPU Thermal Noise 0dB FSB 533 MHz NB Intel 945GSE Chipset WatchDog Timer 1 ~ 255 SEC. Chipset SB ICH7M Adapter 65W (12-19V, 3.42A) AC Adapter Dual Channel Single Input Voltage AC 100 ~ 240V/DC 12V/19V Type 1GB DDRII SO-DIMM x 1(INCLUDED) Memory Environment DDR 533 MTBF 40,000hrs Max Memory 2GB Operating Temperature 0 ~ 40ºC (32 ~ 104ºF) Chip Intel GM 950GSE Storage Temperature -20 ~ 60ºC (-4 ~ 140ºF) Graphics VGA Port x 1 (via DVI to VGA converter) Relative Humidity 90% RH (40ºC non-Condensing) DVI x1 Type Realtek HD Audio Codec ALC662 0.5Grms, Random, 10 ~ 500Hz, Operating Vibration X,Y,Z 3Axes, 0.5hr/Axis Channel Stereo Audio 2Grms, Random, 10 ~ 300Hz, Non-Operating Vibration Line-Out (Front-Out L/R) x1 X,Y,Z 3Axes, 1hr/Axis Mic-In Operating Shock 8G, Half sine, 11ms duration x1 (Central/Subwoofer out) Expansion Mini Card Slot x1 Non-Operating Shock 50G, Half sine, 11ms duration AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without prior notice. Digital Engine DE2700
  • 10.
    WT22M-RH Modelname WT22M-RH Dimensions 532 x 332 x 60 mm (W x H x D) Weight 9kg/19.84 Ibs CPU Supports Socket G2 Intel Sandy Bridge CPU 1066/1333 MHz CPU Thermal AOpen Silent Tek Thermal Module Noise 24dB (idle mode) Chipset Intel QM67 Dual Channel DDRIII SO-DIMM x 2 Memory 1066/1333MHz Max Memory: 4G CPU build-in VGA Output x 1 Graphics VGA Input (Monitor) x 1 Dual Intel Gigabit Ethernet LAN 10/100/1000 Realtek HD Audio Codec ALC886 Audio 5.1 Channel WT22M-RH Expansion slot Mini card Slot x 2 Memory S-ATA Connector x 1 (for 2.5” HDD) Default Resolution : 21.5” (1920 x 1080) LCD (LED Back light) Maximum Brightness : 250 nits ● For public professional panel PC design Touch Panel Multi Touch 4 Wire Resistive, driver support 10 points - Cable Clamp, Cable Cover, Key Lock, Rugged VESA Hole Aspect Ratio 16:9 - Rugged housing and IP54 dust & water proof display front design. Body IPX1 water Power Button, Monitor Function Buttons, resistant design Button/Indicator HDD indicator (blue) x 1 Power indicator (blue) x 1 - No harmful sharp edges to prevent possible injury DC 19V20V Jack x 1 - Ultra Slim, WT22M-RH is 60mm thick VGA In Port (Monitor) x 1 - Slim HDD bay design for easy service RS232 Port (Monitor) x 2 VGA Out Port x 1 (Duplex and External Mode) RJ45 LAN Jack x 2 ● Rich I/O ports provide excellent USB 2.0 x 6 peripheral connectivity System I/O PC Legacy RS232 Serial Port (COM Port) (RI/5V/12 by Jumper Setting) x 4 - RJ-45 RS232 x 4 (COM2 option RS485/422), RS485 or RS422 (COM2 by Jumper Setting) x 1 such as Barcode scanner RJ11 for Cash Drawer (12V/20V by Jumper) x 1 PC Legacy Printer Port x 1 - Parallel Port (PRT), such as traditional printer Audio Line-in x 1, Line-out x 1, Mic-in x 1 - RJ-11 for cash drawer Upgrade for Antenna Port x 3 - USB x 6, mini Card x 2, Dual LAN, IR Receiver Kensington Lock Hole x 1 (WT22M-RH support vPRO_AMT) Webcam 1.3MP x 1 ● Best and Fresh Platform - Main Stream Panel. Full HD +LED B/L Panel. Mic High Sensitivity Mic x 1 (WT22M- RH use 21.5” 1920 x 1080. LED B/L) - Sandy Bridge CPU & QM67 Chipset Mounting Kit Wall Mount Kit x 1 (WT22M-RH)- DDR3 Memory Adapter 90W (20V, 4.5A) AC Adapter WatchDog Timer 1 sec ~ 255 min 90W PWR Adapter x 1 Power Cord x 1 Accessories Utilities & Drivers CD x 1 Waterproof EIG x 1 AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without prior notice. WarmTouch WT22M-RH
  • 11.
    The No.1 SmallForm Factor Components & Platform Provider WT19P-TA The WT19P is an all-in-one digital signage and touchscreen computing solution which includes energy efficient dual core Intel Atom 330 processor. Provide customers with a hands-on interactive experience that can be used for menus, directories, kiosks and many more. Model name WT19P-TA Part Number 91.WT100.T110 S! LES FAN H x W x D (mm) 305.9 x 460 x 81.7 mm Dimensions H x W x D (in) 12 x 18.1 x 3.2 inch Net Weight 6.1 Kg/13.45 lbs CPU Supports Intel ATOM 330 1.6 GHz Dual Core Processor 533 MHz AOpen Silent Tek Thermal Module CPU Thermal Noise 24dB (idle mode) Chipset Intel 945GC + ICH7 Single Channel DDRII Long-DIMM x 1 WT19P-TA Memory DDRII 533 Max Memory: 2GB Graphics Intel GMA 950 VGA-out Port x 1, VGA-in Port x 1 Realtek Gigabit Ethernet LAN 10/100/1000 Audio Realtek HD Audio Codec ALC662 5.1 Channel Expansion Slot Mini Card Slot x 1 120GB 2.5” SATA HDD Storage 9-in-1 media card reader Slim ODD Bay x 1 Native Resolution: 19" (1440 x 900 ) LCD Maximum Brightness: 250 nits ; Back Light Type: CCFL Touch Panel 5-Wire Resistive Aspect Ratio 16:10 Power Button x 1 Side Panel I/O Power indicator (blue) x 1 DC 19V Jack x 1 VGA-in Port (Monitor) x 1 RS232 Port (Monitor) x 1 VGA-out Port Rear I/O (Duplex Screen Mode Only) x 1 USB 2.0 Port x 2; RJ45 LAN Jack x 1 Audio Line-in x 1; Line-out x 1; Mic-in x 1 Upgrade for Antenna Port x 3 Kensington Lock Hole x 1 Webcam 1.3MP x 1 Mic High Sensitivity Mic x 1 Mounting Kit Wall Mount Kit x 1 Adapter 65W (19V, 3.42A) AC Adapter AC 100 ~ 240V WatchDog Timer 1~ 255 SEC./min 65W Power Adapter x 1; Power Cord x 1 Accessories Utilities & Drivers CD x 1; EIG x 1 AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without prior notice. WarmTouch WT19P-TA
  • 12.
    Small Display WT10P-TS • 10.1”signage board with 16:9 resolution, 300 nits high brightness LCD • Auto-play starts playing scheduled content automatically when power is re-established • Automatic error recovery with built-in WDT • Real-time clock keeps time for up to 1 year unplugged • Automatic NTP keeps time and date in sync • Supported media - Image: JPEG baseline, up to 12 megapixels - Audio: MPEG L2 or MP3, to 320Kbps - Video: Divx, MPEG-1 or MPEG-4 ASP, 500-~200Kbps (720 x 400) • 75mm x75mm VESA • DC Clamp (power Jack latch) • Wi-Fi 802.11 b/g/b build-in. resolution 16:9 content recommended mount built-in to prevent power being USB to wire 10/100 LAN *NOTE: MPEG 2 video is NOT supported unplugged Model name WT10P-TS Hardware Ethernet VIA PDE-100 Adapter to RJ45 Sound 1.5W x 2 Wi-Fi Wireless b/g (2.4GHz only) Mounting VESA MIS-D 75 mounting point (75 x 75 mm) Media format support Local storage On-board 2 GB flash memory (120 min of SD video@2Mbps) SDHC card slot (Ma x 4 GB) SML compatible YES Power consumption 9 watts Performance 720 x 400 video Power supply 12V 1.5A MPEG-4 ASP (720 x 400)/(640 x 480) 271 x 185 x 29 mm Video codec (optimal) MPEG-1 Dimensions (W x H x D) 10.6 x 7.28 x 1.14 inch Bitrates up to 2Mbps Weight 663g/1.46Ibs. Image codec (optiomal) JPEG (800 x 480) Operating temperature: 0 ~ 40ºC Environment Humidity 5 ~ 85% @40ºC non-condensing Audio codec MPEG L2/MP3 up to 320Kbps WatchDog Timer CE/FCC/RoHS Hardware Power adapter 10” LCD 800 x 480 Standard accessories PDE-100 with Ethernet cable Display 300-nits brightness Display stand AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without prior notice. Small Display WT10P-TS
  • 13.
    The No.1 SmallForm Factor Components & Platform Provider All-in-One Digital Signage Management System Digital Engine Holder Convenient cable management solution Universal mounting and cable management solution for displays and Digital Engines, which are protected inside a lockable embedded compartment. Key lock • Supports 32”- 65” digital signage displays • Max weight capacity: Clasp for cable management 50kg (for Titan One 530 model) and 80kg (for Titan One 800 model) • Choose portrait or landscape mounting • Embeds Digital Engine, power adapter, cable management and wireless kits Handle • Adjustable display angle: 0 - 20 degrees (ceiling mount/wall mount) • Protects Digital Engines from dust • All-in-one design allows for easy maintenance Adapter cable management Slide in accessory management holder Bubble level Display fix frame Accessory management holder Professional mounting solution Titan One: Ceiling-mount type Titan One: Wall-mount type with embedded Digital Engine inside Main holder 4U Rack for Digital Engine System door with dust filter on back Key lock Consolidate Digital Engines™ with the Engine Core - an innovative central control solution for network environ- Handle ments. Enhances security, monitoring and protection (Rack type) from data loss via a hardware-centric approach. Also pro- Adapter cable management vides a green IT, easy-maintenance solution for cluster (parallel) computing. • Dimensions: Slide in guide for 177(H) x 440(W) x 405(D) mm (rack-mount type) Slide in digital Engine fan guide 177(H) x 440(W) x 445(D) mm (stand-alone type) • Six Digital Engine Slots Digital Engine Slots: 48(H) x 167(W) x 158(D) mm Power Adapter (95W) x 6 • Cooling Fans (12cm) x 2 • 12V Adapter x 1 (for cooling fans) • Key Locks for Front Door and Upper Case Digital Engine holder screws • Changeable Dust Filter Behind the Front Door AC power cord inlet • Front USB 2.0 and A/V Access (optional) System cable management • Detachable Front Handle for Rack-Mount or Stand-Alone Engine Cores • Fits 19” 4U Rack-Mount Cases or can be used as a Stand-Alone Engine Core Server • Slide-In/Out Digital Engine Slots: Easy System Assembly and Maintenance • Cable Management Solutions Titan One / Engine Core
  • 14.
    Holders ModelName LH01 LH02 Product Name L Bracket L Bracket Mountability AOpen Proprietary Dimension AOpen Proprietary Dimension Horizontal Application Horizontal Application Application Vertical Application Vertical Application Support Model DE45-Pro/DE7000/DE2700/DE67-HA/DE45-HA/DE57-HA/DE35-HD DE45-Pro/DE7000/DE2700/DE67-HA/DE45-HA/DE57-HA/DE35-HD Model Name VM02 VM03 VM04 Product Name LCD Back Mount Kit LCD Back Mount Kit w/Cover U Bracket Mountability VESA Standard VESA Standard VESA Standard To mount Digital Engine on the back of the display To mount Digital Engine on the back of the display with To mount Digital Engine on the back of the Panel with 75 Application with 75 x 100mm VESA FDMI (Flat Display Mounting 75 x 100mm VESA FDMI (Flat Display Mounting Interface) x 100mm VESA FDMI (Flat Display Mounting Interface) Interface) compliant holes. compliant holes. (with Cable Management) compliant holes. DE45-Pro/ DE7000/ DE2700/ DE67-HA/ DE45-HA/ DE45-Pro/ DE7000/ DE2700/ DE67-HA/ DE45-HA/ DE57-HA/ DE45-Pro/ DE7000/ DE2700/ DE67-HA/ DE45-HA/ DE57-HA/ Support Model DE57-HA/ DE35-HD DE35-HD DE35-HD Accessories SB01-CF to 2.5” SATA Model Name TV Tuner Kit (DVBT) 802.11b/g/n Wireless kit UB01-USB Kit HDD Bridge Board AOpen P/N 90.MA610.0020 60.MA558.0310 91.ADE49.0010 91.MA601.0410 EAN Code 4712601-293322-3 471260-2947435 4712602946964 Slot Mini Card Slot USB SATA Interface MPCIe Analog/DVB-T TV Yuan HybridTV 802.11b/g 54Mbps Wireless LAN PCI Express Module Board Mini Card (Analog TV includes PAL, NA CF 2,5” SATA utilizing 2,5” HDD Bay Mini Card SECAM, NTSC) Support Model DEX4502/ DE45-Pro/ DE7000 DEX4502/ DE45-Pro/ DE7000 DE45-Pro/ DE57-HA/ DE7000 DE45-Pro/ DEX4502/ DE7000 Holders / Accessories
