1. Introduction to the Flow Factory
Design Pattern
Developers Track
Adam Purkiss, MondayCall Solutions, Principal Architect
@apurkiss
adampurkiss.com

2. Learning the hard way…
ENTER COMMAND: GO NORTH
■

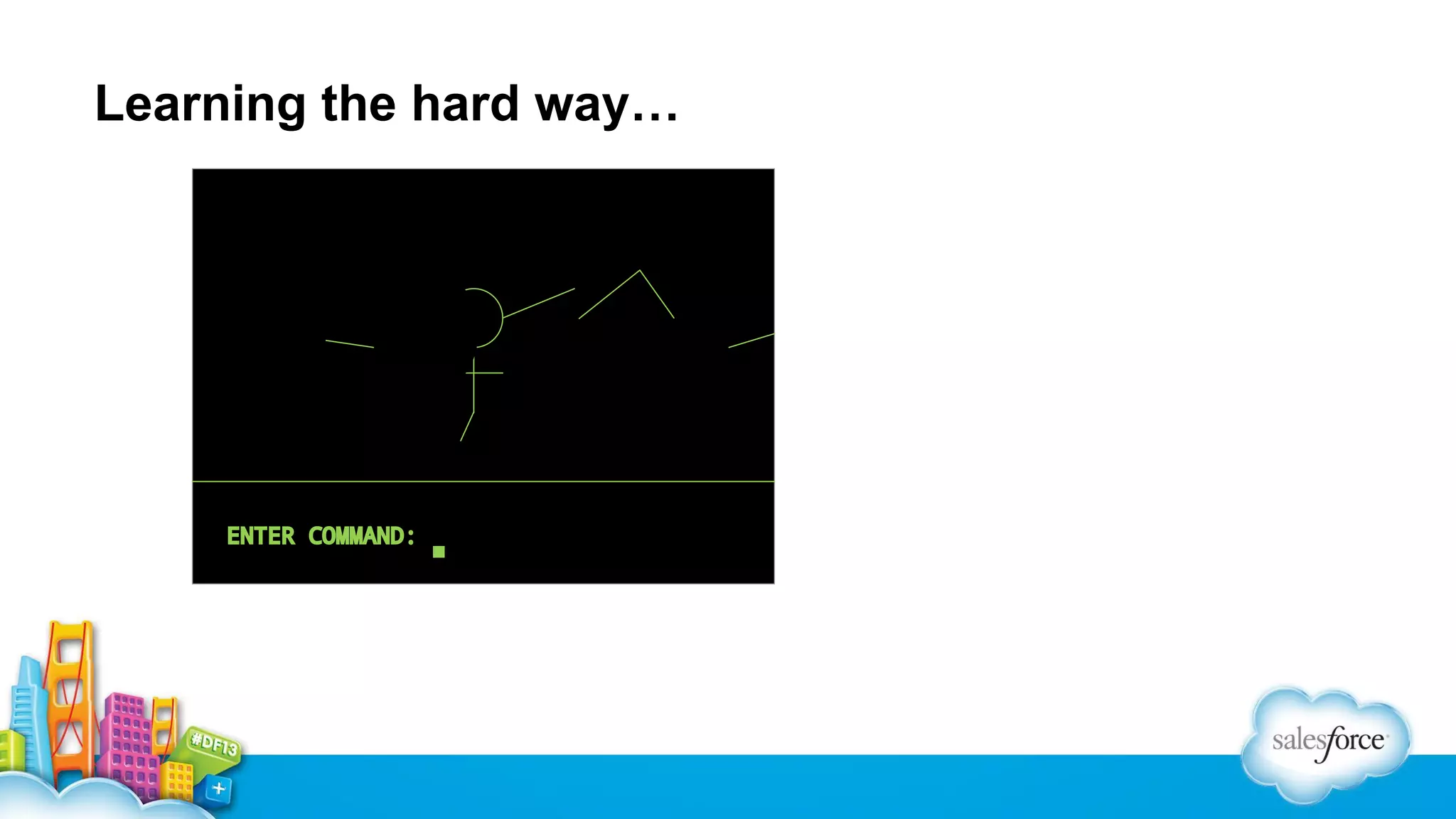

3. Learning the hard way…
ENTER COMMAND:
■

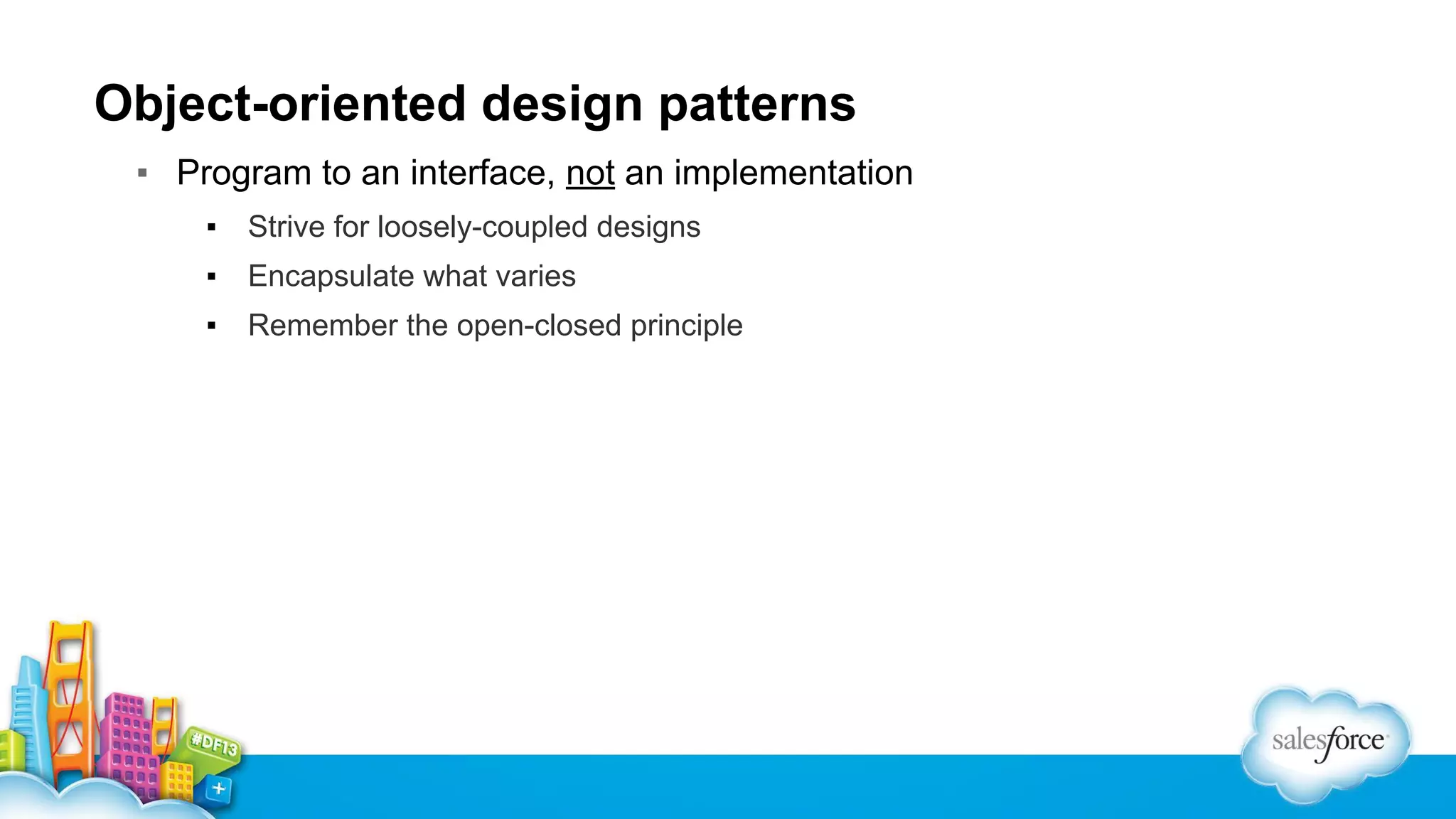

4. Object-oriented design patterns
▪ Program to an interface, not an implementation
▪
Strive for loosely-coupled designs
▪
Encapsulate what varies
▪
Remember the open-closed principle

5. Object-oriented design patterns

6. Requirements gathering

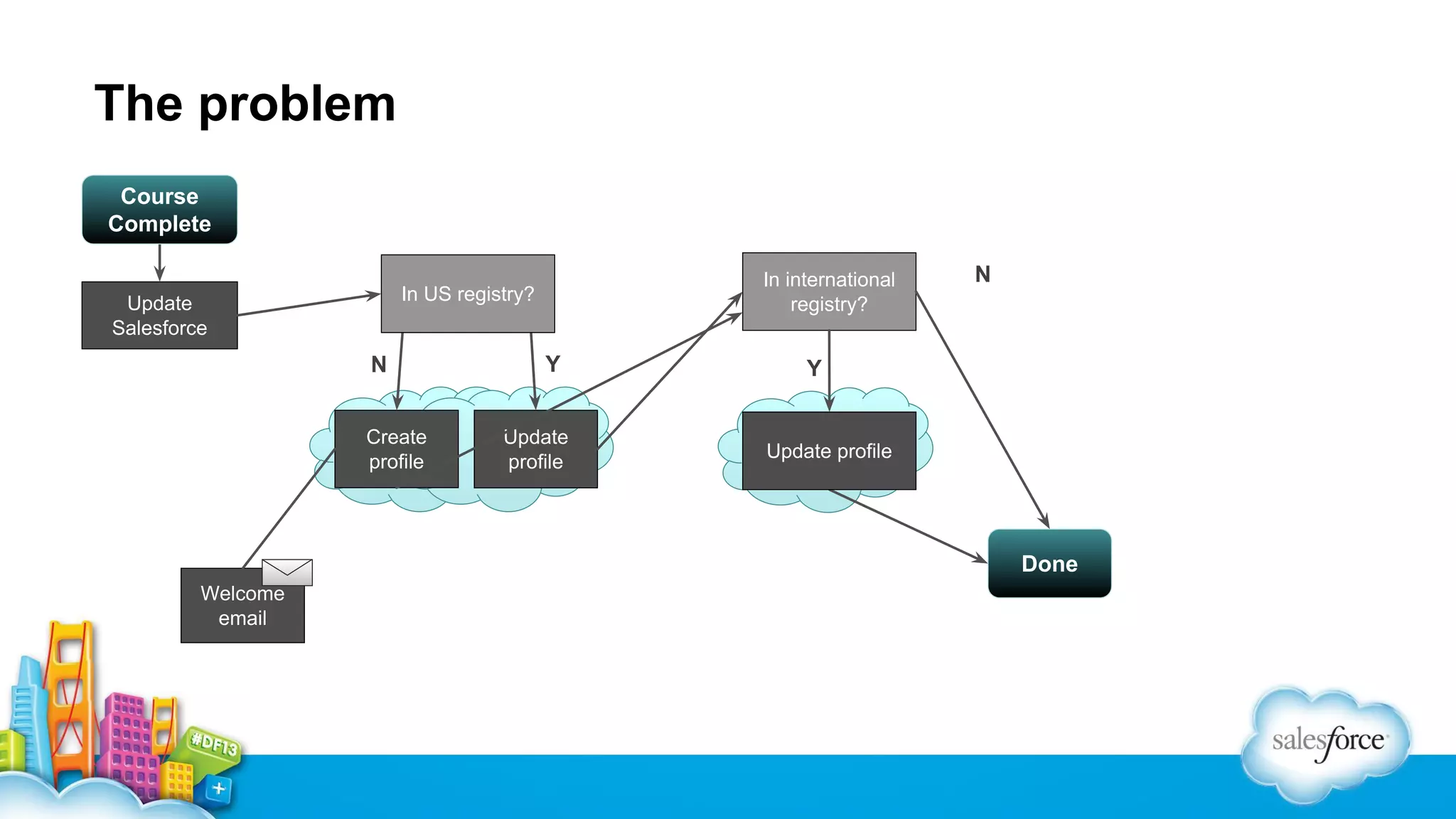

7. The problem
Course
Complete
In international
registry?
In US registry?
Update
Salesforce
N
Create
profile
Y
Update
profile
N
Y
Update profile
Done
Welcome
email

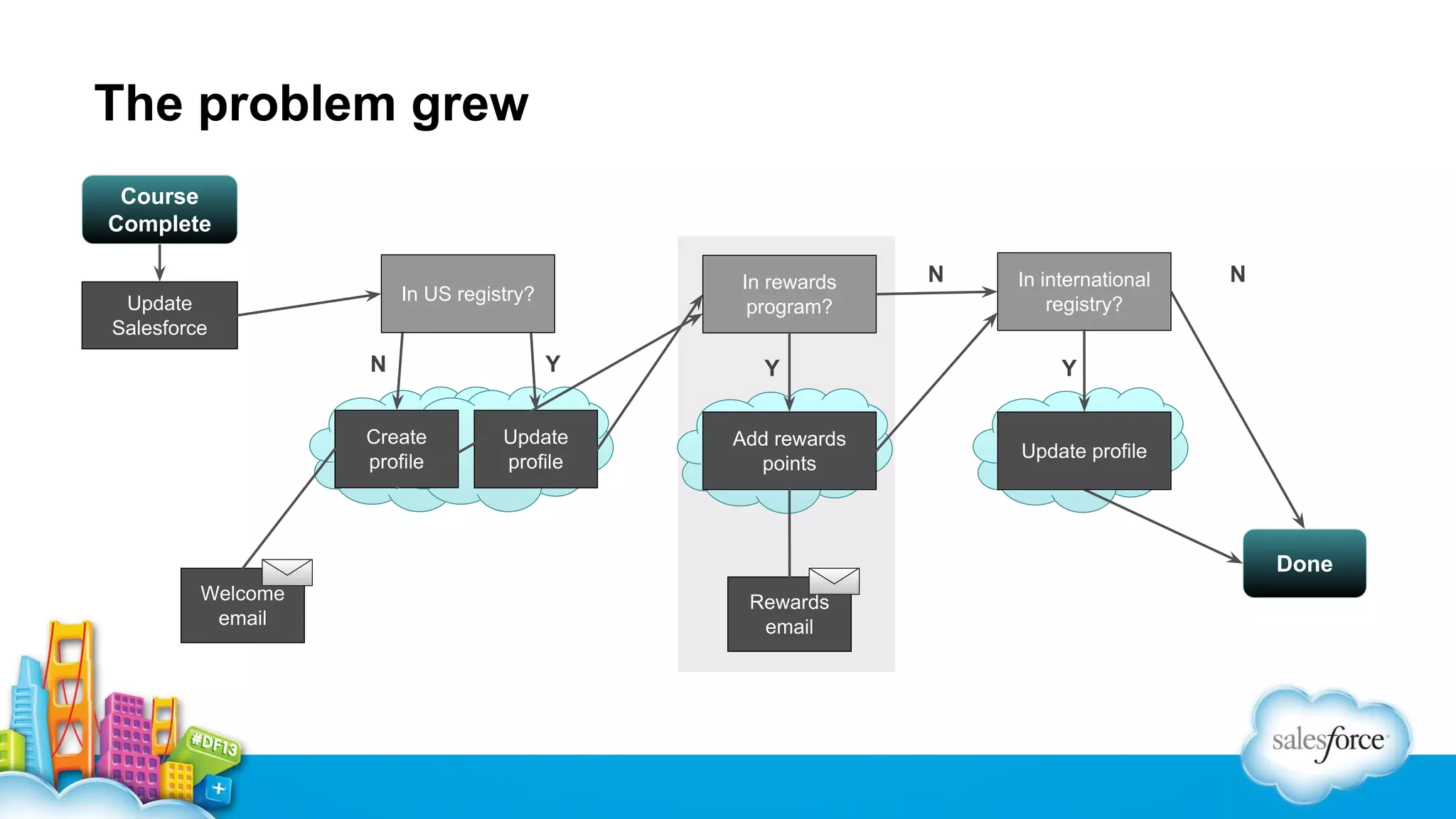

8. The problem grew
Course
Complete
In rewards
program?
In US registry?
Update
Salesforce
N
Create
profile
Y
Update
profile
Y
Add rewards
points
N
In international
registry?
N
Y
Update profile
Done
Welcome
email
Rewards
email

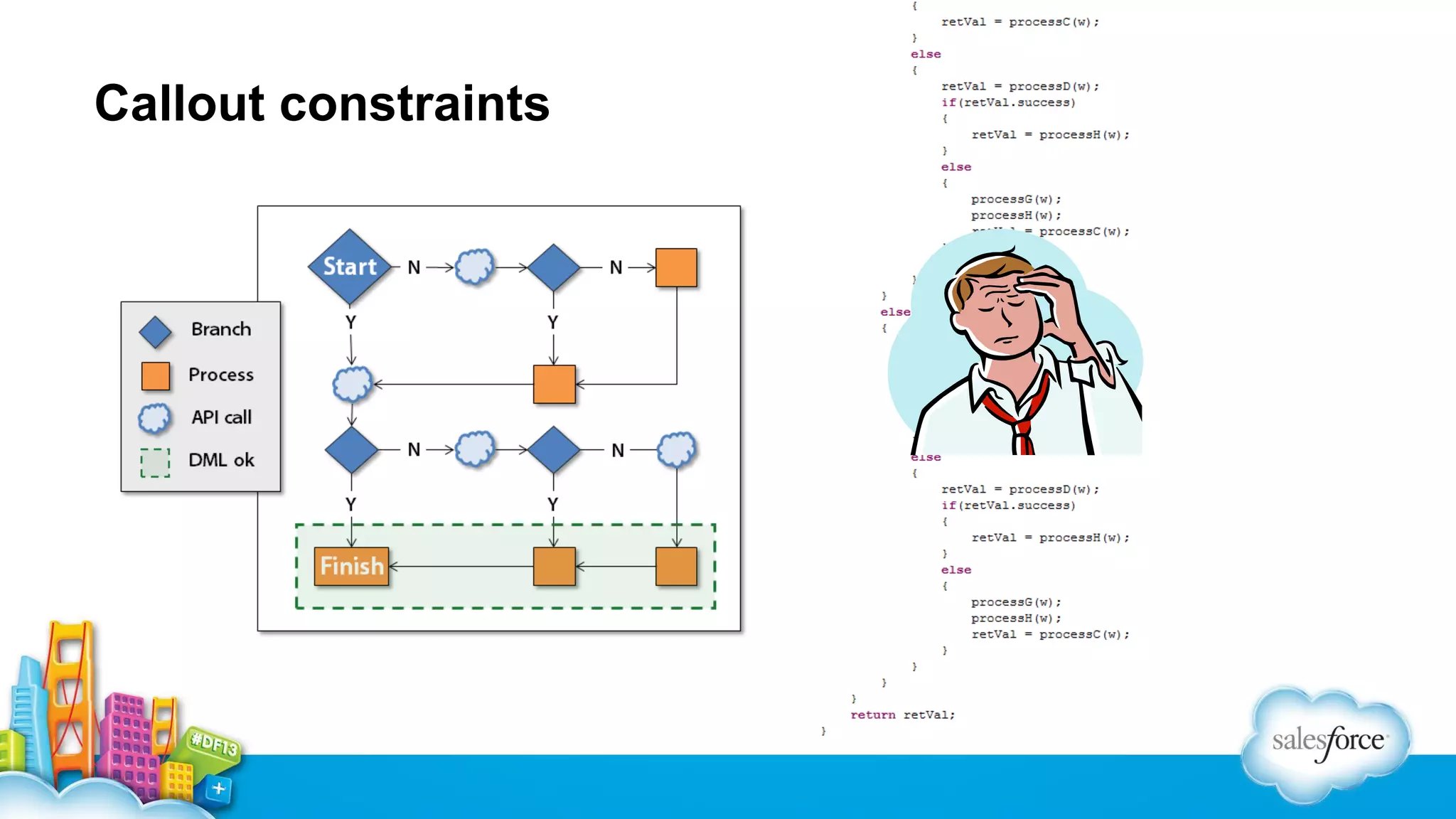

9. Callout constraints

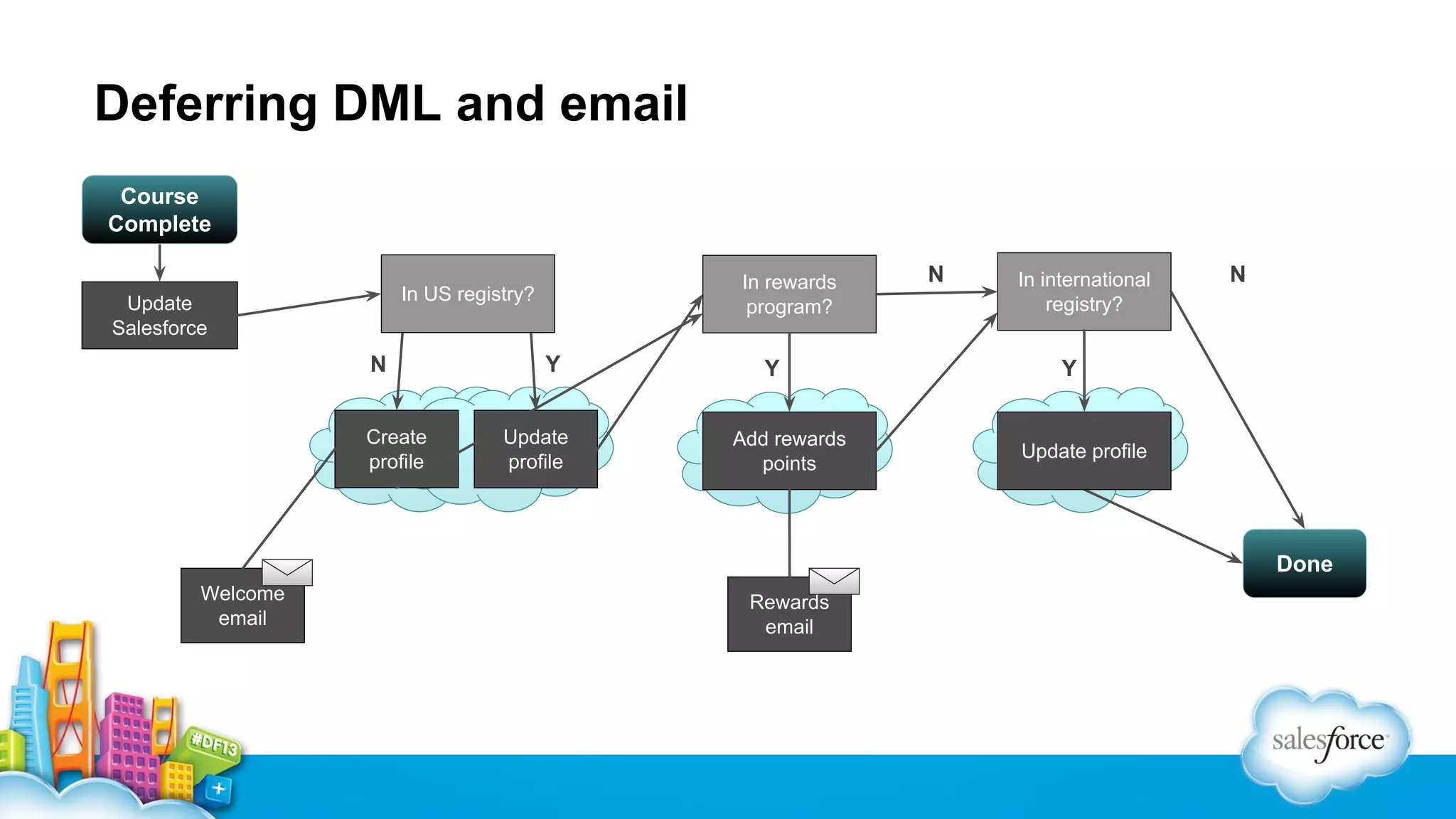

10. Deferring DML and email
Course
Complete
In rewards
program?
In US registry?
Update
Salesforce
N
Create
profile
Y
Update
profile
Y
Add rewards
points
N
In international
registry?
N
Y
Update profile
Done
Welcome
email
Rewards
email

11. The Flow Factory
▪ Flow-specific inputs
▪ Executed steps collection
▪ Steps create & return next steps
▪
Inversion of Control
▪ Two pass execution
▪
Pass 1: Step.processStep()
▪
Pass 2: Step.finish()

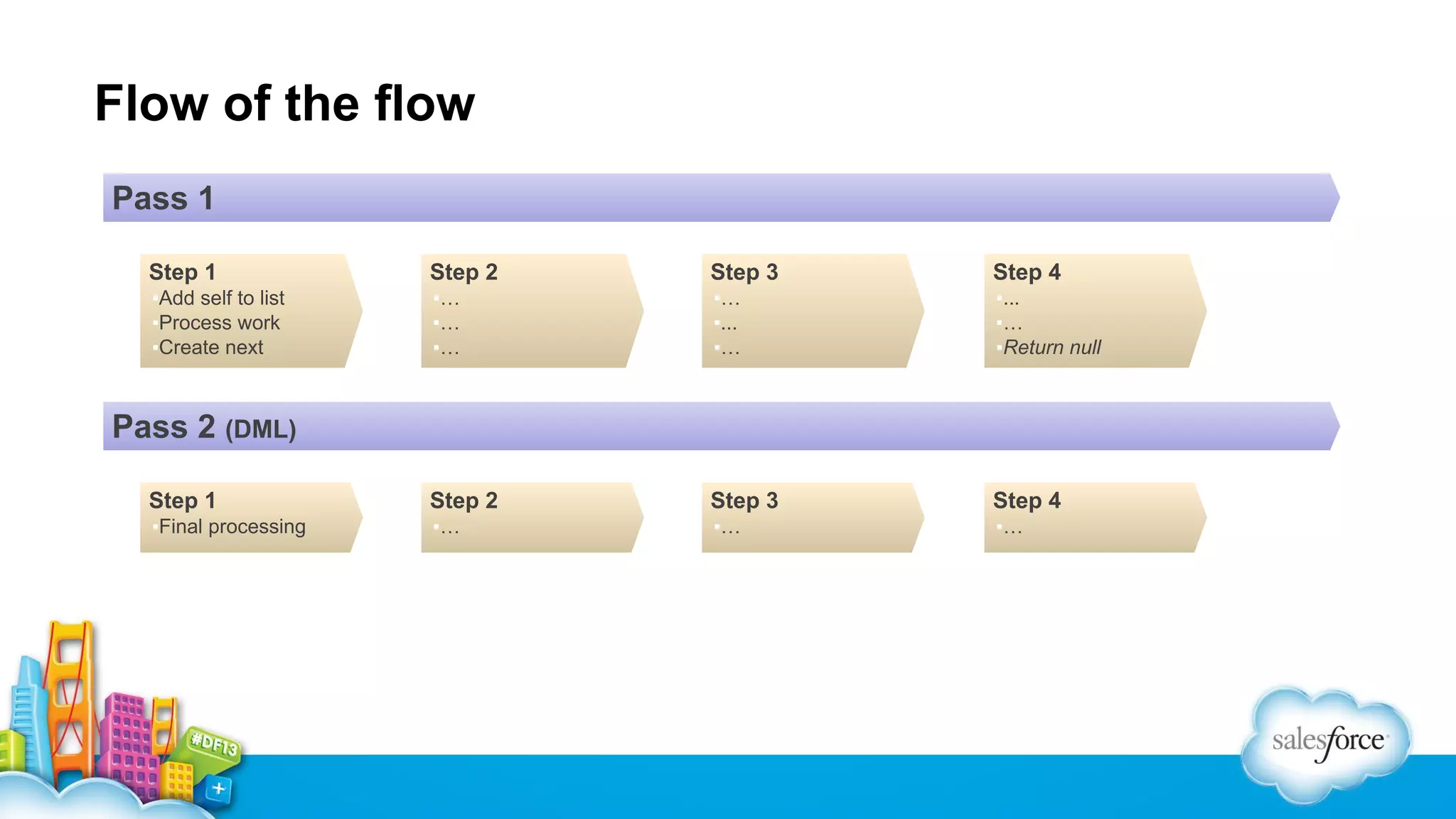

12. Flow of the flow
Pass 1
Step 1
Step 2
Step 3
Step 4
▪Add self to list
▪Process work
▪Create next
▪…
▪…
▪…
▪…
▪...
▪…
▪...
▪…
▪Return null
Step 1
Step 2
Step 3
Step 4
▪Final processing
▪…
▪…
▪…
Pass 2 (DML)

13. Flow of the flow
Pass 1
Step 1
Step 2
Step 3
Step 4
processStep()
processStep()
processStep()
processStep()
Step 1
Step 2
Step 3
Step 4
finish()
finish()
finish()
finish()
Pass 2 (DML)

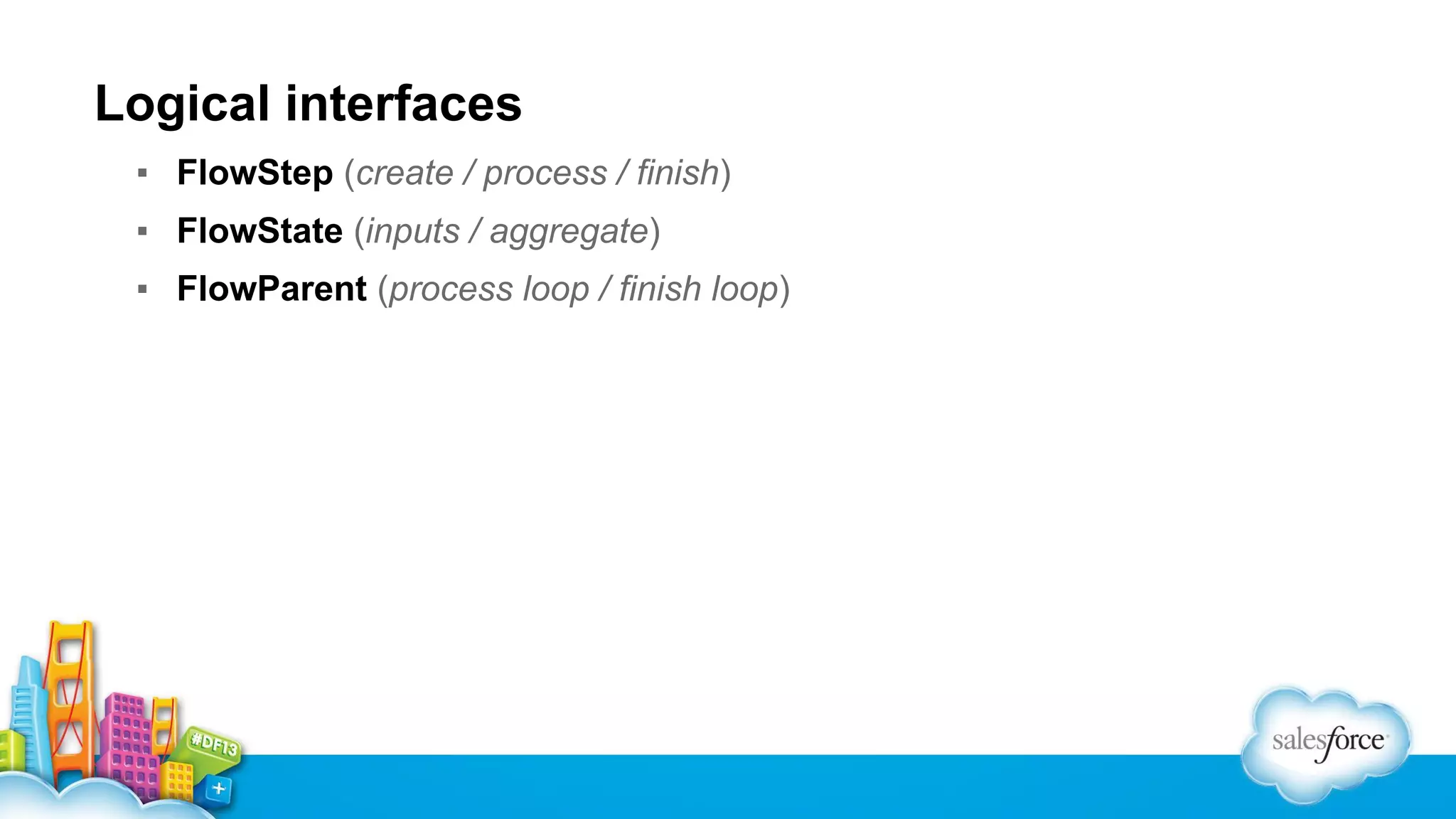

14. Logical interfaces
▪ FlowStep (create / process / finish)
▪ FlowState (inputs / aggregate)
▪ FlowParent (process loop / finish loop)

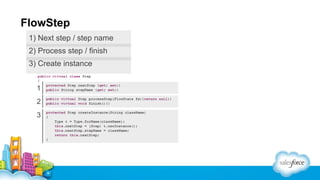

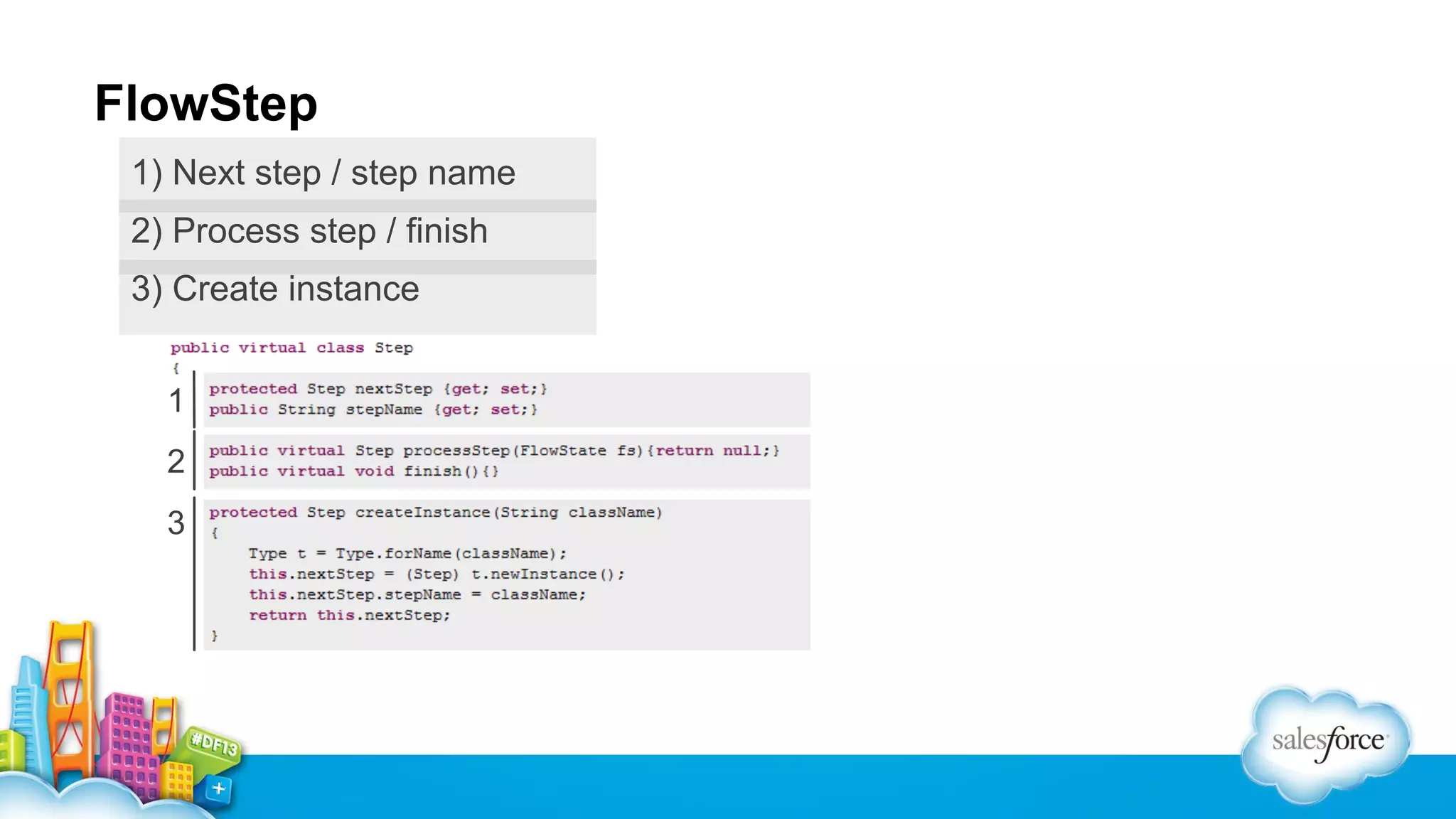

15. FlowStep
1) Next step / step name
2) Process step / finish
3) Create instance
1
2
3

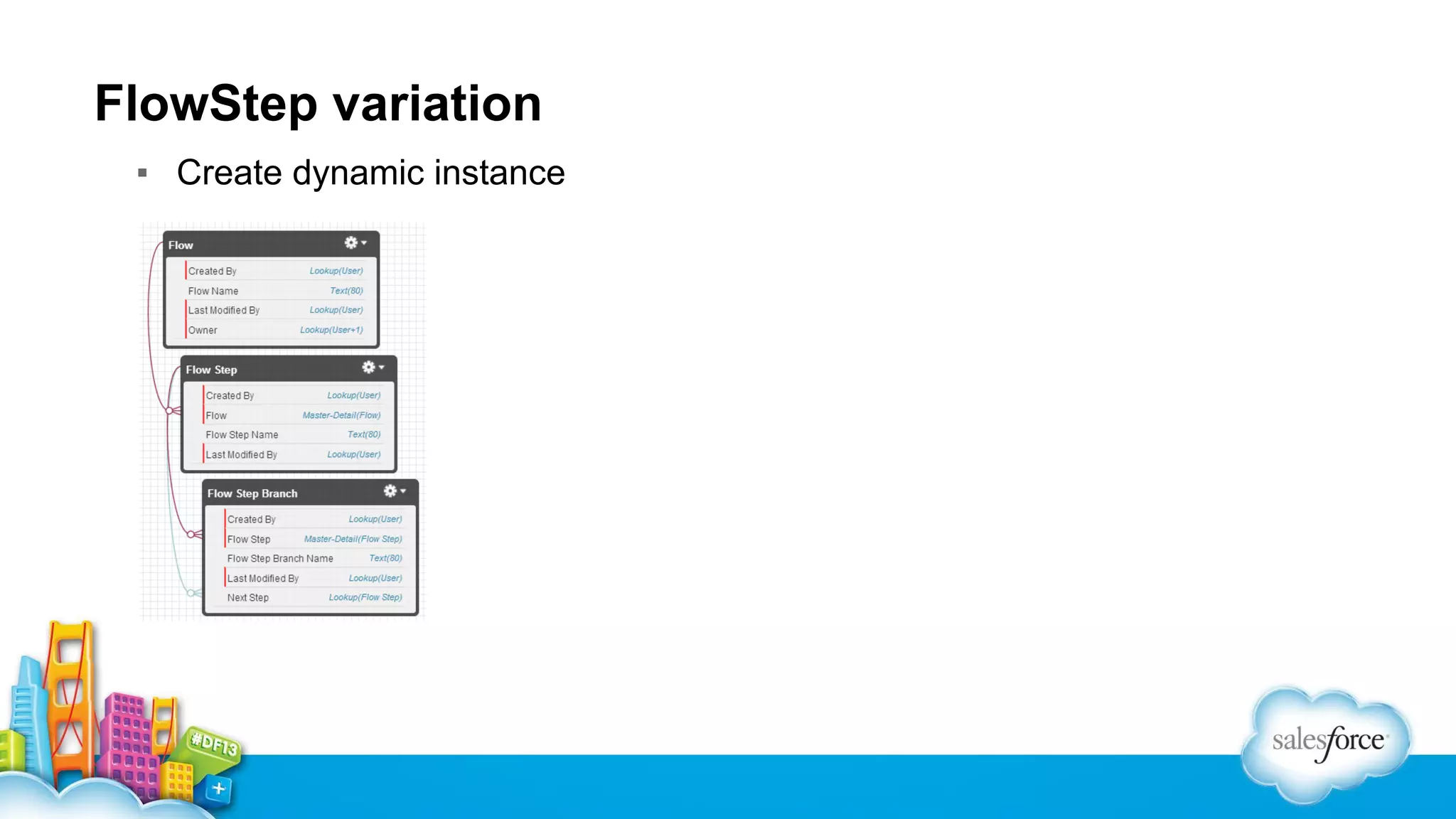

16. FlowStep variation
▪ Create dynamic instance

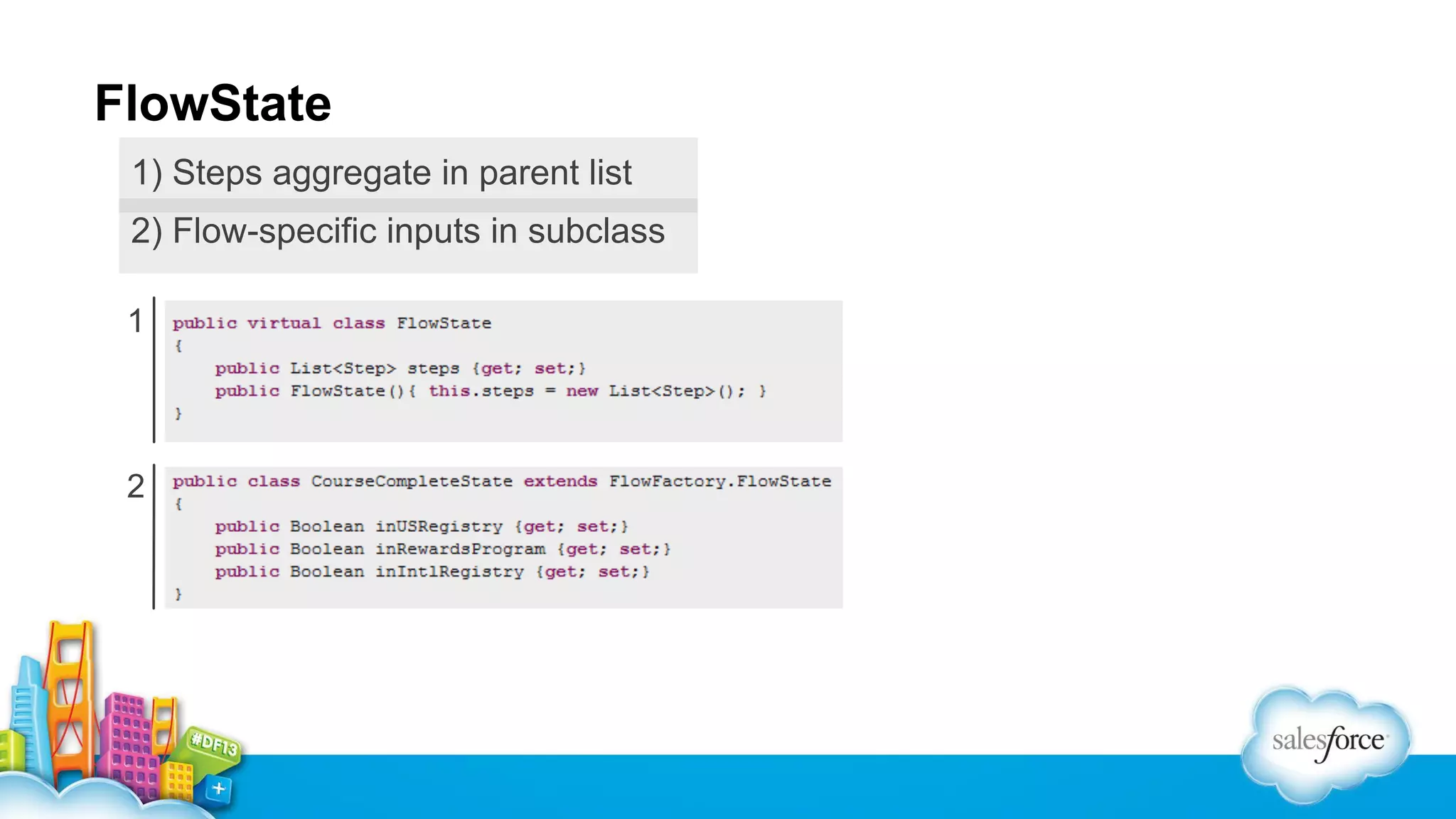

17. FlowState
1) Steps aggregate in parent list
2) Flow-specific inputs in subclass
1
2

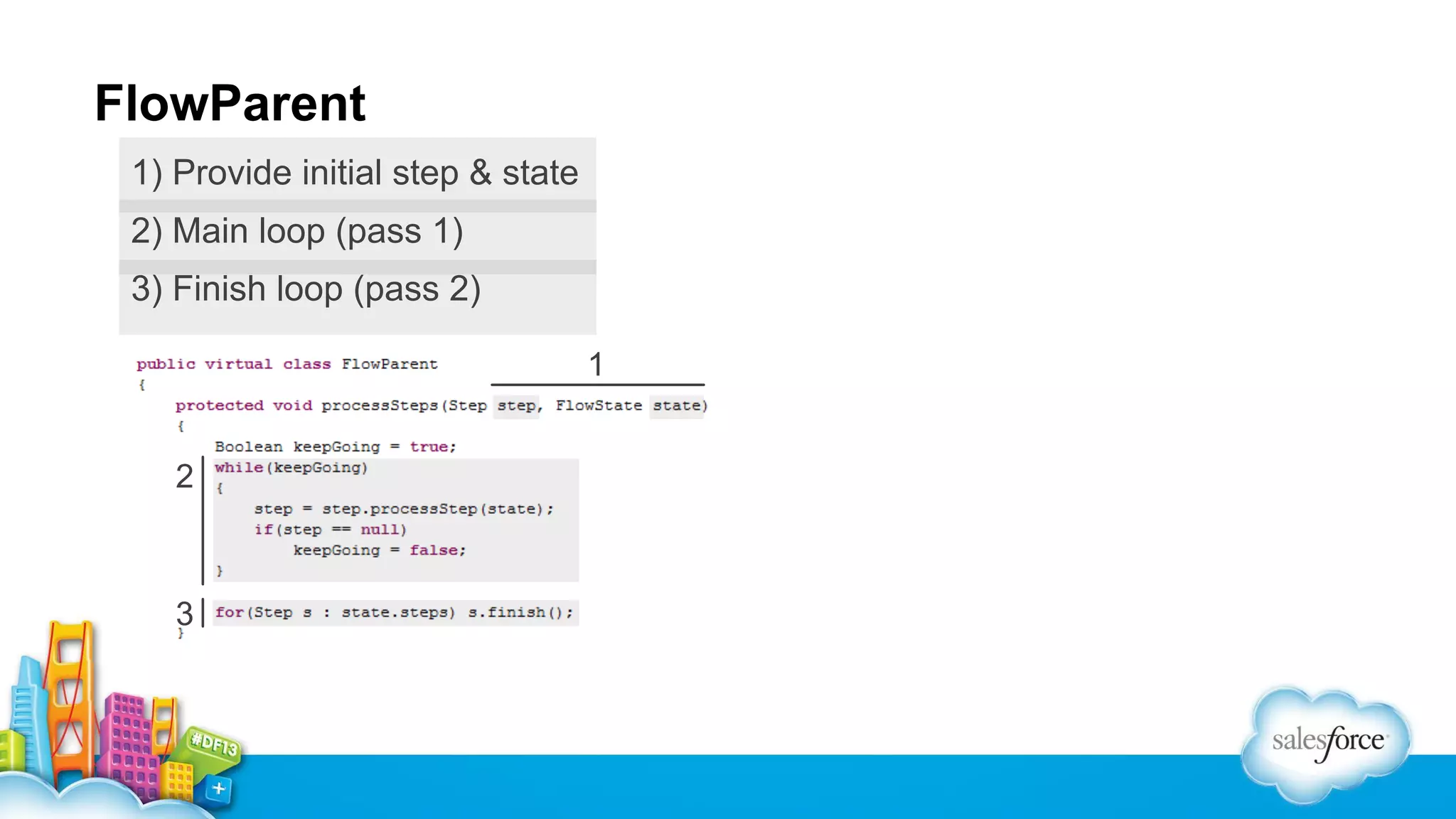

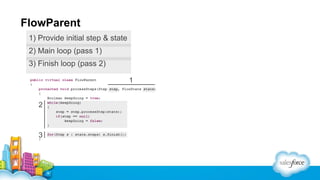

18. FlowParent
1) Provide initial step & state
2) Main loop (pass 1)
3) Finish loop (pass 2)
1
2
3

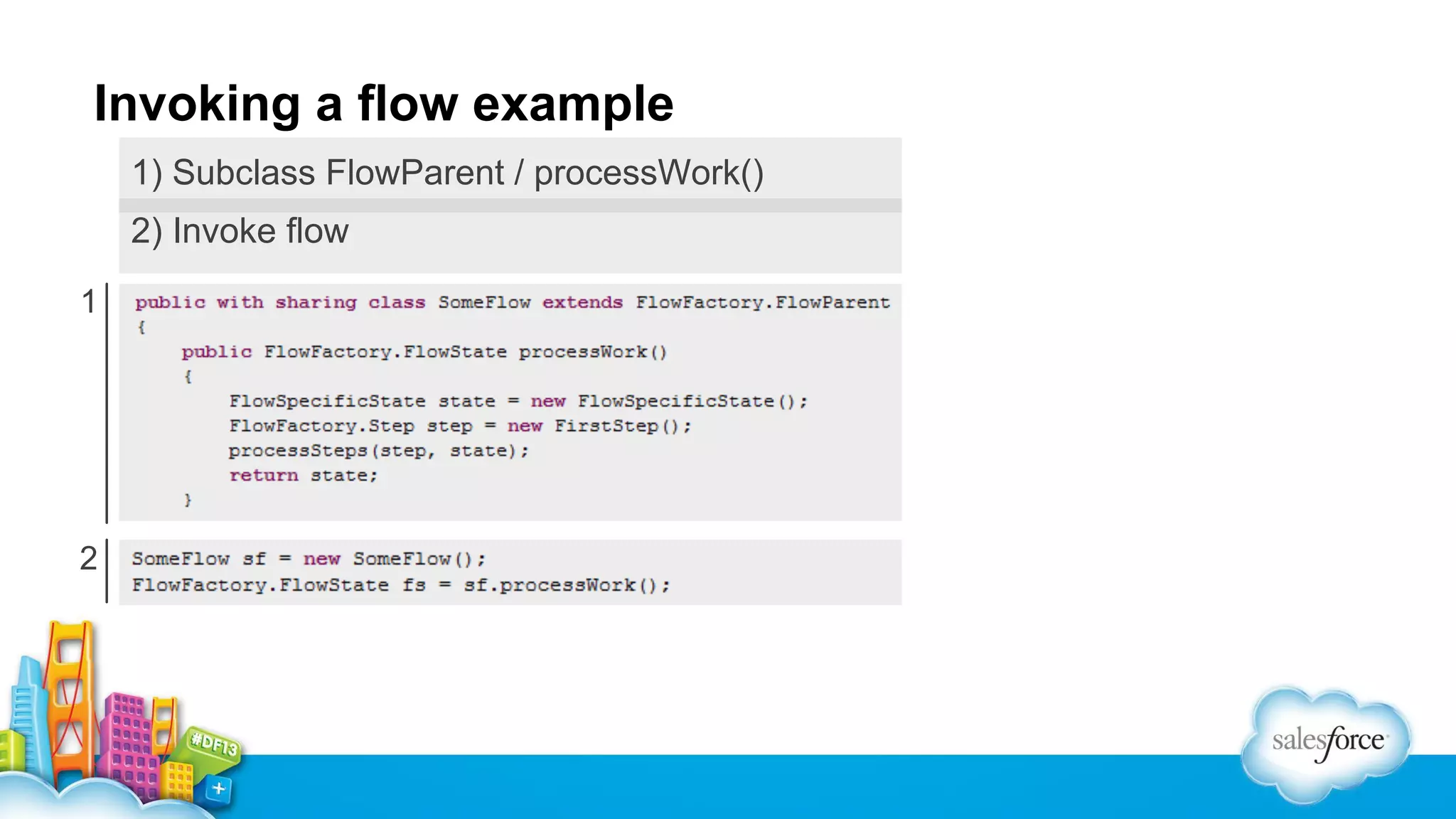

19. Invoking a flow example
1) Subclass FlowParent / processWork()
2) Invoke flow
1
2

20. Pass 1
processStep()
Course
Nothing
Complete
Update
Salesforce
In rewards
program?
processStep()
Callout
In US registry?
processStep()
Callout
N
Create
profile
Y
Update
profile
Y
Add rewards
points
N
In international
registry?
processStep()
N
Callout
Y
Update profile
Done
Welcome
email
Rewards
email

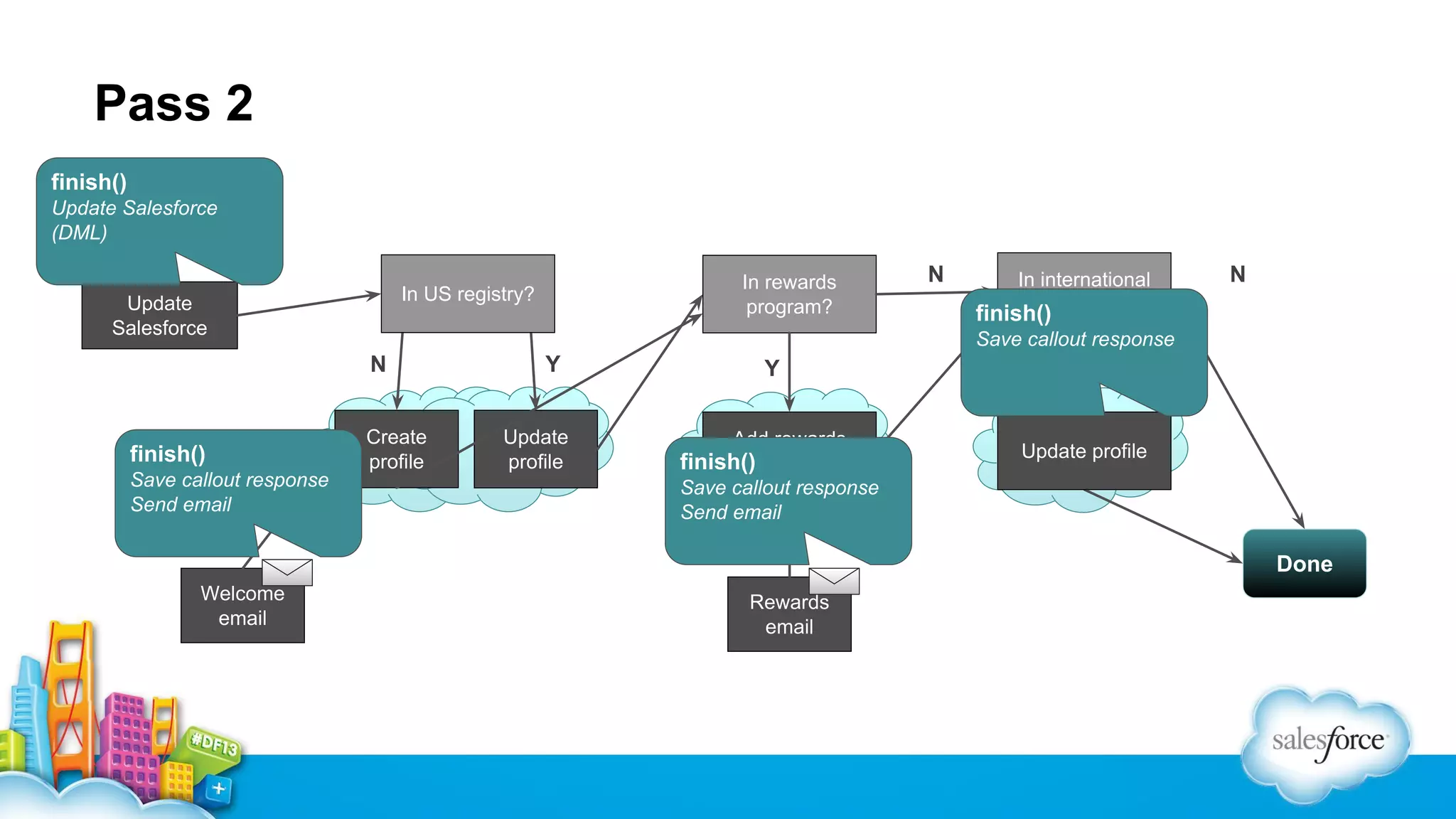

21. Pass 2
finish()
Course
Update Salesforce
(DML)Complete
In US registry?
Update
Salesforce
Save callout response
Send email
N
In international
registry?
finish()
N
Save callout response
N
finish()
In rewards
program?
Create
profile
Y
Update
profile
Y
Add rewards
finish() points
Save callout response
Send email
Y
Update profile
Done
Welcome
email
Rewards
email

22. Demo

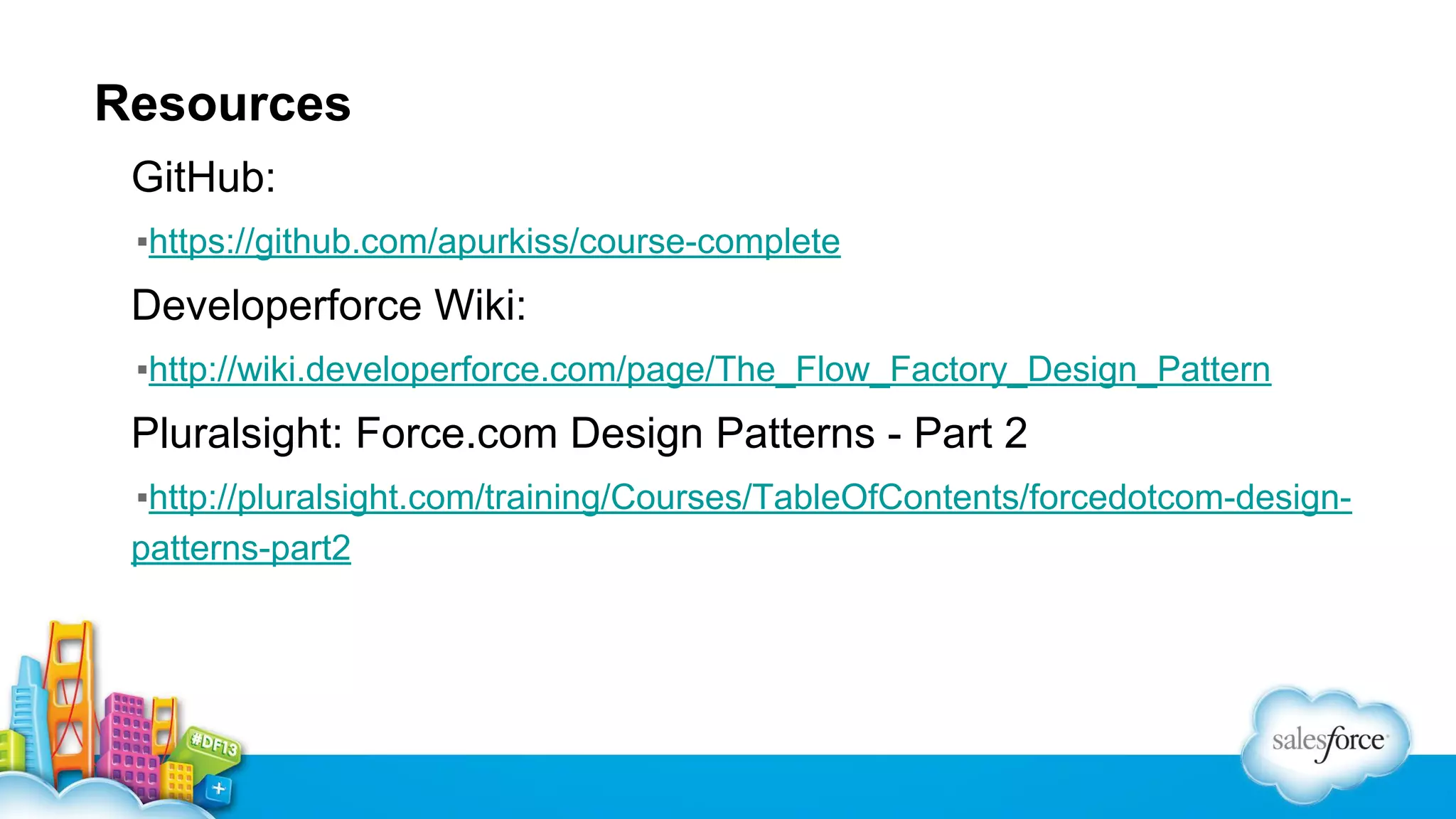

23. Resources
GitHub:
▪https://github.com/apurkiss/course-complete
Developerforce Wiki:
▪http://wiki.developerforce.com/page/The_Flow_Factory_Design_Pattern
Pluralsight: Force.com Design Patterns - Part 2
▪http://pluralsight.com/training/Courses/TableOfContents/forcedotcom-designpatterns-part2

24. Adam Purkiss
Principal Architect,
@apurkiss
