Development of Cone
The document outlines the 7 step process for developing the cone of a 50mm diameter and 60mm height cone. The steps include: 1) Drawing the front and top views of the cone and dividing the top view into 8 equal segments. 2) Drawing line segments from the front view and arcs based on the radii. 3) Segmenting the main arc into 8 equal parts based on the top view distances. The development allows for the cone to be flattened into a 2D pattern.
Development of Cone
- 1. Development of Cone Drawingsteps explained By: SUBIN B MARKOSE Assistant Professor DEPARTMENT OF MECHANICAL ENGINEERING, ASET 1

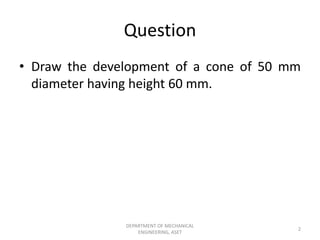

- 2. Question • Draw thedevelopment of a cone of 50 mm diameter having height 60 mm. DEPARTMENT OF MECHANICAL ENGINEERING, ASET 2

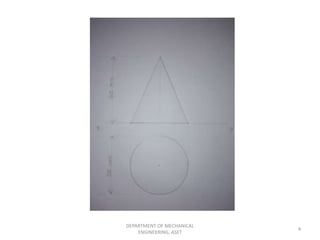

- 3. Step 1 • Drawthe front and top view of the cone. DEPARTMENT OF MECHANICAL ENGINEERING, ASET 3
- 4.

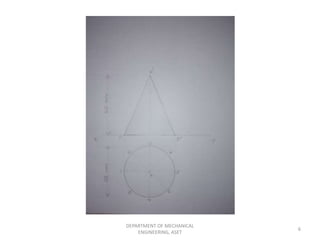

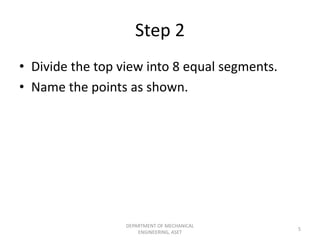

- 5. Step 2 • Dividethe top view into 8 equal segments. • Name the points as shown. DEPARTMENT OF MECHANICAL ENGINEERING, ASET 5
- 6.
- 7. Step 3 • Drawa line segment of length = O’ – 1’ with reference to front view. DEPARTMENT OF MECHANICAL ENGINEERING, ASET 7
- 8.

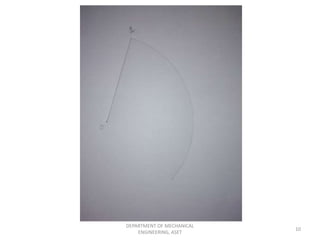

- 9. Step 4 • Drawan arc with radius = O – 1 i.e. length of line segment. DEPARTMENT OF MECHANICAL ENGINEERING, ASET 9
- 10.

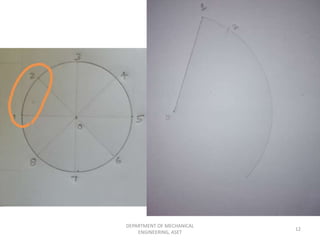

- 11. Step 5 • Nowthe arc is being segmented. • On the compass measure the distance of arc on the top view (1-2). • Cut the main arc with radius = 1-2 DEPARTMENT OF MECHANICAL ENGINEERING, ASET 11
- 12.

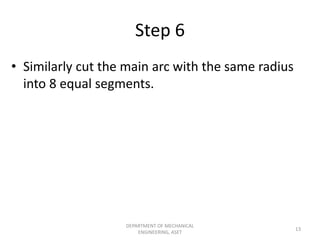

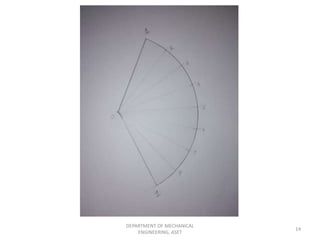

- 13. Step 6 • Similarlycut the main arc with the same radius into 8 equal segments. DEPARTMENT OF MECHANICAL ENGINEERING, ASET 13
- 14.

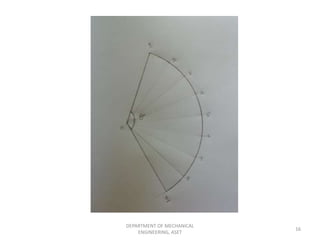

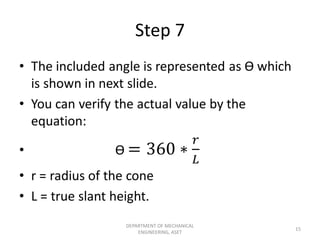

- 15. Step 7 DEPARTMENT OFMECHANICAL ENGINEERING, ASET 15
- 16.

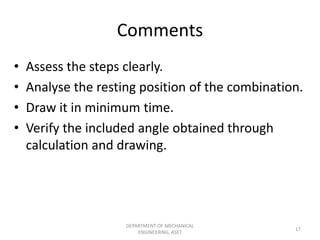

- 17. Comments • Assess thesteps clearly. • Analyse the resting position of the combination. • Draw it in minimum time. • Verify the included angle obtained through calculation and drawing. DEPARTMENT OF MECHANICAL ENGINEERING, ASET 17
- 18. • End ofpresentation… DEPARTMENT OF MECHANICAL ENGINEERING, ASET 18
