Codescience is a founding partner of the Salesforce Product Development Outsourcer program, specializing in building solutions on Salesforce's AppExchange. The document outlines the benefits and limitations of using platform events for event-based architecture, detailing the flexibility and decoupled integration it provides. Furthermore, it emphasizes design considerations to efficiently manage resources, event sizes, and error handling in an asynchronous environment.

2. Who is CodeScience?
● Founding partner of the Salesforce Product
Development Outsourcer (PDO) Program
● We partner with clients to build solutions on
the Salesforce AppExchange
● Named first Master PDO in 2017
● From design to build to implementation, we
support our clients through the full lifecycle

3. Client success: 300+ Builds

4. Today’s Presenter
Shazib Mahmood
Technical Architect
CodeScience

5. Agenda
● Introduction to Platform Events
● Benefits
● Limitations
● Design considerations

6. Introduction

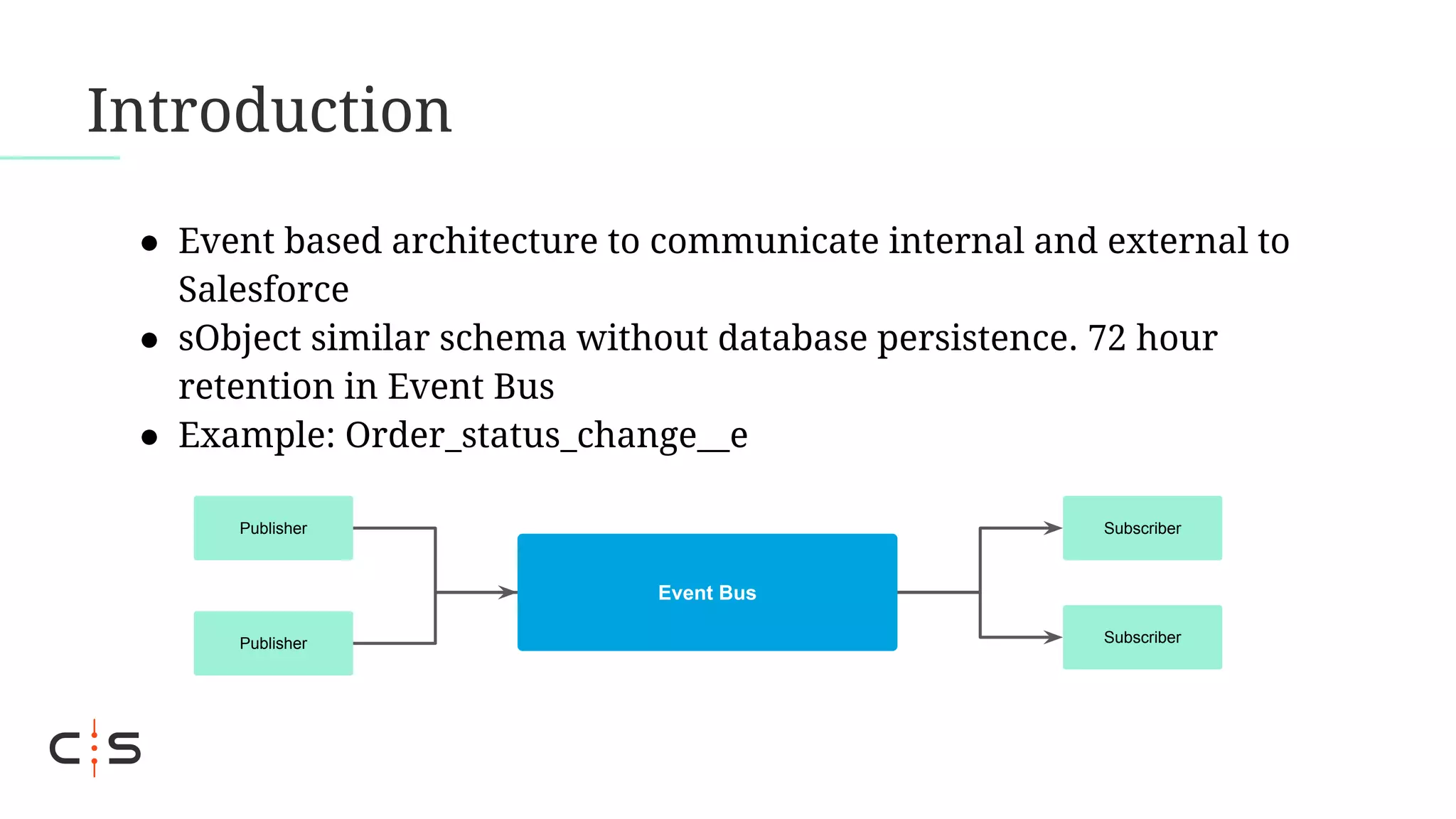

7. Introduction
● Event based architecture to communicate internal and external to
Salesforce
● sObject similar schema without database persistence. 72 hour
retention in Event Bus
● Example: Order_status_change__e
Event Bus
Publisher
Publisher
Subscriber
Subscriber

8. Introduction
● Publish via processes, flows, Apex or Salesforce APIs
● Subscriber via processes, flows, Apex triggers or CometD clients
● In comparison to other event messaging options such as Change
Data Capture or PushTopics:
○ Extensive publish/subscribe options
○ Flexible schema & transformation control

9. Benefits

10. Benefits
● Decoupled integration pattern that is consumer agnostic &
reusable. Minimize APIs calls by publishing to bus.
● Subscribe & publish via config based features as well, e.g.
processes & flows
● Pre-built connectors available with stream processing
middlewares, e.g Kafka, MuleSoft & Boomi

11. Benefits
● Asynchronous thread with additional controls as compared to
sObjects:
○ Set batch size of upto 2000 (via Metadata API)
○ Set running user (via Metadata API)
○ Set an Apex checkpoint for trigger resumption in case of error to
start a new trigger execution on remaining batch
○ Replay lost events from event bus (via CometD client)

12. Limits

13. Limits
● Supported editions - Professional (requires API add-on) & above
● CometD delivery limit
● CometD subscribers count Limit
● Definitions limit
● Event publish limit
● 1 MB Event message size limit
● Limited field types
● Details & more limits in Salesforce Guide for Platform Events

14. Design Considerations

15. Design Considerations
● Publish behavior - “Publish immediately” vs “Publish after
Commit”. Latter one waits for the transaction to finish & hence
supports rollback abilities.
● Use to communicate across packages
● Balance resource & limits consumption of an org, instead of
using all the async allowance, we can use platform event
allowance for applicable use cases

16. Design Considerations
● Be mindful of execution order - design so that automations
re-invocation do not create multiple events
● Monitor usage limits via Apex limits class & REST limits endpoint
● In external subscribers, build error handling capabilities to read
through Event bus with replayID

17. Design Considerations
● Limit number of fields & data to stay under 1MB message size
limit or keep a check, e.g. JSON serialize and check byte size
● Define number of platform events while balancing across limits:
■ Have specific definitions for each use case:
● Could hit the platform events max definitions limit
■ Have generic definitions to reuse for many use cases:
● Less granularity in what external subscriber receives,
potentially hitting the max delivery & subscribers limits

18. Mission:
Ensure that no company
navigates Salesforce alone

19. Thank you!
Questions? Feel free to contact us at info@codescience.com.
