The composite pattern allows objects to be composed into tree structures to represent part-whole hierarchies. It allows clients to treat individual objects and compositions uniformly. The pattern involves two class hierarchies - component and composite - where composite inherits component and contains child components. This allows clients to recursively traverse composite structures and treat individual objects and compositions uniformly. An example using a tree view in ASP.NET is provided to demonstrate how composite represents tree structures.

1. 1
Design Pattern –
Composite
Presented by Joncash
4/13/2012

2. 2

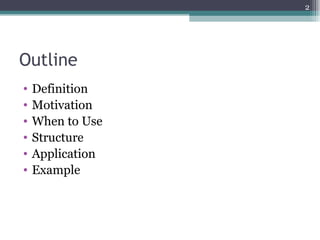

Outline
• Definition
• Motivation
• When to Use
• Structure
• Application
• Example

3. 3
Definition
• The composite pattern describes that a group of
objects are to be treated in the same way as a
single instance of an object.
• The intent of a composite is to "compose" objects
into tree structures to represent part-whole
hierarchies.

4. 4

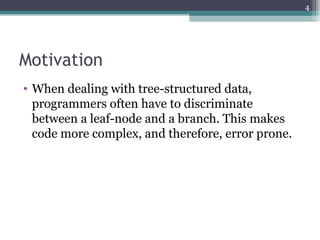

Motivation
• When dealing with tree-structured data,
programmers often have to discriminate
between a leaf-node and a branch. This makes
code more complex, and therefore, error prone.

5. 5
When to Use
• If programmers find that they are using multiple
objects in the same way, and often have nearly
identical code to handle each of them, then
composite is a good choice

6. 6

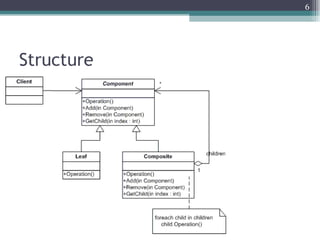

Structure

7. 7

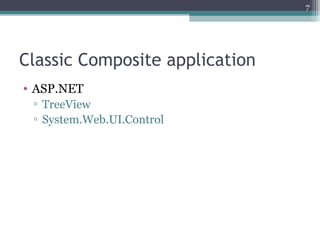

Classic Composite application
• ASP.NET
▫ TreeView
▫ System.Web.UI.Control

8. 8

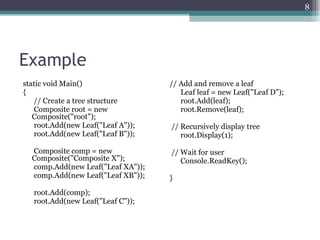

Example
static void Main() // Add and remove a leaf
{ Leaf leaf = new Leaf("Leaf D");
// Create a tree structure root.Add(leaf);
Composite root = new root.Remove(leaf);
Composite("root");
root.Add(new Leaf("Leaf A")); // Recursively display tree
root.Add(new Leaf("Leaf B")); root.Display(1);
Composite comp = new // Wait for user
Composite("Composite X"); Console.ReadKey();
comp.Add(new Leaf("Leaf XA"));
comp.Add(new Leaf("Leaf XB")); }
root.Add(comp);
root.Add(new Leaf("Leaf C"));

9. 9

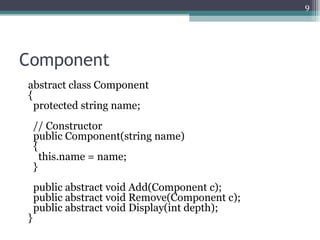

Component
abstract class Component
{
protected string name;
// Constructor
public Component(string name)
{
this.name = name;
}
public abstract void Add(Component c);
public abstract void Remove(Component c);
public abstract void Display(int depth);
}

10. 10

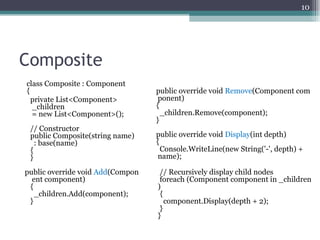

Composite
class Composite : Component
{ public override void Remove(Component com
private List<Component> ponent)
_children {
= new List<Component>(); _children.Remove(component);
}
// Constructor
public Composite(string name) public override void Display(int depth)
: base(name) {
{ Console.WriteLine(new String('-', depth) +
} name);
public override void Add(Compon // Recursively display child nodes
ent component) foreach (Component component in _children
{ )
_children.Add(component); {
} component.Display(depth + 2);
}
}

11. 11

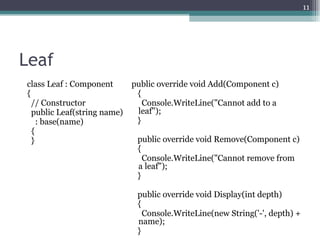

Leaf
class Leaf : Component public override void Add(Component c)
{ {
// Constructor Console.WriteLine("Cannot add to a
public Leaf(string name) leaf");
: base(name) }
{
} public override void Remove(Component c)
{
Console.WriteLine("Cannot remove from
a leaf");
}
public override void Display(int depth)
{
Console.WriteLine(new String('-', depth) +
name);
}

12. 12
Reference
• wiki/Composite_pattern
• dofactory.com/Patterns/PatternComposite
