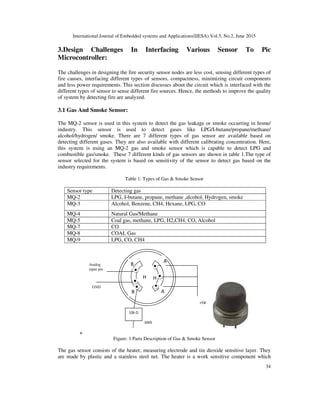

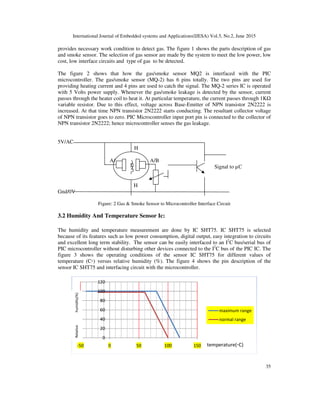

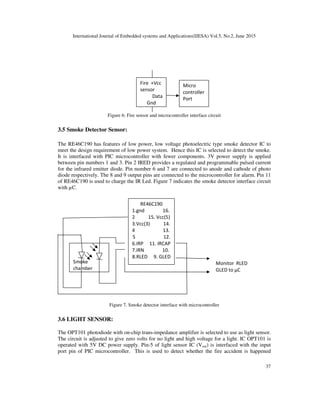

A design of simple hardware circuit with different kind of fire sensors enables every user to use this
wireless fire security system. The challenges in designing the nodes with various types of fire sensors are
discussed and the methods to overcome design problems are also analyzed. The circuit is interfaced with
the different types of sensor to sense different fire sources such as gas leakage, smoke, and heat. The cost,
circuit components, design requirements, power requirements of sensor node are minimized. The methods
to improve the quality of system to detect fire are analyzed. The system is fully controlled by the PIC
microcontroller.
The most well known reasons for building fires were from warming, electrical appropriation, and lighting frameworks. Chimneys utilized during the special seasons and colder months can make risks also. An alarm framework incorporates numerous segments and highlights to help keep you secured. It spares lives by notice building inhabitants of crises so they can escape risk. In case of a fire, they give discovery and warning without you busy. They can likewise consequently dispatch the local group of fire fighters to your area. At the point when an alarm is actuated, it supports your security and wellbeing during a hazardous occasion. A fire location framework utilizes a smoke alarm to distinguish a fire before it really begins. The point of the framework planned is to caution the removed land owner with proficiency and rapidly by causing short message SMS by means of GSM network. Sreejith S P | Kuldeep Baban Vayadande "Advanced Fire Monitoring System" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-5 | Issue-1 , December 2020, URL: https://www.ijtsrd.com/papers/ijtsrd37978.pdf Paper URL : https://www.ijtsrd.com/computer-science/artificial-intelligence/37978/advanced-fire-monitoring-system/sreejith-s-p
