1. SELECTION OF DENTURE BASE AND TEETHSELECTION OF DENTURE BASE AND TEETH
FOR REMOVABLE PARTIAL DENTUREFOR REMOVABLE PARTIAL DENTURE
INDIAN DENTAL ACADEMY
Leader in continuing dental education
www.indiandentalacademy.com
www.indiandentalacademy.com
2. • CONTENTS
Introduction
Definition
Functions of denture base
Ideal requirements of denture base materials .

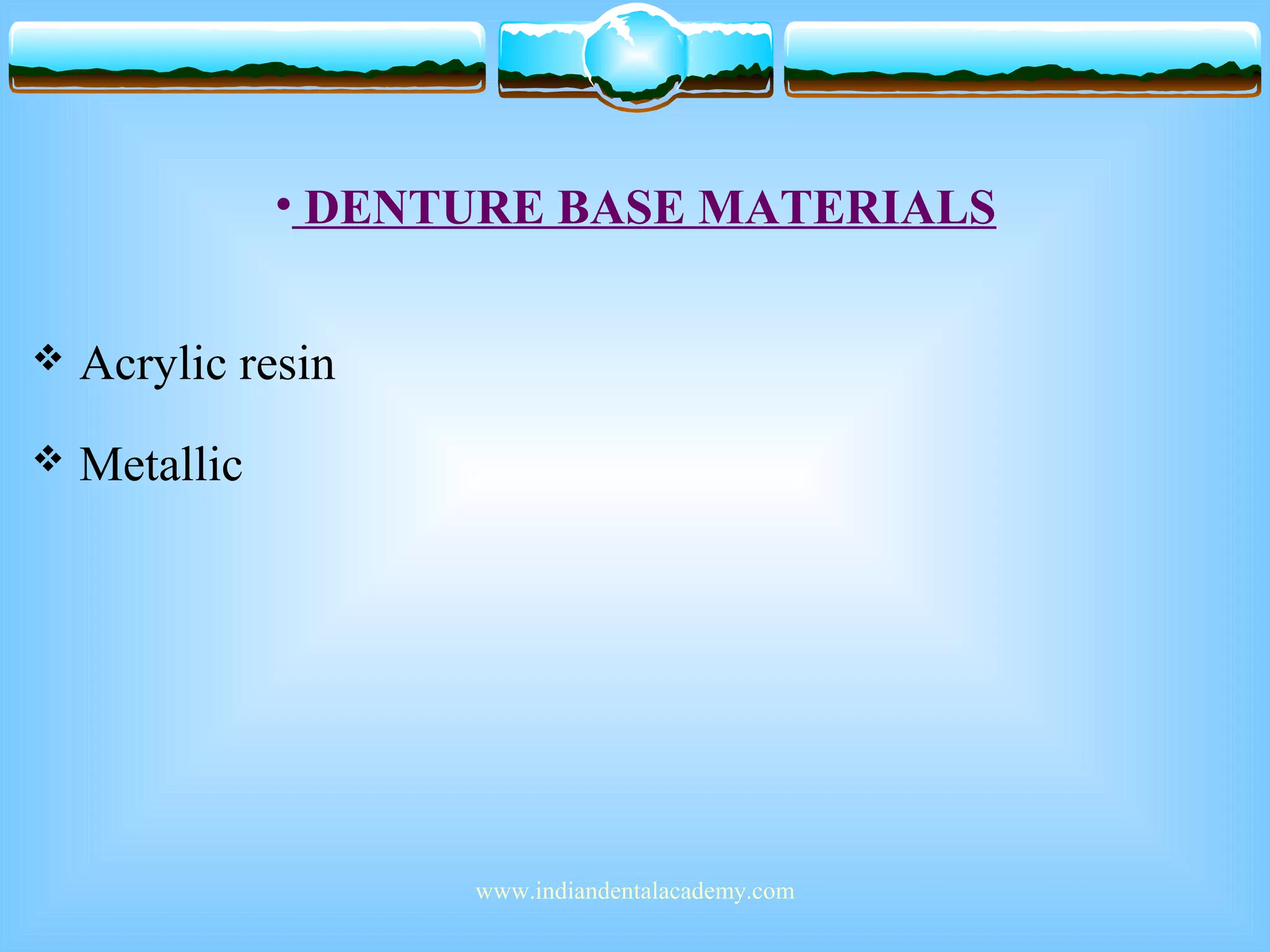

Denture base materials used in fabrication of RPD.
Denture Base resins.
Advantages & Disadvantages
Metallic denture base materials
Advantages & disadvantages
Fabrication of distal extension denture base
www.indiandentalacademy.com

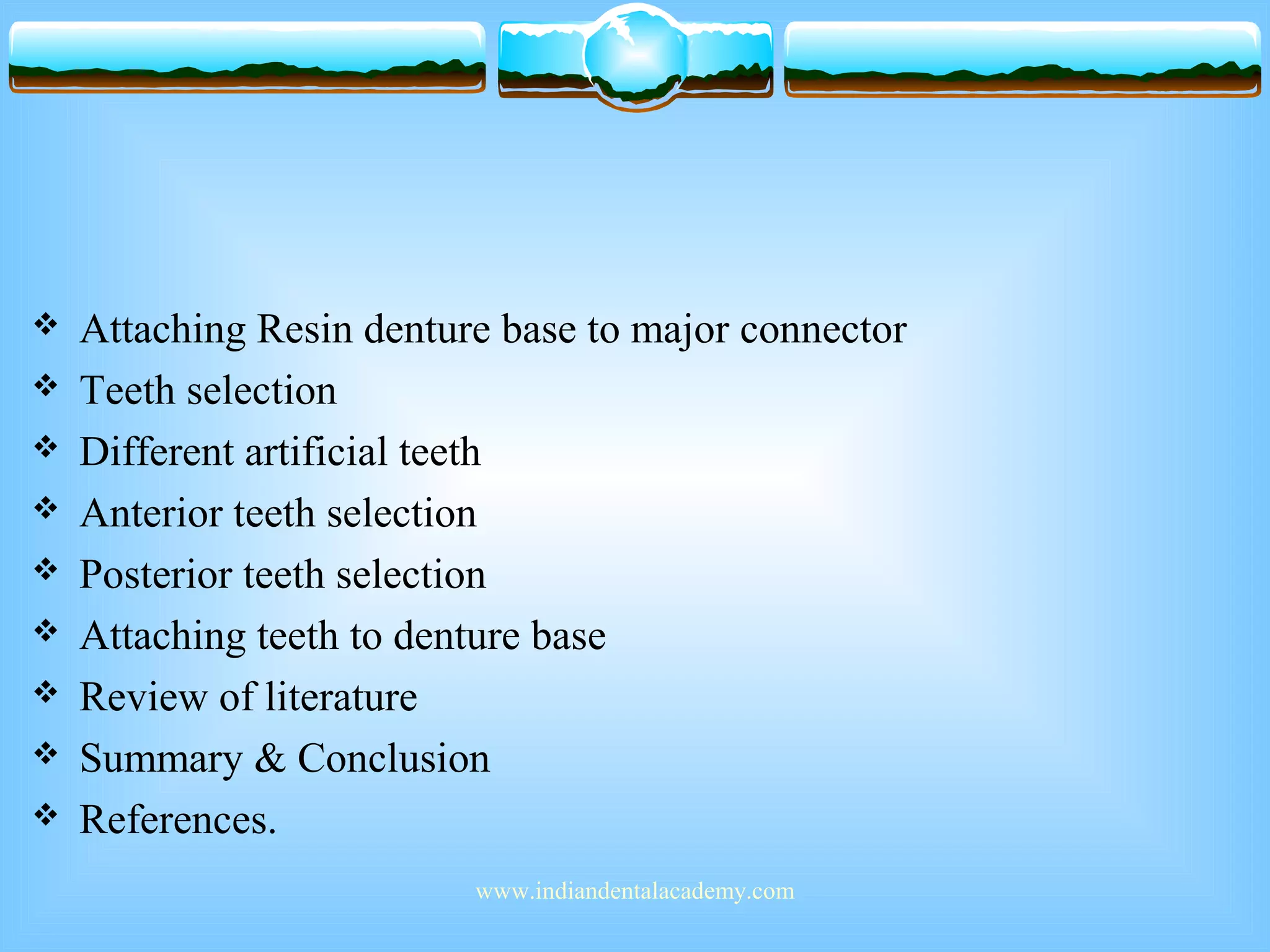

3. Attaching Resin denture base to major connector
Teeth selection
Different artificial teeth
Anterior teeth selection
Posterior teeth selection
Attaching teeth to denture base
Review of literature

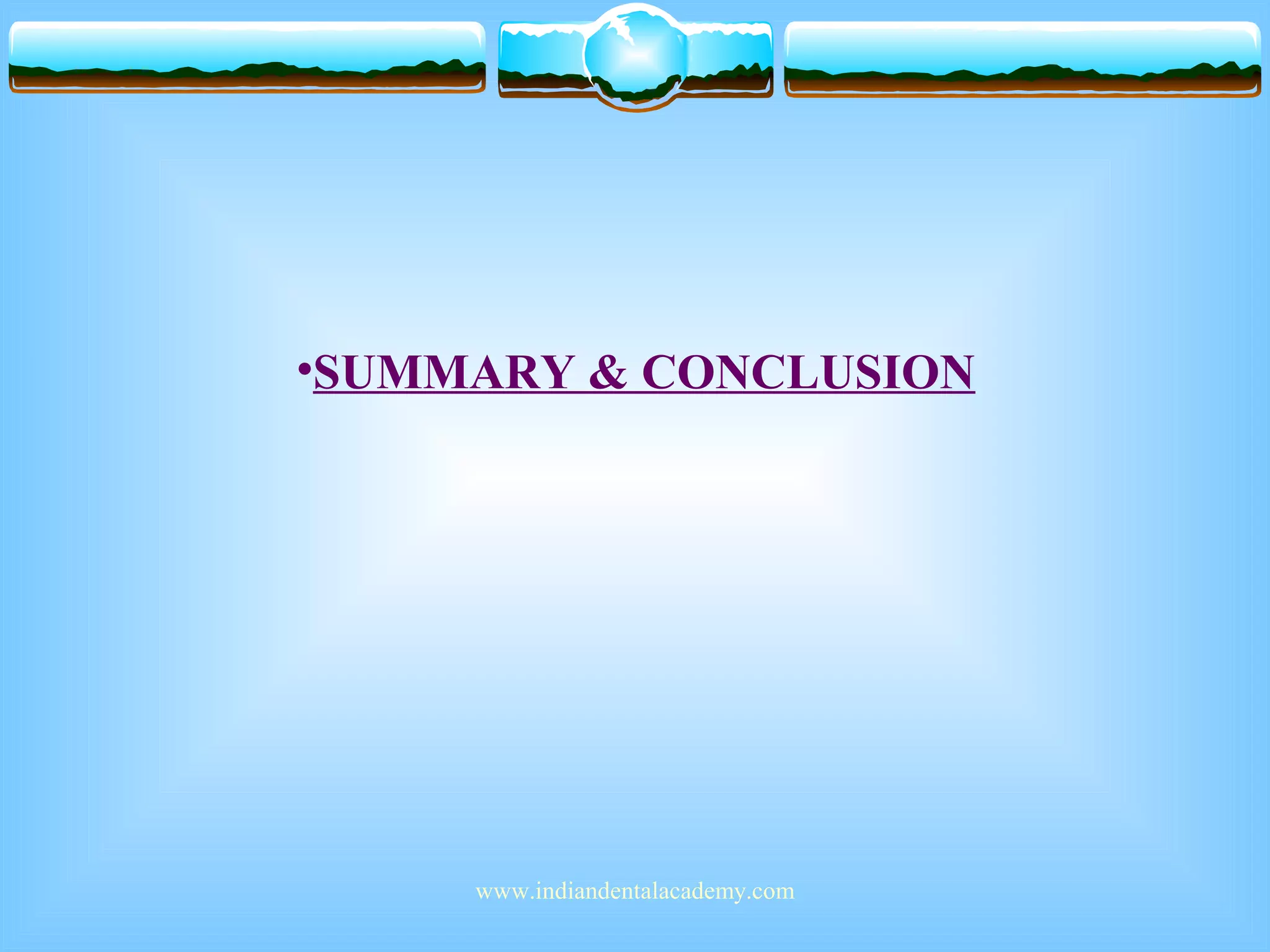

Summary & Conclusion

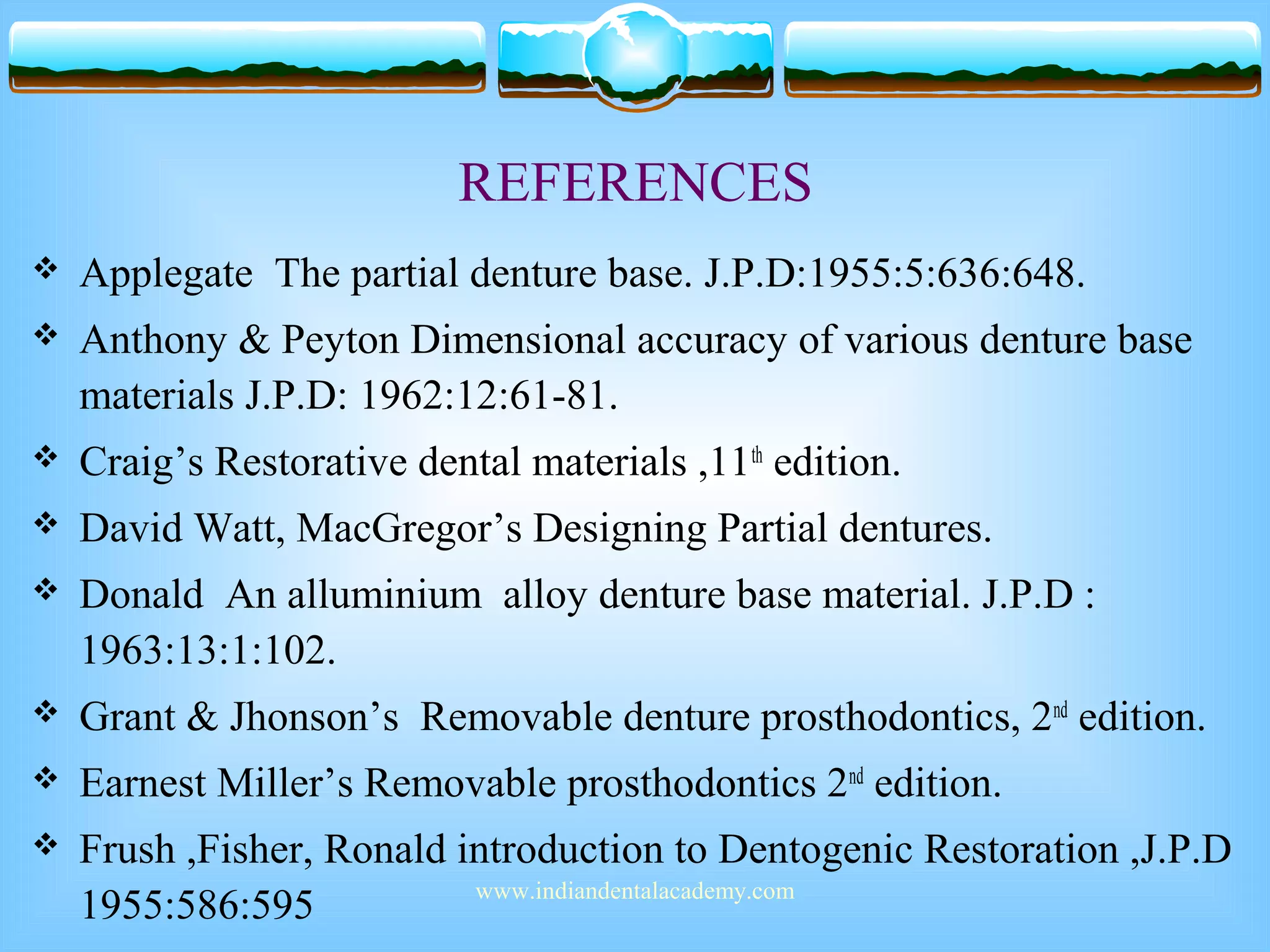

References.
www.indiandentalacademy.com
5. DENTURE BASE
The part of a denture that rests on the foundation
tissues and to which teeth are attached.
www.indiandentalacademy.com

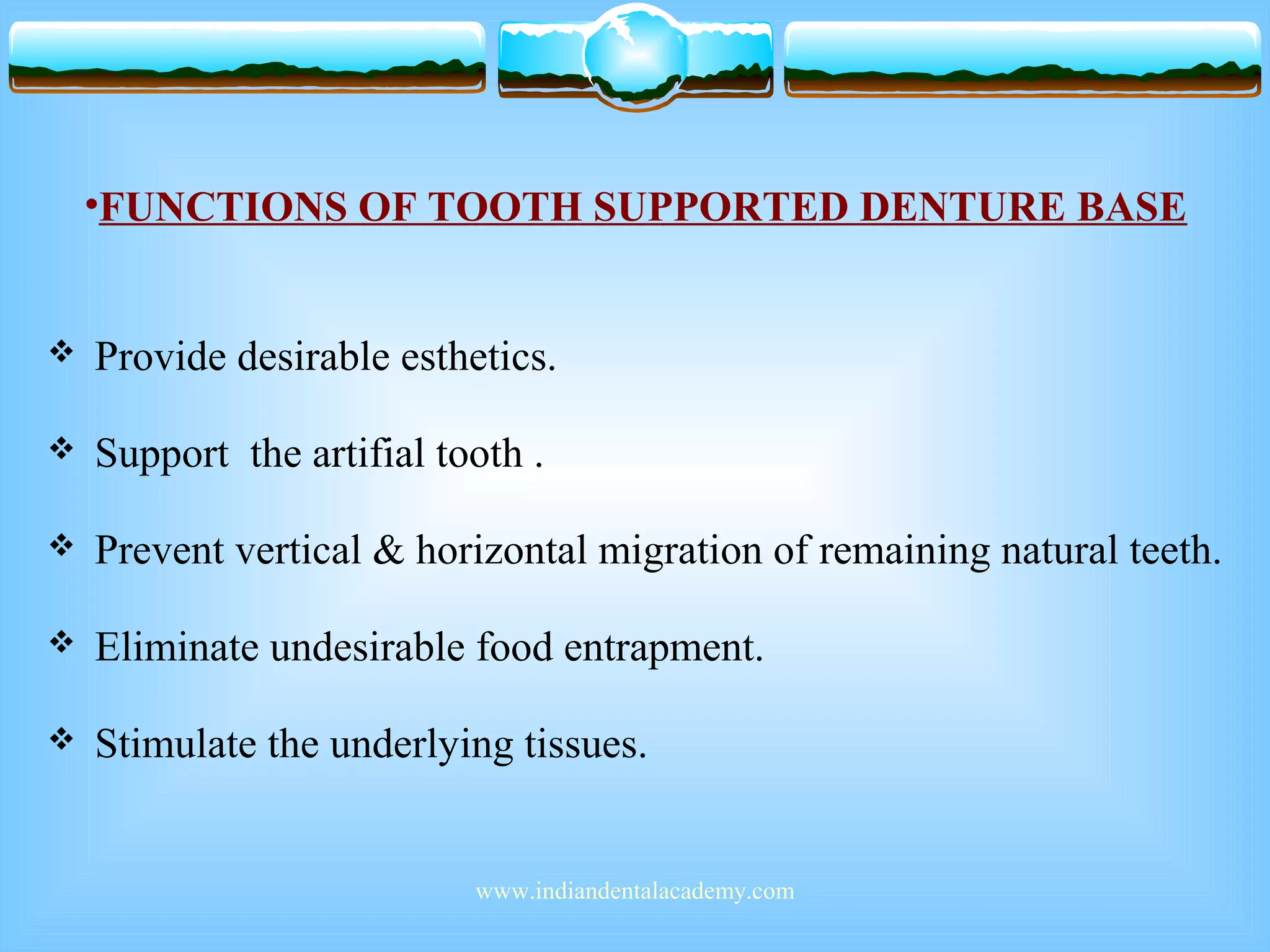

6. •FUNCTIONS OF TOOTH SUPPORTED DENTURE BASE
Provide desirable esthetics.
Support the artifial tooth .
Prevent vertical & horizontal migration of remaining natural teeth.
Eliminate undesirable food entrapment.
Stimulate the underlying tissues.
www.indiandentalacademy.com

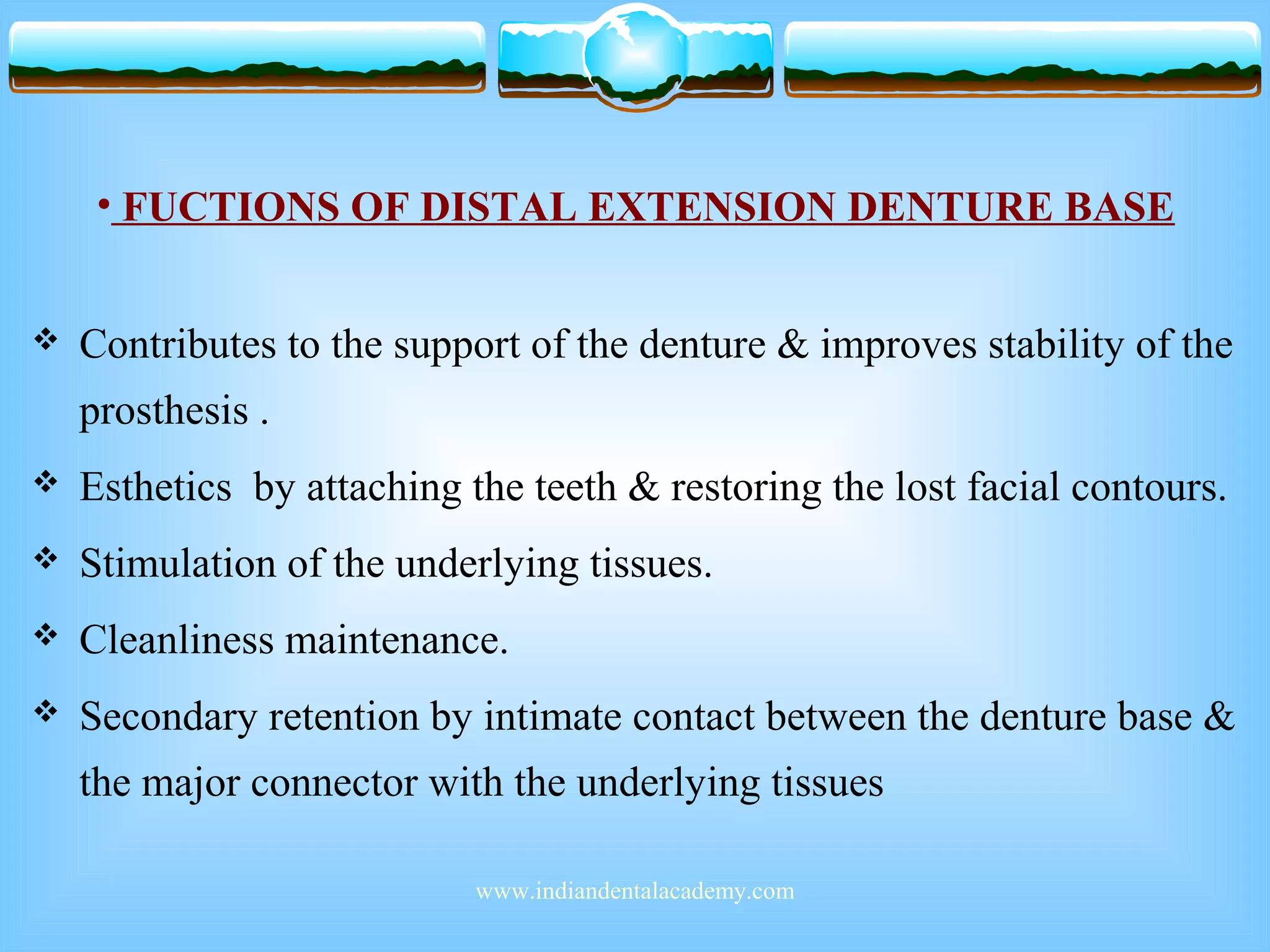

7. • FUCTIONS OF DISTAL EXTENSION DENTURE BASE
Contributes to the support of the denture & improves stability of the
prosthesis .
Esthetics by attaching the teeth & restoring the lost facial contours.
Stimulation of the underlying tissues.
Cleanliness maintenance.
Secondary retention by intimate contact between the denture base &
the major connector with the underlying tissues
www.indiandentalacademy.com
8. •IDEAL REQUIREMENTS OF
Bio- compatible.
Accurately adapt to the underlying tissues
Adequate Physical & Mechanical properties
-Sufficient strength to resist distortion & fracture
-Dimensional stability
-Low specific gravity,
-Good thermal conductivity
-Easy to finishing & polishing
-Should not absorb oral fluids
-In soluble in oral fluids.www.indiandentalacademy.com

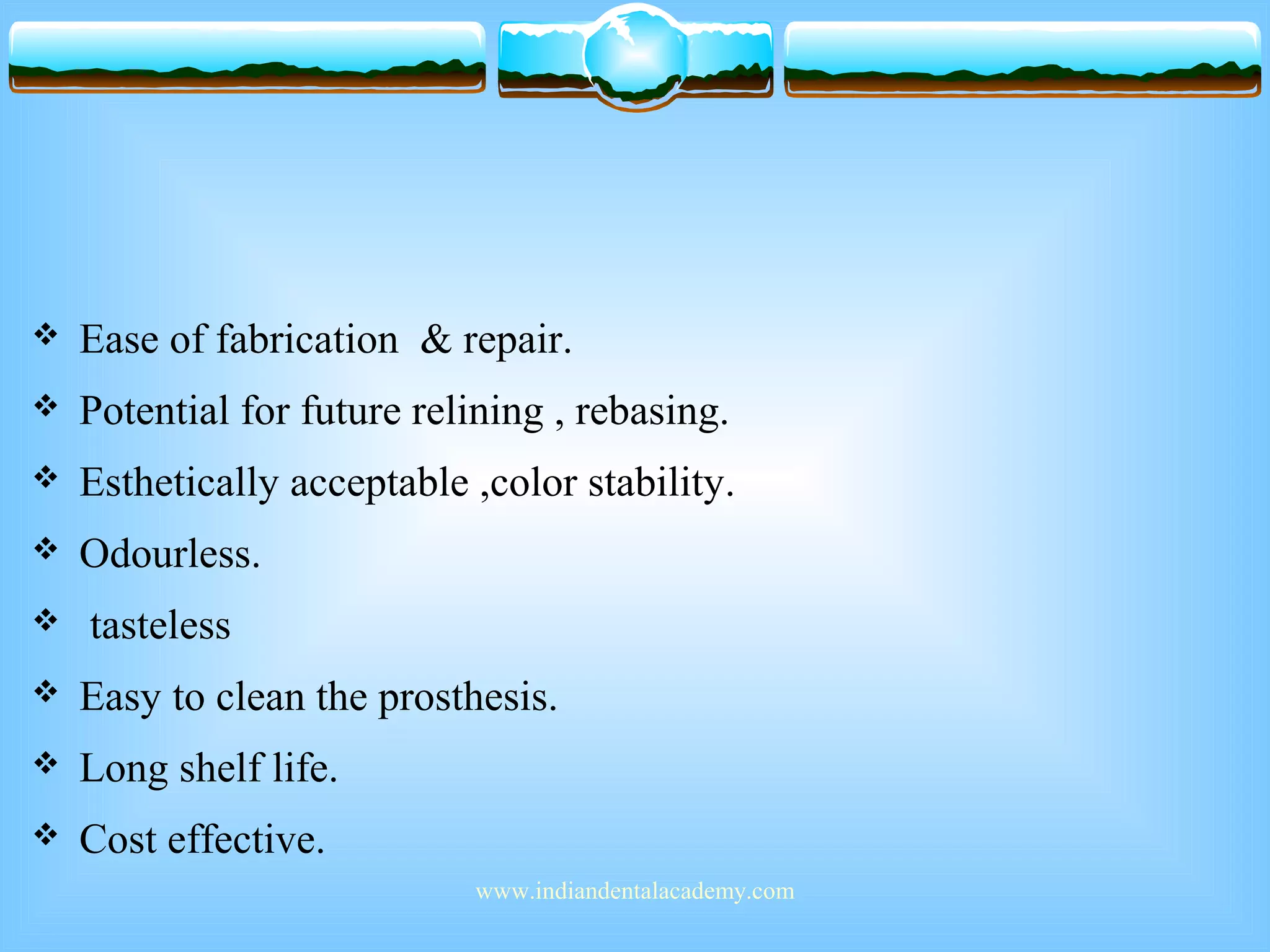

9. Ease of fabrication & repair.
Potential for future relining , rebasing.
Esthetically acceptable ,color stability.
Odourless.
tasteless
Easy to clean the prosthesis.
Long shelf life.
Cost effective.
www.indiandentalacademy.com
12. LIQUID
Non polymerized methyl
methacrylate
Inhibitor – Hydroquinone
0.003%-0.1%.
Cross linking agent – Glycol
dimethacrylate-1 to 2% by
volume.
www.indiandentalacademy.com
13. HIGH IMPACT STRENGTH
MATERIALS
Reinforced with butadiene styrene
rubber
The rubber particles are grafted to
methyl methacrylate to bond to the
acrylic matrix
POUR TYPE RESIN
Composition similar
particle size smaller www.indiandentalacademy.com
14. RAPID HEAT POLYMERIZED RESIN
Altered initiator system
LIGHT ACTIVATED
Urethane dimethacrylate matrix with acrylic copolymer
Microfine silica fillers
Photo initiator - Comphorquinone
Polymerized with a visible light of 400 to 500 nm
www.indiandentalacademy.com
15. FIBER –REINFORCED POLYMER
Glass, carbon/graphite, aramid and ultrahigh molecular wt
polyethylene have been used as fiber reinforcing agents.
Metal wires like graphite has minimal esthetic qualities.
Fibers are stronger than matrix polymer thus their inclusion
strengthens the composite structure.
The reinforcing agent can be in the form of unidirectional, straight
fiber or multidirectional weaves.
www.indiandentalacademy.com
16. •MECHANICAL PROPERTIES
PMMA&PVA posses adequate tensile & compressive strength .
Transverse strength is the combination of tensile & compressive
strength proportional limit, elastic modulus .
PVA has 7to 10%of Elongation ,is an indication of toughness &
permit larger deformation .
Proportional limit should be sufficiently high to withstand
masticatory forces.
www.indiandentalacademy.com
17. Impact strength –. Rubber reinforced acrylic more impact strength.
Rubber reinforced acrylic resin possesses adequate fatigue strength
to withstand the smaller cyclic stresses during mastication.
Fracture toughness of rapid heat cure resin is better than
conventional & high impact resin.
Hardness KHN of denture base acrylic is low so care should be
taken while polishing, cleaning.
www.indiandentalacademy.com
20. • ADVANTAGES
Easy adjust & polish.
Reling & rebasing is possible .
The weight & bulk is more than cast alloys.
Denture base contours for functional tongue & cheek movements.
In mandibular arch weight of the denture contributes for retention.
Esthetics, tinting..
Processing
Cost
www.indiandentalacademy.com
21. • DIS ADVANTAGES
Adaptation not as accurate as cast metal alloy.
Abrasion resistance..
Acrylic resin bases tend to accumulate mucinous deposits
So meticulous cleanliness maintenance required.
Thermal conductivity
Weight & Bulk
It should be min. 2mm in thickness to obtain adequate rigidity &
strength .
www.indiandentalacademy.com

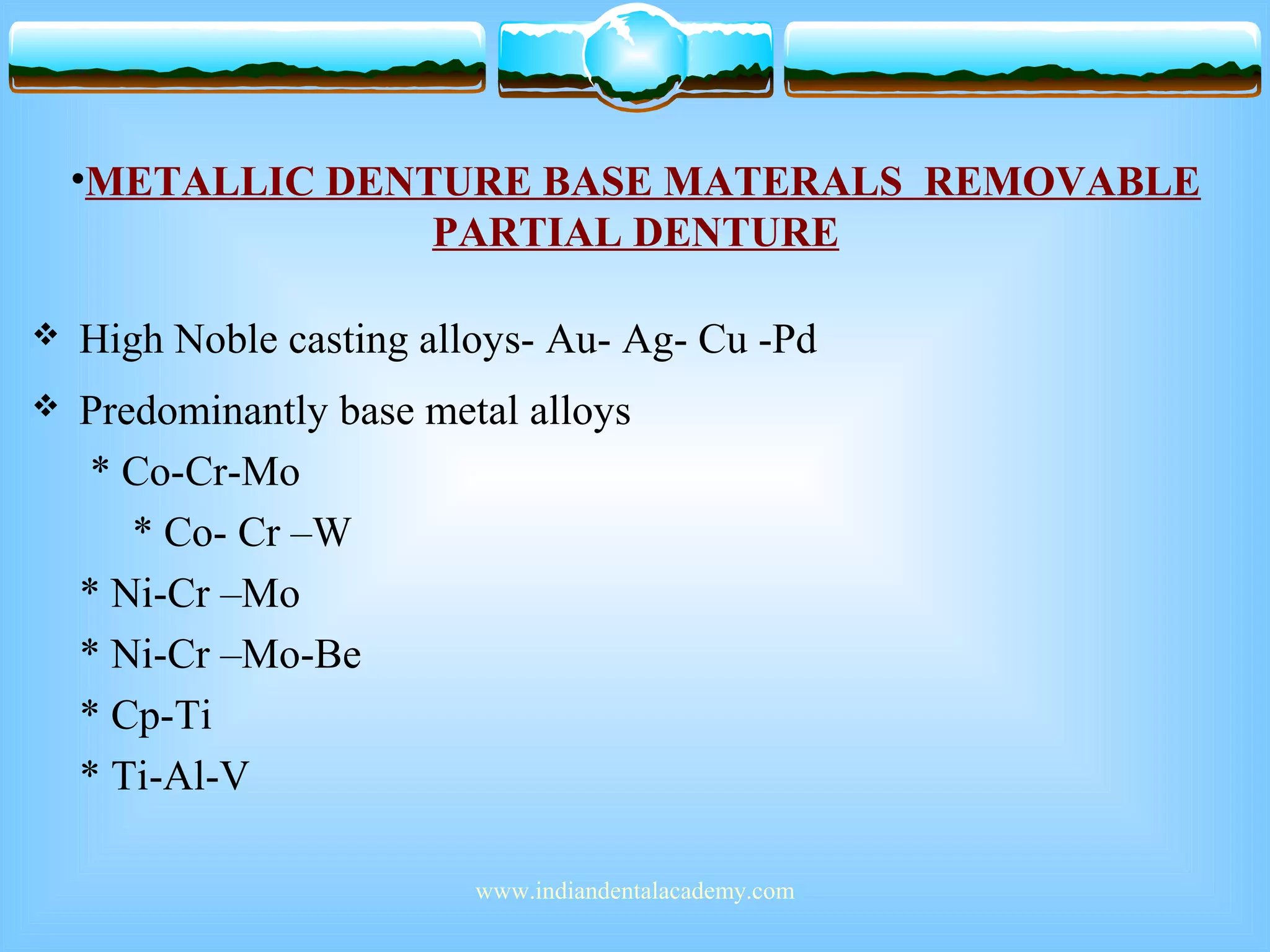

22. •METALLIC DENTURE BASE MATERALS REMOVABLE
PARTIAL DENTURE
High Noble casting alloys- Au- Ag- Cu -Pd
Predominantly base metal alloys
* Co-Cr-Mo
* Co- Cr –W
* Ni-Cr –Mo
* Ni-Cr –Mo-Be
* Cp-Ti
* Ti-Al-V
www.indiandentalacademy.com
23. •
As early as 1949 it was estimated that nearly 80% of all partial
denture appliances were cast from Co-Cr alloys.
Principle elements –Cr, Co, Ni -82 to 92%.
COMPO SITION :
COBALT-CHROMIUM -ALLOYS
- Cobalt- 60%
- Chromium -25% to 30%
OTHER COMPONENTS :
Mo,Al,W,Fe,Ga, Cu, Si, C, Pl.
www.indiandentalacademy.com
24. COBALT-CHROMIUM-NICKEL
- Co-50%
- Cr-25%
- Ni-19%
Other constituents
- Mo-3.7%
- C -0.2%
NICKEL CHROMIUM- MOLYBDENUM ALLOYS :
- Ni - 70%
- Cr - 16%
Other constituents
- Al –2%
- Be –0.5%
- Mo,W, Mg, Co, Si, C.www.indiandentalacademy.com
25. Chromium :
Tarnish and corrosion resistance and stain less properties.
Cobalt and nickel :
In general cobalt and nickel are interchangeable .
Cobalt increases the elastic modulus ,strength and hardness more
than Nickel does.
www.indiandentalacademy.com
26. OTHER ALLOYING COMPONENTS :
Carbon : increases the hardness of Co based alloys.
Molybdenum : (3% to 6% )
Contributes to the strength of the alloy.
Aluminium :
Forms a compound with Ni ,which increases the tensile and the
yield strength of the alloys.
www.indiandentalacademy.com
27. Berylium :
About 1% lowers the fusion temperature range of the alloy by about
100 degrees C.
Silicone and Manganese :
Increase the fluidity and castability of these alloys.
Nitrogen :
If present contributes to the brittle qualities of these alloys .
www.indiandentalacademy.com
28. •TITANIUM ALLOYS
High purity titanium (99 wt %) with O,C ,N,H atoms dissolved
interstitially.
It undergoes an allotropic transformation from hexagonal to body
centered crystal structure when the temperature is raised to 882 +/ -
2 degree.
4 types – Alpha
- Near alpha
-Alpha – Beta
-Beta
Cp Ti available in 4 different grades (ASTM)
www.indiandentalacademy.com
29. Titanium alloy- Ti- 6V – 4Al
Vanadium is the beta phase stabilizer with the BCC
structure.
Al alpha phase stabilizer
Most commonly used is alpha – beta alloy. [strength > Cp
Ti.]
www.indiandentalacademy.com
30. • TYPE IV GOLD ALLOY
Composition :
Au - 69%
Ag – 12.5%
Cu -10%
Pd – 3.5%
Pt – 3%
Zn,Sn,Fe,In, Ga for balace.
ALLUMINIUM ALLOY
Al – 99.95 wt %
Mg – 3.5%
www.indiandentalacademy.com
31. MECHANICAL PROPERTIES
Metal Type Yeild
Strength
(Mpa/Ksi)
Tensile
Strength
(Mpa/Ksi)
Elongation
(%)
Hardness
(HV)
Elastic Modulus
(GPa/Ksi x 103
)
Co- Cr (A ) 710/103 870/120 1.6 432 224/32.4
Ni – Cr (B) 690/100 800/116 3.8 300 182/26.4
Co – Cr – Ni
(c)
470/68 685/99 8.0 264 198/28.7
Fe – Cr ( D) 703/102 841/122 9 309 202/29.3
Type IV Gold 493/71.5 776/112 7 264 90/13
CP Ti 344/50 345/50 13 210 103/14.9
Ti – 6V- 4 Al 870/126 925/134 5 320 117/17www.indiandentalacademy.com

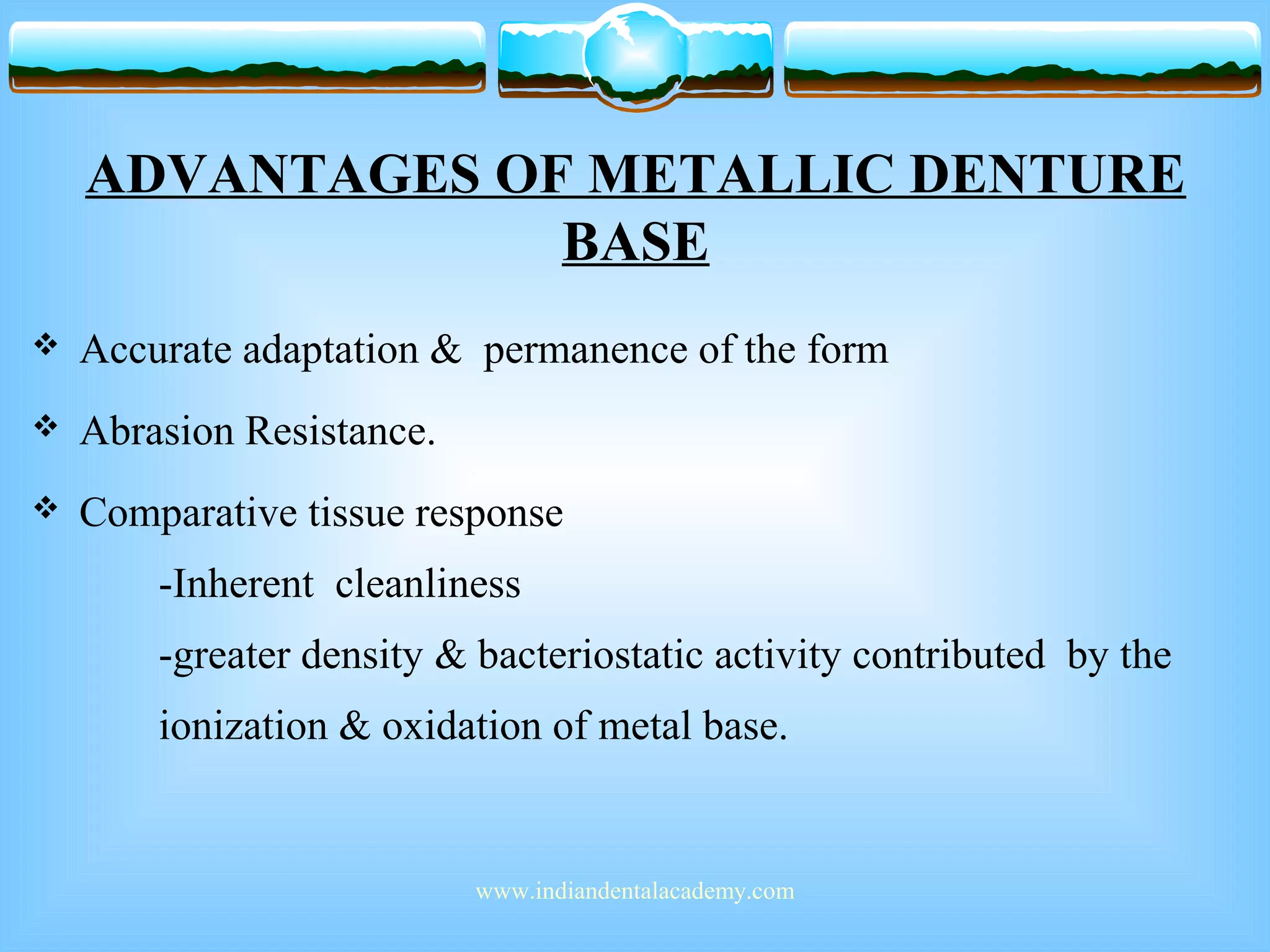

33. ADVANTAGES OF METALLIC DENTURE
BASE
Accurate adaptation & permanence of the form
Abrasion Resistance.
Comparative tissue response
-Inherent cleanliness
-greater density & bacteriostatic activity contributed by the
ionization & oxidation of metal base.
www.indiandentalacademy.com
34. Thermal conductivity .
Better patient acceptance.
Weight & Bulk
Metal alloys can be casted much thinner..
Maintains & prolongs the health of supporting tissues.
www.indiandentalacademy.com

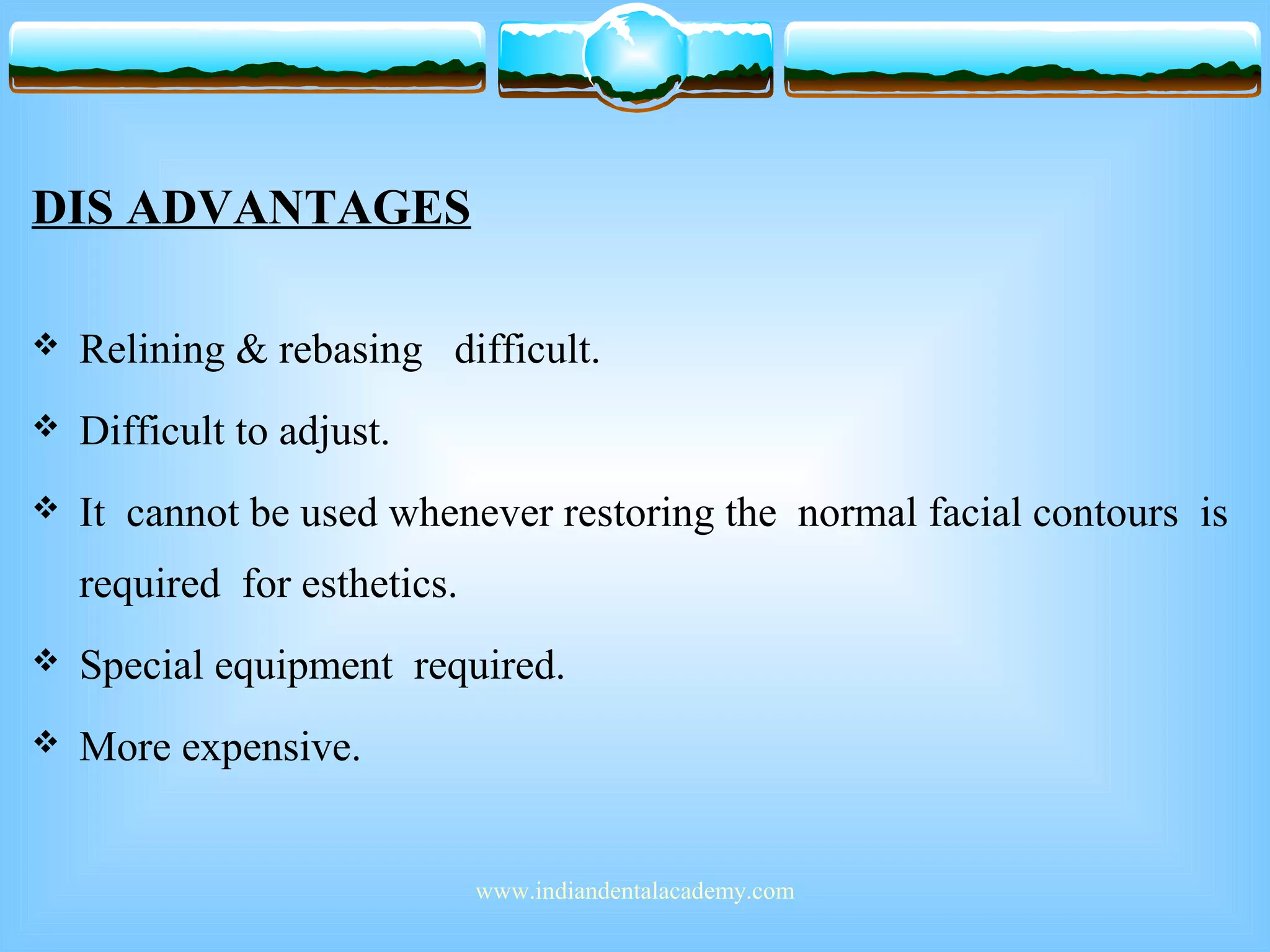

35. DIS ADVANTAGES
Relining & rebasing difficult.
Difficult to adjust.
It cannot be used whenever restoring the normal facial contours is
required for esthetics.
Special equipment required.
More expensive.
www.indiandentalacademy.com
36. INDICATIONS:
1) Risk of fracture of resin denture base.
2)RAR atrophy
2) More room for the tongue functioning is required.
3) Patient allergic to resin.
4) Satisfactorily healed ridges.
www.indiandentalacademy.com
37. • THE METAL- ACRYLIC RESIN BASE
Consists of cast metal base
that fits the RAR & acrylic
resin attached to it to retain
the teeth.
www.indiandentalacademy.com
38. •FABRICATION OF DENTURE BASE IN DISTAL
EXTENTION RPD
Distal extension RPD depends…
Extensions of the denture base
Kaire has shown that maximum coverage of denture
bearing areas with large wide denture base is of utmost
importance for with standing the vertical & horizontal
stresses.
www.indiandentalacademy.com
39. •SELECTIVE PRESSURE IMPRESSION METHOD
By this method the soft tisuses over the primary
supporting areas are recorded to provide support to the
denture base under functional load.
Denture base closely adapted in the region of buccal shelf
area .
lightly adapted to the crest of the ridge.
www.indiandentalacademy.com

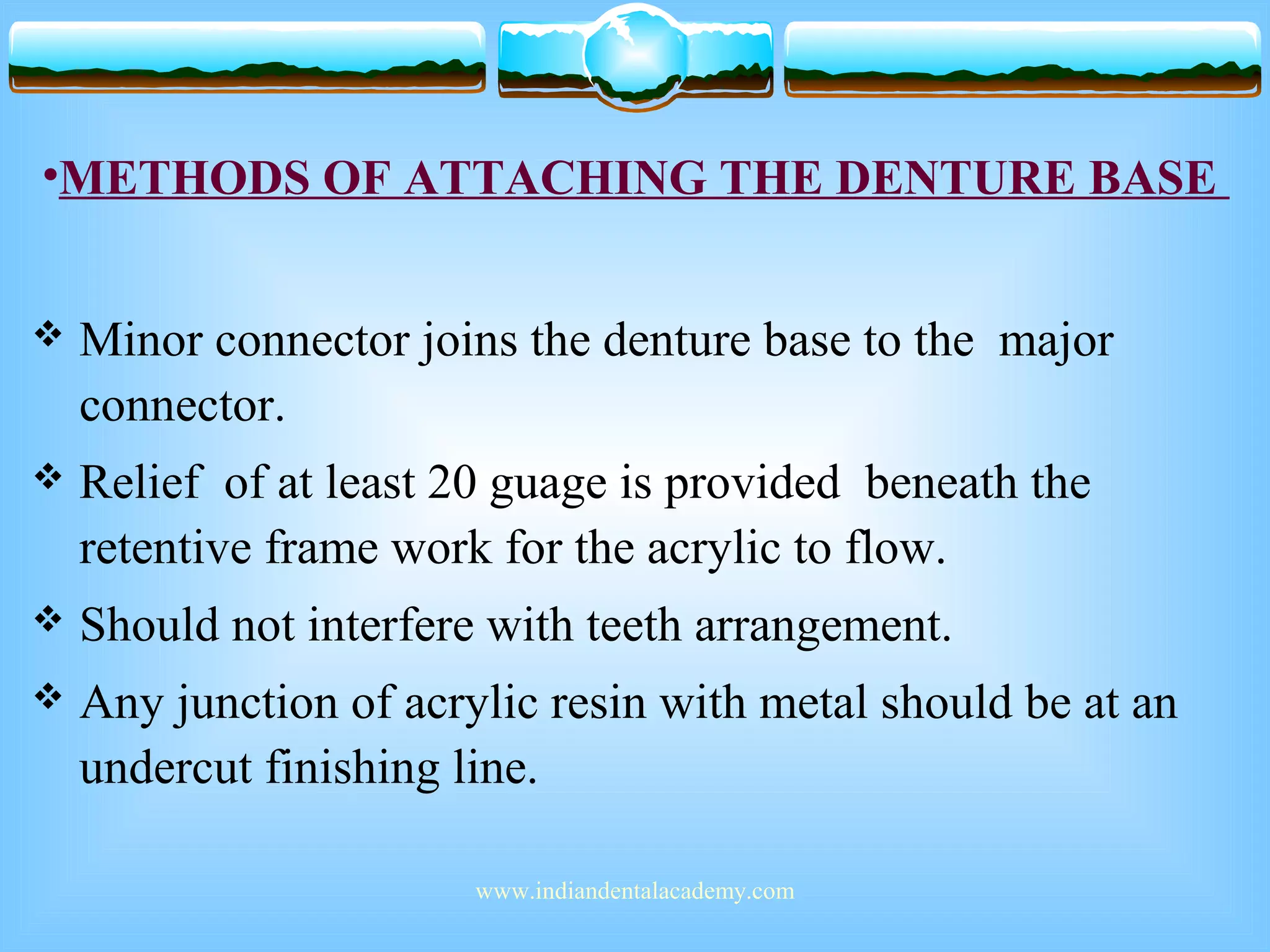

42. •METHODS OF ATTACHING THE DENTURE BASE
Minor connector joins the denture base to the major
connector.
Relief of at least 20 guage is provided beneath the
retentive frame work for the acrylic to flow.
Should not interfere with teeth arrangement.
Any junction of acrylic resin with metal should be at an
undercut finishing line.
www.indiandentalacademy.com
43. •TYPES OF MINOR CONNECTORS
1) Open construction
2) Mesh construction
3) Bead, nail head & wire
constructions
www.indiandentalacademy.com
44. CHEMICAL BONDING
Direct bonding of acrylic resin to metal framework.
Sections of metal frame work meant for supporting the
replacement teeth is roughened with abrasives & treated
with vaporized silica coating.
Acrylic bonding agent is applied.
Thin film of acrylic resin applied to act as substrate for
teeth replacement or acrylic resin tissues replacement
www.indiandentalacademy.com

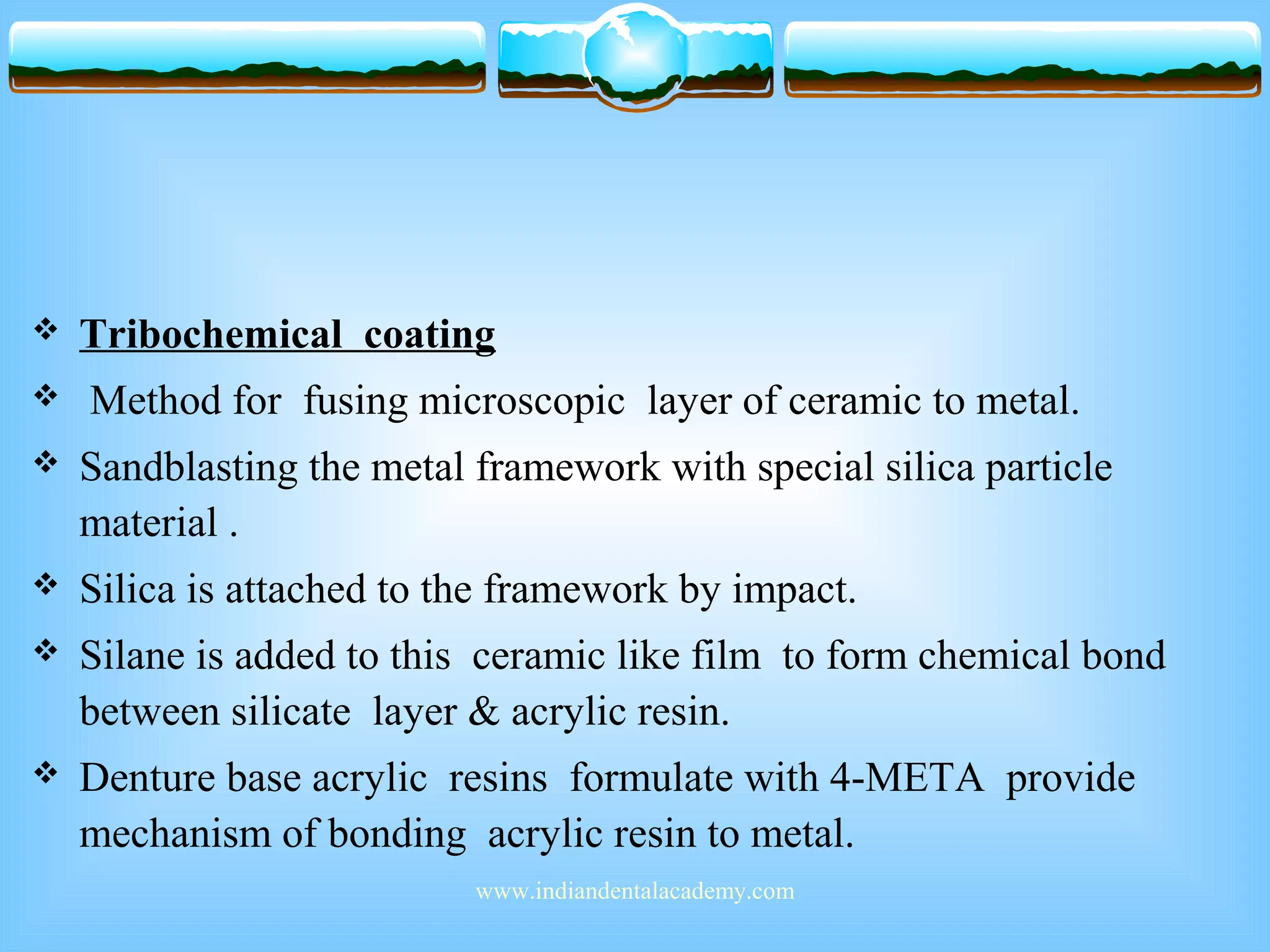

45. Tribochemical coating
Method for fusing microscopic layer of ceramic to metal.
Sandblasting the metal framework with special silica particle
material .
Silica is attached to the framework by impact.
Silane is added to this ceramic like film to form chemical bond
between silicate layer & acrylic resin.
Denture base acrylic resins formulate with 4-META provide
mechanism of bonding acrylic resin to metal.
www.indiandentalacademy.com
47. •SELECTION OF THE PROSTHETIC TEETH
Teeth replacement is important to reestablish the lost
facial contours, phonetics, masticatory function.
www.indiandentalacademy.com

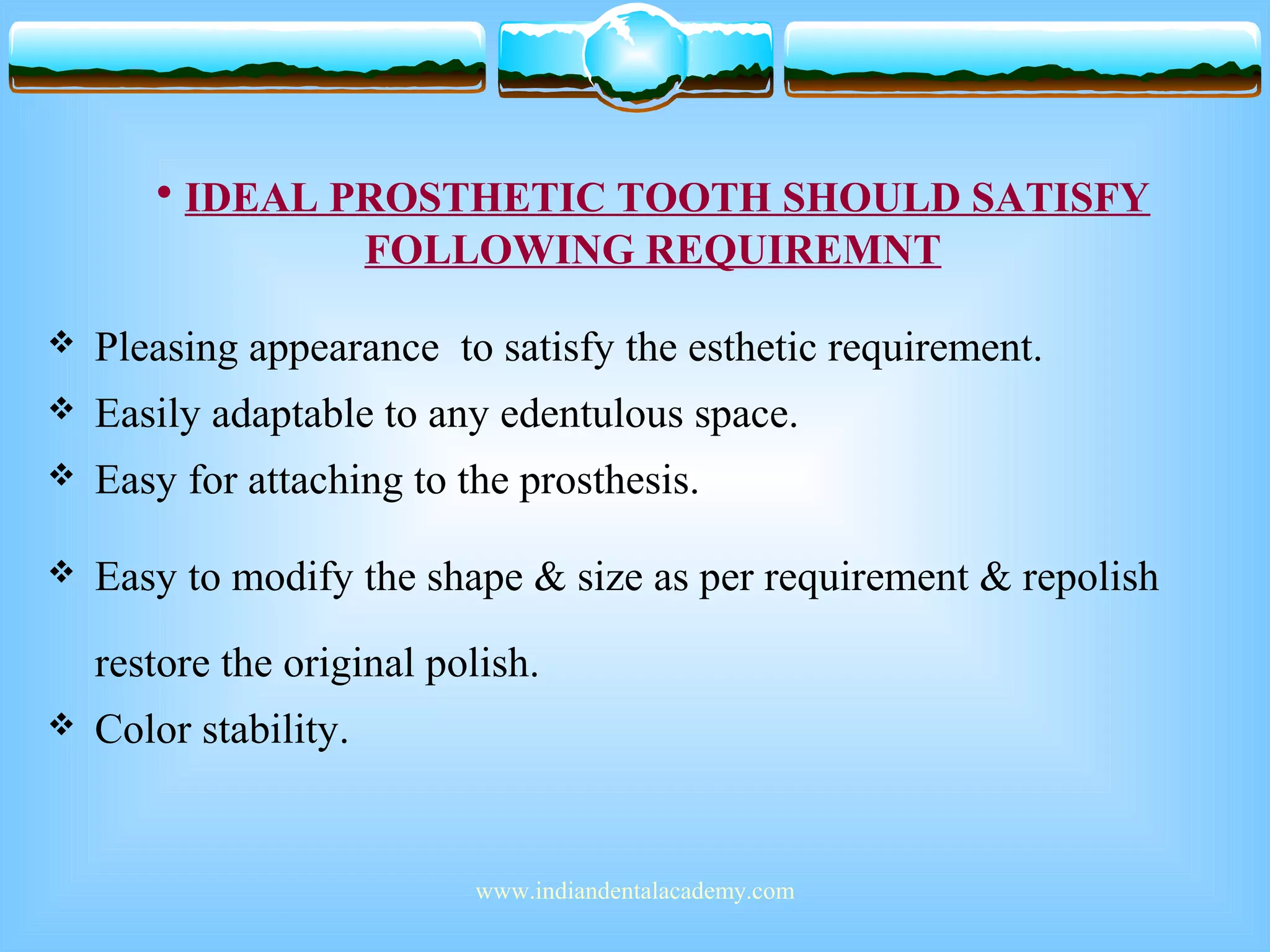

48. • IDEAL PROSTHETIC TOOTH SHOULD SATISFY
FOLLOWING REQUIREMNT
Pleasing appearance to satisfy the esthetic requirement.
Easily adaptable to any edentulous space.
Easy for attaching to the prosthesis.
Easy to modify the shape & size as per requirement & repolish
restore the original polish.
Color stability.
www.indiandentalacademy.com
49. Resistance to blanching, distortion ,crazing.
It should have enough strength to bear occlusal load.
Adequate resistance to wear.
Capable of articulating with teeth of any occlusal pattern or
material without causing adverse effect to either.
www.indiandentalacademy.com
50. • TYPE OF ARTIFICIAL TEETH
Acrylic resin teeth
Porcelain teeth
Metal tooth
Acrylic resin teeth with occlusal restorations
Custom denture tooth.
www.indiandentalacademy.com

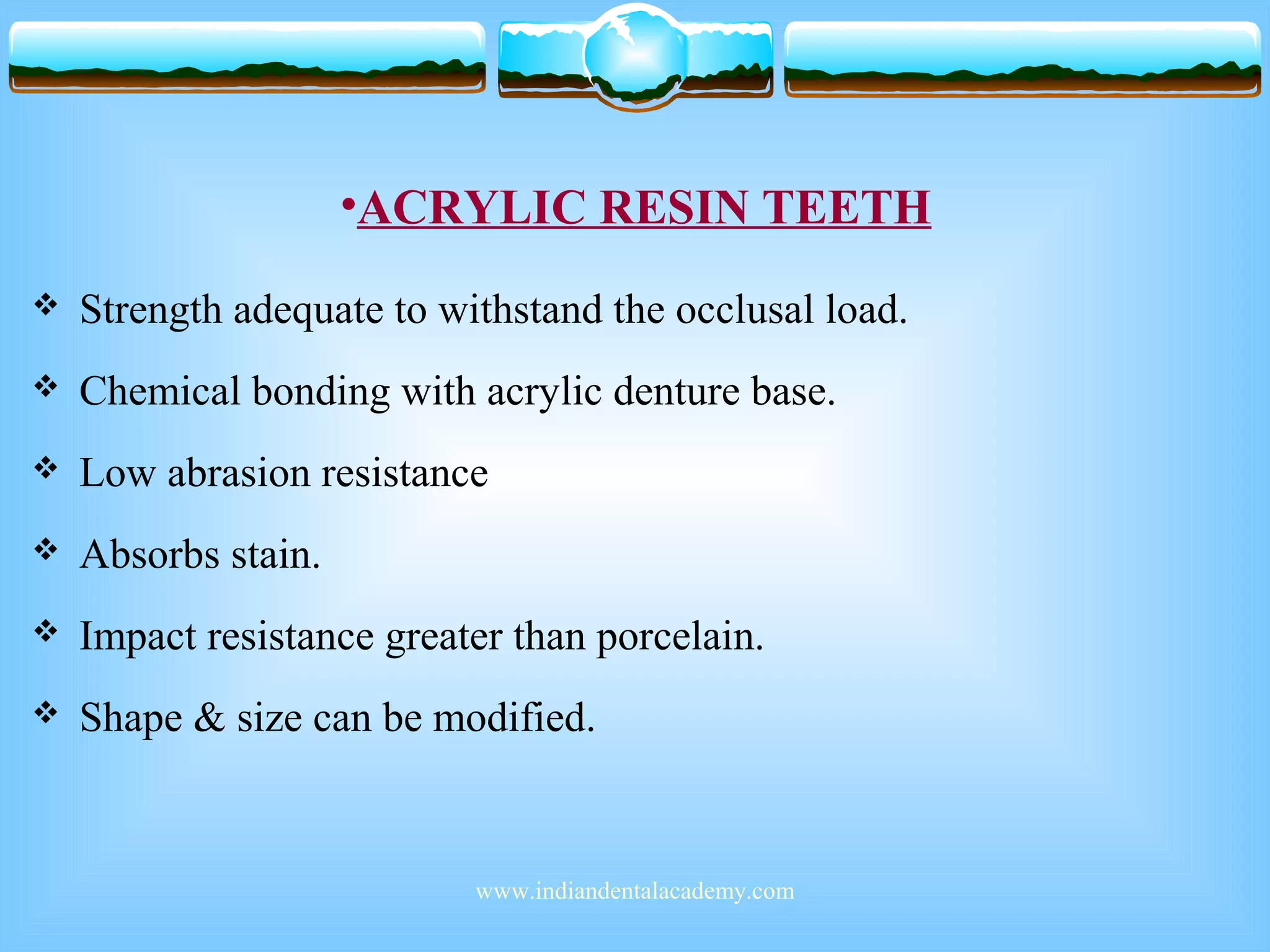

51. •ACRYLIC RESIN TEETH
Strength adequate to withstand the occlusal load.
Chemical bonding with acrylic denture base.
Low abrasion resistance
Absorbs stain.
Impact resistance greater than porcelain.
Shape & size can be modified.
www.indiandentalacademy.com
52. Easy to polish.
Dose not cause the wear of the opposing natural teeth or gold
restorations.
Low heat distortion temperature .
Cold flow or permanent deformation under pressure below their
elastic limit.
www.indiandentalacademy.com
54. • CHARECTERISTICS OF PORCELAIN TETH
More esthetics than acrylic resin teeth.
Strength more than acrylic teeth .
Brittle chips off or fractures easily
Good abrasion resistance
It can cause wear of the opposing natural teeth or gold restorations.
Impervious to stain.
www.indiandentalacademy.com
55. Clicking sound.
Difficult to trim & adjust so cannot be used in inadequate interarch
space.
Mechanical bonding with the acrylic denture base so percolation
may occur
High heat distortion temperature .
No permanent deformation under forces of mastication.
www.indiandentalacademy.com
56. • THE INTERCHANGEABLE FACING
It is a strongest type of anterior teeth replacements.
Indicated in
Single tooth replacements preferred especially in anterior region
In severely decreased inter ridge space.
- Deep bite.
- Bulbous alveolar ridge such that the retention latice work of
the metal frame work is restricted.
When more strength is required in anterior teeth replacement.
Sometimes used for replacing maxillary I premolar.
www.indiandentalacademy.com
57. Advantages
When contours of the RAR altered by resorption the
interchangeable facings can be refitted.
Disadvantages
Esthetically not good.
www.indiandentalacademy.com
59. •THE POST OR PRESSED ON TOOTH
Esthetics better than the Interchangeable facings.
Strength better than denture tooth but less than
interchangeable facing.
Requires adequate amount of interarch space .
Most commonly used to replace maxillary canine.
www.indiandentalacademy.com

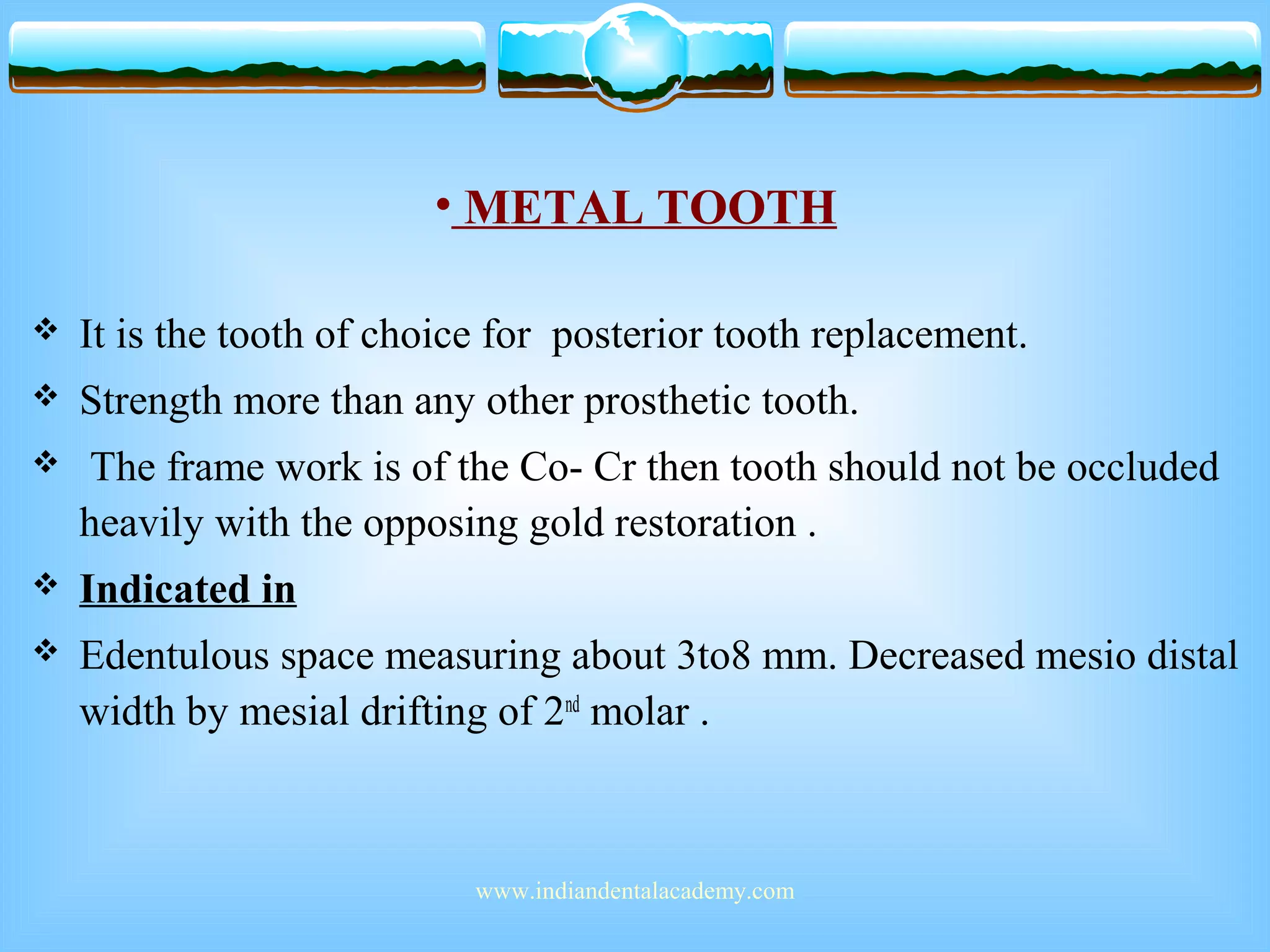

61. • METAL TOOTH
It is the tooth of choice for posterior tooth replacement.
Strength more than any other prosthetic tooth.
The frame work is of the Co- Cr then tooth should not be occluded
heavily with the opposing gold restoration .
Indicated in
Edentulous space measuring about 3to8 mm. Decreased mesio distal
width by mesial drifting of 2nd
molar .
www.indiandentalacademy.com
64. • THE SELF CLEANSING PONTIC
The self cleansing occlusal surfaces which
is an integral part of the metal frame work
thus the potential areas of food entrapment
are eliminated & permitting saliva to flow
under & around pontic.
Used to replace the single posterior tooth
with extensive alveolar ridge atrophy.
When the adjoining teeth have drifted ,
rotated.
www.indiandentalacademy.com
65. •SELECTION OF ANTERIOR TEETH FOR REMOVABLE
PARTIAL DENTURES
FACTORS TO BE CONSIERED
Size
Shape & form
Texture
Color
Material
www.indiandentalacademy.com

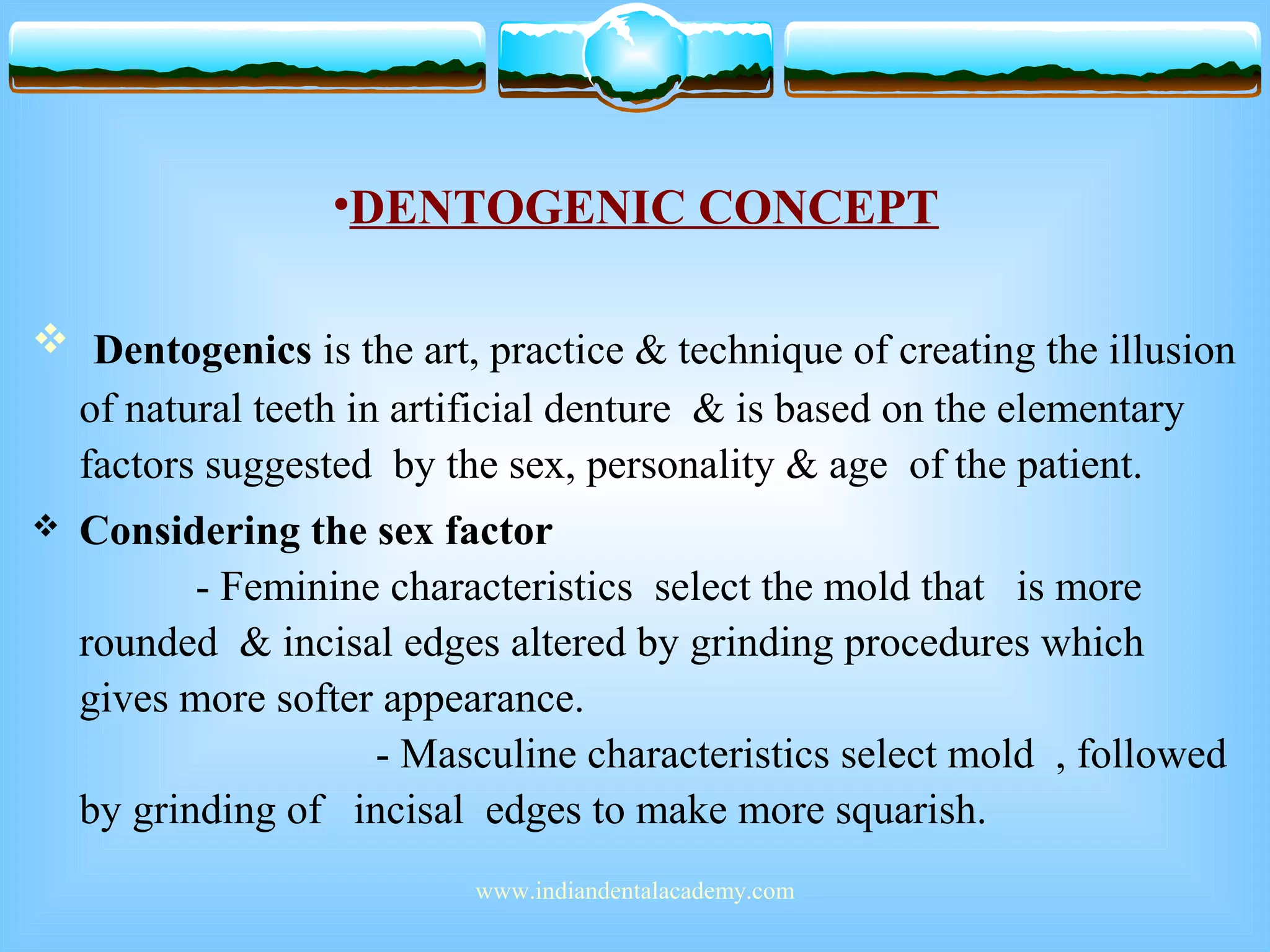

66. •DENTOGENIC CONCEPT
Dentogenics is the art, practice & technique of creating the illusion
of natural teeth in artificial denture & is based on the elementary
factors suggested by the sex, personality & age of the patient.
Considering the sex factor
- Feminine characteristics select the mold that is more
rounded & incisal edges altered by grinding procedures which
gives more softer appearance.
- Masculine characteristics select mold , followed
by grinding of incisal edges to make more squarish.
www.indiandentalacademy.com
67. Consideration of age factors in prostodontics is to maintain the
conformity between the restoration & patients physiological age.
As age advances natural teeth show wearing & similar aging effects
are produced in artificial teeth by characterization.
Considering the personality factors
Personality spectrum – Delicate, Medium pleasing , Vigorous .
The mold should be in harmony with the personality of the
individual.
Age, sex & personality are inseparable & interdependent.
www.indiandentalacademy.com

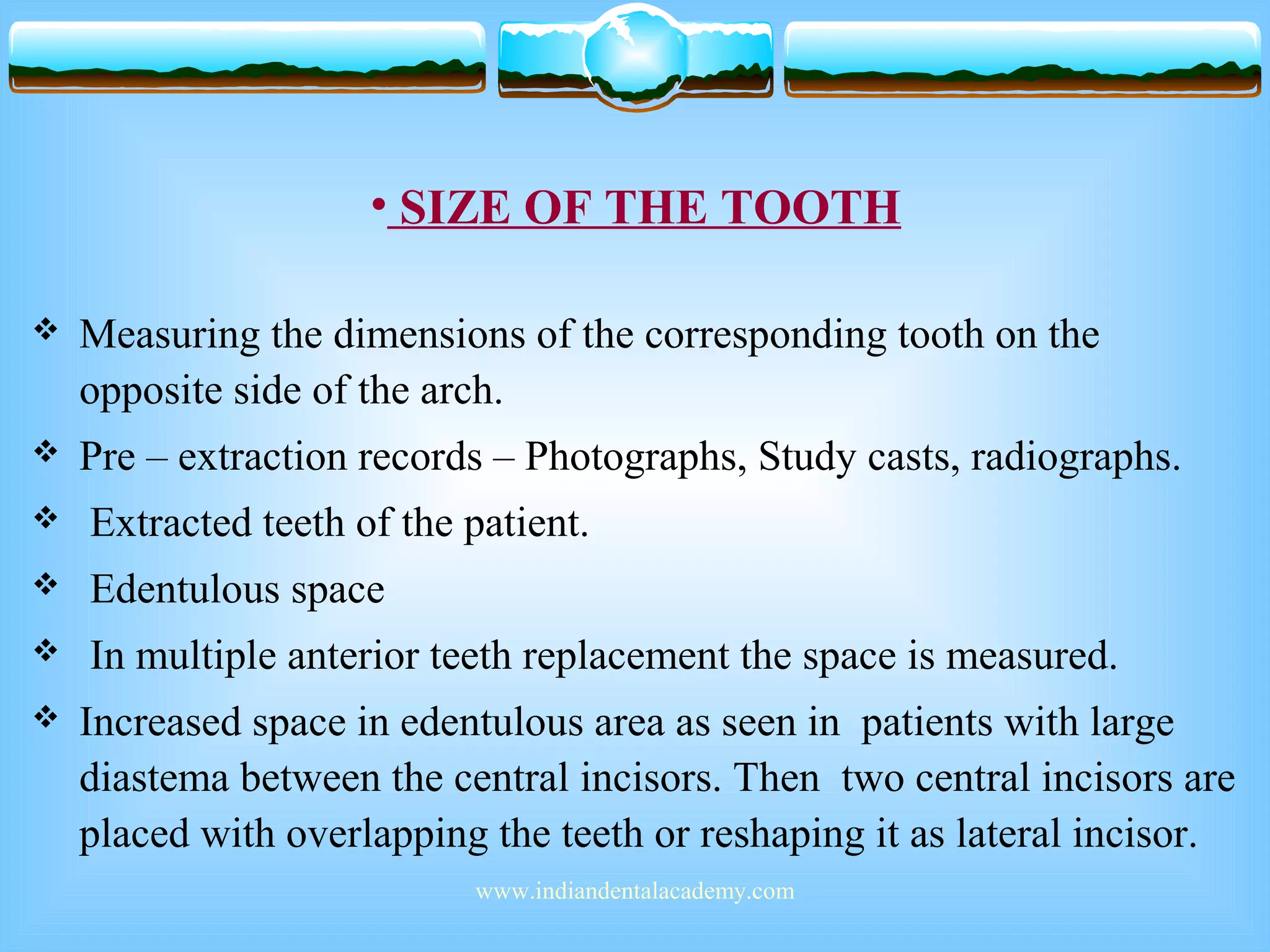

68. • SIZE OF THE TOOTH
Measuring the dimensions of the corresponding tooth on the
opposite side of the arch.
Pre – extraction records – Photographs, Study casts, radiographs.
Extracted teeth of the patient.
Edentulous space
In multiple anterior teeth replacement the space is measured.
Increased space in edentulous area as seen in patients with large
diastema between the central incisors. Then two central incisors are
placed with overlapping the teeth or reshaping it as lateral incisor.
www.indiandentalacademy.com

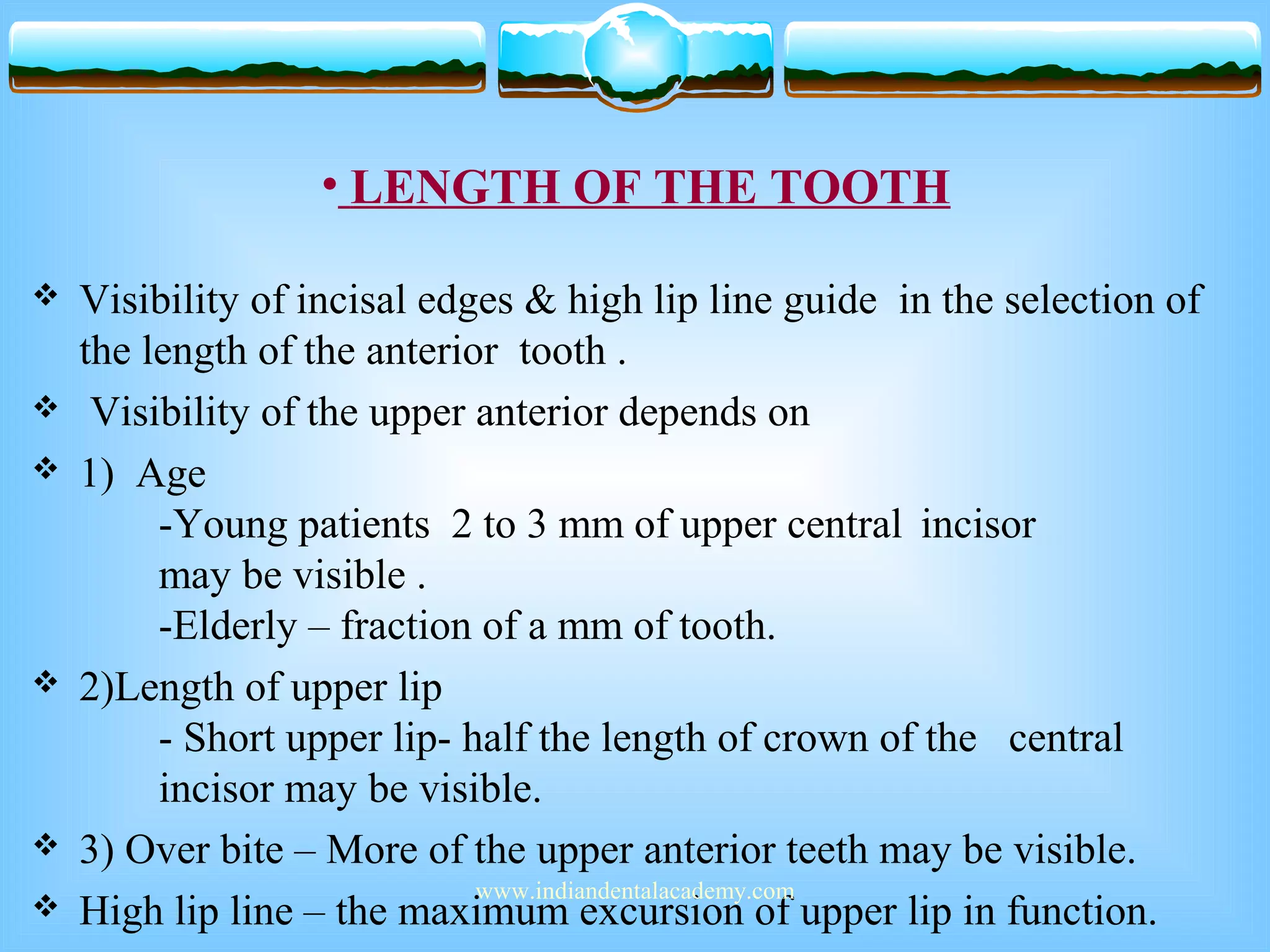

70. • LENGTH OF THE TOOTH
Visibility of incisal edges & high lip line guide in the selection of
the length of the anterior tooth .
Visibility of the upper anterior depends on
1) Age
-Young patients 2 to 3 mm of upper central incisor
may be visible .
-Elderly – fraction of a mm of tooth.
2)Length of upper lip
- Short upper lip- half the length of crown of the central
incisor may be visible.
3) Over bite – More of the upper anterior teeth may be visible.
High lip line – the maximum excursion of upper lip in function.
www.indiandentalacademy.com
71. Length of C.I = Chin to hair line distance / 16
By Dr. M.M.House
www.indiandentalacademy.com
72. • WIDTH
METHODS
1) Canine eminences
Line marked on the distal aspect of canine eminence on
the cast gives the mesio –distal width of upper anterior
teeth
2)Bizygomatic width
Breadth of all upper anterior teeth Bizygomatic width / 3.3
Width of
upper C.I = Bizygomatic width / 16
www.indiandentalacademy.com
74. 3) Cranial circumference
The horizontal circumference of the cranium about plane passing through
glabella & most prominent point on the occipital bone is said to be 10 times the
width of six anterior teeth
Corner of the mouth.
The distal surface of the natural upper canine is positioned at the corner of
relaxed mouth ..
Width of the nose
The parallel lines extended from the lateral surface of ala of nose onto the
properly contoured upper occlusal rim will give an indication of position of cusp
tip of upper canine teeth .
www.indiandentalacademy.com
76. Lateral surface of nose
The line passing from the lateral surface nose, through the center
brow line. Lateral aspect of ala & extended on to the occlusal rim ,
gives an indication of the position of distal aspect of canine tooth.
Incisive papilla
Line parallel to coronal plane & passing through the incisive
papilla passes through the cusp tips of cuspid.
www.indiandentalacademy.com
78. • SHAPE OF THE TEETH
The shape of the teeth should be in
harmony with the patients face.
J. Leon Williams – the shape of crown
of upper central incisor corresponded to
the outline form of the face.
Classified Face form
– Square
_Tapering
_Ovoid
www.indiandentalacademy.com
80. • SHADE SELECTION
Artificial tooth shades should be selected according to the
physiological color changes seen in progressively aging ,
undiseased tooth.
Methods
- The tentative selection of the anterior teeth is arranged on a
plastic tooth selector & held on the side of the patient’s face
-Under the lip with more exposed tooth to observe the size in
relation to the patient’s face.
-The ‘ SQUINT TEST’.
www.indiandentalacademy.com
82. •TEXTURE OF THE TOOTH
The artificial teeth should incorporate the features like
imbrication lines, wear facets, hypoplastic areas to
harmonize with the adjacent natural teeth.
www.indiandentalacademy.com
83. SELECTION OF THE POSTERIOR TEETH
The form of the posterior teeth is important for the
preservation & maintenance of the health of the
residual alveolar ridges.
www.indiandentalacademy.com
84. SIZE:
MESIODISAL DIMENSION :
In tooth supported RPD the space between the distal surface of
mesial abutment & mesial surface of the distal abutment teeth
should be considered.
In distal extension RPD the space between the canine & the
anterior end of the retromolar pad is considered.
OCCLSOGINGIVAL DIMENSION:
Available inter arch space determines the length.
Esthetics should be in harmony with adjacent natural teeth.
www.indiandentalacademy.com

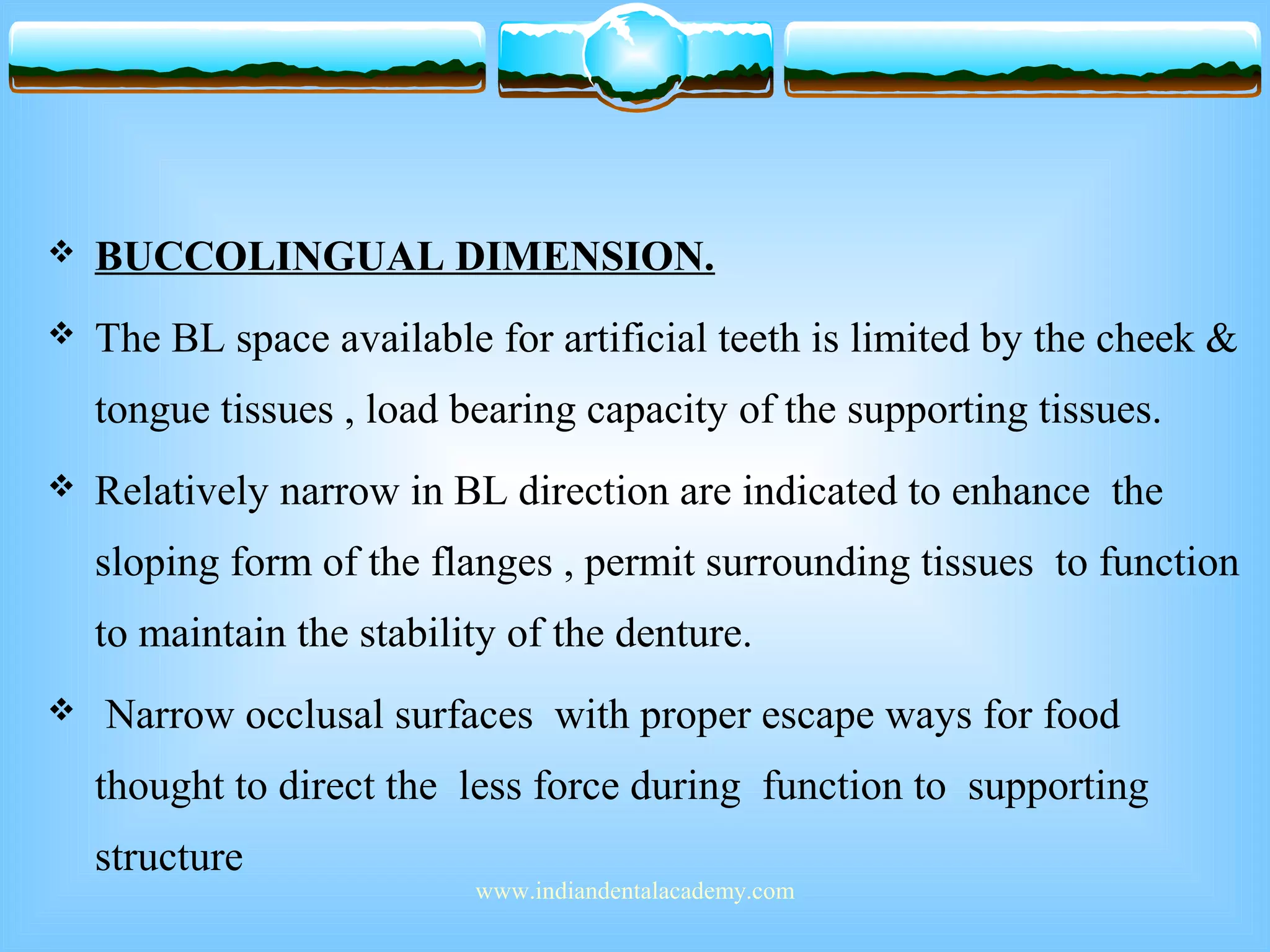

85. BUCCOLINGUAL DIMENSION.
The BL space available for artificial teeth is limited by the cheek &
tongue tissues , load bearing capacity of the supporting tissues.
Relatively narrow in BL direction are indicated to enhance the
sloping form of the flanges , permit surrounding tissues to function
to maintain the stability of the denture.
Narrow occlusal surfaces with proper escape ways for food
thought to direct the less force during function to supporting
structure
www.indiandentalacademy.com
86. •FORM OF POSTRIOR TEEH
Determined by the cuspal inclines & arrangement of remaining
natural teeth.
Deep over bite cases the high cusped teeth should be used to
achieve occlusal balance.
In RAR atrophy the non anatomic teeth are used .
www.indiandentalacademy.com
87. SHADE SELECTION
In harmony with the remaining natural teeth .
www.indiandentalacademy.com
88. METHODS OF ATTACHING THE ARTIFICIAL
TEETH TO THE DENTURE BASE
www.indiandentalacademy.com
89. Porcelain or Resin tube teeth & Facings cemented
directly to Metal Bases
Teeth are altered & set prior to
completion of frame work.
Disadvantages
Difficulty in obtaining the satisfactory
occlusion.
Lack of adequate contours for
functional tongue & cheek contact.
Unaesthetic display of metal at the
gingival margin.
www.indiandentalacademy.com

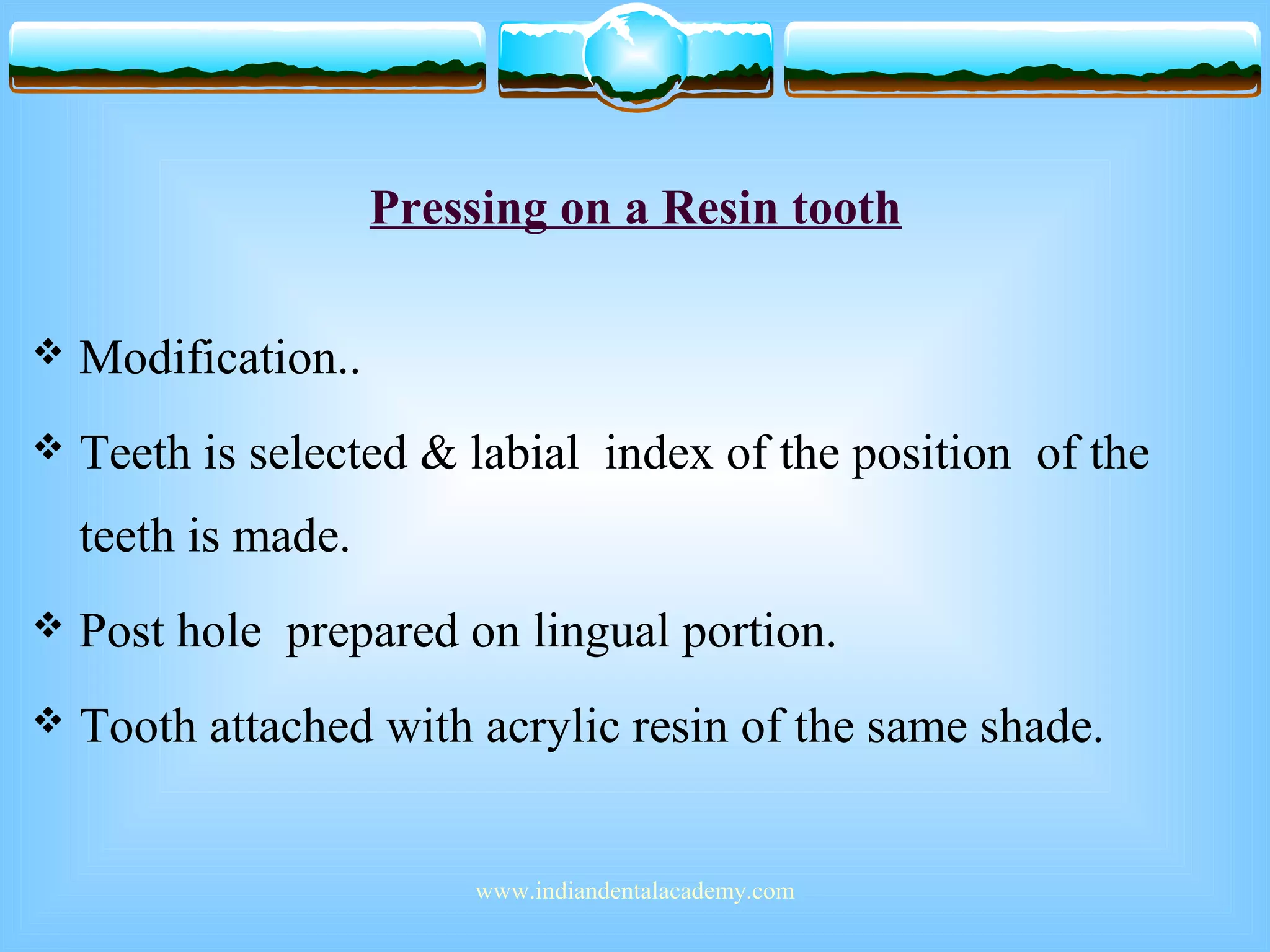

90. Pressing on a Resin tooth
Modification..
Teeth is selected & labial index of the position of the
teeth is made.
Post hole prepared on lingual portion.
Tooth attached with acrylic resin of the same shade.
www.indiandentalacademy.com
91. Resin Tube or side groove teeth is selected
before waxing the denture frame work.
Hole is drilled on the ridge lap area.
The tooth is ground to fit the ridge with
sufficient clearance for the metal base.
45 degree bevel is placed around the base
of tooth to accommodate the boxing of
metal.
Lingual collar is created.
www.indiandentalacademy.com
92. RESIN TEETH PROCESSED DIRECTLY TO
METAL BASES
The recess is carved in the wax pattern.
Occlusal relationships established
The teeth is carved & processed in acrylic
resin of the proper shade.
Advantages
Better attachment to the metal base.
Unusually long, short, narrow, wide teeth
may be fabricated.
www.indiandentalacademy.com
93. Braided helical Post.
Posterior tube teeth.
www.indiandentalacademy.com
94. •REVIEW OF LITERATURE
A study was conducted by Anthony & Peyton (1962) He
compared the dimensional accuracy of self cure & heat
cure acrylic resin , Cr- Co alloy .
He concluded that self cure acrylic resin dentures were
of accurate fit followed by heat cure, Cr- Co . Because
of the fewer processing strains.
www.indiandentalacademy.com
95. A study was conducted by Donald , Lundquist in (1963)
He compared the accuracy of fit of denture bases made
of PMMA & Al.
He concluded that the fit of accuracy of cast Al alloy
dentures were better than the PMMA.
www.indiandentalacademy.com
96. A study was conducted by Anthony De Furio and Daniel H. Gehl
(1970) to determine the amount of force required to dislodge
maxillary dentures made from Al ,Au alloy and acrylic resin.
He concluded that the chrome cobalt and Al alloy bases gave
retention values which were significantly higher than those
obtained with the acrylic resins and gold alloy bases
www.indiandentalacademy.com
97. A study was conducted by Frank E. Pulskamp in (1979)
He compared the two dimensional accuracy of Type iv
Gold alloy, Ni-Cr, Co-Cr alloys.
He concluded that Type iv gold alloy showed least
cross arch & antero posterior expansion than Co-Cr.
www.indiandentalacademy.com
98. A study which was conducted in dept of prosthodontics by Dr.Gautam
Shetty under the guidance of DR. N.P.PATIL Sir The main
objective of the study were :
1. To compare the fit of Al alloy (7010)denture base with acrylic
and base metal alloy denture base.
2. To study the effect of anodization and electroplating on the
resistance to corrosion.
3. To compare the flexure strength of aluminum alloy with that of
resin and base metal alloy .
www.indiandentalacademy.com

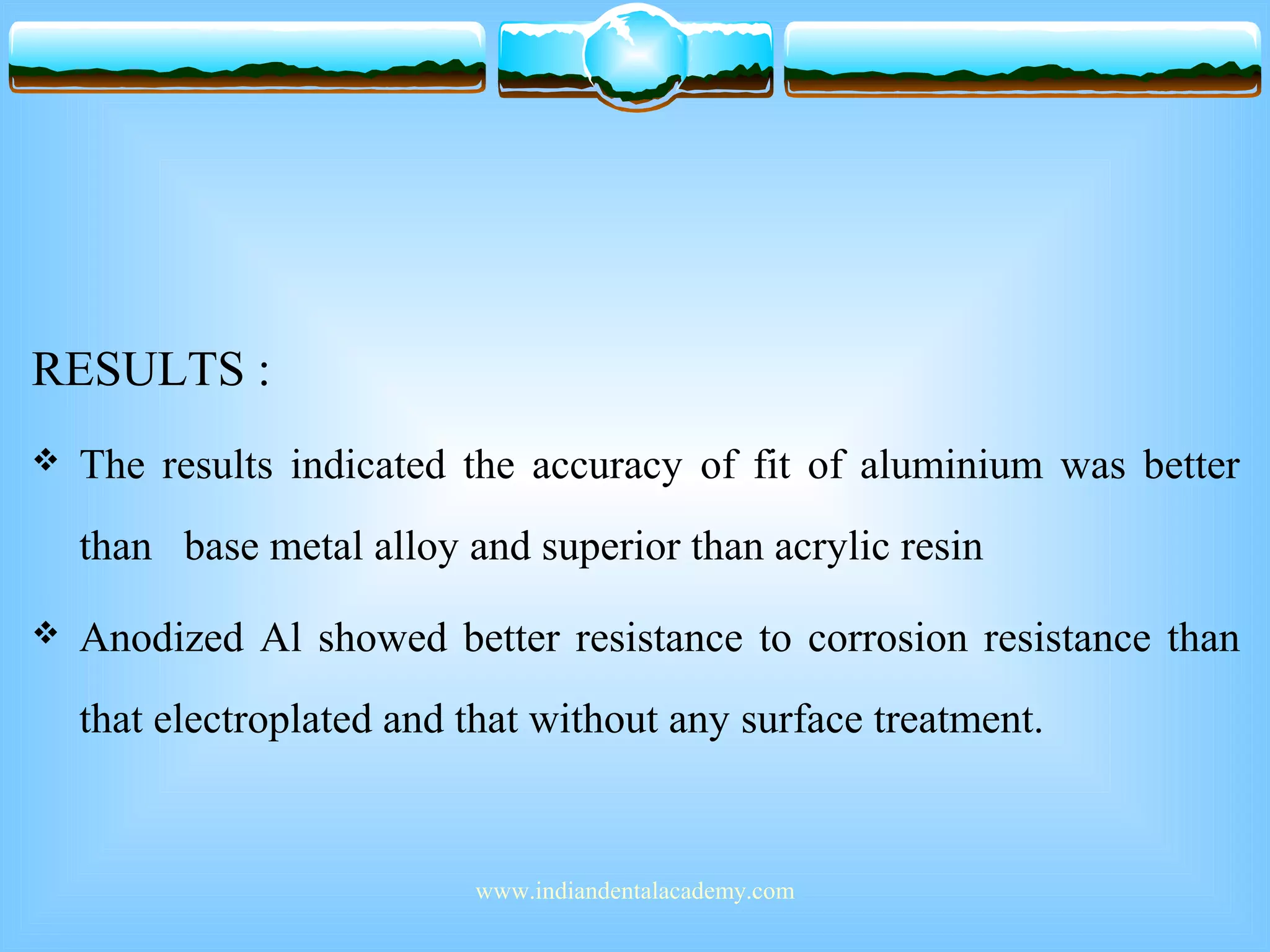

99. RESULTS :
The results indicated the accuracy of fit of aluminium was better
than base metal alloy and superior than acrylic resin
Anodized Al showed better resistance to corrosion resistance than
that electroplated and that without any surface treatment.
www.indiandentalacademy.com
