Deep learning is useful for enterprises tasks in the field of speech recognition, image classification, AI chatbots, and machine translation, just to name a few. In order to train deep learning/machine learning models, applications such as TensorFlow, MXNet, Caffe, and XGBoost can be leveraged. And sometimes these applications will be used together to solve different problems. To make distributed deep learning/machine learning applications easily launched, managed, and monitored, we introduced, in Apache Hadoop 3.x, YARN native services along with other improvements such as first-class GPU support, container-DNS support, scheduling improvements, etc. These improvements make distributed deep learning/machine learning applications run on YARN as simple as running it locally, which can let machine learning engineers focus on algorithms instead of worrying about underlying infrastructure. Also, YARN can better manage a shared cluster which runs deep learning/machine learning and other services and ETL jobs with these improvements. In this session, we will take a closer look at these improvements and show how to run these applications on YARN with demos. Audiences can start trying running these applications on YARN after this talk. Speakers Wanga Tan, Staff Software Engineer, Hortonworks Sunil Govindan, Staff Engineer, Hortonworks

1. Wangda Tan (Hadoop PMC member @Hortonworks)
Sunil Govind (Hadoop PMC member @Hortonworks)

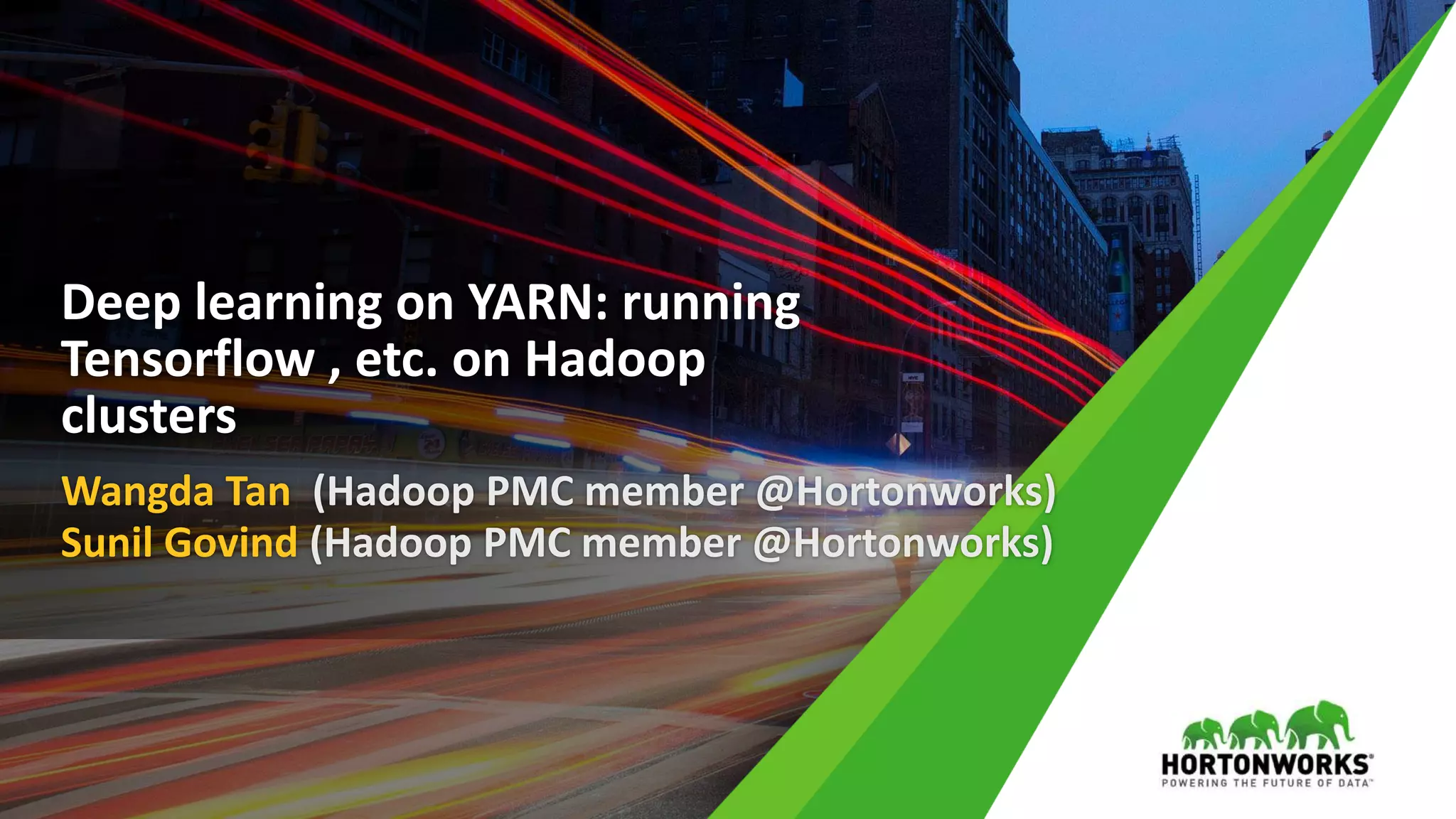

Deep learning on YARN: running
Tensorflow , etc. on Hadoop
clusters

2. 2 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

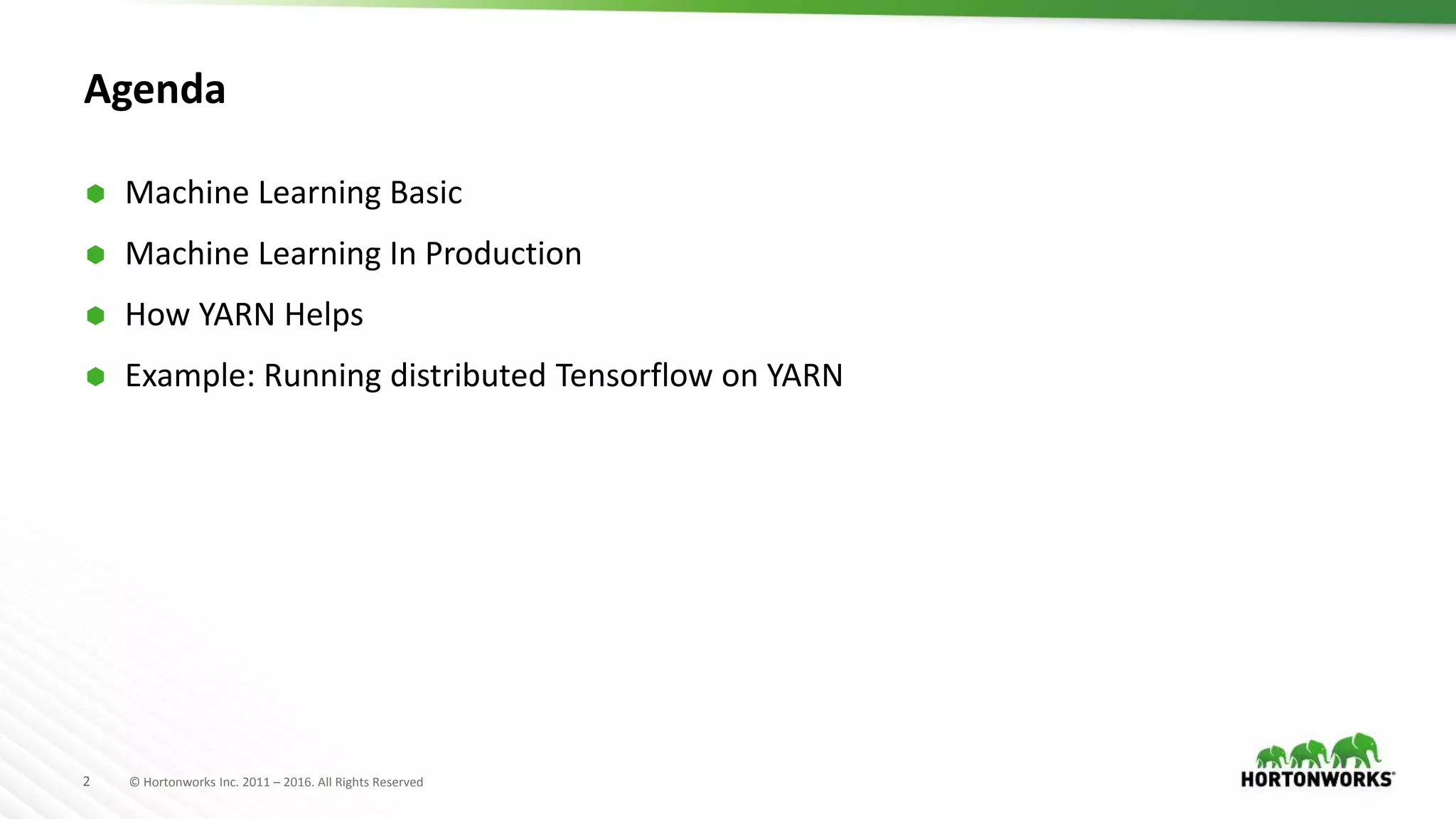

Agenda
 Machine Learning Basic
 Machine Learning In Production
 How YARN Helps
 Example: Running distributed Tensorflow on YARN

3. 3 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Machine learning basics

4. 4 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Basics: Machine Learning
 Cat Classifier
Cats
Labeled data (Training)
Non-Cats
Feed
Save
Predict
Cat (80%) Non-Cat (20%)
Model

5. 5 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Basics: Model Training
Model
Training
Model
Evaluation
Model
Validation
Model
Staging
Model
Training
 Traditional machine
learning models
– Logistic Regression
– Gradient boosting tree
– Recommendation/ALS
– LDA
 Libraries
– Apache Spark MLlib
– XGBoost
 Deep learning models
– DNN
– CNN
– RNN
– LSTM
 Libraries
– TensorFlow
– Apache MXNet
– PyTorch

6. 6 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Basics: Why GPU?
 GPU: Many cores to handle massive (but simple) computation tasks simultaneously:
GPU CPU
GPU Computation Intensive Other
Without GPU support, researchers/engineers
are almost impossible to wait job finish.

7. 7 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Machine learning in production

8. 8 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Machine Learning in tutorial
$ nvidia-docker run -it -p 8888:8888 tensorflow/tensorflow:latest-gpu
Go to your browser on http://localhost:8888/

9. 9 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Machine Learning in a Unified Platform
“Hidden Technical Debt in Machine Learning Systems”, Google

10. 10 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Training Hierarchical Models
Word Embedding Model
Food picture classifier Model
Ensemble Model
"Burger is great.
however onion rings
were over cooked"
(Image/Photo from Yelp)

11. 11 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Data pipelines for Machine Learning (Big Data)
ETLData Exploration
Join / Sampling /
Feature Extraction
Split train, test Data set, etc.

12. 12 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
How YARN helps

13. 13 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Running on YARN: All about data and sharing
Hadoop YARN
HDFS AWS S3 RDBMS
Spark MLlib XGBoost TensorFlow
Zeppelin / Jupyter
Hive/LLAP Spark SQL
CPU GPU SSD

14. 14 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Why all under YARN
SLA!
Monitoring!
A normal cluster user
Quotas!
Isolation!
Capacity Planning, Preemption, Reservation System.
Time time services, Grafana, etc.
Queues / Users quota, user access control.
CPU / Memory / GPU / FPGA, (WIP) Network/Disk
YARN

15. 15 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
All running on the same YARN platform
LLAP
128 G 128 G 128 G 128 G 128 G
LLAP LLAP
128 G 128 G
GPUs

16. 16 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Recent works in YARN to support ML workloads like Tensorflow
 GPU isolation/scheduling support
 Native Service - Easy to define and run any custom service
 All above works available in Apache Hadoop 3.1.0

17. 17 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
GPU support on YARN (Apache Hadoop 3.1.0)
 Why need isolation?
– Multiple processes use the single GPU will be:
• Serialized.
• Cause OOM easily.
 GPU isolation on YARN: .
– Granularity is for per-GPU device.
– Use Cgroups / docker to enforce the isolation.

18. 18 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Docker + GPU support on YARN (Apache Hadoop 3.1.0)
 Most of machine learning platforms has
python/R/cudnn/CUDA dependencies.
 Docker solves messy dependencies issues
– But it may introduce problems for GPU base
libraries
 Nvidia-docker-plugin mounts Nvidia driver,
etc. when container got launched.
 YARN supports Docker and as well as
nvidia-docker-plugin.
Tensorflow 1.2
Nginx AppUbuntu 14:04
Nginx AppHost OS
GPU Base Lib v1
Volume Mount
CUDA Library 5.0
Tensorflow 1.2
Nginx AppUbuntu 14:04
GPU Base Lib v2
Nginx AppHost OS
GPU Base Lib v1
X Fails
CUDA Library 5.0

19. 19 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Running Distributed Tensorflow on YARN

20. 20 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Why distributed?
Reference: https://www.tensorflow.org/performance/benchmarks

21. 21 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
How Distributed TF Works?
 Distributed TF architecture  How to make it work?
– Set following environment: TF_CONFIG

22. 22 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Using YARN to run distributed Tensorflow
 What you need to do:
– Write YARN service spec with proper
TF_CONFIG in parameter.
– Run the job by using:
– yarn app -launch ${SERVICE_NAME}
${PATH_TO_SERVICE_SPEC}
 What happened under the hood

23. 23 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Write service spec to run distributed Tensorflow

24. 24 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Write service spec to serve Tensorflow model
 Note:
– Uses simple_tensorflow_serving (github.com/tobegit3hub/simple_tensorflow_serving)
– http://serving.serving-job-001.<domain-name>:port to access serving REST end point
– Still feel complicated? We’re working on wrapper to simply this!

25. 25 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Write service spec to run MXNet – Fine-tune model.
 Note:
– Fine-tune refers training with parameters partially initialized with pre-trained model.
– Prepare caltech256 dataset first, then fine tune it with imagenet11k-resnet-152
– YARN Native Service’s dependencies feature helps to run the prepare component first and once its completed, real
training is started on the prepared dataset.

26. 26 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Accelerating XGBoost applications with
GPU and Spark
https://dataworkssummit.com/berlin-2018/session/accelerating-xgboost-applications-with-gpu-
and-spark/
2:50 PM, Room I, Wed April 18th
-- Related Session --
Yanbo Liang & Mingjie Tang

27. 27 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Demo

28. 28 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Questions?
