- 1. thagikura Deep Dive IntoLayoutManager for RecyclerView
- 2. $ whoami Takeshi Hagikura @thagikura DeveloperRelations @Google
- 3.
- 4.
- 5.
- 6.
- 7.
- 8. Is it possibleto add a custom LayoutManager?
- 9.
- 10.

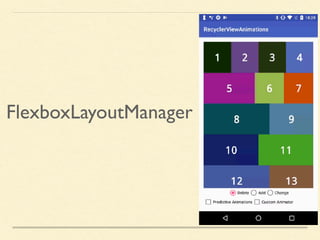

- 11. Ports Flexbox inCSS to Android
- 12. How to createa custom LayoutManager?
- 13. Think before youbuild it Much harder than custom view Gives you much flexibility on top of RecyclerView features
- 15. At the bareminimum, need to override…
- 16. onLayoutChildren Called on: - initiallayout - adapter changes Lay out all relevant child views
- 19. If this isViewGroup (exceptRecyclerView) All child views on memory
- 20. In RecyclerView + LayoutManager Onlyvisible views should be on memory
- 21. onLayoutChildren 1. Find theanchor position
- 22. Anchor position Starting positionto put views. Start with 0 on initial layout. Remember the first visible view to restore the state
- 23. onLayoutChildren 1. Find theanchor position 2. Calculate how many items should be in visible portion
- 24. onLayoutChildren 1. Find theanchor position 2. Calculate how many items should be in visible portion 3. Fill toward end
- 25. private int fill(RecyclerView.Recyclerrecycler, RecyclerView.State state, LayoutState layoutState) { int start = layoutState.mAvailable; int remainingSpace = layoutState.mAvailable; int consumed = 0; while (remainingSpace > 0 && layoutState.hasMore(state, mFlexLines)) { FlexLine flexLine = mFlexLines.get(layoutState.mFlexLinePosition); layoutState.mPosition = flexLine.mFirstIndex; consumed += layoutFlexLine(flexLine, layoutState); remainingSpace -= flexLine.getCrossSize(); } layoutState.mAvailable -= consumed; return start - layoutState.mAvailable; } Simplified version of fill
- 26. private int fill(RecyclerView.Recyclerrecycler, RecyclerView.State state, LayoutState layoutState) { int start = layoutState.mAvailable; int remainingSpace = layoutState.mAvailable; int consumed = 0; while (remainingSpace > 0 && layoutState.hasMore(state, mFlexLines)) { FlexLine flexLine = mFlexLines.get(layoutState.mFlexLinePosition); layoutState.mPosition = flexLine.mFirstIndex; consumed += layoutFlexLine(flexLine, layoutState); remainingSpace -= flexLine.getCrossSize(); } layoutState.mAvailable -= consumed; return start - layoutState.mAvailable; } mAvailable: Amount of pixels need to be filled mDirection: START | END
- 27. private int fill(RecyclerView.Recyclerrecycler, RecyclerView.State state, LayoutState layoutState) { int start = layoutState.mAvailable; int remainingSpace = layoutState.mAvailable; int consumed = 0; while (remainingSpace > 0 && layoutState.hasMore(state, mFlexLines)) { FlexLine flexLine = mFlexLines.get(layoutState.mFlexLinePosition); layoutState.mPosition = flexLine.mFirstIndex; consumed += layoutFlexLine(flexLine, layoutState); remainingSpace -= flexLine.getCrossSize(); } layoutState.mAvailable -= consumed; return start - layoutState.mAvailable; } Put views and loop until mAvailable < 0
- 28. onLayoutChildren 1. Find theanchor position 2. Calculate how many items should be in visible portion 3. Fill toward end 4. Fill toward start
- 29. Why fill towardboth directions?
- 30. In some casesanchor position may be at the bottom
- 31. 1 2 3 4 5 67 8 9 10 11 scrollToPosition(50) 42 43 44 45 46 47 48 49 50 Anchor position
- 32. scrollVerticallyBy Interact with scrollby the user
- 33. @Override public boolean canScrollVertically(){ return true; } Could be false depending on attributes. E.g. Orientation in LinearLayoutManager
- 34. @Override public int scrollVerticallyBy(intdy, RecyclerView.Recycler recycler, RecyclerView.State state) { if (isMainAxisDirectionHorizontal()) { int scrolled = handleScrollingCrossAxis(dy, recycler, state); mViewCache.clear(); return scrolled; } else { int scrolled = handleScrollingMainAxis(dy); mAnchorInfo.mPerpendicularCoordinate += scrolled; mSubOrientationHelper.offsetChildren(-scrolled); return scrolled; } }
- 35. @Override public int scrollVerticallyBy(intdy, RecyclerView.Recycler recycler, RecyclerView.State state) { if (isMainAxisDirectionHorizontal()) { int scrolled = handleScrollingCrossAxis(dy, recycler, state); mViewCache.clear(); return scrolled; } else { int scrolled = handleScrollingMainAxis(dy); mAnchorInfo.mPerpendicularCoordinate += scrolled; mSubOrientationHelper.offsetChildren(-scrolled); return scrolled; } } Distance to scroll in pixels
- 36. @Override public int scrollVerticallyBy(intdy, RecyclerView.Recycler recycler, RecyclerView.State state) { if (isMainAxisDirectionHorizontal()) { int scrolled = handleScrollingCrossAxis(dy, recycler, state); mViewCache.clear(); return scrolled; } else { int scrolled = handleScrollingMainAxis(dy); mAnchorInfo.mPerpendicularCoordinate += scrolled; mSubOrientationHelper.offsetChildren(-scrolled); return scrolled; } } The actual distance scrolled
- 37. Small dy Only shiftexisting views mRecyclerView.offsetChildrenVertical(dy);
- 38.
- 39. Large dy Recycle viewsno longer visible
- 40.
- 41. What does Recyclemean?
- 42. Two types ofcache in RecyclerView 1. Recycle 2. Scrap
- 43.
- 44.
- 45.

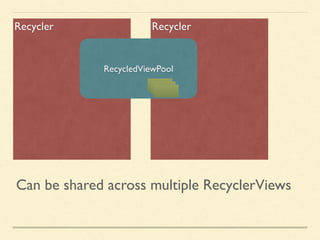

- 46. RecyclerRecycler RecycledViewPool Can be sharedacross multiple RecyclerViews
- 47.
- 48.
- 49.
- 50. How to retrieveaView?
- 51.
- 52. Case1. Found inscrap Case2. Found in Recycled Pool Case3. Not found in cache
- 53.
- 54. LayoutManager Adapter Recycler Case2. Foundin Recycled Pool adapter.bindViewHolder
- 55. LayoutManager Adapter Recycler Case2. Foundin Recycled Pool
- 56. LayoutManager Adapter Recycler Case3. Notfound in cache adapter.createViewHolder
- 57. LayoutManager Adapter Recycler Case3. Notfound in cache
- 58. Use scrap ifyou re-attach in a same layout pass Use recycle for views no longer needed
- 59. scrollHorizontallyBy Same with verticalexcept for the direction
- 60. Now you implementbasic functions. Is it enough?
- 61. Could be useable...but NO.
- 62. scrollTo(position) smoothScrollTo(position) Fast Scrolling Item Decorations Itemprefetch Predictive Animations There are a lot more…
- 63. scrollTo(position) smoothScrollTo(position) Fast Scrolling Item Decorations Itemprefetch Predictive Animations There are a lot more…
- 64.
- 65.
- 66.
- 67. @Override public boolean supportsPredictiveItemAnimations(){ return true; }
- 68.
- 69. In pre-layout Lay outall the views currently visible and additional views that are appearing (or disappearing) after the animation
- 70. Pre-layout Remaining Appearing Disappearing To be inserted atthis positionVisible area
- 71.
- 72.
- 73.
- 74. Now you knowthe basics of building a custom LayoutManager
- 75. Resources Source of defaultLayoutManagers github.com/google/flexbox-layout wiresareobsolete.com/2014/09/building-a-recyclerview- layoutmanager-part-1/
