This document provides strategies for optimizing UICollectionView scrolling performance. It recommends: 1. Asynchronously fetching and caching user data and images to avoid blocking the main thread. 2. Implementing cell reuse and prefetching to efficiently render cells. 3. Calculating optimal cell sizes and handling orientation changes to maintain smooth scrolling. 4. Using opaque layers and avoiding gradients to improve cell rendering speed.

1. Andrea Prearo
Master Software Engineer - iOS @ Capital One SF
https://github.com/andrea-prearo
https://medium.com/@andrea.prearo
https://twitter.com/andrea_prearo

2. Optimize Collection View
Scrolling

3. Scrolling and User Experience
UICollectionView is designed to support displaying sets of data
that can be scrolled. However, when displaying a very large
amount of data, it could be very tricky to achieve a perfectly
smooth scrolling. This is not ideal because it negatively affects the
user experience.

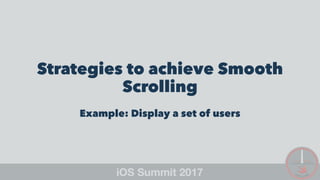

4. Strategies to achieve Smooth
Scrolling
Example: Display a set of users

5. Cells Rendering is a Critical Task
Cell Lifecycle (iOS9+)
1. Request the cell: collectionView(_:cellForItemAt:)
2. Display the cell: collectionView(_:willDisplay:forItemAt:)
3. Remove the cell: collectionView(_:didEndDisplaying:forItemAt:)

6. Basic cell rendering
override open func collectionView(_ collectionView: UICollectionView, cellForItemAt indexPath: IndexPath) -> UICollectionViewCell {
// Collection view cells are reused and should be dequeued using a cell identifier.
let cell = collectionView.dequeueReusableCell(withReuseIdentifier: "reuseIdentifier", for: indexPath)
// Configure the cell ...
return cell
}

7. User Model
enum Role: String, Codable {
case unknown = "Unknown"
case user = "User"
case owner = "Owner"
case admin = "Admin"
static func get(from: String) -> Role {
if from == user.rawValue {
return .user
} else if from == owner.rawValue {
return .owner
} else if from == admin.rawValue {
return .admin
}
return .unknown
}
}
struct User: Codable {
enum CodingKeys: String, CodingKey {
case avatarUrl = "avatar"
case username
case role
}
let avatarUrl: String
let username: String
let role: Role
init(avatarUrl: String, username: String, role: Role) {
self.avatarUrl = avatarUrl
self.username = username
self.role = role
}
}

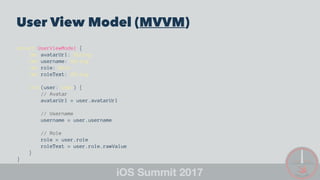

8. User View Model (MVVM)
struct UserViewModel {
let avatarUrl: String
let username: String
let role: Role
let roleText: String
init(user: User) {
// Avatar
avatarUrl = user.avatarUrl
// Username
username = user.username
// Role
role = user.role
roleText = user.role.rawValue
}
}

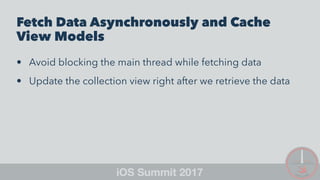

9. Fetch Data Asynchronously and Cache
View Models
• Avoid blocking the main thread while fetching data
• Update the collection view right after we retrieve the data

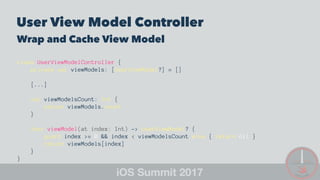

10. User View Model Controller
Wrap and Cache View Model
class UserViewModelController {
private var viewModels: [UserViewModel?] = []
[...]
var viewModelsCount: Int {
return viewModels.count
}
func viewModel(at index: Int) -> UserViewModel? {
guard index >= 0 && index < viewModelsCount else { return nil }
return viewModels[index]
}
}

11. User View Model Controller
Asynchronous Data Fetch
func retrieveUsers(_ completionBlock: @escaping (_ success: Bool, _ error: NSError?) -> ()) {
let urlString = ... // Users Web Service URL
let session = URLSession.shared
guard let url = URL(string: urlString) else {
completionBlock(false, nil)
return
}
let task = session.dataTask(with: url) { [weak self] (data, response, error) in
guard let strongSelf = self else { return }
guard let jsonData = data, error == nil else {
completionBlock(false, error as NSError?)
return
}
if let users = UserViewModelController.parse(jsonData) {
strongSelf.viewModels = UserViewModelController.initViewModels(users)
completionBlock(true, nil)
} else {
completionBlock(false, NSError.createError(0, description: "JSON parsing error"))
}
}
task.resume()
}

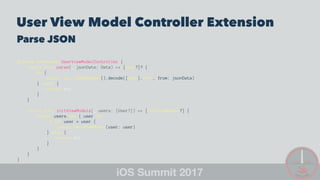

12. User View Model Controller Extension
Parse JSON
private extension UserViewModelController {
static func parse(_ jsonData: Data) -> [User?]? {
do {
return try JSONDecoder().decode([User].self, from: jsonData)
} catch {
return nil
}
}
static func initViewModels(_ users: [User?]) -> [UserViewModel?] {
return users.map { user in
if let user = user {
return UserViewModel(user: user)
} else {
return nil
}
}
}
}

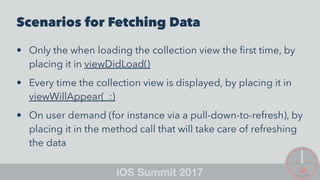

13. Scenarios for Fetching Data
• Only the when loading the collection view the first time, by
placing it in viewDidLoad()
• Every time the collection view is displayed, by placing it in
viewWillAppear(_:)
• On user demand (for instance via a pull-down-to-refresh), by
placing it in the method call that will take care of refreshing
the data

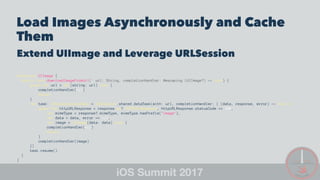

14. Load Images Asynchronously and Cache
Them
Extend UIImage and Leverage URLSession
extension UIImage {
static func downloadImageFromUrl(_ url: String, completionHandler: @escaping (UIImage?) -> Void) {
guard let url = URL(string: url) else {
completionHandler(nil)
return
}
let task: URLSessionDataTask = URLSession.shared.dataTask(with: url, completionHandler: { (data, response, error) -> Void in
guard let httpURLResponse = response as? HTTPURLResponse, httpURLResponse.statusCode == 200,
let mimeType = response?.mimeType, mimeType.hasPrefix("image"),
let data = data, error == nil,
let image = UIImage(data: data) else {
completionHandler(nil)
return
}
completionHandler(image)
})
task.resume()
}
}

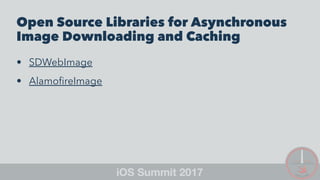

15. Open Source Libraries for Asynchronous
Image Downloading and Caching
• SDWebImage
• AlamofireImage

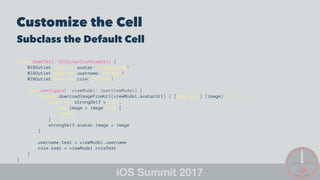

16. Customize the Cell
Subclass the Default Cell
class UserCell: UICollectionViewCell {
@IBOutlet weak var avatar: UIImageView!
@IBOutlet weak var username: UILabel!
@IBOutlet weak var role: UILabel!
func configure(_ viewModel: UserViewModel) {
UIImage.downloadImageFromUrl(viewModel.avatarUrl) { [weak self] (image) in
guard let strongSelf = self,
let image = image else {
return
}
strongSelf.avatar.image = image
}
username.text = viewModel.username
role.text = viewModel.roleText
}
}

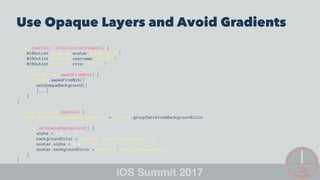

17. Use Opaque Layers and Avoid Gradients
class UserCell: UICollectionViewCell {
@IBOutlet weak var avatar: UIImageView!
@IBOutlet weak var username: UILabel!
@IBOutlet weak var role: UILabel!
override func awakeFromNib() {
super.awakeFromNib()
setOpaqueBackground()
[...]
}
}
private extension UserCell {
static let DefaultBackgroundColor = UIColor.groupTableViewBackgroundColor
func setOpaqueBackground() {
alpha = 1.0
backgroundColor = UserCell.DefaultBackgroundColor
avatar.alpha = 1.0
avatar.backgroundColor = UserCell.DefaultBackgroundColor
}
}

18. Putting Everything Together
Optimized Cell Rendering
override open func collectionView(_ collectionView: UICollectionView, cellForItemAt indexPath: IndexPath) -> UICollectionViewCell {
let cell = collectionView.dequeueReusableCell(withReuseIdentifier: "UserCell", for: indexPath) as! UserCell
if let viewModel = userViewModelController.viewModel(at: indexPath.row) {
cell.configure(viewModel)
}
return cell
}

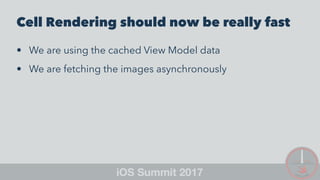

19. Cell Rendering should now be really fast
• We are using the cached View Model data
• We are fetching the images asynchronously

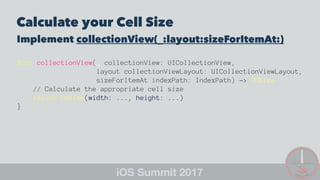

20. Calculate your Cell Size
Implement collectionView(_:layout:sizeForItemAt:)
func collectionView(_ collectionView: UICollectionView,
layout collectionViewLayout: UICollectionViewLayout,
sizeForItemAt indexPath: IndexPath) -> CGSize
// Calculate the appropriate cell size
return CGSize(width: ..., height: ...)
}

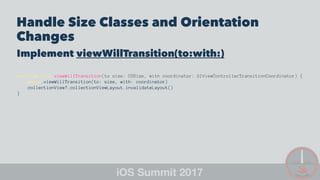

21. Handle Size Classes and Orientation
Changes
Implement viewWillTransition(to:with:)
override func viewWillTransition(to size: CGSize, with coordinator: UIViewControllerTransitionCoordinator) {
super.viewWillTransition(to: size, with: coordinator)
collectionView?.collectionViewLayout.invalidateLayout()
}

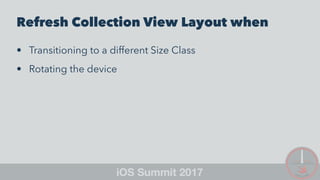

22. Refresh Collection View Layout when
• Transitioning to a different Size Class
• Rotating the device

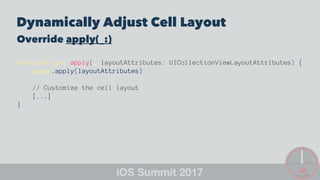

23. Dynamically Adjust Cell Layout
Override apply(_:)
override func apply(_ layoutAttributes: UICollectionViewLayoutAttributes) {
super.apply(layoutAttributes)
// Customize the cell layout
[...]
}

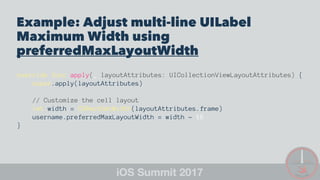

24. Example: Adjust multi-line UILabel
Maximum Width using
preferredMaxLayoutWidth
override func apply(_ layoutAttributes: UICollectionViewLayoutAttributes) {
super.apply(layoutAttributes)
// Customize the cell layout
let width = CGRectGetWidth(layoutAttributes.frame)
username.preferredMaxLayoutWidth = width - 16
}

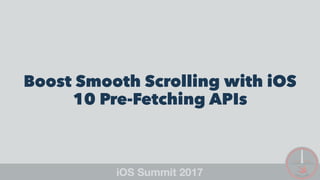

25. Boost Smooth Scrolling with iOS
10 Pre-Fetching APIs

26. Choppy Scrolling
Dropped Frame I

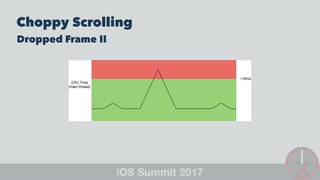

27. Choppy Scrolling
Dropped Frame II

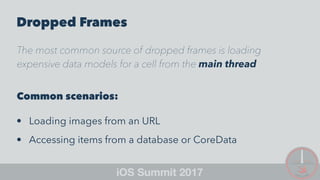

28. Dropped Frames
The most common source of dropped frames is loading
expensive data models for a cell from the main thread
Common scenarios:
• Loading images from an URL
• Accessing items from a database or CoreData

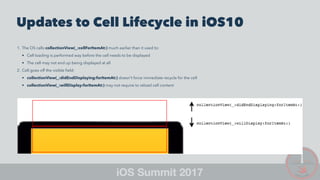

29. Updates to Cell Lifecycle in iOS10
1. The OS calls collectionView(_:cellForItemAt:) much earlier than it used to:
• Cell loading is performed way before the cell needs to be displayed
• The cell may not end up being displayed at all
2. Cell goes off the visible field:
• collectionView(_:didEndDisplaying:forItemAt:) doesn't force immediate recycle for the cell
• collectionView(_:willDisplay:forItemAt:) may not require to reload cell content

30. Multi-column Layouts Cell Lifecycle
iOS9

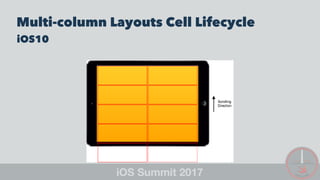

31. Multi-column Layouts Cell Lifecycle
iOS10

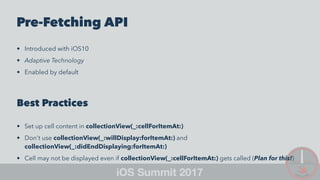

32. Pre-Fetching API
• Introduced with iOS10
• Adaptive Technology
• Enabled by default
Best Practices
• Set up cell content in collectionView(_:cellForItemAt:)
• Don't use collectionView(_:willDisplay:forItemAt:) and
collectionView(_:didEndDisplaying:forItemAt:)
• Cell may not be displayed even if collectionView(_:cellForItemAt:) gets called (Plan for this!)

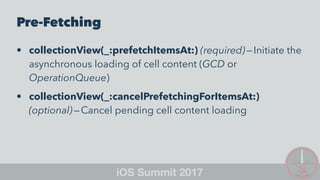

33. Pre-Fetching
• collectionView(_:prefetchItemsAt:) (required) — Initiate the
asynchronous loading of cell content (GCD or
OperationQueue)
• collectionView(_:cancelPrefetchingForItemsAt:)
(optional) — Cancel pending cell content loading

34. Code samples
All code is available on GitHub:
SmoothScrolling - Collection View
... Swift 4 Code Update In Progress ...
