2. BLUEWAY DC Inverter Air to Water Heat Pump is an innovative system of house heating,
domestic hot water and even space cooling, with advanced DC inverter technology, saving 40%
electricity than normal on/off heat pump in practical operation. It offers the users with maximum
comfort the whole year through. It can work with solar, boiler or electric heater according to
practical condition of the heating system.
1 Enjoy comfortable life with
Features
◆ Inverter technology ensures super efficient performance and low energy consumption
◆ 5 modes: heating only, heating+hot water, hot water only, cooling only, cooling+hot water.
With control output for 3 way valve
◆ With Intelligent temperature compensation function, the water setting temperature adjusts
automatically as the house’s heat loss changes
◆ Automatically variable fan speed in 3 grades to optimize heating efficiency
◆ Can work with room thermostat
◆ Can work with auxiliary heater
◆ Low ambient design, the units can work at low ambient conditions up to -20°C
3. 2Enjoy comfortable life with
SUPER PERFORMANCE THANKS TO THE INVERTER TECHNOLOGY

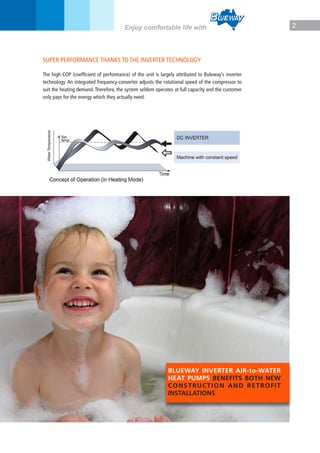

The high COP (coefficient of performance) of the unit is largely attributed to Buleway’s inverter
technology. An integrated frequency-converter adjusts the rotational speed of the compressor to
suit the heating demand. Therefore, the system seldom operates at full capacity and the customer
only pays for the energy which they actually need.
BLUEWAY INVERTER AIR-to-WATER
HEAT PUMPS BENEFITS BOTH NEW
CONSTRUCTION AND RETROFIT
INSTALLATIONS
4. 3 Enjoy comfortable life with

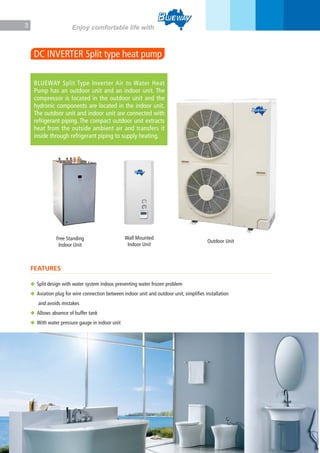

DC INVERTER Split type heat pump
Free Standing
Indoor Unit
Wall Mounted
Indoor Unit
Outdoor Unit
BLUEWAY Split Type Inverter Air to Water Heat
Pump has an outdoor unit and an indoor unit. The
compressor is located in the outdoor unit and the
hydronic components are located in the indoor unit.
The outdoor unit and indoor unit are connected with
refrigerant piping. The compact outdoor unit extracts
heat from the outside ambient air and transfers it
inside through refrigerant piping to supply heating.
FEATURES
◆ Split design with water system indoor, preventing water frozen problem
◆ Aviation plug for wire connection between indoor unit and outdoor unit, simplifies installation
and avoids mistakes
◆ Allows absence of buffer tank
◆ With water pressure gauge in indoor unit

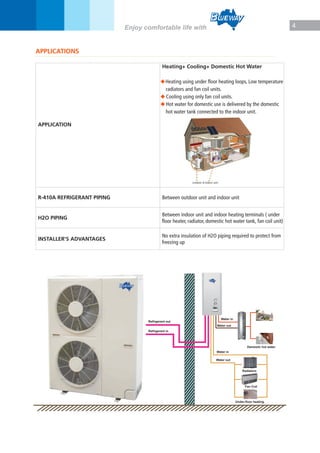

5. 4Enjoy comfortable life with
APPLICATIONS
APPLICATION
Heating+ Cooling+ Domestic Hot Water
◆Heating using under floor heating loops, Low temperature
radiators and fan coil units.
◆ Cooling using only fan coil units.
◆ Hot water for domestic use is delivered by the domestic
hot water tank connected to the indoor unit.
R-410A REFRIGERANT PIPING Between outdoor unit and indoor unit
H2O PIPING
Between indoor unit and indoor heating terminals ( under
floor heater, radiator, domestic hot water tank, fan coil unit)
INSTALLER'S ADVANTAGES
No extra insulation of H2O piping required to protect from
freezing up
Refrigerant in
Water out
Water out
Water in
Demestic hot water
Radiators
Under-floor heating
Water in
Refrigerant out
Fan Coil
6. 5 Enjoy comfortable life with

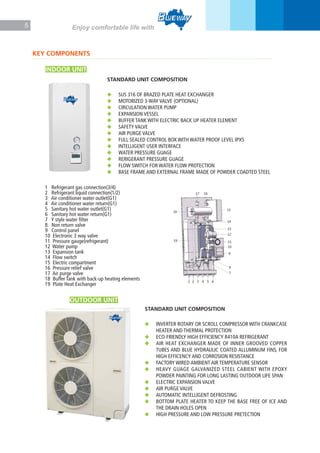

KEY COMPONENTS
INDOOR UNIT
OUTDOOR UNIT
STANDARD UNIT COMPOSITION
◆ SUS 316 OF BRAZED PLATE HEAT EXCHANGER
◆ MOTORIZED 3-WAY VALVE (OPTIONAL)
◆ CIRCULATION WATER PUMP
◆ EXPANSION VESSEL
◆ BUFFER TANK WITH ELECTRIC BACK UP HEATER ELEMENT
◆ SAFETY VALVE
◆ AIR PURGE VALVE
◆ FULL SEALED CONTROL BOX WITH WATER PROOF LEVEL IPX5
◆ INTELLIGENT USER INTERFACE
◆ WATER PRESSURE GUAGE
◆ RERIGERANT PRESSURE GUAGE
◆ FLOW SWITCH FOR WATER FLOW PROTECTION
◆ BASE FRAME AND EXTERNAL FRAME MADE OF POWDER COADTED STEEL
STANDARD UNIT COMPOSITION
◆ INVERTER ROTARY OR SCROLL COMPRESSOR WITH CRANKCASE
HEATER AND THERMAL PROTECTION
◆ ECO-FRIENDLY HIGH EFFICIENCY R410A REFRIGERANT
◆ AIR HEAT EXCHANGER MADE OF INNER GROOVED COPPER
TUBES AND BLUE HYDRAULIC COATED ALLUMINUM FINS, FOR
HIGH EFFICENCY AND CORROSION RESISTANCE
◆ FACTORY WIRED AMBIENT AIR TEMPERATURE SENSOR
◆ HEAVY GUAGE GALVANIZED STEEL CABIENT WITH EPOXY
POWDER PAINTING FOR LONG LASTING OUTDOOR LIFE SPAN
◆ ELECTRIC EXPANSION VALVE
◆ AIR PURGE VALVE
◆ AUTOMATIC INTELLIGENT DEFROSTING
◆ BOTTOM PLATE HEATER TO KEEP THE BASE FREE OF ICE AND
THE DRAIN HOLES OPEN
◆ HIGH PRESSURE AND LOW PRESSURE PRETECTION
1 Refrigerant gas connection(3/4)
2 Refrigerant liquid connection(1/2)
3 Air conditioner water outlet(G1)
4 Air conditioner water return(G1)
5 Sanitary hot water outlet(G1)
6 Sanitary hot water return(G1)
7 Y style water filter
8 Non return valve
9 Control panel
10 Electronic 3 way valve
11 Pressure gauge(refrigerant)
12 Water pump
13 Expansion tank
14 Flow switch
15 Electric compartment
16 Pressure relief valve
17 Air purge valve
18 Buffer Tank with back-up heating elements
19 Plate Heat Exchanger
7. 6Enjoy comfortable life with

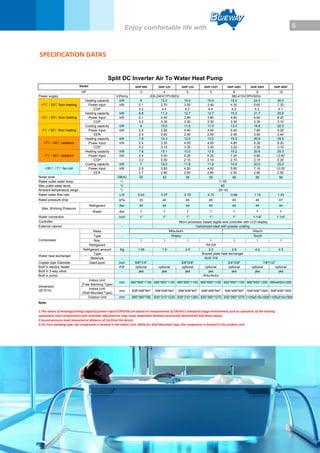

SPECIFICATION DATAS
DHP-09S DHP-12S DHP-15S DHP-15ST DHP-18ST DHP-24ST DHP-30ST
3 4 5 5 6 8 10
V/Ph/Hz
Heating capacity kW 9 12.0 15.0 15.0 18.0 24.0 30.0
Power input kW 2.1 2.70 3.50 3.40 4.30 5.60 7.30
COP - 4.2 4.4 4.3 4.4 4.2 4.3 4.1
Heating capacity kW 6.8 11.3 12.7 12.7 15.3 21.7 25.6
Power input kW 2.1 3.40 3.85 3.80 4.60 6.60 8.20
COP - 3.2 3.30 3.30 3.30 3.30 3.30 3.10
Cooling capacity kW 6 10.0 11.0 11.0 13.3 18.9 22.3
Power input kW 2.4 3.85 4.40 4.40 5.40 7.60 9.20
EER - 2.5 2.60 2.50 2.50 2.45 2.50 2.40
Heating capacity kW 7.8 10.3 13.0 13.0 15.3 20.6 25.5
Power input kW 2.4 3.30 4.00 4.00 4.80 6.30 8.20
COP - 3.2 3.10 3.30 3.30 3.20 3.30 3.10
Heating capacity kW 7.6 10.1 13.0 13.0 15.2 20.6 25.3
Power input kW 3.4 5.00 6.20 6.20 7.20 9.80 12.60
COP - 2.2 2.00 2.10 2.10 2.10 2.10 2.00
Cooling capacity kW 7 10.0 11.8 11.8 14.5 20.0 25.0
Power input kW 2.6 3.60 4.50 4.50 5.80 7.10 10.00
EER - 2.7 2.80 2.60 2.60 2.50 2.80 2.50
DB(A) 52 53 55 55 55 56 56
°C
°C
°C
L/S 0.43 0.57 0.72 0.72 0.86 1.15 1.43
kPa 30 40 45 45 45 40 47
Refrigerant Bar 44 44 44 44 44 44 44
Water Bar 7 7 7 7 7 7 7
Noise level
Max. Working Pressure
Rated pressure drop
Split DC Inverter Air To Water Heat Pump
Model
HP
Power supply
-7℃ / 35℃ floor heating
+7℃ / 35℃ floor heating
+2℃ / 35℃ floor heating
+7℃ / 45℃ radiators
-7℃ / 45℃ radiators
200-240V/1Ph/50Hz 380-415V/3Ph/50Hz
+35℃ / 7℃ fan coil
Rated outlet water temp. 7~55
Max outlet water temp. 60
-20~43
Rated water flow rate
Ambient temperature range
Water Bar 7 7 7 7 7 7 7
inch 1" 1" 1" 1" 1" 1-1/4" 1-1/4"
-
-
Make -
Type -
Nos. - 1 1 1 1 1 1 1
Refrigerant
Refrigerant amount Kg 1.45 1.9 2.5 2.5 2.6 4.2 4.5
Type -
Materials -
Copper pipe Diameter Gas/Liquid inch 5/8"/1/4" 3/4"/3/8"
KW optional optional optional optional optional optional optional
- yes yes yes yes yes yes yes
-
Indoor Unit
(Free Standing Type)
mm 660*650*1150 660*650*1150 660*650*1150 660*650*1150 660*650*1150 660*650*1250 660x650x1250
Indoor Unit
(Wall Mounted Type)
mm 508*406*947 508*406*947 508*406*947 508*406*947 508*406*947 508*406*1000 508*406*1000
Outdoor Unit mm 880*360*780 830*310*1230 830*310*1260 930*390*1270 930*390*1270 1105x515x15001105x515x1500
Note:
Built in electric heater
Water heat exchanger
Built in pump
Compressor
Mitsubishi Hitachi
Galvanized steel with powder coating
Water connection
Controller Micro processor based digital wire controller with LCD display
External cabinet
1.The values of heating(cooling) capacity/power input/COP(EER) are based on measurement of EN14511 standard.Usage environment,such as operation of the heating
equipment,room temperature,and controller adjustments, may cause disparities between practically determined and these values.
2.Sound pressure level measured at distance of 1m from the device.
3.For Free standing type, the compressor is located in the indoor unit; While for Wall Mounted Type, the compressor is located in the outdoor unit.
Scroll
Wilo/Xinhu
R410A
SUS 316
5/8"/3/8" 7/8"/1/2"
Dimension
(W*D*H)
Brazed plate heat exchanger
Built in 3-way valve
Rotary

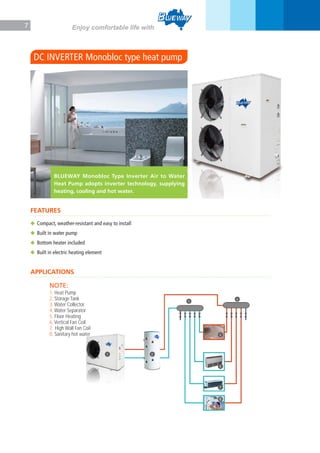

8. DC INVERTER Monobloc type heat pump
7 Enjoy comfortable life with
BLUEWAY Monobloc Type Inverter Air to Water
Heat Pump adopts inverter technology, supplying
heating, cooling and hot water.
FEATURES
APPLICATIONS
◆ Compact, weather-resistant and easy to install
◆ Built in water pump
◆ Bottom heater included
◆ Built in electric heating element
NOTE:
1, Heat Pump
2, Storage Tank
3, Water Collector
4, Water Separator
5, Floor Heating
6, Vertical Fan Coil
7, High Wall Fan Coil
8, Sanitary hot water
8
9. 8Enjoy comfortable life with

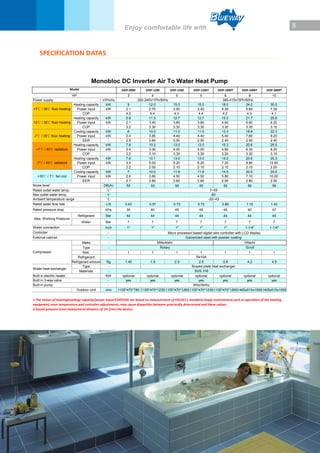

SPECIFICATION DATAS
DHP-09M DHP-12M DHP-15M DHP-15MT DHP-18MT DHP-24MT DHP-30MT
3 4 5 5 6 8 10
V/Ph/Hz
Heating capacity kW 9 12.0 15.0 15.0 18.0 24.0 30.0
Power input kW 2.1 2.70 3.50 3.40 4.30 5.60 7.30
COP - 4.2 4.4 4.3 4.4 4.2 4.3 4.1
Heating capacity kW 6.8 11.3 12.7 12.7 15.3 21.7 25.6
Power input kW 2.1 3.40 3.85 3.80 4.60 6.60 8.20
COP - 3.2 3.30 3.30 3.30 3.30 3.30 3.10
Cooling capacity kW 6 10.0 11.0 11.0 13.3 18.9 22.3
Power input kW 2.4 3.85 4.40 4.40 5.40 7.60 9.20
EER - 2.5 2.60 2.50 2.50 2.45 2.50 2.40
Heating capacity kW 7.8 10.3 13.0 13.0 15.3 20.6 25.5
Power input kW 2.4 3.30 4.00 4.00 4.80 6.30 8.20
COP - 3.2 3.10 3.30 3.30 3.20 3.30 3.10
Heating capacity kW 7.6 10.1 13.0 13.0 15.2 20.6 25.3
Power input kW 3.4 5.00 6.20 6.20 7.20 9.80 12.60
COP - 2.2 2.00 2.10 2.10 2.10 2.10 2.00
Cooling capacity kW 7 10.0 11.8 11.8 14.5 20.0 25.0
Power input kW 2.6 3.60 4.50 4.50 5.80 7.10 10.00
EER - 2.7 2.80 2.60 2.60 2.50 2.80 2.50
DB(A) 52 53 55 55 55 56 56
°C
°C
°C
L/S 0.43 0.57 0.72 0.72 0.86 1.15 1.43
kPa 30 40 45 45 45 40 47
Refrigerant Bar 44 44 44 44 44 44 44
Water Bar 7 7 7 7 7 7 7
Monobloc DC Inverter Air To Water Heat Pump
Model
HP
Power supply 380-415V/3Ph/50Hz
-7℃ / 35℃ floor heating
+7℃ / 45℃ radiators
-7℃ / 45℃ radiators
200-240V/1Ph/50Hz
+7℃ / 35℃ floor heating
+2℃ / 35℃ floor heating
+35℃ / 7℃ fan coil
7~55
Noise level
Max. Working Pressure
Rated outlet water temp.
60
-20~43
Rated water flow rate
Ambient temperature range
Rated pressure drop
Max outlet water temp.
Water Bar 7 7 7 7 7 7 7
inch 1" 1" 1" 1" 1" 1-1/4" 1-1/4"
-
-
Make -
Type -
Nos. - 1 1 1 1 1 1 1
Refrigerant
Refrigerant amount Kg 1.45 1.9 2.5 2.5 2.6 4.2 4.5
Type -
Materials -
KW optional optional optional optional optional optional optional
- yes yes yes yes yes yes yes
-
Outdoor Unit mm 1105*470*780 1105*470*1230 1105*470*1260 1105*470*1230 1105*470*12601405x515x15001405x515x1500
External cabinet
Mitsubishi Hitachi
Micro processor based digital wire controller with LCD display
Compressor
Galvanized steel with powder coating
Water connection
Controller
1.The values of heating(cooling) capacity/power input/COP(EER) are based on measurement of EN14511 standard.Usage environment,such as operation of the heating
equipment,room temperature,and controller adjustments, may cause disparities between practically determined and these values.
2.Sound pressure level measured at distance of 1m from the device.
Scroll
Wilo/Xinhu
R410A
SUS 316
Brazed plate heat exchanger
Built in 3-way valve
Rotary
Built in electric heater
Water heat exchanger
Built in pump
