This document discusses the architecture and optimization of database management systems (DBMS). It covers: 1) The main components of a DBMS architecture including the query executor, buffer manager, storage manager, transaction manager, and more. 2) Query optimization techniques including rule-based optimization, cost-based optimization using a dynamic programming algorithm to search the plan space, and reducing the plan space. 3) Cost estimation including estimating selectivity factors, output sizes, and costs of different query execution plans without executing them.

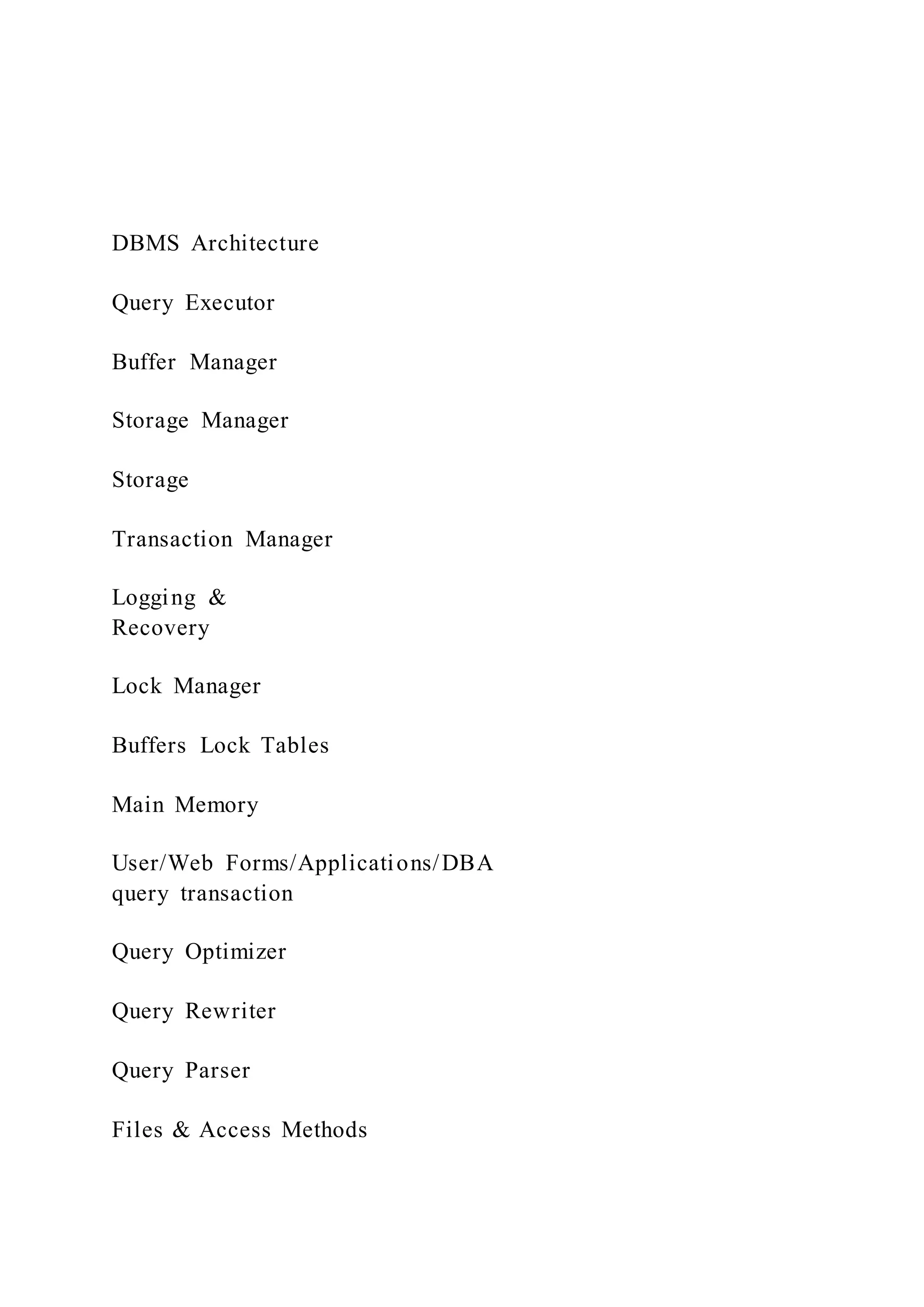

1. DBMS Architecture
Query Executor
Buffer Manager
Storage Manager
Storage
Transaction Manager
Logging &
Recovery
Lock Manager
Buffers Lock Tables
Main Memory
User/Web Forms/Applications/DBA
query transaction
Query Optimizer
Query Rewriter
Query Parser
Files & Access Methods

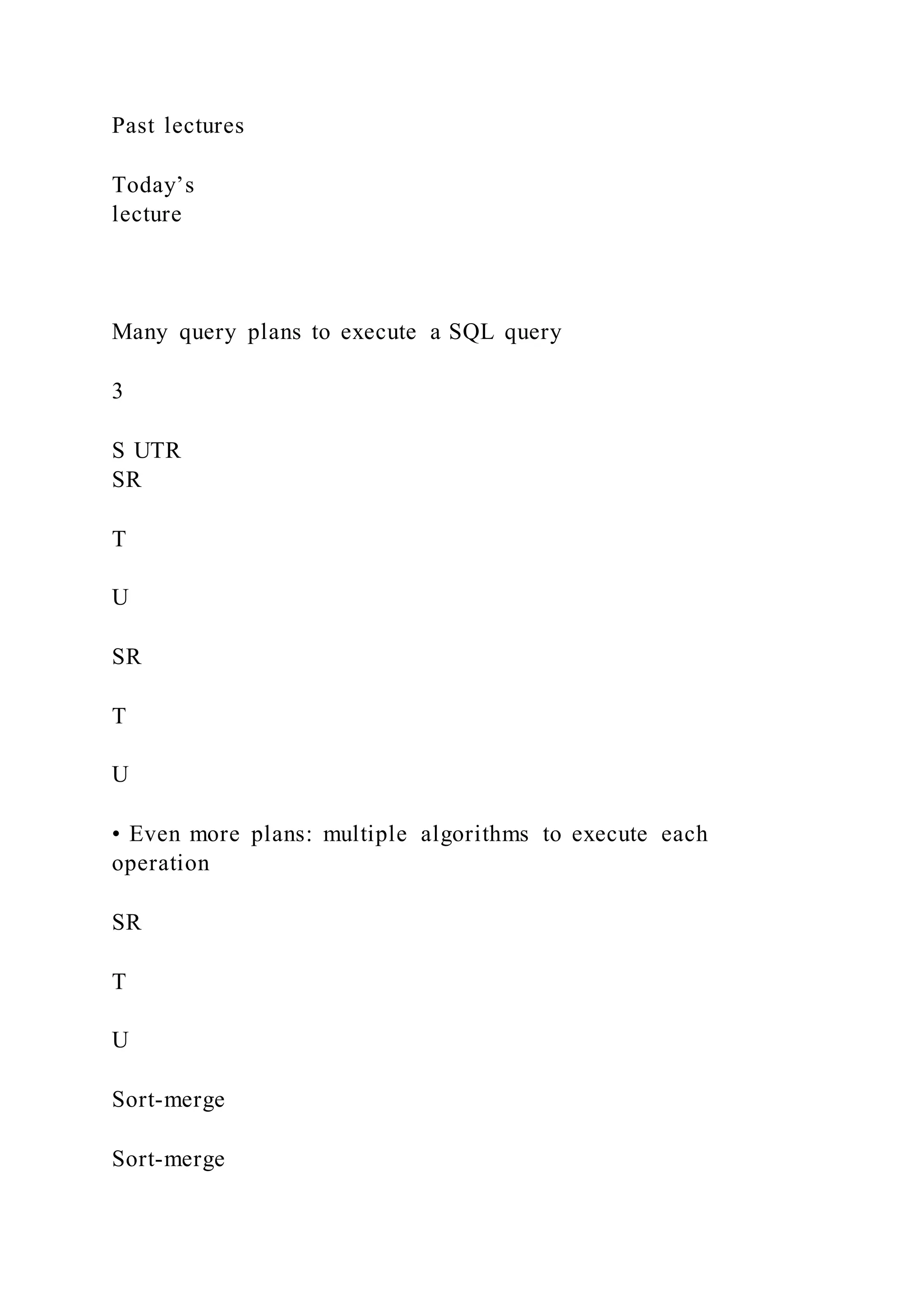

2. Past lectures
Today’s
lecture
Many query plans to execute a SQL query
3
S UTR
SR
T
U
SR
T
U
• Even more plans: multiple algorithms to execute each
operation
SR
T
U
Sort-merge
Sort-merge

3. hash join
Table-scan
index-scan
Table-scanindex-scan
• Compute the join of R(A,B) S(B,C) T(C,D) U(D,E)
Explain command in PostgreSQL
4
SELECT C.STATE, SUM(O.NETAMOUNT),
SUM(O.TOTALAMOUNT)
FROM CUSTOMERS C
JOIN CUST_HIST CH ON C.CUSTOMERID =
CH.CUSTOMERID
JOIN ORDERS O ON CH.ORDERID = O.ORDERID
GROUP BY C.STATE
Communication between operators:
iterator model
• Each physical operator implements three functions:
– Open: initializes the data structures.
– GetNext: returns the next tuple in the result.
– Close: ends the operation and frees the resources.

4. • It enables pipelining
• Other option: compute the result of the operator in full
and store it in disk or memory:
– inefficient.
5
Query optimization: picking the fastest plan
• Optimal approach plan
– enumerate each possible plan
– measure its performance by running it
– pick the fastest one
– What’s wrong?
• Rule-based optimization
– Use a set of pre-defined rules to generate a fast plan
• e.g., If there is an index over a table, use it for scan and join.
6
Review Definitions
• Statistics on table R:
– T(R): Number of tuples in R
– B(R): Number of blocks in R
• B(R) = T(R ) / block size
– V(R,A): Number of distinct values of attribute A in R

5. 7
Plans to select tuples from R: σA=a(R)
• We have an unclustered index on R
• Plans:
– (Unclustered) indexed-based scan
– Table-scan (sequential access)
• Statistics on R
– B(R)=5000, T(R)=200,000
– V(R,A) = 2, one value appears in 95% of tuples.
• Unclustered indexed scan vs. table-scan ?
8
Presenter
Presentation Notes
Unclustered indexed scan vs. table-scan ?
table-scan is the winner!
Query optimization methods
• Rule-based optimizer fails
– It uses static rules
– The rules do not consider the distribution of the data.
• Cost-based optimization
– predict the cost of each plan

6. – search the plan space to find the fastest one
– do it efficiently
• Optimization itself should be fast!
9
Cost-based optimization
• Plan space
– which plans to consider?
– it is time consuming to explore all alternatives.
• Cost estimator
– how to estimate the cost of each plan without executing it?
– we would like to have accurate estimation
• Search algorithm
– how to search the plan space fast?
– we would like to avoid checking inefficient plans
10
Space of query plans: basic operators
• Selection
– algorithms: sequential, index-based
– Ordering
• Projection
– Ordering

7. • Join
– algorithms: nested loop, sort-merge, hash
– ordering
11
Reducing plan space
• Multiple logical query plan for each SQL query
Star(name,BD,bio), StarsIn(movie, sname, year, plot)
SELECT movie,name
FROM Stars, StarsIn
WHERE Star.name = StarsIn.sname AND year = 1950
12
Generally Faster
StarsIn Star
StarsIn.sname = Star.name
σ year=1950
StarsIn
Star
StarsIn.sname = Star.name
year=1950
movie, name
movie, name

8. Reducing plan space
• Push selection down to reduce # of rows
• Push projection down to reduce # of columns
SELECT movie, name, BD
FROM Stars, StarsIn
WHERE Star.name = StarsIn.sname
13
StarsIn Star
StarsIn.sname = Star.name
movie, name, BD
StarsIn Star
StarsIn.sname = Star.name
movie, name, BD
movie, sname name,BD
Less effective than pushing down selection.
14
• Queries with multiple joins may have exponentially
many possible plans.

9. • System-R style considers only left-deep joins
Reducing plan space
SR
T
U
SR
T
U
T USR
• Left-deep trees allow us to generate fully pipelined plans
15
• System R-style avoids plans with Cartesian products
– Cartesian products are generally larger than joins.
• Example:
– Join of R(A,B), S(B,C), U(C,D)
– (R ⋈ U) ⋈ S has a Cartesian product
– Pick (R ⋈ S) ⋈ U instead
• If cannot avoid Cartesian products, delay them.
Reducing plan space

10. Components of a cost-based optimizer
• Plan space
– Which plans to consider?
– Time-consuming to explore every possible plan.
• Cost estimator
– How to estimate the cost of a plan without executing it?
– Accurate estimations.
• Search algorithm
– How to search the plan space fast?
– Avoid checking inefficient plans.
16
17
• Our goal is to maximize relative accuracy
– Compare plans, not to predict exact costs.
• For each operator in the plan:
– Find input size
– Estimate its cost based on the input size
• Example: sort-merge join of R ⋈ S is 3 B(R) + 3 B(S)
– Estimate output size or selectivity
• Selectivity: ratio of output to input
Cost estimation

11. 18
• Why estimate output size?
– Output of an operator = Input to the next one in the plan
– Used to estimate of the cost of the next operator
• Cost of a plan
– Sum of the cost of its operators
Cost estimation
Cost estimation: Selinger Style
• Input: stats on each table
– T(R): Number of tuples in R
– B(R): Number of blocks in R
• B(R) = T(R ) / block size
– V(R,A): Number of distinct values of attribute A in R
• We assume that attributes and predicates are
independence.
• When no estimate available, use magic numbers.
19
Presenter
Presentation Notes
too much information to keep, use histogram

12. 20
Selectivity factors: selection
• Point selection: S = σA=a(R)
– T(S) ranges from 0 to T(R) – V(R,A) + 1
– consider its mean: F = 1 / V (R,A)
• Range selection: S = σA>a(R)
– F = (max(A) – a) / (max(A) – min(A))
– If not arithmetic inequality, use magic number
• F = 1 / 3
• Range selection: S = σ b <A<a(R)
– F = (a - b) / (max(A) – min(A))
– If not arithmetic, use magic number
• F = 1 / 4
21
Examples: selection with multiple conditions
• S = σA=1 AND B>10(R)
– Given T(R) = 10,000, V(R,A) = 50
– No information on B
– Multiply 1/V(R,A) for equality and 1/3 for inequality
• T(S) = 10000 / (50 * 3) = 66
• S = σA=1 OR B>10(R)

13. – Sum of estimates of predicates minus their product
• T(S) = 200 + 3333 – 66 = 3467
22
• Containment of values assumption
– If V(S,A) <= V (R,A), then A-values in S are a subset of A-
values in R
• Let’s assume V(S,A) <= V (R,A)
– Each tuple t in S joins x tuple(s) in R
– consider its mean: x = T(R) / V (R,A)
– T(R ⋈A S) = T (S) * T(R) / V(R,A)
• General formula:
T(R ⋈A S) = T(R) * T(S) / max(V(R,A), V(S,A))
Selectivity factors: join predicates
Presenter
Presentation Notes
Typical join: A is a key in R and a foreign key in S
23
• What if we join over more than one attribute?
T(R S) =
T(R) T(S) / max(V(R,A),V(S,A) max(V(R,B),V(S,B))

14. A,B
Selectivity factors: join predicates
Components of a cost-based optimizer
• Plan space
– Which plans to consider?
– Time-consuming to explore every possible plan.
• Cost estimator
– How to estimate the cost of a plan without executing it?
– Accurate estimations.
• Search algorithm
– How to search the plan space fast?
– Avoid checking inefficient plans.
24
Search the plan space
• Baseline: exhaustive search
– Enumerate all (left-deep) trees and compare their costs
• Enormous space to search => time-consuming!
25

15. Plan search: System-R style
• A.K.A: Selinger style optimization
• Bottom-up
– Start from the ground relation (in FROM)
– Work up the tree to form a plan
– Compute the cost of larger plans based on its sub-trees.
• Dynamic programming
– greedily remove sub-trees that are costly (useless)
26
27
• Step 1: For each {Ri}:
– Plans({Ri}): algorithms to access Ri
• Table-Scan, Index-Scan
– Costs({Ri}): Costs of accessing to Ri
• e.g., B(Ri) for table-scan on Ri
– Plan({Ri}): access method with lowest cost
– Cost({Ri}): lowest cost in Costs({Ri})
– Output-size ({Ri}): B(Ri)
Dynamic programming algorithm
28
• Step 2: For each {Ri, Rj}:
– Plans({Ri,Rj}): join algorithms to compute Ri ⋈ Rj

16. • E.g., nested-loop and sort-merge based algorithms
– Costs({Ri,Rj}): function of size of Ri and Rj
• #I/O access of the chosen join algorithm
• E.g., 5 B(R) + 5 B(S) for sort-merge join
– Plan({Ri,Rj}): the join algorithm with lowest cost
– Cost({Ri,Rj}): lowest cost in Costs({Ri,Rj})
– Output-size ({Ri,Rj}): estimate of the size of join
Dynamic programming algorithm
29
• Step i: For each S ⊆ {R1, …, Rn} of cardinality i:
– for every S1 ,S2 s.t. S = S1 ∪ S2 compute
C = cost(S1) + cost(S2) + cost(S1 ⋈ S2)
– Cost(S) = the smallest C
– Plan(S) = the plan with cost(S)
– Output-size(S): estimate the size of S
• Return Plan({R1, …, Rn})
Dynamic programming algorithm
30
• R ⋈ S ⋈ T ⋈ U on common attribute A
• T(R)= 2000, T(S)=5000, T(T)=3000, T(U)=1000
• We assume that each block contains a single tuple.

17. – B(R)= 2000, B(S)=5000, B(T)=3000, B(U)=1000
• No index on relations
– Table-scan to access each relation
• The only join algorithm is sort-merge
– Cost for R ⋈ S: 5 B(R) + 5 B(S)
– There is enough memory for sort-merge joins.
Example
31
• Relations: R, S, T, U
• T(R)= 2000, T(S)=5000, T(T)=3000, T(U)=1000
• B(R)= 2000, B(S)=5000, B(T)=3000, B(U)=1000
• To simplify our example, we assume
– V(R,A)=V(S,A)=V(T,A)=V(U,A)= 100
– T(R ⋈ S) = 0.01 * T(R) * T(S)
• Same formula for joins of every pair of relations.
Example
32
Query Output-Size Cost Plan
R⋈ S

18. R⋈ T
R⋈ U
S⋈ T
S⋈ U
T⋈ U
R⋈ S⋈ T
R⋈S⋈U
R⋈T⋈U
S⋈T⋈U
R⋈S⋈T⋈U
33
Query Output-Size Cost Plan
R⋈S 100K 35K R⋈S
R⋈T 60K 25K R⋈T
R⋈U 20K 15K R⋈U
S⋈T 150K 40K S⋈T
S⋈U 50K 30K S⋈U

19. T⋈U 30K 20K T⋈U
R⋈S⋈ T
R⋈S⋈U
R⋈T⋈U
S⋈T⋈U
R⋈S⋈T⋈U
34
Query Output-Size Cost Plan
R⋈S 100K 35K R⋈S
R⋈T 60K 25K R⋈T
R⋈U 20K 15K R⋈U
S⋈T 150K 40K S⋈T
S⋈U 50K 30K S⋈U
T⋈U 30K 20K T⋈U
R⋈S⋈T 3M 170K S⋈ (R⋈T)
R⋈S⋈U 1M 80K S⋈ (R⋈U)
R⋈T⋈U 0.6M 70K T⋈ (R⋈U)

20. S⋈T⋈U 1.5M 105K S⋈ (T⋈U)
R⋈S⋈T⋈U
35
Query Output-Size Cost Plan
R⋈S 100K 35K R⋈S
R⋈T 60K 25K R⋈T
R⋈U 20K 15K R⋈U
S⋈T 150K 40K S⋈T
S⋈U 50K 30K S⋈U
T⋈U 30K 20K T⋈U
R⋈S⋈T 3M 170K S⋈ (R⋈T)
R⋈S⋈U 1M 80K S⋈ (R⋈U)
R⋈T⋈U 0.6M 70K T⋈ (R⋈U)
S⋈T⋈U 1.5M 105K S⋈ (T⋈U)
R⋈S⋈T⋈U 30M 1.35M S⋈ (T⋈ (R⋈U))
Interesting Orders
• Useful sorted intermediate results

21. • Order By
– E.g., Order By based on A for the result R⋈AS
• Sorted order based on A is an interesting order
• Multi-relation joins
– E.g., T⋈A (R⋈AS)
• Sorted output of R⋈AS helps fast join of T⋈A (R⋈AS).
• Sorted order based on A is an interesting order
• Grouping
36
Interesting Orders
• Plans with sorted results save sorting time/cost.
– E.g., sort-merge join for R⋈AS with Order By on A.
– E.g., sort-merge join for R⋈AS for query T⋈A (R⋈AS).
• The dynamic programming algorithm always keeps
– Fastest overall plan
– Fastest plan for each interesting order
37
Nested subqueries
• Subqueries are optimized separately
• Correlation: order of evaluation
– uncorrelated queries

22. • nested subqueries do not reference outer subqueries
• evaluate the most deeply nested subquery first
– correlated queries: nested subqueries reference the outer
subqueries
Select name
From employee X
Where salary > (Select salary
From employee
Where employee_num = X.manager)
38
Nested subqueries
• correlated queries: nested subqueries reference the outer
subqueries
Select name
From employee X
Where salary > (Select salary
From employee
Where employee_num = X.manager)
• The nested subquery is evaluated once for each tuple in the
outer query.
• If there are small number of distinct values in the outer
relation, it is worth sorting the tuples.
– reduces the #evaluation of the nested query.
39

23. Optimization: all operations
• Reduce plan space
– Push down selections and projections
– Choose good plans, discard bad ones
• Base relations access
– find all plans for accessing each base relations
• Join ordering
– Bottom-up dynamic programming algorithm
– Consider only left-deep plans
– Remove/ postpone Cartesian product
– Keep the cheapest plan for unordered and each interesting
order
40
Summary: optimization
• Ideal goal
– Map a declarative query to the most efficient plan
• Plan space
– Many semantically equivalent alternatives
• Why important?
– Difference between good/bad plans is order of magnitude
• Conventional wisdom:
– At least avoid bad plans

24. 41
State of the art
• Academia: always a core database research topic
– Optimizing for interactive querying
– Optimizing for novel parallel frameworks
• Industry: most optimizers use System-R style
– They started with rule-based.
• Oracle 7 and its prior versions used rule-based
• Oracle 7 – 10: rule-based, and cost based
• Oracle 10g (2003): cost-based
42
CS 540 �Database Management SystemsDBMS
ArchitectureMany query plans to execute a SQL queryExplain
command in PostgreSQLCommunication between operators: �
iterator modelQuery optimization: picking the fastest
planReview Definitions�Plans to select tuples from R: sA=a(R)
�Query optimization methodsCost-based optimizationSpace of
query plans: basic operatorsReducing plan spaceReducing plan
spaceReducing plan spaceReducing plan spaceComponents of a
cost-based optimizerCost estimationCost estimationCost
estimation: Selinger Style Selectivity factors:
selectionExamples: selection with multiple
conditionsSelectivity factors: join predicatesSelectivity factors:
join predicatesComponents of a cost-based optimizerSearch the
plan spacePlan search: System-R styleDynamic programming
algorithmDynamic programming algorithmDynamic
programming algorithmExampleExampleSlide Number 32Slide
Number 33Slide Number 34Slide Number 35Interesting

25. OrdersInteresting OrdersNested subqueriesNested
subqueriesOptimization: all operationsSummary:
optimizationState of the art
1
1: Query optimization (2 points)
Consider the following relations:
R(A, B, C, D, E)
S(F, D)
T(G, B, D, H)
U(I, J, K)
V(L, J, M)
W(L, J, N)
Suggest an optimized logical query plan for the above query and
explain why your proposed plan
may be faster than other possible plans. You should find the
best guess(es) for the join order in
your plan without knowing the statistics of the join attributes
and base relations.
SELECT B,C
FROM R, S, T, U, V, W
WHERE R.D = S.D and R.D = T.D

26. and R.B = T.B and U.J <= V.J and U.J = W.J and R.E <= 200
and W.N <= 100
Please note that your answer may not always be more efficient
than other plans, but it should run
faster than other plans for most input relations.
2: Query optimization (4 points)
For the four relations in the following table, find the best join
order according to the dynamic
programming algorithm used in System-R. You should give the
dynamic programming table
entries for evaluating the join orders. The cost of each join is
the number of I/O accesses the
database system performs to execute the join. Assume that the
database system uses the
two-pass sort-merge join algorithm to perform the join
operations. Each block contains 4 tuples
and tuples of all relations have the same size. We are interested
only in left-deep join trees. Note
that you should use the System-R optimizer formula to compute
the size of each join output.
R(A,B,C) S(B,C) W(B,D) U(A,D)
T(R)=4000 T(S)=3000 T(W)=2000 T(U)=1000
V(R,A) =100
V(R,B) =200
V(R,C) =100

27. V(S,B) =100
V(S,C) = 300
V(W,B) =100
V(W,D) =50
V(U,A) =100
V(U,D) =100
2
3: Query optimization (2 points)
What is the time-complexity of the dynamic programming
algorithm you used in question (3) of
this assignment? You should explain your answer.
4: Serializability and 2PL (5 points)
(a) Consider the following classes of schedules: serializable and

28. 2PL. For each of the following
schedules, state which of the preceding classes it belongs to. If
you cannot decide whether a
schedule belongs in a certain class based on the listed actions,
explain briefly. Also, for each 2PL
schedule, identify whether a cascading rollback (abort) may
happen. A cascading rollback will
happen in a schedule if a given transaction aborts at some point
in the schedule, and at least one
other transaction must be aborted by the system to keep the
database consistent. (4 points)
The actions are listed in the order they are scheduled and
prefixed with the transaction name. If
a commit or abort is not shown, the schedule is incomplete;
assume that abort or commit must
follow all the listed actions.
1. T1:R(X), T2:R(Y), T3:W(X), T2:R(X), T1:R(Y)
2. T1:R(X), T1:R(Y), T1:W(X), T2:R(Y), T3:W(Y), T1:W(X),
T2:R(Y)
3. T1:W(X), T2:R(X), T1:W(X)
4. T1:R(X), T2:W(X), T1:W(X), T3:R(X)
(b) Consider a database DB with relations R1 and R2. The
relation R1 contains tuples t1 and t2
and the relation R2 contains tuples t3, t4, and t5. Assume that
the database DB, relations, and

29. tuples form a hierarchy of lockable database elements. Explain
the sequence of lock requests and
the response of the locking scheduler to the following schedule.
You may assume all lock requests
occur just before they are needed, and all unlocks occur at the
end of the transaction, i.e., EOT.
(1 point)
• T1:R(t1), T2:W(t2), T2:R(t3), T1:W(t4)
5: Degrees of Consistency (4 points)
(a) Consider the schedule shown in Table 1.
What are the maximum degrees of consistency for T1 and T2 in
this schedule? You must find the
maximum degrees of consistency for T1 and T2 that makes this
schedule possible. (2 points)
(b) Consider a transaction that reads the information about a set
of accounts from a CSV file
and writes them in a database. What degree of consistency will
you choose for this transaction?
3

30. T1 T2
0 start
1 read X
2 write X
3 start
4 read X
5 write X
6 Commit
7 read Y
8 write Y
9 Commit
Table 1: Transaction schedule
You should justify your answer. Next, consider another
transaction in a banking system that
reads the balances of all bank accounts in a branch and
computes their average. What degree of
consistency will you choose for this transaction? You should
justify your answer. (2 points)
6: Serializability (6 points)
Consider the following protocol for concurrency control. The
database system assigns each
transaction a unique and strictly increasingly id at the start of
the transaction. For each data
item, the database system also keeps the id of the last
transaction that has modified the data
item, called the transaction-id of the data item. Before a

31. transaction T wants to read or write on
a data item A, the database system checks whether the
transaction-id of A is greater than the id
of T . If this is the case, the database system allows T to
read/write A. Otherwise, the database
system aborts and restarts T .
(a) Does this protocol allow only serializable schedules for
transactions? If not, you may suggest
a change to the protocol so that all schedules permitted by this
protocol are serializable. You
should justify your answer. (3 points)
(b) Propose a change to this protocol or the modified version
you have designed for part (a) that
increases its degree of concurrency, i.e., it allows more
serializable schedules. (3 points)
1: Query optimization (2 points)2: Query optimization (4
points)3: Query optimization (2 points)4: Serializability and
2PL (5 points)5: Degrees of Consistency (4 points)6:
Serializability (6 points)
