This document discusses the assembly of a PC and provides information on the necessary tools, components, and steps. The key components that must be assembled include the motherboard, CPU, cooling system, RAM, hard drive, optical drive, and power supply. The assembly process involves installing the CPU on the motherboard, connecting front panel plugs, inserting the RAM, securing storage drives in the cabinet bays, installing input/output cards, and connecting all power cables between the motherboard and components.

1. DAY 18

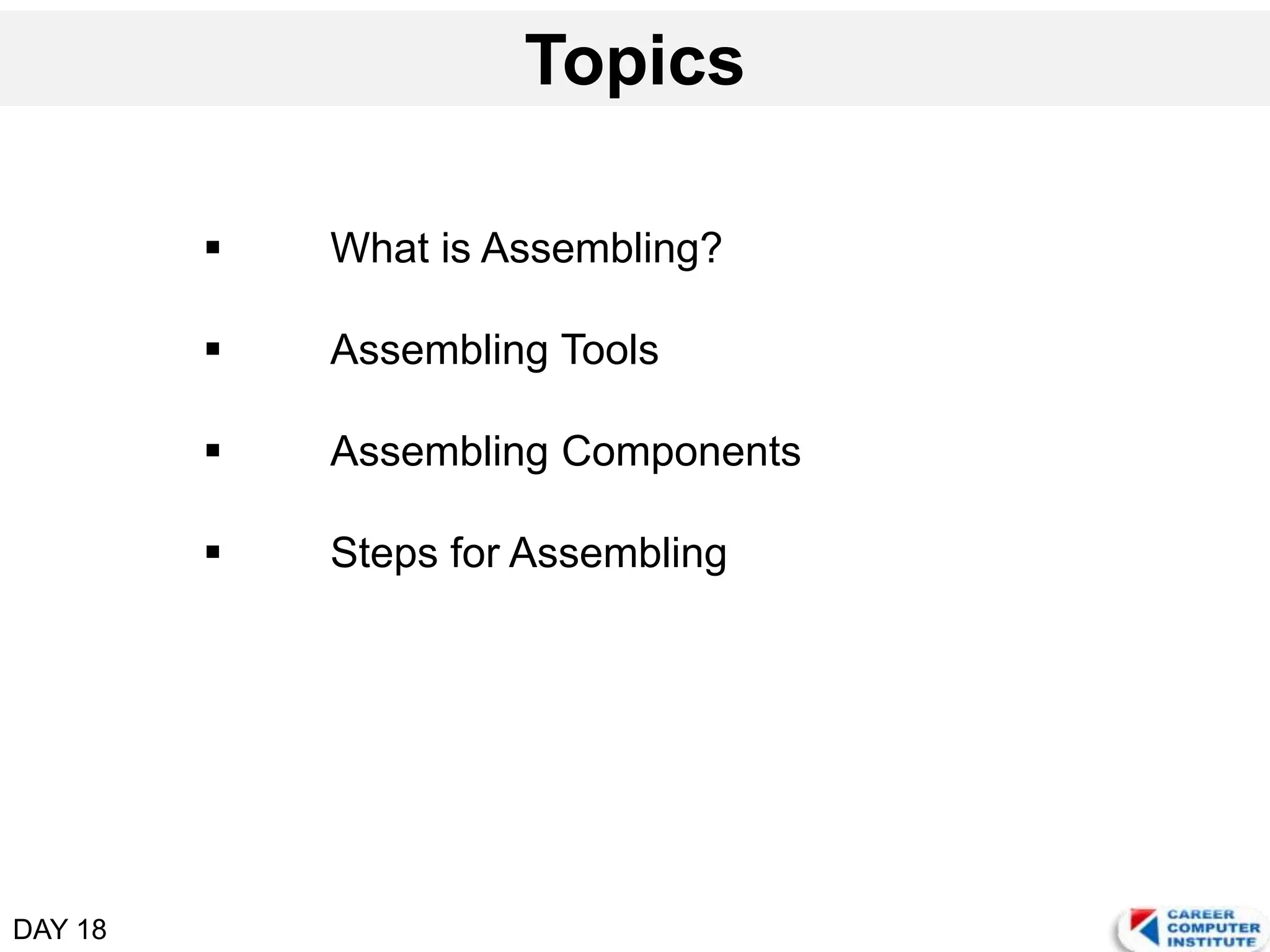

Topics
 What is Assembling?
 Assembling Tools
 Assembling Components
 Steps for Assembling

2. DAY 18
PC Assembling
 A PC computer is a modular type of computer, it can
be assembled using hardware components made by different
manufacturers
 Fit Together the separate component parts of a
Computer Machine .

3. DAY 18
Assembling Tools
Anti-static Wrist Strap
Phillips-head (cross-shaped) screwdriver
Needle-nose pliers
Flashlight, preferably hands-free

4. DAY 18
Assembling Components
Mother Board set
Cabinet Screw M/B Screw Base
Back PlateMother Board

5. DAY 18

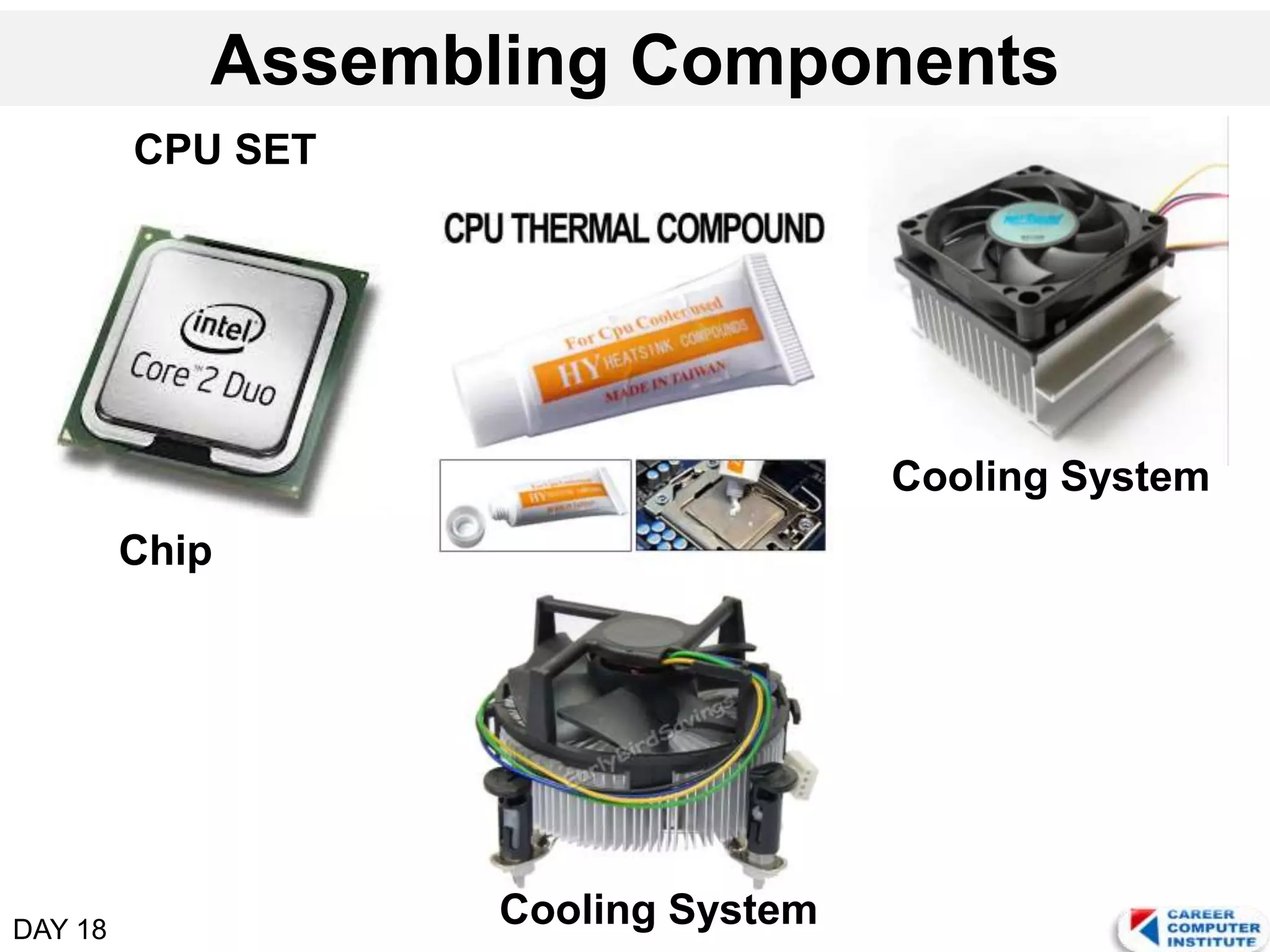

Assembling Components
CPU SET
Chip
Cooling System
Cooling System

6. DAY 18
Assembling Components
HDD Set
Data Cable
Screw HDD

7. DAY 18
Assembling Components
Optical Drive Set
Data Cable
Screw

8. DAY 18

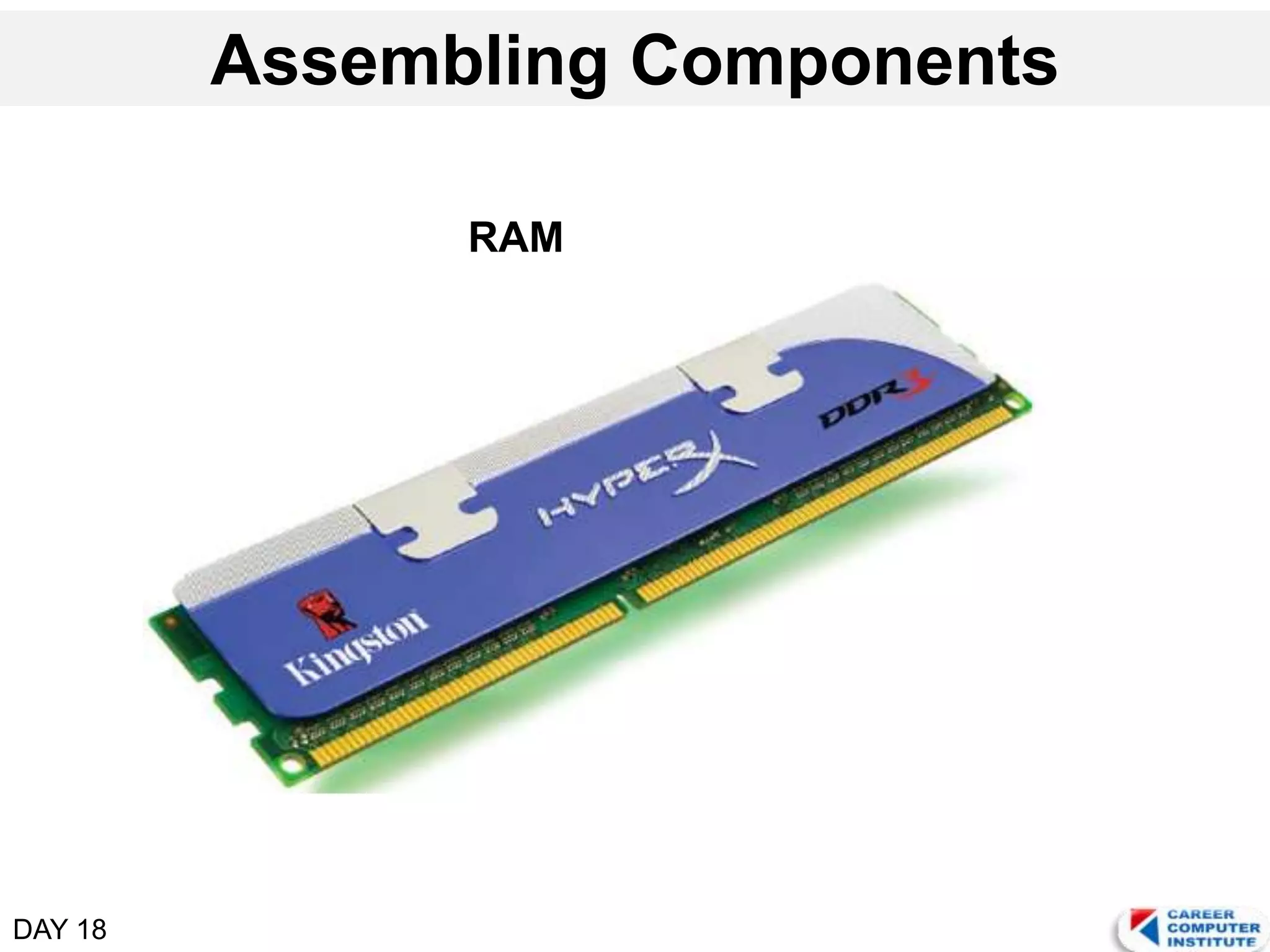

Assembling Components
RAM

9. DAY 18
Assembling Components
IO Card As for rewired

10. DAY 18
Assembling Components
Cabinet With SMPS

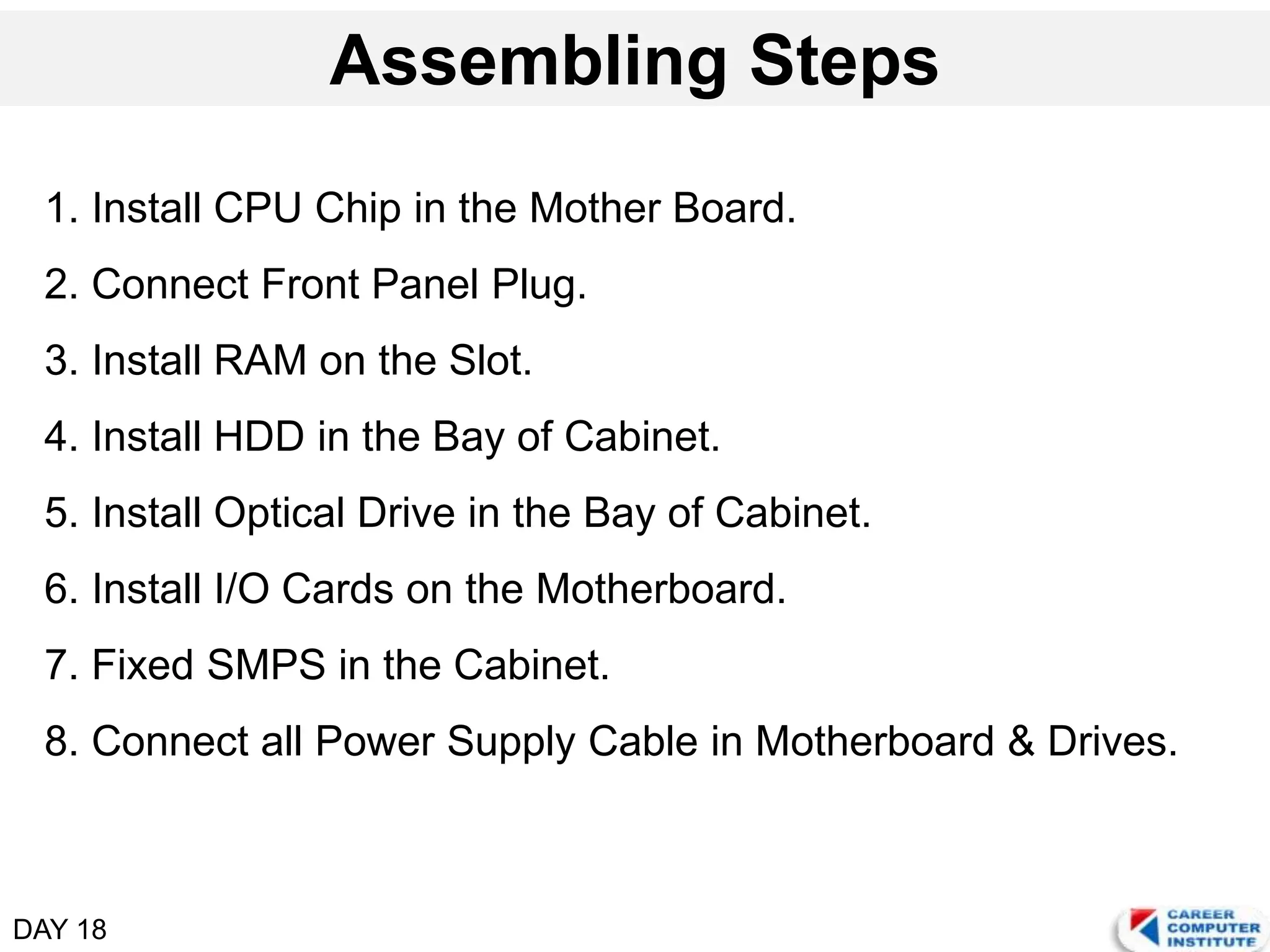

11. DAY 18
Assembling Steps
1. Install CPU Chip in the Mother Board.
2. Connect Front Panel Plug.
3. Install RAM on the Slot.
4. Install HDD in the Bay of Cabinet.
5. Install Optical Drive in the Bay of Cabinet.
6. Install I/O Cards on the Motherboard.
7. Fixed SMPS in the Cabinet.
8. Connect all Power Supply Cable in Motherboard & Drives.
