vPoint HD is Emblaze-VCON's latest software-only desktop videoconferencing client that offers HD audio and video up to 1080p. It allows simultaneous sending and receiving of video and data streams. It also enables users to participate in and chair corporate broadcasts. vPoint HD includes features like video email and recording capabilities. It is available in Basic, Professional, and Executive models to meet different corporate needs.

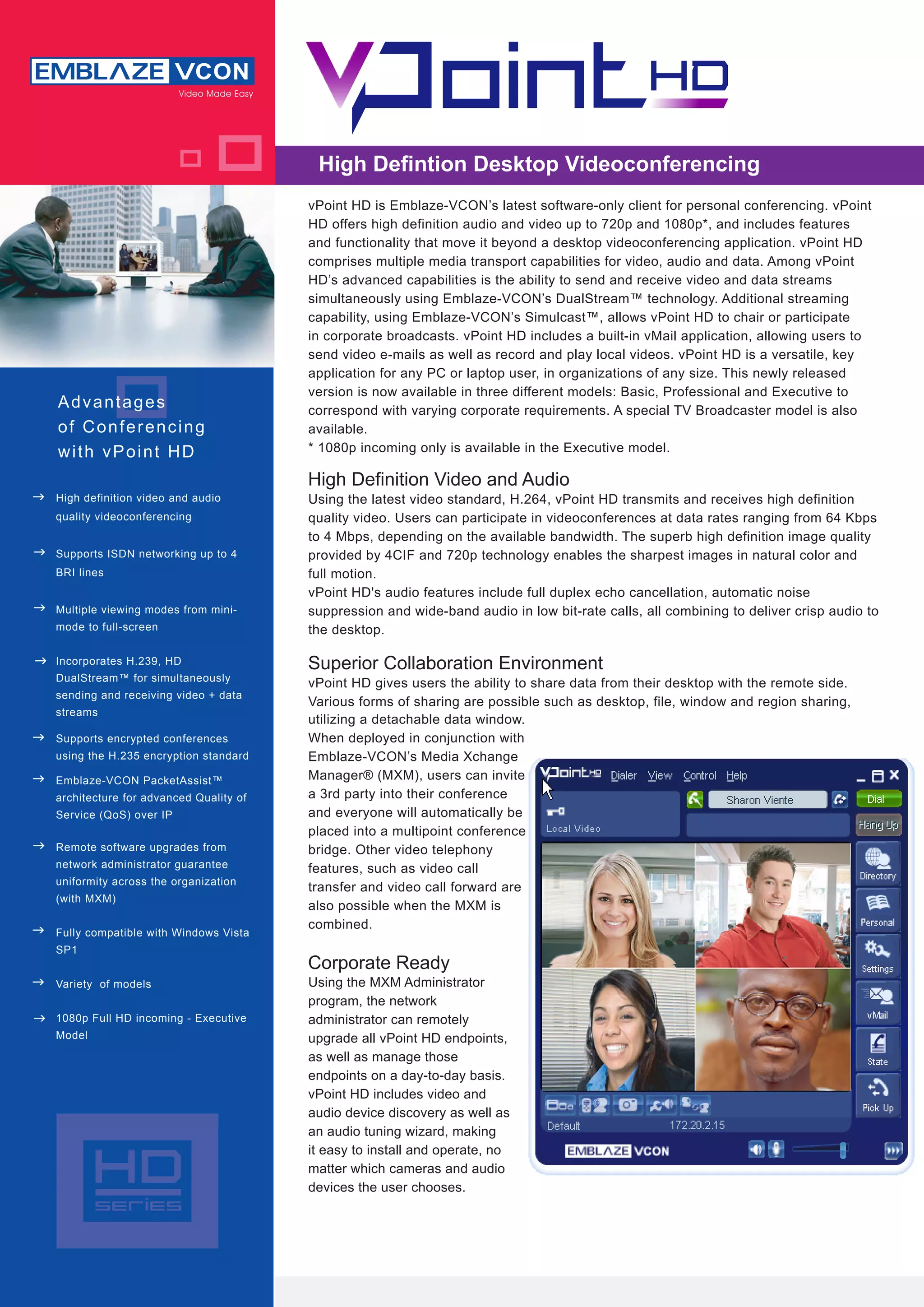

1. High Defintion Desktop Videoconferencing
vPoint HD is Emblaze-VCON’s latest software-only client for personal conferencing. vPoint
HD offers high definition audio and video up to 720p and 1080p*, and includes features
and functionality that move it beyond a desktop videoconferencing application. vPoint HD
comprises multiple media transport capabilities for video, audio and data. Among vPoint
HD’s advanced capabilities is the ability to send and receive video and data streams
simultaneously using Emblaze-VCON’s DualStream™ technology. Additional streaming
capability, using Emblaze-VCON’s Simulcast™, allows vPoint HD to chair or participate
in corporate broadcasts. vPoint HD includes a built-in vMail application, allowing users to
send video e-mails as well as record and play local videos. vPoint HD is a versatile, key
application for any PC or laptop user, in organizations of any size. This newly released
version is now available in three different models: Basic, Professional and Executive to
Advantages correspond with varying corporate requirements. A special TV Broadcaster model is also
of Conferencing available.
* 1080p incoming only is available in the Executive model.
with vPoint HD
High Definition Video and Audio
g Using the latest video standard, H.264, vPoint HD transmits and receives high definition
High definition video and audio
quality video. Users can participate in videoconferences at data rates ranging from 64 Kbps
quality videoconferencing
to 4 Mbps, depending on the available bandwidth. The superb high definition image quality
g provided by 4CIF and 720p technology enables the sharpest images in natural color and
Supports ISDN networking up to 4
full motion.
BRI lines
vPoint HD's audio features include full duplex echo cancellation, automatic noise
g suppression and wide-band audio in low bit-rate calls, all combining to deliver crisp audio to
Multiple viewing modes from mini-
mode to full-screen the desktop.
Superior Collaboration Environment
g Incorporates H.239, HD
DualStream™ for simultaneously
vPoint HD gives users the ability to share data from their desktop with the remote side.
sending and receiving video + data
Various forms of sharing are possible such as desktop, file, window and region sharing,
streams
utilizing a detachable data window.
g When deployed in conjunction with
Supports encrypted conferences
Emblaze-VCON’s Media Xchange
using the H.235 encryption standard
Manager® (MXM), users can invite
g Emblaze-VCON PacketAssist™
a 3rd party into their conference
architecture for advanced Quality of
and everyone will automatically be
Service (QoS) over IP
placed into a multipoint conference
g Remote software upgrades from bridge. Other video telephony
network administrator guarantee features, such as video call
uniformity across the organization
transfer and video call forward are
(with MXM)
also possible when the MXM is
combined.
g Fully compatible with Windows Vista
SP1
Corporate Ready
g Using the MXM Administrator
Variety of models
program, the network
g administrator can remotely
1080p Full HD incoming - Executive
Model upgrade all vPoint HD endpoints,
as well as manage those
endpoints on a day-to-day basis.
vPoint HD includes video and
audio device discovery as well as
an audio tuning wizard, making
it easy to install and operate, no
matter which cameras and audio
devices the user chooses.

2. Software Only Multimedia Videoconferencing
Minimum PC Requirements
Emblaze-VCON, Inc., g Pentium IV 2.4 Ghz PC Graphic display that supports DirectX 9.0
g
Americas H.264 4CIF and above requires Core 2 Duo or Two available USB Ports (one for video
g
2 University Plaza, Suite 201
Dual Core 3Ghz or faster CPU or AMD equal or device and one for a USB protection key
Hackensack , NJ 07601
faster than Athlon 64x2 Dual if used).
USA
Tel: +1-201-883-1220
Note: For 4CIF resolution and above,
g 256MB 400 MHz RAM
Fax: +1-201-883-1229
g 25 MB available disk space H.264-capable PC with USB 2.0 support is
g Windows 2000, XP, Vista required for optimum performance
Emblaze-VCON * For high definition display, PC monitor
Specifications
China should be set to the appropriate resolution
Unit1321, Tower B. COFCO Plaza
8 Jianguomennei Avenue
Beijing, 10005
China
Tel: +86-10-6526-9791
Fax: +86-10-6526-9790
Video Specifications Audio Standards Viewing Modes
Emblaze-VCON Transmission Speed G.711, G.722, G.722.1, G.723.1, Mini screen
CE, NE, WE and Russia H.323: 64 Kbps - 4Mbps G.728,G.729, AAC-LD, G.722.1- Regular screen
mmg Multimedia GmbH ISDN 64 Kbps - 512 Kbps (4BRI) Annex C Large screen
Akazienstr. 1 Full screen
16356 Werneuchen Video Standards Data Specifications Support for 16:9 aspect ratio -
Germany HD DualStream™
H.261, H.263, H.263+/++ in wide screen
Tel. +49 333 98 78530 H.264 - up to 2Mbps outgoing File, region, and window sharing -
Fax. +49 333 98 78539 Dialing Modes
(Detachable data view)
Live Video Resolution Windows desktop sharing Manual
Emblaze-VCON 1080p (1920 x 1080 pixels) incoming H.239 support in both live video and Speed dial
Italy 720p (1280 x 720 pixels) multicast Personal address book
4CIF (704 x 576 pixels) Tandberg DuoVideo support Online directory
Satnet S.r.l,
VGA (640 x 480 pixels) Sending and receiving capability Multicast chair
Via Abegg, 43 – 10050 – Borgone Susa (TO)
Interlaced CIF (352 x 576 pixels) 1 live video source + 1 data source Broadcast viewer
Italy
CIF (352 x 288 pixels) Resolutions supported:
Tel: +39-01-196-41375
Security
SIF (352 x 240 pixels) XGA, SVGA, 4CIF, VGA, CIF, QVGA,
Fax:+ 39-01-197-62802
QVGA (320 x 240 pixels) QCIF Encryption using H.235 (AES)
QCIF (176 x 144 pixels) Using Emblaze-VCON SecureConnect
Emblaze-VCON Networking Specifications DES, 3DES and AES support
Eastern Europe Video Frame Rate Standards Supported AES is NIST validated
Ramiris Communications Ltd. Up to 15 fps: 64 - 128 Kbps ITU-T: H.323 v4.2 Supports restricted access users
H-1139 Budapest, Frangepán u. 46. Up to 20 fps: 192 Kbps H.281 Annex Q (FECC)
ISDN: H.320, H.221, H.242,
Hungary Directory Services
Up to 30 fps: 256 Kbps +
H.230
Tel.: +36-1-889-7607 1000+ local number directory
Fax: +36-1-889-7601 Video Features 10,000+ global number directory
H.323 QoS Features
Video device discovery H.350 support (MXM mode)
Automatic NTSC/PAL detection DiffServ LDAP online directory support
Emblaze-VCON
Unlimited number of video devices IP Precedence OpenLDAP
UK and Middle East
supported Firewall port sync Microsoft ILS, SiteServer, Active
27 Old Gloucester Street
HD Simulcast™ NAT IP address mask Directory and Exchange
London WC1N 3XX Chair or Participant in any Interactive Port pinholing Sun iPlanet
United Kingdom Multicast session Adaptive Bandwidth Adjustment Netscape Directory
Tel: +44 (0) 207 0317 255 Integrated Broadcast Viewer Packet loss recovery (FEC) Search and filter queries
Uses bandwidth-efficient IP multicast Packet ordering
Fax: +44 (0)207 0316 256
Language Support
Packet duplication control
Audio Specifications Jitter correction English, French, German, Italian,
Emblaze-VCON Ltd.
Audio Features Lip sync correction Spanish, Chinese, Polish, Turkish,
Headquarters
Full duplex echo cancellation Overhead prediction Norwegian, Korean, Russian.
Beit Rakefet Automatic noise suppression (ANS) Max packet size adjustment
1 Emblaze Square Automatic gain control (AGC)
POB 2220 Audio device discovery
Ra'anana 43662 Audio tuning wizard
Israel Unlimited number of audio devices
Tel: +972-9-7627800 supported
Fax: +972-9-7627801 Headset and speaker profiles
Voice Activity Detection (VAD)
©2008 Emblaze-VCON. All rights reserved.
DOC50101 Rev. 16 06/08
