1. BLAZE AUTOMATION
Surveillance Industry Solution
Home Automation and Security Camera
Presented by sridhar Ponugupati
BLAZE AUTOMATION CCTV SOLUTION

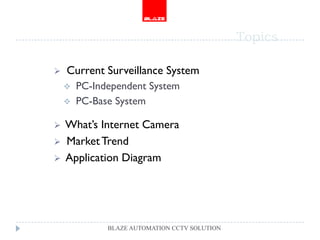

2. Topics
Current Surveillance System
PC-Independent System

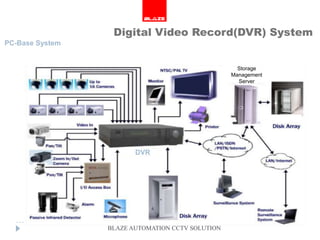

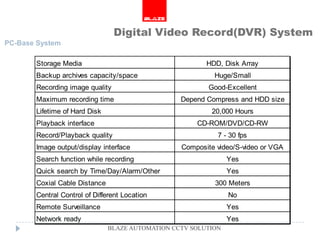

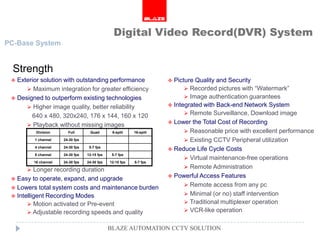

PC-Base System

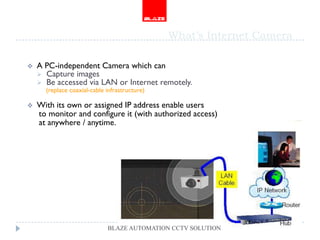

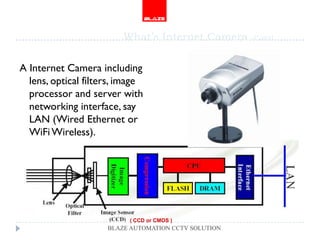

What’s Internet Camera

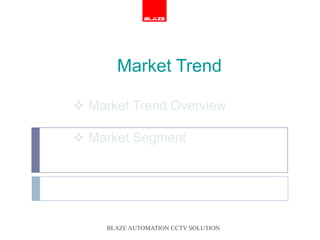

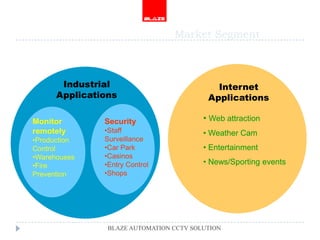

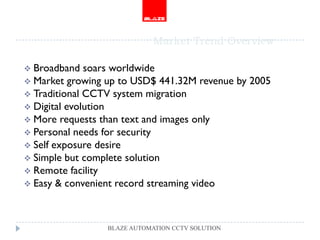

Market Trend

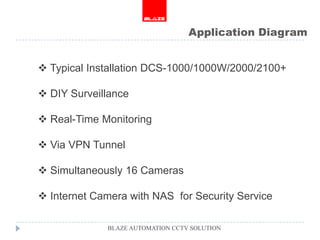

Application Diagram
BLAZE AUTOMATION CCTV SOLUTION

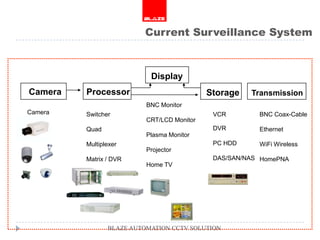

3. Current Surveillance System
Display
Camera Processor Storage Transmission
BNC Monitor
Camera Switcher VCR BNC Coax-Cable
CRT/LCD Monitor
Quad DVR Ethernet
Plasma Monitor
Multiplexer PC HDD WiFi Wireless
Projector
Matrix / DVR DAS/SAN/NAS HomePNA
Home TV
BLAZE AUTOMATION CCTV SOLUTION

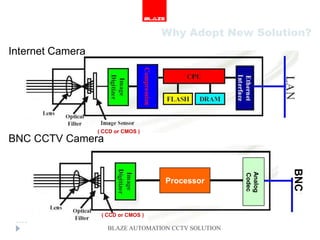

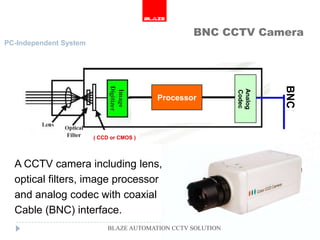

4. BNC CCTV Camera
PC-Independent System
BNC
Analog
Codec
Processor
( CCD or CMOS )
A CCTV camera including lens,
optical filters, image processor
and analog codec with coaxial
Cable (BNC) interface.
BLAZE AUTOMATION CCTV SOLUTION

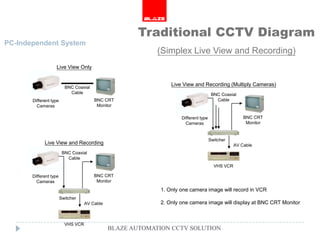

5. Traditional CCTV Diagram
PC-Independent System
(Simplex Live View and Recording)
Live View Only
BNC Coaxial
Live View and Recording (Multiply Cameras)
Cable BNC Coaxial
Different type BNC CRT Cable
Cameras Monitor
Different type BNC CRT
Cameras Monitor
Switcher
Live View and Recording AV Cable
BNC Coaxial
Cable
VHS VCR
Different type BNC CRT
Cameras Monitor
1. Only one camera image will record in VCR
Switcher
AV Cable 2. Only one camera image will display at BNC CRT Monitor
VHS VCR
BLAZE AUTOMATION CCTV SOLUTION
6. Traditional CCTV Diagram
PC-Independent System
(Advance Live View and Recording)
Live View and Recording (Multiply Cameras) Live View and Recording (Multiply Devices)
Multiplexer
QUAD
CCTV
VCR
CCTV VCR
1. Display Max 16 split screen for 16 Cameras at monitor 1. Display Max 16 split screen for 16 Cameras at monitor
2. One camera per record or 16 split screen image per record 2. One camera per record or 16 split screen image per record
3. Can set 4 / 9 / 16 Split screen at monitor 3. Can set 4 / 9 / 16 Split screen at monitor
4. Can set 4 / 9 group shift rotate of cameras at split screen 4. Can set 4 / 9 group shift rotate of cameras at split screen
5. When playback what you record what you playback at monitor 5. When playback what you record what you playback at monitor
BLAZE AUTOMATION CCTV SOLUTION
7. Traditional CCTV Diagram
PC-Independent System
(Multiplex Live View and Recording)
BNC CRT Monitor
Camera 1-16
Time-lapse VCR
Switcher / Quad
Multiplexer / Matrix
Tape Storage
P/T Management
Center
P/T/Z
P/T
Controller
Passive Alarm
Microphone Infrared Detector
BLAZE AUTOMATION CCTV SOLUTION
8. Traditional CCTV Diagram
PC-Independent System
( Playback )
Home TV (AV Connector)
Time-lapse VCR
Switcher / Quad
Multiplexer / Matrix
Multiply Cameras Tape Storage
QUAD Screen Management
Center
BNC CRT Monitor
BLAZE AUTOMATION CCTV SOLUTION
9. Traditional CCTV System
PC-Independent System
Storage Media Video cassette
Backup archives capacity/space Small/Large
Recording image quality Poor
Maximum recording time 24 Hours
Lifetime of Video Cassette 20 times of Over-Write
Playback interface VCR only
Record/Playback quality 3 - 5 fps
Image output/display interface Composite video/S-video
Search function while recording No
Quick search by Time/Day/Alarm/Other No
Coxial Cable Distance 300 Meters
Central Control of Different Location No
Remote Surveillance No
Network ready No
BLAZE AUTOMATION CCTV SOLUTION
10. Traditional CCTV System
PC-Independent System
Strength Opportunity
• Easy to installed • Manufacture keep supply in market
• Easy to operated with cheaper initiate cost
• Easy to get supply
Weakness Threats
• High maintain cost • Double invest with new
• Need Tape Library technologies in future
• Poor playback quality • No maintain support in future
• Can’t record / playback simultaneous • Video record can not as evidence
• VCR head, motor / belt and VHS tape in court
damage frequently • Central administration is difficult
• No record during camera shifted in different location
• Lost record during tape rewind
BLAZE AUTOMATION CCTV SOLUTION
11. PC-Base System
Block Diagram of Storage Media
BLAZE AUTOMATION CCTV SOLUTION
12. Digital Video Record(DVR) System
PC-Base System
Storage
Management
Server
DVR
BLAZE AUTOMATION CCTV SOLUTION
13. Digital Video Record(DVR) System
PC-Base System
Storage Media HDD, Disk Array
Backup archives capacity/space Huge/Small
Recording image quality Good-Excellent
Maximum recording time Depend Compress and HDD size
Lifetime of Hard Disk 20,000 Hours
Playback interface CD-ROM/DVD/CD-RW
Record/Playback quality 7 - 30 fps
Image output/display interface Composite video/S-video or VGA
Search function while recording Yes
Quick search by Time/Day/Alarm/Other Yes
Coxial Cable Distance 300 Meters
Central Control of Different Location No
Remote Surveillance Yes
Network ready Yes
BLAZE AUTOMATION CCTV SOLUTION
14. Digital Video Record(DVR) System
PC-Base System
Strength
Exterior solution with outstanding performance Picture Quality and Security
Maximum integration for greater efficiency Recorded pictures with “Watermark”
Designed to outperform existing technologies Image authentication guarantees
Higher image quality, better reliability Integrated with Back-end Network System
640 x 480, 320x240, 176 x 144, 160 x 120 Remote Surveillance, Download image
Lower the Total Cost of Recording
Playback without missing images
Division Full Quad 8-split 16-split Reasonable price with excellent performance
1 channel 24-30 fps Existing CCTV Peripheral utilization
4 channel 24-30 fps 5-7 fps
Reduce Life Cycle Costs
8 channel 24-30 fps 12-15 fps 5-7 fps
Virtual maintenance-free operations
16 channel 24-30 fps 24-30 fps 12-15 fps 5-7 fps
Longer recording duration
Remote Administration
Powerful Access Features
Easy to operate, expand, and upgrade
Remote access from any pc
Lowers total system costs and maintenance burden
Intelligent Recording Modes Minimal (or no) staff intervention
Motion activated or Pre-event Traditional multiplexer operation
Adjustable recording speeds and quality VCR-like operation
BLAZE AUTOMATION CCTV SOLUTION
15. Digital Video Record(DVR) System
PC-Base System
Opportunity
Internet & Multimedia Environment
Great Advantage of Networking Storage Solution Backup
Weakness
Capturing / Display / Record / Remote Surveillance all in one DVR system
Difficult to loading balance of each function
Threats
Analog CCTV systems still selling in many markets.
Window Base still carries wide presence in the market
Lack of customer and channel education on Digital Surveillance Systems and
their advantages over CCTV and Window based systems.
Confusion between IT & Security Industry
BLAZE AUTOMATION CCTV SOLUTION
16. Digital Video Server System
Embedded System
Digital Video Server
- The user can view the live picture from web server via internet
BNC Camera
Internet
BNC
Coaxial Video server:
Cable 1 port
User can browse the live picture
Via Internet and record / store
the image into multiple PC and
Network Storage Access system
Surveillance Site Remote Surveillance
BLAZE AUTOMATION CCTV SOLUTION
17. Digital Video Server System
Embedded System
Digital Video Server
- The user can view the live picture from web server via internet
BNC
Cameras BNC
Coaxial
Cable
Video server:
4 port
1 ~4
Internet
User can browse the live picture
Via Internet and record / store
the image into multiple PC and
Network Storage Access system
Surveillance Site Remote Surveillance
BLAZE AUTOMATION CCTV SOLUTION
18. Digital Video Server System
Embedded System
Strength Weakness
Same As Digital Video Recorder (DVR) No Internal Storage feature support
Please refer to “Strength” analysis at Maximum support four (4) cameras connected
Digital Video Recorder (DVR) session
System operated focus at Imaging Capturing /
and Transmission function Threats
Multiply Display / Record location support
Analog CCTV recording systems still selling in
many markets.
Lack of customer and channel education on
Internet IP implementation and their
Opportunity advantages over CCTV and IP based
systems.
Internet & Multimedia Environment Confusion between IT & Security Industry
Great Advantage of Networking Storage
Solution Backup
BLAZE AUTOMATION CCTV SOLUTION
19. What’s Internet Camera
A PC-independent Camera which can
Capture images
Be accessed via LAN or Internet remotely.
(replace coaxial-cable infrastructure)
With its own or assigned IP address enable users
to monitor and configure it (with authorized access)
at anywhere / anytime.
BLAZE AUTOMATION CCTV SOLUTION
20. What’s Internet Camera -Con’d
A Internet Camera including
lens, optical filters, image
processor and server with
networking interface, say
LAN (Wired Ethernet or
WiFi Wireless).
( CCD or CMOS )
BLAZE AUTOMATION CCTV SOLUTION
21. Why Adopt New Solution?
Internet Camera
( CCD or CMOS )
BNC CCTV Camera
BNC
Analog
Codec
Processor
( CCD or CMOS )
BLAZE AUTOMATION CCTV SOLUTION
22. Why Adopt New Solution? -Con’d
Comparing with Traditional CCTV system:
Analogue CCTV Internet
Items System Camera
Storage Media Poor (Cassette Tape) Excellent (HDD)
Cabling
Method Difficult (Coaxial Cable) Easy (LAN Cable)
Data-saving 1 fram per second per Up to 30 fram per
Quality system second
Max. 16 cameras only Unlimited (Only
Max. Camera / (Multiplex only support need IP address in
Per System 16 ports) the network)
Price Reasonable Reasonable
Business Area Only security industry All kind of field
BLAZE AUTOMATION CCTV SOLUTION
23. Why Adopt New Solution? -Con’d
Comparing with Digital CCTV system:
• Heavy loading on PC or DVR system for data compressing
Internet Camera compress data inside the camera internally
• BNC cable with distance limitation
Internet Camera not distance limitation in Internet environment
• Centralized image database management
Multiple image database management capability
• Image capturing / data compress / data storing / playback
all in one system
Flexible arrange different PCs to managing above feature
BLAZE AUTOMATION CCTV SOLUTION
24. Why Adopt New Solution? -Con’d
Comparing with Digital CCTV system:
Digital CCTV Internet
Items System Camera
Storage Media Local PC / DVR Excellent (HDD)
Cabling
Method Difficult (Coaxial Cable) Easy (LAN Cable)
Data-saving Max. 120 frame per Up to 30 fram per
Quality second per system second
/ 480 per camera
Max. 16 cameras only Unlimited (Only
Max. Camera / (DVR only support 16 need IP address in
Per System ports) the network)
Price Expensive Reasonable
Business Area Only security industry All kind of field
• Capture Card Technology : 30 / 120 frames per card X 4 = 120 / 480 frames per system
4 ports per card : 5 / 25 frames per port
BLAZE AUTOMATION CCTV SOLUTION
26. Market Trend Overview
Broadband soars worldwide
Market growing up to USD$ 441.32M revenue by 2005
Traditional CCTV system migration
Digital evolution
More requests than text and images only
Personal needs for security
Self exposure desire
Simple but complete solution
Remote facility
Easy & convenient record streaming video
BLAZE AUTOMATION CCTV SOLUTION
27. Market Segment
Industrial Internet
Applications Applications
Monitor Security • Web attraction
remotely •Staff • Weather Cam
•Production Surveillance
Control •Car Park • Entertainment
•Warehouses •Casinos
•Fire •Entry Control • News/Sporting events
Prevention •Shops
BLAZE AUTOMATION CCTV SOLUTION
28. Application Diagram
Typical Installation DCS-1000/1000W/2000/2100+
DIY Surveillance
Real-Time Monitoring
Via VPN Tunnel
Simultaneously 16 Cameras
Internet Camera with NAS for Security Service
BLAZE AUTOMATION CCTV SOLUTION
32. View Everywhere via Internet
61.219.201.69
192.19.3.55
200.25.10.95
(1) HTTP request to 61.219.201.69
(2) HTTP request to 192.19.3.55
(3) HTTP request to 200.25.10.95
(4) HTTP request to 185.57.23.79 185.57.23.79
BLAZE AUTOMATION CCTV SOLUTION
33. Indian Office China Factory
View Remote Office via VPN
192.168.0.3
192.168.0.4
VPN Tunnel 192.168.0.5
(1) HTTP request to 192.168.0.3 192.168.0.6
(2) HTTP request to 192.168.0.4
(3) HTTP request to 192.168.0.5
(4) HTTP request to 192.168.0.6
192.168.0.7
(5) HTTP request to 192.168.0.7
BLAZE AUTOMATION CCTV SOLUTION
34. Surveillance System
61.219.201.69:81
192.19.3.55:82
200.25.10.95:83
185.57.23.79:84
(1) HTTP request to 61.219.201.69:81
61.214.57.79:85
(2) HTTP request to 192.19.3.55:82
(3) HTTP request to 200.25.10.95:83
(4) HTTP request to 185.57.23.79:84
(5) HTTP request to 61.214.57.79:85
61.200.59.48:80
(6) HTTP request to 61.200.59.48
BLAZE AUTOMATION CCTV SOLUTION
35. Internet Camera with NAS for Security
Security Control Center
Head Quarter
Power Facilities
Thief incident
Theft incident
BLAZE AUTOMATION CCTV SOLUTION
