The document discusses the performance comparison between pandas and Apache Arrow's DataFusion for manipulating dataframes. It highlights the advantages of using DataFusion, particularly in terms of speed and memory usage when handling large datasets. The results demonstrate that DataFusion significantly outperforms pandas, with recommendations for future experiments and performance measurements.

1. 8thlight.com 8thLightInc 8thLightInc /company/8th-light
8th Light miniConf
Dataframes Showdown
Hana Lee
8thlight.com 8thLightInc 8thLightInc /company/8th-light

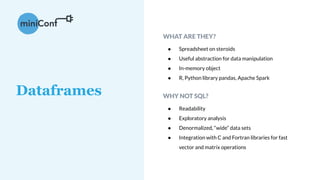

2. WHAT ARE THEY?
● Spreadsheet on steroids
● Useful abstraction for data manipulation
● In-memory object
● R, Python library pandas, Apache Spark
WHY NOT SQL?
● Readability
● Exploratory analysis
● Denormalized, “wide” data sets
● Integration with C and Fortran libraries for fast
vector and matrix operations
Dataframes

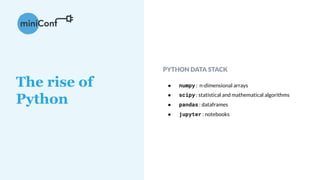

3. PYTHON DATA STACK
● numpy : n-dimensional arrays
● scipy : statistical and mathematical algorithms
● pandas : dataframes
● jupyter : notebooks
The rise of
Python

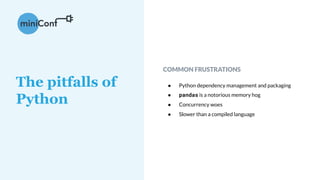

4. COMMON FRUSTRATIONS
● Python dependency management and packaging
● pandas is a notorious memory hog
● Concurrency woes
● Slower than a compiled language
The pitfalls of
Python

5. 8th Light
Software is our craft. 8thlight.com
Hypothesis
Is there a viable alternative?

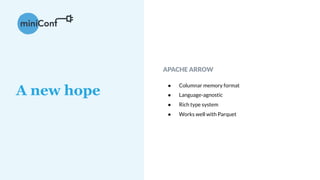

6. APACHE ARROW
● Columnar memory format
● Language-agnostic
● Rich type system
● Works well with Parquet
A new hope

7. ADVANTAGES
● Compiled language with explicit memory
management
● Modern language features and syntax
● cargo : ergonomic build and dependency
management tool
CRATES
● datafusion : query engine for Arrow with
dataframe API
● evcxr : Jupyter kernel for Rust
Why Rust?

8. 8th Light
Software is our craft. 8thlight.com

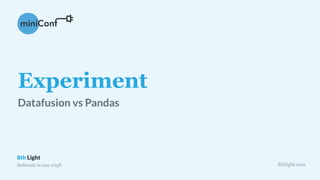

Experiment
Datafusion vs Pandas

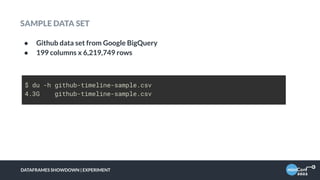

9. SAMPLE DATA SET
● Github data set from Google BigQuery
● 199 columns x 6,219,749 rows
DATAFRAMES SHOWDOWN | EXPERIMENT
$ du -h github-timeline-sample.csv
4.3G github-timeline-sample.csv

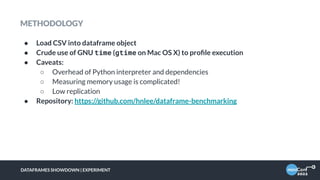

10. METHODOLOGY
● Load CSV into dataframe object
● Crude use of GNU time (gtime on Mac OS X) to profile execution
● Caveats:
○ Overhead of Python interpreter and dependencies
○ Measuring memory usage is complicated!
○ Low replication
● Repository: https://github.com/hnlee/dataframe-benchmarking
DATAFRAMES SHOWDOWN | EXPERIMENT

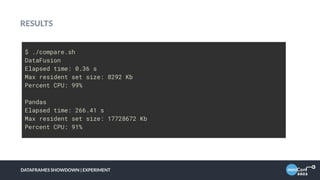

11. RESULTS
DATAFRAMES SHOWDOWN | EXPERIMENT
$ ./compare.sh
DataFusion
Elapsed time: 0.36 s
Max resident set size: 8292 Kb
Percent CPU: 99%
Pandas
Elapsed time: 266.41 s
Max resident set size: 17728672 Kb
Percent CPU: 91%

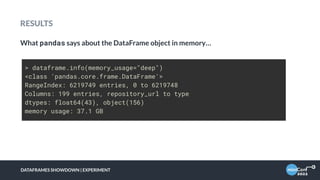

12. RESULTS
What pandas says about the DataFrame object in memory…
DATAFRAMES SHOWDOWN | EXPERIMENT
> dataframe.info(memory_usage="deep")
<class 'pandas.core.frame.DataFrame'>
RangeIndex: 6219749 entries, 0 to 6219748
Columns: 199 entries, repository_url to type
dtypes: float64(43), object(156)
memory usage: 37.1 GB

13. FURTHER OBSERVATION
What’s the Jupyter notebook experience like with Rust and Datafusion?
SLIDE TEMPLATES

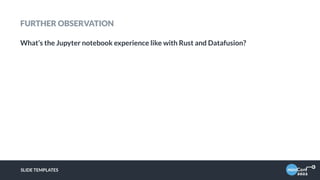

14. FURTHER OBSERVATION
What’s the Jupyter notebook experience like with Rust and Datafusion?
● Async complexity
● Notebook cells vs scope boundaries
● Lack of pretty-printing for output
● Some support for plots:
○ https://github.com/igiagkiozis/plotly
○ https://github.com/procyon-rs/vega_lite_3.rs
SLIDE TEMPLATES

15. NEXT STEPS
● Better controlled performance measurements
● Compare common operations
○ Detecting duplicates
○ Counting null values
○ Calculating mean, max, min, quartiles
○ Filtering
What next?

16. 8th Light
Software is our craft. 8thlight.com
Q + A

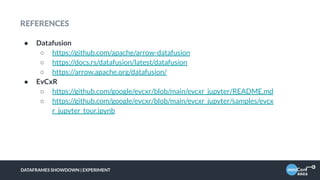

17. REFERENCES
● Datafusion
○ https://github.com/apache/arrow-datafusion
○ https://docs.rs/datafusion/latest/datafusion
○ https://arrow.apache.org/datafusion/
● EvCxR
○ https://github.com/google/evcxr/blob/main/evcxr_jupyter/README.md
○ https://github.com/google/evcxr/blob/main/evcxr_jupyter/samples/evcx
r_jupyter_tour.ipynb
DATAFRAMES SHOWDOWN | EXPERIMENT

18. 8thlight.com 8thLightInc 8thLightInc /company/8th-light
Thank you!
