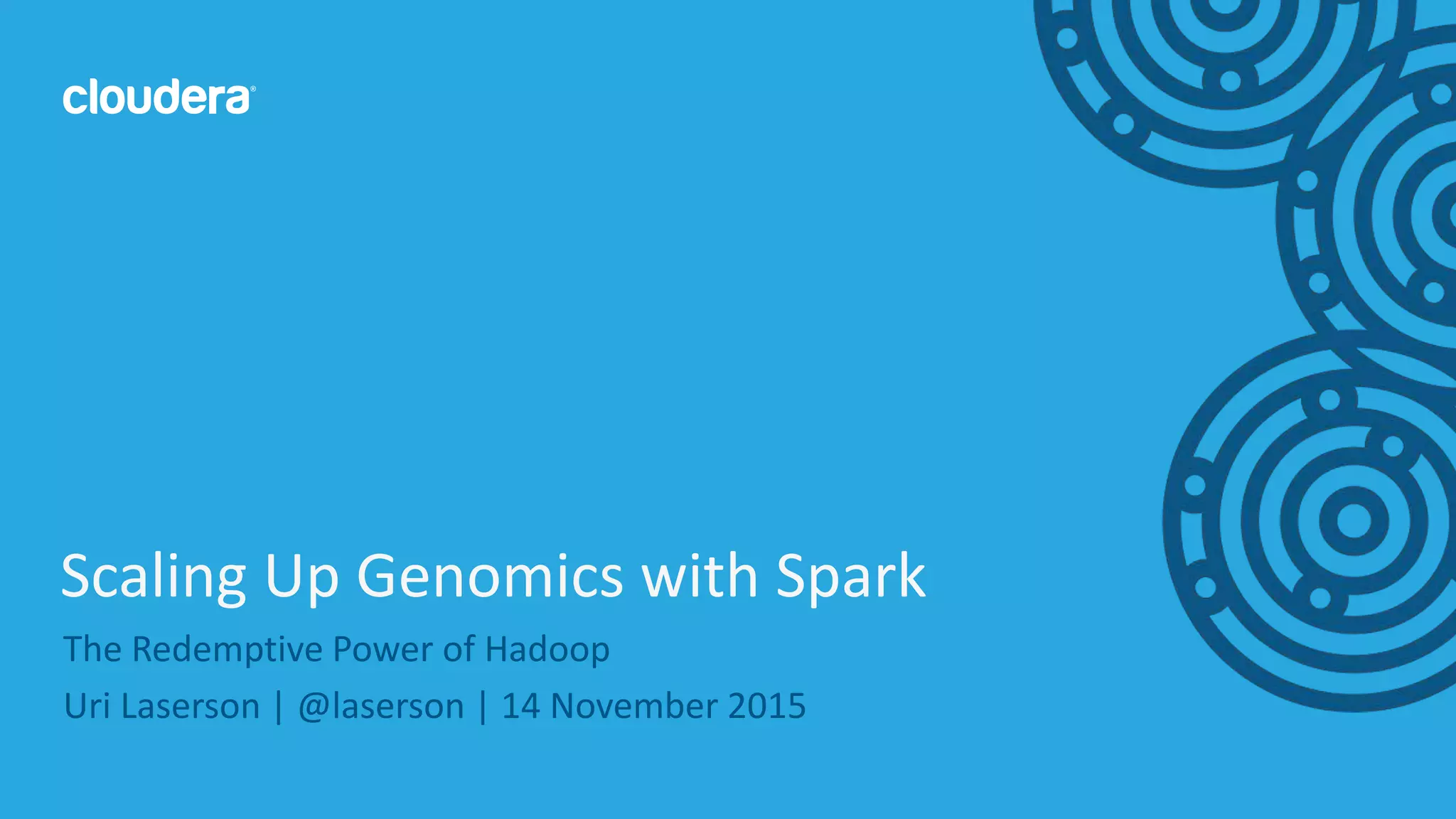

The Redemptive Power of Hadoop
Uri Laserson | @laserson | 14 November 2015
Scaling Up Genomics with Spark

2. 2© Cloudera, Inc. All rights reserved.
We come in peace.
Pioneer plaque

3. 3© Cloudera, Inc. All rights reserved.
What is genomics?

4. 4© Cloudera, Inc. All rights reserved.
Organism

5. 5© Cloudera, Inc. All rights reserved.
Organism Cell

6. 6© Cloudera, Inc. All rights reserved.
Organism Cell Genome

7. 7© Cloudera, Inc. All rights reserved.

8. 8© Cloudera, Inc. All rights reserved.

9. 9© Cloudera, Inc. All rights reserved.
Reference chromosome

10. 10© Cloudera, Inc. All rights reserved.
Reference chromosome
Location

11. 11© Cloudera, Inc. All rights reserved.
“… decoding the Book of Life”

12. 12© Cloudera, Inc. All rights reserved.
Ortelius, 1570

13. 13© Cloudera, Inc. All rights reserved.

14. 14© Cloudera, Inc. All rights reserved.
Google Maps, 2015

15. 15© Cloudera, Inc. All rights reserved.

16. 16© Cloudera, Inc. All rights reserved.

17. 17© Cloudera, Inc. All rights reserved.

18. 18© Cloudera, Inc. All rights reserved.

19. 19© Cloudera, Inc. All rights reserved.

20. 20© Cloudera, Inc. All rights reserved.
>read1
TTGGACATTTCGGGGTCTCAGATT
>read2
AATGTTGTTAGAGATCCGGGATTT
>read3
GGATTCCCCGCCGTTTGAGAGCCT
>read4
AGGTTGGTACCGCGAAAAGCGCAT

21. 21© Cloudera, Inc. All rights reserved.
>read1
TTGGACATTTCGGGGTCTCAGATT
>read2
AATGTTGTTAGAGATCCGGGATTT
>read3
GGATTCCCCGCCGTTTGAGAGCCT
>read4
AGGTTGGTACCGCGAAAAGCGCAT
Bioinformatics!

22. 22© Cloudera, Inc. All rights reserved.
>read1
TTGGACATTTCGGGGTCTCAGATT
>read2
AATGTTGTTAGAGATCCGGGATTT
>read3
GGATTCCCCGCCGTTTGAGAGCCT
>read4
AGGTTGGTACCGCGAAAAGCGCAT
Bioinformatics!

23. 23© Cloudera, Inc. All rights reserved.
Alignment Dedup Recalibrate QC/Filter
Variant
Calling
Variant
Annotation
Pipelines!

24. 24© Cloudera, Inc. All rights reserved.
##fileformat=VCFv4.1
##fileDate=20090805
##source=myImputationProgramV3.1
##reference=file:///seq/references/1000GenomesPilot-NCBI36.fasta
##contig=<ID=20,length=62435964,assembly=B36,md5=f126cdf8a6e0c7f379d618ff66beb2da,species="Homo sapiens",taxonomy=x>
##phasing=partial
##INFO=<ID=NS,Number=1,Type=Integer,Description="Number of Samples With Data">
##INFO=<ID=DP,Number=1,Type=Integer,Description="Total Depth">
##INFO=<ID=AF,Number=A,Type=Float,Description="Allele Frequency">
##INFO=<ID=AA,Number=1,Type=String,Description="Ancestral Allele">
##INFO=<ID=DB,Number=0,Type=Flag,Description="dbSNP membership, build 129">
##INFO=<ID=H2,Number=0,Type=Flag,Description="HapMap2 membership">
##FILTER=<ID=q10,Description="Quality below 10">
##FILTER=<ID=s50,Description="Less than 50% of samples have data">
##FORMAT=<ID=GT,Number=1,Type=String,Description="Genotype">
##FORMAT=<ID=GQ,Number=1,Type=Integer,Description="Genotype Quality">
##FORMAT=<ID=DP,Number=1,Type=Integer,Description="Read Depth">
##FORMAT=<ID=HQ,Number=2,Type=Integer,Description="Haplotype Quality">
#CHROM POS ID REF ALT QUAL FILTER INFO FORMAT NA00001 NA00002 NA00003
20 14370 rs6054257 G A 29 PASS NS=3;DP=14;AF=0.5;DB;H2 GT:GQ:DP:HQ 0|0:48:1:51,51 1|0:48:8:51,51 1/1:43:5:.,.
20 17330 . T A 3 q10 NS=3;DP=11;AF=0.017 GT:GQ:DP:HQ 0|0:49:3:58,50 0|1:3:5:65,3 0/0:41:3
20 1110696 rs6040355 A G,T 67 PASS NS=2;DP=10;AF=0.333,0.667 GT:GQ:DP:HQ 1|2:21:6:23,27 2|1:2:0:18,2 2/2:35:4
20 1230237 . T . 47 PASS NS=3;DP=13;AA=T GT:GQ:DP:HQ 0|0:54:7:56,60 0|0:48:4:51,51 0/0:61:2
Compressed text files (non-splittable)
Semi-structured
Poorly specified

25. 25© Cloudera, Inc. All rights reserved.
##fileformat=VCFv4.1
##fileDate=20090805
##source=myImputationProgramV3.1
##reference=file:///seq/references/1000GenomesPilot-NCBI36.fasta
##contig=<ID=20,length=62435964,assembly=B36,md5=f126cdf8a6e0c7f379d618ff66beb2da,species="Homo sapiens",taxonomy=x>
##phasing=partial
##INFO=<ID=NS,Number=1,Type=Integer,Description="Number of Samples With Data">
##INFO=<ID=DP,Number=1,Type=Integer,Description="Total Depth">
##INFO=<ID=AF,Number=A,Type=Float,Description="Allele Frequency">
##INFO=<ID=AA,Number=1,Type=String,Description="Ancestral Allele">
##INFO=<ID=DB,Number=0,Type=Flag,Description="dbSNP membership, build 129">
##INFO=<ID=H2,Number=0,Type=Flag,Description="HapMap2 membership">
##FILTER=<ID=q10,Description="Quality below 10">
##FILTER=<ID=s50,Description="Less than 50% of samples have data">
##FORMAT=<ID=GT,Number=1,Type=String,Description="Genotype">
##FORMAT=<ID=GQ,Number=1,Type=Integer,Description="Genotype Quality">
##FORMAT=<ID=DP,Number=1,Type=Integer,Description="Read Depth">
##FORMAT=<ID=HQ,Number=2,Type=Integer,Description="Haplotype Quality">
#CHROM POS ID REF ALT QUAL FILTER INFO FORMAT NA00001 NA00002 NA00003
20 14370 rs6054257 G A 29 PASS NS=3;DP=14;AF=0.5;DB;H2 GT:GQ:DP:HQ 0|0:48:1:51,51 1|0:48:8:51,51 1/1:43:5:.,.
20 17330 . T A 3 q10 NS=3;DP=11;AF=0.017 GT:GQ:DP:HQ 0|0:49:3:58,50 0|1:3:5:65,3 0/0:41:3
20 1110696 rs6040355 A G,T 67 PASS NS=2;DP=10;AF=0.333,0.667 GT:GQ:DP:HQ 1|2:21:6:23,27 2|1:2:0:18,2 2/2:35:4
20 1230237 . T . 47 PASS NS=3;DP=13;AA=T GT:GQ:DP:HQ 0|0:54:7:56,60 0|0:48:4:51,51 0/0:61:2
Compressed text files (non-splittable)
Semi-structured
Poorly specified
Global sort order

26. 26© Cloudera, Inc. All rights reserved.
C
HPC (scheduler)
POSIX filesystem
Java
HPC (Queue)
POSIX filesystem
C++
Single-node
SQLite
It’s file formats all the way down!

27. 27© Cloudera, Inc. All rights reserved.
Dedup

28. 28© Cloudera, Inc. All rights reserved.
/**
* Main work method. Reads the BAM file once and collects sorted information about
* the 5' ends of both ends of each read (or just one end in the case of pairs).
* Then makes a pass through those determining duplicates before re-reading the
* input file and writing it out with duplication flags set correctly.
*/
protected int doWork() {
// build some data structures
buildSortedReadEndLists(useBarcodes);
generateDuplicateIndexes(useBarcodes);
final SAMFileWriter out =
new SAMFileWriterFactory().makeSAMOrBAMWriter(outputHeader, true, OUTPUT);
final CloseableIterator<SAMRecord> iterator = headerAndIterator.iterator;
while (iterator.hasNext()) {
final SAMRecord rec = iterator.next();
if (!rec.isSecondaryOrSupplementary()) {
if (recordInFileIndex == nextDuplicateIndex) {
rec.setDuplicateReadFlag(true);
// Now try and figure out the next duplicate index
if (this.duplicateIndexes.hasNext()) {
nextDuplicateIndex = this.duplicateIndexes.next();
} else {
// Only happens once we've marked all the duplicates
nextDuplicateIndex = -1;
}
} else {
Method
Code

29. 29© Cloudera, Inc. All rights reserved.
/**
* Main work method. Reads the BAM file once and collects sorted information about
* the 5' ends of both ends of each read (or just one end in the case of pairs).
* Then makes a pass through those determining duplicates before re-reading the
* input file and writing it out with duplication flags set correctly.
*/
protected int doWork() {
// build some data structures
buildSortedReadEndLists(useBarcodes);
generateDuplicateIndexes(useBarcodes);
final SAMFileWriter out =
new SAMFileWriterFactory().makeSAMOrBAMWriter(outputHeader, true, OUTPUT);
final CloseableIterator<SAMRecord> iterator = headerAndIterator.iterator;
while (iterator.hasNext()) {
final SAMRecord rec = iterator.next();
if (!rec.isSecondaryOrSupplementary()) {
if (recordInFileIndex == nextDuplicateIndex) {
rec.setDuplicateReadFlag(true);
// Now try and figure out the next duplicate index
if (this.duplicateIndexes.hasNext()) {
nextDuplicateIndex = this.duplicateIndexes.next();
} else {
// Only happens once we've marked all the duplicates
nextDuplicateIndex = -1;
}
} else {
Method
Code

30. 30© Cloudera, Inc. All rights reserved.
@Option(shortName = "MAX_FILE_HANDLES",
doc = "Maximum number of file handles to keep open when spilling " +
"read ends to disk. Set this number a little lower than the " +
"per-process maximum number of file that may be open. This " +
"number can be found by executing the 'ulimit -n' command on " +
"a Unix system.")
public int MAX_FILE_HANDLES_FOR_READ_ENDS_MAP = 8000;

31. 31© Cloudera, Inc. All rights reserved.
@Option(shortName = "MAX_FILE_HANDLES",
doc = "Maximum number of file handles to keep open when spilling " +
"read ends to disk. Set this number a little lower than the " +
"per-process maximum number of file that may be open. This " +
"number can be found by executing the 'ulimit -n' command on " +
"a Unix system.")
public int MAX_FILE_HANDLES_FOR_READ_ENDS_MAP = 8000;
Dedup
Method
Code
Platform

32. 32© Cloudera, Inc. All rights reserved.
Alignment Dedup Recalibrate QC/Filter
Variant
Calling
Variant
Annotation

33. 33© Cloudera, Inc. All rights reserved.
It’s pipelines all the way down!
Alignment Dedup Recalibrate QC/Filter
Variant
Calling
Variant
Annotation
Alignment Dedup Recalibrate QC/Filter
Variant
Calling
Variant
Annotation
Alignment Dedup Recalibrate QC/Filter
Variant
Calling
Variant
Annotation

34. 34© Cloudera, Inc. All rights reserved.
It’s pipelines all the way down!
Alignment Dedup Recalibrate QC/Filter
Variant
Calling
Variant
Annotation
Node 1
Alignment Dedup Recalibrate QC/Filter
Variant
Calling
Variant
Annotation
Node 2
Alignment Dedup Recalibrate QC/Filter
Variant
Calling
Variant
Annotation
Node 3

35. 35© Cloudera, Inc. All rights reserved.
Manually running pipelines on HPC
$ bsub –q shared_12h python split_genotypes.py
$ bsub –q shared_12h –R mem=4g python query_agg.py genotypes_1.vcf agg1.csv
$ bsub –q shared_12h –R mem=4g python query_agg.py genotypes_2.vcf agg2.csv
$ bsub –q shared_12h –R mem=4g python query_agg.py genotypes_3.vcf agg3.csv
$ bsub –q shared_12h –R mem=4g python query_agg.py genotypes_4.vcf agg4.csv
$ bsub –q shared_12h python merge_maf.py

36. 36© Cloudera, Inc. All rights reserved.

37. 37© Cloudera, Inc. All rights reserved.
Alignment Dedup Recalibrate QC/Filter
Variant
Calling
Variant
Annotation
Alignment Dedup Recalibrate QC/Filter
Alignment Dedup Recalibrate QC/Filter

38. 38© Cloudera, Inc. All rights reserved.
Node 1
Alignment Dedup Recalibrate QC/Filter
Variant
Calling
Variant
Annotation
Node 2
Node 3
Alignment Dedup Recalibrate QC/Filter
Alignment Dedup Recalibrate QC/Filter
Node 4

39. 39© Cloudera, Inc. All rights reserved.
Node 1
Alignment Dedup QC/Filter
Variant
Calling
Variant
Annotation
Node 2
Node 3
Alignment Dedup QC/Filter
Alignment Dedup QC/Filter
Node 4
Recalibrate

40. 40© Cloudera, Inc. All rights reserved.
How now, brown cow?

41. 41© Cloudera, Inc. All rights reserved.
Why Are We Still Defining File Formats By Hand?
• Instead of defining custom file
formats for each data type and
access pattern…
• Parquet creates a compressed
format for each Avro-defined
data model
• Improtvements over existing
formats
• ~20% for BAM
• ~90% for VCF

42. 42© Cloudera, Inc. All rights reserved.
YARN-managed
Hadoop cluster
Spark
executors
𝑗=1
𝑑 𝑖
𝑃(𝑏𝑖𝑗|𝑒𝑖𝑗, 𝑓𝑖)
𝑗=1
𝑑 𝑖
𝑃(𝑏𝑖𝑗|𝑒𝑖𝑗, 𝑓𝑖)
𝑗=1
𝑑 𝑖
𝑃(𝑏𝑖𝑗|𝑒𝑖𝑗, 𝑓𝑖)Partial sums
𝑖=1
𝑁
𝑗=1
𝑑 𝑖
𝑃(𝑏𝑖𝑗|𝑒𝑖𝑗, 𝑓𝑖)
Driver
Application
code
ContEst Algorithm

43. 43© Cloudera, Inc. All rights reserved.

44. 44© Cloudera, Inc. All rights reserved.
Hadoop provides layered abstractions for data processing
HDFS (scalable, distributed storage)
YARN (resource management)
MapReduce Impala (SQL) Solr (search) Spark
ADAMquince guacamole …
bdg-formats(Avro/Parquet)

45. 45© Cloudera, Inc. All rights reserved.
Executing query in Hadoop: interactive Spark shell (ADAM)
def inDbSnp(g: Genotype): Boolean = true or false
def isDeleterious(g: Genotype): Boolean = g.getPolyPhen
val samples = sc.textFile("path/to/samples").map(parseJson(_)).collect()
val dbsnp = sc.textFile("path/to/dbSNP").map(_.split(",")).collect()
val dnaseRDD = sc.adamBEDFeatureLoad("path/to/dnase”)
val genotypesRDD = sc.adamLoad("path/to/genotypes")
val filteredRDD = genotypesRDD
.filter(!inDbSnp(_))
.filter(isDeleterious(_))
.filter(isFramingham(_))
val joinedRDD = RegionJoin.partitionAndJoin(sc, filteredRDD, dnaseRDD)
val maf = joinedRDD
.keyBy(x => (x.getVariant, getPopulation(x)))
.groupByKey()
.map(computeMAF(_))
maf.saveAsNewAPIHadoopFile("path/to/output")
apply predicates
load data
join data
group-by
aggregate (MAF)
persist data

46. 46© Cloudera, Inc. All rights reserved.
Executing query in Hadoop: distributed SQL
SELECT g.chr, g.pos, g.ref, g.alt, s.pop, MAF(g.call)
FROM genotypes g
INNER JOIN samples s
ON g.sample = s.sample
INNER JOIN dnase d
ON g.chr = d.chr
AND g.pos >= d.start
AND g.pos < d.end
LEFT OUTER JOIN dbsnp p
ON g.chr = p.chr
AND g.pos = p.pos
AND g.ref = p.ref
AND g.alt = p.alt
WHERE
s.study = "framingham"
p.pos IS NULL AND
g.polyphen IN ( "possibly damaging", "probably damaging" )
GROUP BY g.chr, g.pos, g.ref, g.alt, s.pop
apply predicates
“load” and
join data
group-by
aggregate (UDAF)

47. 47© Cloudera, Inc. All rights reserved.
• Hosted at Berkeley and the
AMPLab
• Apache 2 License
• Contributors from both
research and commercial
organizations
• Core spatial primitives,
variant calling
• Avro and Parquet for data
models and file formats
Spark + Genomics = ADAM

48. 48© Cloudera, Inc. All rights reserved.
Core Genomics Primitives: Spatial Join

49. 49© Cloudera, Inc. All rights reserved.
ADAM preliminary performance

50. 50© Cloudera, Inc. All rights reserved.

51. 51© Cloudera, Inc. All rights reserved.
Acknowledgements
UCBerkeley
Matt Massie
Frank Nothaft
Michael Heuer
Tamr
Timothy Danford
MSSM
Jeff Hammerbacher
Ryan Williams
Cloudera
Tom White
Sandy Ryza

52. 52© Cloudera, Inc. All rights reserved.
Thank you
@laserson
laserson@cloudera.com
