Kostas Anagnostou discusses the importance of data-driven development (DDD) in game design, emphasizing how it empowers creative teams by decoupling game data from code and facilitating easier iteration. He highlights the benefits for both artists and programmers, including faster content updates and improved code maintenance. Anagnostou uses examples from his experience in game development to illustrate the effective implementation of DDD and its potential to enhance the game creation process.

1. Kostas Anagnostou Game developer Adjunct Lecturer in Videogame Technologies

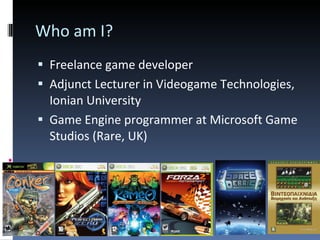

2. Who am I? Freelance game developer Adjunct Lecturer in Videogame Technologies, Ionian University Game Engine programmer at Microsoft Game Studios (Rare, UK)

3. What is this talk about? Making great games!

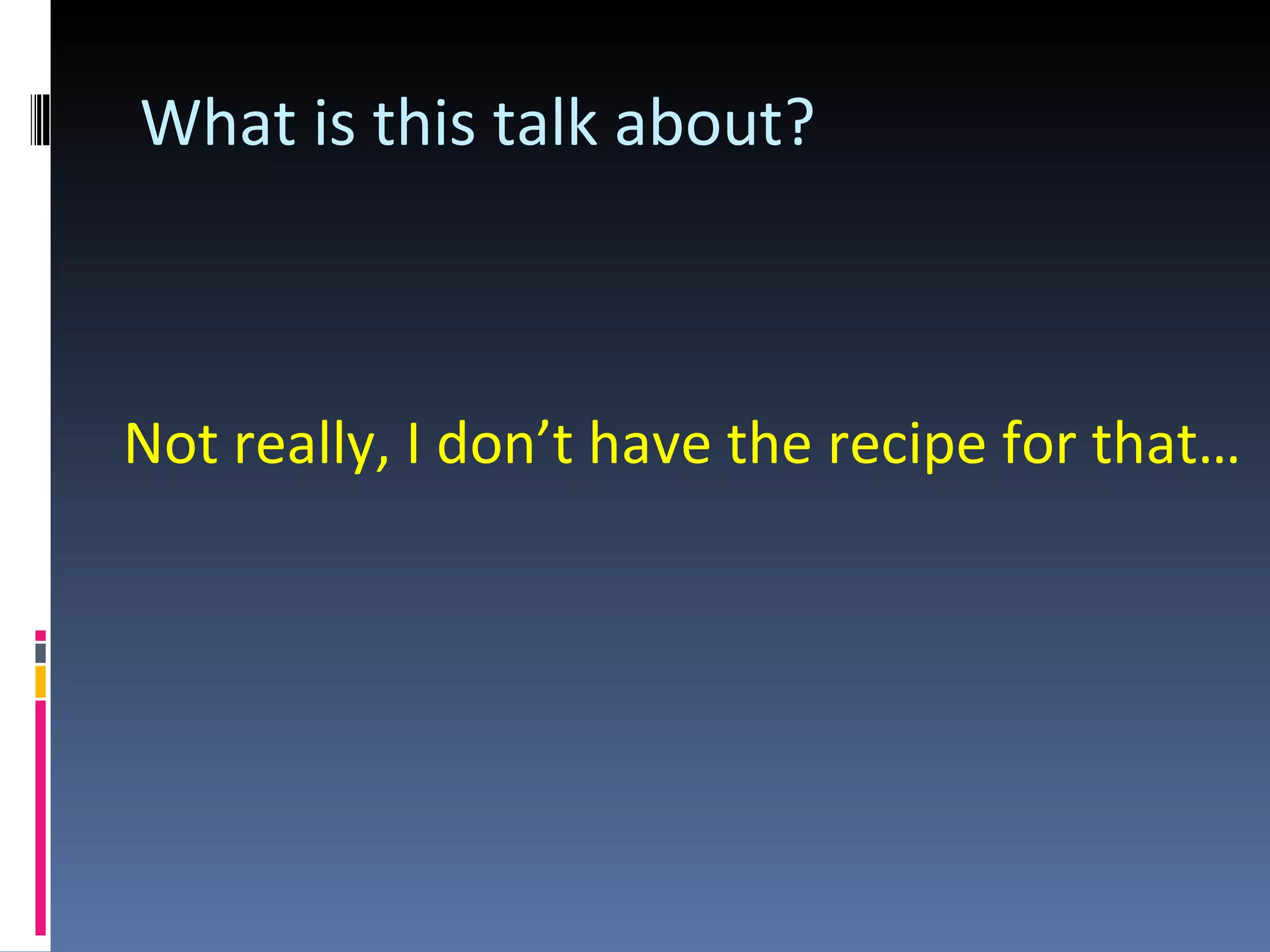

4. What is this talk about? Not really, I don’t have the recipe for that…

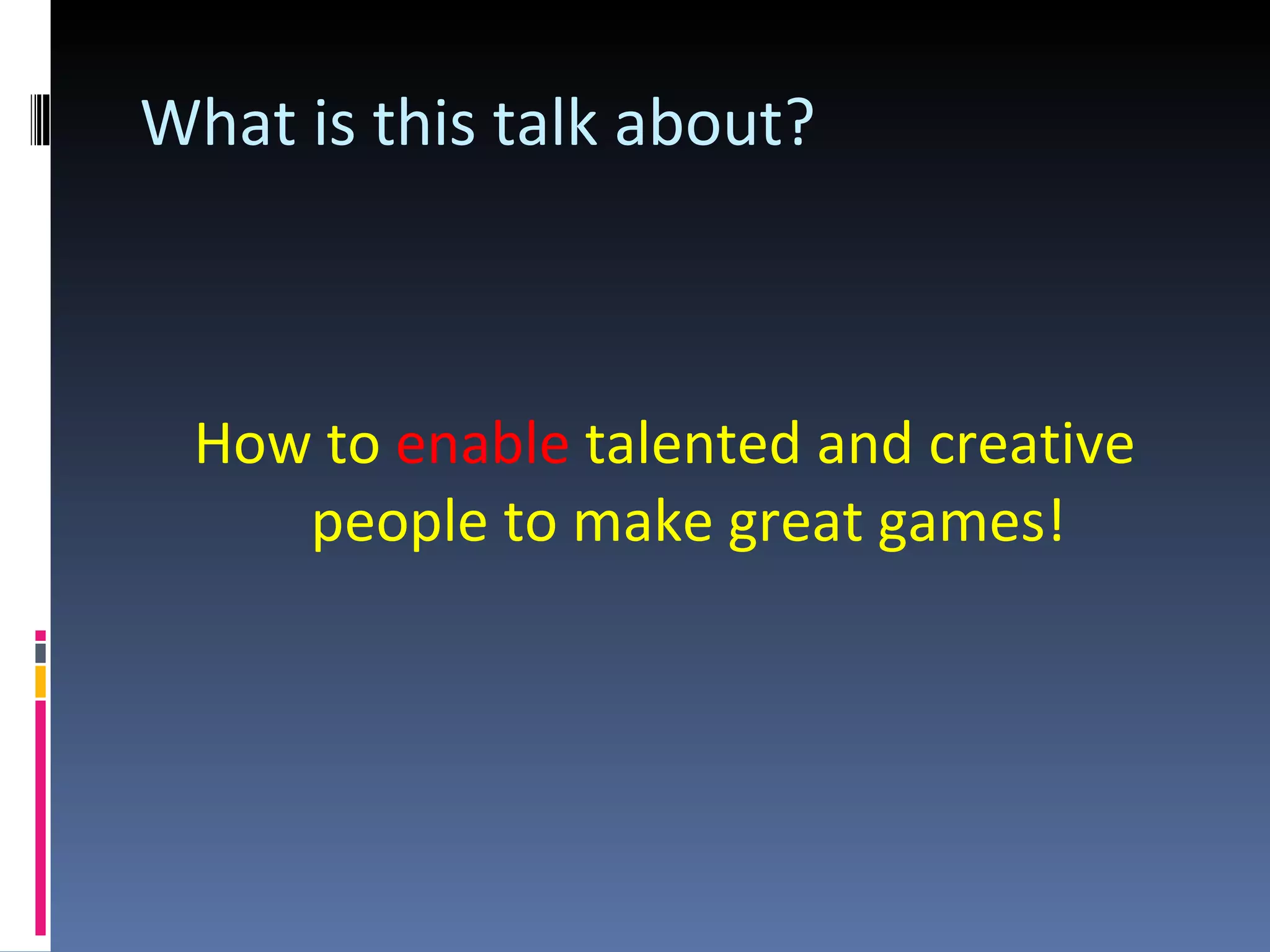

5. What is this talk about? How to enable talented and creative people to make great games!

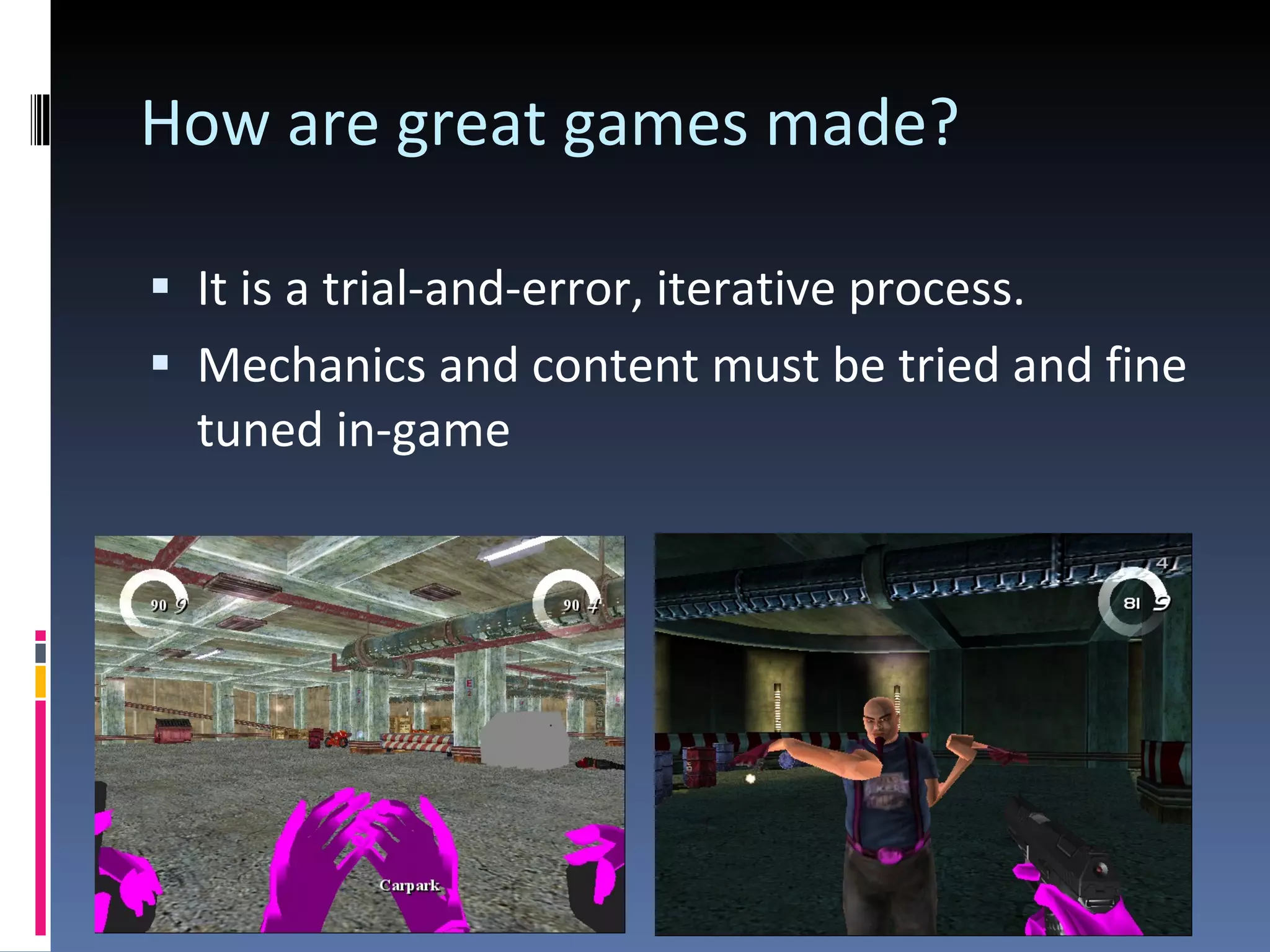

6. How are great games made? It is a trial-and-error, iterative process. Mechanics and content must be tried and fine tuned in-game

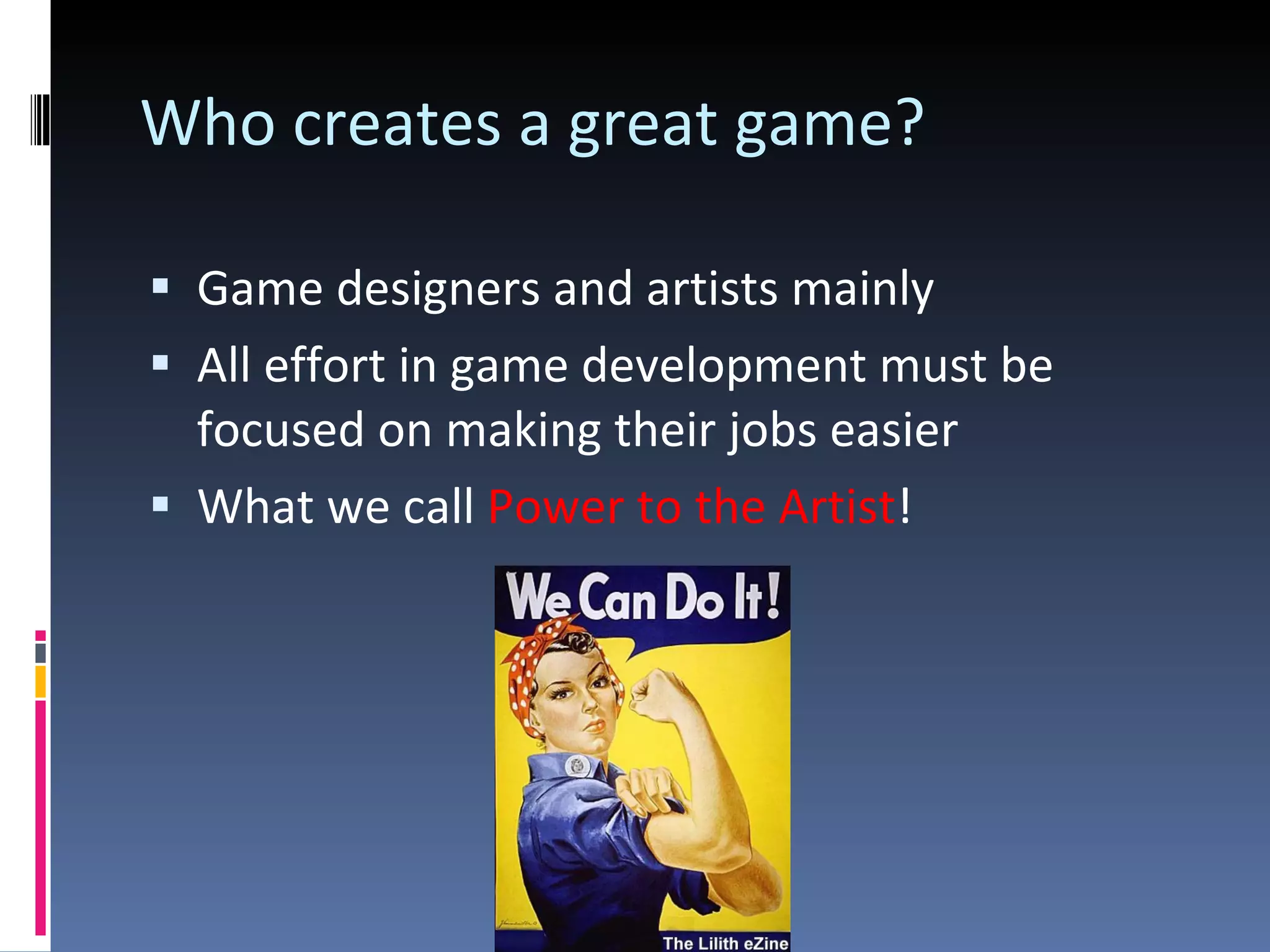

7. Who creates a great game? Game designers and artists mainly All effort in game development must be focused on making their jobs easier What we call Power to the Artist !

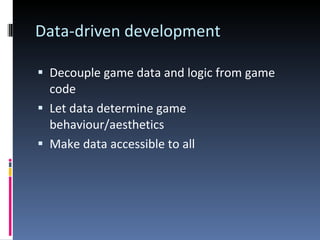

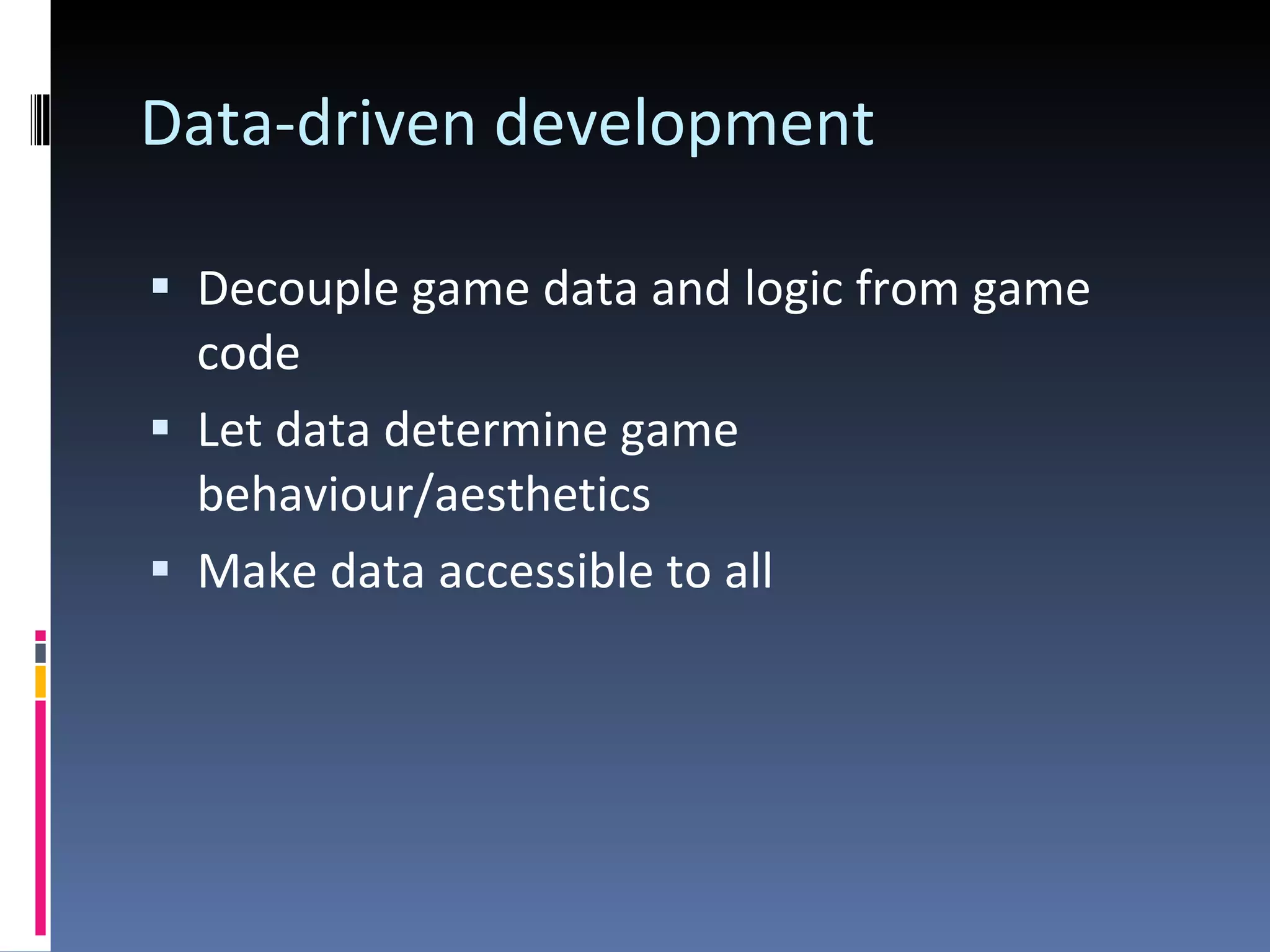

8. Data-driven development Decouple game data and logic from game code Let data determine game behaviour/aesthetics Make data accessible to all

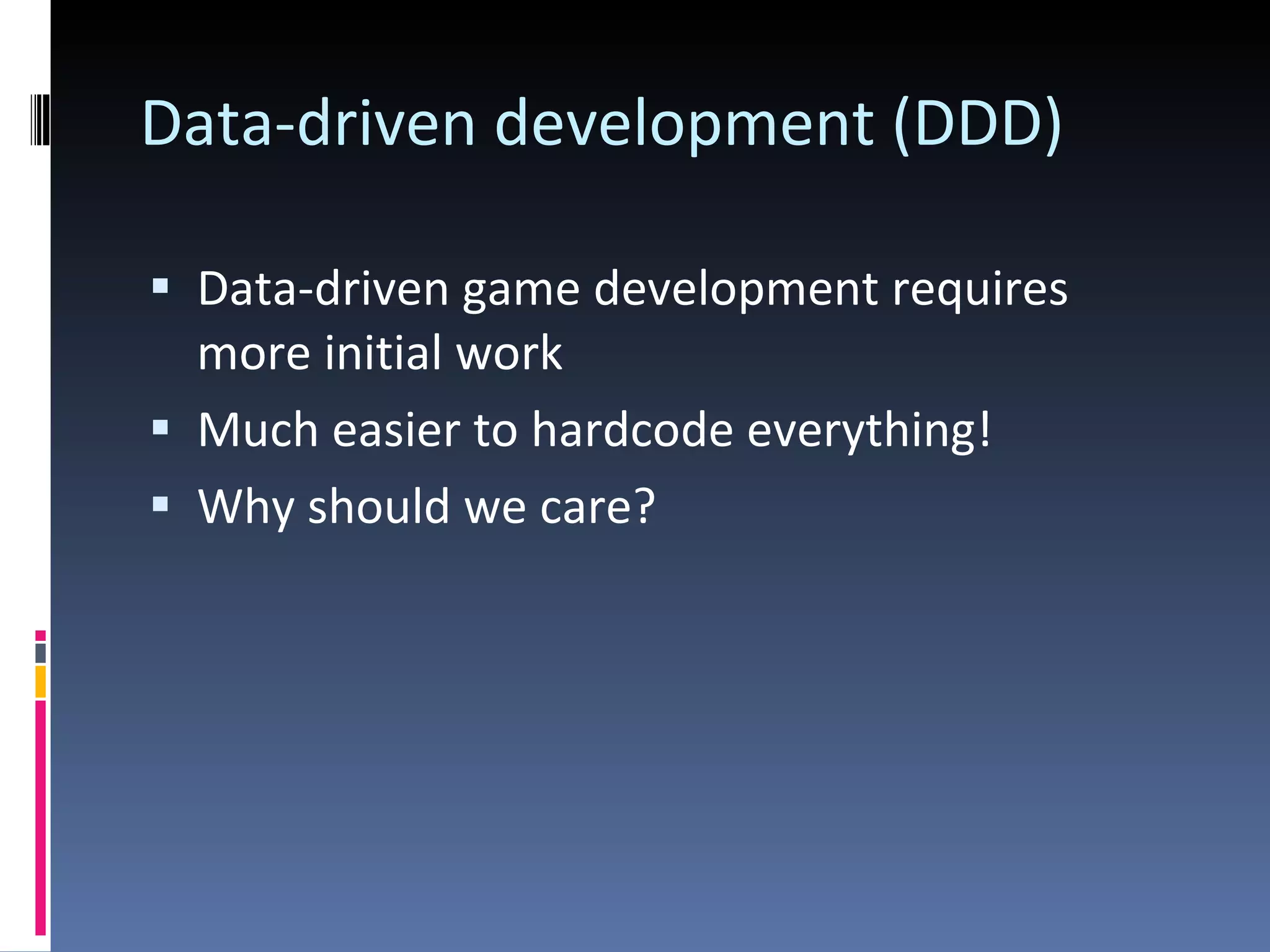

9. Data-driven development (DDD) Data-driven game development requires more initial work Much easier to hardcode everything! Why should we care?

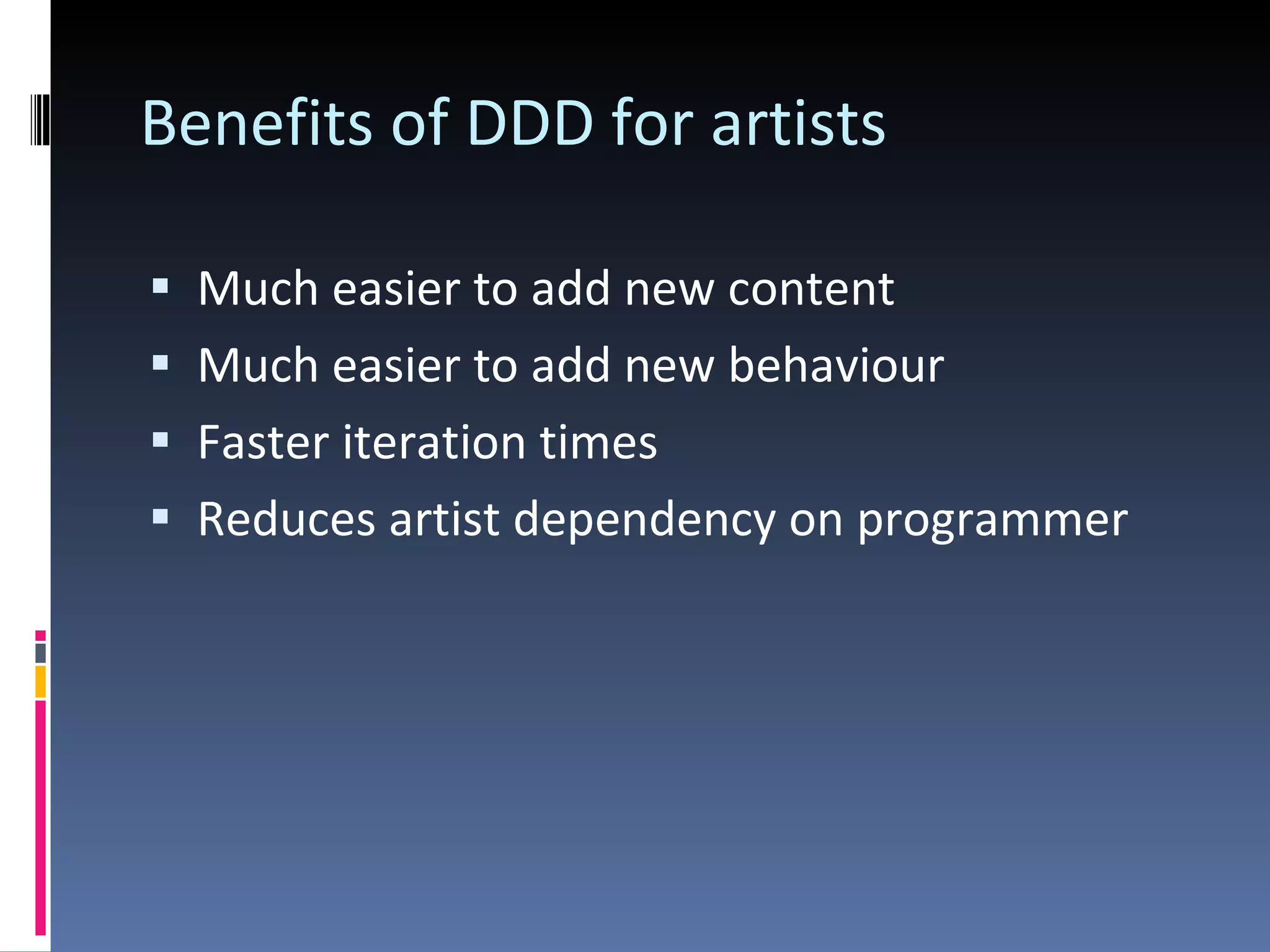

10. Benefits of DDD for artists Much easier to add new content Much easier to add new behaviour Faster iteration times Reduces artist dependency on programmer

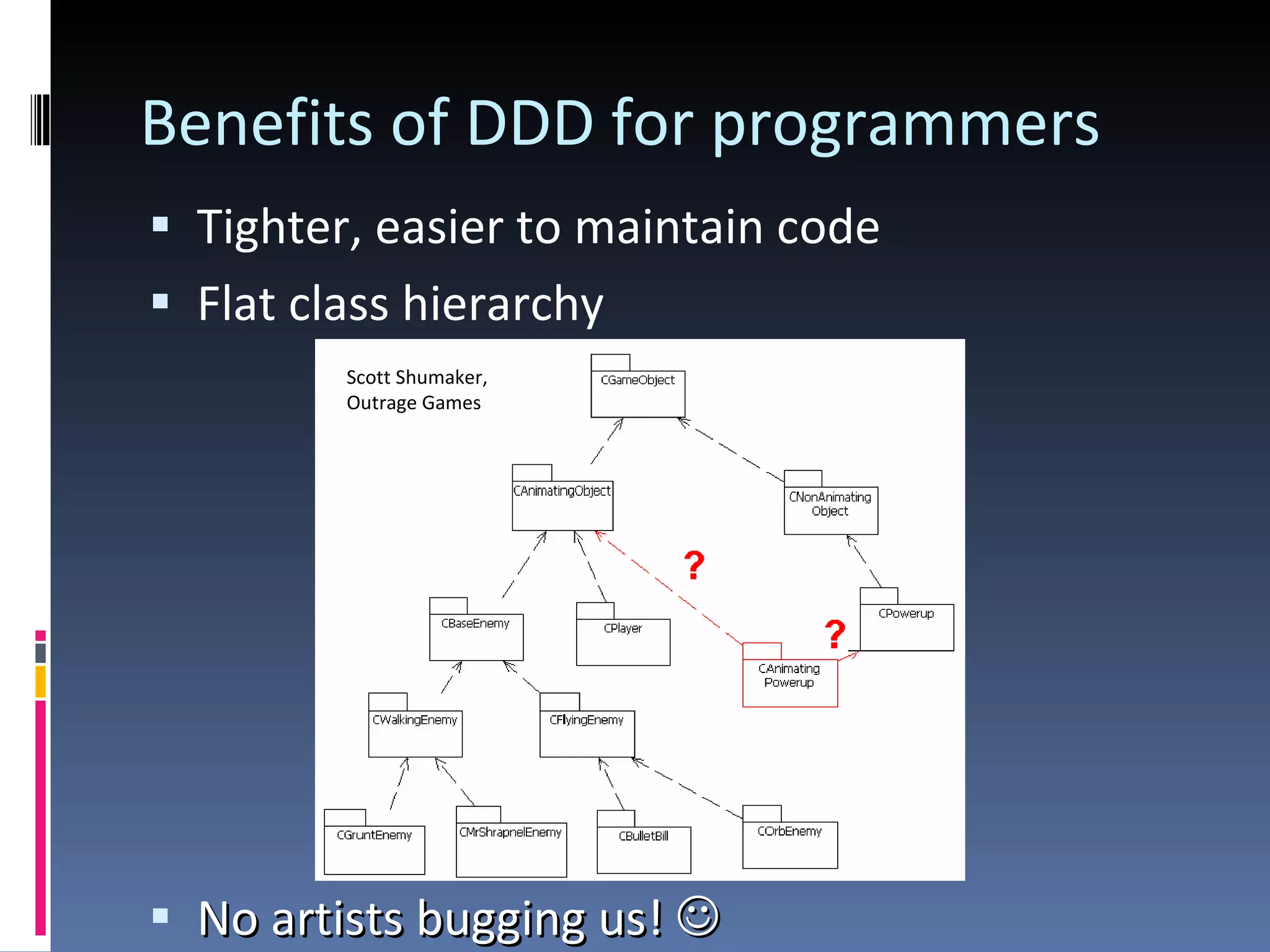

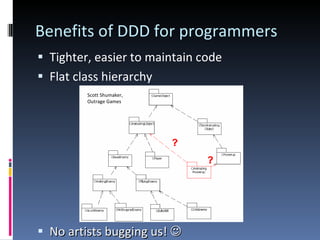

11. Benefits of DDD for programmers Tighter, easier to maintain code Flat class hierarchy No artists bugging us!  Scott Shumaker, Outrage Games

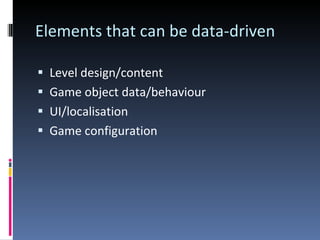

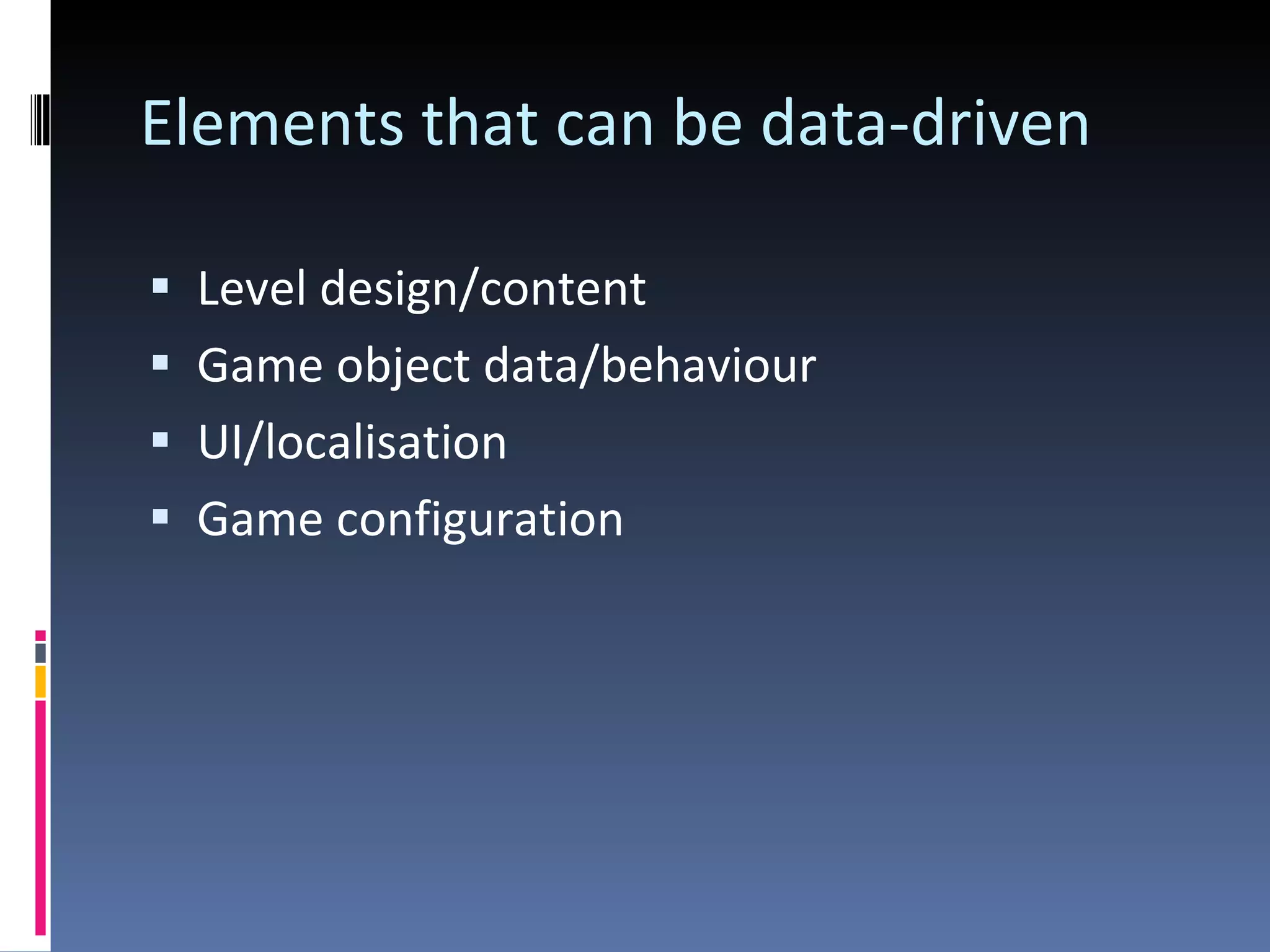

12. Elements that can be data-driven Level design/content Game object data/behaviour UI/localisation Game configuration

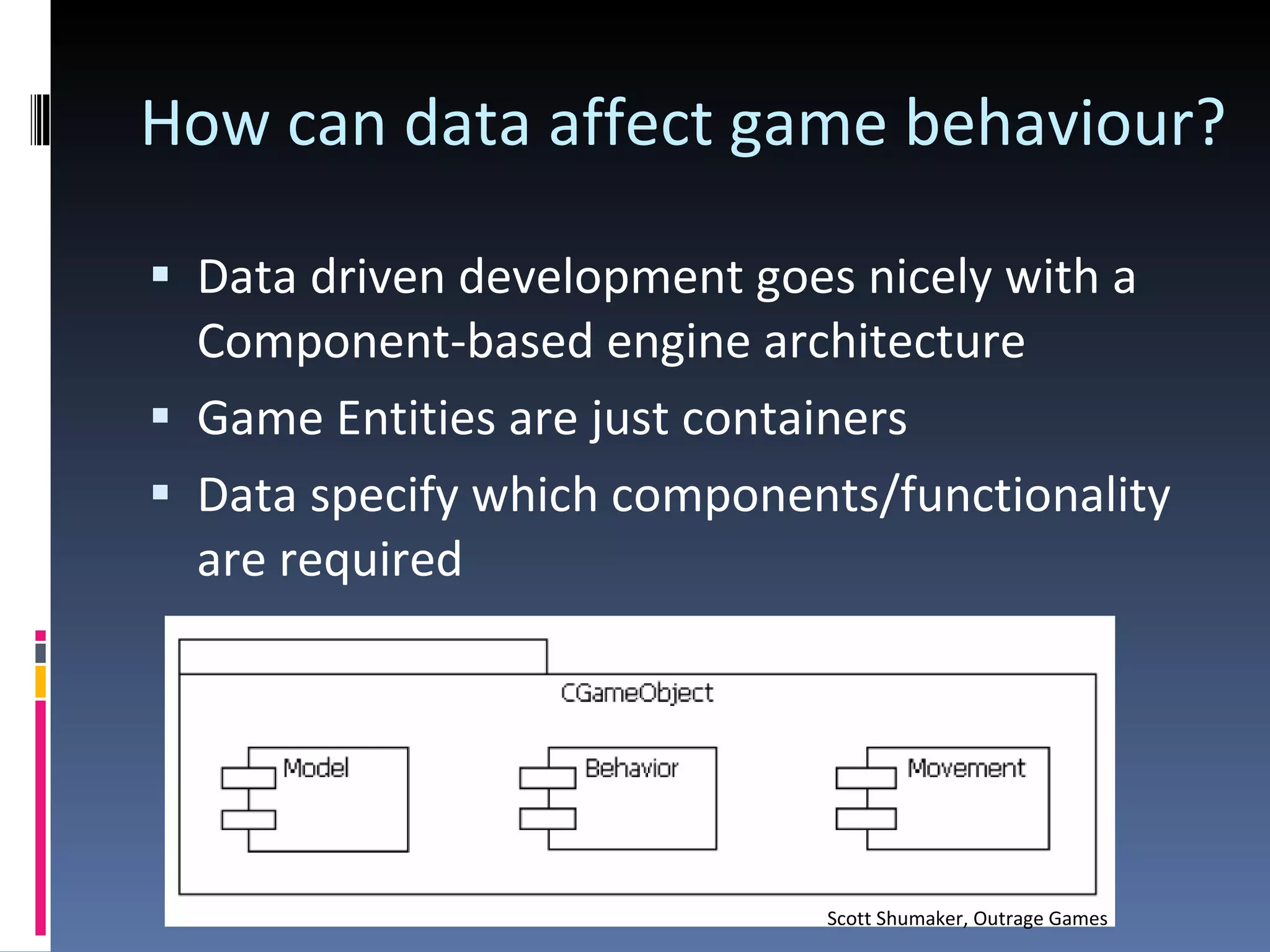

13. How can data affect game behaviour? Data driven development goes nicely with a Component-based engine architecture Game Entities are just containers Data specify which components/functionality are required Scott Shumaker, Outrage Games

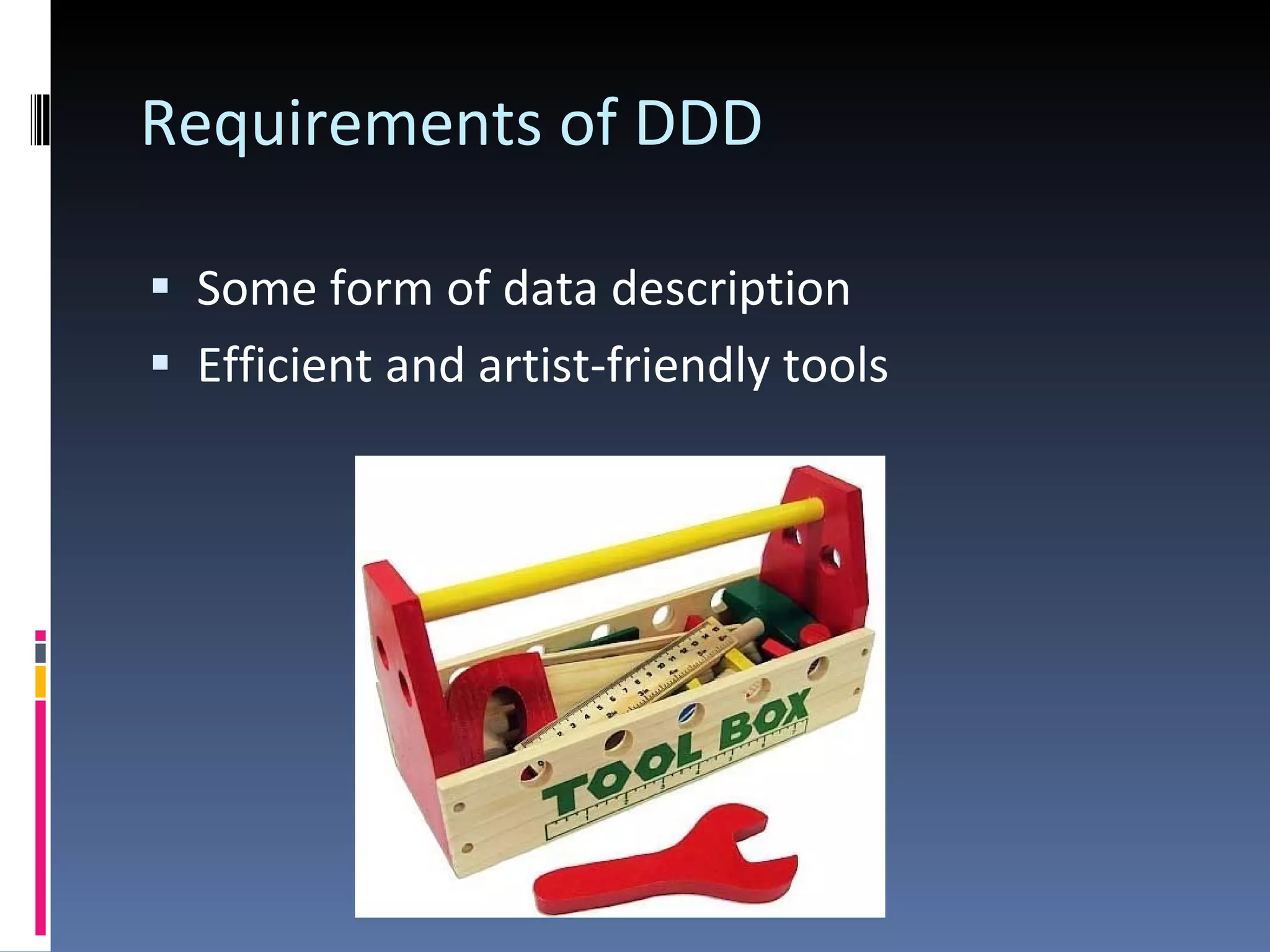

14. Requirements of DDD Some form of data description Efficient and artist-friendly tools

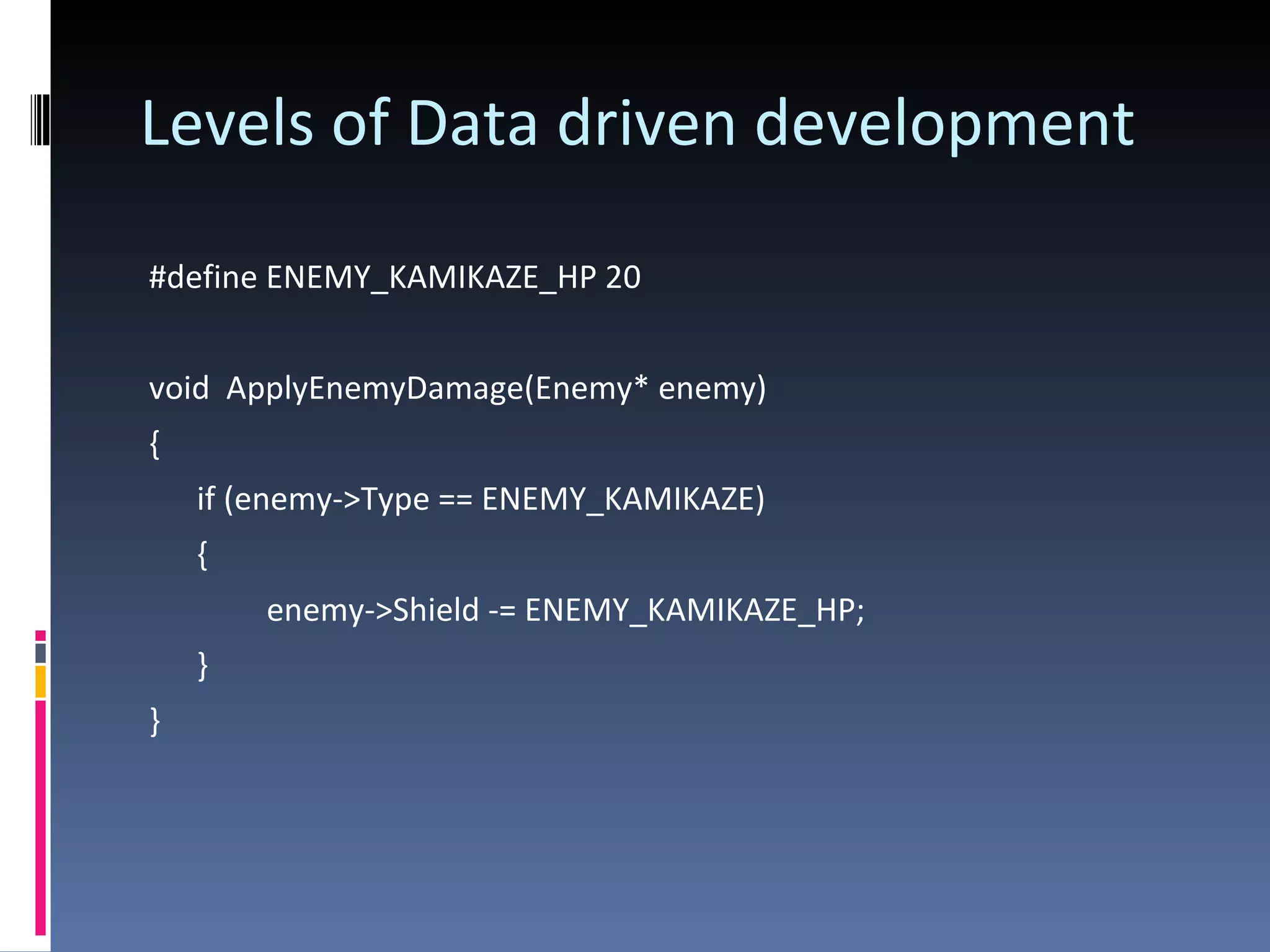

15. Levels of Data driven development #define ENEMY_KAMIKAZE_HP 20 void ApplyEnemyDamage(Enemy* enemy) { if (enemy->Type == ENEMY_KAMIKAZE) { enemy->Shield -= ENEMY_KAMIKAZE_HP; } }

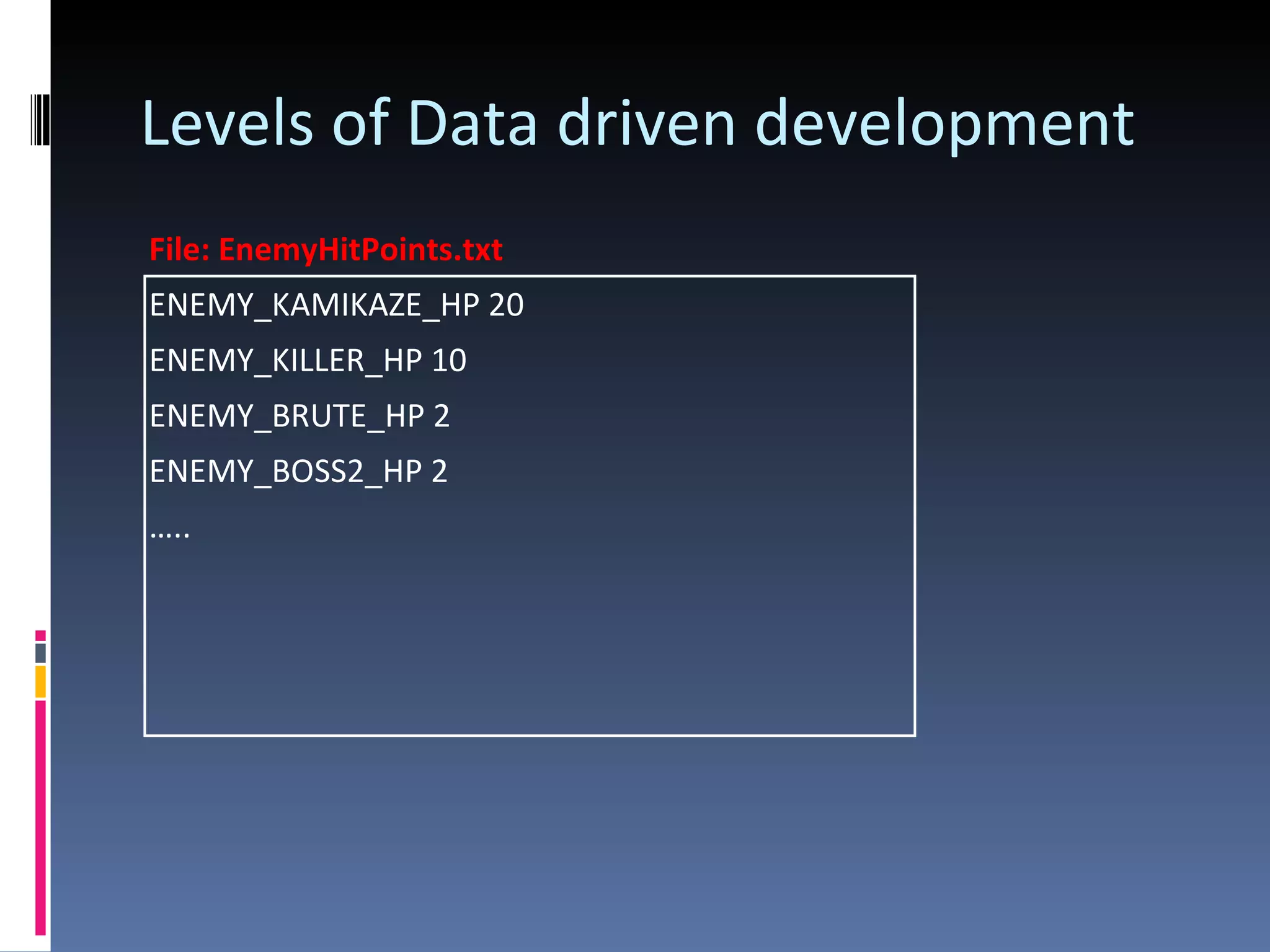

16. Levels of Data driven development File: EnemyHitPoints.txt ENEMY_KAMIKAZE_HP 20 ENEMY_KILLER_HP 10 ENEMY_BRUTE_HP 2 ENEMY_BOSS2_HP 2 … ..

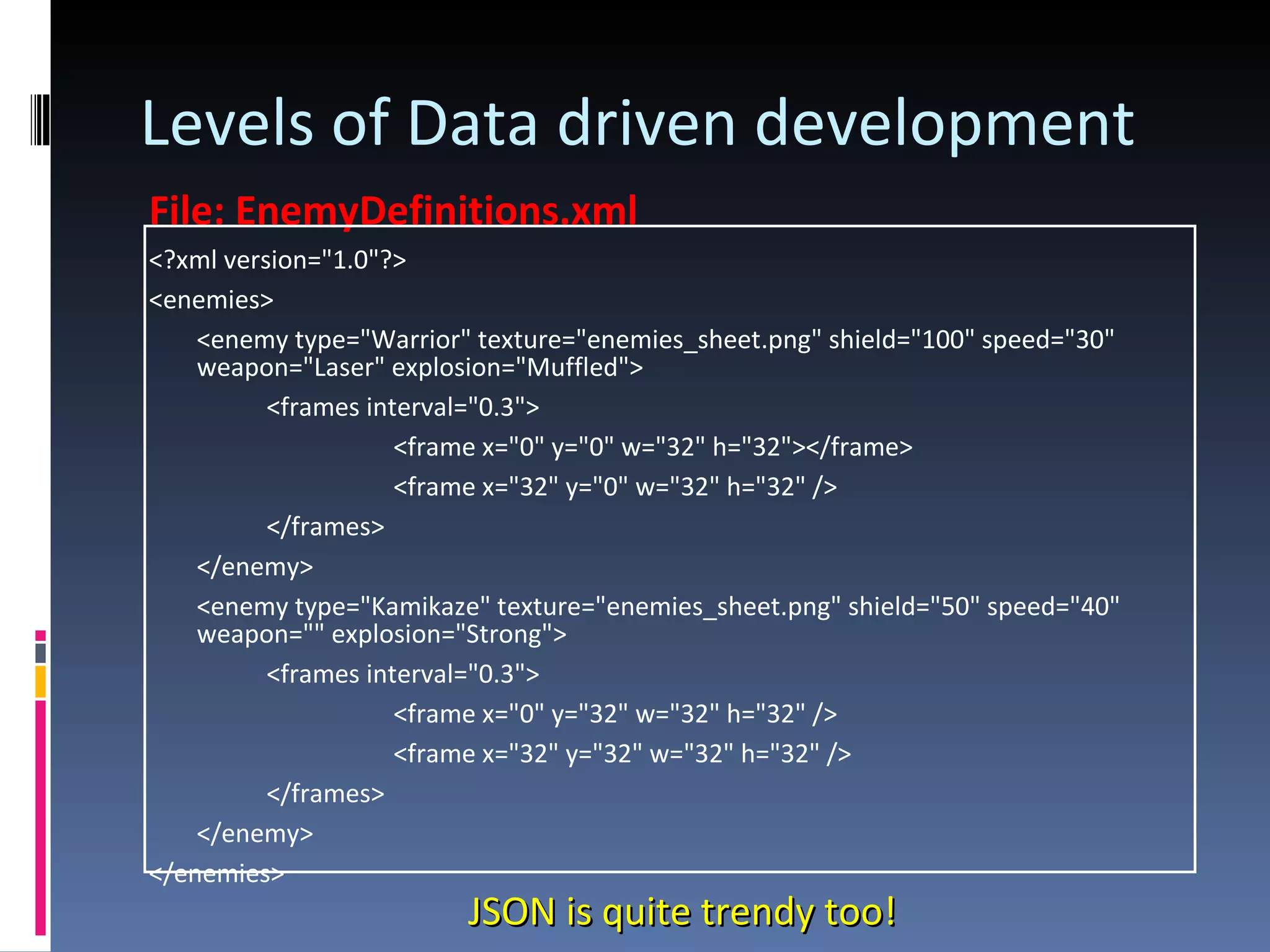

17. Levels of Data driven development File: EnemyDefinitions.xml <?xml version=&quot;1.0&quot;?> <enemies> <enemy type=&quot;Warrior&quot; texture=&quot;enemies_sheet.png&quot; shield=&quot;100&quot; speed=&quot;30&quot; weapon=&quot;Laser&quot; explosion=&quot;Muffled&quot;> <frames interval=&quot;0.3&quot;> <frame x=&quot;0&quot; y=&quot;0&quot; w=&quot;32&quot; h=&quot;32&quot;></frame> <frame x=&quot;32&quot; y=&quot;0&quot; w=&quot;32&quot; h=&quot;32&quot; /> </frames> </enemy> <enemy type=&quot;Kamikaze&quot; texture=&quot;enemies_sheet.png&quot; shield=&quot;50&quot; speed=&quot;40&quot; weapon=&quot;&quot; explosion=&quot;Strong&quot;> <frames interval=&quot;0.3&quot;> <frame x=&quot;0&quot; y=&quot;32&quot; w=&quot;32&quot; h=&quot;32&quot; /> <frame x=&quot;32&quot; y=&quot;32&quot; w=&quot;32&quot; h=&quot;32&quot; /> </frames> </enemy> </enemies> JSON is quite trendy too!

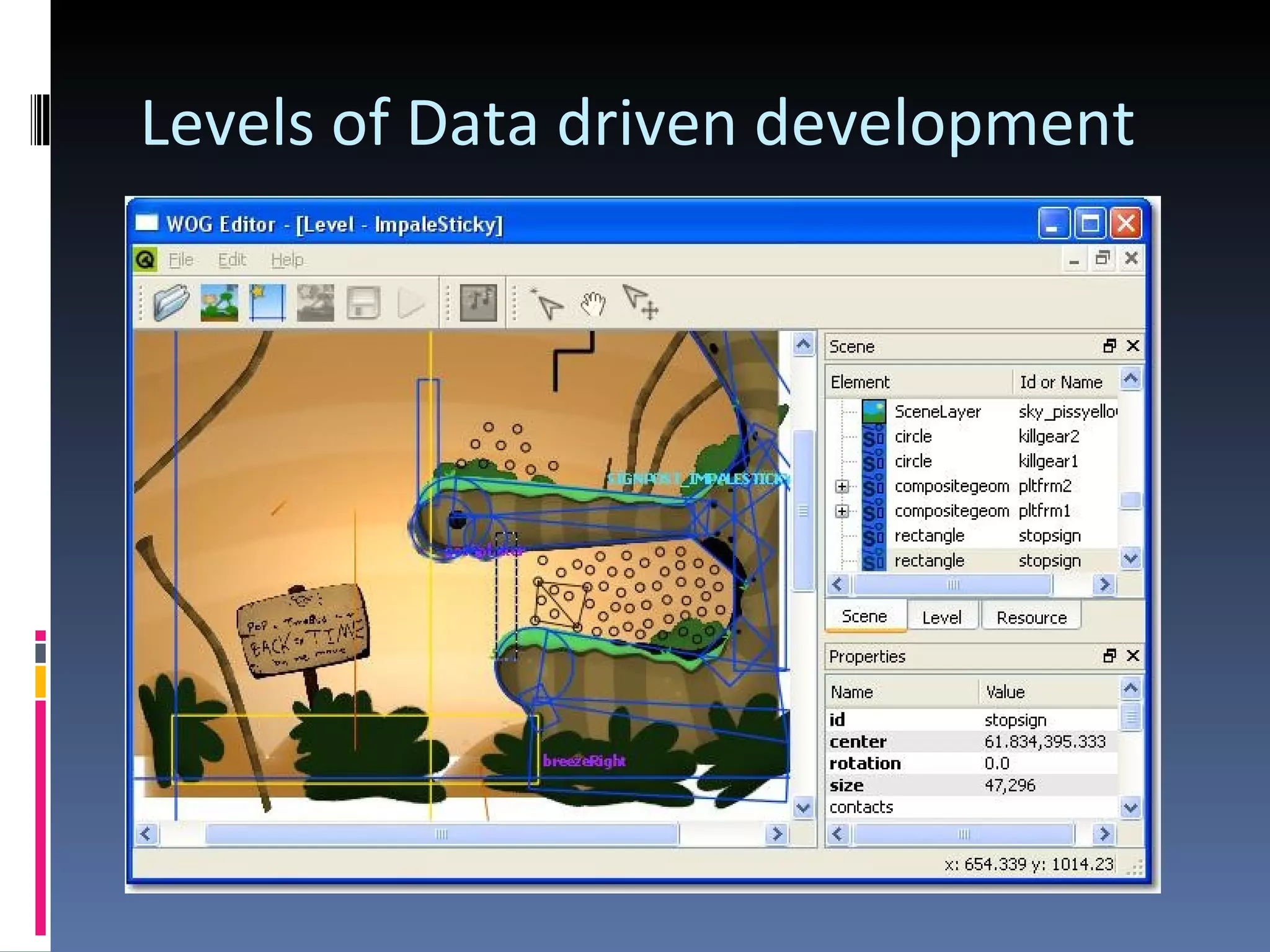

18. Levels of Data driven development

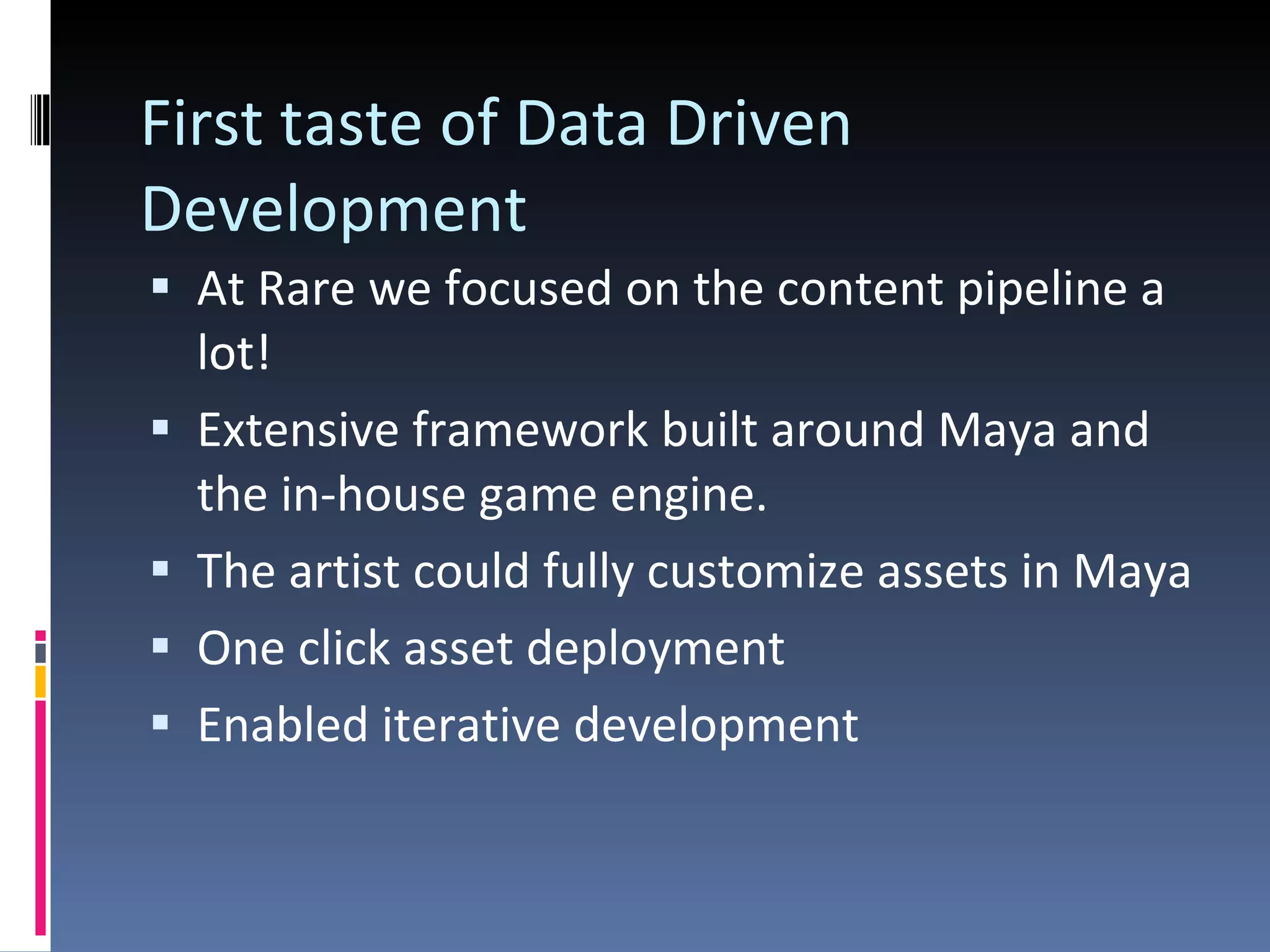

19. First taste of Data Driven Development At Rare we focused on the content pipeline a lot! Extensive framework built around Maya and the in-house game engine. The artist could fully customize assets in Maya One click asset deployment Enabled iterative development

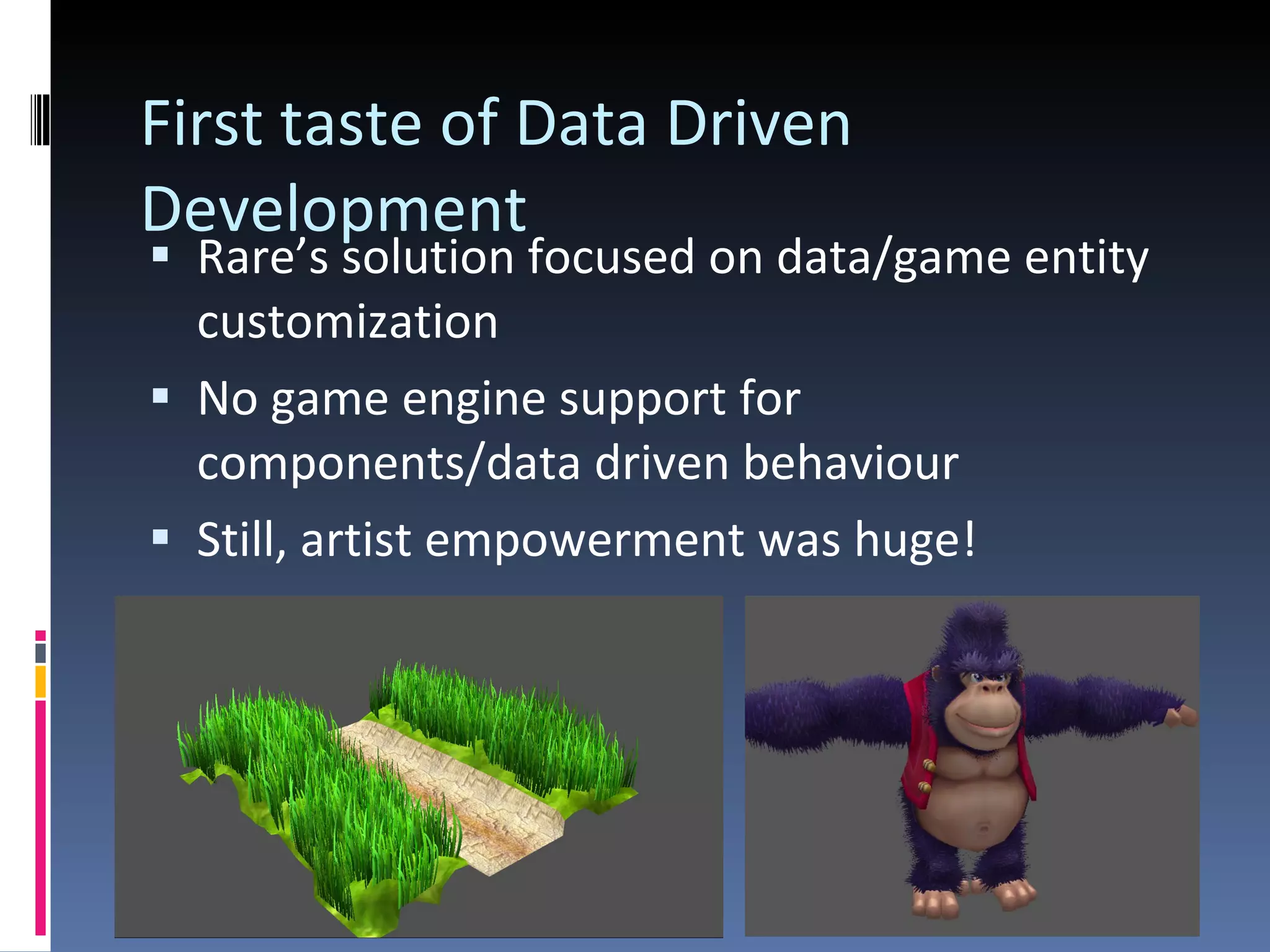

20. First taste of Data Driven Development Rare’s solution focused on data/game entity customization No game engine support for components/data driven behaviour Still, artist empowerment was huge!

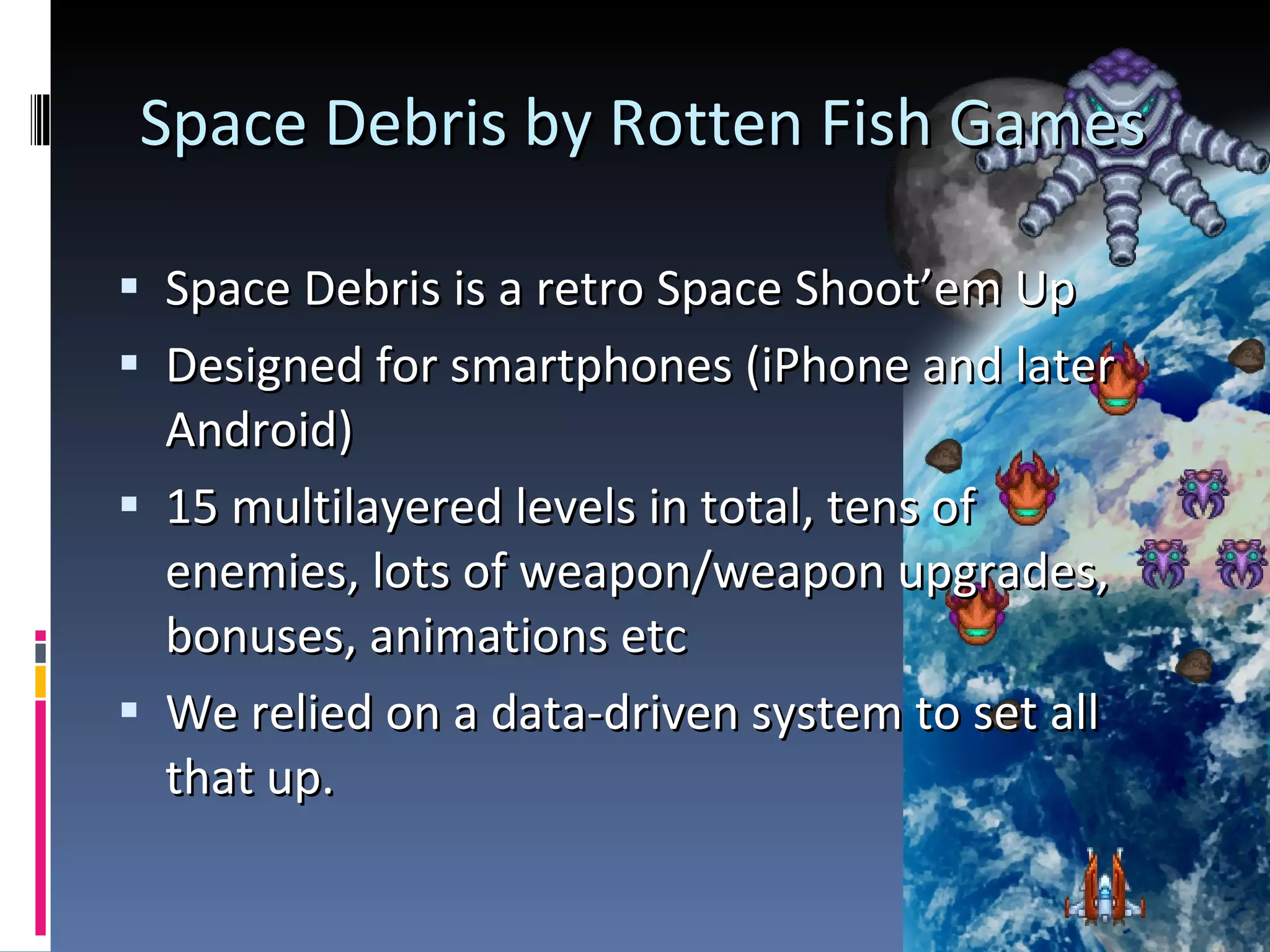

21. Space Debris by Rotten Fish Games Space Debris is a retro Space Shoot’em Up Designed for smartphones (iPhone and later Android) 15 multilayered levels in total, tens of enemies, lots of weapon/weapon upgrades, bonuses, animations etc We relied on a data-driven system to set all that up.

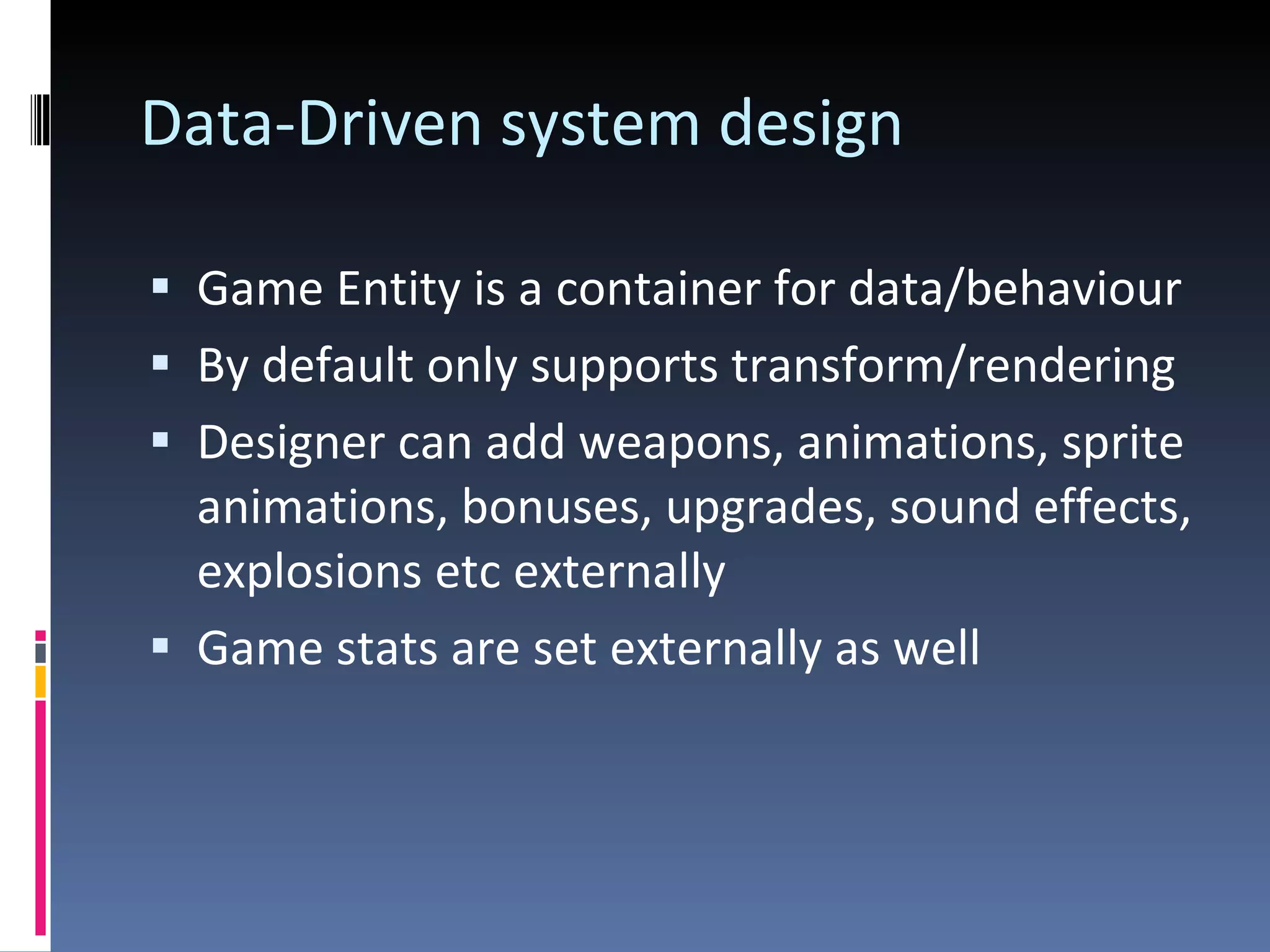

22. Data-Driven system design Game Entity is a container for data/behaviour By default only supports transform/rendering Designer can add weapons, animations, sprite animations, bonuses, upgrades, sound effects, explosions etc externally Game stats are set externally as well

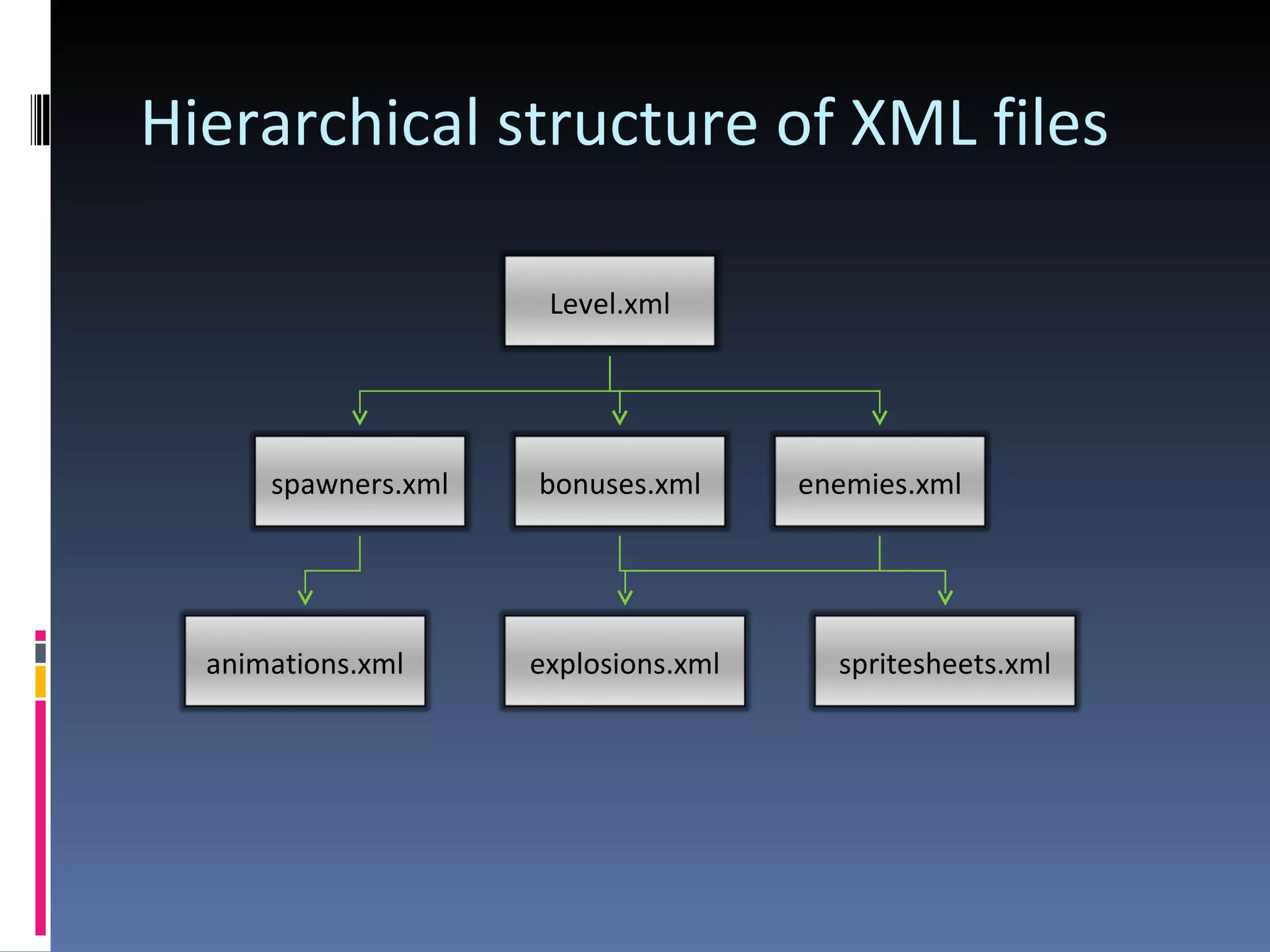

23. Hierarchical structure of XML files Level.xml spritesheets.xml animations.xml spawners.xml bonuses.xml enemies.xml explosions.xml

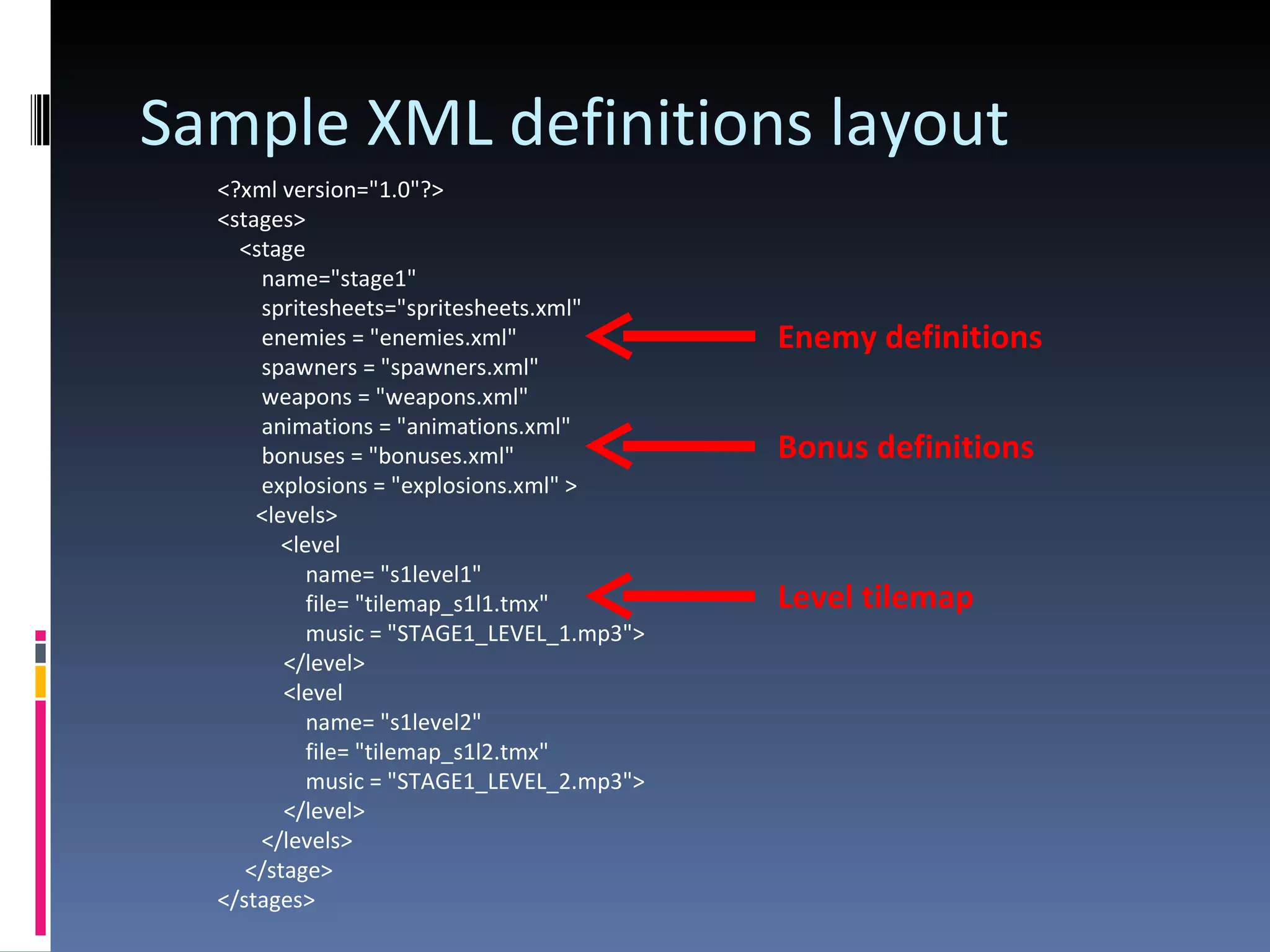

24. Sample XML definitions layout <?xml version=&quot;1.0&quot;?> <stages> <stage name=&quot;stage1&quot; spritesheets=&quot;spritesheets.xml&quot; enemies = &quot;enemies.xml&quot; spawners = &quot;spawners.xml&quot; weapons = &quot;weapons.xml&quot; animations = &quot;animations.xml&quot; bonuses = &quot;bonuses.xml&quot; explosions = &quot;explosions.xml&quot; > <levels> <level name= &quot;s1level1&quot; file= &quot;tilemap_s1l1.tmx&quot; music = &quot;STAGE1_LEVEL_1.mp3&quot;> </level> <level name= &quot;s1level2&quot; file= &quot;tilemap_s1l2.tmx&quot; music = &quot;STAGE1_LEVEL_2.mp3&quot;> </level> </levels> </stage> </stages> Enemy definitions Bonus definitions Level tilemap

25. Sample XML definitions layout <?xml version=&quot;1.0&quot;?> <spawners> <spawner type=&quot;S1LNKamikazeeHunterChase&quot; enemytype=&quot;Kamikazee_Hunter&quot; spawn=&quot;Chase&quot; animation=“ ZigZag&quot; number=&quot;6&quot; rate=&quot;2&quot; bonus=&quot;Invisibility&quot;> </spawner> </spawners> <?xml version=&quot;1.0&quot;?> <enemies> <enemy type=&quot;Kamikazee_Hunter&quot;> <parts> <part sprite=&quot;alien_kamikazee_hunter“ shield=&quot;1&quot; weapon=&quot;EnemyKamikazee1&quot; explosion=&quot;MediumExplosion&quot;> </part> </parts> </enemy> </enemies> <?xml version=&quot;1.0&quot;?> <spritesheets> <spritesheet name=&quot;spritesheet_normal.png&quot;> <sprite name=&quot;alien_kamikazee_hunter&quot;> <frames interval=&quot;0.3&quot;> <frame x=&quot;432&quot; y=&quot;96&quot; w=&quot;48&quot; h=&quot;48&quot;></frame> <frame x=&quot;0&quot; y=&quot;144&quot; w=&quot;48&quot; h=&quot;48&quot;></frame> </frames> </sprite> </spritesheet> </spritesheets> <?xml version=&quot;1.0&quot;?> <animations> <animation name=&quot;SPath&quot; type=&quot;Bezier&quot; track=&quot;Player&quot;> <parts count=“3&quot;> <part p0=&quot;0 0&quot; p1=&quot;1 0&quot; p2=&quot;1 -0.25&quot; p3=&quot;0 -0.25&quot; duration=&quot;3&quot;></part> <part p0=&quot;0 0&quot; p1=&quot;-1 0&quot; p2=&quot;-1 -0.25&quot; p3=&quot;0 -0.25&quot; duration=&quot;3&quot;></part> <part p0=&quot;0 0&quot; p1=&quot;1 0&quot; p2=&quot;1 -0.25&quot; p3=&quot;0 -0.25&quot; duration=&quot;3&quot;></part> </parts> </animation> </animations>

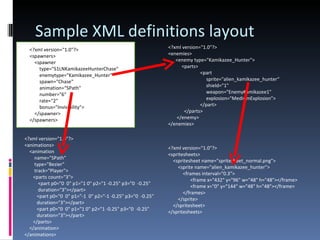

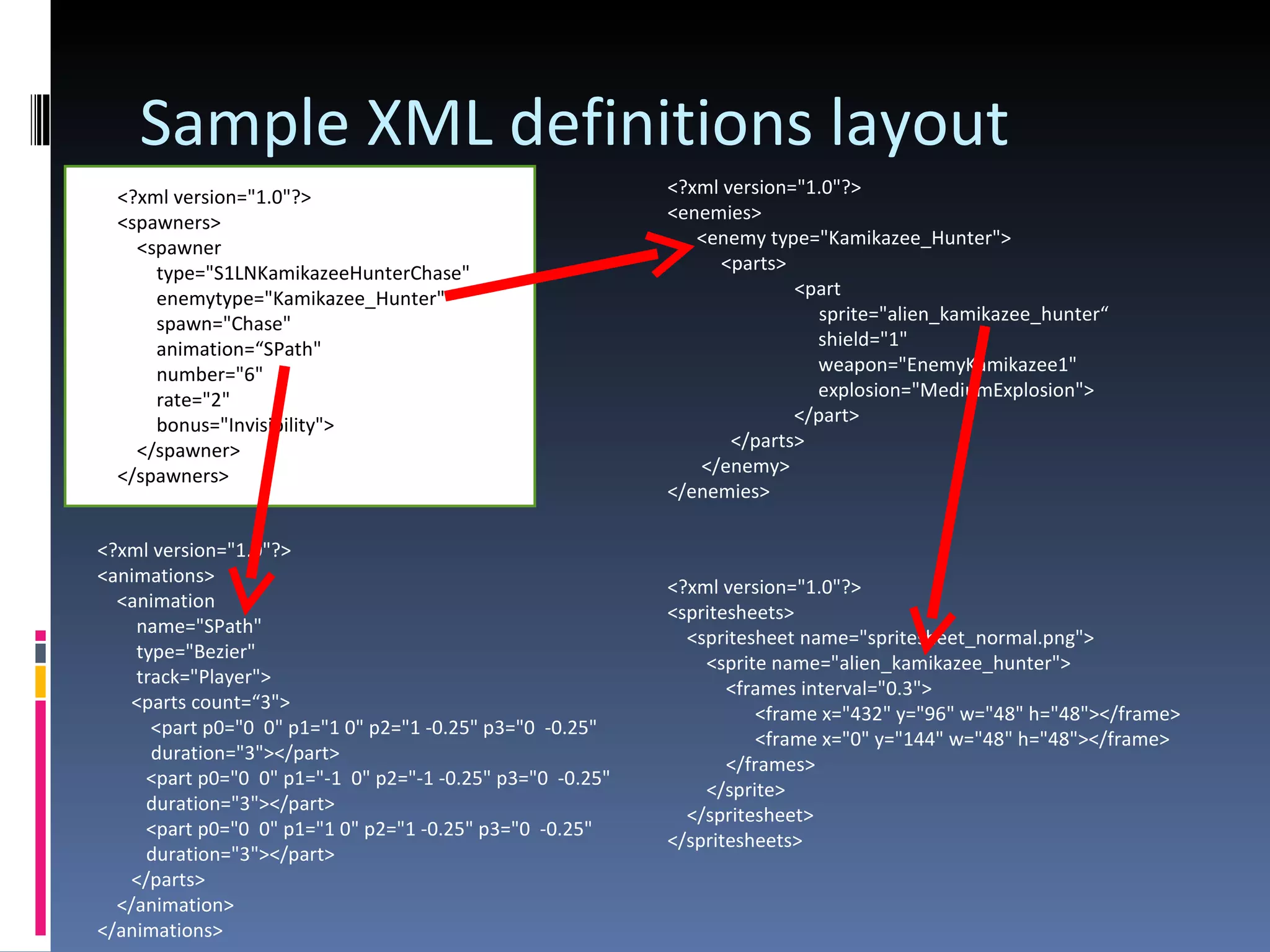

26. Sample XML definitions layout <?xml version=&quot;1.0&quot;?> <spawners> <spawner type=&quot;S1LNKamikazeeHunterChase&quot; enemytype=&quot;Kamikazee_Hunter&quot; spawn=&quot;Chase&quot; animation=“ SPath&quot; number=&quot;6&quot; rate=&quot;2&quot; bonus=&quot;Invisibility&quot;> </spawner> </spawners> <?xml version=&quot;1.0&quot;?> <enemies> <enemy type=&quot;Kamikazee_Hunter&quot;> <parts> <part sprite=&quot;alien_kamikazee_hunter“ shield=&quot;1&quot; weapon=&quot;EnemyKamikazee1&quot; explosion=&quot;MediumExplosion&quot;> </part> </parts> </enemy> </enemies> <?xml version=&quot;1.0&quot;?> <spritesheets> <spritesheet name=&quot;spritesheet_normal.png&quot;> <sprite name=&quot;alien_kamikazee_hunter&quot;> <frames interval=&quot;0.3&quot;> <frame x=&quot;432&quot; y=&quot;96&quot; w=&quot;48&quot; h=&quot;48&quot;></frame> <frame x=&quot;0&quot; y=&quot;144&quot; w=&quot;48&quot; h=&quot;48&quot;></frame> </frames> </sprite> </spritesheet> </spritesheets> <?xml version=&quot;1.0&quot;?> <animations> <animation name=&quot;SPath&quot; type=&quot;Bezier&quot; track=&quot;Player&quot;> <parts count=“3&quot;> <part p0=&quot;0 0&quot; p1=&quot;1 0&quot; p2=&quot;1 -0.25&quot; p3=&quot;0 -0.25&quot; duration=&quot;3&quot;></part> <part p0=&quot;0 0&quot; p1=&quot;-1 0&quot; p2=&quot;-1 -0.25&quot; p3=&quot;0 -0.25&quot; duration=&quot;3&quot;></part> <part p0=&quot;0 0&quot; p1=&quot;1 0&quot; p2=&quot;1 -0.25&quot; p3=&quot;0 -0.25&quot; duration=&quot;3&quot;></part> </parts> </animation> </animations>

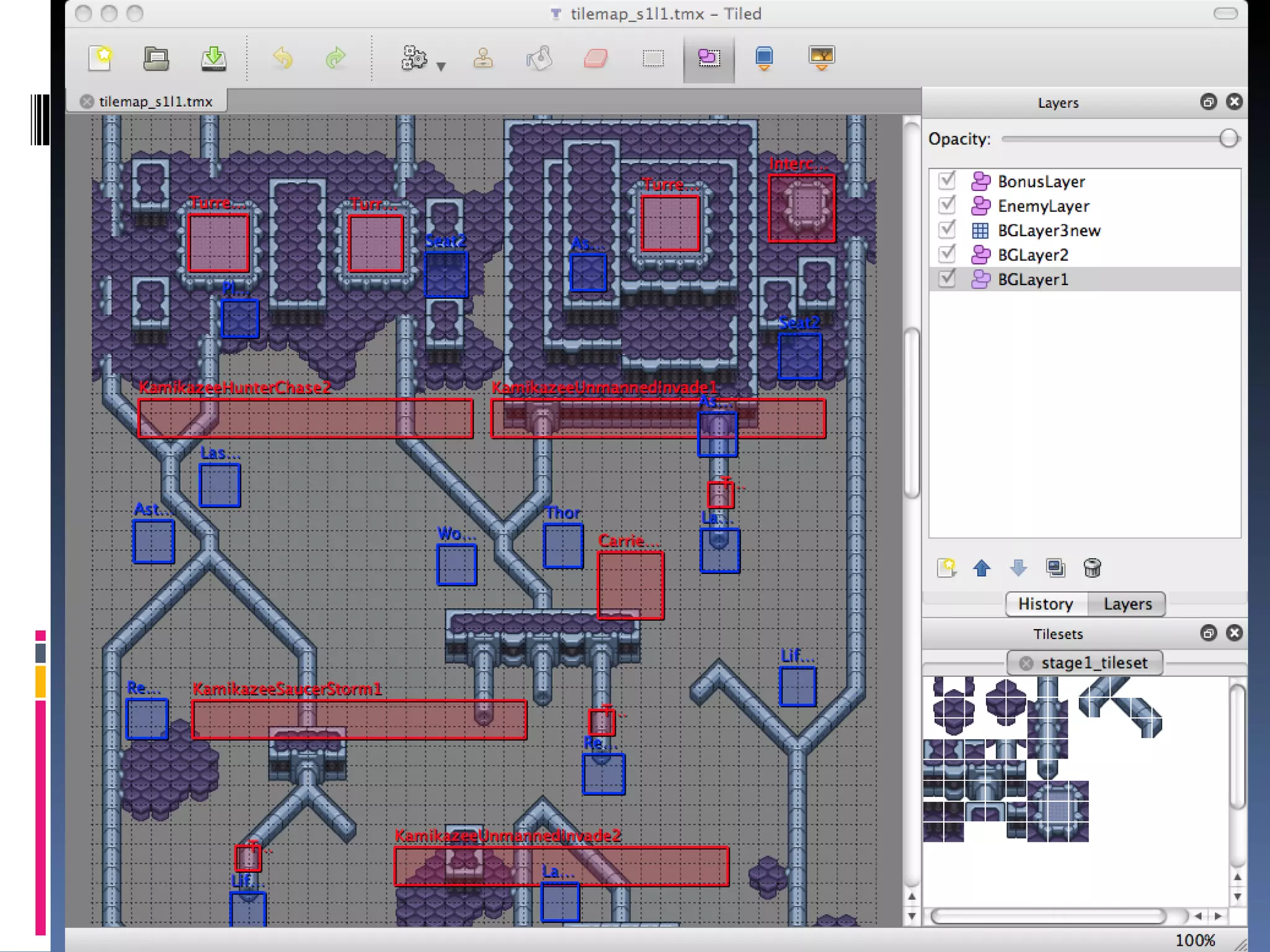

27. Game data specification

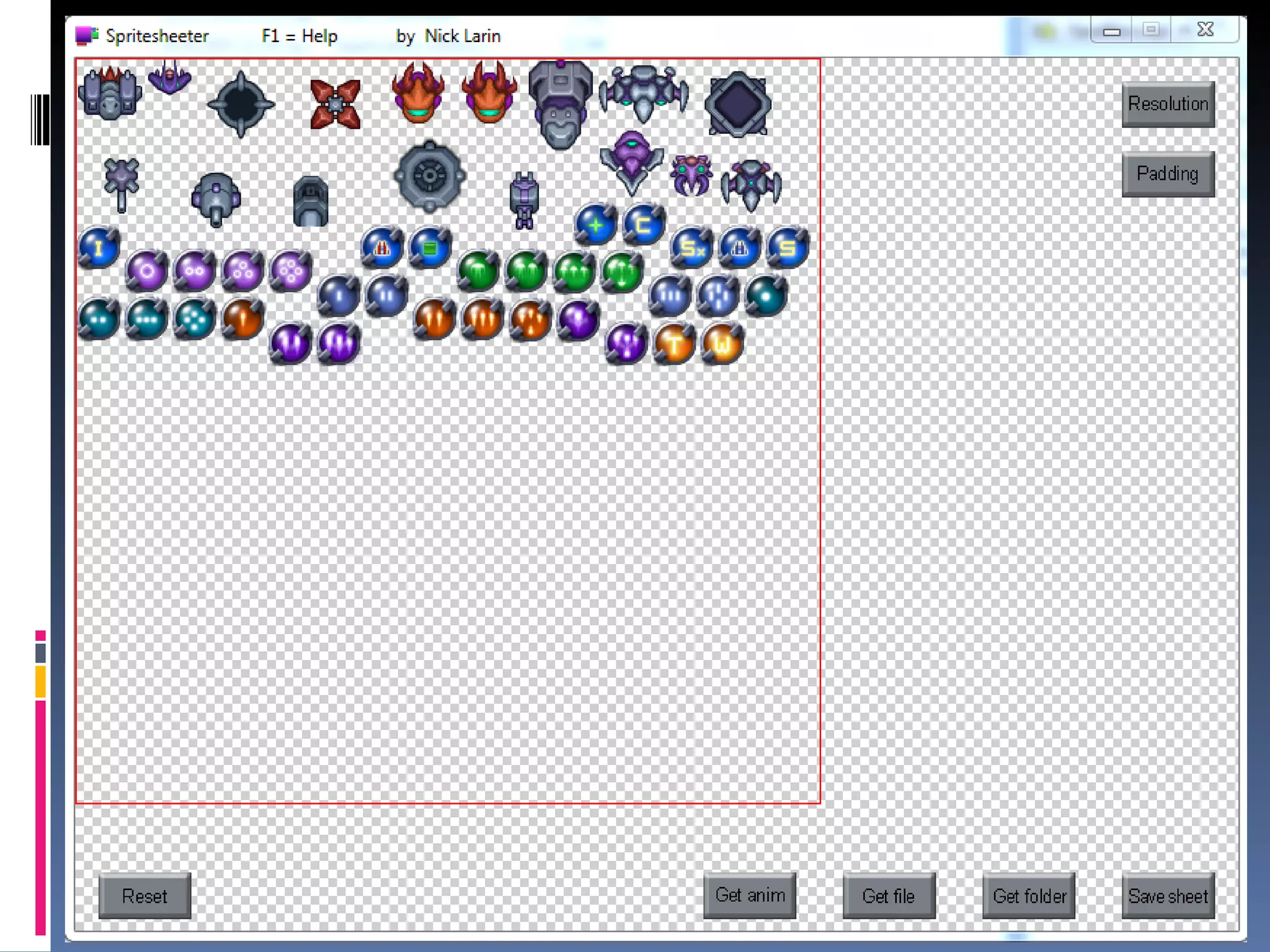

28. Game data specification

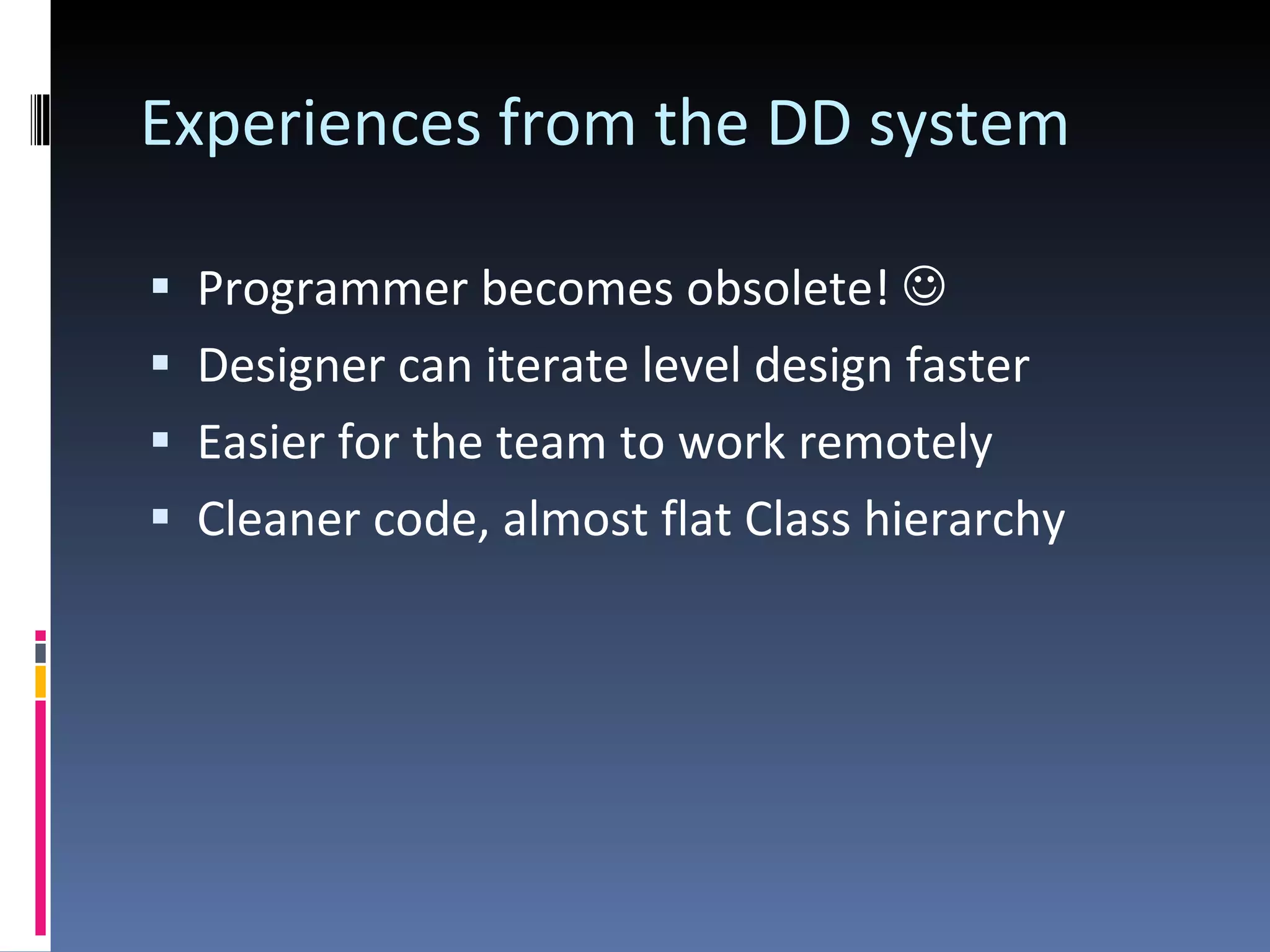

29. Experiences from the DD system Programmer becomes obsolete!  Designer can iterate level design faster Easier for the team to work remotely Cleaner code, almost flat Class hierarchy

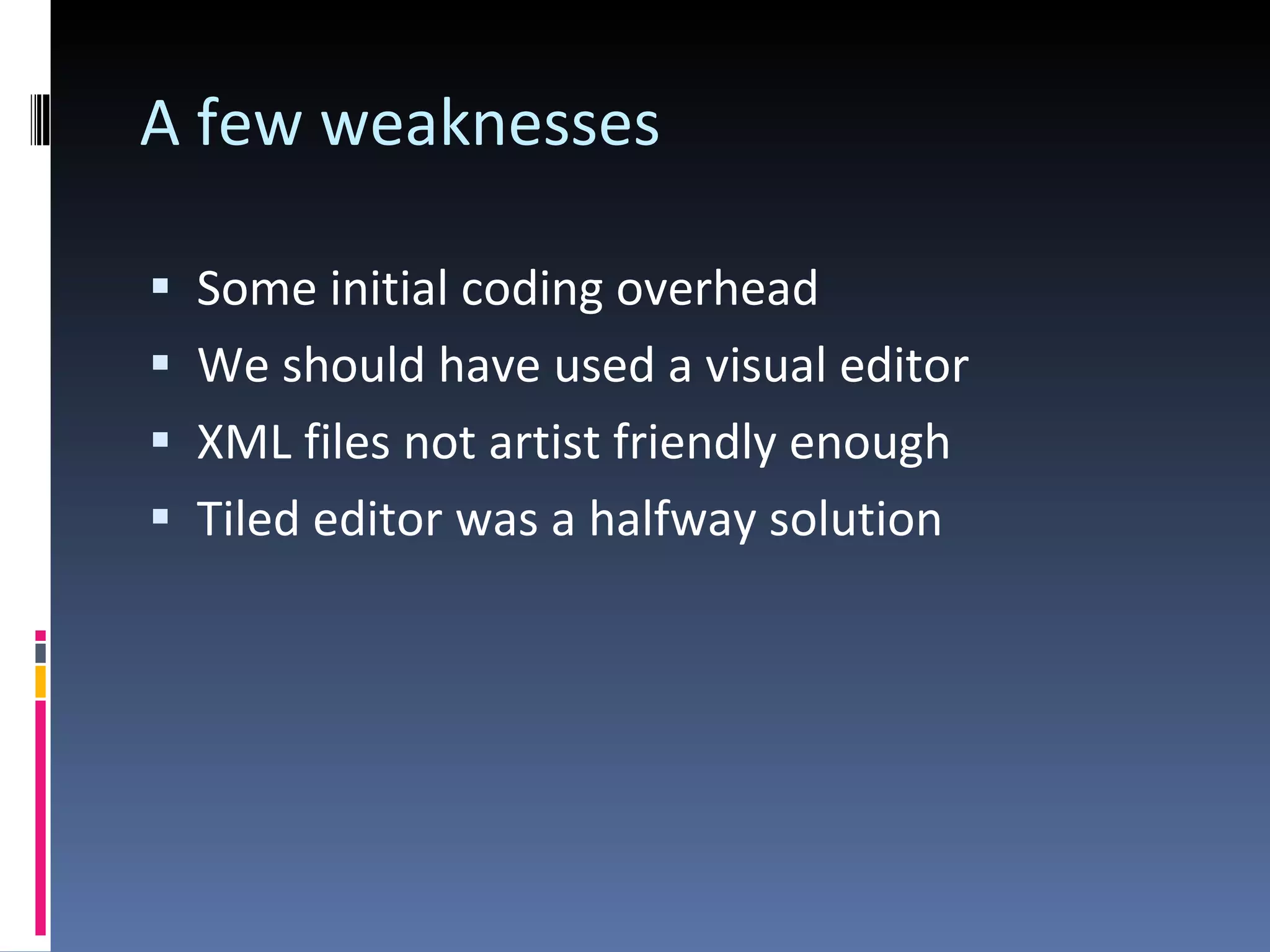

30. A few weaknesses Some initial coding overhead We should have used a visual editor XML files not artist friendly enough Tiled editor was a halfway solution

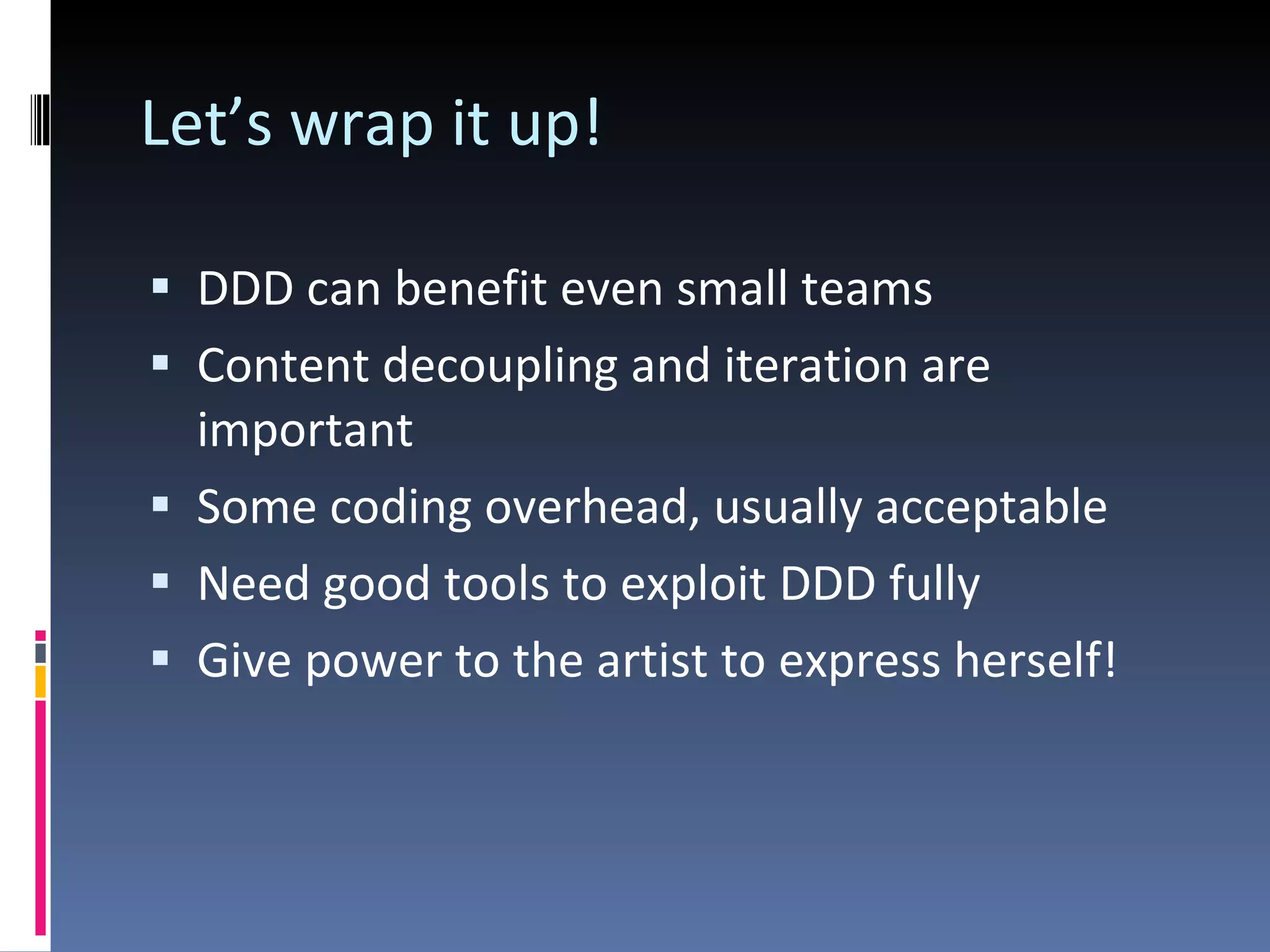

31. Let’s wrap it up! DDD can benefit even small teams Content decoupling and iteration are important Some coding overhead, usually acceptable Need good tools to exploit DDD fully Give power to the artist to express herself!

32. Thank you for listening! Kostas Anagnostou [email_address]
