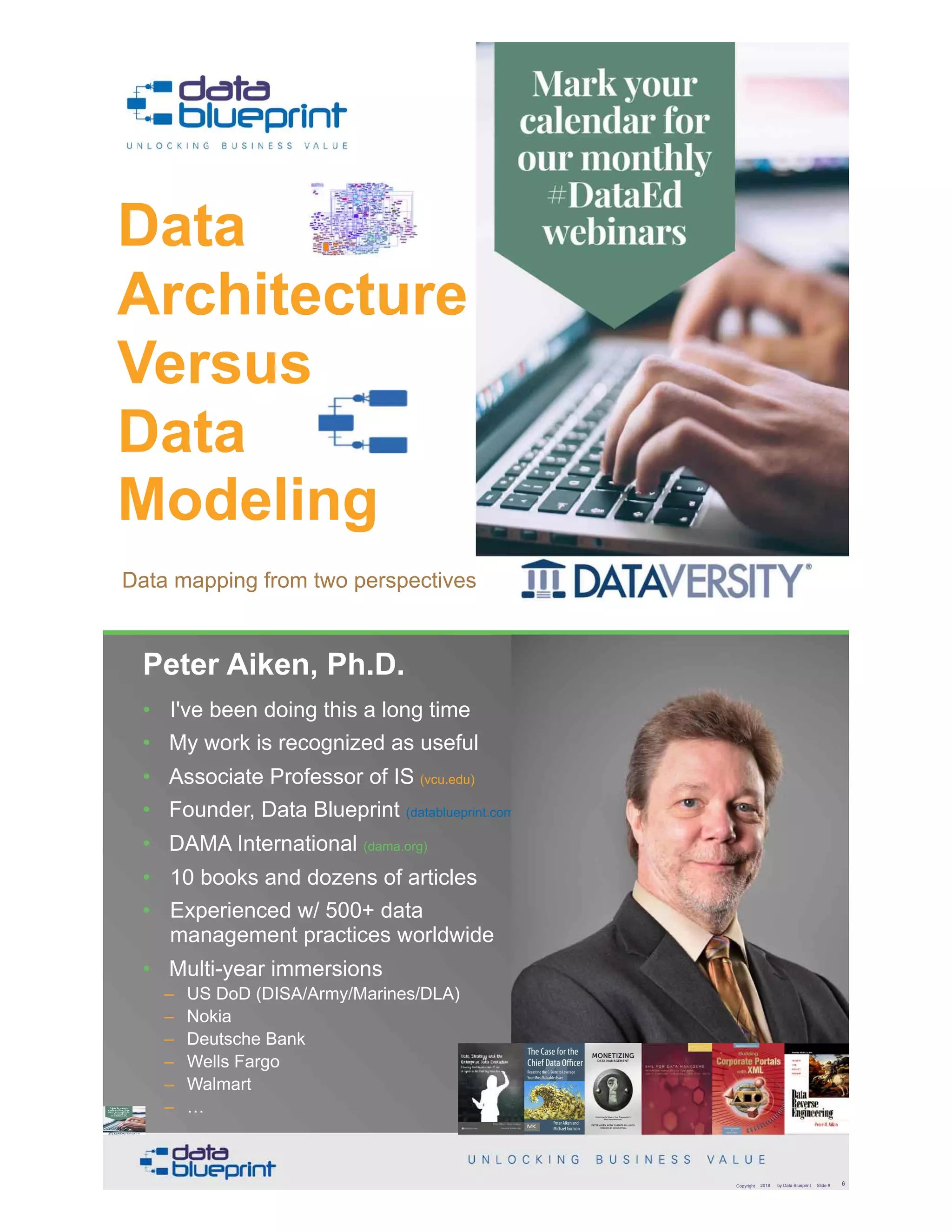

Peter Aiken, Ph.D. Data Architecture
 Versus
 Data
 Modeling Copyright 2018 by Data Blueprint Slide # !5 Data mapping from two perspectives • DAMA International President 2009-2013 / 2018 • DAMA International Achievement Award 2001
 (with Dr. E. F. "Ted" Codd • DAMA International Community Award 2005 Peter Aiken, Ph.D. !6Copyright 2018 by Data Blueprint Slide # • I've been doing this a long time • My work is recognized as useful • Associate Professor of IS (vcu.edu) • Founder, Data Blueprint (datablueprint.com) • DAMA International (dama.org) • 10 books and dozens of articles • Experienced w/ 500+ data management practices worldwide • Multi-year immersions – US DoD (DISA/Army/Marines/DLA) – Nokia – Deutsche Bank – Wells Fargo – Walmart – … PETER AIKEN WITH JUANITA BILLINGS FOREWORD BY JOHN BOTTEGA MONETIZING DATA MANAGEMENT Unlocking the Value in Your Organization’s Most Important Asset.
4 Minute Architecture Lesson from Steve Jobs, Introducing iCloud !7Copyright 2018 by Data Blueprint Slide # Typically Managed Architectures • Business Architecture – Goals, strategies, roles, organizational structure, location(s) • Process Architecture – Arrangement of inputs -> transformations = value -> outputs – Typical elements: Functions, activities, workflow, events, cycles, products, procedures • Systems Architecture – Applications, software components, interfaces, projects • Security Architecture – Arrangement of security controls relation to IT Architecture • Technical Architecture/Tarchitecture – Relation of software capabilities/technology stack – Structure of the technology infrastructure of an enterprise, solution or system – Typical elements: Networks, hardware, software platforms, standards/protocols • Data/Information Architecture – Arrangement of data assets supporting organizational strategy – Typical elements: specifications expressed as entities, relationships, attributes, definitions, values, vocabularies !8Copyright 2018 by Data Blueprint Slide #
Architecture is about ... • Things – (components) • The functions of the things – (individually) • How the things interact – (as a system, – towards a goal) !9Copyright 2018 by Data Blueprint Slide # • Business • Process • Systems • Security • Technical • Data/Information !10Copyright 2018 by Data Blueprint Slide # Data Architecture Versus Data Modeling !X • Data Maps->Models – Why do we need them? – How are they be used? – Challenges (social, political, economic) • Architecture/Engineering – Two sides of the same coin – Must operate on standard, shared data of known quality • View from the Top – Means: Forward engineering – Goal: Composition/Building • View from the Bottom – Means: Reverse engineering – Goal: Understanding • Working Together – Functions required for effective data management – Need for simplicity • Take Aways/Q&A



Data Data Data Information Fact Meaning Request Business Glossary Components [Built on definitions from Dan Appleton 1983] Intelligence Strategic Use 1. Each FACT combines with one or more MEANINGS. 2. Each specific FACT and MEANING combination is referred to as a DATUM. 3. An INFORMATION is one or more DATA that are returned in response to a specific REQUEST 4. INFORMATION REUSE is enabled when one FACT is combined with more than one MEANING. 5. INTELLIGENCE is INFORMATION associated with its STRATEGIC USES. 6. DATA/INFORMATION must formally arranged into an ARCHITECTURE. Wisdom & knowledge are
 often used synonymously Data Data Data Data !11Copyright 2018 by Data Blueprint Slide # Data ... • As a subject is – Complex and detailed – Taught inconsistently, and – Poorly understood • Maps are necessary but
 insufficient prerequisites to data architectures – Fully leveraging data assets • Maps are incomplete without purpose statements – More powerful than definitions – Remedy • Add purpose statements • Validate resulting model • Maps are required to share information about data • Data architectures are comprised of data models – Data modeling is an engineering activity required to product data maps that are necessary but insufficient prerequisites to leveraging data assets !12Copyright 2018 by Data Blueprint Slide #
How are components expressed as architectures? • Details are organized into
 larger components • Larger components are organized into models • Models are organized into architectures (comprised of architectural components) !13Copyright 2018 by Data Blueprint Slide # A B C D A B C D A D C B Intricate Dependencies Purposefulness How are data structures expressed as architectures? • Attributes are organized into entities/objects – Attributes are characteristics of "things" – Entitles/objects are "things" whose
 information is managed in support of strategy – Examples • Entities/objects are organized into models – Combinations of attributes and entities are
 structured to represent information requirements – Poorly structured data, constrains organizational
 information delivery capabilities – Examples • Models are organized into architectures – When building new systems, architectures are used to plan development – More often, data managers do not know what existing architectures are and - therefore - cannot make use of them in support of strategy implementation – Why no examples? !14Copyright 2018 by Data Blueprint Slide #
Data structures organized into an Architecture • How do data structures support strategy? • Consider the opposite question? – Were your systems explicitly designed to be
 integrated or otherwise work together? – If not then what is the likelihood that they will
 work well together? – In all likelihood your organization is spending
 between 20-40% of its IT budget compensating
 for poor data structure integration – They cannot be helpful as long as their
 structure is unknown • Two answers/two separate strategies – Achieving efficiency and
 effectiveness goals – Providing organizational dexterity
 for rapid implementation !15Copyright 2018 by Data Blueprint Slide # Data architectures are comprised of data models !16Copyright 2018 by Data Blueprint Slide #
Data Architectures Determine Interoperability • Required in order to enable
 self-correction/generation capabilities • Permits governance of data as an asset • Prerequisite to meaningful data exchanges • Lowers the costs of organization-wide and extra- organizational data sharing • Permits managed evolution - rapidly responding to changing needs, new partners, time criticality's • Required for full implementation of role-based security • Decreases the cost of maintaining various data inventories !17Copyright 2018 by Data Blueprint Slide # Data Architectures: – Capture the business meaning of the data required to run the organization – Living document – constantly evolving to meet upcoming and discovered business requirements – A potential entry point for architecture engagements – Validated data architectural components can be used to populate a business glossary – Major collection of metadata Levels of Abstraction, Completeness and Utility • Models more downward facing - detail • Architecture is higher level of abstraction - integration • In the past architecture attempted to gain complete (perfect) understanding – Not timely – Not feasible • Focus instead on
 architectural components – Governed by a framework – More immediate utility • http://www.architecturalcomponentsinc.com !18Copyright 2018 by Data Blueprint Slide #
Data model focus is typically domain specific !19Copyright 2018 by Data Blueprint Slide # Program A Program C Program B Focus of a software engineering effort Underutilized data modeling effort Database Architecture Focus Can Vary !20Copyright 2018 by Data Blueprint Slide # Application
 domain 1 Program A Program C Program B Focus of a software engineering effort Underutilized data modeling effort Better utilized data modeling effort ERPs and COTS are marketed as being similarly integrated! Program F Program E Program G Program H Program I Application domain 2 Application domain 3 Program D
Application
 domain 1 Program A Program C Program B DataData DataData Data Data Data Program F Program E Program D Program G Program H Program I Application domain 2Application domain 3 Data Data Data Data Architecture Focus has Greater Potential Value • Broader focus than either software architecture or database architecture • Analysis scope is on the system wide use of data • Problems caused by data exchange or interface problems • Architectural goals more strategic than operational !21Copyright 2018 by Data Blueprint Slide # !22Copyright 2018 by Data Blueprint Slide #

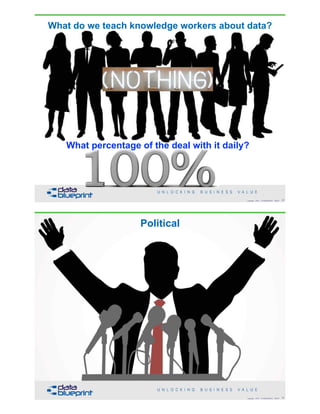

What do we teach knowledge workers about data? !23Copyright 2018 by Data Blueprint Slide # What percentage of the deal with it daily? !24Copyright 2018 by Data Blueprint Slide # Political
What do we teach IT professionals about data? !25Copyright 2018 by Data Blueprint Slide # • 1 course – How to build a new database • What impressions do IT professionals get from this education? – Data is a technical skill that is needed when developing new databases The DAMA Guide to the Data Management
 Body of
 Knowledge !26Copyright 2018 by Data Blueprint Slide # Data
 Management
 Practices fromTheDAMAGuidetotheDataManagementBodyofKnowledge©2009byDAMAInternational • Good enough
 to criticize – All models
 are wrong – Some models
 are useful • Missing two
 important concepts – Optionality – Dependency

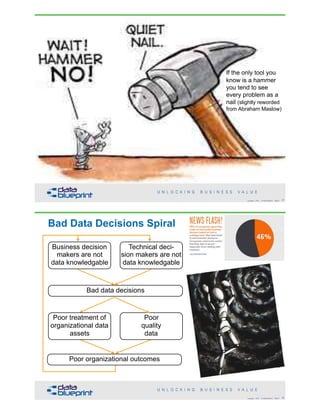

!27Copyright 2018 by Data Blueprint Slide # If the only tool you know is a hammer you tend to see every problem as a nail (slightly reworded from Abraham Maslow) Bad Data Decisions Spiral !28Copyright 2018 by Data Blueprint Slide # Bad data decisions Technical deci- sion makers are not data knowledgable Business decision makers are not data knowledgable Poor organizational outcomes Poor treatment of organizational data assets Poor
 quality
 data

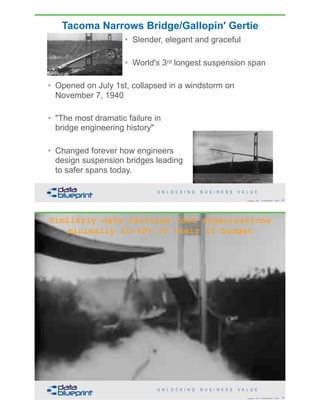

Tacoma Narrows Bridge/Gallopin' Gertie • Slender, elegant and graceful • World's 3rd longest suspension span • Opened on July 1st, collapsed in a windstorm on November 7, 1940 • "The most dramatic failure in
 bridge engineering history" • Changed forever how engineers
 design suspension bridges leading
 to safer spans today. !29Copyright 2018 by Data Blueprint Slide # !30Copyright 2018 by Data Blueprint Slide # Similarly data failures cost organizations minimally 20-40% of their IT budget
What is a data structure? • "An organization of information, usually in memory, for better algorithm efficiency, such as queue, stack, linked list, heap, dictionary, and tree, or conceptual unity, such as the name and address of a person. It may include redundant information, such as length of the list or number of nodes in a subtree." • Some data structure characteristics – Grammar for data objects • Grammar is the principles
 or rules of an art, science,
 or technique "a grammar
 of the theater" – Constraints for data
 objects – Sequential order – Uniqueness – Order • Hierarchical, relational,
 network, other – Balance – Optimality !31Copyright 2018 by Data Blueprint Slide # http://www.nist.gov/dads/HTML/datastructur.html Data is a hidden IT Expense • Organizations spend between 20 - 40% of their IT budget evolving their data - including: – Data migration • Changing the location from one place to another – Data conversion • Changing data into another form, state, or product – Data improving • Inspecting and manipulating, or re-keying data to prepare it for subsequent use – Source: John Zachman !32Copyright 2018 by Data Blueprint Slide # PETER AIKEN WITH JUANITA BILLINGS FOREWORD BY JOHN BOTTEGA MONETIZING DATA MANAGEMENT Unlocking the Value in Your Organization’s Most Important Asset.
Doing a poor job with data • Takes longer • Costs more • Delivers less • Presents greater risk (with thanks to Tom DeMarco) !33Copyright 2018 by Data Blueprint Slide # !34Copyright 2018 by Data Blueprint Slide # Data Architecture Versus Data Modeling !X • Data Maps->Models – Why do we need them? – How are they be used? – Challenges (social, political, economic) • Architecture/Engineering – Two sides of the same coin – Must operate on standard, shared data of known quality • View from the Top – Means: Forward engineering – Goal: Composition/Building • View from the Bottom – Means: Reverse engineering – Goal: Understanding • Working Together – Functions required for effective data management – Need for simplicity • Take Aways/Q&A



Architectures: here, whether you like it or not 35Copyright 2018 by Data Blueprint Slide # deviantart.com • All organizations have architectures – Some are better understood and documented (and therefore more useful to the organization) than others Engineering Architecture !36Copyright 2018 by Data Blueprint Slide # Engineering/Architecting
 Relationship • Architecting is used to create and build systems too complex to be treated by engineering analysis alone – Require technical details as the exception • Engineers develop the technical designs for implementation – Engineering/Crafts-persons deliver work product components supervised by: • Manufacturer • Building Contractor
You cannot architect after implementation! !37Copyright 2018 by Data Blueprint Slide # USS Midway & Pancakes What is this? • It is tall • It has a clutch • It was built in 1942 • It is still in regular use! !38Copyright 2018 by Data Blueprint Slide #
!39Copyright 2018 by Data Blueprint Slide # Definition of Bed Q: What is the proper relationship for these entities? !40Copyright 2018 by Data Blueprint Slide # ROOMBED
Bed Room Data Maps - Entity Level !41Copyright 2018 by Data Blueprint Slide # Bed Room BEDS are related to ROOMS More precision:
 many BEDS are related to many ROOMS Bed Room Better information:
 many BEDS may be contained in each ROOM and each room may contain many beds What if beds can be moved? Possible Entity Relationships !42Copyright 2018 by Data Blueprint Slide # Eventually One or Many (optional) Eventually One (optional) Exactly One (mandatory) Zero, or Many (optional) One or Many (mandatory)
Families of Modeling Notation Variants !43Copyright 2018 by Data Blueprint Slide # Eventually One, More Eventually One Exactly One Zero, or More One or More Information Engineering Pick one! What is a Relationship? • Natural associations between two or more entities !44Copyright 2018 by Data Blueprint Slide #
You cannot architect after implementation! !37Copyright 2018 by Data Blueprint Slide # USS Midway & Pancakes What is this? • It is tall • It has a clutch • It was built in 1942 • It is still in regular use! !38Copyright 2018 by Data Blueprint Slide #
Standard definition reporting does not provide conceptual context !47Copyright 2018 by Data Blueprint Slide # BED Something you sleep in Purpose statement incorporates motivations Entity: BED Data Asset Type: Principal Data Entity Purpose: This is a substructure within the Room
 substructure of the Facility Location. It contains
 information about beds within rooms. Source: Maintenance Manual for File and Table
 Data (Software Version 3.0, Release 3.1) Attributes: Bed.Description
 Bed.Status
 Bed.Sex.To.Be.Assigned
 Bed.Reserve.Reason Associations: >0-+ Room Status: Validated !48Copyright 2018 by Data Blueprint Slide # Draft A purpose statement describing – Why the organization is maintaining information about this business concept; – Sources of information about it; – A partial list of the attributes or characteristics of the entity; and – Associations with other data items(read as "One room contains zero or many beds.")
ANSI-SPARC 3-Layer Schema 1. Conceptual - Allows independent customized user views: – Each should be able to access the same data, but have a different customized view of the data. 2. Logical - This hides the physical storage details from users: – Users should not have to deal with physical database storage details. They should be allowed to work with the data itself, without concern for how it is physically stored. 3. Physical - The database administrator should be able to change the database storage structures without affecting the users’ views: – Changes to the structure of an organization's data will be required. The internal structure of the database should be unaffected by changes to the physical aspects of the storage. !49Copyright 2018 by Data Blueprint Slide # For example, a changeover to a new DBMS technology. The database administrator should be able to change the conceptual or global structure of the database without affecting the users. !50Copyright 2018 by Data Blueprint Slide # Data Architecture Versus Data Modeling !X • Data Maps->Models – Why do we need them? – How are they be used? – Challenges (social, political, economic) • Architecture/Engineering – Two sides of the same coin – Must operate on standard, shared data of known quality • View from the Top – Means: Forward engineering – Goal: Composition/Building • View from the Bottom – Means: Reverse engineering – Goal: Understanding • Working Together – Functions required for effective data management – Need for simplicity • Take Aways/Q&A

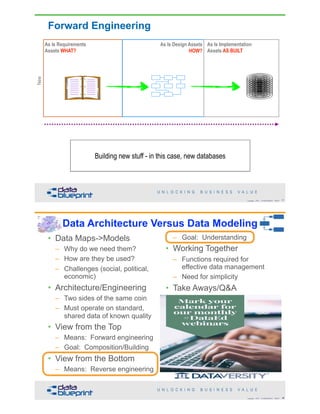

As Is Requirements
 Assets WHAT? As Is Design Assets
 HOW? As Is Implementation
 Assets AS BUILT Forward Engineering !51Copyright 2018 by Data Blueprint Slide # New Building new stuff - in this case, new databases !52Copyright 2018 by Data Blueprint Slide # Data Architecture Versus Data Modeling !X • Data Maps->Models – Why do we need them? – How are they be used? – Challenges (social, political, economic) • Architecture/Engineering – Two sides of the same coin – Must operate on standard, shared data of known quality • View from the Top – Means: Forward engineering – Goal: Composition/Building • View from the Bottom – Means: Reverse engineering – Goal: Understanding • Working Together – Functions required for effective data management – Need for simplicity • Take Aways/Q&A



As Is Requirements
 Assets WHAT? As Is Design Assets
 HOW? As Is Implementation
 Assets AS BUILT Existing Reverse Engineering !53Copyright 2018 by Data Blueprint Slide # A structured technique aimed at recovering rigorous knowledge of the existing system to leverage enhancement efforts [Chikofsky & Cross 1990] !54Copyright 2018 by Data Blueprint Slide # Data Architecture Versus Data Modeling !X • Data Maps->Models – Why do we need them? – How are they be used? – Challenges (social, political, economic) • Architecture/Engineering – Two sides of the same coin – Must operate on standard, shared data of known quality • View from the Top – Means: Forward engineering – Goal: Composition/Building • View from the Bottom – Means: Reverse engineering – Goal: Understanding • Working Together – Functions required for effective data management – Need for simplicity • Take Aways/Q&A



As Is Requirements
 Assets WHAT? As Is Design Assets
 HOW? As Is Implementation

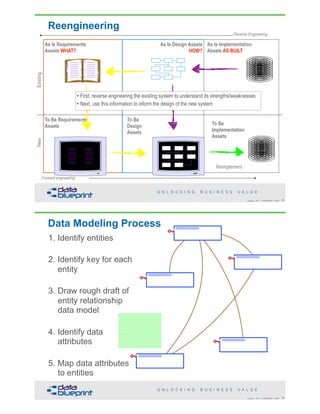

 Assets AS BUILT ExistingNew Reengineering Reverse Engineering Forward engineering Reimplement To Be
 Implementation
 Assets To Be
 Design
 Assets To Be Requirements Assets !55Copyright 2018 by Data Blueprint Slide # • First, reverse engineering the existing system to understand its strengths/weaknesses • Next, use this information to inform the design of the new system Data Modeling Process 1. Identify entities 2. Identify key for each entity 3. Draw rough draft of entity relationship data model 4. Identify data attributes 5. Map data attributes to entities !56Copyright 2018 by Data Blueprint Slide #
Models Evolution is good, at first ... 1. Identify entities 2. Identify key for each entity 3. Draw rough draft of entity relationship data model 4. Identify data attributes 5. Map data attributes to entities !57Copyright 2018 by Data Blueprint Slide # Preliminary activities Modeling cycles Wrapup activities Evidence collection & analysis Project coordination requirements Target system analysis Modeling cycle focus Activity Refinement Collection Analysis Validation Declining coordination requirements Increasing amounts of targetsystem analysis Preliminary activities Modeling cycles Wrapup activities Evidence collection & analysis Project coordination requirements Target system analysis Modeling cycle focus Activity Refinement Collection Analysis Validation Declining coordination requirements Increasing amounts of targetsystem analysis Preliminary activities Modeling cycles Wrapup activities Evidence collection & analysis Project coordination requirements Target system analysis Modeling cycle focus Activity Refinement Collection Analysis Validation Declining coordination requirements Increasing amounts of targetsystem analysis Preliminary activities Modeling cycles Wrapup activities Evidence collection & analysis Project coordination requirements Target system analysis Modeling cycle focus Activity Refinement Collection Analysis Validation Declining coordination requirements Increasing amounts of targetsystem analysis Relative use of time allocated to tasks during Modeling Preliminary activities Modeling cycles Wrapup activities Evidence collection & analysis Project coordination requirements Target system analysis Modeling cycle focus Activity Refinement Collection Analysis Validation Declining coordination requirements Increasing amounts of targetsystem analysis !58Copyright 2018 by Data Blueprint Slide #
It’s your turn! Use the chat feature or Twitter (#dataed) to submit your questions now! Questions? + = !59Copyright 2018 by Data Blueprint Slide # Upcoming Events December Webinar:

 The Seven Deadly Data Sins
 December 11, 2018 @ 2:00 PM ET January Webinar:
 Data Strategy-Best Practices
 January 8, 2019 @ 2:00 PM ET Enterprise Data World
 How I Learned to Stop Worrying & Love My Data Warehouse
 Sunday, 3/17/2019 @ 1:30 PM ET Data Management Brain Drain Thursday, 3/21/2019 @ 8:30 AM ET Sign up for webinars at: www.datablueprint.com/webinar-schedule
 or at www.dataversity.net !60Copyright 2018 by Data Blueprint Slide # Brought to you by:
10124 W. Broad Street, Suite C Glen Allen, Virginia 23060 804.521.4056 Copyright 2018 by Data Blueprint Slide # !61

More Related Content

PDF
Time to Talk about Data Mesh
byLibbySchulze

PPTX
Modern Data Architecture
byAlexey Grishchenko

PDF
Conceptual vs. Logical vs. Physical Data Modeling
byDATAVERSITY

PDF
Enterprise Architecture vs. Data Architecture
byDATAVERSITY

PPT
Master Data Management
bySung Kuan

PPTX
Data Warehousing Trends, Best Practices, and Future Outlook
byJames Serra

PDF
Modern Data architecture Design
byKujambu Murugesan

PDF
Architect’s Open-Source Guide for a Data Mesh Architecture
byDatabricks

Time to Talk about Data Mesh
byLibbySchulze

Modern Data Architecture
byAlexey Grishchenko

Conceptual vs. Logical vs. Physical Data Modeling
byDATAVERSITY

Enterprise Architecture vs. Data Architecture
byDATAVERSITY

Master Data Management
bySung Kuan

Data Warehousing Trends, Best Practices, and Future Outlook
byJames Serra

Modern Data architecture Design
byKujambu Murugesan

Architect’s Open-Source Guide for a Data Mesh Architecture
byDatabricks


What's hot

PPTX
Data Lakehouse, Data Mesh, and Data Fabric (r2)
byJames Serra

PDF
The what, why, and how of master data management
byMohammad Yousri

PDF
Moving to Databricks & Delta
byDatabricks

PDF
Data Governance Best Practices
byDATAVERSITY

PPTX
Building the enterprise data architecture
byCosta Pissaris

PDF
Data Mesh
byPiethein Strengholt

PPT
MDM Strategy & Roadmap
byvictorlbrown

PDF
Sample - Data Warehouse Requirements
byDavid Walker

PDF
Data Catalogs Are the Answer – What is the Question?
byDATAVERSITY

PDF
You Need a Data Catalog. Do You Know Why?
byPrecisely

PDF
Democratizing Data Quality Through a Centralized Platform
byDatabricks

PPTX
Building Modern Data Platform with Microsoft Azure
byDmitry Anoshin

PPTX
Snowflake Architecture.pptx
bychennakesava44

PPT
Data Governance
byRob Lux

PDF
Data Architecture Best Practices for Advanced Analytics
byDATAVERSITY

PDF
Data modelling 101
byChristopher Bradley

PPTX
Delta lake and the delta architecture
byAdam Doyle

PPTX
DBT ELT approach for Advanced Analytics.pptx
byHong Ong

PDF
Data Mesh in Practice: How Europe’s Leading Online Platform for Fashion Goes ...
byDatabricks

PDF
Migrating to Cloud: Inhouse Hadoop to Databricks (3)
byKnoldus Inc.

Data Lakehouse, Data Mesh, and Data Fabric (r2)
byJames Serra

The what, why, and how of master data management
byMohammad Yousri

Moving to Databricks & Delta
byDatabricks

Data Governance Best Practices
byDATAVERSITY

Building the enterprise data architecture
byCosta Pissaris

Data Mesh
byPiethein Strengholt

MDM Strategy & Roadmap
byvictorlbrown

Sample - Data Warehouse Requirements
byDavid Walker

Data Catalogs Are the Answer – What is the Question?
byDATAVERSITY

You Need a Data Catalog. Do You Know Why?
byPrecisely

Democratizing Data Quality Through a Centralized Platform
byDatabricks

Building Modern Data Platform with Microsoft Azure
byDmitry Anoshin

Snowflake Architecture.pptx
bychennakesava44

Data Governance
byRob Lux

Data Architecture Best Practices for Advanced Analytics
byDATAVERSITY

Data modelling 101
byChristopher Bradley

Delta lake and the delta architecture
byAdam Doyle

DBT ELT approach for Advanced Analytics.pptx
byHong Ong

Data Mesh in Practice: How Europe’s Leading Online Platform for Fashion Goes ...
byDatabricks

Migrating to Cloud: Inhouse Hadoop to Databricks (3)
byKnoldus Inc.


Similar to Data Architecture vs Data Modeling

PDF
DataEd Slides: Data Architecture versus Data Modeling
byDATAVERSITY

PDF
DataEd Slides: Data Modeling is Fundamental
byDATAVERSITY

PDF
Data Architecture Strategies
byDATAVERSITY

PDF
Data-Ed Online: Data Architecture Requirements
byDATAVERSITY

PDF
Data-Ed: Data Architecture Requirements
byData Blueprint

PDF
Data-Ed Slides: Data Architecture Strategies - Constructing Your Data Garden
byDATAVERSITY

PDF
DataEd Slides: Data Architecture vs. Data Modeling – Compare and Contrast
byDATAVERSITY

PDF
Data-Ed Online Webinar: Data Architecture Requirements
byDATAVERSITY

PDF
Data-Ed Slides: Data Modeling Strategies - Getting Your Data Ready for the Ca...
byDATAVERSITY

PDF
Data-Ed: Data Architecture Requirements
byData Blueprint

PDF
Data-Ed Webinar: Data Architecture Requirements
byDATAVERSITY

PDF
Data-Ed Webinar: Data Modeling Fundamentals
byDATAVERSITY

PDF
Information is at the heart of all architecture disciplines & why Conceptual ...
byChristopher Bradley

PDF
Trends in Data Modeling
byDATAVERSITY

PDF
Data-Ed Online: Trends in Data Modeling
byDATAVERSITY

PDF
Data-Ed: Trends in Data Modeling
byData Blueprint

PPTX
DATA ARCHITECTURE AND ALGORITHM PPT.pptx
byylaganjeffrey18

PDF
Data Architecture: OMG It’s Made of People
bymark madsen

PDF
Data Modeling Fundamentals
byDATAVERSITY

PPTX
5.3. Introduction-to-Data-Architecting - Online.pptx
byjitendratomarsocial

DataEd Slides: Data Architecture versus Data Modeling
byDATAVERSITY

DataEd Slides: Data Modeling is Fundamental
byDATAVERSITY

Data Architecture Strategies
byDATAVERSITY

Data-Ed Online: Data Architecture Requirements
byDATAVERSITY

Data-Ed: Data Architecture Requirements
byData Blueprint

Data-Ed Slides: Data Architecture Strategies - Constructing Your Data Garden
byDATAVERSITY

DataEd Slides: Data Architecture vs. Data Modeling – Compare and Contrast
byDATAVERSITY

Data-Ed Online Webinar: Data Architecture Requirements
byDATAVERSITY

Data-Ed Slides: Data Modeling Strategies - Getting Your Data Ready for the Ca...
byDATAVERSITY

Data-Ed: Data Architecture Requirements
byData Blueprint

Data-Ed Webinar: Data Architecture Requirements
byDATAVERSITY

Data-Ed Webinar: Data Modeling Fundamentals
byDATAVERSITY

Information is at the heart of all architecture disciplines & why Conceptual ...
byChristopher Bradley

Trends in Data Modeling
byDATAVERSITY

Data-Ed Online: Trends in Data Modeling
byDATAVERSITY

Data-Ed: Trends in Data Modeling
byData Blueprint

DATA ARCHITECTURE AND ALGORITHM PPT.pptx
byylaganjeffrey18

Data Architecture: OMG It’s Made of People
bymark madsen

Data Modeling Fundamentals
byDATAVERSITY

5.3. Introduction-to-Data-Architecting - Online.pptx
byjitendratomarsocial


More from DATAVERSITY

PDF
Architecture, Products, and Total Cost of Ownership of the Leading Machine Le...
byDATAVERSITY

PDF
Data at the Speed of Business with Data Mastering and Governance
byDATAVERSITY

PDF
Exploring Levels of Data Literacy
byDATAVERSITY

PDF
Building a Data Strategy – Practical Steps for Aligning with Business Goals
byDATAVERSITY

PDF
Make Data Work for You
byDATAVERSITY

PDF
Data Catalogs Are the Answer – What Is the Question?
byDATAVERSITY

PDF
Data Modeling Fundamentals
byDATAVERSITY

PDF
Showing ROI for Your Analytic Project
byDATAVERSITY

PDF
How a Semantic Layer Makes Data Mesh Work at Scale
byDATAVERSITY

PDF
Is Enterprise Data Literacy Possible?
byDATAVERSITY

PDF
The Data Trifecta – Privacy, Security & Governance Race from Reactivity to Re...
byDATAVERSITY

PDF
Emerging Trends in Data Architecture – What’s the Next Big Thing?
byDATAVERSITY

PDF
Data Governance Trends - A Look Backwards and Forwards
byDATAVERSITY

PDF
Data Governance Trends and Best Practices To Implement Today
byDATAVERSITY

PDF
2023 Trends in Enterprise Analytics
byDATAVERSITY

PDF
Data Strategy Best Practices
byDATAVERSITY

PDF
Who Should Own Data Governance – IT or Business?
byDATAVERSITY

PDF
Data Management Best Practices
byDATAVERSITY

PDF
MLOps – Applying DevOps to Competitive Advantage
byDATAVERSITY

PDF
Keeping the Pulse of Your Data – Why You Need Data Observability to Improve D...
byDATAVERSITY

Architecture, Products, and Total Cost of Ownership of the Leading Machine Le...
byDATAVERSITY

Data at the Speed of Business with Data Mastering and Governance
byDATAVERSITY

Exploring Levels of Data Literacy
byDATAVERSITY

Building a Data Strategy – Practical Steps for Aligning with Business Goals
byDATAVERSITY

Make Data Work for You
byDATAVERSITY

Data Catalogs Are the Answer – What Is the Question?
byDATAVERSITY

Data Modeling Fundamentals
byDATAVERSITY

Showing ROI for Your Analytic Project
byDATAVERSITY

How a Semantic Layer Makes Data Mesh Work at Scale
byDATAVERSITY

Is Enterprise Data Literacy Possible?
byDATAVERSITY

The Data Trifecta – Privacy, Security & Governance Race from Reactivity to Re...
byDATAVERSITY

Emerging Trends in Data Architecture – What’s the Next Big Thing?
byDATAVERSITY

Data Governance Trends - A Look Backwards and Forwards
byDATAVERSITY

Data Governance Trends and Best Practices To Implement Today
byDATAVERSITY

2023 Trends in Enterprise Analytics
byDATAVERSITY

Data Strategy Best Practices
byDATAVERSITY

Who Should Own Data Governance – IT or Business?
byDATAVERSITY

Data Management Best Practices
byDATAVERSITY

MLOps – Applying DevOps to Competitive Advantage
byDATAVERSITY

Keeping the Pulse of Your Data – Why You Need Data Observability to Improve D...
byDATAVERSITY


Recently uploaded

DOCX
CBLM SETUP COMPUTER NETWORK (2).docxMKKKKKKKKKKKKKKKKKKKKK
byCathyrineLazona

PDF
Khan Traders Fish Meal – MSDS Material Safety Data Sheet
byKhan Traders Karachi

PPTX
Query Parsing: The SEO Gatekeeper That Decides Rankings
bySemantic SEO BD

PPTX
Basic-Strategies-for-Developing-Literacy_021301.pptx
byMarkAnthonyMLotivio

PDF
Analysis of Union Budget 2026-27: Major Announcements and their Impact
byDeeshiPavecha

PPTX
ppt for thesis for machine learning lung cancer.pptx
byinam97

PDF
Data Science vs Machine Learning vs AI | Industry Skills Explained
bymuhsinam9074

PDF
제 23회 보아즈(BOAZ) 빅데이터 컨퍼런스 - [MBOAX] : ABSA를 활용한 소비자 반응 분석 기반 운영 효율화 대시보드 설계
byBOAZ Bigdata

PDF
LECTURE - Overcoming the AI Failure Rate - AIG, DQM.pdf
bySami Laine

PPTX
250106204341-c238c4fadonebeforelastyear.pptx
byAbduRouf3

PPTX
GENPHYSICS-2.pptx this about general physics. Grade 11 lesson
byGwynMorata

PDF
SF User Group - Account-Contact Relationship Feb 2026
byLukas Lunow

PPTX
Social Media Audit of Starbucks Coffee Company.pptx
bydiviap21

PDF
Machine_Psychology_2050_Strategic_Scenarios.pdf
byKambs Consulting

PPTX
AUTHENTIC-ASSESSMENT.pptx report Class
byMarkAnthonyMLotivio

PPTX
structured training deck for beginners Power BI Training
bysomashekharkedar

PDF
T1 DPB20042 Management Information System.pdf
by68gr55d8f9

PDF
"Essential Excel Tips for Beginners & Professionals – 50+ Techniques to Maste...
byCA Suvidha Chaplot

PDF
Understanding Data Analytics: Concepts, Types, and Use Cases
byThe IoT Academy

PPTX
Internship ppt about multiple disease prediction
byGOUTHAMTr2

CBLM SETUP COMPUTER NETWORK (2).docxMKKKKKKKKKKKKKKKKKKKKK
byCathyrineLazona

Khan Traders Fish Meal – MSDS Material Safety Data Sheet
byKhan Traders Karachi

Query Parsing: The SEO Gatekeeper That Decides Rankings
bySemantic SEO BD

Basic-Strategies-for-Developing-Literacy_021301.pptx
byMarkAnthonyMLotivio

Analysis of Union Budget 2026-27: Major Announcements and their Impact
byDeeshiPavecha

ppt for thesis for machine learning lung cancer.pptx
byinam97

Data Science vs Machine Learning vs AI | Industry Skills Explained
bymuhsinam9074

제 23회 보아즈(BOAZ) 빅데이터 컨퍼런스 - [MBOAX] : ABSA를 활용한 소비자 반응 분석 기반 운영 효율화 대시보드 설계
byBOAZ Bigdata

LECTURE - Overcoming the AI Failure Rate - AIG, DQM.pdf
bySami Laine

250106204341-c238c4fadonebeforelastyear.pptx
byAbduRouf3

GENPHYSICS-2.pptx this about general physics. Grade 11 lesson
byGwynMorata

SF User Group - Account-Contact Relationship Feb 2026
byLukas Lunow

Social Media Audit of Starbucks Coffee Company.pptx
bydiviap21

Machine_Psychology_2050_Strategic_Scenarios.pdf
byKambs Consulting

AUTHENTIC-ASSESSMENT.pptx report Class
byMarkAnthonyMLotivio

structured training deck for beginners Power BI Training
bysomashekharkedar

T1 DPB20042 Management Information System.pdf
by68gr55d8f9

"Essential Excel Tips for Beginners & Professionals – 50+ Techniques to Maste...
byCA Suvidha Chaplot

Understanding Data Analytics: Concepts, Types, and Use Cases
byThe IoT Academy

Internship ppt about multiple disease prediction
byGOUTHAMTr2


Data Architecture vs Data Modeling

  • 1.
    Peter Aiken, Ph.D. Data Architecture
 Versus
 Data
 Modeling Copyright 2018 by Data Blueprint Slide # !5 Data mapping from two perspectives • DAMA International President 2009-2013 / 2018 • DAMA International Achievement Award 2001
 (with Dr. E. F. "Ted" Codd • DAMA International Community Award 2005 Peter Aiken, Ph.D. !6Copyright 2018 by Data Blueprint Slide # • I've been doing this a long time • My work is recognized as useful • Associate Professor of IS (vcu.edu) • Founder, Data Blueprint (datablueprint.com) • DAMA International (dama.org) • 10 books and dozens of articles • Experienced w/ 500+ data management practices worldwide • Multi-year immersions – US DoD (DISA/Army/Marines/DLA) – Nokia – Deutsche Bank – Wells Fargo – Walmart – … PETER AIKEN WITH JUANITA BILLINGS FOREWORD BY JOHN BOTTEGA MONETIZING DATA MANAGEMENT Unlocking the Value in Your Organization’s Most Important Asset.
  • 2.
    4 Minute ArchitectureLesson from Steve Jobs, Introducing iCloud !7Copyright 2018 by Data Blueprint Slide # Typically Managed Architectures • Business Architecture – Goals, strategies, roles, organizational structure, location(s) • Process Architecture – Arrangement of inputs -> transformations = value -> outputs – Typical elements: Functions, activities, workflow, events, cycles, products, procedures • Systems Architecture – Applications, software components, interfaces, projects • Security Architecture – Arrangement of security controls relation to IT Architecture • Technical Architecture/Tarchitecture – Relation of software capabilities/technology stack – Structure of the technology infrastructure of an enterprise, solution or system – Typical elements: Networks, hardware, software platforms, standards/protocols • Data/Information Architecture – Arrangement of data assets supporting organizational strategy – Typical elements: specifications expressed as entities, relationships, attributes, definitions, values, vocabularies !8Copyright 2018 by Data Blueprint Slide #
  • 3.
    Architecture is about... • Things – (components) • The functions of the things – (individually) • How the things interact – (as a system, – towards a goal) !9Copyright 2018 by Data Blueprint Slide # • Business • Process • Systems • Security • Technical • Data/Information !10Copyright 2018 by Data Blueprint Slide # Data Architecture Versus Data Modeling !X • Data Maps->Models – Why do we need them? – How are they be used? – Challenges (social, political, economic) • Architecture/Engineering – Two sides of the same coin – Must operate on standard, shared data of known quality • View from the Top – Means: Forward engineering – Goal: Composition/Building • View from the Bottom – Means: Reverse engineering – Goal: Understanding • Working Together – Functions required for effective data management – Need for simplicity • Take Aways/Q&A



  • 4.
    Data Data Data Information Fact Meaning Request Business GlossaryComponents [Built on definitions from Dan Appleton 1983] Intelligence Strategic Use 1. Each FACT combines with one or more MEANINGS. 2. Each specific FACT and MEANING combination is referred to as a DATUM. 3. An INFORMATION is one or more DATA that are returned in response to a specific REQUEST 4. INFORMATION REUSE is enabled when one FACT is combined with more than one MEANING. 5. INTELLIGENCE is INFORMATION associated with its STRATEGIC USES. 6. DATA/INFORMATION must formally arranged into an ARCHITECTURE. Wisdom & knowledge are
 often used synonymously Data Data Data Data !11Copyright 2018 by Data Blueprint Slide # Data ... • As a subject is – Complex and detailed – Taught inconsistently, and – Poorly understood • Maps are necessary but
 insufficient prerequisites to data architectures – Fully leveraging data assets • Maps are incomplete without purpose statements – More powerful than definitions – Remedy • Add purpose statements • Validate resulting model • Maps are required to share information about data • Data architectures are comprised of data models – Data modeling is an engineering activity required to product data maps that are necessary but insufficient prerequisites to leveraging data assets !12Copyright 2018 by Data Blueprint Slide #
  • 5.
    How are componentsexpressed as architectures? • Details are organized into
 larger components • Larger components are organized into models • Models are organized into architectures (comprised of architectural components) !13Copyright 2018 by Data Blueprint Slide # A B C D A B C D A D C B Intricate Dependencies Purposefulness How are data structures expressed as architectures? • Attributes are organized into entities/objects – Attributes are characteristics of "things" – Entitles/objects are "things" whose
 information is managed in support of strategy – Examples • Entities/objects are organized into models – Combinations of attributes and entities are
 structured to represent information requirements – Poorly structured data, constrains organizational
 information delivery capabilities – Examples • Models are organized into architectures – When building new systems, architectures are used to plan development – More often, data managers do not know what existing architectures are and - therefore - cannot make use of them in support of strategy implementation – Why no examples? !14Copyright 2018 by Data Blueprint Slide #
  • 6.
    Data structures organizedinto an Architecture • How do data structures support strategy? • Consider the opposite question? – Were your systems explicitly designed to be
 integrated or otherwise work together? – If not then what is the likelihood that they will
 work well together? – In all likelihood your organization is spending
 between 20-40% of its IT budget compensating
 for poor data structure integration – They cannot be helpful as long as their
 structure is unknown • Two answers/two separate strategies – Achieving efficiency and
 effectiveness goals – Providing organizational dexterity
 for rapid implementation !15Copyright 2018 by Data Blueprint Slide # Data architectures are comprised of data models !16Copyright 2018 by Data Blueprint Slide #
  • 7.
    Data Architectures DetermineInteroperability • Required in order to enable
 self-correction/generation capabilities • Permits governance of data as an asset • Prerequisite to meaningful data exchanges • Lowers the costs of organization-wide and extra- organizational data sharing • Permits managed evolution - rapidly responding to changing needs, new partners, time criticality's • Required for full implementation of role-based security • Decreases the cost of maintaining various data inventories !17Copyright 2018 by Data Blueprint Slide # Data Architectures: – Capture the business meaning of the data required to run the organization – Living document – constantly evolving to meet upcoming and discovered business requirements – A potential entry point for architecture engagements – Validated data architectural components can be used to populate a business glossary – Major collection of metadata Levels of Abstraction, Completeness and Utility • Models more downward facing - detail • Architecture is higher level of abstraction - integration • In the past architecture attempted to gain complete (perfect) understanding – Not timely – Not feasible • Focus instead on
 architectural components – Governed by a framework – More immediate utility • http://www.architecturalcomponentsinc.com !18Copyright 2018 by Data Blueprint Slide #
  • 8.
    Data model focusis typically domain specific !19Copyright 2018 by Data Blueprint Slide # Program A Program C Program B Focus of a software engineering effort Underutilized data modeling effort Database Architecture Focus Can Vary !20Copyright 2018 by Data Blueprint Slide # Application
 domain 1 Program A Program C Program B Focus of a software engineering effort Underutilized data modeling effort Better utilized data modeling effort ERPs and COTS are marketed as being similarly integrated! Program F Program E Program G Program H Program I Application domain 2 Application domain 3 Program D
  • 9.
    Application
 domain 1 ProgramA Program C Program B DataData DataData Data Data Data Program F Program E Program D Program G Program H Program I Application domain 2Application domain 3 Data Data Data Data Architecture Focus has Greater Potential Value • Broader focus than either software architecture or database architecture • Analysis scope is on the system wide use of data • Problems caused by data exchange or interface problems • Architectural goals more strategic than operational !21Copyright 2018 by Data Blueprint Slide # !22Copyright 2018 by Data Blueprint Slide #
  • 10.
    What do weteach knowledge workers about data? !23Copyright 2018 by Data Blueprint Slide # What percentage of the deal with it daily? !24Copyright 2018 by Data Blueprint Slide # Political
  • 11.
    What do weteach IT professionals about data? !25Copyright 2018 by Data Blueprint Slide # • 1 course – How to build a new database • What impressions do IT professionals get from this education? – Data is a technical skill that is needed when developing new databases The DAMA Guide to the Data Management
 Body of
 Knowledge !26Copyright 2018 by Data Blueprint Slide # Data
 Management
 Practices fromTheDAMAGuidetotheDataManagementBodyofKnowledge©2009byDAMAInternational • Good enough
 to criticize – All models
 are wrong – Some models
 are useful • Missing two
 important concepts – Optionality – Dependency
  • 12.
    !27Copyright 2018 byData Blueprint Slide # If the only tool you know is a hammer you tend to see every problem as a nail (slightly reworded from Abraham Maslow) Bad Data Decisions Spiral !28Copyright 2018 by Data Blueprint Slide # Bad data decisions Technical deci- sion makers are not data knowledgable Business decision makers are not data knowledgable Poor organizational outcomes Poor treatment of organizational data assets Poor
 quality
 data
  • 13.
    Tacoma Narrows Bridge/Gallopin'Gertie • Slender, elegant and graceful • World's 3rd longest suspension span • Opened on July 1st, collapsed in a windstorm on November 7, 1940 • "The most dramatic failure in
 bridge engineering history" • Changed forever how engineers
 design suspension bridges leading
 to safer spans today. !29Copyright 2018 by Data Blueprint Slide # !30Copyright 2018 by Data Blueprint Slide # Similarly data failures cost organizations minimally 20-40% of their IT budget
  • 14.
    What is adata structure? • "An organization of information, usually in memory, for better algorithm efficiency, such as queue, stack, linked list, heap, dictionary, and tree, or conceptual unity, such as the name and address of a person. It may include redundant information, such as length of the list or number of nodes in a subtree." • Some data structure characteristics – Grammar for data objects • Grammar is the principles
 or rules of an art, science,
 or technique "a grammar
 of the theater" – Constraints for data
 objects – Sequential order – Uniqueness – Order • Hierarchical, relational,
 network, other – Balance – Optimality !31Copyright 2018 by Data Blueprint Slide # http://www.nist.gov/dads/HTML/datastructur.html Data is a hidden IT Expense • Organizations spend between 20 - 40% of their IT budget evolving their data - including: – Data migration • Changing the location from one place to another – Data conversion • Changing data into another form, state, or product – Data improving • Inspecting and manipulating, or re-keying data to prepare it for subsequent use – Source: John Zachman !32Copyright 2018 by Data Blueprint Slide # PETER AIKEN WITH JUANITA BILLINGS FOREWORD BY JOHN BOTTEGA MONETIZING DATA MANAGEMENT Unlocking the Value in Your Organization’s Most Important Asset.
  • 15.
    Doing a poorjob with data • Takes longer • Costs more • Delivers less • Presents greater risk (with thanks to Tom DeMarco) !33Copyright 2018 by Data Blueprint Slide # !34Copyright 2018 by Data Blueprint Slide # Data Architecture Versus Data Modeling !X • Data Maps->Models – Why do we need them? – How are they be used? – Challenges (social, political, economic) • Architecture/Engineering – Two sides of the same coin – Must operate on standard, shared data of known quality • View from the Top – Means: Forward engineering – Goal: Composition/Building • View from the Bottom – Means: Reverse engineering – Goal: Understanding • Working Together – Functions required for effective data management – Need for simplicity • Take Aways/Q&A



  • 16.
    Architectures: here, whetheryou like it or not 35Copyright 2018 by Data Blueprint Slide # deviantart.com • All organizations have architectures – Some are better understood and documented (and therefore more useful to the organization) than others Engineering Architecture !36Copyright 2018 by Data Blueprint Slide # Engineering/Architecting
 Relationship • Architecting is used to create and build systems too complex to be treated by engineering analysis alone – Require technical details as the exception • Engineers develop the technical designs for implementation – Engineering/Crafts-persons deliver work product components supervised by: • Manufacturer • Building Contractor
  • 17.
    You cannot architectafter implementation! !37Copyright 2018 by Data Blueprint Slide # USS Midway & Pancakes What is this? • It is tall • It has a clutch • It was built in 1942 • It is still in regular use! !38Copyright 2018 by Data Blueprint Slide #
  • 18.
    !39Copyright 2018 byData Blueprint Slide # Definition of Bed Q: What is the proper relationship for these entities? !40Copyright 2018 by Data Blueprint Slide # ROOMBED
  • 19.
    Bed Room Data Maps- Entity Level !41Copyright 2018 by Data Blueprint Slide # Bed Room BEDS are related to ROOMS More precision:
 many BEDS are related to many ROOMS Bed Room Better information:
 many BEDS may be contained in each ROOM and each room may contain many beds What if beds can be moved? Possible Entity Relationships !42Copyright 2018 by Data Blueprint Slide # Eventually One or Many (optional) Eventually One (optional) Exactly One (mandatory) Zero, or Many (optional) One or Many (mandatory)
  • 20.
    Families of ModelingNotation Variants !43Copyright 2018 by Data Blueprint Slide # Eventually One, More Eventually One Exactly One Zero, or More One or More Information Engineering Pick one! What is a Relationship? • Natural associations between two or more entities !44Copyright 2018 by Data Blueprint Slide #
  • 21.
    You cannot architectafter implementation! !37Copyright 2018 by Data Blueprint Slide # USS Midway & Pancakes What is this? • It is tall • It has a clutch • It was built in 1942 • It is still in regular use! !38Copyright 2018 by Data Blueprint Slide #
  • 22.
    Standard definition reportingdoes not provide conceptual context !47Copyright 2018 by Data Blueprint Slide # BED Something you sleep in Purpose statement incorporates motivations Entity: BED Data Asset Type: Principal Data Entity Purpose: This is a substructure within the Room
 substructure of the Facility Location. It contains
 information about beds within rooms. Source: Maintenance Manual for File and Table
 Data (Software Version 3.0, Release 3.1) Attributes: Bed.Description
 Bed.Status
 Bed.Sex.To.Be.Assigned
 Bed.Reserve.Reason Associations: >0-+ Room Status: Validated !48Copyright 2018 by Data Blueprint Slide # Draft A purpose statement describing – Why the organization is maintaining information about this business concept; – Sources of information about it; – A partial list of the attributes or characteristics of the entity; and – Associations with other data items(read as "One room contains zero or many beds.")
  • 23.
    ANSI-SPARC 3-Layer Schema 1.Conceptual - Allows independent customized user views: – Each should be able to access the same data, but have a different customized view of the data. 2. Logical - This hides the physical storage details from users: – Users should not have to deal with physical database storage details. They should be allowed to work with the data itself, without concern for how it is physically stored. 3. Physical - The database administrator should be able to change the database storage structures without affecting the users’ views: – Changes to the structure of an organization's data will be required. The internal structure of the database should be unaffected by changes to the physical aspects of the storage. !49Copyright 2018 by Data Blueprint Slide # For example, a changeover to a new DBMS technology. The database administrator should be able to change the conceptual or global structure of the database without affecting the users. !50Copyright 2018 by Data Blueprint Slide # Data Architecture Versus Data Modeling !X • Data Maps->Models – Why do we need them? – How are they be used? – Challenges (social, political, economic) • Architecture/Engineering – Two sides of the same coin – Must operate on standard, shared data of known quality • View from the Top – Means: Forward engineering – Goal: Composition/Building • View from the Bottom – Means: Reverse engineering – Goal: Understanding • Working Together – Functions required for effective data management – Need for simplicity • Take Aways/Q&A



  • 24.
    As Is Requirements
 AssetsWHAT? As Is Design Assets
 HOW? As Is Implementation
 Assets AS BUILT Forward Engineering !51Copyright 2018 by Data Blueprint Slide # New Building new stuff - in this case, new databases !52Copyright 2018 by Data Blueprint Slide # Data Architecture Versus Data Modeling !X • Data Maps->Models – Why do we need them? – How are they be used? – Challenges (social, political, economic) • Architecture/Engineering – Two sides of the same coin – Must operate on standard, shared data of known quality • View from the Top – Means: Forward engineering – Goal: Composition/Building • View from the Bottom – Means: Reverse engineering – Goal: Understanding • Working Together – Functions required for effective data management – Need for simplicity • Take Aways/Q&A



  • 25.
    As Is Requirements
 AssetsWHAT? As Is Design Assets
 HOW? As Is Implementation
 Assets AS BUILT Existing Reverse Engineering !53Copyright 2018 by Data Blueprint Slide # A structured technique aimed at recovering rigorous knowledge of the existing system to leverage enhancement efforts [Chikofsky & Cross 1990] !54Copyright 2018 by Data Blueprint Slide # Data Architecture Versus Data Modeling !X • Data Maps->Models – Why do we need them? – How are they be used? – Challenges (social, political, economic) • Architecture/Engineering – Two sides of the same coin – Must operate on standard, shared data of known quality • View from the Top – Means: Forward engineering – Goal: Composition/Building • View from the Bottom – Means: Reverse engineering – Goal: Understanding • Working Together – Functions required for effective data management – Need for simplicity • Take Aways/Q&A



  • 26.
    As Is Requirements
 AssetsWHAT? As Is Design Assets
 HOW? As Is Implementation
 Assets AS BUILT ExistingNew Reengineering Reverse Engineering Forward engineering Reimplement To Be
 Implementation
 Assets To Be
 Design
 Assets To Be Requirements Assets !55Copyright 2018 by Data Blueprint Slide # • First, reverse engineering the existing system to understand its strengths/weaknesses • Next, use this information to inform the design of the new system Data Modeling Process 1. Identify entities 2. Identify key for each entity 3. Draw rough draft of entity relationship data model 4. Identify data attributes 5. Map data attributes to entities !56Copyright 2018 by Data Blueprint Slide #
  • 27.
    Models Evolution isgood, at first ... 1. Identify entities 2. Identify key for each entity 3. Draw rough draft of entity relationship data model 4. Identify data attributes 5. Map data attributes to entities !57Copyright 2018 by Data Blueprint Slide # Preliminary activities Modeling cycles Wrapup activities Evidence collection & analysis Project coordination requirements Target system analysis Modeling cycle focus Activity Refinement Collection Analysis Validation Declining coordination requirements Increasing amounts of targetsystem analysis Preliminary activities Modeling cycles Wrapup activities Evidence collection & analysis Project coordination requirements Target system analysis Modeling cycle focus Activity Refinement Collection Analysis Validation Declining coordination requirements Increasing amounts of targetsystem analysis Preliminary activities Modeling cycles Wrapup activities Evidence collection & analysis Project coordination requirements Target system analysis Modeling cycle focus Activity Refinement Collection Analysis Validation Declining coordination requirements Increasing amounts of targetsystem analysis Preliminary activities Modeling cycles Wrapup activities Evidence collection & analysis Project coordination requirements Target system analysis Modeling cycle focus Activity Refinement Collection Analysis Validation Declining coordination requirements Increasing amounts of targetsystem analysis Relative use of time allocated to tasks during Modeling Preliminary activities Modeling cycles Wrapup activities Evidence collection & analysis Project coordination requirements Target system analysis Modeling cycle focus Activity Refinement Collection Analysis Validation Declining coordination requirements Increasing amounts of targetsystem analysis !58Copyright 2018 by Data Blueprint Slide #
