This presentation looks at the evolution of NOSQL databases and it's broad applications to data analytics. As part of the exercise the presentation contrasts the salient differences between traditional RDBMS and NOSQL, in the backdrop of differentiating functional and nonfunctional use cases that span different verticals.

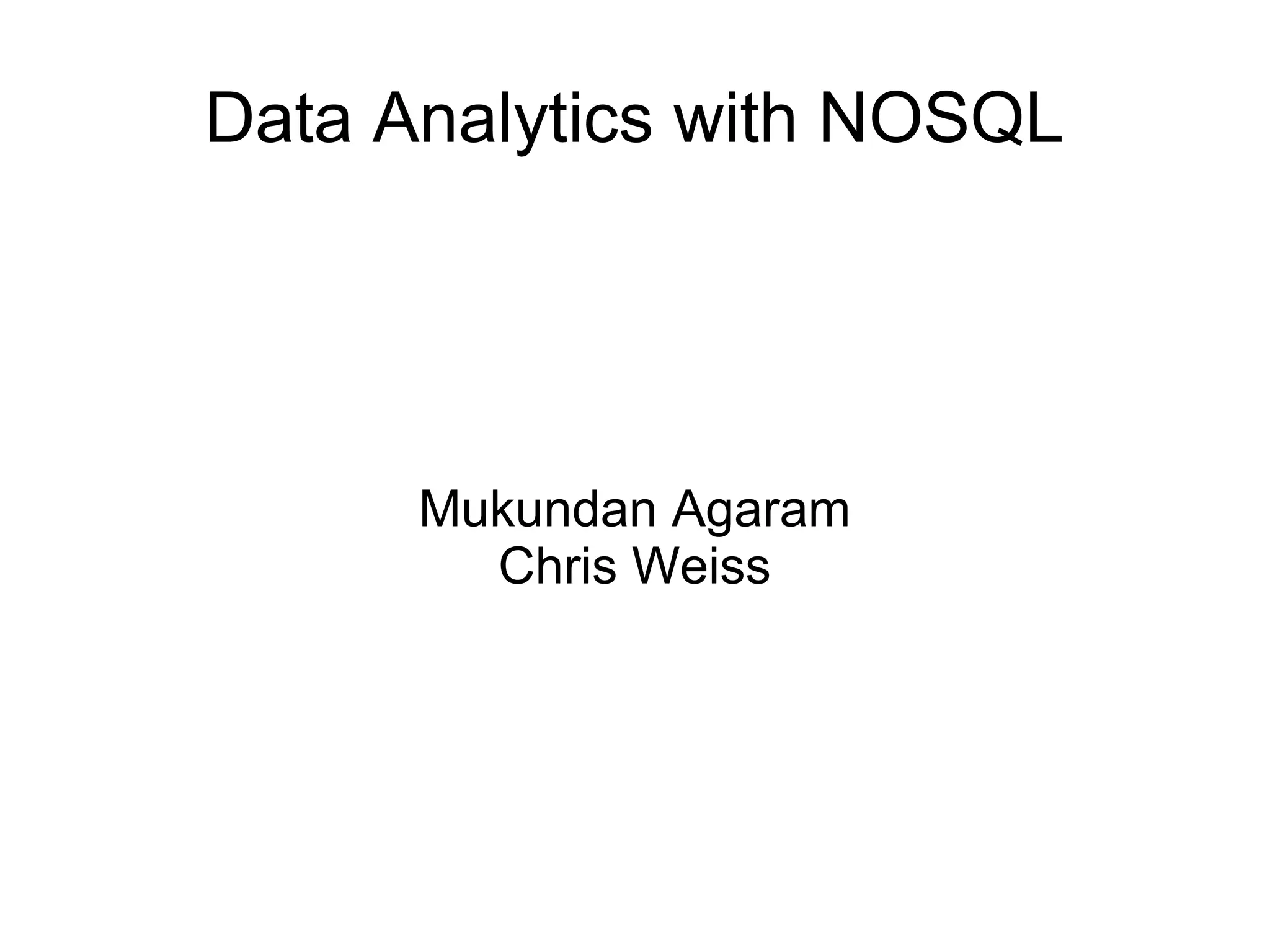

1. Data Analytics with NOSQL
Mukundan Agaram
Chris Weiss

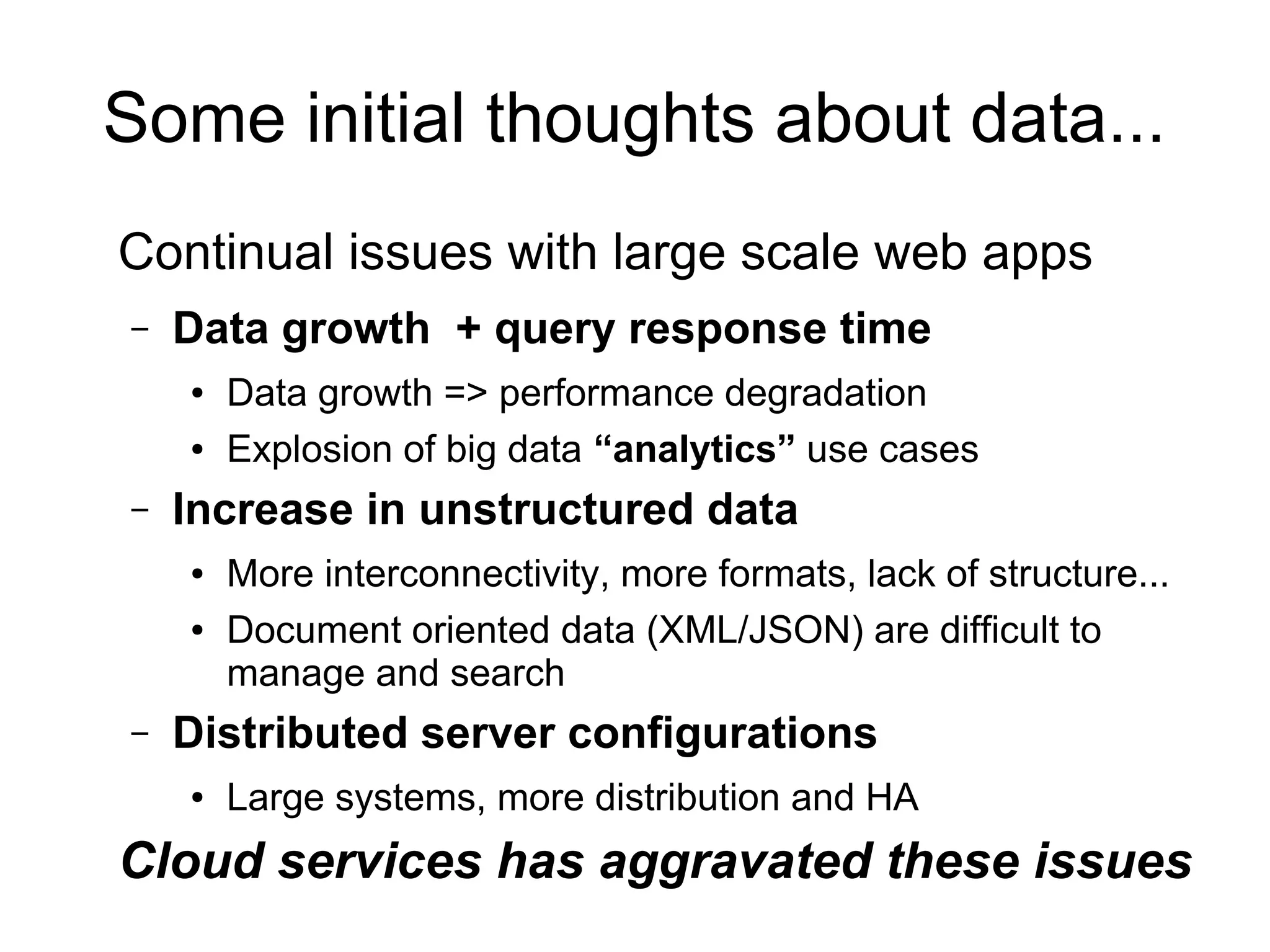

2. Some initial thoughts about data...
Continual issues with large scale web apps
– Data growth + query response time
● Data growth => performance degradation
● Explosion of big data “analytics” use cases
– Increase in unstructured data
● More interconnectivity, more formats, lack of structure...
● Document oriented data (XML/JSON) are difficult to
manage and search
– Distributed server configurations
● Large systems, more distribution and HA
Cloud services has aggravated these issues

3. Agenda for the night
● What is NOSQL?
● Varieties of NOSQL
● Key Industry Use Cases
● Applications for Data Analytics
● Landscape
● Demos/Walkthroughs
● Closing Discussions

4. What is NOSQL?
● “...mechanism for storage and retrieval of data
that is modeled in means other than tabular
relations used in relational databases.”
Wikipedia
● Non SQL or Non-relational
● Not Only SQL
● Technically since late 1960...
– E.g. IDMS, IMS, MUMPS, Cache, BerkeleyDB

5. What is NOSQL?
● Drivers for modern day NOSQL
– Web 2.0
– Big Data
– Facebook, Google, Amazon, Expedia etc.
– Horizontal scaling to clusters of computers
● Achilles heel for RDBMS
– Cost
– Provide
● HA
● Partition Tolerance (a.k.a sharding)
● Speed

6. NOSQL - Drawbacks and Barriers
● Compromise on consistency (CAP Theorem)
● Custom query languages vs. SQL
● Lack of standardized interfaces
● Existing investments in RDBMS
● Most lack true ACID transactions.
– Use an “eventually” consistent model
– Data is replicated with a conflict resolution algorithm
– Methods for conflict resolution and distribution vary
significantly

7. CAP Theorem
● a.k.a Brewer's theorem
● Impossible for a distributed computer system to
simultaneously provide
– Consistency
● all nodes see same data at same time
– Availability
● Every request receives a response
– Partition Tolerance
● Fault tolerance to partitioning because of network failures

8. CAP alignment for NOSQL
Source: http://blog.nahurst.com/visual-guide-to-nosql-systems

9. NOSQL direction
The landscape is morphing...
● Current NOSQL industry focus
– Address large distributed systems reactionary to the
CAP theorem
● The newer breed of NOSQL address important
aspects such as ACID
● There is a new buzz word …
– NewSQL

10. Database Evolution

11. NOSQL Model Classification
Key Value Stores &
Caches
Data is represented as a collection of (K,V) pairs. In-memory,
persistent or eventually persistent.
Document Databases Data is stored in JSON document structures.
RDF, OWL & Triple Stores Meaningful way to connect information. Can inference over
triples (S,P,O). Can be represented graphically. SPARQL
Wide Column Databases Extensible record set. Stores data tables as sections of
columns. Great for EDW.
Graph Databases Stores data as a graph G(V,E). Great for correlation analysis,
recommendation engines and fraud detection.
Multi-model Databases Combination of one or more varieties of the above.

12. NOSQL Models
● Key-Value
– Cache (EHCache, BigMemory, Coherence, Memcached)
– Store (Redis, Riak, AeroSpike, Oracle NoSQL)
● Document (MongoDB, CouchDB, AmazonDynamoDB)
● Wide Column (Cassandra, HBase, Vertica)
● Graph (Neo4j, Titan, Giraph)
● Multi-model (OrientDB, ArangoDB, Sqrrl)

13. Source: www.db-engines.com

14. Consider NOSQL for...
● Enabling “big data” and “web” scale
– Massive distribution through horizontal scaling
● Performant queries (alternatives to RDBMS)
– Denormalization and large horizontal scalability
● Massive write volumes (Facebook, Twitter)
● Fast and dynamic access to key data
● Flexible schemas and data types
● Data/Schema Migration
● Developer centric environments

15. Consider NOSQL for...
● Diverse data organization options
– Hierarchical correlation
– Graph correlation
– Semantic relationships
– Set based analytics
● Caching in end usage format
● Data Archival
● Big Data Analytics
– Cumulative metrics and insights
– Correlation

16. Where RDBMS/SQL is better..
● OLTP
● Data Integrity
● SQL centricity
● Complex relationships
– Exception of graph NOSQL
● Maturity, stability and standardization

17. Use Cases
● Log management (unstructured data)
● Data synchronization (online vs. offline sources)
– Shopping cart, Field sales/services, PoS, Gaming,
Transportation/telemetry
● User profile management
● Customer 360 degree view
● Fraud detection
● Medical/Healthcare diagnosis
● Data Archival
● Recommendation Engines

18. Applications for Data Analytics
● Complements (part of) Hadoop and Big Data
● Acts as the persistence infrastructure for larger
machine learning use cases
– Predictive Analytics
– Fraud/Anomaly/Outlier Detection
– Recommendation engines
● Provides a back drop for interesting data
visualization initiatives
– Integrate with visualization packages such as
Tableau

19. Interesting links
● Redis in Practice: Who's online?
www.lukemelia.com/blog/archives/2010/01/17/redis-in-practice-whos-online/
● Inventory list of NOSQL systems
www.nosql-database.org
● Database Engine ranking and analytics
www.db-engines.com
● Visual guide to NOSQL systems
www.blog.nahurst.com/visual-guide-to-nosql-systems

20. Case Studies / Demos
● Retail fraud detection
– Neo4j
– Contrasting with OrientDB
– Tinkerpop/Gremlin/Blue Print
● 360 degree single view of voter information
– MongoDB
● Schema on read
– Hadoop

23. Gremlin Blueprints Architecture
Neo4j OrientDB TitanGraph ArangoDB

24. Qualified Voter – Use Case
● Tracks registration information for all voters in
Michigan
● Uses a tabular geography model
● Highly normalized schema
– Data partitioned into subsets
● Enable local application instances and row level security
● Expensive queries when doing reporting
● Expensive queries for performing “single view”
of voter
● Several tables with tens of millions of records

25. Voter Schema

26. Find the first 100 voters in Ingham county with
status and school district
SELECT V.VOTER_IDENTIFICATION_NUMBER,V.FIRST_NAME, V.LAST_NAME, G.CODE AS GENDER,
IDS.NAME AS ID_STATUS, UST.NAME AS UOCAVA_STATUS,
VA.ADDRESS_LINE_ONE, VA.CITY, VA.ZIP_CODE,
DIS.NAME AS SCHOOL_DISTRICT
FROM VOTER V, VOTER_ADDRESS VA, GENDER G,
IDENTIFICATION_STATUS IDS, UOCAVA_STATUS UST, VOTER_STATUS_TYPE VST,
STREET_RANGE SI, DISTINCT_POLITICAL_AREA DPA, DISTINCT_POLITICAL_AREA_DIS DPAD,
DISTRICT DIS, DISTRICT_TYPE DT, COUNTY CO
WHERE V.ID = VA.VOTER_ID AND V.GENDER_ID = G.ID AND V.IDENTIFICATION_STATUS_ID = IDS.ID
AND V.UOCAVA_STATUS_ID = UST.ID AND V.VOTER_STATUS_TYPE_ID = VST.ID AND VST.NAME = 'Active'
AND VA.STREET_RANGE_ID = SI.ID AND SI.DISTINCT_POLITICAL_AREA_ID = DPA.ID
AND VA.IS_ACTIVE = 'Y'
AND DPA.COUNTY_ID = CO.ID AND CO.NAME = 'Ingham'
AND DPA.ID = DPAD.DISTINCT_POLITICAL_AREA_ID AND DPAD.DISTRICT_ID = DIS.ID
AND DIS.DISTRICT_TYPE_ID = DT.ID AND DT.NAME = 'School'
AND ROWNUM <= 100;

29. Expensive in terms of IO
● Multiple objects read
● Two stage IO:
● Read index
● Read entire table row
● Selected and WHERE clause columns
assembled and then filtered
● Resources for larger volume query would be
high – memory, CPU, fast disk

30. Parting conclusions
● NOSQL is a mixed bag of fruit
● This space is growing
● There are hundreds of products
● Best value is realized from identifying the
correct use case
– Functional requirements
– Non-functional requirements

31. Finally you can use NOSQL for...

32. Thank You!!
Questions?
