This document summarizes the results of a study comparing conventional injection molding technology to Roctool technology using a spiral mold. Testing showed that with Roctool technology at a mold temperature of 200C, flow length was significantly improved compared to conventional technology at 90C, and the mold thickness could be reduced from 1.5mm to 1mm. Pressure drop between sensors was also reduced by up to 67% with Roctool technology. In conclusion, a mold temperature of 200C is recommended for this material to achieve the longest flow and greatest reduction in pressure drop compared to conventional technology.

1. FULL HD PLASTIC ™ REPORT

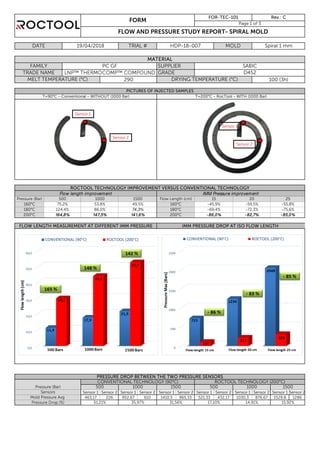

2. Sensor 1 Sensor 2 Sensor 1 Sensor 2 Sensor 1 Sensor 2 Sensor 1 Sensor 2 Sensor 1 Sensor 2 Sensor 1 Sensor 2
463,17 226 952,67 610 1410,5 965,33 521,33 432,17 1030,3 876,67 1529,8 1286
Sensors
Mold Pressure Avg
Pressure Drop (%)
PRESSURE DROP BETWEEN THE TWO PRESSURE SENSORS
CONVENTIONAL TECHNOLOGY (90°C) ROCTOOL TECHNOLOGY (200°C)
Pressure (Bar) 500 1000 1500 500 1000 1500
-75,6%
- 85,0%
FLOW LENGTH MEASUREMENT AT DIFFERENT IMM PRESSURE IMM PRESSURE DROP AT ISO FLOW LENGTH
SABIC
49,5% 160°C
500 1000 1500 Flow Length (cm) 15 20
Flow length improvement IMM Pressure improvement
T=90°C - Conventional - WITHOUT (1000 Bar)
PC GF
MELT TEMPERATURE (°C) DRYING TEMPERATURE (°C)290
Pressure (Bar)
200°C 164,8% 147,5% 141,6% 200°C - 86,0% - 82,7%
T=200°C - RocTool - WITH (1000 Bar)
180°C
160°C 75,2% 53,8% -45,9% -59,5% -55,8%
124,4% 86,0% 74,3% 180°C -69,4% -72,3%
25
FORM
FOR-TEC-101 Rev.: C
Page 1 of 3
FLOW AND PRESSURE STUDY REPORT- SPIRAL MOLD
ROCTOOL TECHNOLOGY IMPROVEMENT VERSUS CONVENTIONAL TECHNOLOGY
TRADE NAME GRADE D452
PICTURES OF INJECTED SAMPLES
TRIAL # HDP-18-007 MOLD Spiral 1 mm
MATERIAL
FAMILY
100 (3h)
19/04/2018DATE
SUPPLIER
51,21% 35,97% 31,56% 17,10% 14,91% 15,92%
Sensor 1
Sensor 2
Sensor 1
Sensor 2

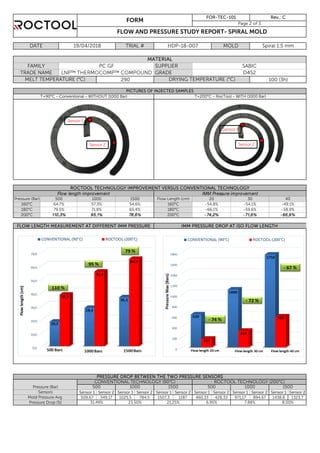

3. Sensor 1 Sensor 2 Sensor 1 Sensor 2 Sensor 1 Sensor 2 Sensor 1 Sensor 2 Sensor 1 Sensor 2 Sensor 1 Sensor 2
509,67 349,17 1025,5 784,5 1507,3 1187 460,33 428,33 971,17 894,67 1438,8 1323,7
-59,6% -58,9%
- 66,9%200°C 110,3% 95,1% 78,6% 200°C
71,8%
1500
ROCTOOL TECHNOLOGY (200°C)CONVENTIONAL TECHNOLOGY (90°C)
IMM PRESSURE DROP AT ISO FLOW LENGTH
180°C
Mold Pressure Avg
7,88%
- 74,2%
PRESSURE DROP BETWEEN THE TWO PRESSURE SENSORS
-66,1%
30
ROCTOOL TECHNOLOGY IMPROVEMENT VERSUS CONVENTIONAL TECHNOLOGY
20Pressure (Bar)
FLOW LENGTH MEASUREMENT AT DIFFERENT IMM PRESSURE
31,49% 23,50% 21,25% 6,95%
HDP-18-007 MOLD Spiral 1.5 mm
SUPPLIER
Flow length improvement IMM Pressure improvement
40
-49,1%
500 1000
TRIAL #
Flow Length (cm)1500
FORM
T=200°C - RocTool - WITH (1000 Bar)
MATERIAL
FAMILY PC GF SABIC
TRADE NAME GRADE D452
FOR-TEC-101 Rev.: C
Page 2 of 3
FLOW AND PRESSURE STUDY REPORT- SPIRAL MOLD
DATE 19/04/2018
MELT TEMPERATURE (°C) 290 DRYING TEMPERATURE (°C) 100 (3h)
PICTURES OF INJECTED SAMPLES
T=90°C - Conventional - WITHOUT (1000 Bar)
8,00%Pressure Drop (%)
Sensors
Pressure (Bar) 500 1000 1500 500 1000
54,6% 160°C -54,8% -54,1%
65,4% 180°C
160°C 64,7% 57,3%
79,5%
- 71,6%
Sensor 1
Sensor 2
Sensor 1
Sensor 2

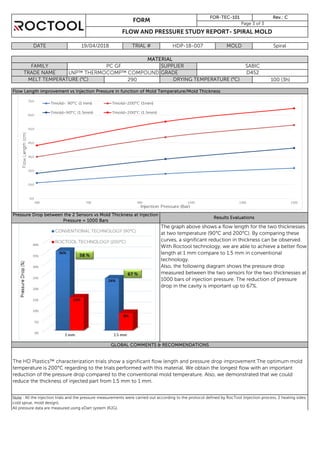

4. Flow Length improvement vs Injection Pressure in function of Mold Temperature/Mold Thickness
Results Evaluations
The graph above shows a flow length for the two thicknesses
at two temperature (90°C and 200°C). By comparing these
curves, a significant reduction in thickness can be observed.
With Roctool technology, we are able to achieve a better flow
length at 1 mm compare to 1.5 mm in conventional
technology.
Also, the following diagram shows the pressure drop
measured between the two sensors for the two thicknesses at
1000 bars of injection pressure. The reduction of pressure
drop in the cavity is important up to 67%.
GLOBAL COMMENTS & RECOMMENDATIONS
temperature is 200°C regarding to the trials performed with this material. We obtain the longest flow with an important
reduction of the pressure drop compared to the conventional mold temperature. Also, we demonstrated that we could
reduce the thickness of injected part from 1.5 mm to 1 mm.
Note : All the injection trials and the pressure measurements were carried out according to the protocol defined by RocTool (injection process, 2 heating sides,
cold sprue, mold design).
All pressure data are measured using eDart system (RJG).
HDP-18-007 MOLD Spiral
FORM
FOR-TEC-101
MATERIAL
FAMILY PC GF SUPPLIER SABIC
TRADE NAME GRADE D452
Rev.: C
Page 3 of 3
Pressure Drop between the 2 Sensors vs Mold Thickness at Injection
Pressure = 1000 Bars
FLOW AND PRESSURE STUDY REPORT- SPIRAL MOLD
DATE 19/04/2018 TRIAL #
MELT TEMPERATURE (°C) 290 DRYING TEMPERATURE (°C) 100 (3h)
