The document reports on a study comparing the flow and pressure performance of conventional and Roctool molding technologies. Testing showed that with Roctool technology, a 1mm thick part could be molded where conventional required 1.5mm, and pressure drop was reduced by up to 76%. Flow length was significantly improved at both 90C and 220C mold temperatures when using Roctool technology. The results demonstrate that Roctool technology allows for thinner parts and reduced pressure drop compared to conventional molding.

1. FULL HD PLASTIC ™ REPORT

2. Sensor 1 Sensor 2 Sensor 1 Sensor 2 Sensor 1 Sensor 2 Sensor 1 Sensor 2 Sensor 1 Sensor 2 Sensor 1 Sensor 2
379,67 111 789,67 369,17 1168,7 619,17 494,33 348,5 967,17 679,67 1374,3 948,5
Sensors
Mold Pressure Avg
Pressure Drop (%)
PRESSURE DROP BETWEEN THE TWO PRESSURE SENSORS
CONVENTIONAL TECHNOLOGY (90°C) ROCTOOL TECHNOLOGY (220°C)
Pressure (Bar) 500 1000 1500 500 1000 1500
-34,9%
- 67,8%
FLOW LENGTH MEASUREMENT AT DIFFERENT IMM PRESSURE IMM PRESSURE DROP AT ISO FLOW LENGTH
SABIC
52,0% 180°C
500 1000 1500 Flow Length (cm) 15 20
Flow length improvement IMM Pressure improvement
T=90°C - Conventional - WITHOUT (1000 Bar)
PC
MELT TEMPERATURE (°C) DRYING TEMPERATURE (°C)280
Pressure (Bar)
220°C 152,3% 128,3% 123,8% 220°C - 84,8% - 76,1%
T=220°C - RocTool - WITH (1000 Bar)
200°C
180°C 61,2% 52,5% -62,6% -33,3% -16,5%
99,4% 80,7% 79,7% 200°C -69,4% -59,1%
25
FORM
FOR-TEC-101 Rev.: C
Page 1 of 3
FLOW AND PRESSURE STUDY REPORT- SPIRAL MOLD
ROCTOOL TECHNOLOGY IMPROVEMENT VERSUS CONVENTIONAL TECHNOLOGY
TRADE NAME GRADE HF4010SR
PICTURES OF INJECTED SAMPLES
TRIAL # HDP-18-003 MOLD Spiral 1 mm
MATERIAL
FAMILY
120 (3h)
18/04/2018DATE
SUPPLIER
70,76% 53,25% 47,02% 29,50% 29,73% 30,98%
Sensor 1
Sensor 2
Sensor 1
Sensor 2

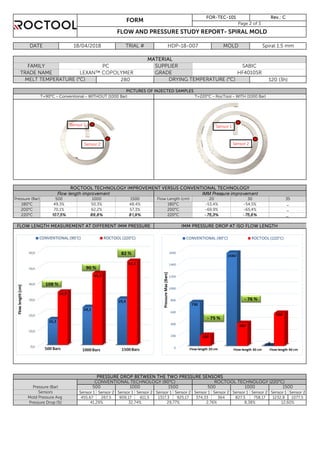

3. Sensor 1 Sensor 2 Sensor 1 Sensor 2 Sensor 1 Sensor 2 Sensor 1 Sensor 2 Sensor 1 Sensor 2 Sensor 1 Sensor 2
455,67 267,5 909,17 611,5 1317,3 925,17 374,33 364 827,5 758,17 1232,8 1077,5
-65,4% _
_220°C 107,5% 89,8% 81,9% 220°C
62,2%
1500
ROCTOOL TECHNOLOGY (220°C)CONVENTIONAL TECHNOLOGY (90°C)
IMM PRESSURE DROP AT ISO FLOW LENGTH
200°C
Mold Pressure Avg
8,38%
- 75,3%
PRESSURE DROP BETWEEN THE TWO PRESSURE SENSORS
-69,9%
30
ROCTOOL TECHNOLOGY IMPROVEMENT VERSUS CONVENTIONAL TECHNOLOGY
20Pressure (Bar)
FLOW LENGTH MEASUREMENT AT DIFFERENT IMM PRESSURE
41,29% 32,74% 29,77% 2,76%
HDP-18-007 MOLD Spiral 1.5 mm
SUPPLIER
Flow length improvement IMM Pressure improvement
35
_
500 1000
TRIAL #
Flow Length (cm)1500
FORM
T=220°C - RocTool - WITH (1000 Bar)
MATERIAL
FAMILY PC SABIC
TRADE NAME GRADE HF4010SR
FOR-TEC-101 Rev.: C
Page 2 of 3
FLOW AND PRESSURE STUDY REPORT- SPIRAL MOLD
DATE 18/04/2018
MELT TEMPERATURE (°C) 280 DRYING TEMPERATURE (°C) 120 (3h)
PICTURES OF INJECTED SAMPLES
T=90°C - Conventional - WITHOUT (1000 Bar)
12,60%Pressure Drop (%)
Sensors
Pressure (Bar) 500 1000 1500 500 1000
48,4% 180°C -53,4% -54,5%
57,3% 200°C
180°C 49,3% 50,3%
70,1%
- 75,6%
Sensor 1
Sensor 2
Sensor 1
Sensor 2

4. Flow Length improvement vs Injection Pressure in function of Mold Temperature/Mold Thickness
Results Evaluations
The graph above shows a flow length for the two thicknesses
at two temperature (90°C and 220°C). By comparing these
curves, a significant reduction in thickness can be observed.
With Roctool technology, we are able to achieve a better flow
length at 1 mm compare to 1.5 mm in conventional
technology.
Also, the following diagram shows the pressure drop
measured between the two sensors for the two thicknesses at
1000 bars of injection pressure. The reduction of pressure
drop in the cavity is important up to 76 %.
GLOBAL COMMENTS & RECOMMENDATIONS
temperature is 220°C regarding to the trials performed with this material. We obtain the longest flow with an important
reduction of the pressure drop compared to the conventional mold temperature. Also, we demonstrated that we could
reduce the thickness of injected part from 1.5 mm to 1 mm.
Note : All the injection trials and the pressure measurements were carried out according to the protocol defined by RocTool (injection process, 2 heating sides,
cold sprue, mold design).
All pressure data are measured using eDart system (RJG).
HDP-18-007 MOLD Spiral
FORM
FOR-TEC-101
MATERIAL
FAMILY PC SUPPLIER SABIC
TRADE NAME GRADE HF4010SR
Rev.: C
Page 3 of 3
Pressure Drop between the 2 Sensors vs Mold Thickness at Injection
Pressure = 1000 Bars
FLOW AND PRESSURE STUDY REPORT- SPIRAL MOLD
DATE 18/04/2018 TRIAL #
MELT TEMPERATURE (°C) 280 DRYING TEMPERATURE (°C) 120 (3h)
