This report summarizes a study comparing injection molding using conventional versus Roctool technology. Testing was conducted using a spiral mold injected with PEI material at different temperatures and mold thicknesses. Key results found that with Roctool technology at 270C, significantly longer flow lengths and lower pressure drops were achieved compared to conventional technology at 170C. Specifically, a 1mm thickness achieved better flow than a 1.5mm thickness at lower pressure using Roctool technology. Overall, the Roctool process demonstrated improvements in flow length and pressure drop of up to 51% compared to conventional technology.

1. FULL HD PLASTIC ™ REPORT

2. Sensor 1 Sensor 2 Sensor 1 Sensor 2 Sensor 1 Sensor 2 Sensor 1 Sensor 2 Sensor 1 Sensor 2 Sensor 1 Sensor 2
229,17 0,3333 782,67 353,5 1146,5 598,67 389 146,33 824,5 471,33 1193,8 729,3
99,85% 54,83% 47,78% 62,38% 42,83% 38,91%
FORM
FOR-TEC-101 Rev.: C
Page 1 of 3
FLOW AND PRESSURE STUDY REPORT- SPIRAL MOLD
ROCTOOL TECHNOLOGY IMPROVEMENT VERSUS CONVENTIONAL TECHNOLOGY
TRADE NAME GRADE EC004APQ
PICTURES OF INJECTED SAMPLES
TRIAL # HDP-18-010 MOLD Spiral 1 mm
MATERIAL
FAMILY
150 (5h)
17/04/2018DATE
SUPPLIER
270°C 357,9% 146,0% 130,9% 270°C - 78,5% - 79,5%
T=270°C - RocTool - WITH (1000 Bar)
250°C
230°C 132,0% 41,9% -47,4% -33,2% _
152,2% 54,3% 58,6% 250°C -47,5% -51,8%
20
SABIC
40,4% 230°C
500 1000 1500 Flow Length (cm) 10 15
Flow length improvement IMM Pressure improvement
T=170°C - Conventional - WITHOUT (1000 Bar)
PEI
MELT TEMPERATURE (°C) DRYING TEMPERATURE (°C)330
Pressure (Bar)
Mold Pressure Avg
Pressure Drop (%)
PRESSURE DROP BETWEEN THE TWO PRESSURE SENSORS
CONVENTIONAL TECHNOLOGY (170°C) ROCTOOL TECHNOLOGY (230°C)
Pressure (Bar) 500 1000 1500 500 1000 1500
_
_
FLOW LENGTH MEASUREMENT AT DIFFERENT IMM PRESSURE IMM PRESSURE DROP AT ISO FLOW LENGTH
Sensors
Sensor 1
Sensor 2
Sensor 1
Sensor 2

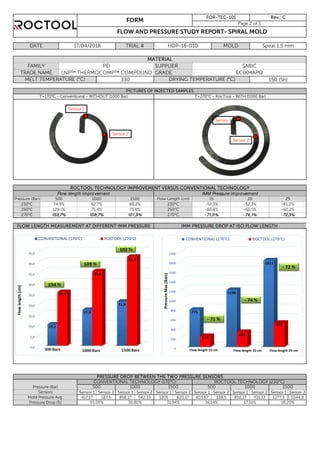

3. Sensor 1 Sensor 2 Sensor 1 Sensor 2 Sensor 1 Sensor 2 Sensor 1 Sensor 2 Sensor 1 Sensor 2 Sensor 1 Sensor 2
417,17 187,5 858,17 542,33 1205 820,17 403,67 338,5 850,17 701,33 1277,3 1044,8
Pressure (Bar) 500 1000 1500 500 1000
66,2% 230°C -52,3% -52,3%
73,8% 250°C
230°C 74,9% 62,7%
129,1%
- 74,1%
18,20%Pressure Drop (%)
Sensors
FORM
T=270°C - RocTool - WITH (1000 Bar)
MATERIAL
FAMILY PEI SABIC
TRADE NAME GRADE EC004APQ
FOR-TEC-101 Rev.: C
Page 2 of 3
FLOW AND PRESSURE STUDY REPORT- SPIRAL MOLD
DATE 17/04/2018
MELT TEMPERATURE (°C) 330 DRYING TEMPERATURE (°C) 150 (5h)
PICTURES OF INJECTED SAMPLES
T=170°C - Conventional - WITHOUT (1000 Bar)
HDP-18-010 MOLD Spiral 1.5 mm
SUPPLIER
Flow length improvement IMM Pressure improvement
25
-61,2%
500 1000
TRIAL #
Flow Length (cm)1500 15Pressure (Bar)
FLOW LENGTH MEASUREMENT AT DIFFERENT IMM PRESSURE
55,05% 36,80% 31,94% 16,14%
PRESSURE DROP BETWEEN THE TWO PRESSURE SENSORS
-60,6%
20
ROCTOOL TECHNOLOGY IMPROVEMENT VERSUS CONVENTIONAL TECHNOLOGY
-60,5% -60,2%
- 72,3%270°C 153,7% 108,7% 101,9% 270°C
75,4%
1500
ROCTOOL TECHNOLOGY (230°C)CONVENTIONAL TECHNOLOGY (170°C)
IMM PRESSURE DROP AT ISO FLOW LENGTH
250°C
Mold Pressure Avg
17,51%
- 71,0%
Sensor 1
Sensor 2
Sensor 1
Sensor 2

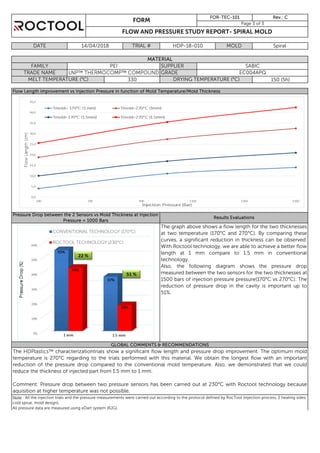

4. Flow Length improvement vs Injection Pressure in function of Mold Temperature/Mold Thickness
FLOW AND PRESSURE STUDY REPORT- SPIRAL MOLD
DATE 14/04/2018 TRIAL #
MELT TEMPERATURE (°C) 330 DRYING TEMPERATURE (°C) 150 (5h)
HDP-18-010 MOLD Spiral
FORM
FOR-TEC-101
MATERIAL
FAMILY PEI SUPPLIER SABIC
TRADE NAME GRADE EC004APQ
Rev.: C
Page 3 of 3
Pressure Drop between the 2 Sensors vs Mold Thickness at Injection
Pressure = 1000 Bars
Results Evaluations
The graph above shows a flow length for the two thicknesses
at two temperature (170°C and 270°C). By comparing these
curves, a significant reduction in thickness can be observed.
With Roctool technology, we are able to achieve a better flow
length at 1 mm compare to 1.5 mm in conventional
technology.
Also, the following diagram shows the pressure drop
measured between the two sensors for the two thicknesses at
1500 bars of injection pressure pressure(170°C vs 270°C). The
reduction of pressure drop in the cavity is important up to
51%.
GLOBAL COMMENTS & RECOMMENDATIONS
The characterizationtrials show a significant flow length and pressure drop improvement. The optimum mold
temperature is 270°C regarding to the trials performed with this material. We obtain the longest flow with an important
reduction of the pressure drop compared to the conventional mold temperature. Also, we demonstrated that we could
reduce the thickness of injected part from 1.5 mm to 1 mm.
Comment: Pressure drop between two pressure sensors has been carried out at 230°C with Roctool technology because
aquisition at higher temperature was not possible.
Note : All the injection trials and the pressure measurements were carried out according to the protocol defined by RocTool (injection process, 2 heating sides,
cold sprue, mold design).
All pressure data are measured using eDart system (RJG).
