The document is a report on a study comparing flow length and pressure for injection molding using Roctool technology versus conventional technology. It includes: - Flow length and pressure drop measurements for molds with spiral features at 1mm and 1.5mm thicknesses and temperatures of 110C and 220C. - Roctool technology achieved longer flow lengths at 1mm thickness compared to conventional technology at 1.5mm, demonstrating thickness reduction. - Pressure drop was reduced by up to 50% with Roctool technology, showing improved flow. - Overall, Roctool technology at 220C temperature provided the best results with longest flow and significant reduction in pressure drop versus conventional molding.

1. FULL HD PLASTIC ™ REPORT

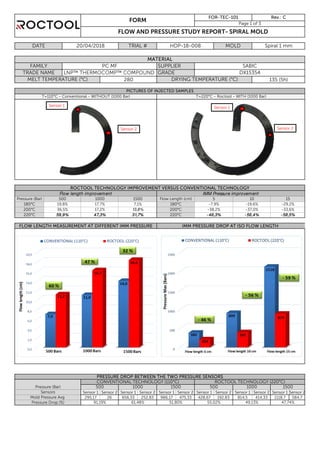

2. Sensor 1 Sensor 2 Sensor 1 Sensor 2 Sensor 1 Sensor 2 Sensor 1 Sensor 2 Sensor 1 Sensor 2 Sensor 1 Sensor 2
295,17 26 656,33 252,83 986,17 475,33 428,67 192,83 814,5 414,33 1118,7 584,7
91,19% 61,48% 51,80% 55,02% 49,13% 47,74%
FORM
FOR-TEC-101 Rev.: C
Page 1 of 3
FLOW AND PRESSURE STUDY REPORT- SPIRAL MOLD
ROCTOOL TECHNOLOGY IMPROVEMENT VERSUS CONVENTIONAL TECHNOLOGY
TRADE NAME GRADE DX15354
PICTURES OF INJECTED SAMPLES
TRIAL # HDP-18-008 MOLD Spiral 1 mm
MATERIAL
FAMILY
135 (5h)
20/04/2018DATE
SUPPLIER
220°C 59,9% 47,3% 31,7% 220°C - 46,3% - 56,4%
T=220°C - Roctool - WITH (1000 Bar)
200°C
180°C 19,8% 17,7% -7,9% -19,6% -29,2%
36,5% 17,2% 13,8% 200°C -38,2% -37,0%
15
SABIC
7,1% 180°C
500 1000 1500 Flow Length (cm) 5 10
Flow length improvement IMM Pressure improvement
T=110°C - Conventional - WITHOUT (1000 Bar)
PC MF
MELT TEMPERATURE (°C) DRYING TEMPERATURE (°C)280
Pressure (Bar)
Mold Pressure Avg
Pressure Drop (%)
PRESSURE DROP BETWEEN THE TWO PRESSURE SENSORS
CONVENTIONAL TECHNOLOGY (110°C) ROCTOOL TECHNOLOGY (220°C)
Pressure (Bar) 500 1000 1500 500 1000 1500
-33,6%
- 58,5%
FLOW LENGTH MEASUREMENT AT DIFFERENT IMM PRESSURE IMM PRESSURE DROP AT ISO FLOW LENGTH
Sensors
Sensor 1
Sensor 2
Sensor 1
Sensor 2

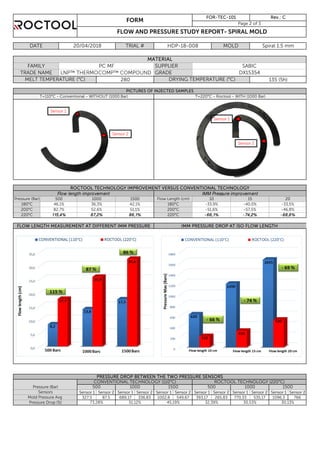

3. Sensor 1 Sensor 2 Sensor 1 Sensor 2 Sensor 1 Sensor 2 Sensor 1 Sensor 2 Sensor 1 Sensor 2 Sensor 1 Sensor 2
327,5 87,5 689,17 336,83 1002,8 549,67 393,17 265,83 770,33 535,17 1096,3 766
Pressure (Bar) 500 1000 1500 500 1000
42,1% 180°C -33,9% -40,0%
51,1% 200°C
180°C 46,1% 36,3%
82,7%
- 74,2%
30,13%Pressure Drop (%)
Sensors
FORM
T=220°C - Roctool - WITH (1000 Bar)
MATERIAL
FAMILY PC MF SABIC
TRADE NAME GRADE DX15354
FOR-TEC-101 Rev.: C
Page 2 of 3
FLOW AND PRESSURE STUDY REPORT- SPIRAL MOLD
DATE 20/04/2018
MELT TEMPERATURE (°C) 280 DRYING TEMPERATURE (°C) 135 (5h)
PICTURES OF INJECTED SAMPLES
T=110°C - Conventional - WITHOUT (1000 Bar)
HDP-18-008 MOLD Spiral 1.5 mm
SUPPLIER
Flow length improvement IMM Pressure improvement
20
-33,5%
500 1000
TRIAL #
Flow Length (cm)1500 10Pressure (Bar)
FLOW LENGTH MEASUREMENT AT DIFFERENT IMM PRESSURE
73,28% 51,12% 45,19% 32,39%
PRESSURE DROP BETWEEN THE TWO PRESSURE SENSORS
-51,6%
15
ROCTOOL TECHNOLOGY IMPROVEMENT VERSUS CONVENTIONAL TECHNOLOGY
-57,5% -46,8%
- 68,6%220°C 115,4% 87,2% 86,1% 220°C
52,6%
1500
ROCTOOL TECHNOLOGY (220°C)CONVENTIONAL TECHNOLOGY (110°C)
IMM PRESSURE DROP AT ISO FLOW LENGTH
200°C
Mold Pressure Avg
30,53%
- 66,1%
Sensor 1
Sensor 2
Sensor 1
Sensor 2

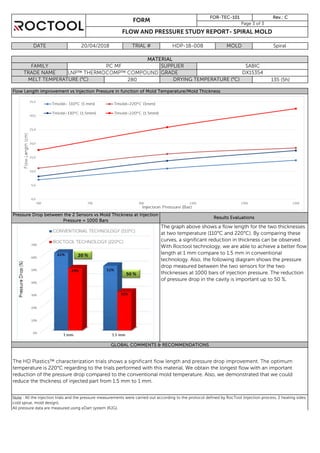

4. Flow Length improvement vs Injection Pressure in function of Mold Temperature/Mold Thickness
FLOW AND PRESSURE STUDY REPORT- SPIRAL MOLD
DATE 20/04/2018 TRIAL #
MELT TEMPERATURE (°C) 280 DRYING TEMPERATURE (°C) 135 (5h)
HDP-18-008 MOLD Spiral
FORM
FOR-TEC-101
MATERIAL
FAMILY PC MF SUPPLIER SABIC
TRADE NAME GRADE DX15354
Rev.: C
Page 3 of 3
Pressure Drop between the 2 Sensors vs Mold Thickness at Injection
Pressure = 1000 Bars
Results Evaluations
The graph above shows a flow length for the two thicknesses
at two temperature (110°C and 220°C). By comparing these
curves, a significant reduction in thickness can be observed.
With Roctool technology, we are able to achieve a better flow
length at 1 mm compare to 1.5 mm in conventional
technology. Also, the following diagram shows the pressure
drop measured between the two sensors for the two
thicknesses at 1000 bars of injection pressure. The reduction
of pressure drop in the cavity is important up to 50 %.
GLOBAL COMMENTS & RECOMMENDATIONS
temperature is 220°C regarding to the trials performed with this material. We obtain the longest flow with an important
reduction of the pressure drop compared to the conventional mold temperature. Also, we demonstrated that we could
reduce the thickness of injected part from 1.5 mm to 1 mm.
Note : All the injection trials and the pressure measurements were carried out according to the protocol defined by RocTool (injection process, 2 heating sides,
cold sprue, mold design).
All pressure data are measured using eDart system (RJG).
