The document outlines key practices, frameworks, and standards within the cybersecurity domain aimed at protecting various entities from global cyber threats. It details the cybersecurity lifecycle, common attack vectors, and tactics employed by cybercriminals, including a categorization of well-known cybersecurity risks and vulnerabilities. Additionally, it emphasizes the need for comprehensive security strategies and incident management processes to enhance organizational cybersecurity posture.

1. 1 | P a g e
A) Definition:
Cybersecurity Domain is a collection of best practices,Technologies,Frameworks & Standards to protect an enterprise,organization ,Govt
entities,Military establishment,Individual user from global cyber threats(Theft Identity,Cybertheft,Cyber-ransom,Infrastructure damage)
resulting in either Financial,Economical,Copyright Information,Personal identity,Infrastructure loss.
B)Well known Cybersecurity Risk Standards & Frameworks:
 NIST Cybersecurity Framework
 ISO 27001 (Information Security Management Framework)
 ISACA COBIT5
 NIST SP800-53
 NIST SP800-30
 ISA 62443
 ISO 27005
C) Establishment and acceptance of the Cybersecurity Standards:
The Cybersecurity standards were first adopted in the Seoul (South Korea) Conference on Global Cybersecurity in 2013
D) Cybersecurity Tactics (Holistic View):
 Manage physical access to IT Infrastructure
 Manage sensitive documents and output Devices
 Monitor the Infrastructure for security related Events
 Protect against Malware (*** Most challenging and difficult aspect of Cybersecurity)
 Manage Network and Connectivity security
 Manage User Identity and logical access
E) Cybersecurity Lifecycle:
The Cybersecurity Lifecycle can be described aptly by the below (Figure-1) which decomposes the various stages
CyberSecurity – Concepts & Best practices (MIND MAP)

2. 2 | P a g e
Risk Actions: The most generally accepted Actions on Risk Management are - (1) Risk Acceptance (2) Risk Transfer (3) Risk Avoidance (4) Risk
Mitigation) – Depending on Risk Appetite/Risk Tolerance threshold of an Organisation
(1) Identify
Business
outcomes
(2)Understand
Vulnerabilities
Threats
(3)Create
current
profile
(4)Conduct
Risk
assesments
(5)Apply
Controls
(6)Create
Target
profile
(7)Determine,analyze
& prioritize gaps
(8)Implement
plan
(9)Report to
stakeholders
(10)Continuous
monitoring
Cyber security Lifecycle

3. 3 | P a g e
F) Threat to Cyberdefense: The damage caused by threats to Cyberdefense can be characterized by loss of “Confidentiality, Integrity or
availability (CIA)”, the basic model of Data Security as practiced in ISO27001/27002 and other globally accepted standards
G) Lockheed Martin - Hacker Kill Chain:
The USA Aeronautics Major Lockheed Martin – Kill Chain methodology describes seven steps from reconnaissance through actions on the
objectives and recommends defenses be designed to align with each of the seven steps in the process:

4. 4 | P a g e

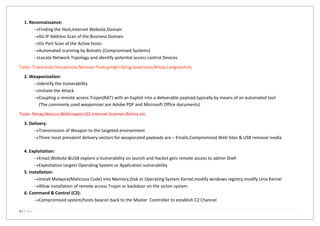

1. Reconnaissance:
Finding the Host,Internet Website,Domain
Do IP Address Scan of the Business Domain
Do Port Scan of the Active hosts
Automated scanning by Botnets (Compromised Systems)
Locate Network Topology and identify potential access control Devices
Tools: Traceroute,Visualroute,Netscan Tools,pinger,fping,Superscan,Nmap,Languard etc
2. Weaponization:
Identify the Vulnerability
Initiate the Attack
Coupling a remote access Trojan(RAT) with an Exploit into a deliverable payload,typically by means of an automated tool
(The commonly used weaponizer are Adobe PDF and Microsoft Office documents)
Tools: Nmap,Nessus,WebInspect,ISS Internet Scanner,Retina etc
3. Delivery:
Transmission of Weapon to the targeted environment
Three most prevalent delivery vectors for weaponzied payloads are – Emails,Compromised Web Sites & USB removal media
4. Exploitation:
Email,Website &USB explore a Vulnerability on launch and Hacket gets remote access to admin Shell
Exploitation targets Operating System or Application vulnerability
5. Installation:
Install Malware(Malicious Code) into Memory,Disk or Operating System Kernel,modify windows registry,modify Unix Kernel
Allow installation of remote access Trojan or backdoor on the victim system
6. Command & Control (C2):
Compromised system/hosts beacon back to the Master Controller to establish C2 Channel

5. 5 | P a g e
Hacker gains complete control of the compromised system
Intruders have “hands on the keyboard” access to the targeted environment
7. Action:
This Activity is data exfiltration that involves collecting,encrypting and extraction information (e,g Deface Website,Steal Credit Card
Information,Steal Copyright Information,Steal IE passwords,Modify Banking websites,Steal medical records) etc
H) Popular Cyber Attacks: The most popular Cyber Attacks are listed below
S.No Attack Type (Code Name) Attack Payload Damage
1 Phising/Spearphising Emails, Phising Websites Gain Control of System by Intruder
2 Driveby/Waterhole/Malvertising Phising Websites Gain Control of System by Intruder
3 Code Injection/Web Shell Vulnerable Website Gain Control of System by Intruder
4 Key Logging/Session hijacking Malware injection Gain Control of System by Intruder
5 Pass-the-hash & Pass-the-Ticket Vulnerable Operating System Network Control by Intruder
6 Malware/Botnet Malware injection Gain Control of System by Intruder
7 Distributed Denial of Service(DDoS) Streams of Data Packet sent to Host Denial of Service by Host
8 Identity Theft Vulnerable Operating System Loss of Personal Data(Credit Card No,Social
Security No, Medical Records)
9 Industrial Espionage APT (Advanced Persistent Threat)
Malware
Loss of Confidential/Copyright Information
10 Ransomware Ransomware Malware No access to File shares/Directories
11 Bank Heist Vulnerable Operating System Gain Control of System by Intruder
12 Sabotage Emails,USB Media,Websites Infrastructure Damage
13 Infestation/Whack-a-Mole Malware injection Breach of Confidentiality,Integrity,Availability to
the Network
14 Burndown Vulnerable OS,Application,Database Infrastructure Damage
15 Meltdown Vulnerable OS,Application,Database Enterprise Infrastructure Damage
16 Defamation Social Engineering Personal Data Loss
17 Graffiti Vulnerable Website Defacing of Website

6. 6 | P a g e

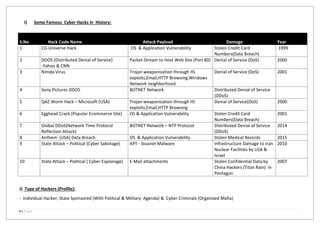

I) Some Famous Cyber Hacks in History:
S.No Hack Code Name Attack Payload Damage Year
1 CD-Universe Hack OS & Application Vulnerability Stolen Credit Card
Numbers(Data Breach)
1999
2 DDOS (Distributed Denial of Service)
-Yahoo & CNN
Packet Stream to Host Web Site (Port 80) Denial of Service (DoS) 2000
3 Nimda Virus Trojan weaponization through IIS
exploits,Email,HTTP Browsing,Windows
Network neighborhood
Denial of Service (DoS) 2001
4 Sony Pictures DDOS BOTNET Network Distributed Denial of Service
(DDoS)
5 QAZ Worm Hack – Microsoft (USA) Trojan weaponization through IIS
exploits,Email,HTTP Browsing
Denial of Service(DoS) 2000
6 Egghead Crack (Popular Ecommerce Site) OS & Application Vulnerability Stolen Credit Card
Numbers(Data Breach)
2001
7 Global DDoS(Network Time Protocol
Reflection Attack)
BOTNET Network – NTP Protocol Distributed Denial of Service
(DDoS)
2014
8 Anthem (USA) Data Breach OS & Application Vulnerability Stolen Medical Records 2015
9 State Attack – Political (Cyber Sabotage) APT - Stuxnet Malware Infrastructure Damage to Iran
Nuclear Facilities by USA &
Israel
2010
10 State Attack – Political ( Cyber Espionage) E-Mail attachments Stolen Confidential Data by
China Hackers (Titan Rain) in
Pentagon
2007
J) Type of Hackers (Profile):
- Individual Hacker, State Sponsored (With Political & Military Agenda) & Cyber Criminals (Organised Mafia)

7. 7 | P a g e
K) Types of Malware & Protection best practices:

8. 8 | P a g e

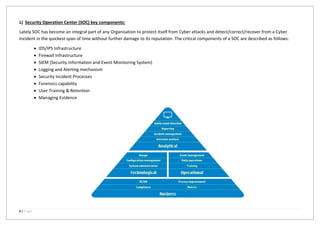

L) Security Operation Center (SOC) key components:
Lately SOC has become an integral part of any Organisation to protect itself from Cyber attacks and detect/correct/recover from a Cyber
Incident in the quickest span of time without further damage to its reputation. The critical components of a SOC are described as follows:
 IDS/IPS Infrastructure
 Firewall Infrastructure
 SIEM (Security Information and Event Monitoring System)
 Logging and Alerting mechanism
 Security Incident Processes
 Forensics capability
 User Training & Retention
 Managing Evidence

9. 9 | P a g e
M) Cybersecurity Architecture: Using Industry best practices and standards the Cyber Security Architecture can be broken down as follows
N) Defense in Depth:
This is the most common practice employed by Organisation to create and implement a multilayered approach to Cybersecurity.It is described
by the following process (Figure -2) and can be implemented at various layers of the Network Infrastructure
• Network Security
• Identity,Authentication and Access Management
• Data Protection and Cryptography
• Monitoring Vulnerability & Patch Management
• High Availablity,Disaster Recovery & Physical protection
• Asset Management & Supply Chain
• Policy,Audit,E-Discover & Training
• Systems Adminstration
• Application Security
• Endpoint,Server & Device Security
Cybersecurity
Architecture

10. 10 | P a g e
O) Nine Basic Steps of Cybersecurity Program:These are the guidelines to follow while drawing up a comprehensive Cybersecurity program
in an Organisation
 #1 :Explore the Legislation and other requirements
 #2:Define the Business benefits and get top Management support (Very Important)
 #3:Setting the Cybersecurity requirements
 #4:Choosing the framework for Cybersecurity Implementation
 #5:Organizing the Implementation (Setting up Teams,PM Resources,Project Charter,Budget etc)
 #6:Risk Assessment & Mitigation (Applying Controls)
 #7: Implementation of Controls
 #8: Training & Awareness
 #9: Continuous Monitoring and Checks
And Reporting to Senior Management (C Level Executives)
P) Cybersecurity Enterprise Operational Processes:To maintain an effective Cybersecurity posture,the CISO should maintain a number of
enterprise operational processes to include the following:
1. Policies and Policies Exception Management
2. Project and Change Security Reviews
3. Risk Management
4. Control Management
5. Auditing and Deficiency Tracking
6. Asset Inventory and audit
7. Change Control
8. Configuration Management Database Re-Certification
9. Supplier reviews and Risk assessments
10. CyberIntrusion Response
11. All-Hazards Emergency preparedness Exercises
12. Vulnerability Scanning,Tracking & Management

11. 11 | P a g e
13. Patch Management & Deployment
14. Security Monitoring
15. Password and Key Management
16. Account and Access periodic Re-Certification
17. Privileged Account activity Audit
Q) SANS – Top 20 Critical Security Controls: These are widely established critical controls to maintain a healthy Network security posture
S.No Critical Security Controls Code No National Security Agency Rank
1 Inventory of H/W Assets,Criticality & Location CSC1 Very High
2 Inventory of S/W Assets,Criticality & Location CSC2 Very High
3 Secure Configuration Servers CSC3 Very High
4 Vulnerability Assessment & Remediation CSC4 Very High
5 Malware Protection CSC5 High/Medium
6 Application Security CSC6 High
7 Wireless Device Control CSC7 High
8 Data Recovery CSC8 Medium
9 Security Skills Assessment CSC9 Medium
10 Secure Config Network CSC10 High/Medium
11 Limit and Control Network Ports,Protocols & Services CSC11 High/Medium
12 Control Admin privileges CSC12 High/Medium
13 Boundary/Network Perimeter Defense CSC13 High/Medium
14 Maintain,Monitor and Analyze Audit Logs CSC14 Medium
15 “Need to know” Access CSC15 Medium
16 Account Monitoring & Control CSC16 Medium
17 Data Loss Prevention (DLP) CSC17 Medium/Low
18 Incident Response Plan CSC18 Medium
19 Secure Network Engineering (Secure Coding) CSC19 Low
20 Penetration Testing & Red Team Exercises CSC20 Low

12. 12 | P a g e

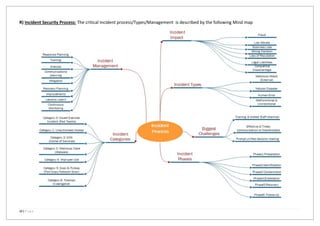

R) Incident Security Process: The critical Incident process/Types/Management is described by the following Mind map

13. 13 | P a g e

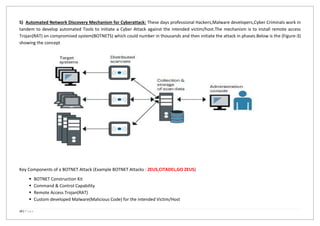

S) Automated Network Discovery Mechanism for Cyberattack: These days professional Hackers,Malware developers,Cyber Criminals work in
tandem to develop automated Tools to initiate a Cyber Attack against the intended victim/host.The mechanism is to install remote access
Trojan(RAT) on compromised system(BOTNETS) which could number in thousands and then initiate the attack in phases.Below is the (Figure-3)
showing the concept
Key Components of a BOTNET Attack (Example BOTNET Attacks : ZEUS,CITADEL,GO ZEUS)
 BOTNET Construction Kit
 Command & Control Capability
 Remote Access Trojan(RAT)
 Custom developed Malware(Malicious Code) for the intended Victim/Host

14. 14 | P a g e

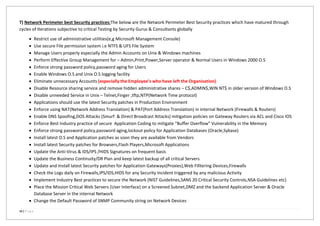

T) Network Perimeter best Security practices:The below are the Network Perimeter Best Security practices which have matured through
cycles of Iterations subjective to critical Testing by Security Gurus & Consultants globally
 Restrict use of administrative utilities(e,g Microsoft Management Console)
 Use secure File permission system i.e NTFS & UFS File System
 Manage Users properly especially the Admin Accounts on Unix & Windows machines
 Perform Effective Group Management for – Admin,Print,Power,Server operator & Normal Users in Windows 2000 O.S
 Enforce strong password policy,password aging for Users
 Enable Windows O.S and Unix O.S logging facility
 Eliminate unnecessary Accounts (especially the Employee’s who have left the Organisation)
 Disable Resource sharing service and remove hidden administrative shares – C$,ADMIN$,WIN NT$ in older version of Windows O.S
 Disable unneeded Service in Unix – Telnet,Finger ,tftp,NTP(Network Time protocol)
 Applications should use the latest Security patches in Production Environment
 Enforce using NAT(Network Address Translation) & PAT(Port Address Translation) in internal Network (Firewalls & Routers)
 Enable DNS Spoofing,DOS Attacks (Smurf & Direct Broadcast Attacks) mitigation policies on Gateway Routers via ACL and Cisco IOS
 Enforce Best Industry practice of secure Application Coding to mitigate “Buffer Overflow” Vulnerability in the Memory
 Enforce strong password policy,password aging,lockout policy for Application Databases (Oracle,Sybase)
 Install latest O.S and Application patches as soon they are available from Vendors
 Install latest Security patches for Browsers,Flash Players,Microsoft Applications
 Update the Anti-Virus & IDS/IPS /HIDS Signatures on frequent basis
 Update the Business Continuity/DR Plan and keep latest backup of all critical Servers
 Update and Install latest Security patches for Application Gateways(Proxies),Web Filltering Devices,Firewalls
 Check the Logs daily on Firewalls,IPS/IDS,HIDS for any Security Incident triggered by any malicious Activity
 Implement Industry Best practices to secure the Network (NIST Guidelines,SANS 20 Critical Security Controls,NSA Guidelines etc)
 Place the Mission Critical Web Servers (User Interface) on a Screened Subnet,DMZ and the backend Application Server & Oracle
Database Server in the internal Network
 Change the Default Password of SNMP Community string on Network Devices

15. 15 | P a g e

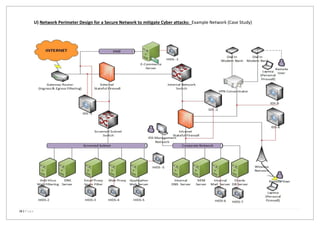

U) Network Perimeter Design for a Secure Network to mitigate Cyber attacks: Example Network (Case Study)

16. 16 | P a g e
The above Diagram conceptualizes an ideal Scenario Network of a Corporate Organisation with multiple Entry & Exit points for the
Email,Web,Wireless and VPN Traffic.It shows the placement of the Intrusion Detection Devices(IDS) at multiple points to monitor both
the Internal and External Traffic for any Malicious Traffic in real Time.The Network is shown for Illustrative purposes only.
Design Features:
 Border Router:A Gateway Router connects the network to the Internet and provides basic Filtering through ACL(Access Control Lists) on
Ingress & Egress Interfaces
 Just behind the Gateway Router is Stateful Inspection Firewall that enforces the majority of access control of the network
 Public services and private services have been separated by putting them on different network segments (DMZ,Corporate & Screened
Subnet)
 Split DNS is being used on public DNS Server and it provides Name resolution for public services only
 Intrusion Detection Systems(IDS) are located on the public,private,network perimeter end points to watch for unusual activity
 The Front end Application Web server is on the Screened Subnet and the backed Oracle DB Server is behind the Internal Firewall
 Host based IDS(HIDS) complement the Network by adding additional layer of security and are placed on the individual mission critical
servers(Anti-Virus,Email Proxy,Web Proxy,Internal Email Server,Oracle DB Server) to monitor the systems network activity,log files,Files
Systems Integrity and User actions.A host based IDS will also detect and generate an alarm when it detects escalation of privileges for a
Guest user to Admin Account
 Host based IDS can help detect attacks that network IDS evasion techniques
 Host based IDS is also useful for correlating attacks picked up by Network sensors
 All security log entries are sent to the SIEM(Security Information and Event Monitoring System) for Data Analysis and Forensics.The
SIEM generates an Alert when suspicious activity is detected
 For the Remote Office users all their Laptops are installed with Personal Firewalls to mitigate/detect Hacker entry through backdoor
channels
 All configuration of security devices is performed from the management console
 Additionally one can install TACACS,RADIUS Servers to monitor Users access on the Gateway Router and other mission critical Servers

17. 17 | P a g e
The sample Rule base configured on the Stateful Inspection Firewall can be as follows (Illustrative purpose only):
Rule No Incoming Zone Outgoing Zone Source Destination Service Action
1 Internet Screened Subnet Any App Web Server HTTP.HTTPS Allow
Internet Screened Subnet Any Web Proxy HTTP,HTTPS Allow
2 Internet DMZ Any E-Commerce Server HTTP,HTTPS Allow
3 Internet Screened Subnet Any Email Proxy SMTP Allow
4 Internet Screened Subnet Any DNS Server DNS Allow
5 Internet DMZ Any E-Commerce Server SSH Allow
6 Internal Screened Subnet Internal
Mail Server
MailRelay(Email Proxy) SSH Allow
7 Internal DMZ Order Server E-Commerce Server SSH Allow
8 Internal Internet Internal Mail Server Any SMTP Allow
9 Internal Internet Internal DNS Server Any DNS Allow
10 Internal Internet Workstations Any HTTP,HTTPS,FTP Allow
11 Internal Screened Subnet Oracle DB Server Application
Web Server
HTTP,HTTPS,SSH Allow
12 Internet Screened Subnet Norton.Com Anti-Virus Server FTP Allow
13 All Management All Devices Group SIEM Server Syslog Allow
14 Management Any Management
Console
Security
Devices Group
SSH,SRMC Allow,Log
15 Management Internet Management
Console
Snort.Org HTTP.HTTPS Allow
16 Any Any Any Any Any Deny,Log

18. 18 | P a g e
Conclusion Note:
The process to securing and making a perfect “Digital World” is a ongoing continuous Journey ,and with ever changing Modus operandi
of the Hackers and the Cyber Criminals globally,we always have to be one step forward in the race to protect our Digital
Assets,Intellectual property,Identity,Infrastructure.Thank You
Disclaimer Note: This is Copyright Material @Wajahat Iqbal (2016) and the Information shown is collected from Internet repositories and any
Typo, Error, Omission is regretted on behalf of Author.The Author does not hold any responsibility or Liability for the incorrectness of the
Information shared.This Mindmap Document can be shared/Printed/Distributed keeping in view that Credit is given rightly to the Author.
