- A Russian supermarket chain used Embraco's Plug N' Cool refrigeration system in their stores instead of traditional remote systems. The Plug N' Cool system provided modular, energy efficient refrigeration for food display cases using natural refrigerants. It allowed for faster installation, easier maintenance, and reduced energy costs by 34% compared to remote systems. Both the supermarket and refrigeration equipment manufacturer were satisfied with the energy savings and performance of the Plug N' Cool pilot program.

2. Cryspi Uses Embraco Plug N’ Cool in Food Retail Application
- A Russian Supermarket Case Study
Embraco Nidec

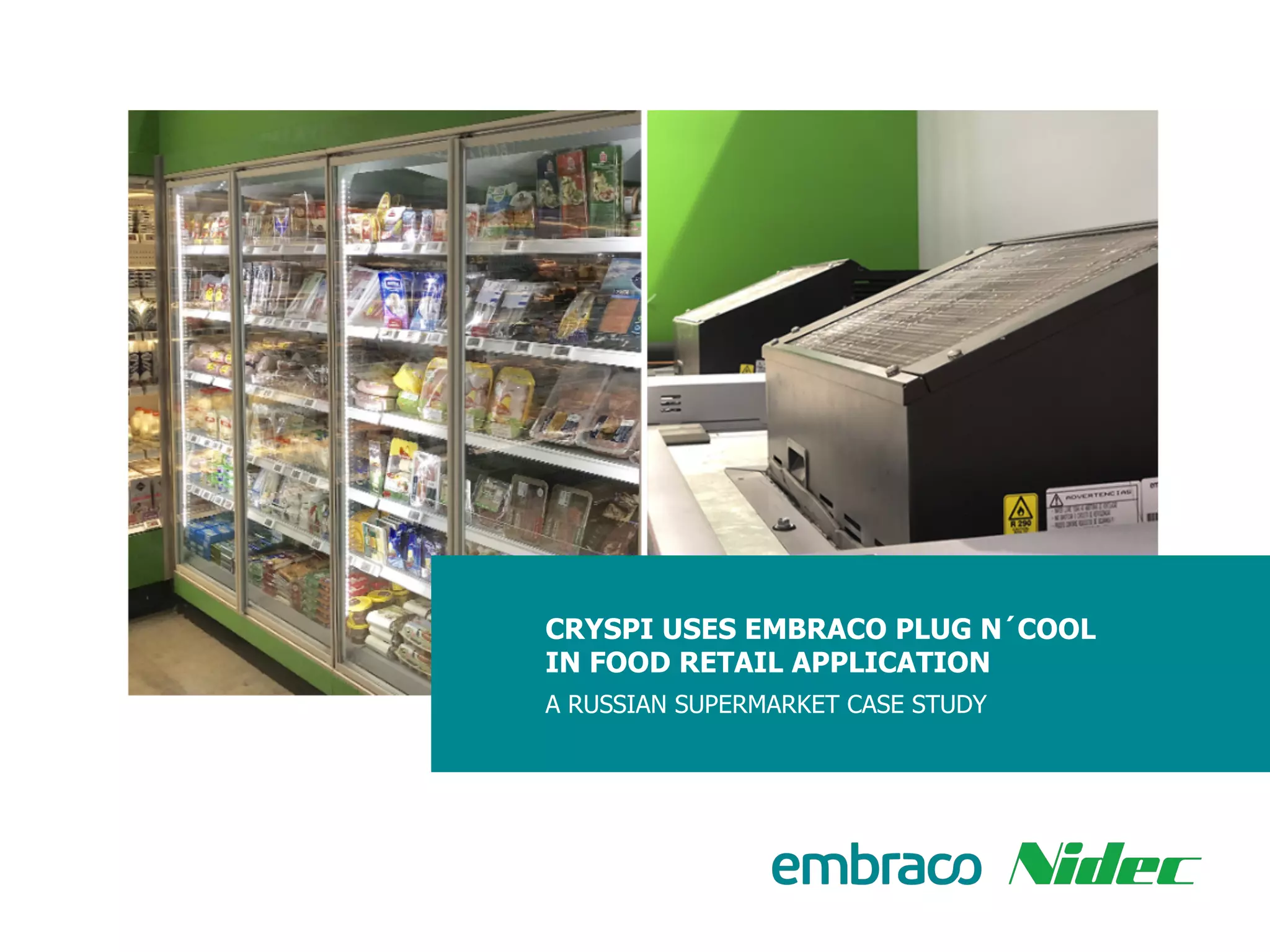

3. CRYSPI USES EMBRACO PLUG N´COOL
IN FOOD RETAIL APPLICATION
A RUSSIAN SUPERMARKET CASE STUDY

4. YEARS IN THE VANGUARD
OF COOLING SOLUTIONS
- USA sales office
inauguration
- The first compressor
with 100% Embraco
technology is produced
- Italy, China
(Beijing) and
Slovakia units are
inaugurated
- Mexico sales office
inauguration
- China EECON inauguration
- Fullmotion with variable
speed launch
- Embraco is acquired by
Whirlpool Group
- Russia sales office
inauguration
-Mexico unit
inauguration
-GBS office
(in Slovakia)
inauguration
- Embraco is
founded
- Embraco is
part of
Nidec
Corporation
1980s1971 20191990s 2010s2000s
ABOUT EMBRACO
48

5. 30%
20
%
35%
15%
Washing
Machines
Dryer Dishwasher
Household
Refrigeration
Light Commercial
Refrigeration

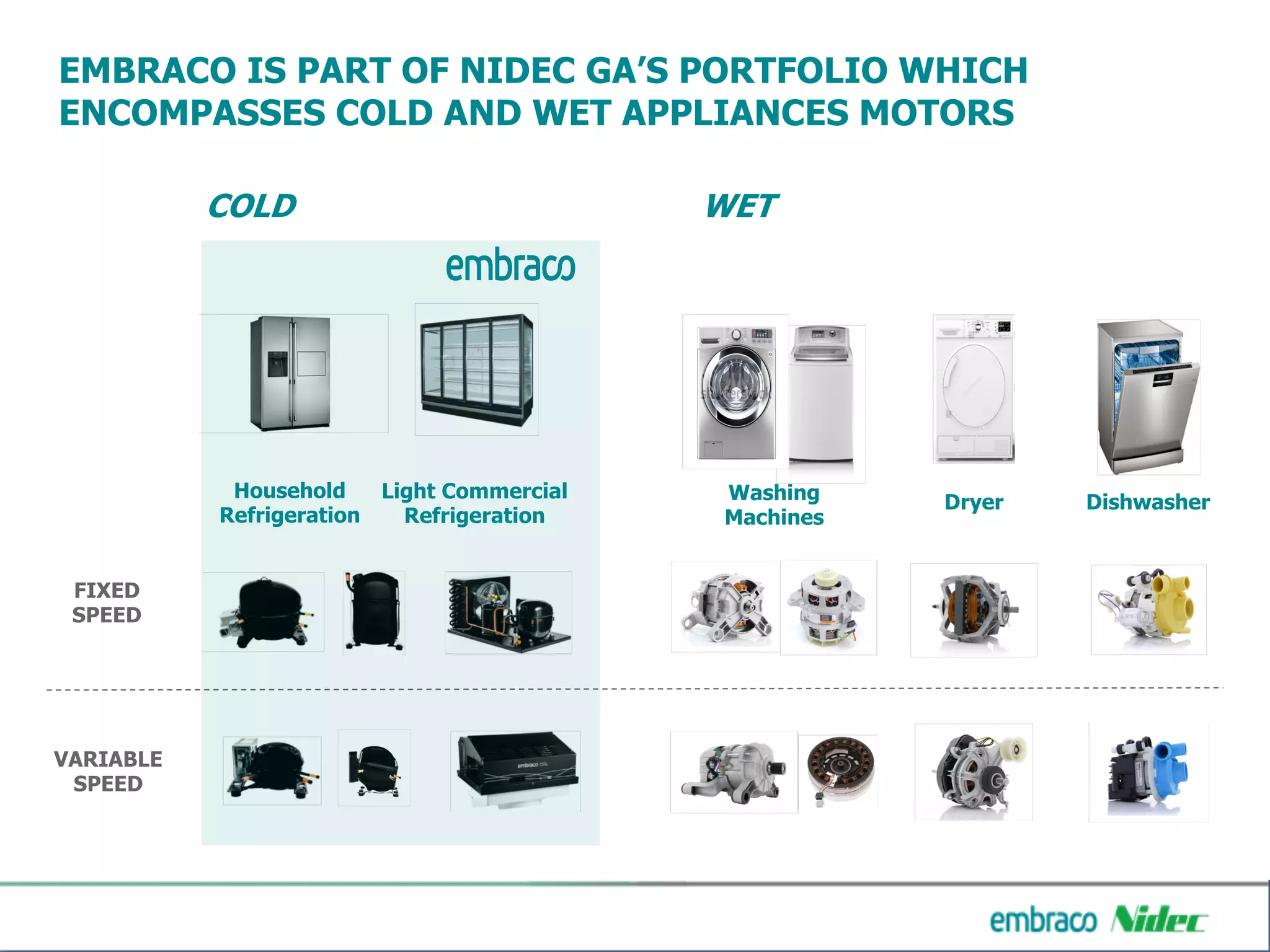

EMBRACO IS PART OF NIDEC GA’S PORTFOLIO WHICH
ENCOMPASSES COLD AND WET APPLIANCES MOTORS
FIXED
SPEED
VARIABLE
SPEED
WETCOLD

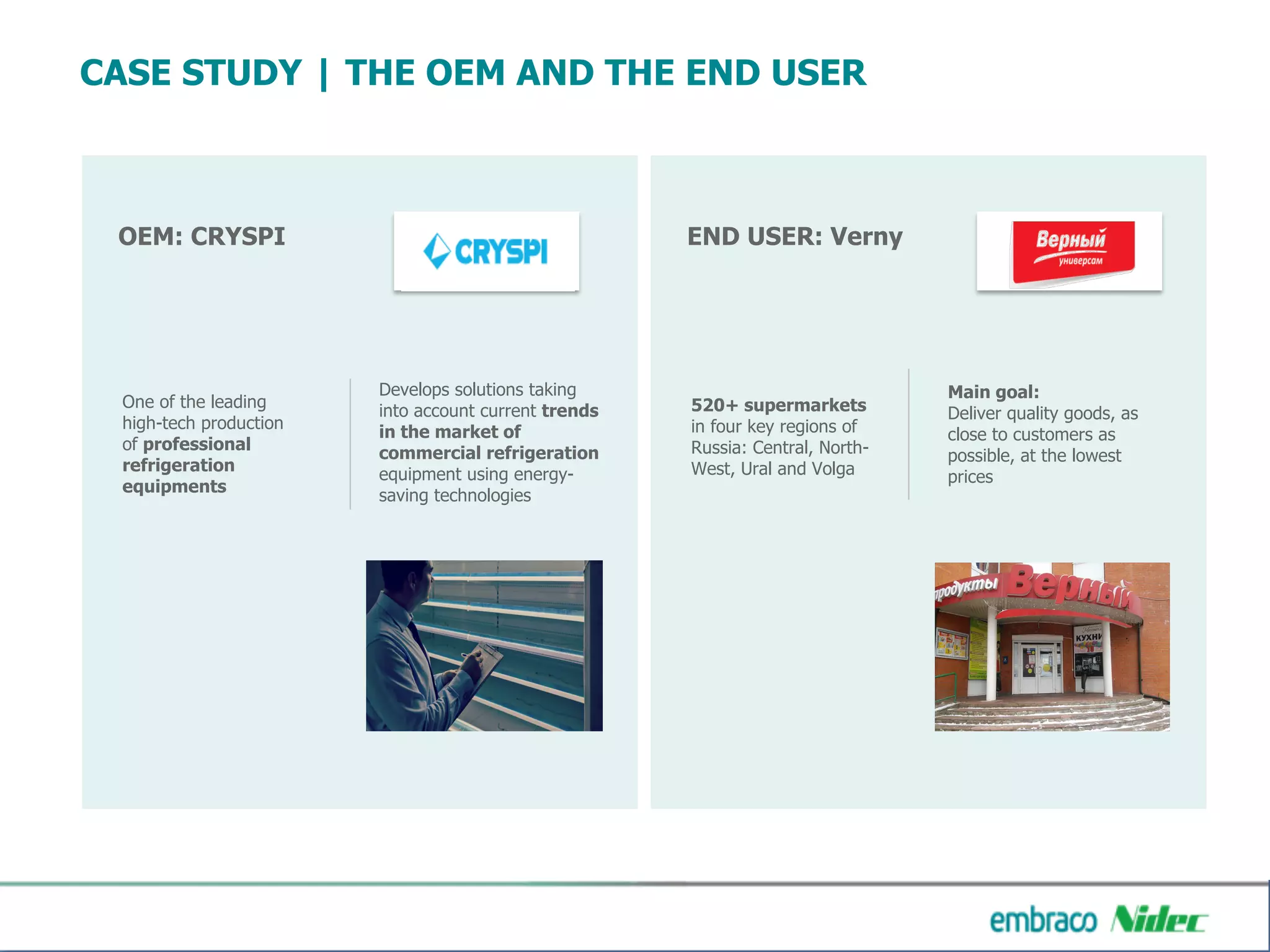

6. CASE STUDY | THE OEM AND THE END USER
END USER: Verny
520+ supermarkets
in four key regions of
Russia: Central, North-
West, Ural and Volga
Main goal:
Deliver quality goods, as
close to customers as
possible, at the lowest
prices
OEM: CRYSPI
One of the leading
high-tech production
of professional
refrigeration
equipments
Develops solutions taking
into account current trends
in the market of
commercial refrigeration
equipment using energy-
saving technologies

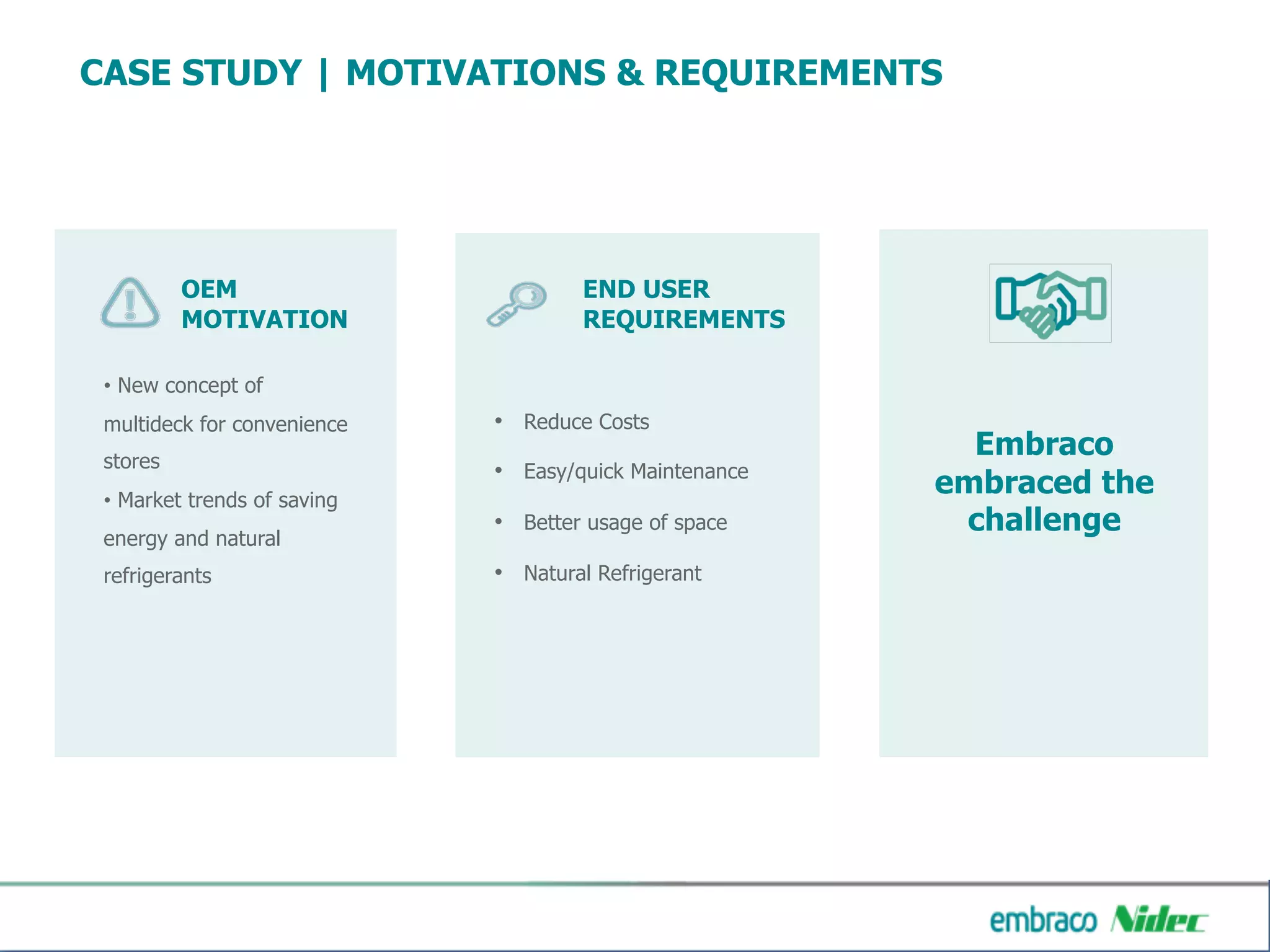

7. END USER
REQUIREMENTS
• Reduce Costs
• Easy/quick Maintenance
• Better usage of space
• Natural Refrigerant
OEM
MOTIVATION
• New concept of
multideck for convenience
stores
• Market trends of saving
energy and natural
refrigerants
Embraco
embraced the
challenge
CASE STUDY | MOTIVATIONS & REQUIREMENTS

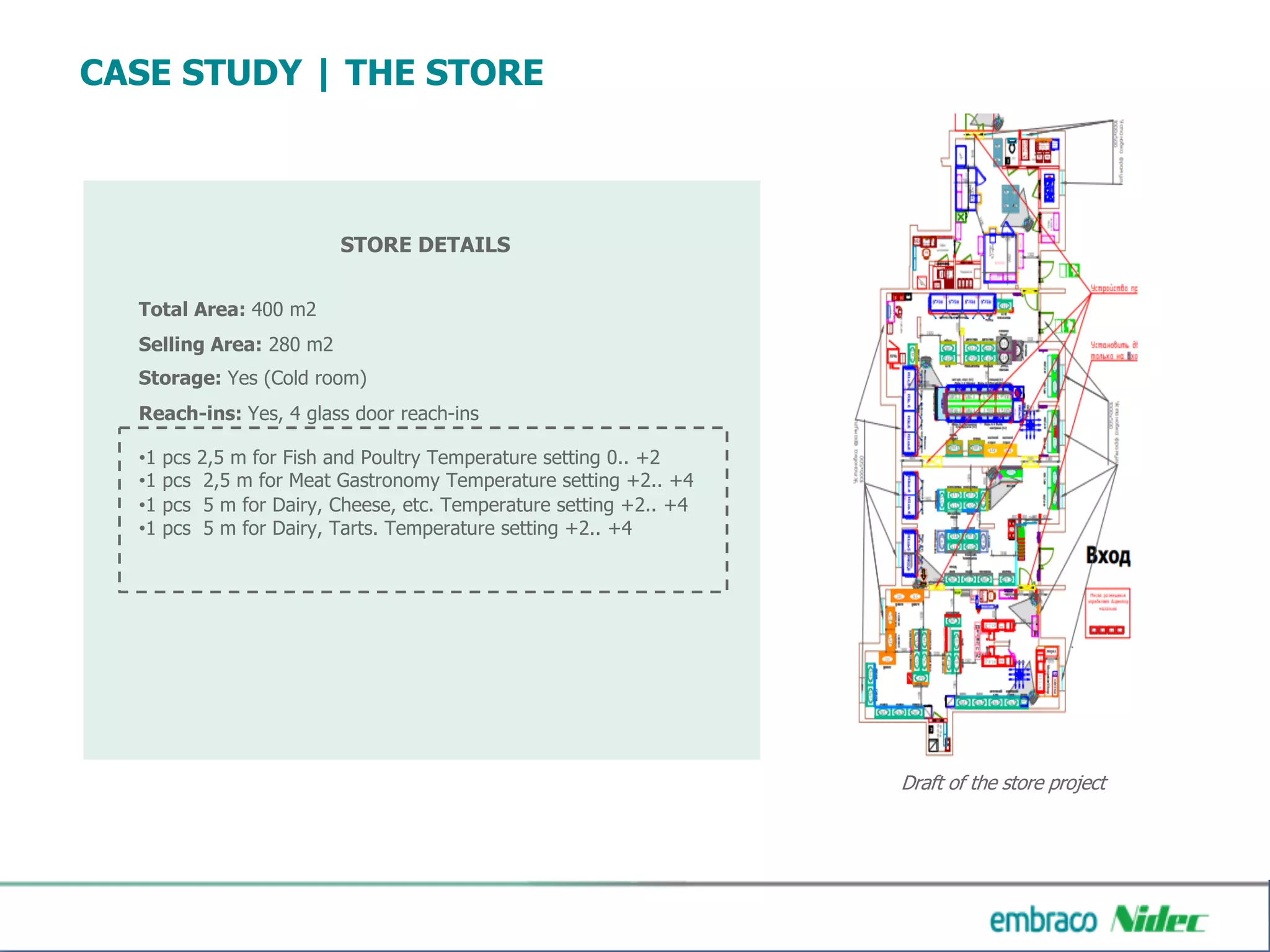

8. STORE DETAILS
CASE STUDY | THE STORE
Total Area: 400 m2
Selling Area: 280 m2
Storage: Yes (Cold room)
Reach-ins: Yes, 4 glass door reach-ins
•1 pcs 2,5 m for Fish and Poultry Temperature setting 0.. +2
•1 pcs 2,5 m for Meat Gastronomy Temperature setting +2.. +4
•1 pcs 5 m for Dairy, Cheese, etc. Temperature setting +2.. +4
•1 pcs 5 m for Dairy, Tarts. Temperature setting +2.. +4
Draft of the store project

9. CASE STUDY | EMBRACO PROPOSAL IN CUSTOMER APPLIANCES
EMBRACO SUGGESTIONS
TO THE MULTIDECK
• Plug and play solution
• Variable speed technology
• Natural refrigerants
For the store, the customer needed
12 units of Plug'n Cool
(1 unit for each 1,25 m segment
with 2 glass doors)

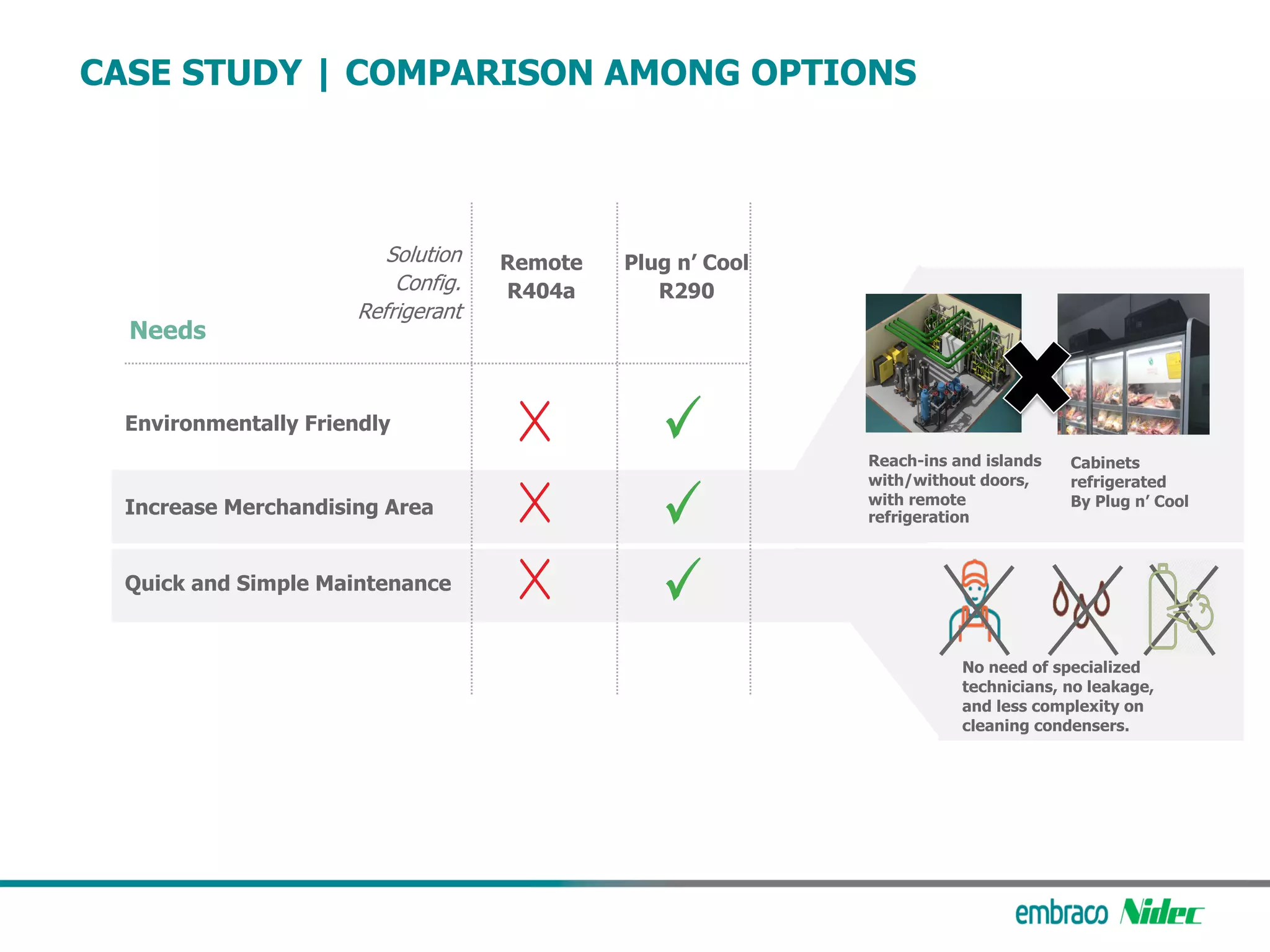

10. Solution
Config.
Refrigerant
Needs
Environmentally Friendly
Plug n’ Cool
R290
Remote
R404a
CASE STUDY | COMPARISON AMONG OPTIONS
Reach-ins and islands
with/without doors,
with remote
refrigeration
Cabinets
refrigerated
By Plug n’ Cool
No need of specialized
technicians, no leakage,
and less complexity on
cleaning condensers.
Increase Merchandising Area
Quick and Simple Maintenance

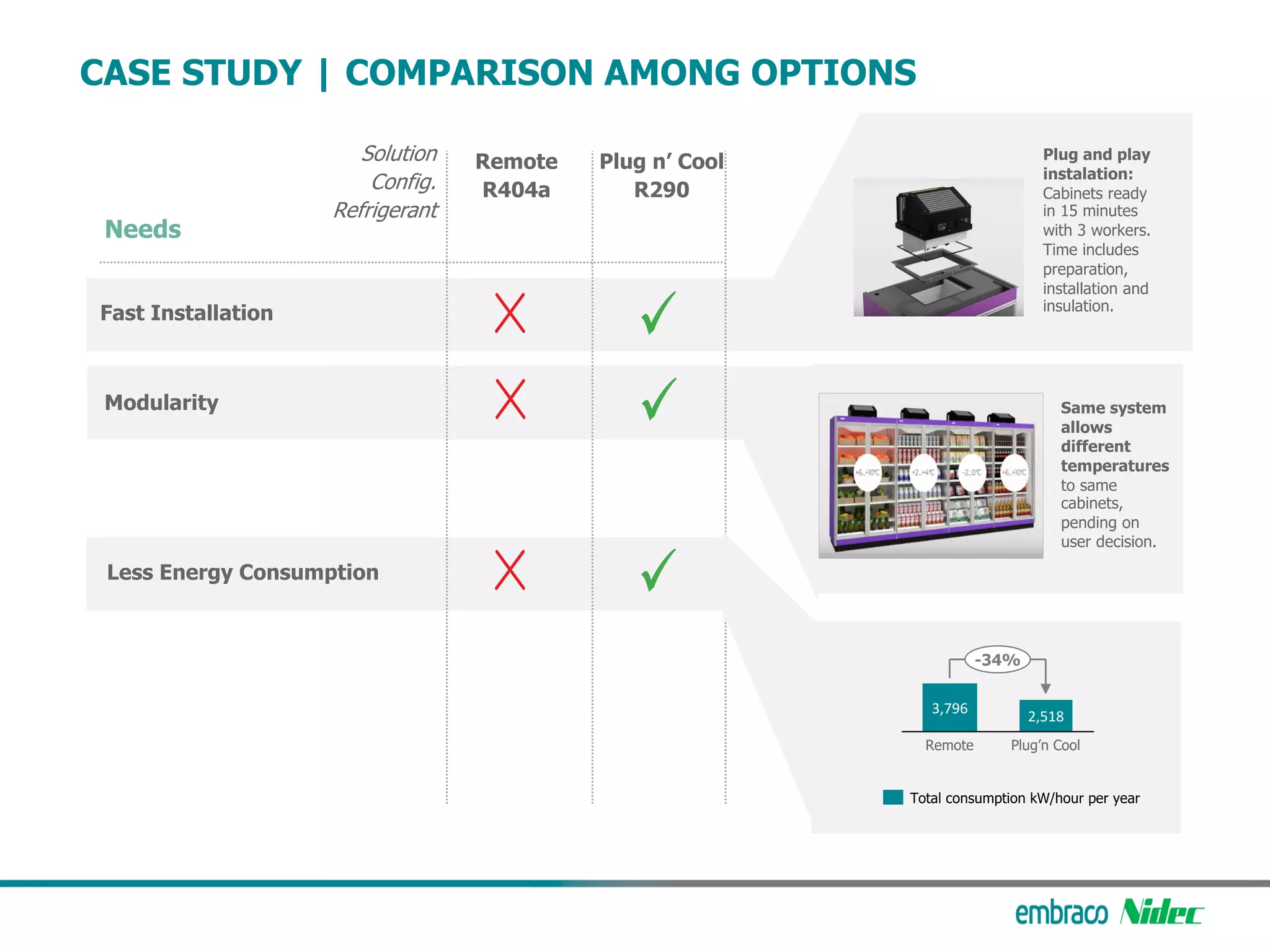

11. Solution
Config.
Refrigerant
Needs
Fast Installation
Plug n’ Cool
R290
Remote
R404a
CASE STUDY | COMPARISON AMONG OPTIONS
Plug and play
instalation:
Cabinets ready
in 15 minutes
with 3 workers.
Time includes
preparation,
installation and
insulation.
Same system
allows
different
temperatures
to same
cabinets,
pending on
user decision.
Modularity
Less Energy Consumption
3,796
2,518
Remote Plug’n Cool
-34%
Total consumption kW/hour per year

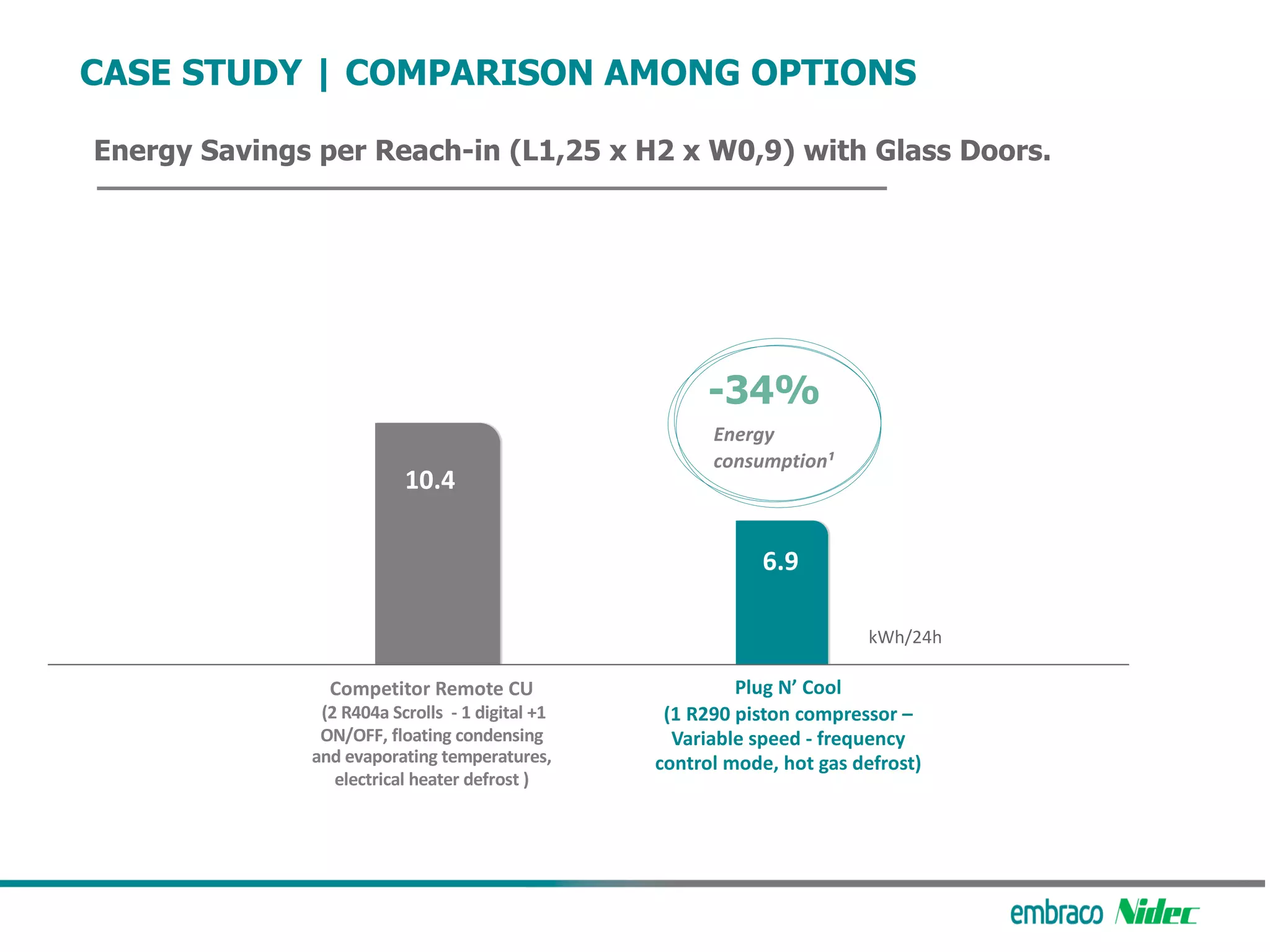

12. Energy Savings per Reach-in (L1,25 x H2 x W0,9) with Glass Doors.
CASE STUDY | COMPARISON AMONG OPTIONS
-34%
Energy
consumption¹
6.9
kWh/24h
Plug N’ Cool
(1 R290 piston compressor –
Variable speed - frequency
control mode, hot gas defrost)
10.4
Competitor Remote CU
(2 R404a Scrolls - 1 digital +1
ON/OFF, floating condensing
and evaporating temperatures,
electrical heater defrost )

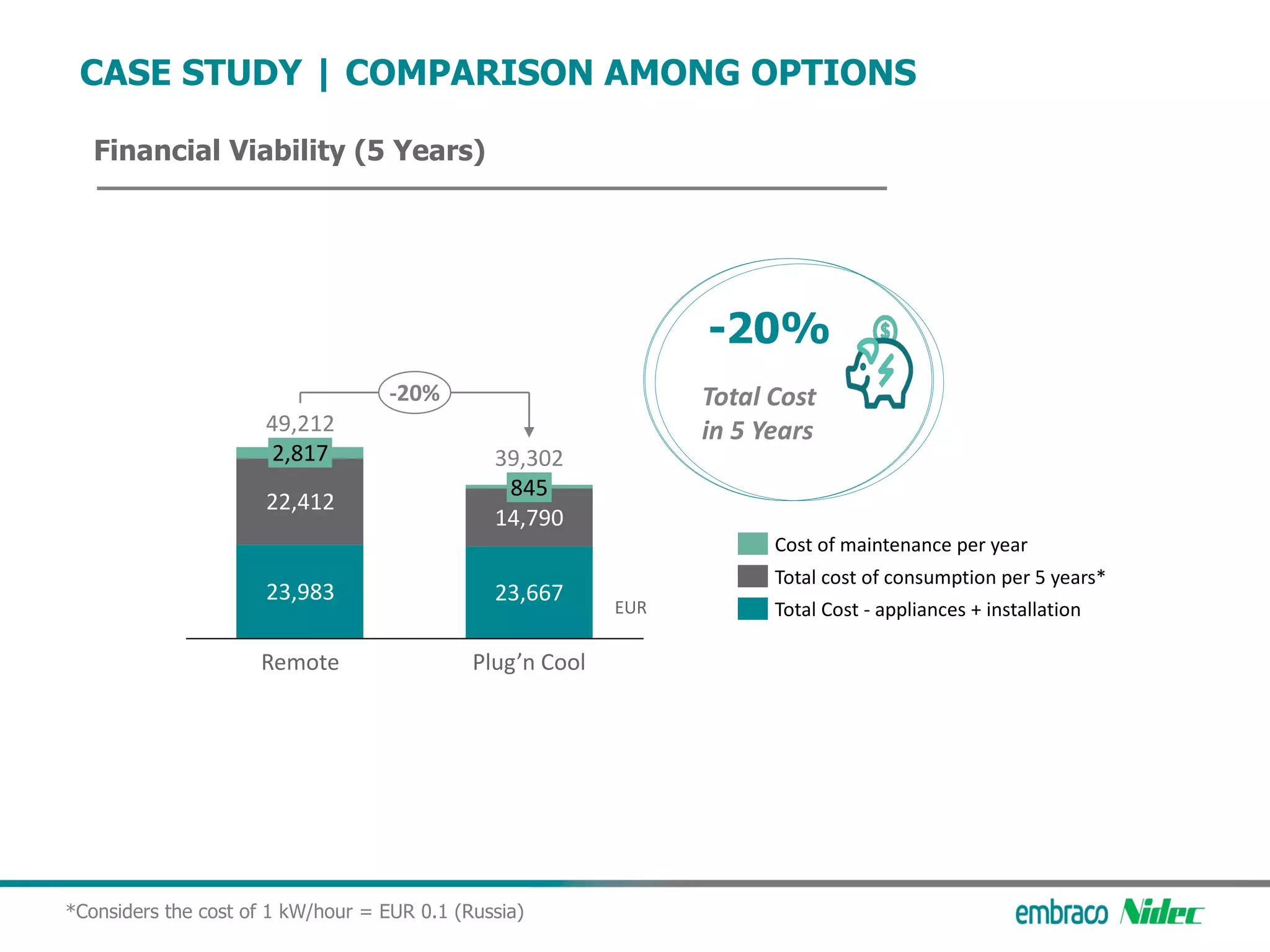

13. Financial Viability (5 Years)
CASE STUDY | COMPARISON AMONG OPTIONS
23,983 23,667
22,412
14,790
2,817
Remote
845
Plug’n Cool
49,212
39,302
-20%
Cost of maintenance per year
Total cost of consumption per 5 years*
Total Cost - appliances + installation
-20%
Total Cost
in 5 Years
*Considers the cost of 1 kW/hour = EUR 0.1 (Russia)
EUR

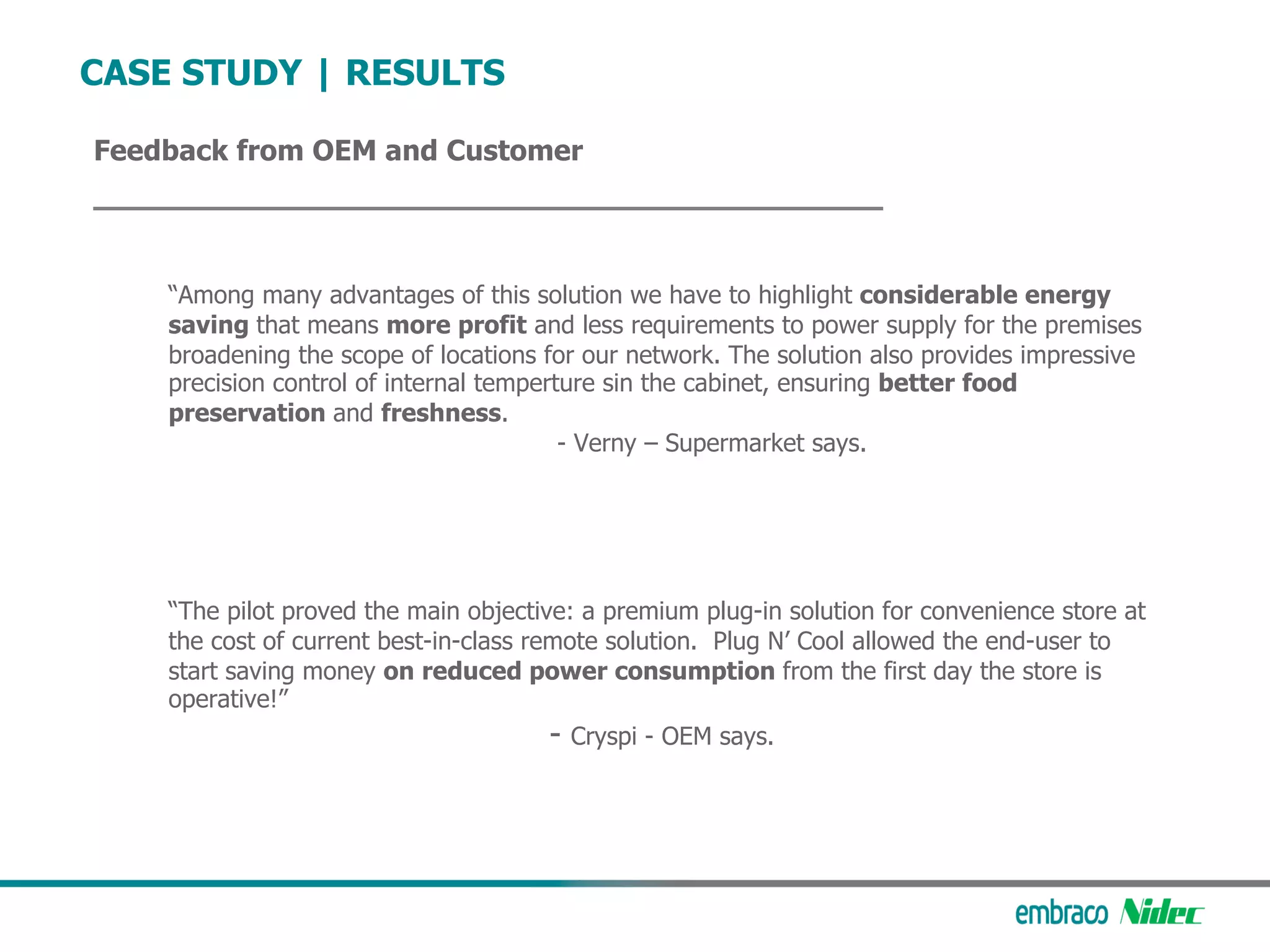

14. Feedback from OEM and Customer
CASE STUDY | RESULTS
“Among many advantages of this solution we have to highlight considerable energy
saving that means more profit and less requirements to power supply for the premises
broadening the scope of locations for our network. The solution also provides impressive
precision control of internal temperture sin the cabinet, ensuring better food
preservation and freshness.
- Verny – Supermarket says.
“The pilot proved the main objective: a premium plug-in solution for convenience store at
the cost of current best-in-class remote solution. Plug N’ Cool allowed the end-user to
start saving money on reduced power consumption from the first day the store is
operative!”
- Cryspi - OEM says.
