The document describes the key components and functions of a cathode ray oscilloscope. It discusses the electron gun, evacuated tube, deflecting system, time base, and trigger circuit. It then outlines several common uses of an oscilloscope, including as a voltmeter, to display waveforms, measure short time intervals, determine frequency, display phase relationships, and compare frequencies.

1. CATHODE RAY
OSCILLOSCOPE

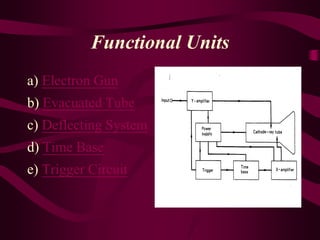

2. Functional Units
a) Electron Gun
b) Evacuated Tube
c) Deflecting System
d) Time Base
e) Trigger Circuit

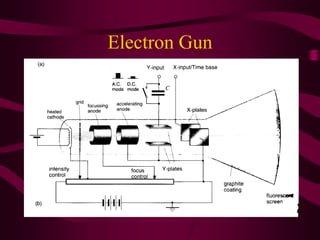

3. Electron Gun

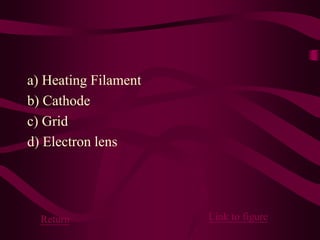

4. a) Heating Filament
b) Cathode
c) Grid
d) Electron lens
Link to figureReturn

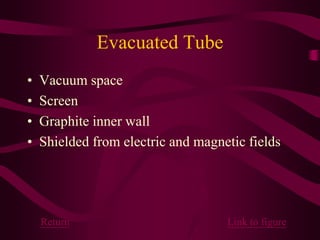

5. Evacuated Tube
• Vacuum space
• Screen
• Graphite inner wall
• Shielded from electric and magnetic fields
Return Link to figure

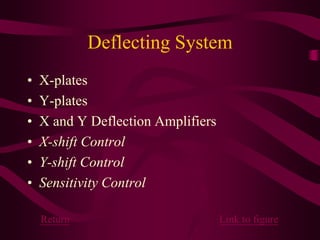

6. Deflecting System
• X-plates
• Y-plates
• X and Y Deflection Amplifiers
• X-shift Control
• Y-shift Control
• Sensitivity Control
Return Link to figure

7. Time Base
• Sawtooth potential difference
• Time period control
Return Link to figure

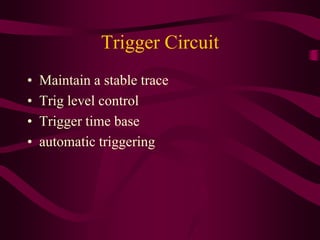

8. Trigger Circuit
• Maintain a stable trace
• Trig level control
• Trigger time base
• automatic triggering

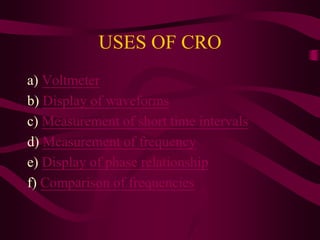

9. USES OF CRO
a) Voltmeter
b) Display of waveforms
c) Measurement of short time intervals
d) Measurement of frequency
e) Display of phase relationship
f) Comparison of frequencies

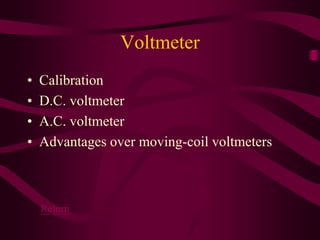

10. Voltmeter
• Calibration
• D.C. voltmeter
• A.C. voltmeter
• Advantages over moving-coil voltmeters
Return

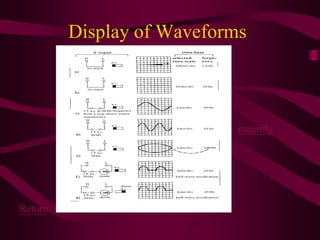

11. Display of Waveforms
Return
magnify

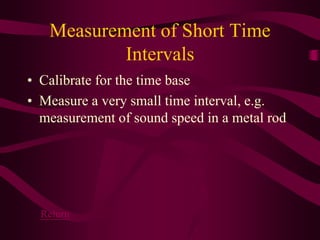

12. Measurement of Short Time
Intervals
• Calibrate for the time base
• Measure a very small time interval, e.g.
measurement of sound speed in a metal rod
Return

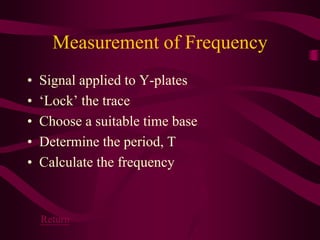

13. Measurement of Frequency
• Signal applied to Y-plates
• ‘Lock’ the trace
• Choose a suitable time base
• Determine the period, T
• Calculate the frequency
Return

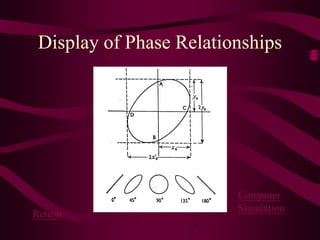

14. Display of Phase Relationships
Return
Computer
Simulation

15. Comparison of Frequencies
• Lissajous’ figures
• Frequency ratio
