1. 21 September 2000
IMA 1st Conference in Fractal
Geometry
1
Computational Analysis of Nonlinear
Dynamical Systems
M.G.Goman
Institute of Mathematical and Simulation Scineces
De Montfort University, UK

2. 21 September 2000
IMA 1st Conference in Fractal
Geometry
2

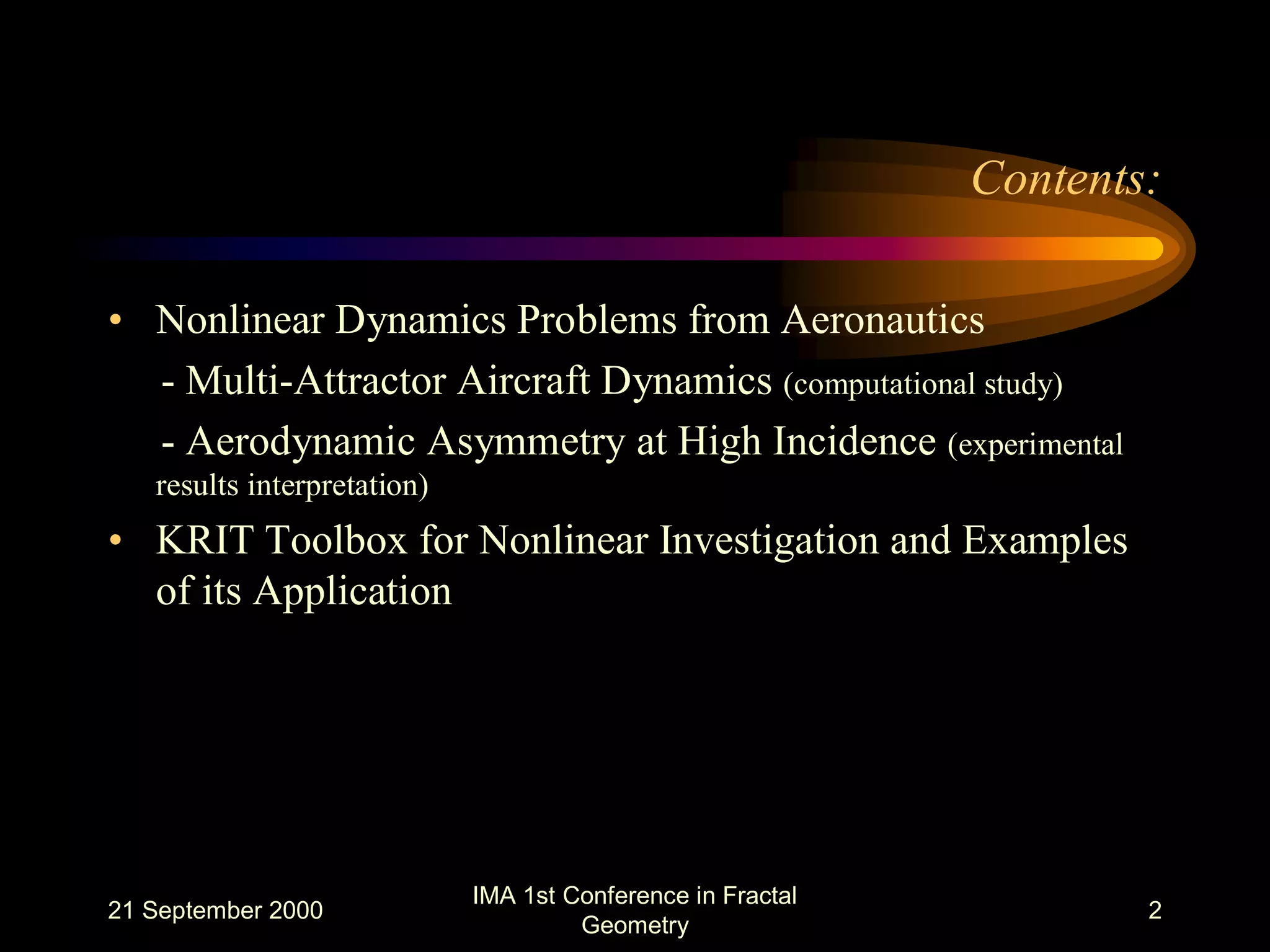

Contents:
• Nonlinear Dynamics Problems from Aeronautics
- Multi-Attractor Aircraft Dynamics (computational study)
- Aerodynamic Asymmetry at High Incidence (experimental
results interpretation)
• KRIT Toolbox for Nonlinear Investigation and Examples
of its Application

3. 21 September 2000
IMA 1st Conference in Fractal
Geometry
3

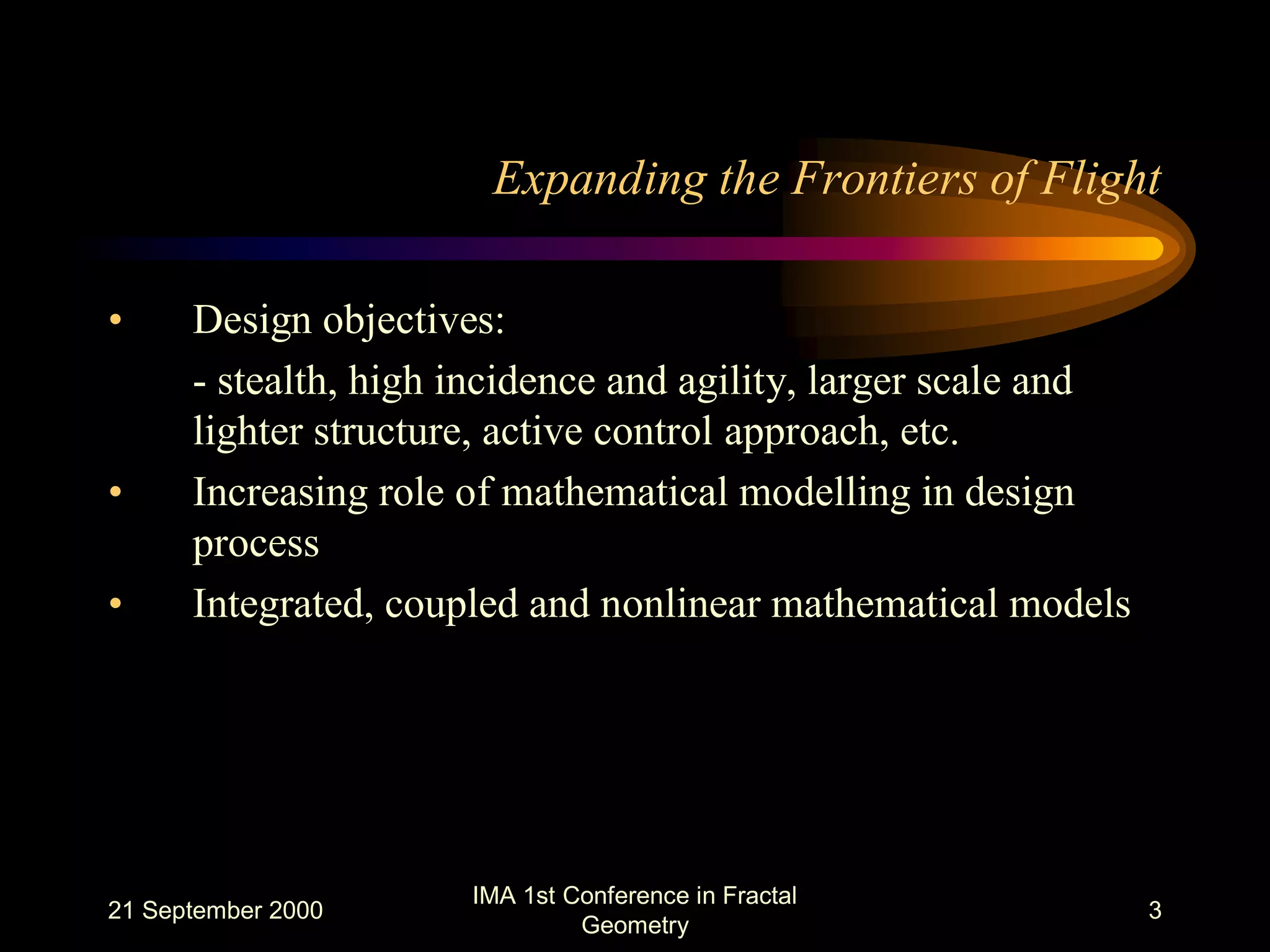

Expanding the Frontiers of Flight
• Design objectives:
- stealth, high incidence and agility, larger scale and
lighter structure, active control approach, etc.
• Increasing role of mathematical modelling in design
process
• Integrated, coupled and nonlinear mathematical models

4. 21 September 2000
IMA 1st Conference in Fractal
Geometry
4

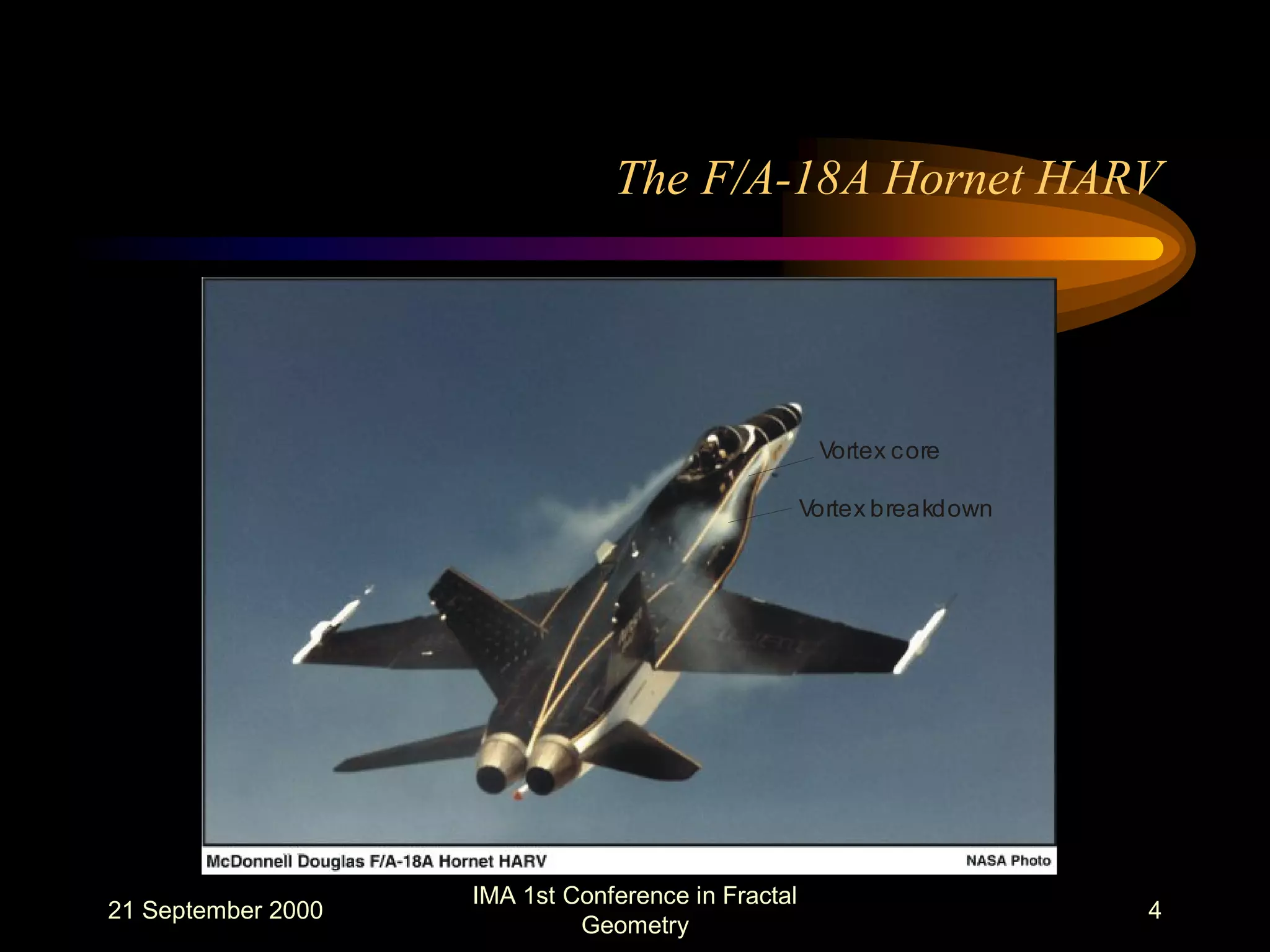

The F/A-18A Hornet HARV
Vortex core
Vortex breakdown

5. 21 September 2000
IMA 1st Conference in Fractal
Geometry
5

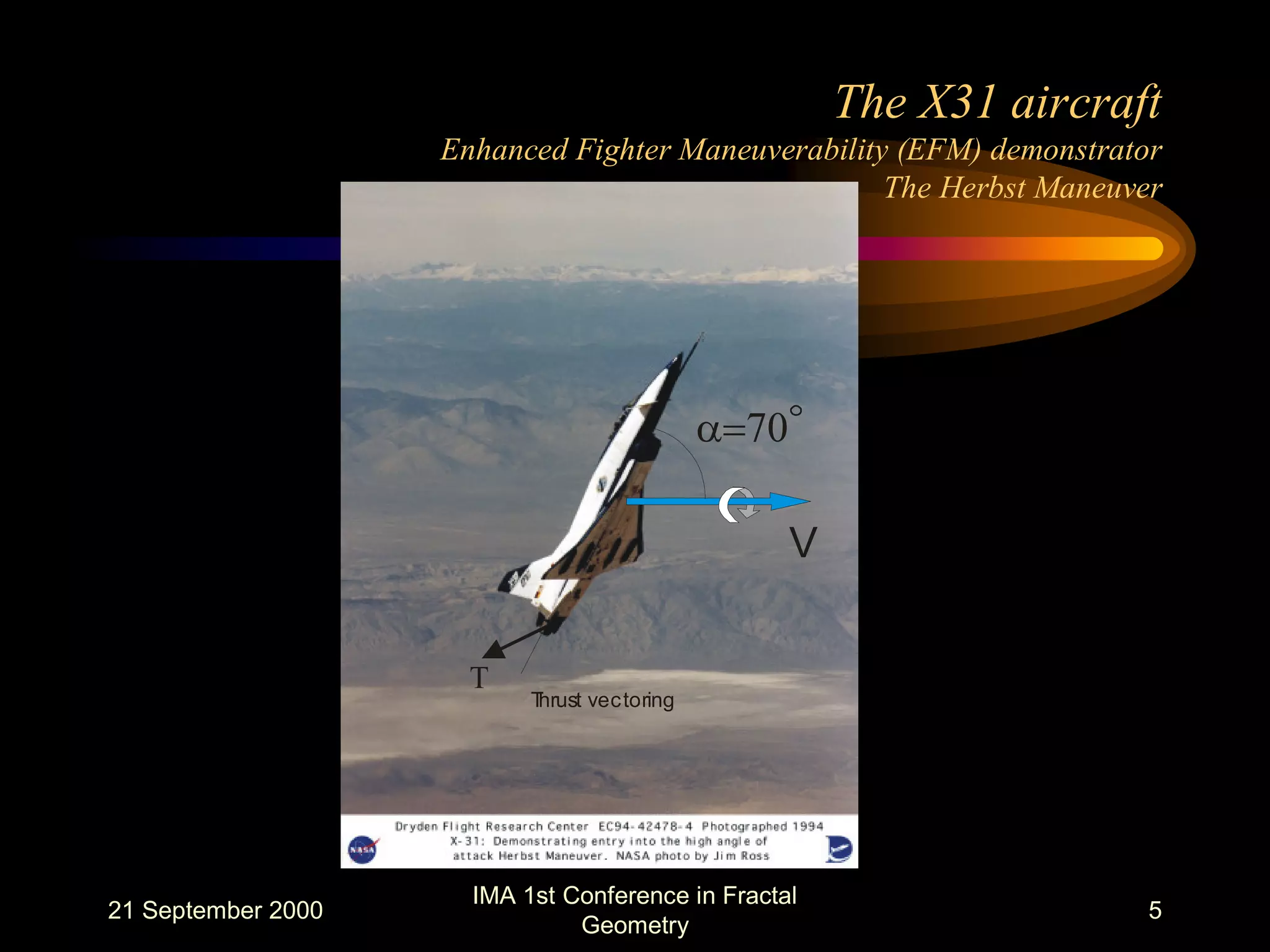

The X31 aircraft
Enhanced Fighter Maneuverability (EFM) demonstrator
The Herbst Maneuver
V
a=70
T
Thrust vectoring

6. 21 September 2000
IMA 1st Conference in Fractal
Geometry
6

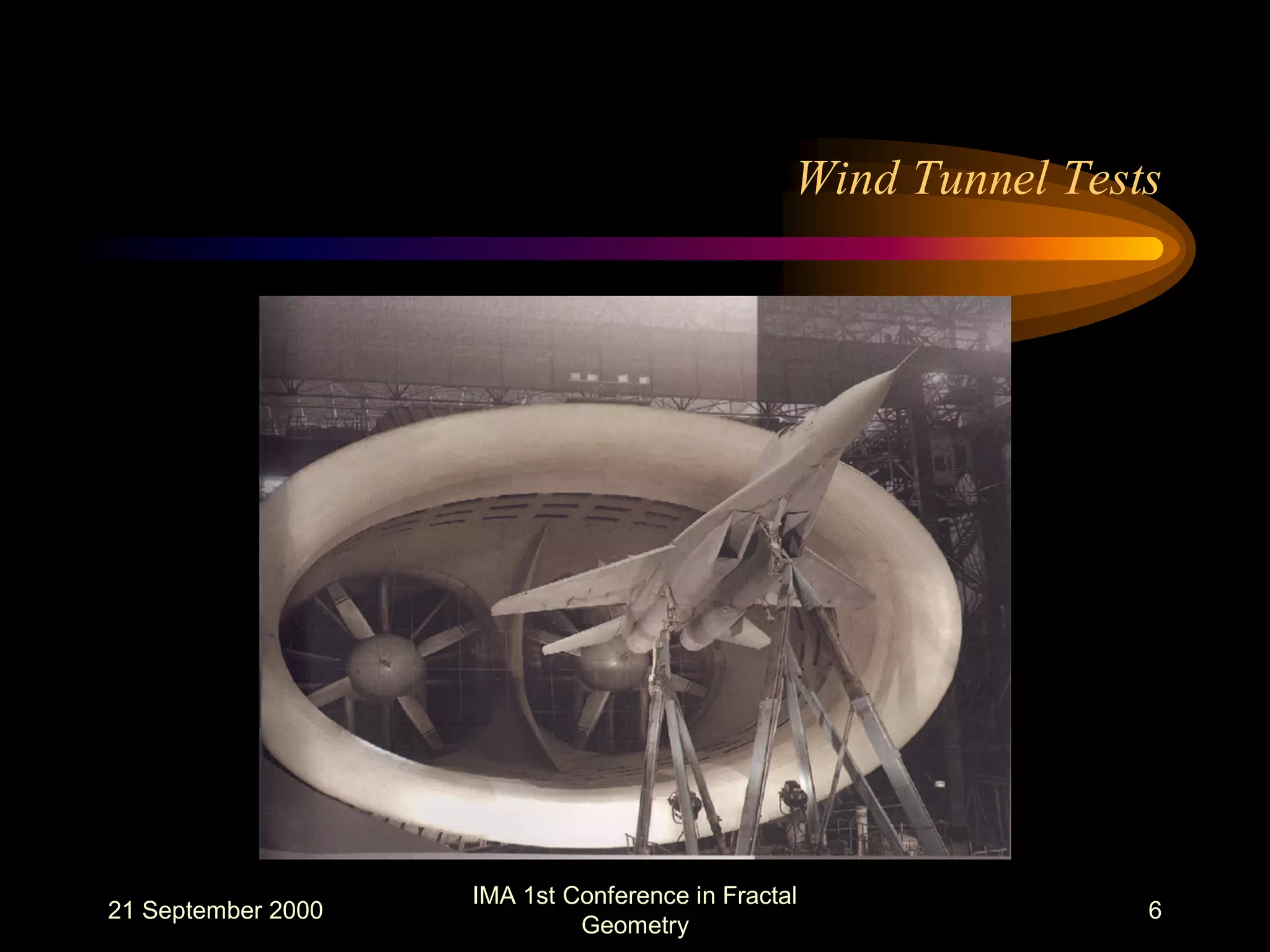

Wind Tunnel Tests

7. 21 September 2000
IMA 1st Conference in Fractal
Geometry
7

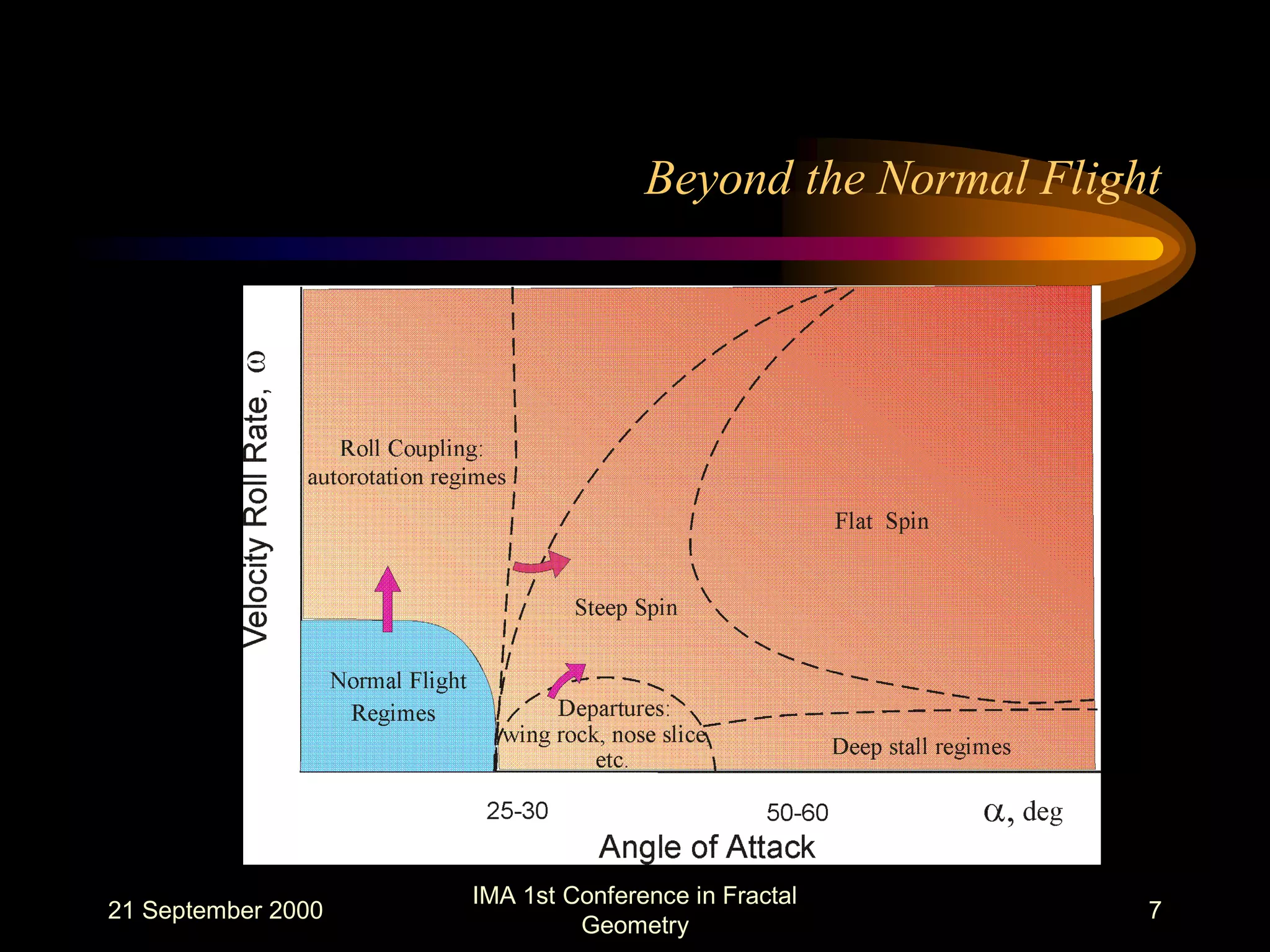

Beyond the Normal Flight

8. 21 September 2000
IMA 1st Conference in Fractal
Geometry
8

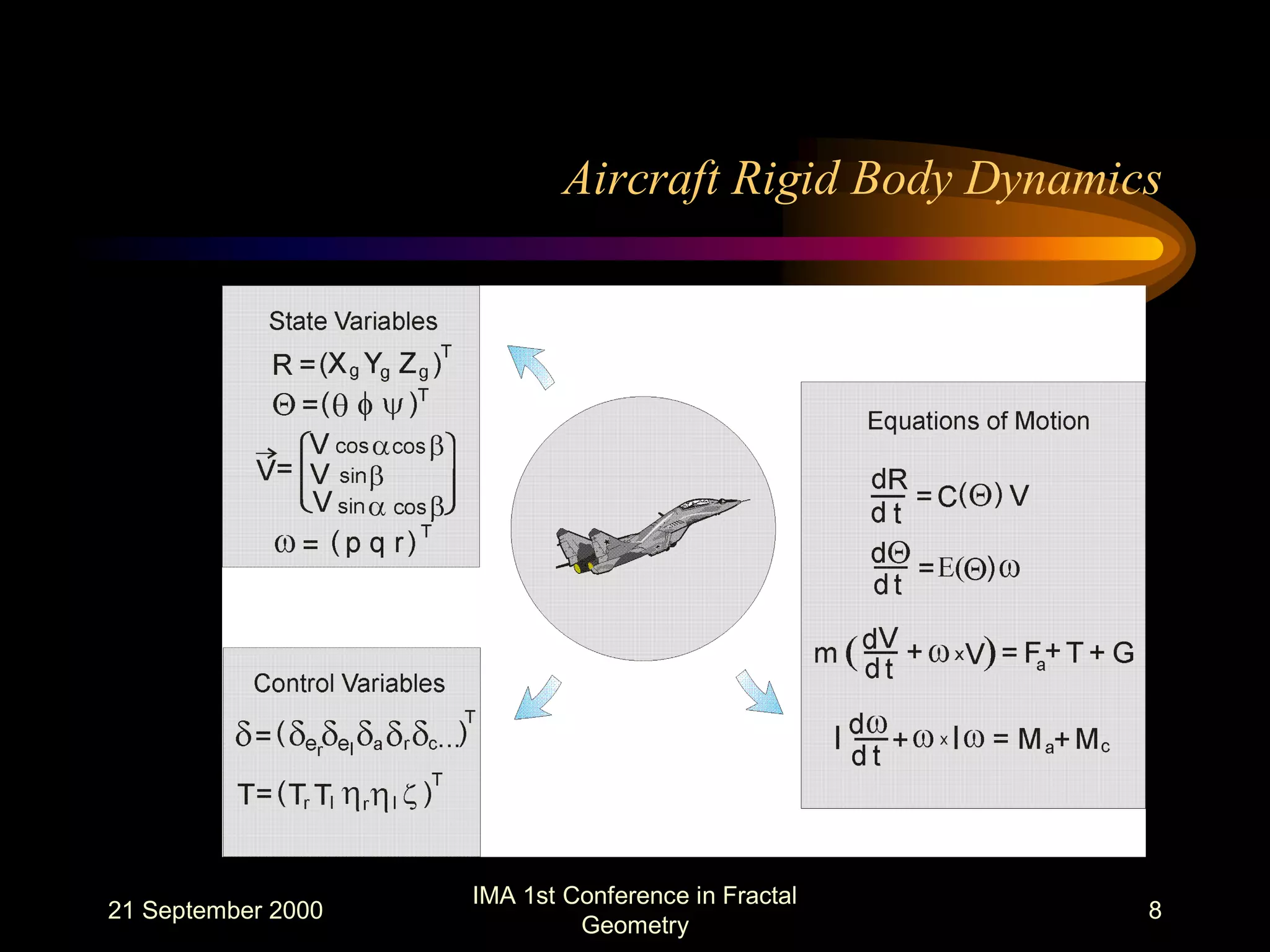

Aircraft Rigid Body Dynamics

9. 21 September 2000
IMA 1st Conference in Fractal
Geometry
9

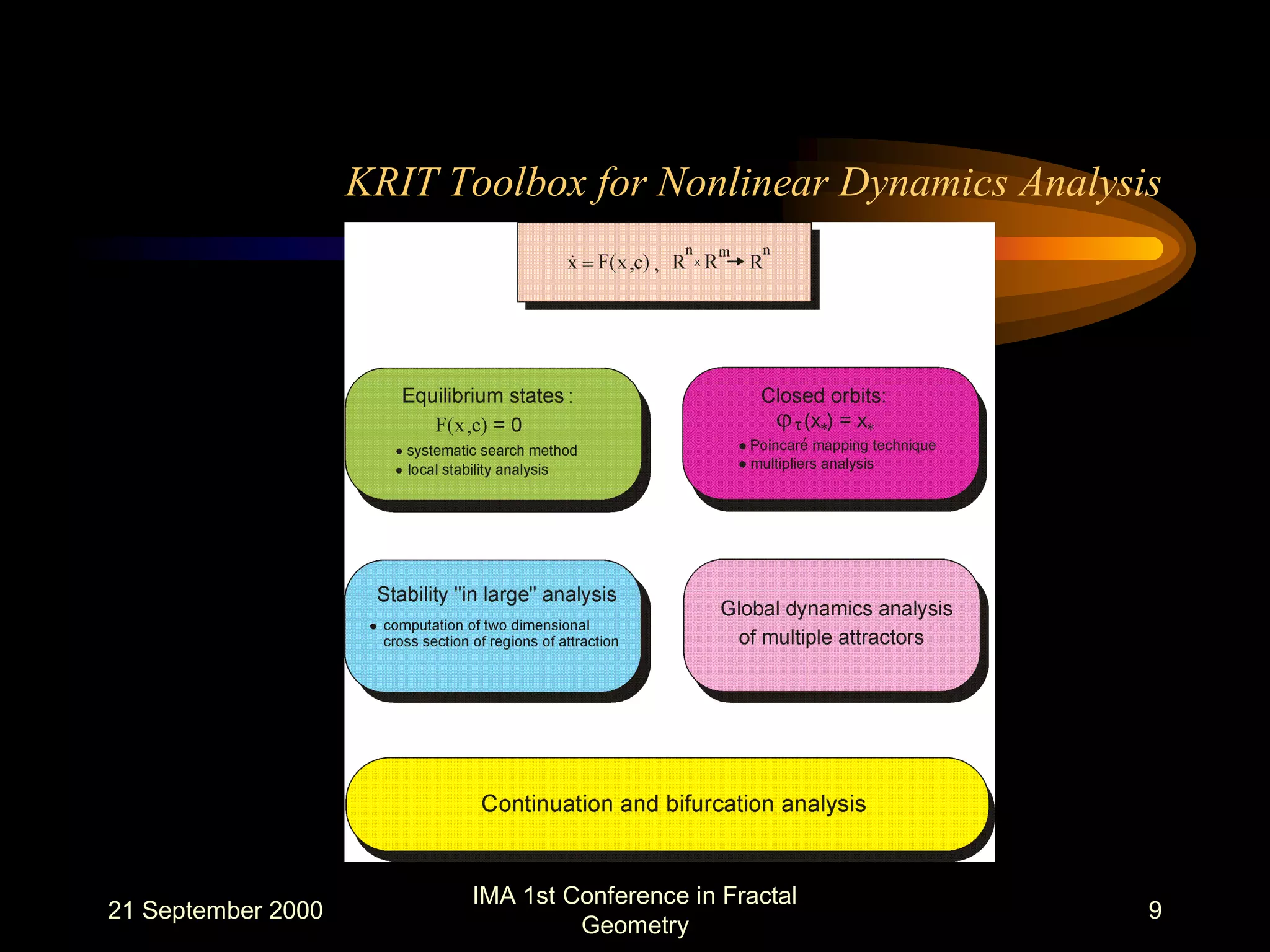

KRIT Toolbox for Nonlinear Dynamics Analysis

10. 21 September 2000
IMA 1st Conference in Fractal
Geometry
10

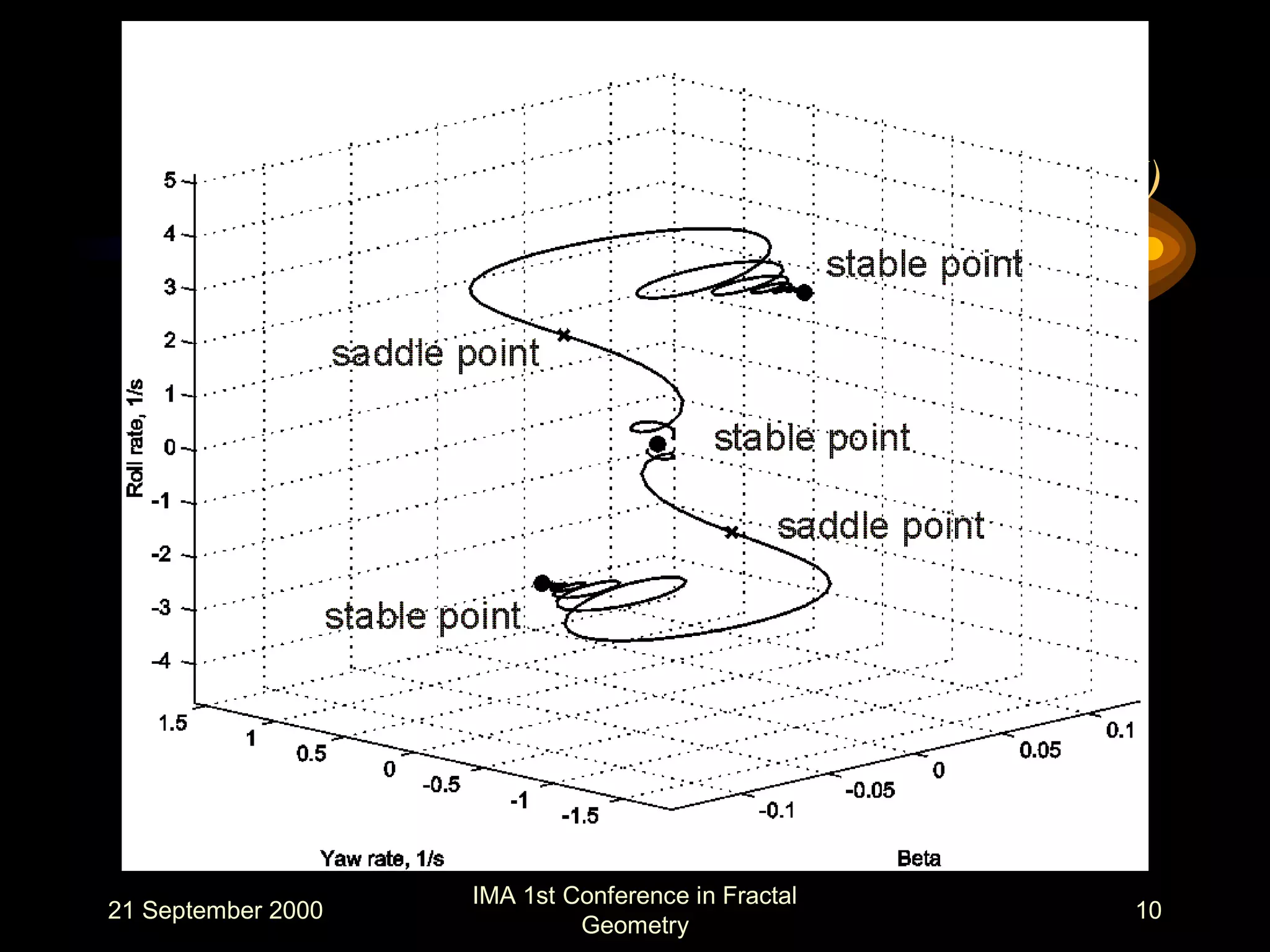

Multi-Attractor Dynamics Investigation (I)

11. 21 September 2000
IMA 1st Conference in Fractal
Geometry
11

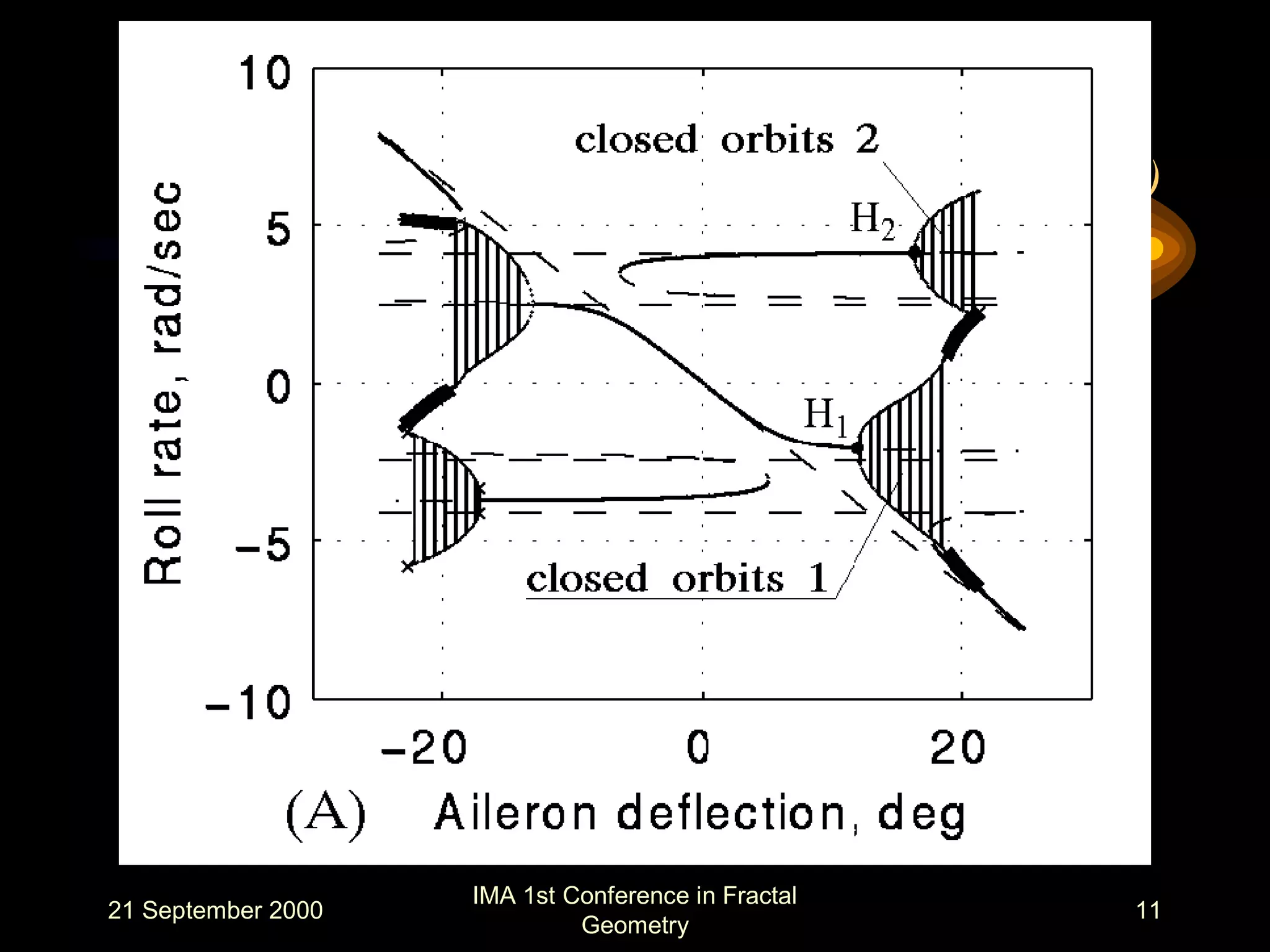

Multi-Attractor Dynamics Investigation (II)

12. 21 September 2000
IMA 1st Conference in Fractal
Geometry

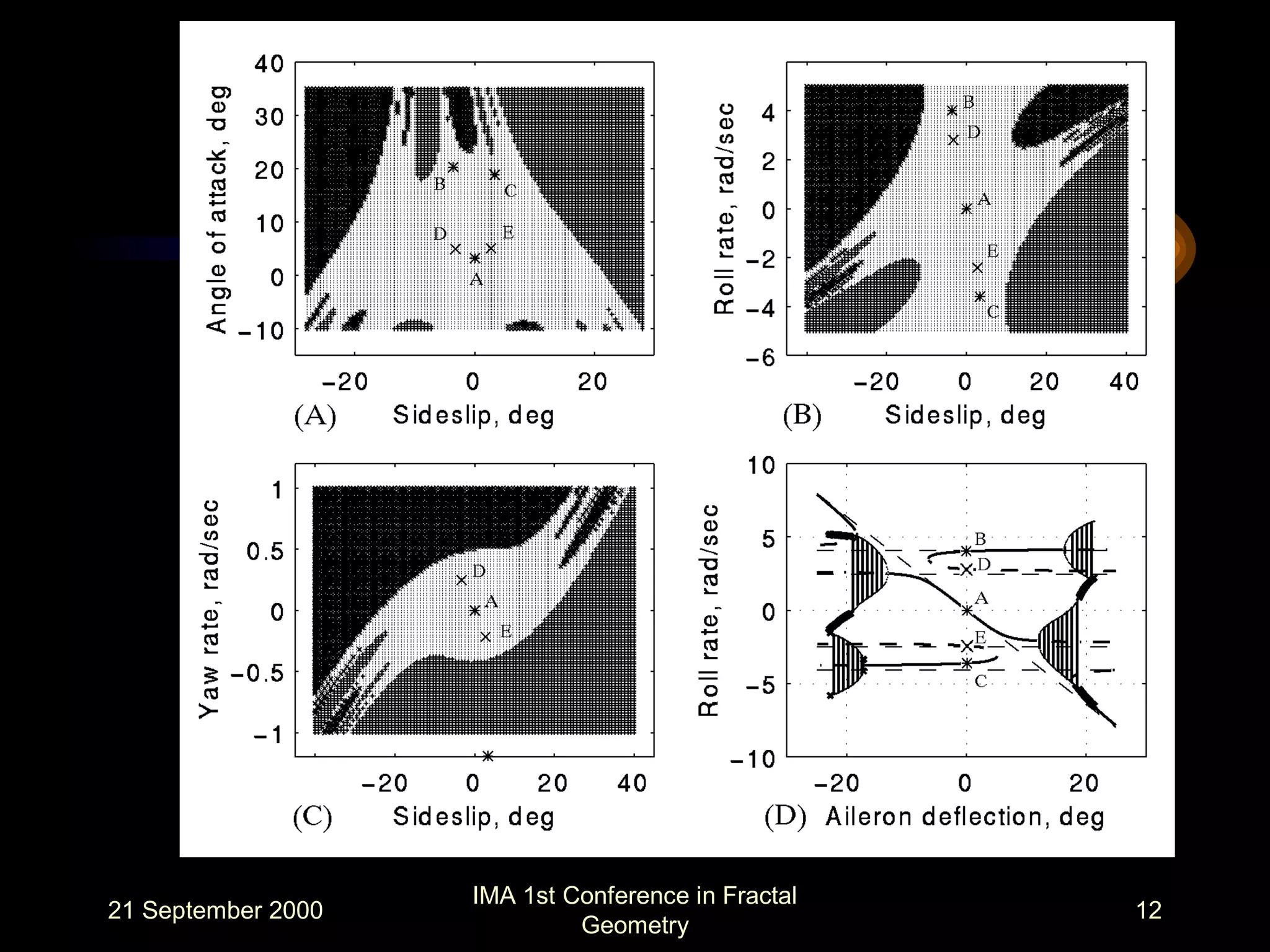

12

13. 21 September 2000
IMA 1st Conference in Fractal
Geometry

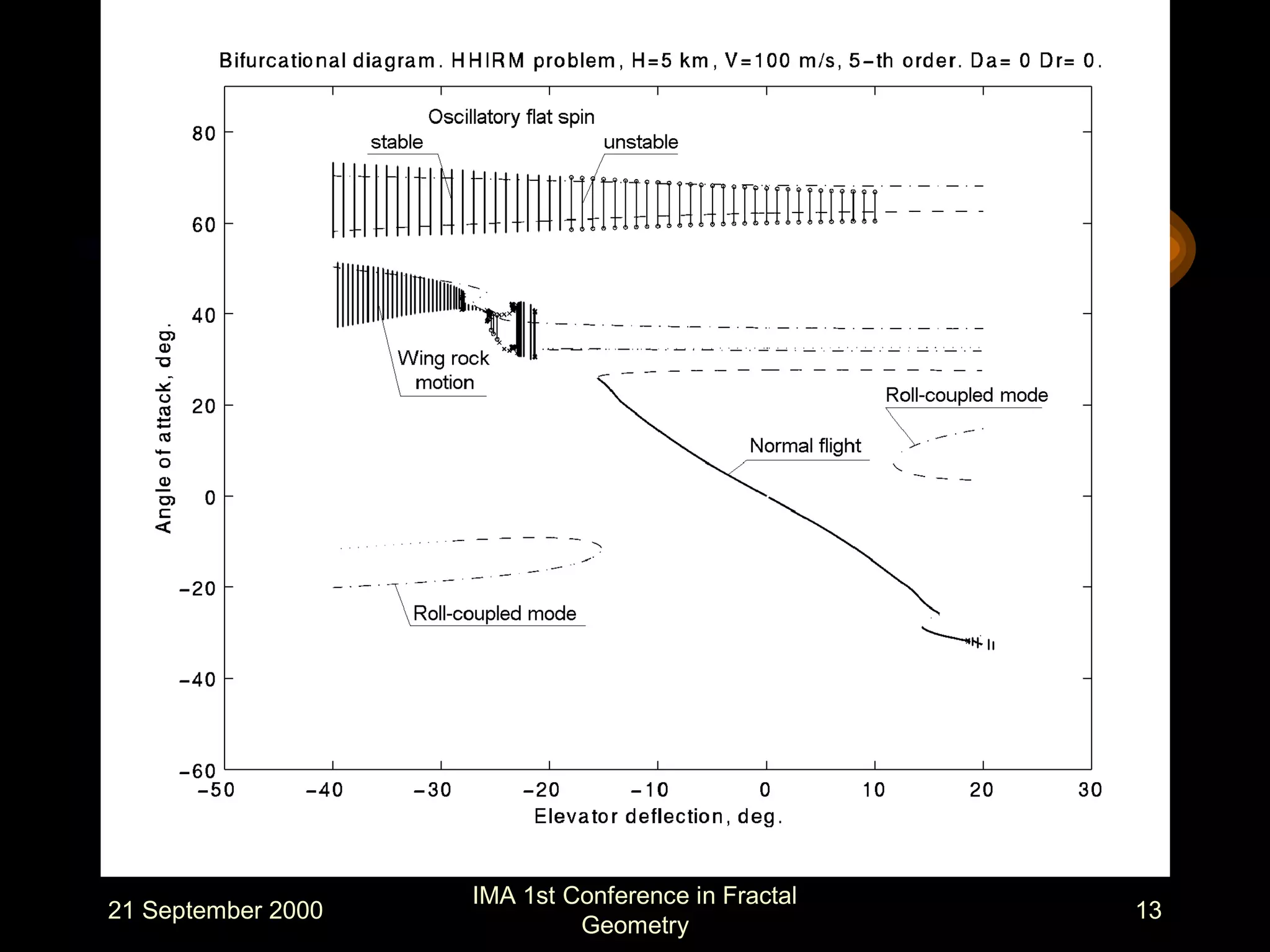

13

14. 21 September 2000
IMA 1st Conference in Fractal
Geometry
14

15. 21 September 2000
IMA 1st Conference in Fractal
Geometry

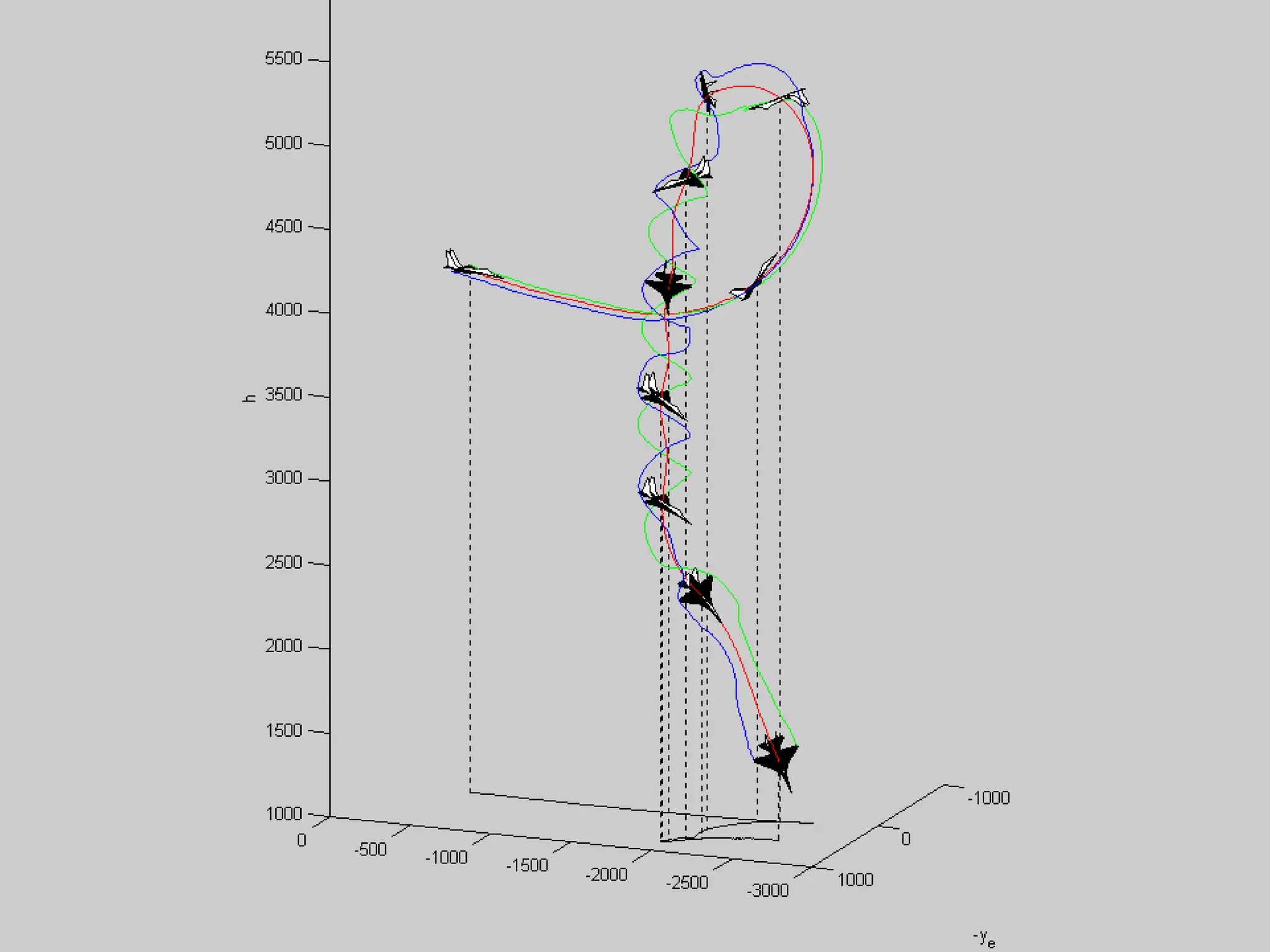

15

16. 21 September 2000
IMA 1st Conference in Fractal
Geometry
16

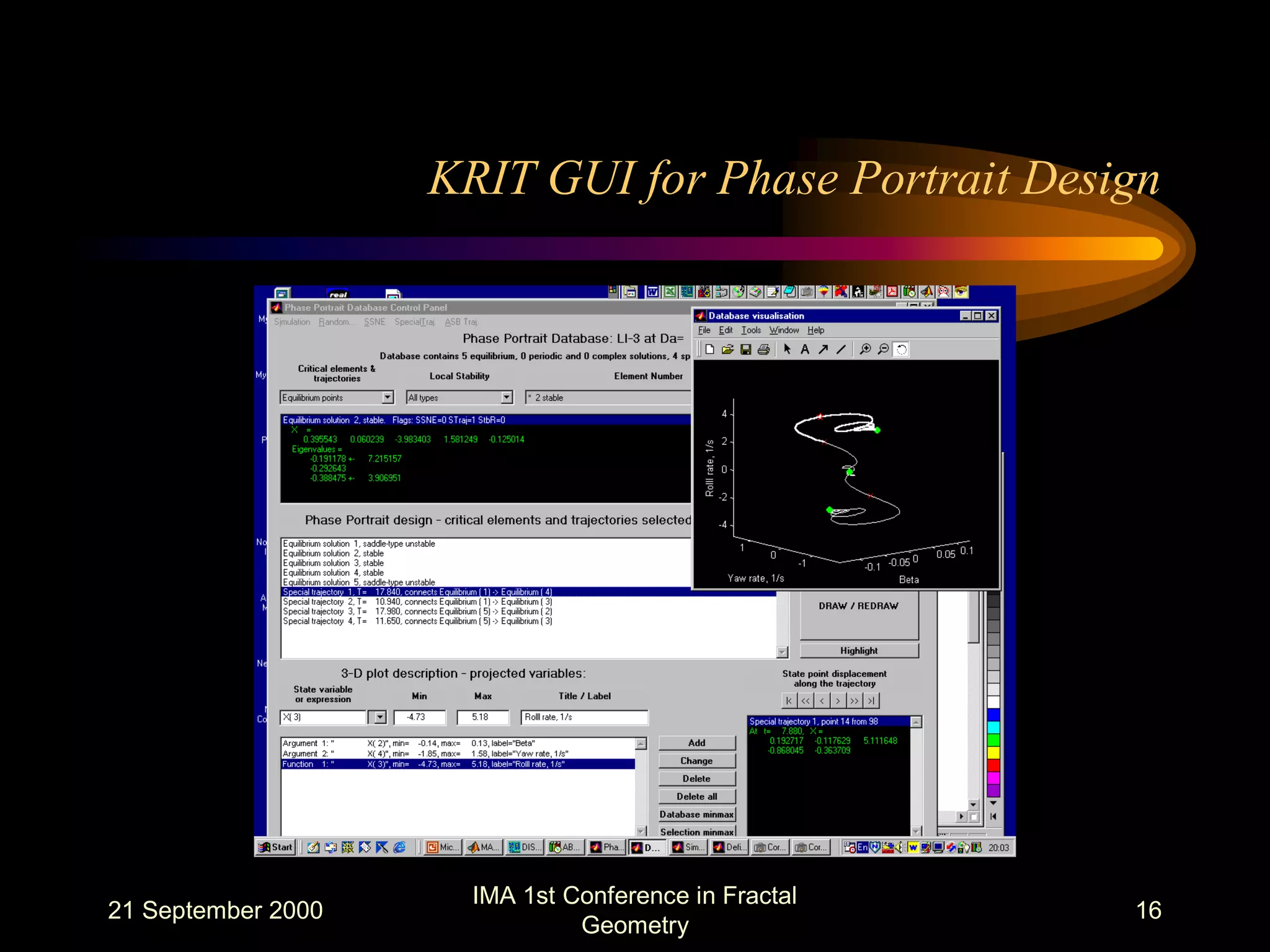

KRIT GUI for Phase Portrait Design

17. 21 September 2000
IMA 1st Conference in Fractal
Geometry
17

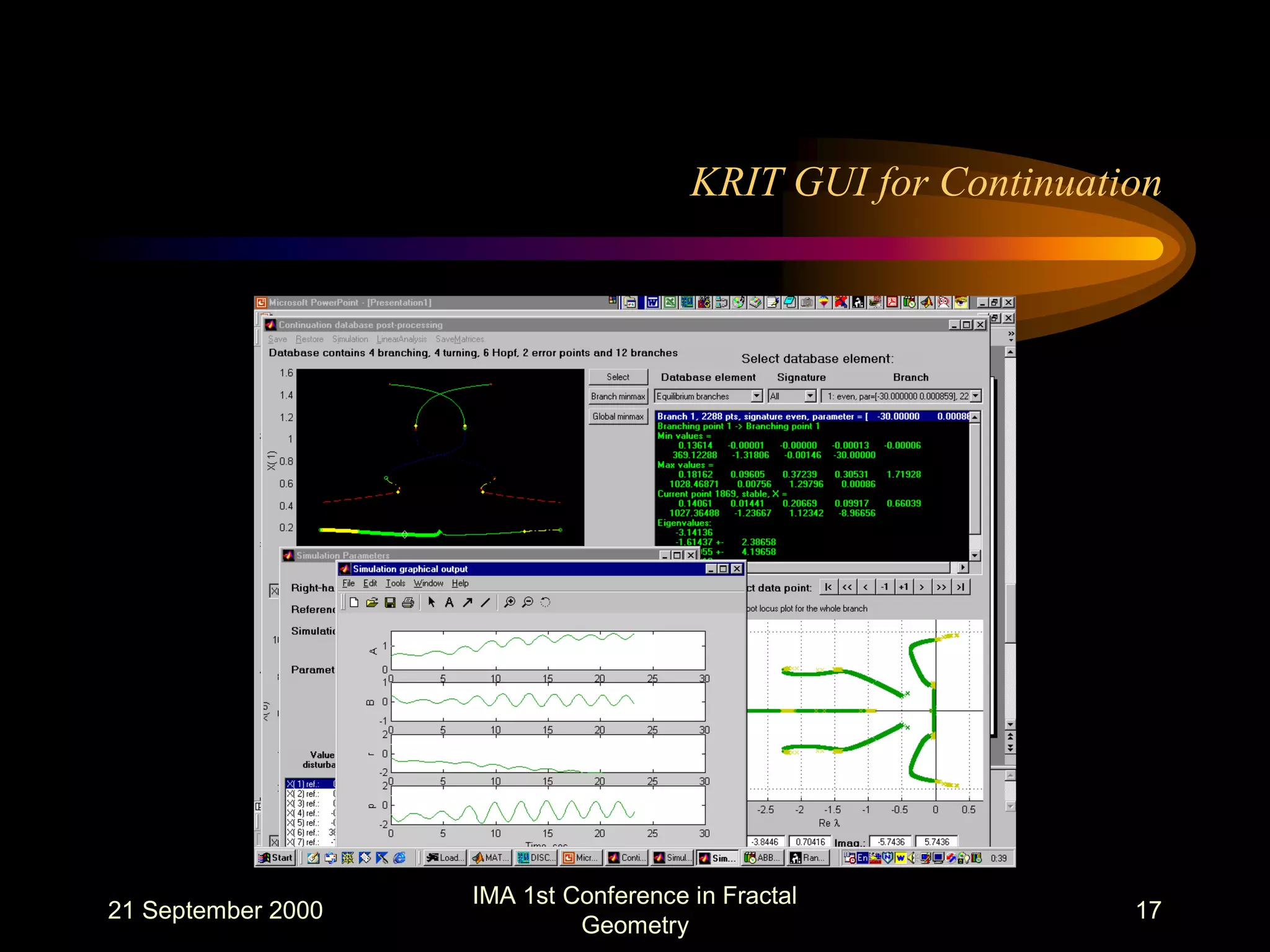

KRIT GUI for Continuation

18. 21 September 2000
IMA 1st Conference in Fractal
Geometry
18

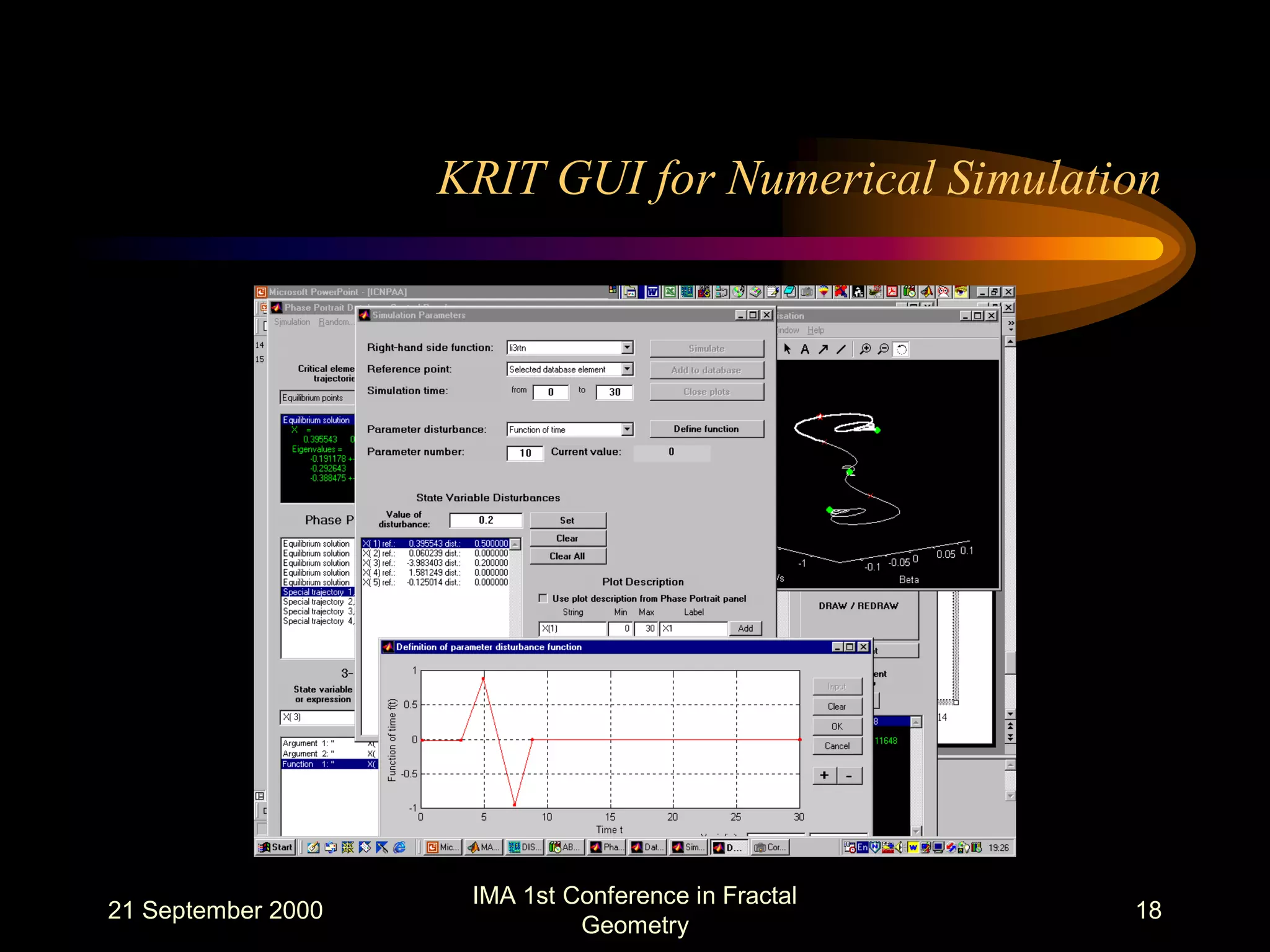

KRIT GUI for Numerical Simulation

19. 21 September 2000
IMA 1st Conference in Fractal
Geometry
19

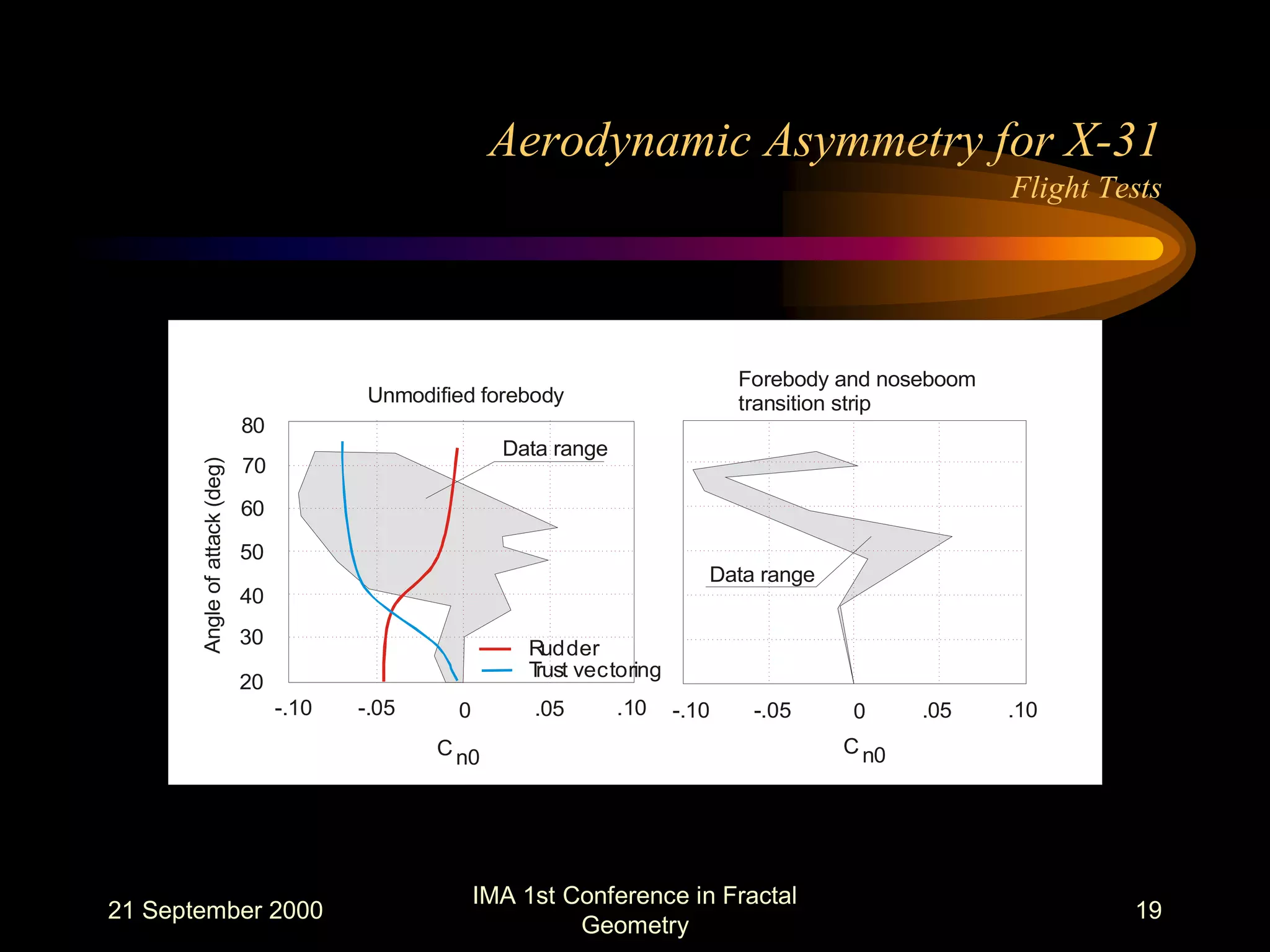

Aerodynamic Asymmetry for X-31
Flight Tests
Data range
Unmodified forebody
Forebody and noseboom
transition strip
Data range
-.10 -.05 0 .05 .10 -.10 -.05 0 .05 .10
20
30
40
50
60
70
80
Angleofattack(deg)
C C
n0 n0
Trust vectoring
Rudder

20. 21 September 2000
IMA 1st Conference in Fractal
Geometry
20
Delay in Asymmetry Onset
Wind Tunnel Experiment

21. 21 September 2000
IMA 1st Conference in Fractal
Geometry
21

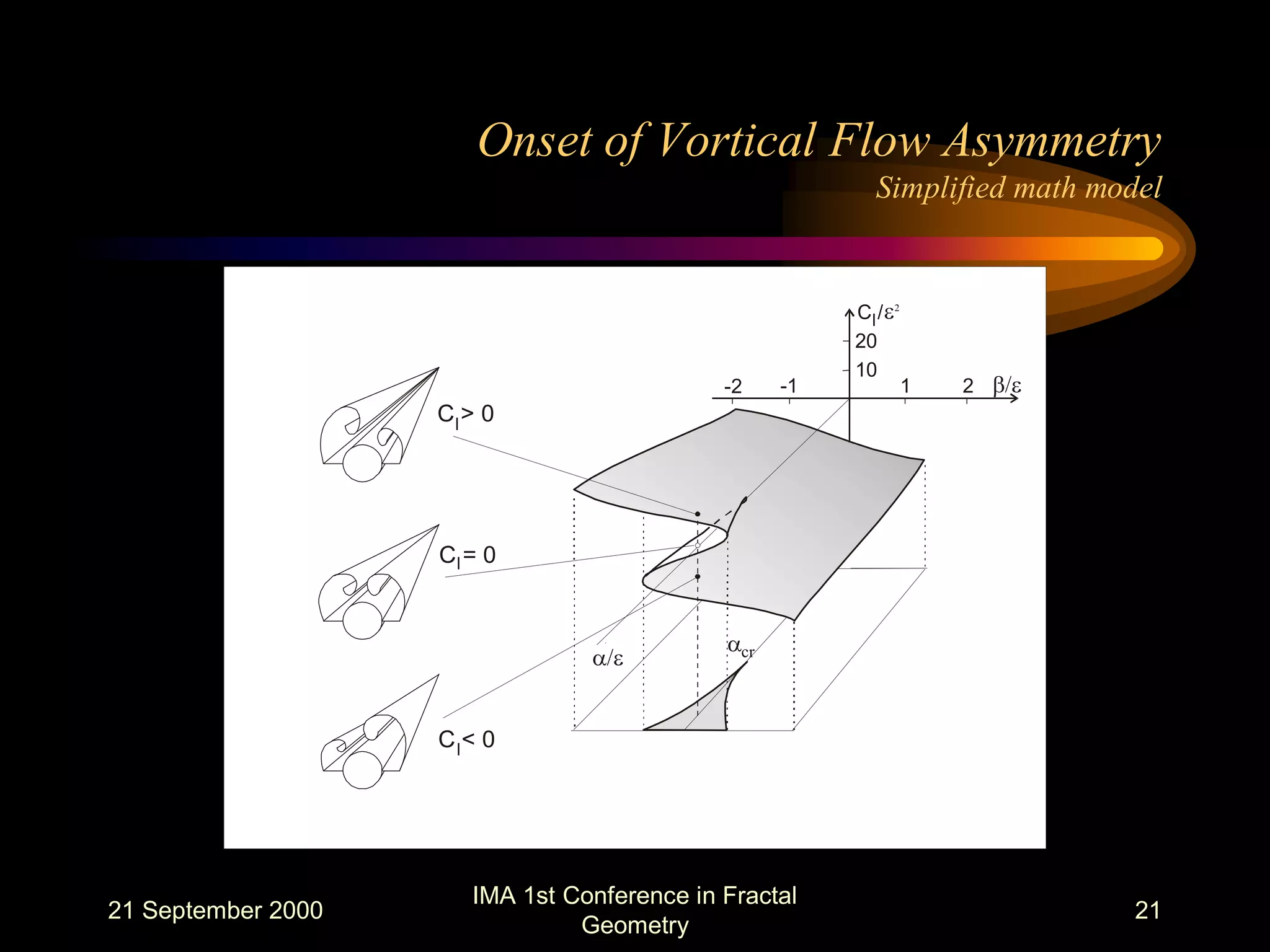

Onset of Vortical Flow Asymmetry
Simplified math model
10
20
1 2-1-2
C /l e
b/e
2
a/e
acr
C > 0l
C = 0l
C < 0l

22. 21 September 2000
IMA 1st Conference in Fractal
Geometry
22

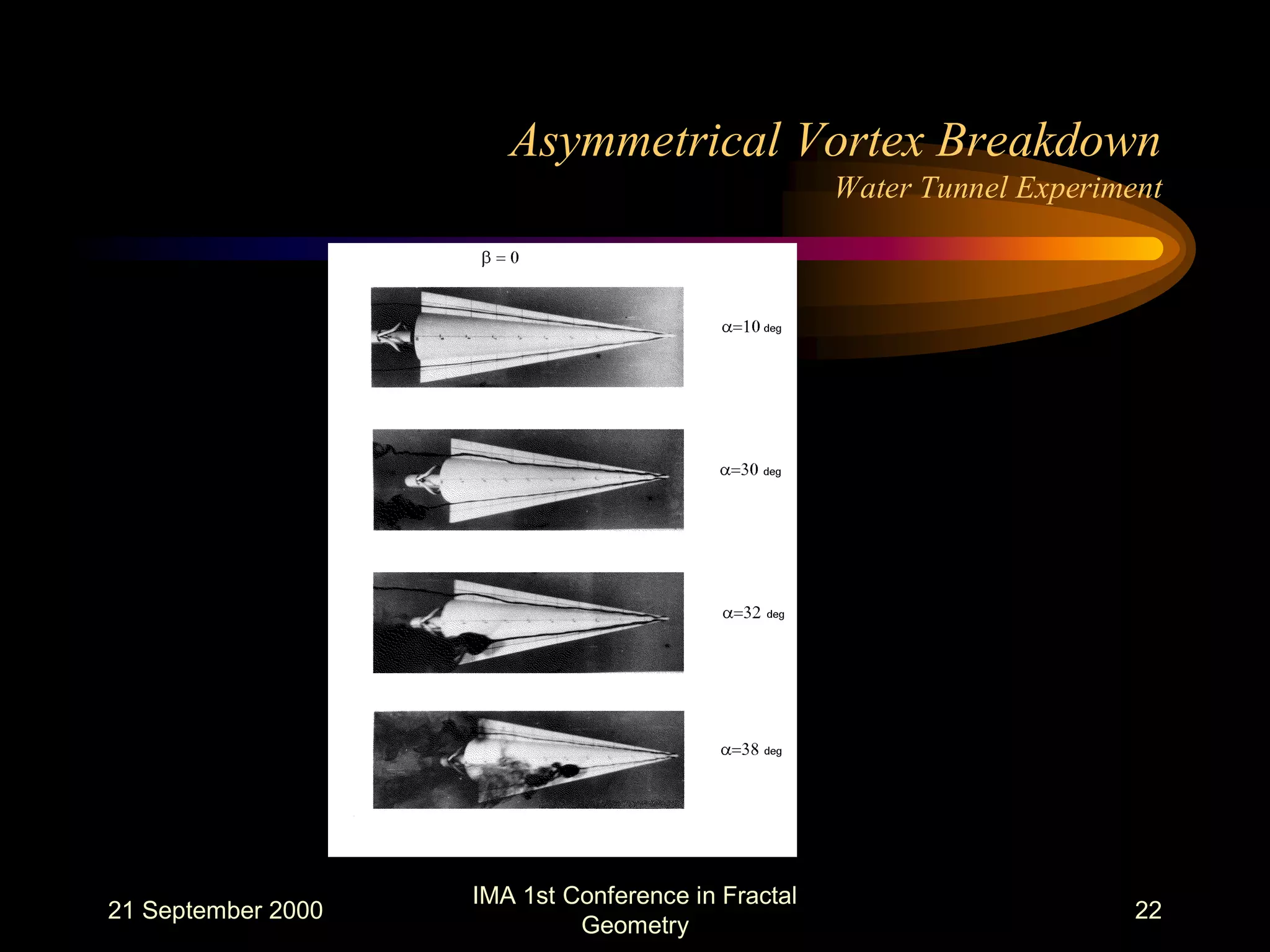

Asymmetrical Vortex Breakdown
Water Tunnel Experiment

23. 21 September 2000
IMA 1st Conference in Fractal
Geometry
23
Vortex Breakdown Hysteresis
Water Tunnel Experiment

24. 21 September 2000
IMA 1st Conference in Fractal
Geometry
24

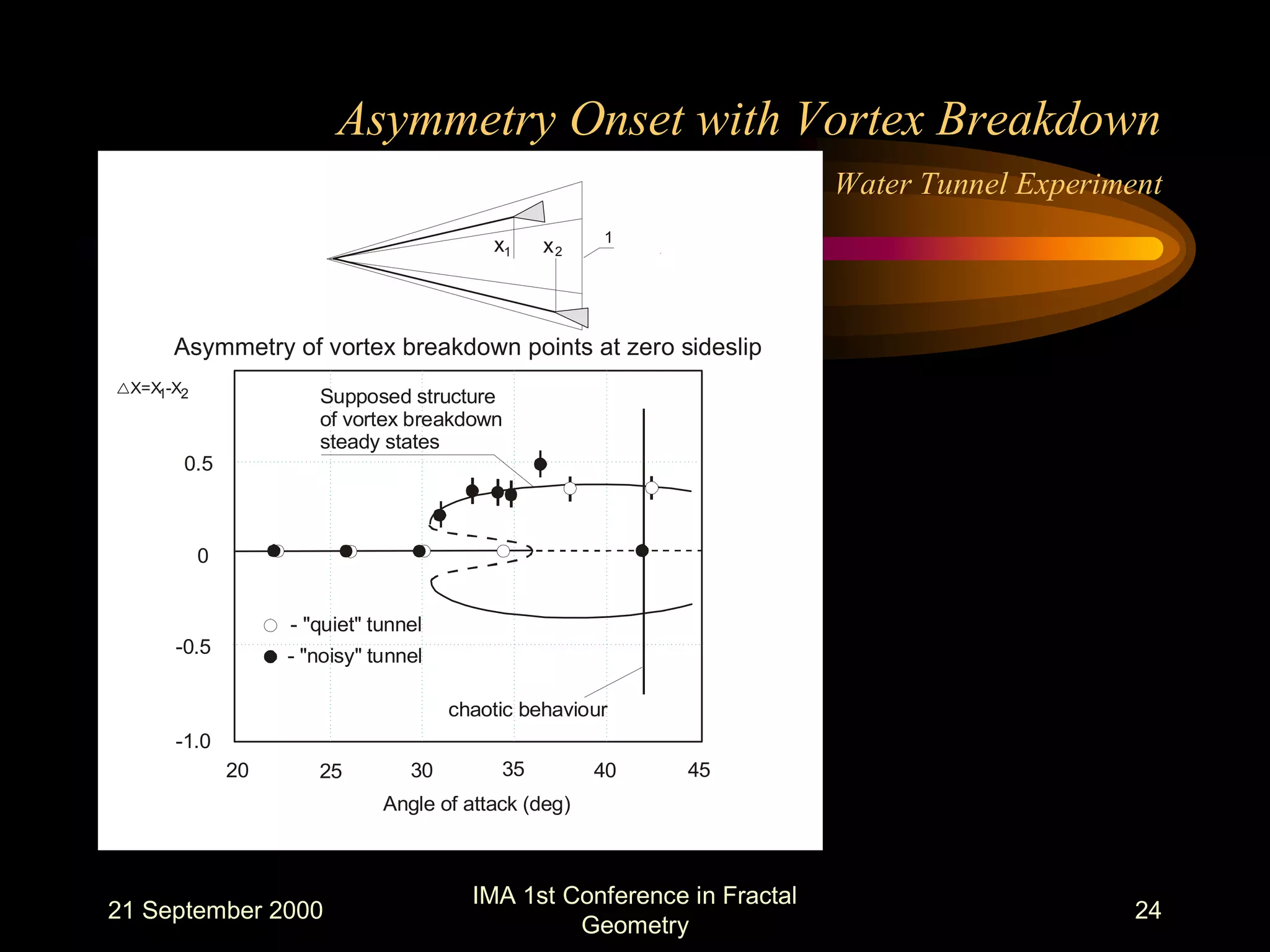

Asymmetry Onset with Vortex Breakdown
Water Tunnel Experiment
x x1 2
1
0.5
0
-0.5
-1.0
Asymmetry of vortex breakdown points at zero sideslip
- "noisy" tunnel
- "quiet" tunnel
1 2X=X -X
Supposed structure
of vortex breakdown
steady states
chaotic behaviour
20 25 30 40 45
Angle of attack (deg)
35

25. 21 September 2000
IMA 1st Conference in Fractal
Geometry
25

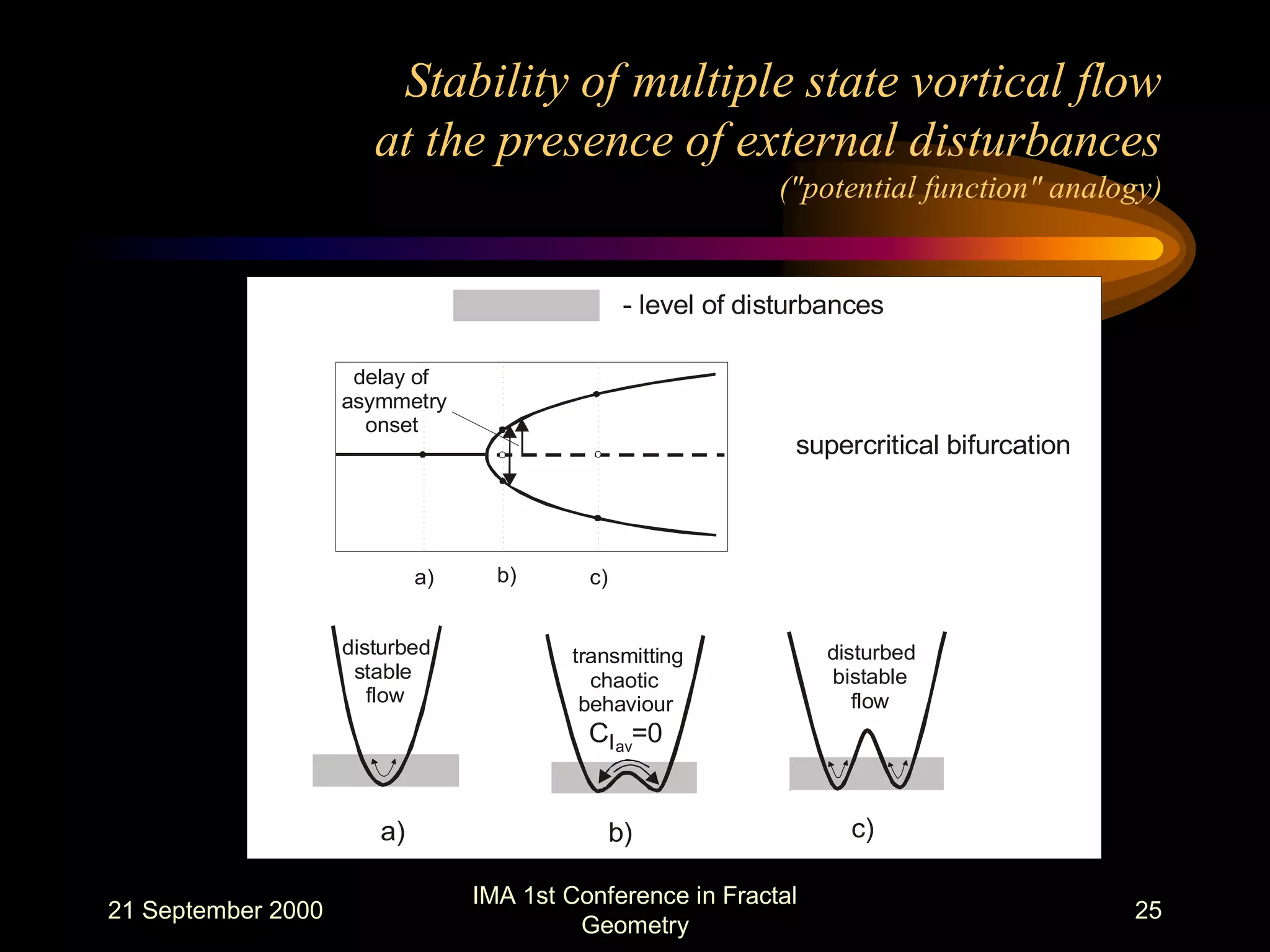

Stability of multiple state vortical flow
at the presence of external disturbances
("potential function" analogy)
- level of disturbances
a)
a)
b)
b)
c)
transmitting
chaotic
behaviour
disturbed
stable
flow
disturbed
bistable
flow
c)
supercritical bifurcation
Clav
=0
delay of
asymmetry
onset

26. 21 September 2000
IMA 1st Conference in Fractal
Geometry
26

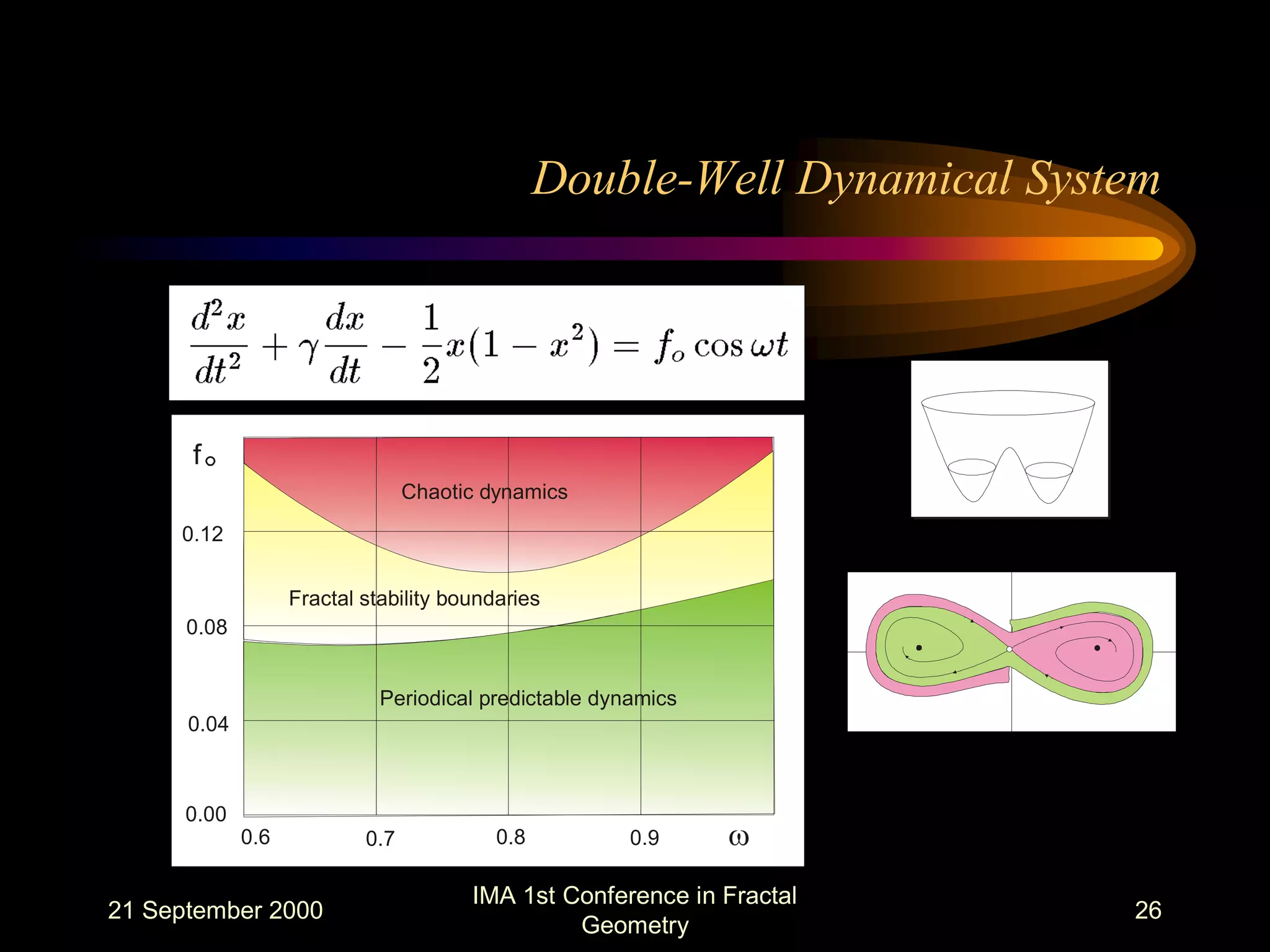

Double-Well Dynamical System
0.6 0.7 0.8 0.9 w
0.00
0.04
0.08
0.12
f
Periodical predictable dynamics
Fractal stability boundaries
Chaotic dynamics

27. 21 September 2000
IMA 1st Conference in Fractal
Geometry
27

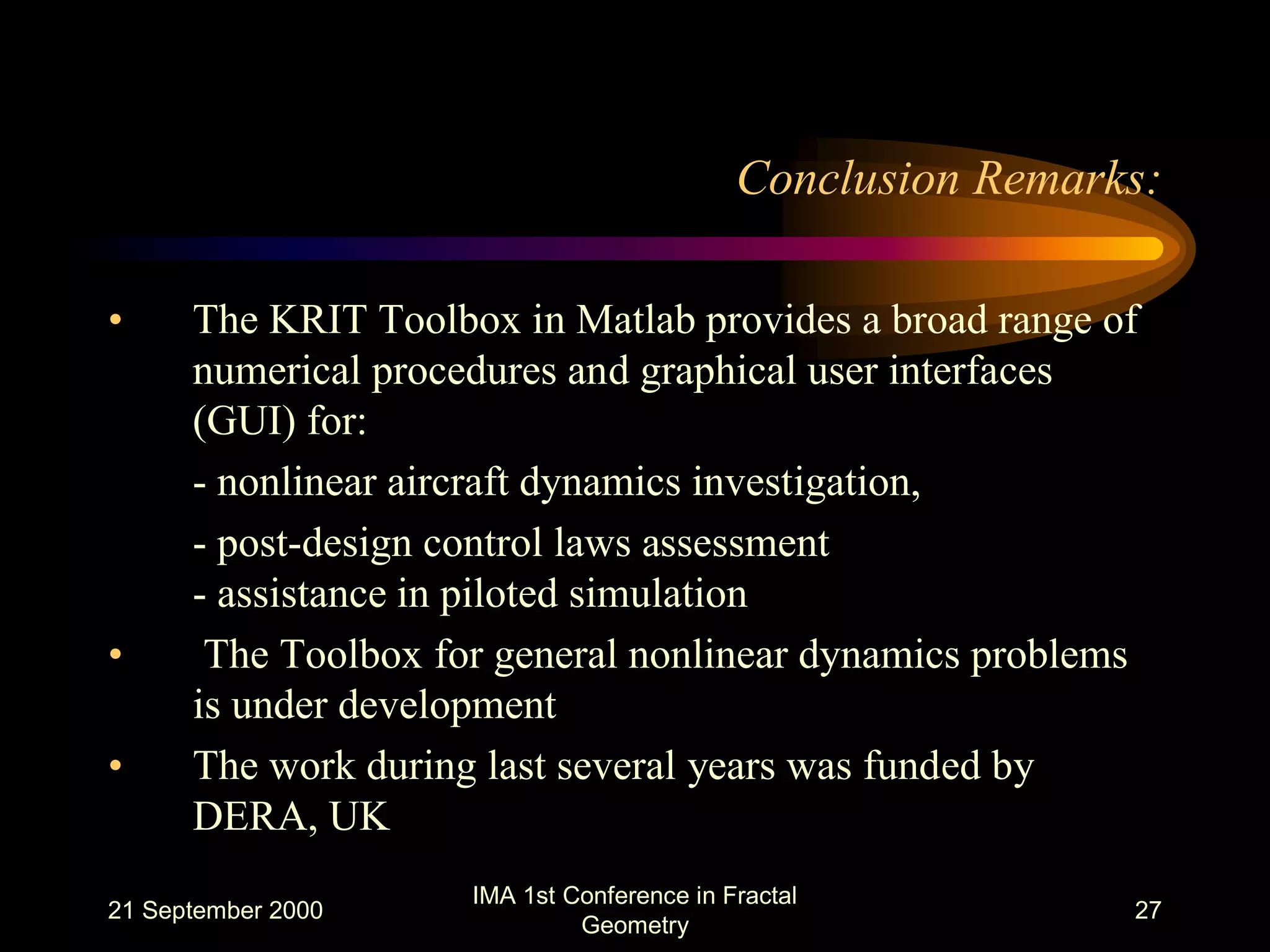

Conclusion Remarks:
• The KRIT Toolbox in Matlab provides a broad range of
numerical procedures and graphical user interfaces
(GUI) for:
- nonlinear aircraft dynamics investigation,
- post-design control laws assessment
- assistance in piloted simulation
• The Toolbox for general nonlinear dynamics problems
is under development
• The work during last several years was funded by
DERA, UK

28. 21 September 2000
IMA 1st Conference in Fractal
Geometry

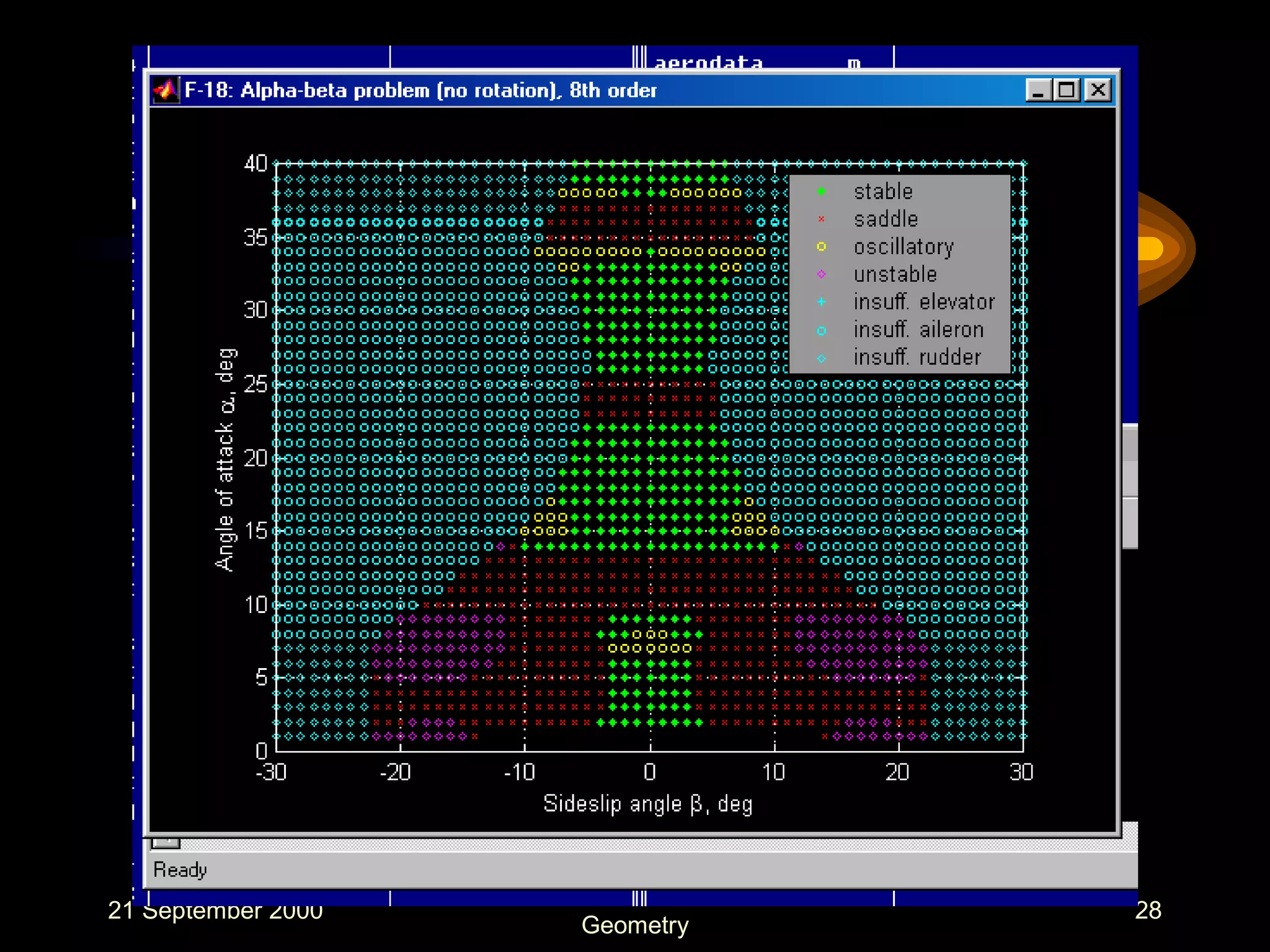

28

29. 21 September 2000
IMA 1st Conference in Fractal
Geometry
29
Hysteresis in Steady Vortex Breakdown
Water Tunnel Experiment
Supposed structure
of vortex breakdown
steady states
Asymmetry
change
"noisy" tunnel
"noisy" tunnel
"quiet" tunnel
- a=35
- a=40
- a=40
0 1 2 3 4 5 6-1-2-3-4-5-6-7 7
Sideslip (deg)
Asymmetry of vortex breakdown at sideslip
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
-0.1
-0.2
-0.3
-0.4
-0.5
-0.6
-0.7
-0.8
X=X -X1 2
( )
