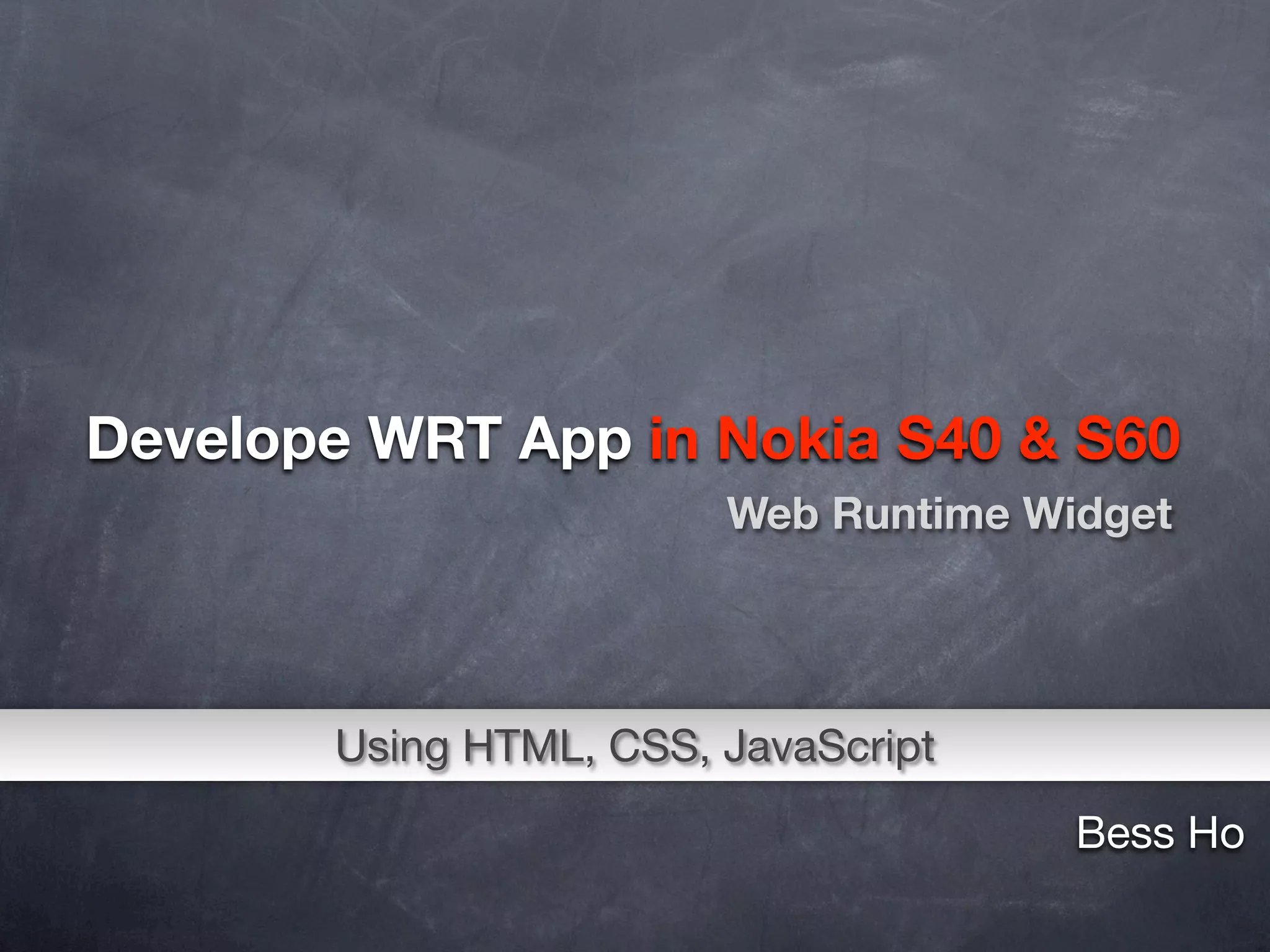

Create Nokia WRT Widget App

Develope WRT App in Nokia S40 & S60
Web Runtime Widget

Using HTML, CSS, JavaScript
Bess Ho

WRT

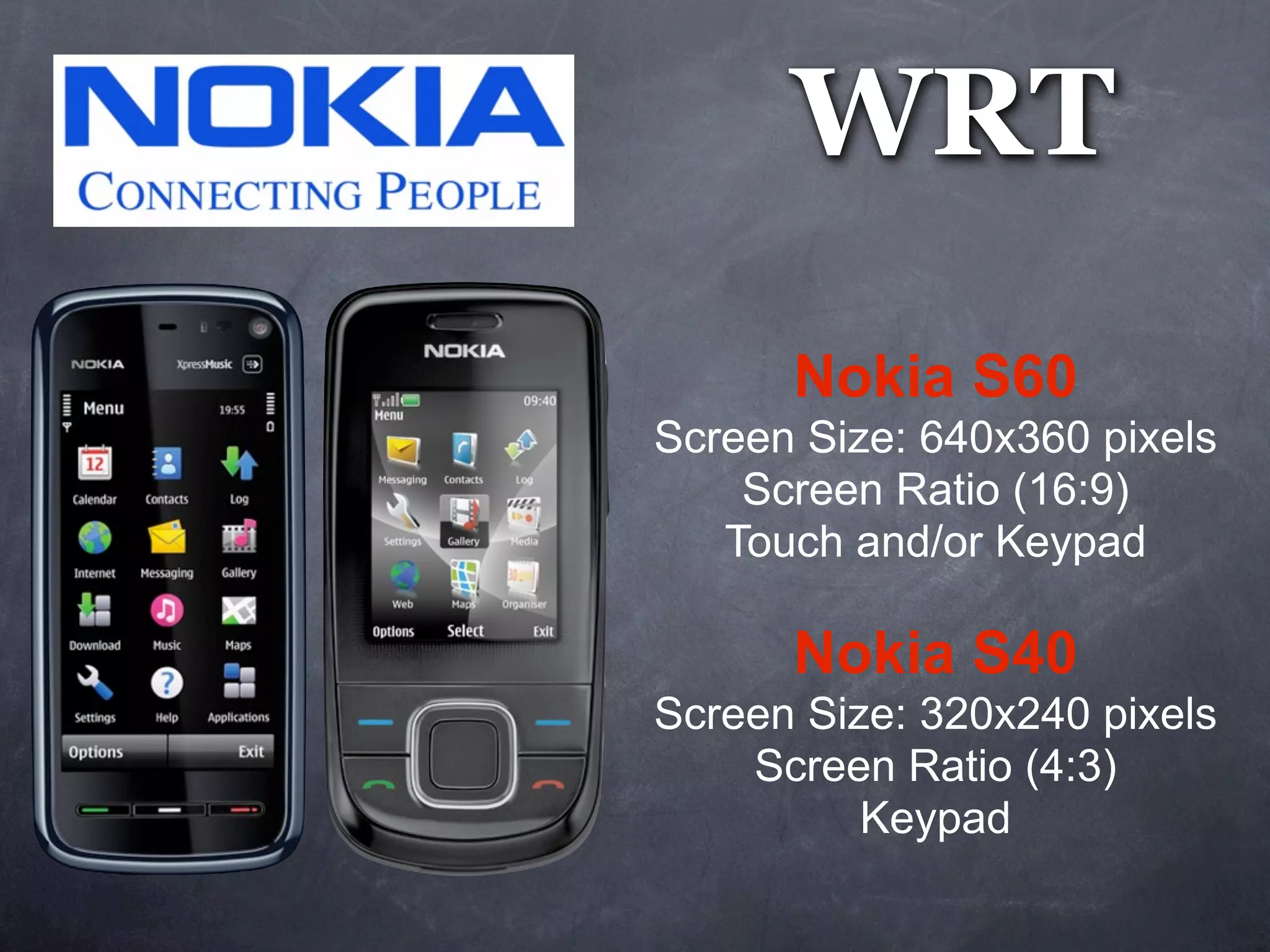

Nokia S60
Screen Size: 640x360 pixels
Screen Ratio (16:9)
Touch and/or Keypad

Nokia S40
Screen Size: 320x240 pixels
Screen Ratio (4:3)
Keypad

GPS Microphone
(Geo) Camera
(Audio)
(Photo / Video)
Magentometer
(Compass)

Accelerometer Touch
(XZY)
(Device Orientation)

Wireless Bluetooth
(File) Data Plan / WiFi
Memory Card (Web)
(Data) USB Cable SMS
(Data) (Data)

Aptana - IDE
Testing
Download & Install Aptana Studio

FREE Open Source

http://www.aptana.org/studio/download

WRT Plug-in
Testing

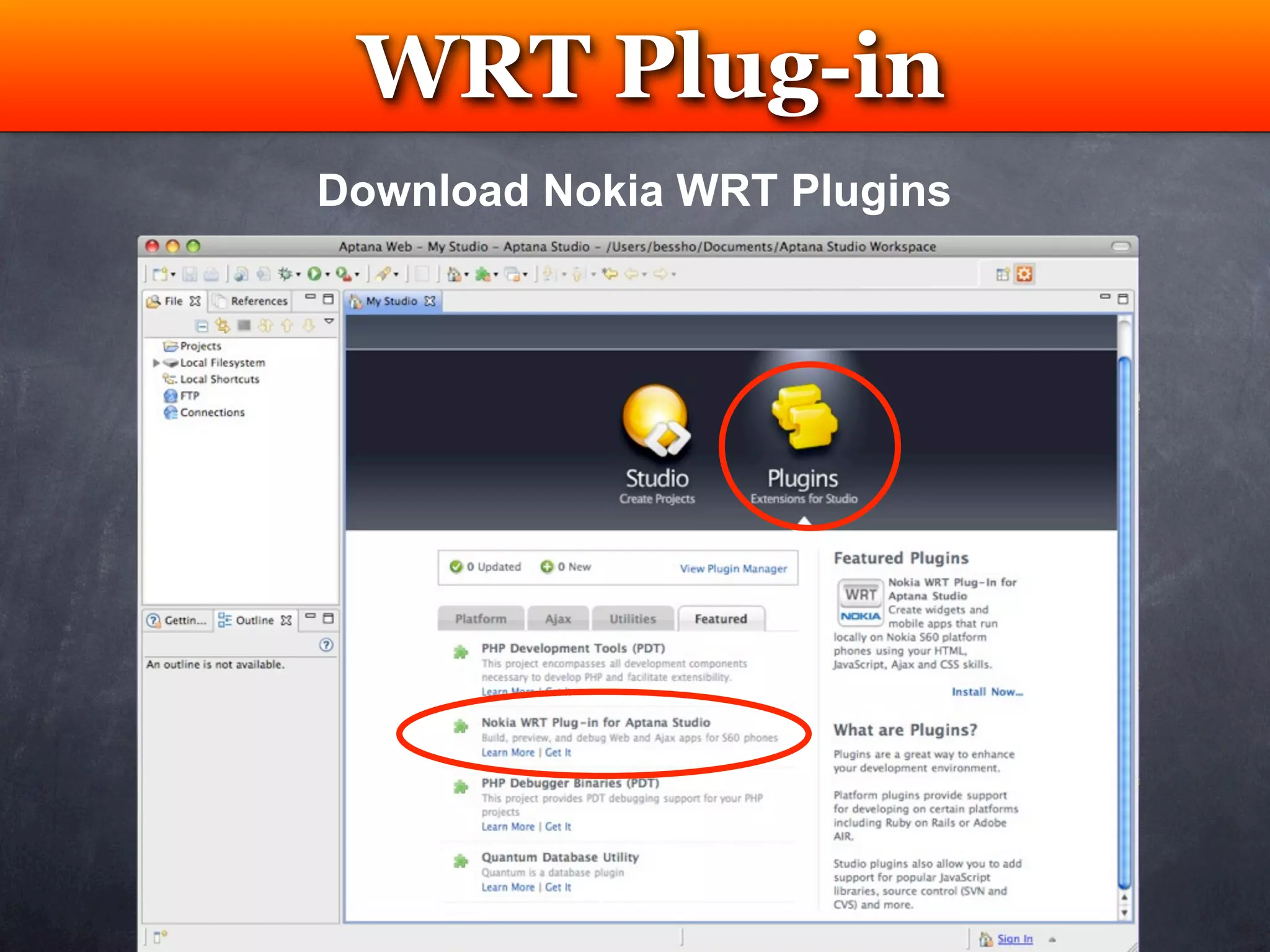

Download Nokia WRT Plugins

WRT Plug-in
Testing

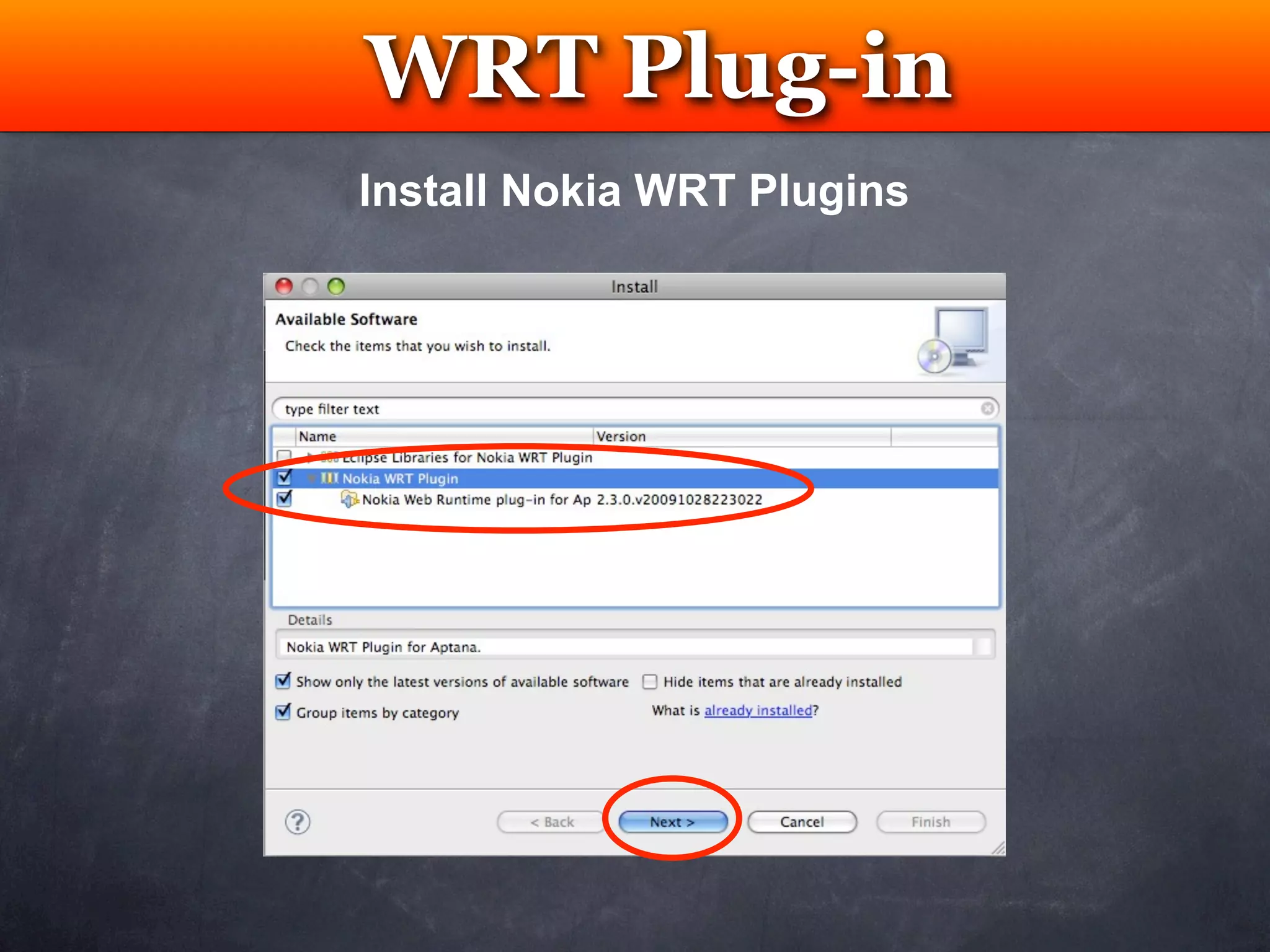

Install Nokia WRT Plugins

WRT Plug-in
Testing

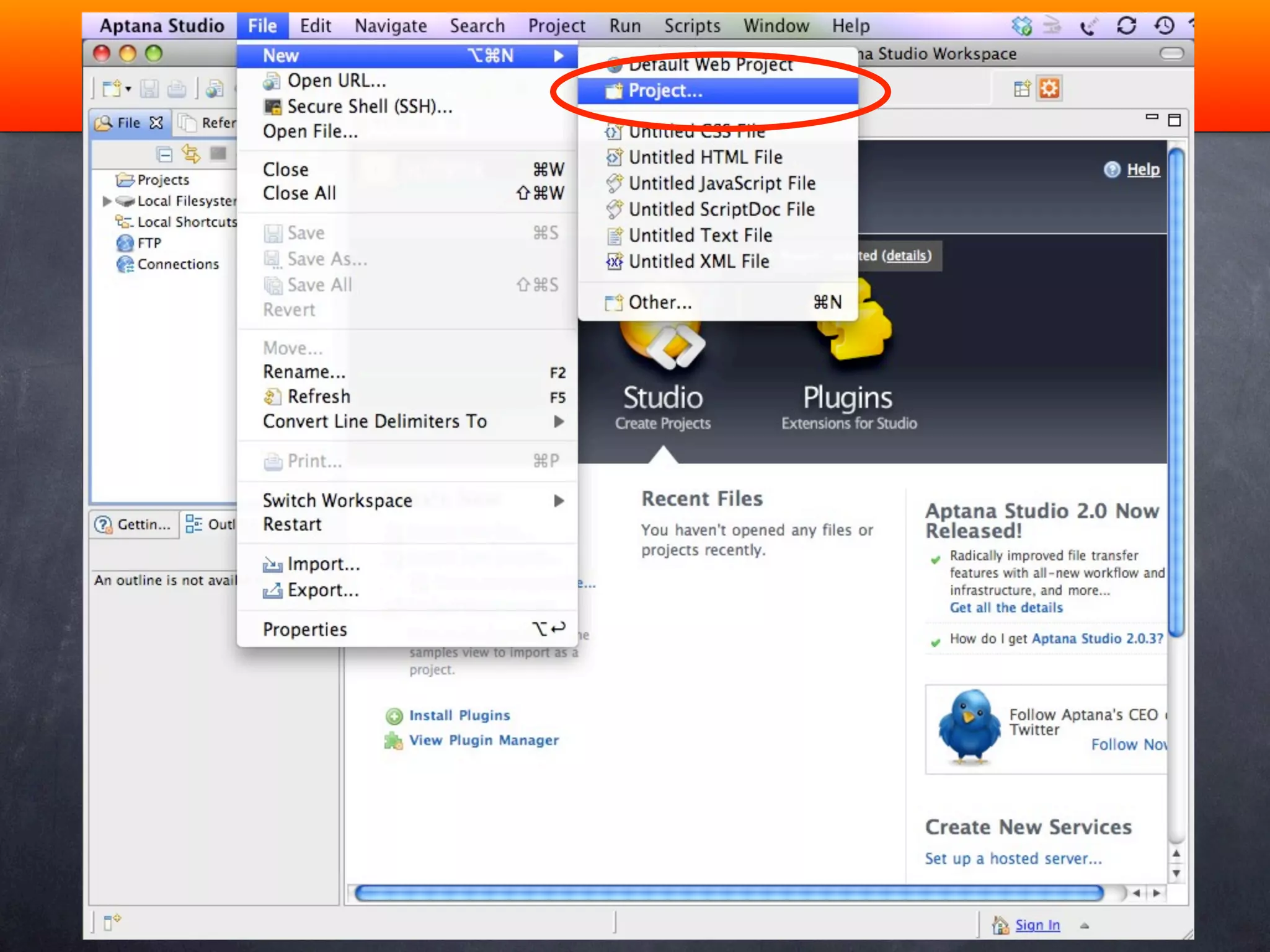

Accept License for Nokia WRT Plugins

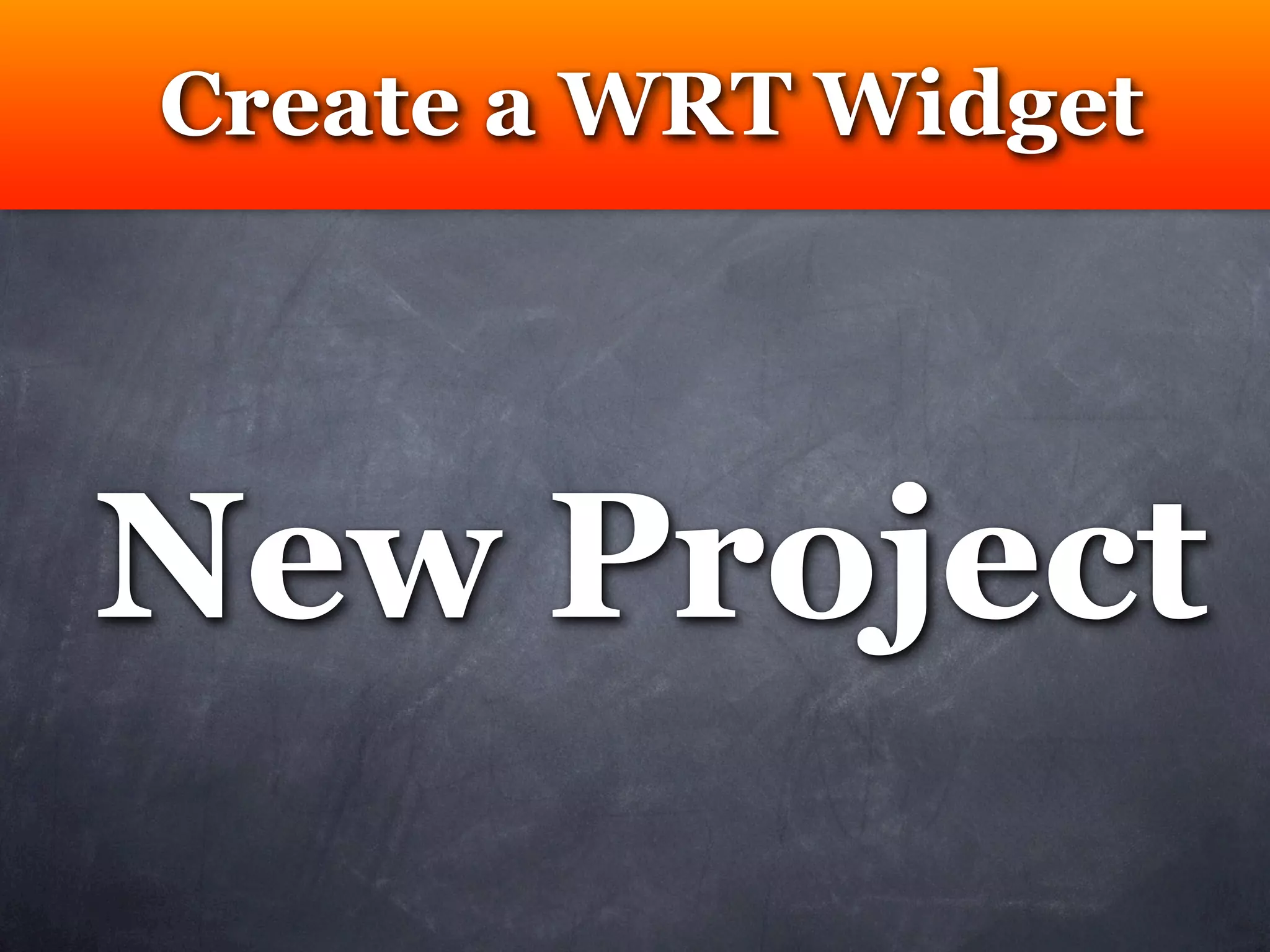

Create a WRT Widget

New Project

WRT Plug-in
Testing

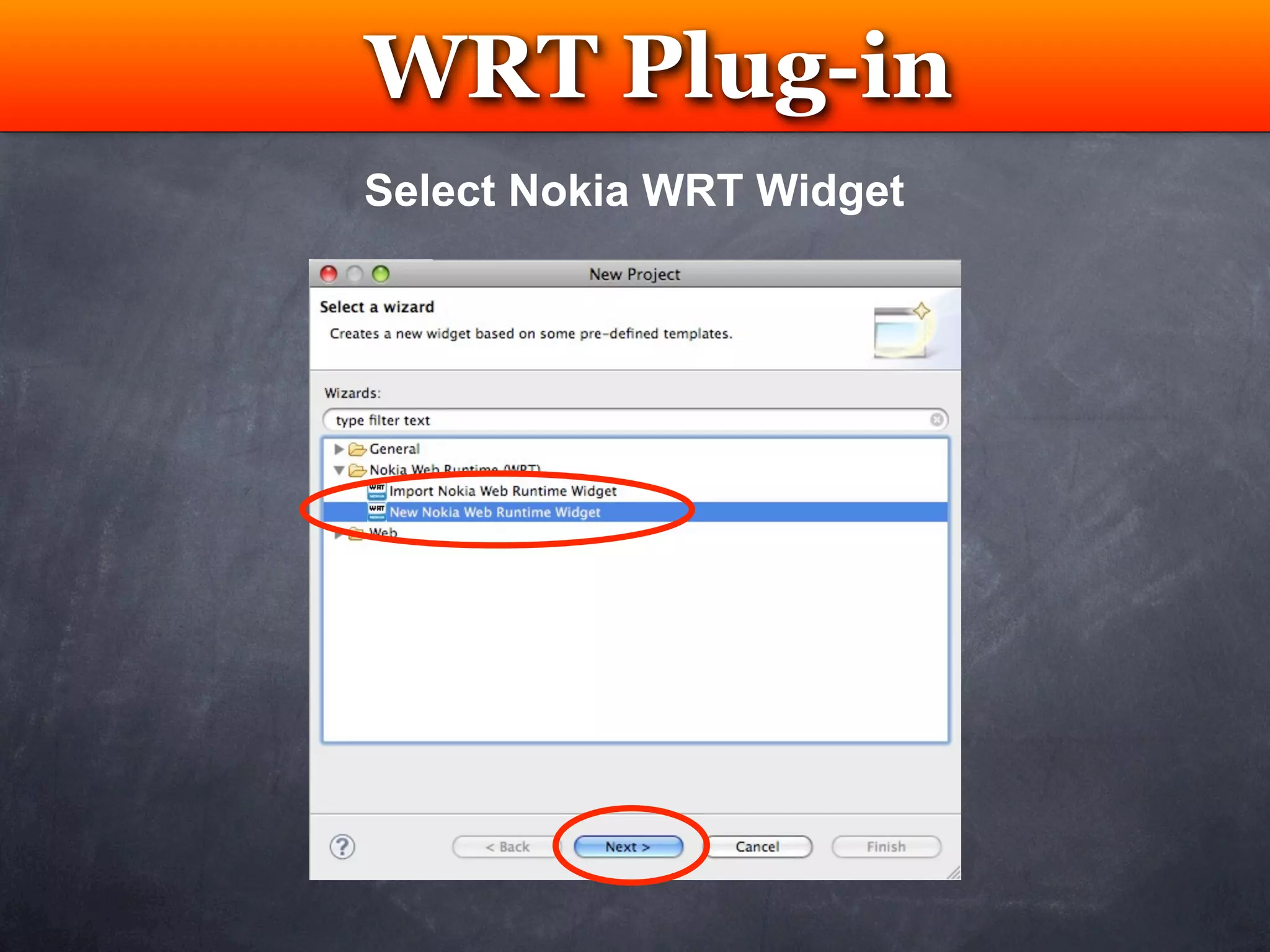

Select Nokia WRT Widget

WRT Plug-in
Testing

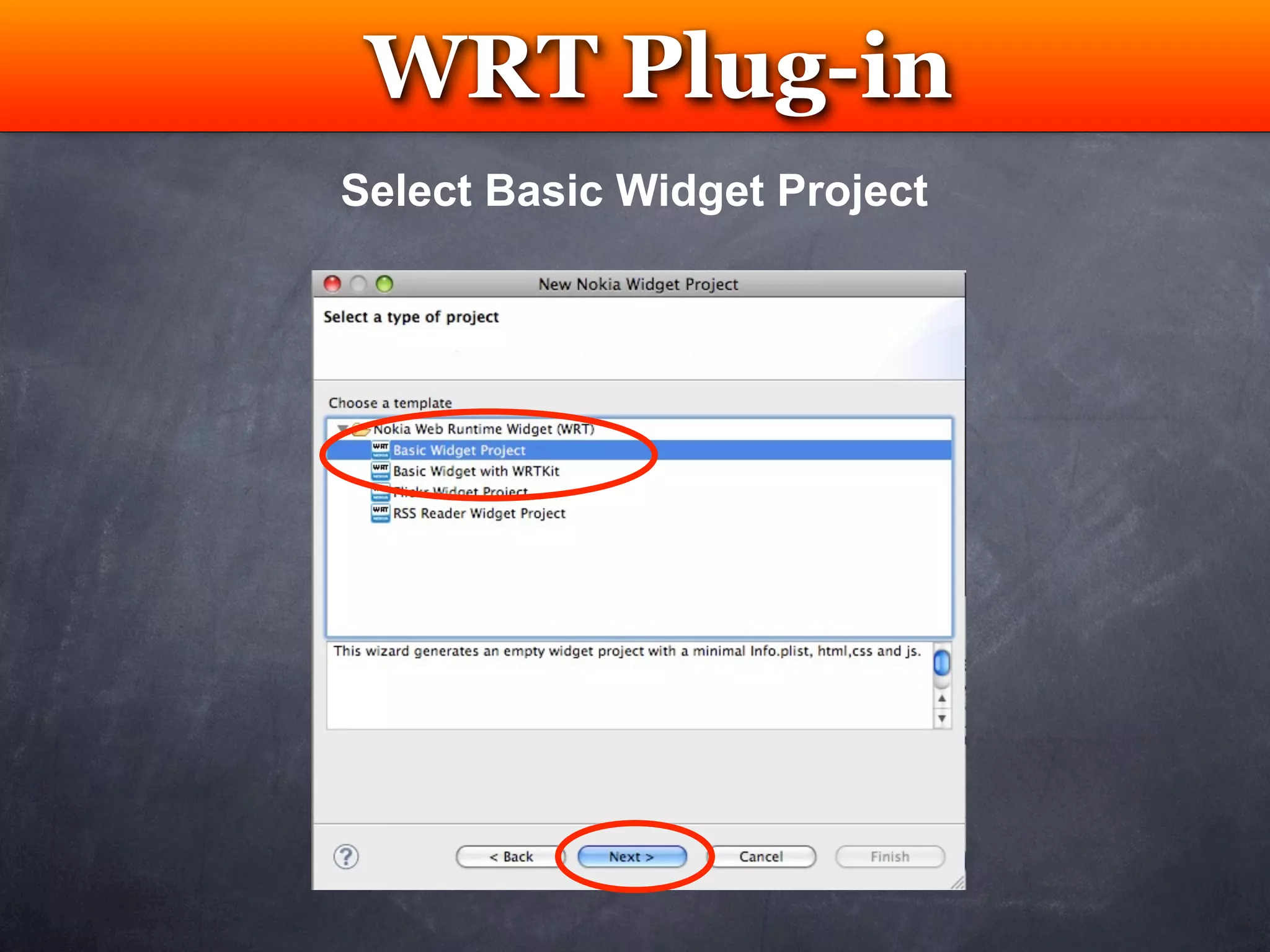

Select Basic Widget Project

WRT Plug-in
Testing

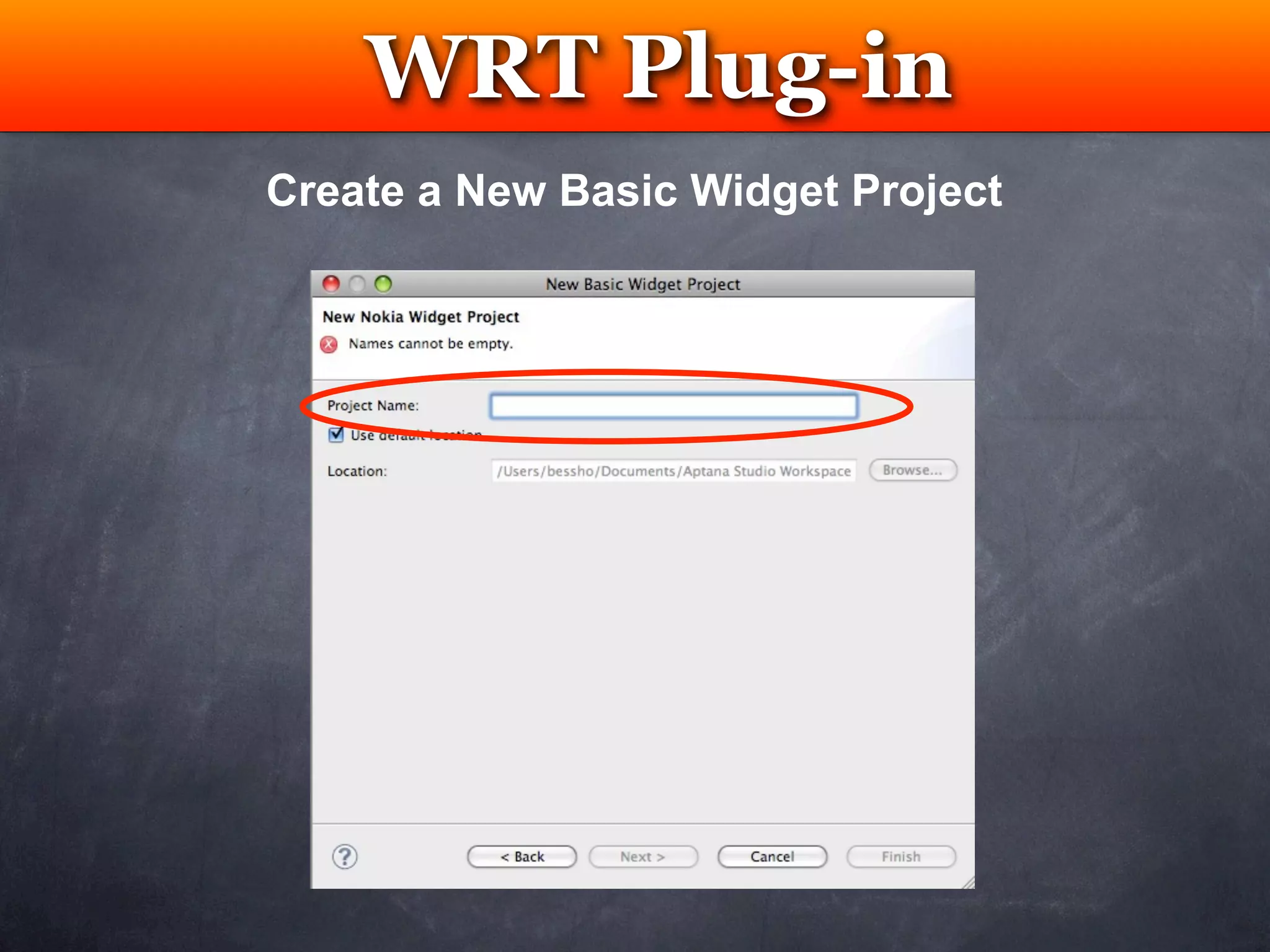

Create a New Basic Widget Project

WRT Plug-in
Testing

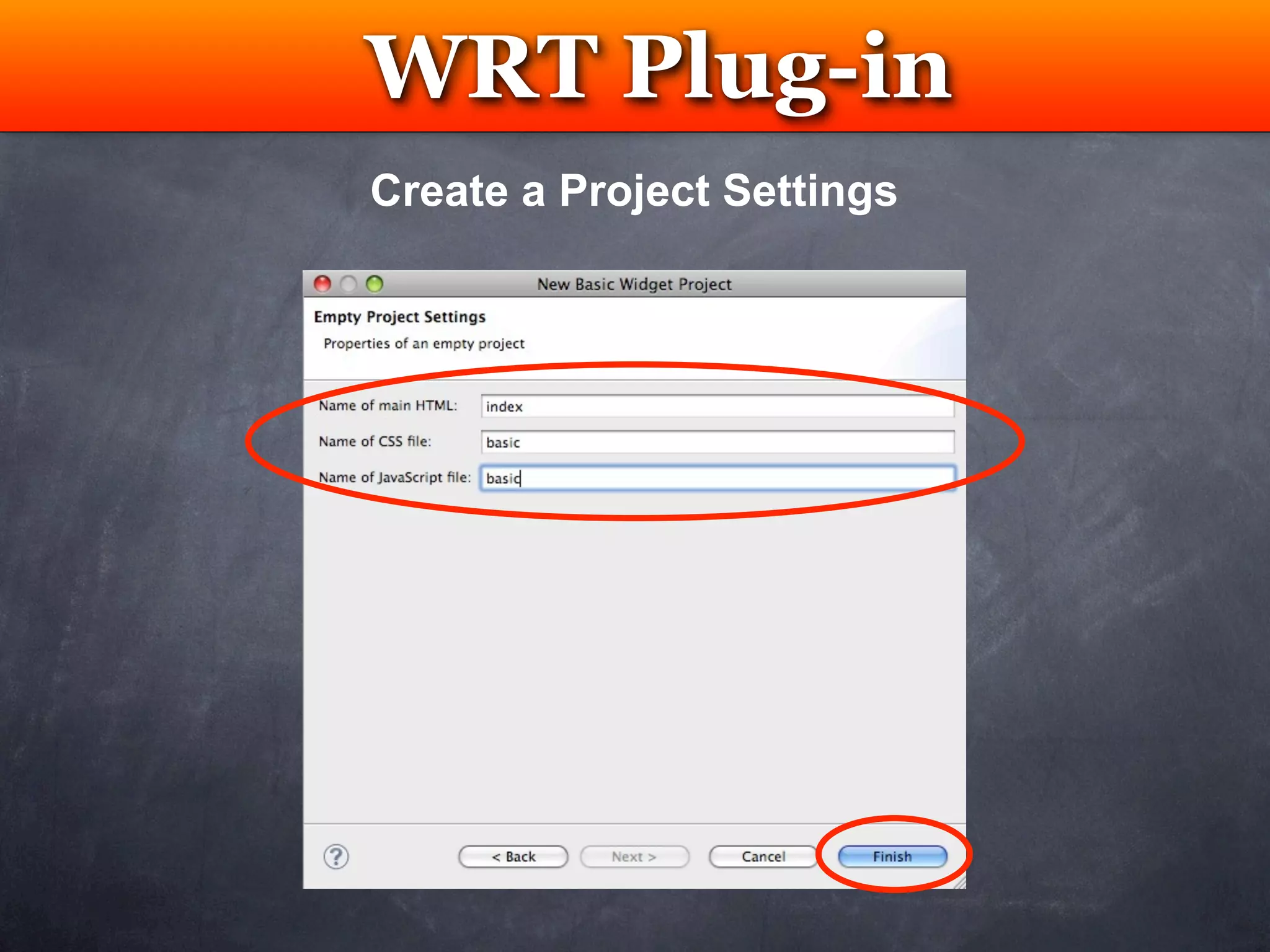

Create a Project Settings

WRT Plug-in
Testing

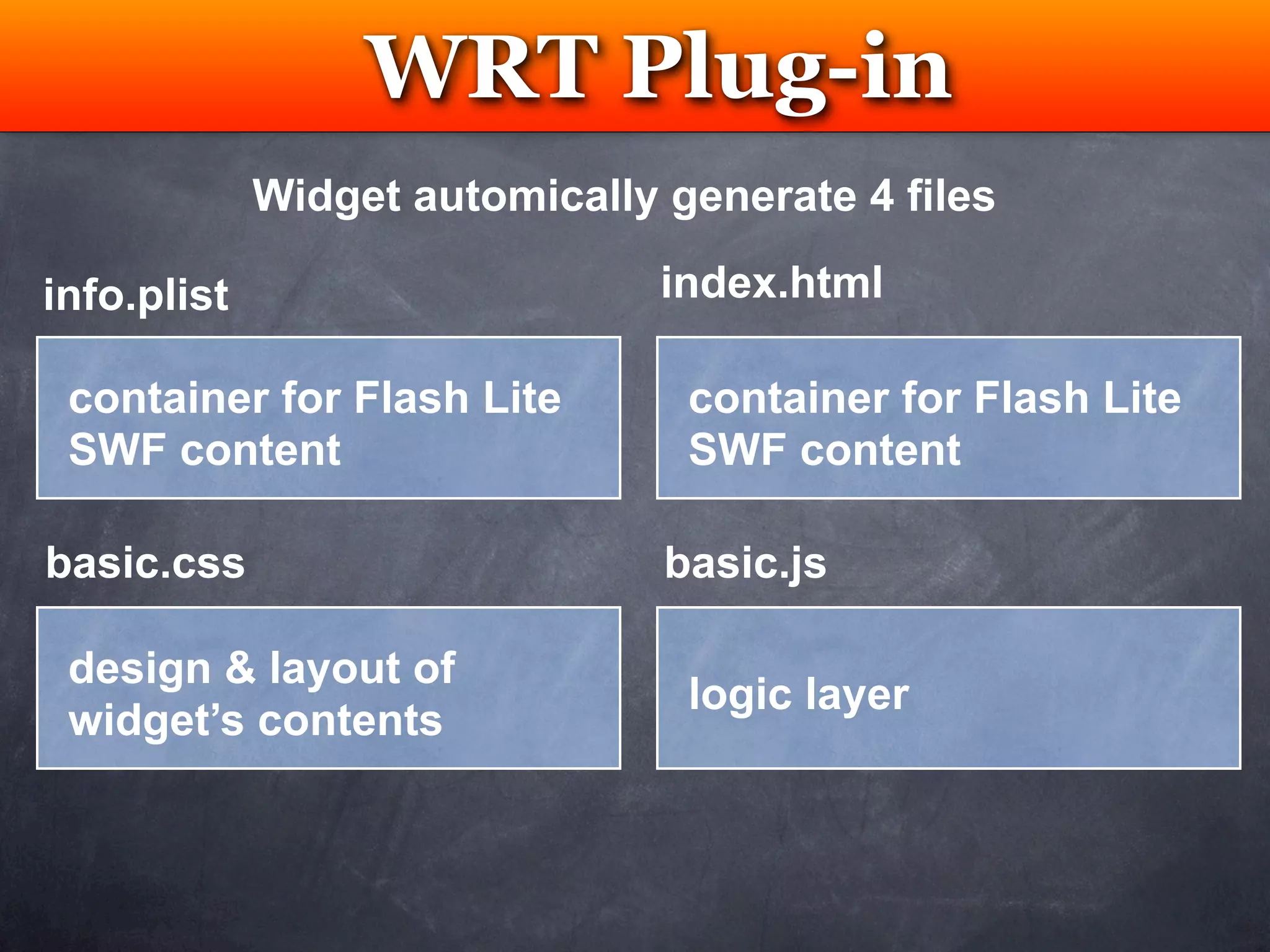

Widget automically generate 4 files

info.plist index.html

container for Flash Lite container for Flash Lite
SWF content SWF content

basic.css basic.js

design & layout of
logic layer
widget’s contents

WRT Plug-in
Testing

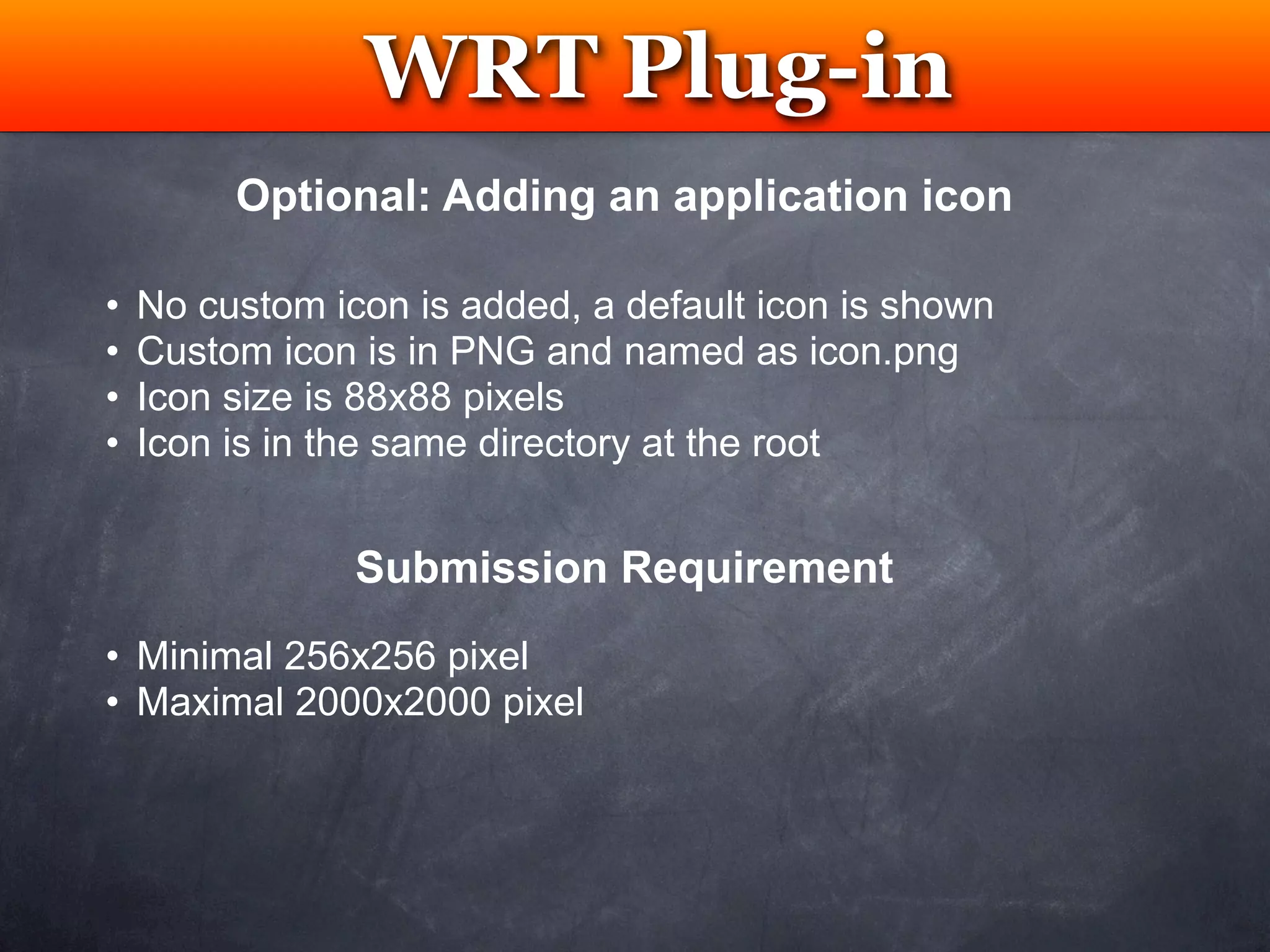

Optional: Adding an application icon

• No custom icon is added, a default icon is shown
• Custom icon is in PNG and named as icon.png
• Icon size is 88x88 pixels
• Icon is in the same directory at the root

Submission Requirement
• Minimal 256x256 pixel
• Maximal 2000x2000 pixel

WRT Plug-in
Testing

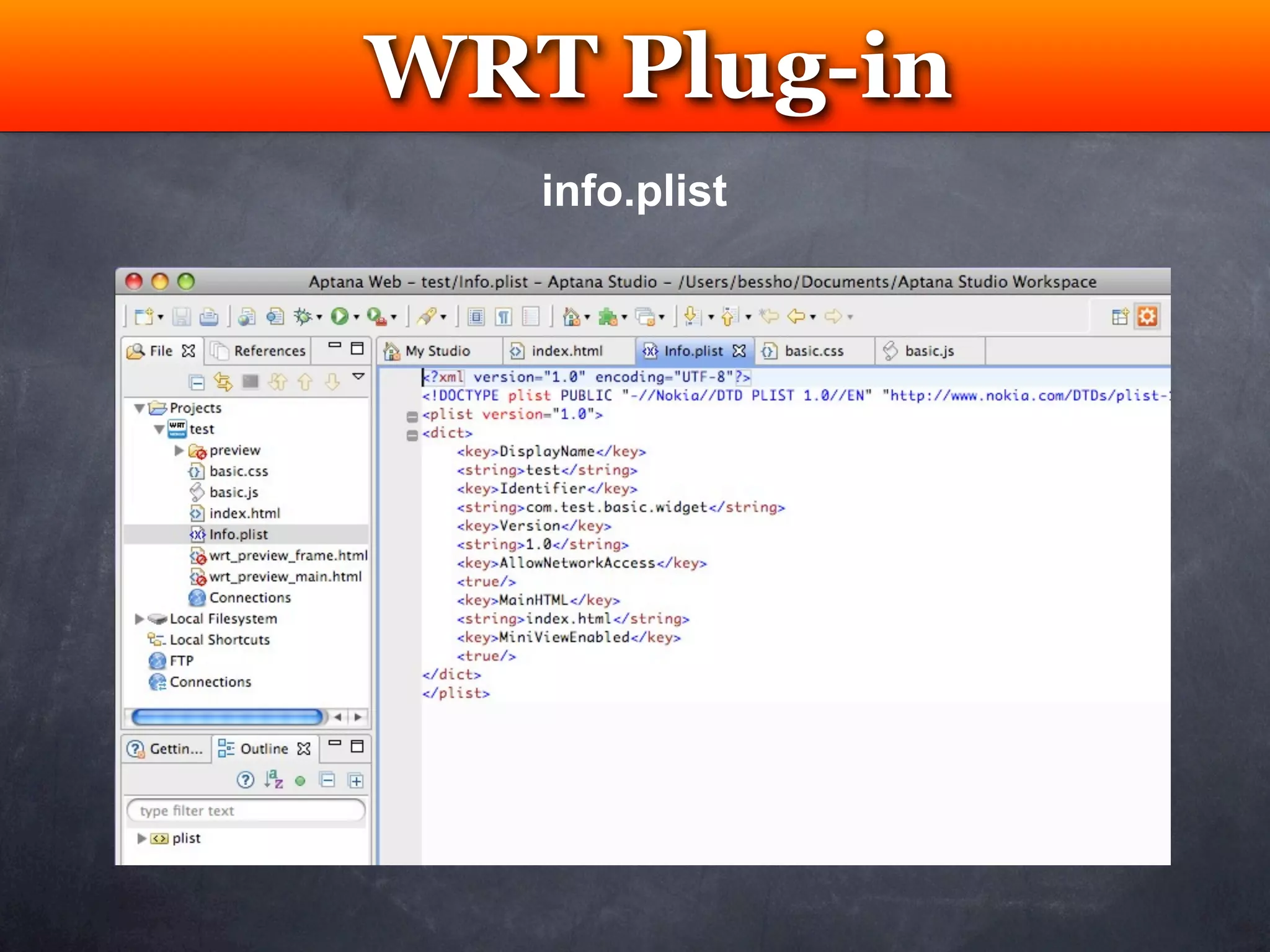

info.plist

WRT Plug-in
Testing

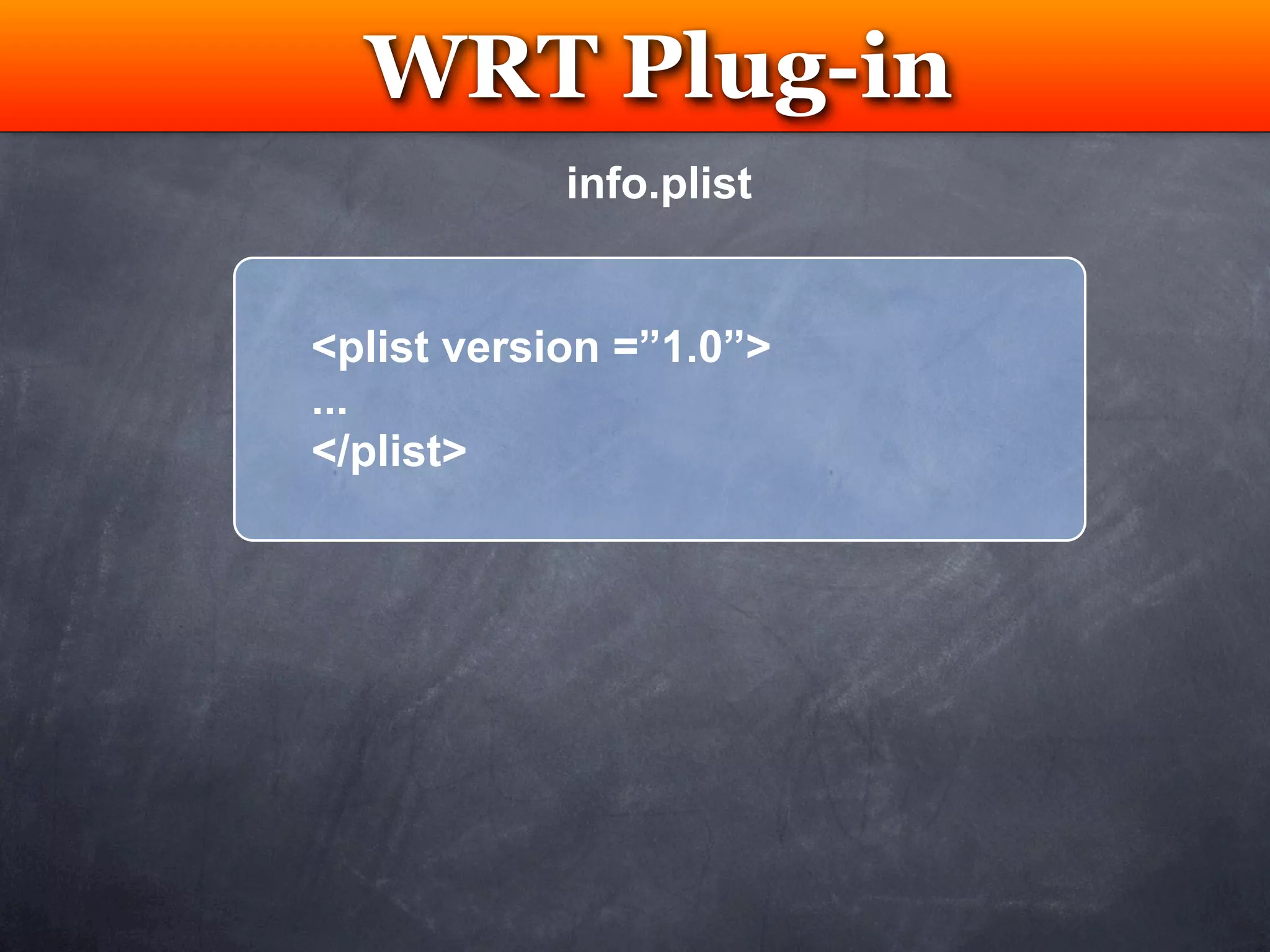

info.plist

<plist version =”1.0”>
...
</plist>

WRT Plug-in
Testing
info.plist

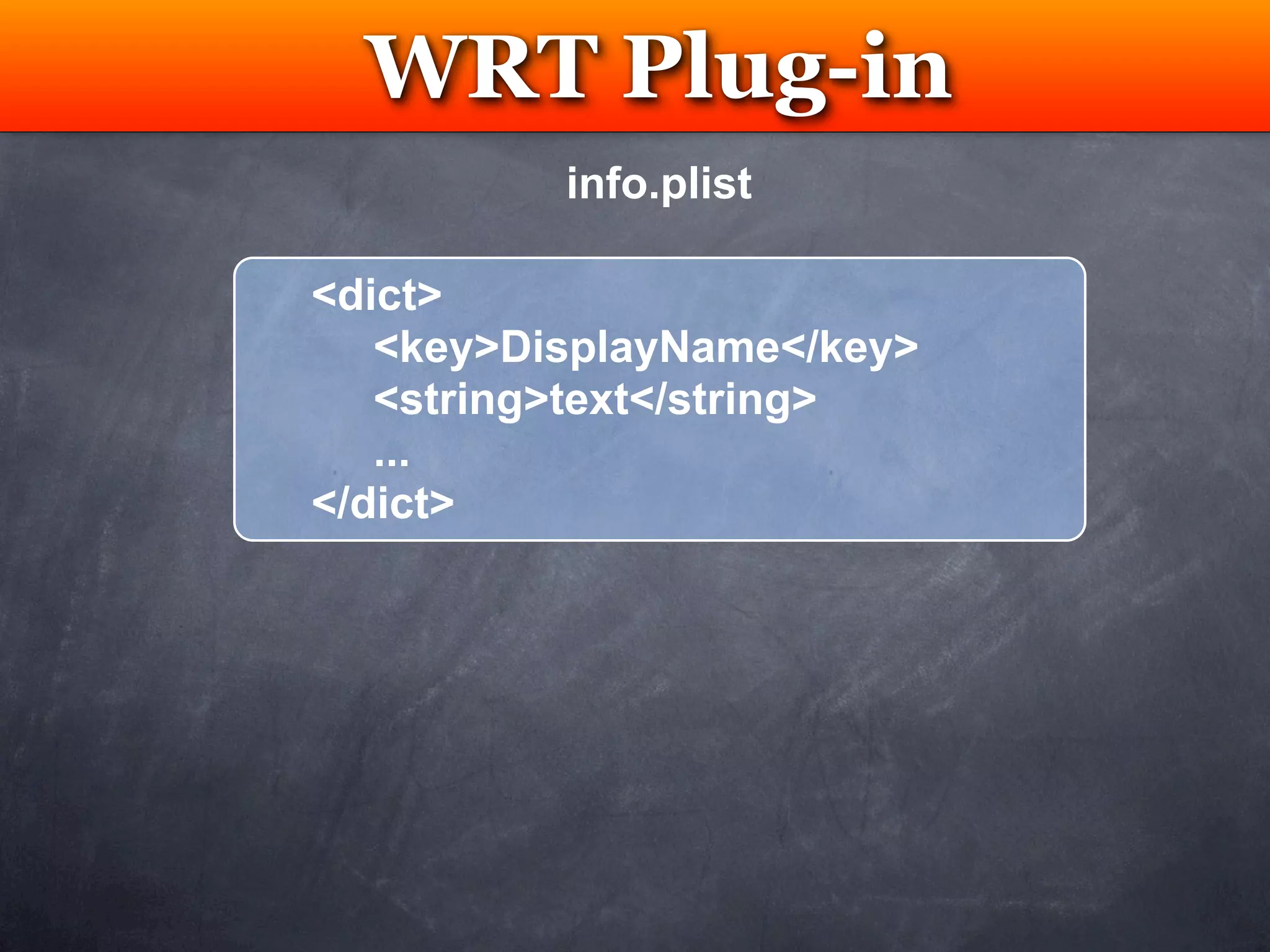

<dict>
<key>DisplayName</key>
<string>text</string>
...
</dict>

WRT Plug-in
Testing
info.plist

<dict>
...
<key>Identifier</key>
<string>com.text.basic.widget</string>
...
</dict>

WRT Plug-in
Testing
info.plist

<dict>
...

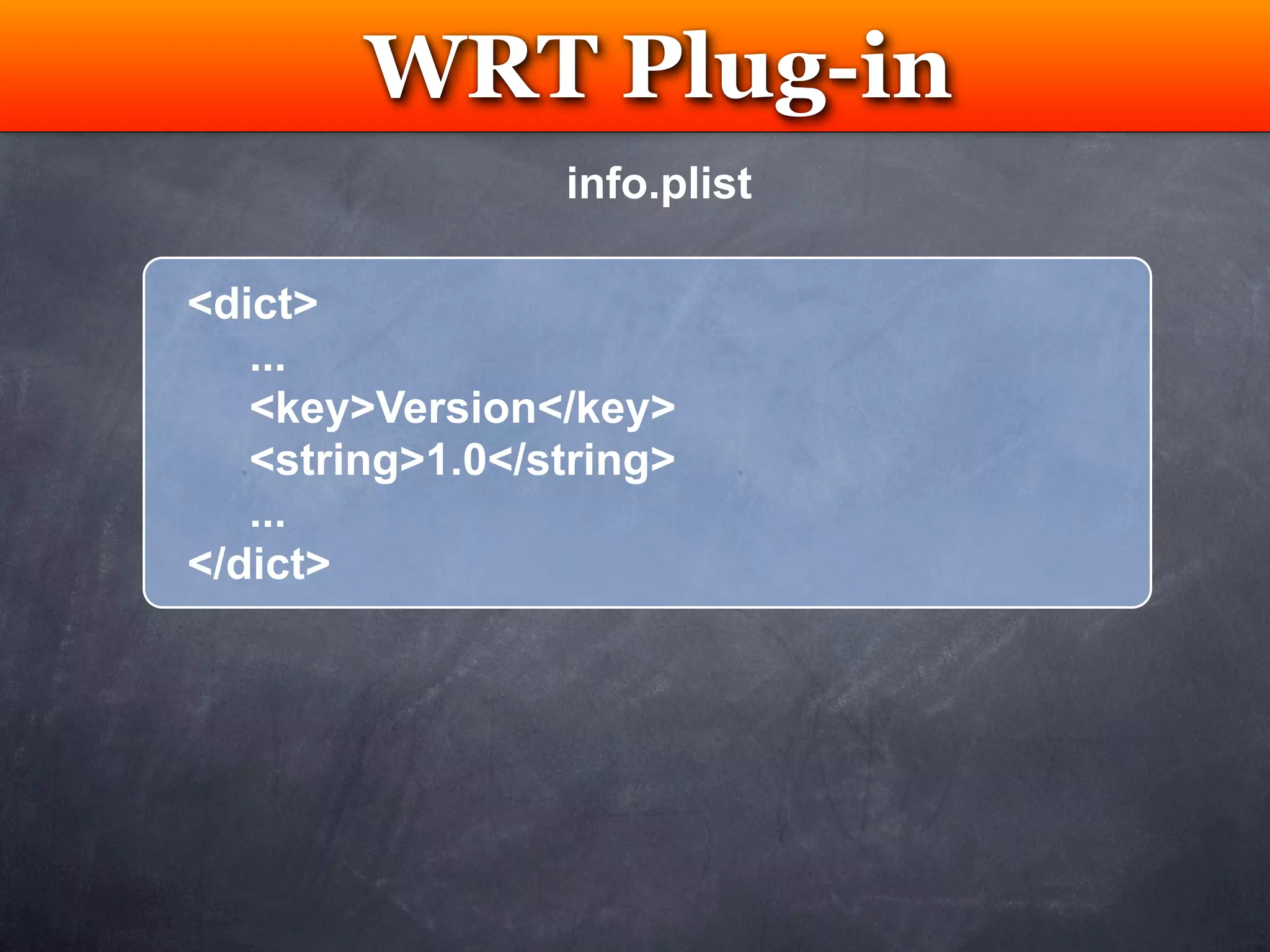

<key>Version</key>
<string>1.0</string>
...
</dict>

WRT Plug-in
Testing
info.plist

<dict>
...
<key>AllowNetworkAccess</key>
<true/>
...
</dict>

WRT Plug-in
Testing
info.plist

<dict>
...

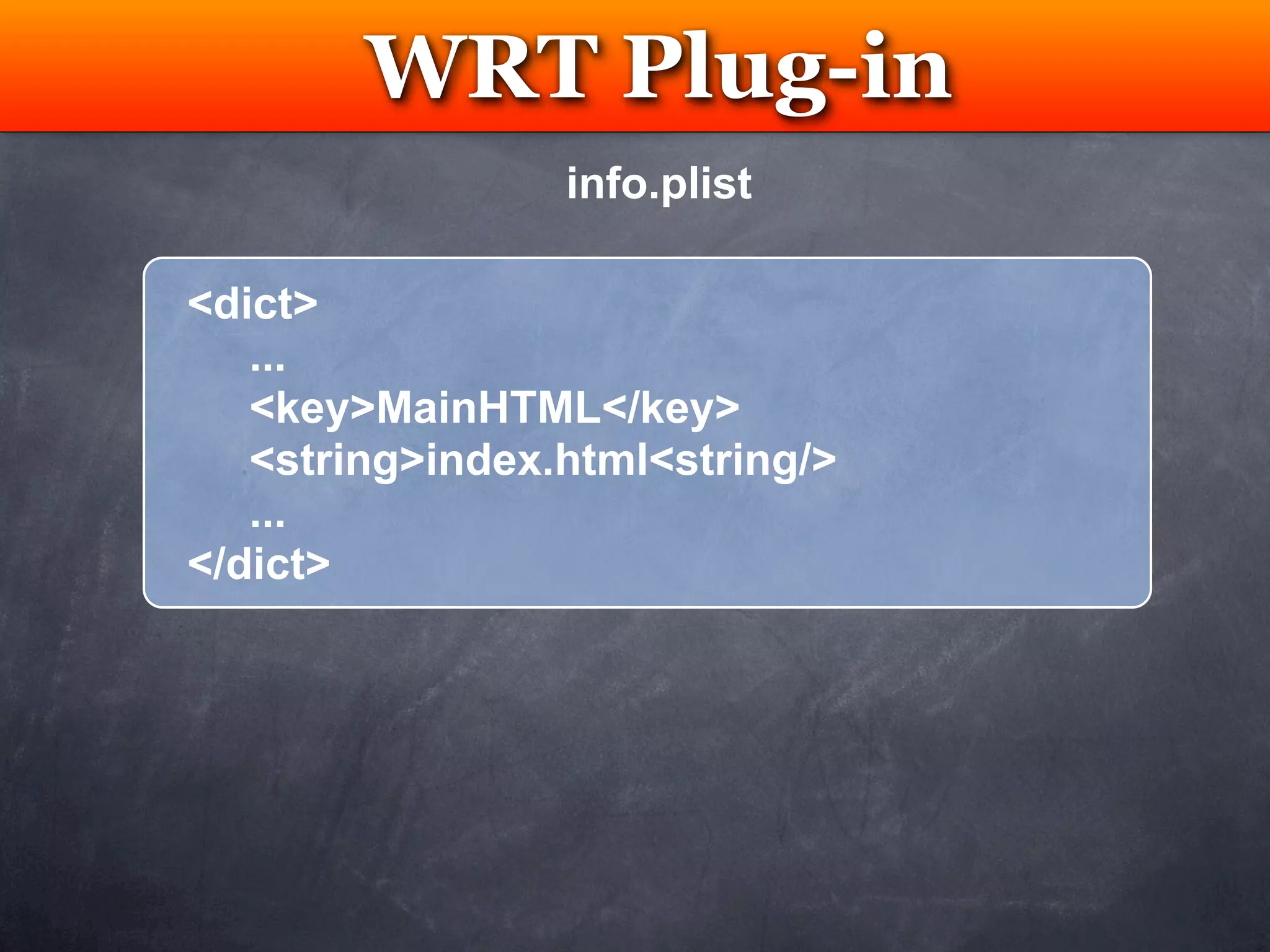

<key>MainHTML</key>
<string>index.html<string/>
...
</dict>

WRT Plug-in
Testing
info.plist

<dict>
...

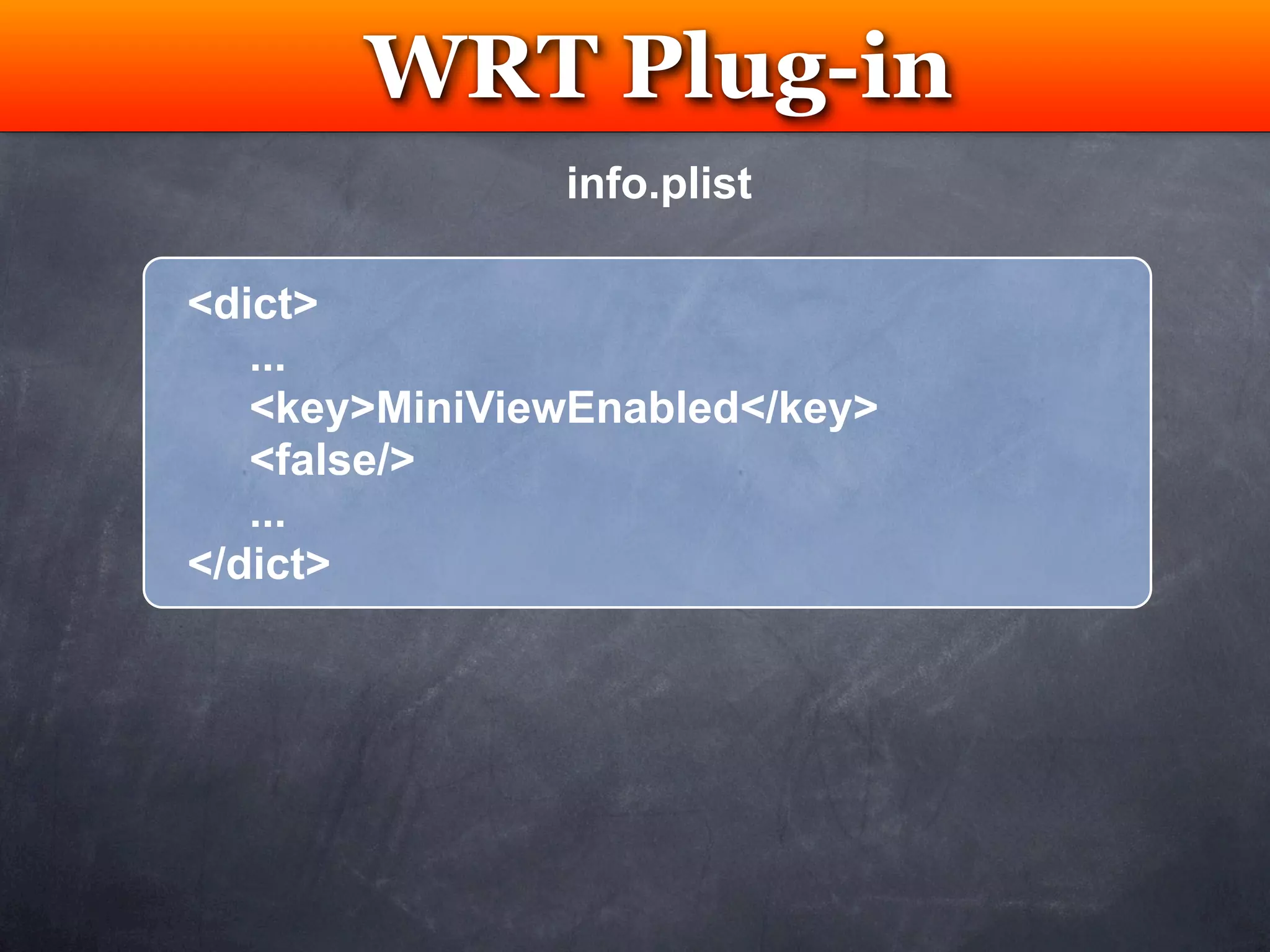

<key>MiniViewEnabled</key>
<false/>
...
</dict>

WRT Plug-in
Testing

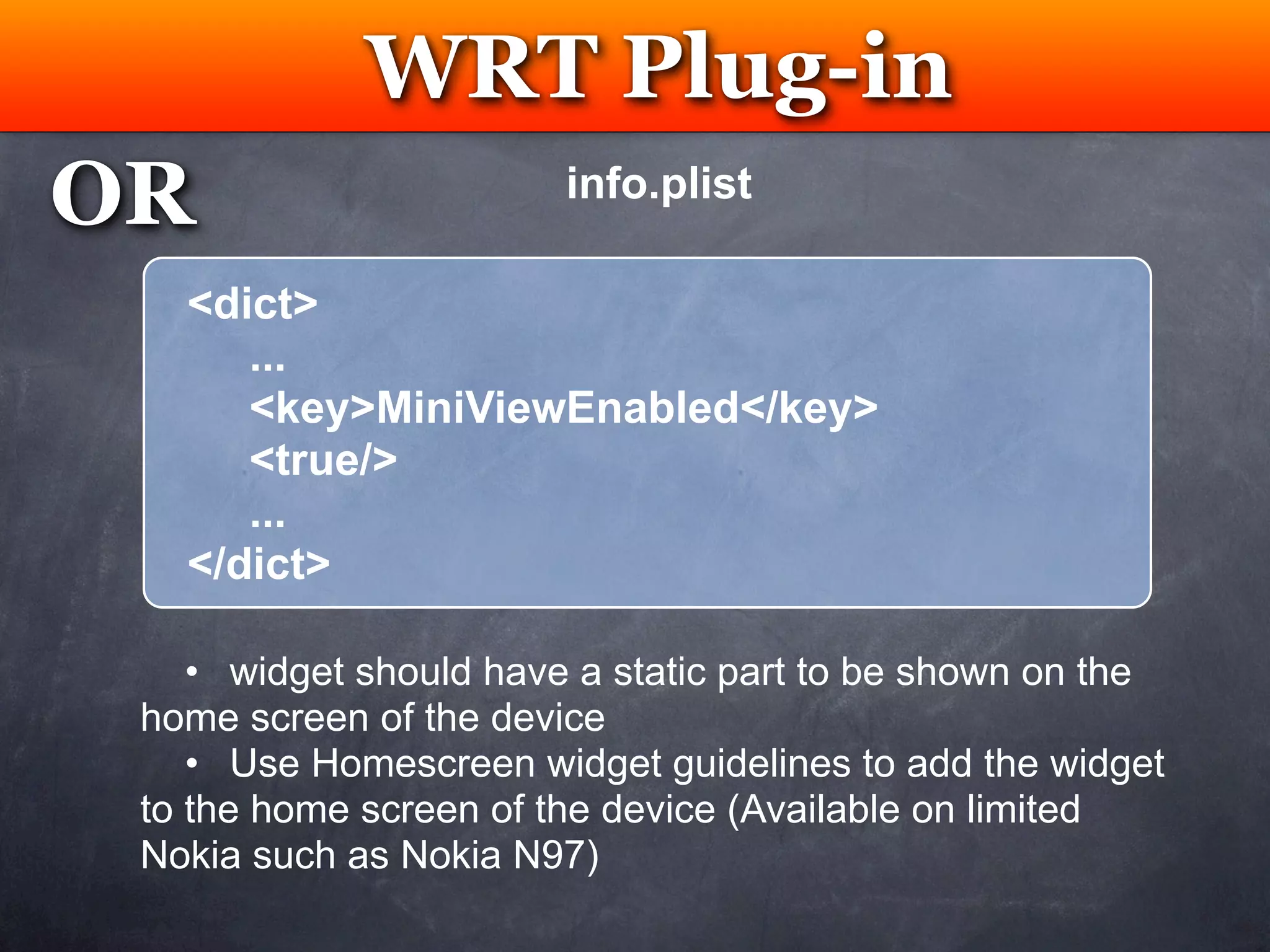

OR info.plist

<dict>
...
<key>MiniViewEnabled</key>
<true/>
...
</dict>

• widget should have a static part to be shown on the
home screen of the device
• Use Homescreen widget guidelines to add the widget
to the home screen of the device (Available on limited
Nokia such as Nokia N97)

WRT Plug-in
Testing

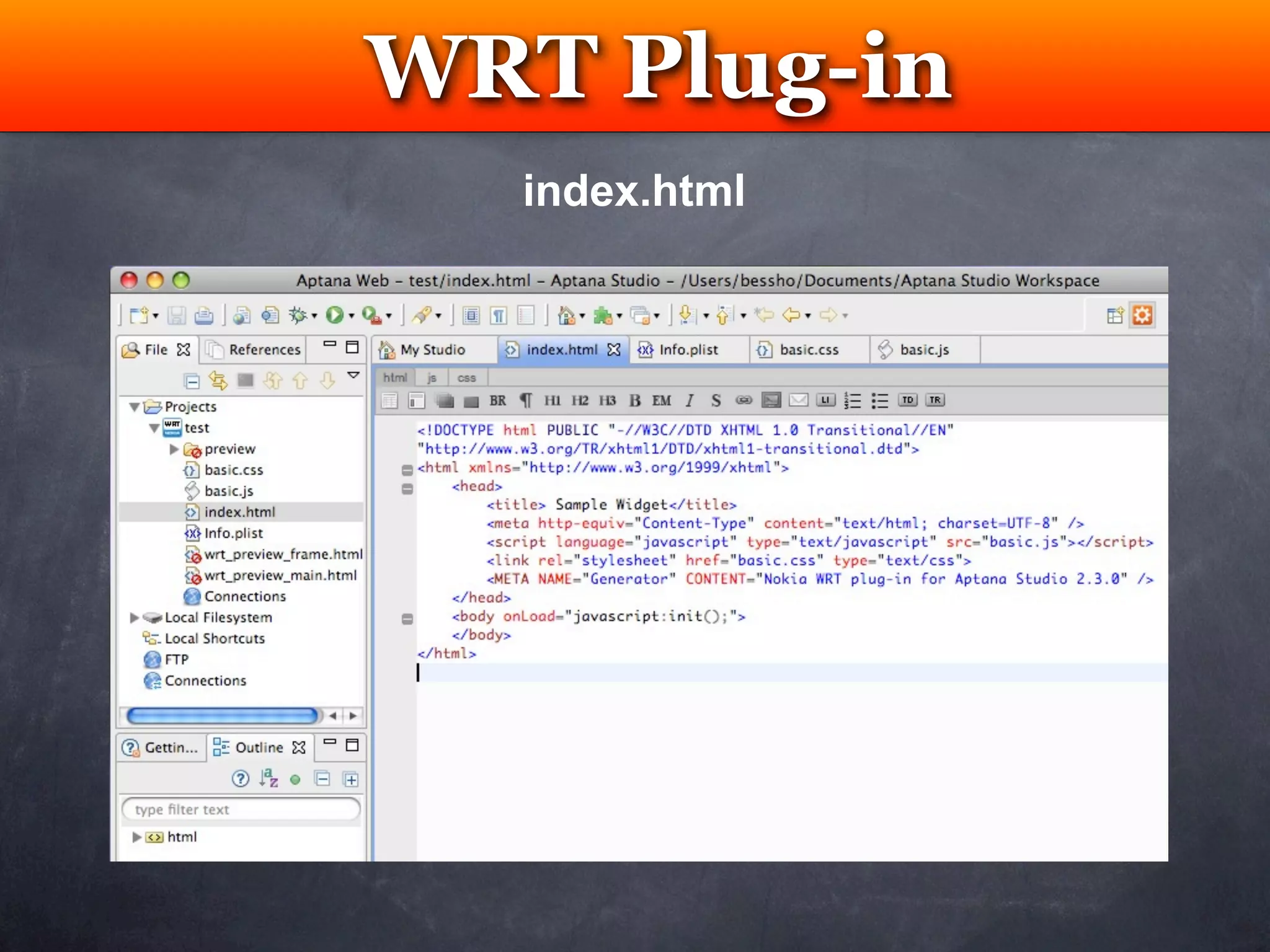

index.html

WRT Plug-in
Testing

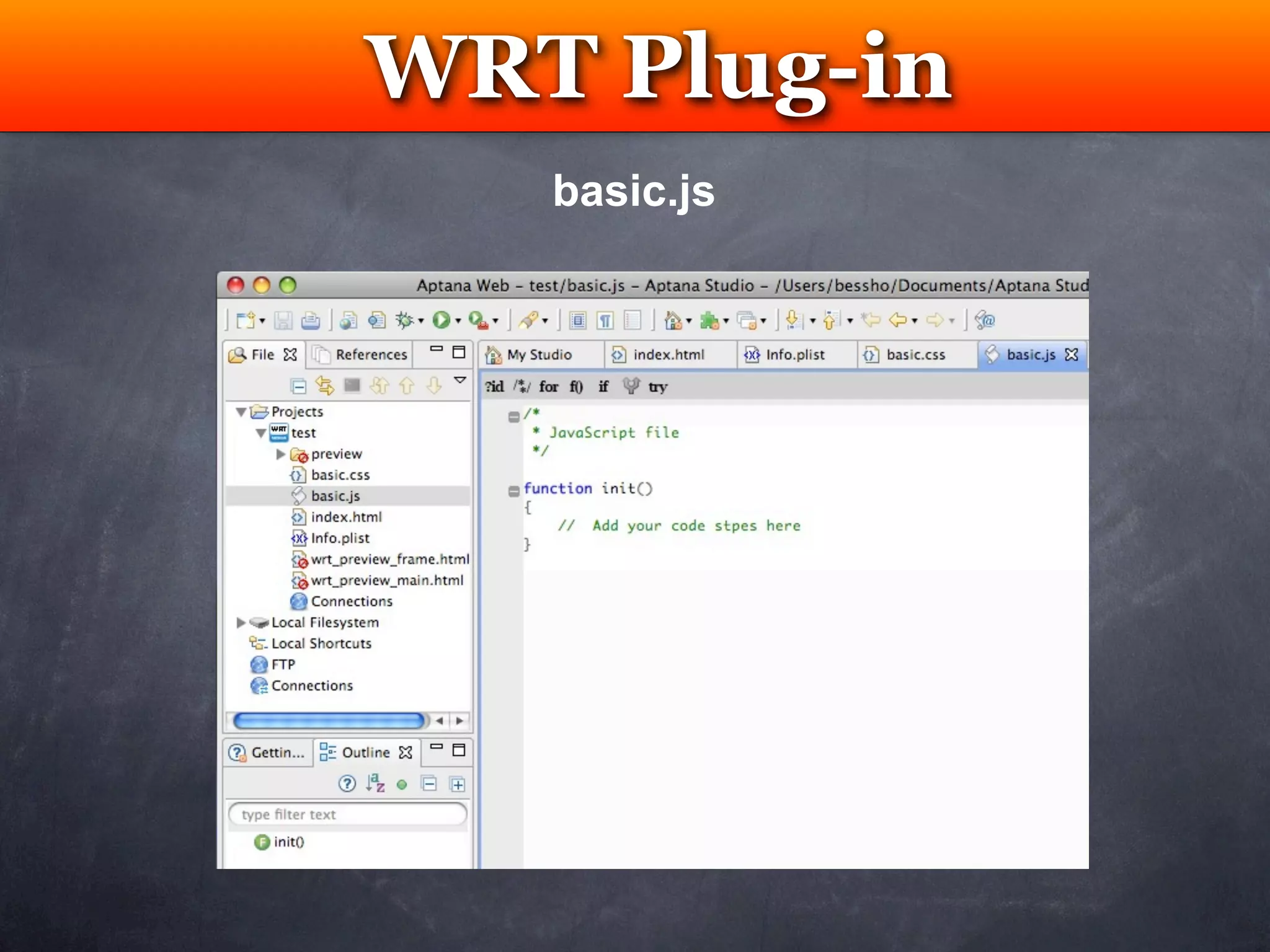

basic.js

WRT Plug-in
Testing

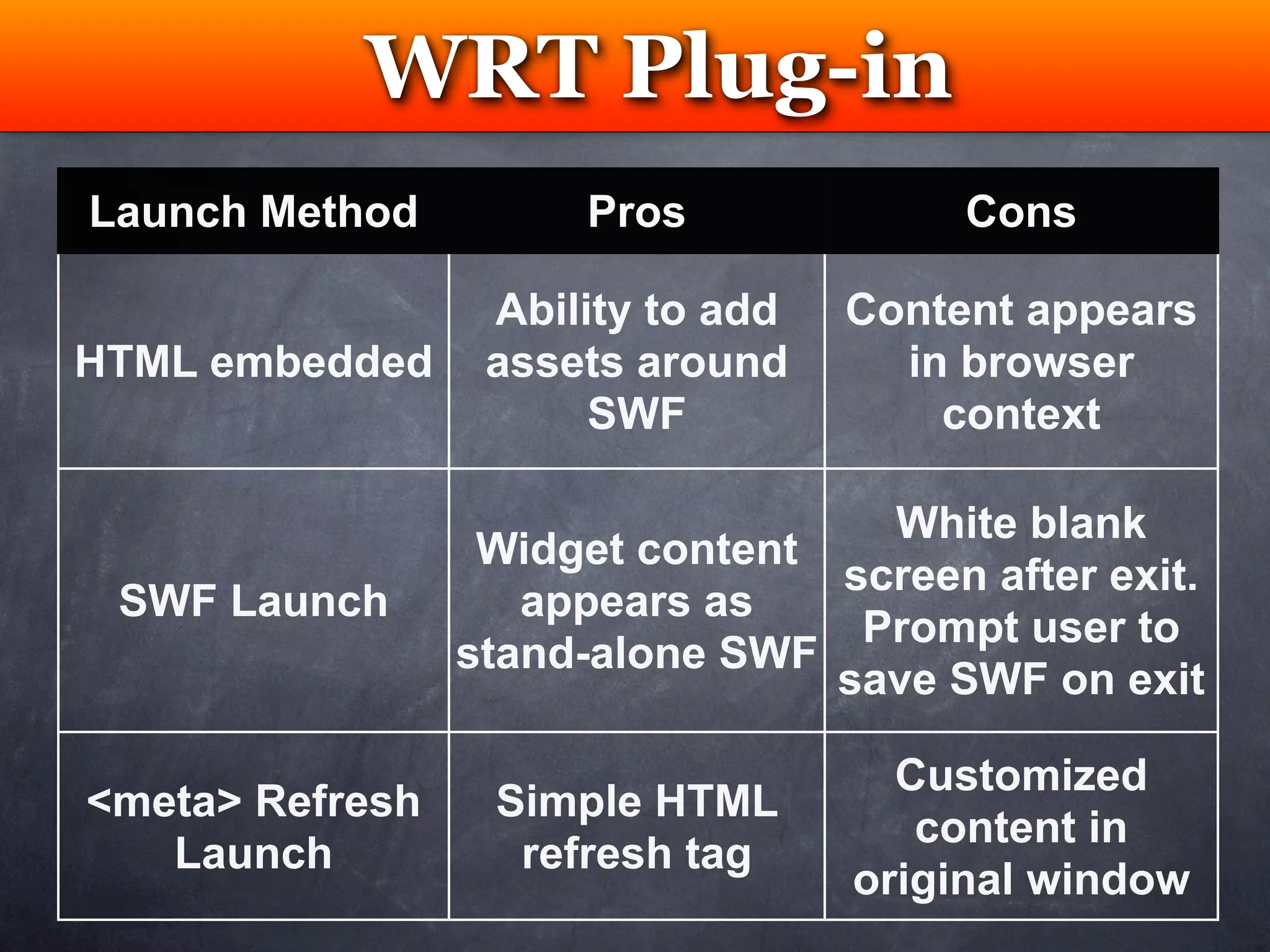

Launch Method Pros Cons

Ability to add Content appears
HTML embedded assets around in browser
SWF context

White blank
Widget content
screen after exit.
SWF Launch appears as
Prompt user to
stand-alone SWF
save SWF on exit

Customized
<meta> Refresh Simple HTML
content in
Launch refresh tag
original window

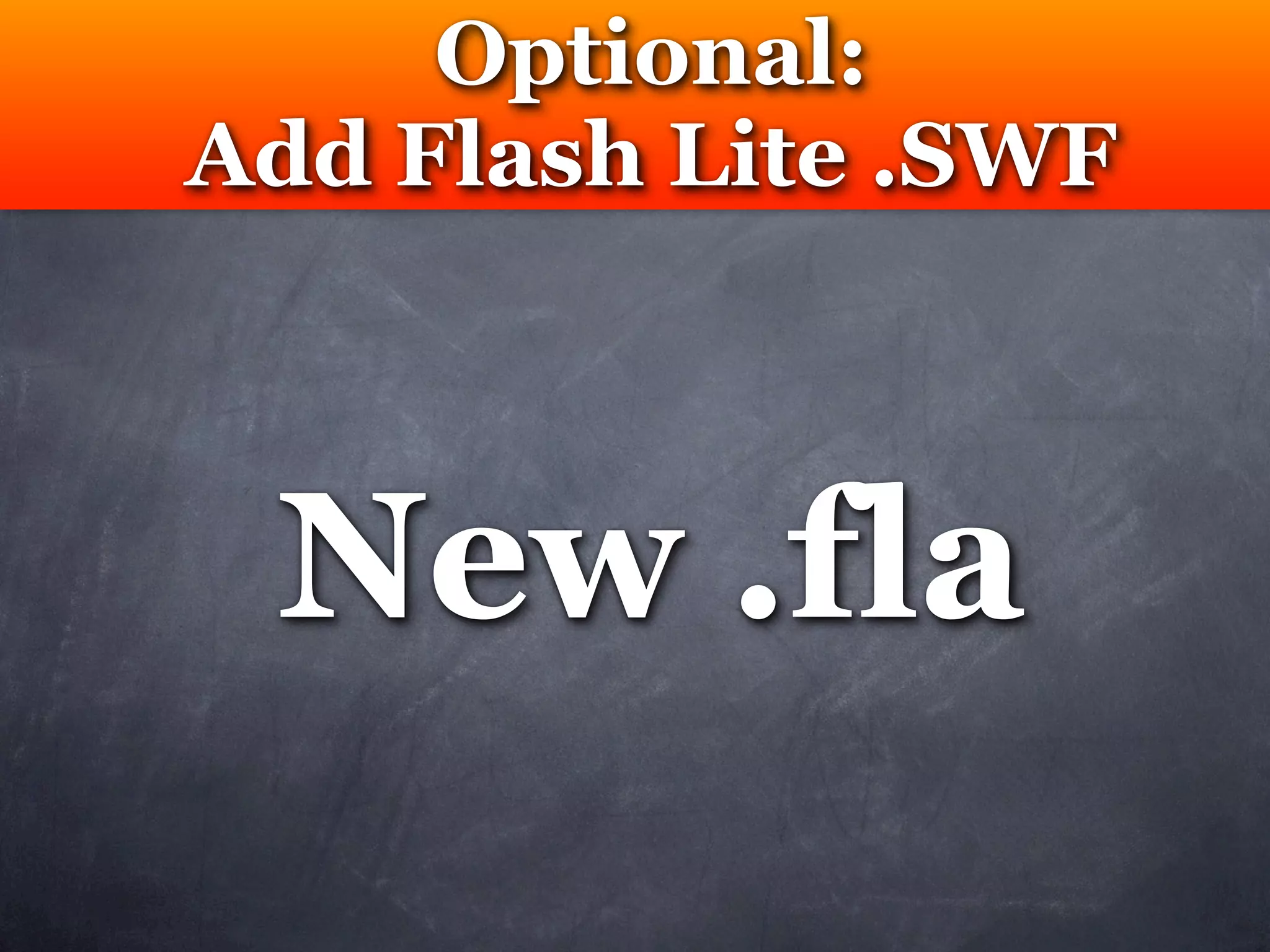

Optional:
Add Flash Lite .SWF

New .fla

WRT Project
Testing

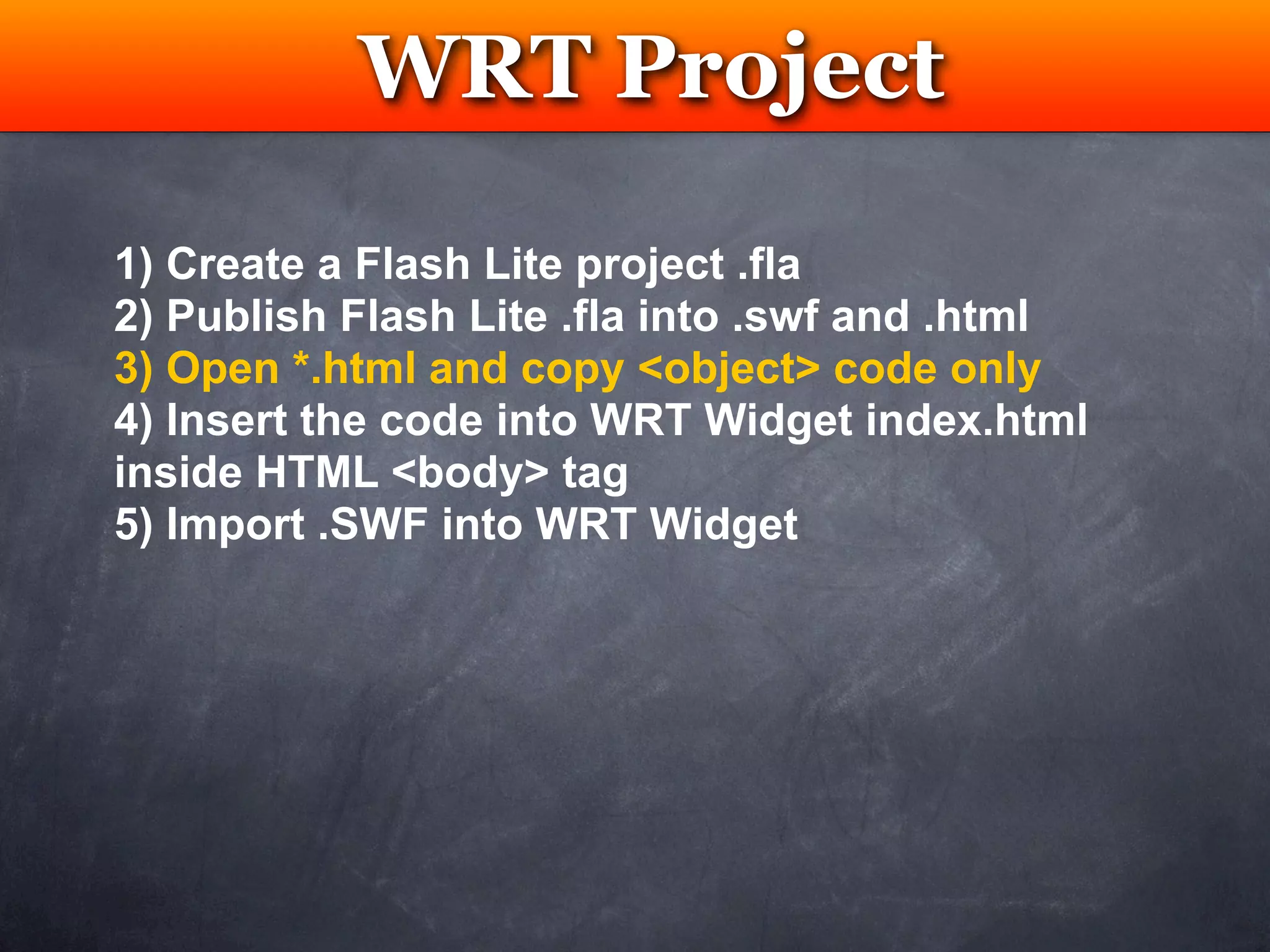

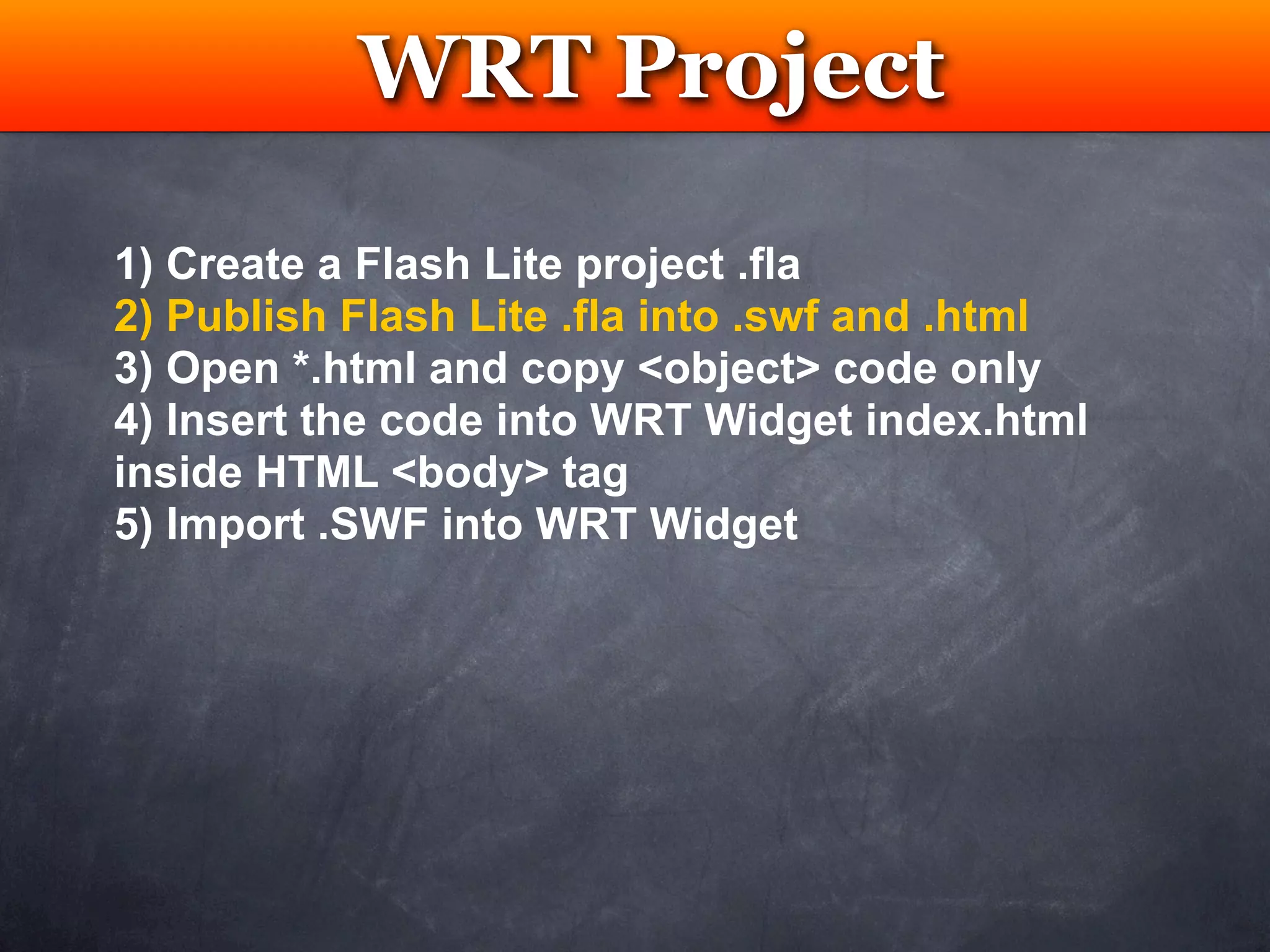

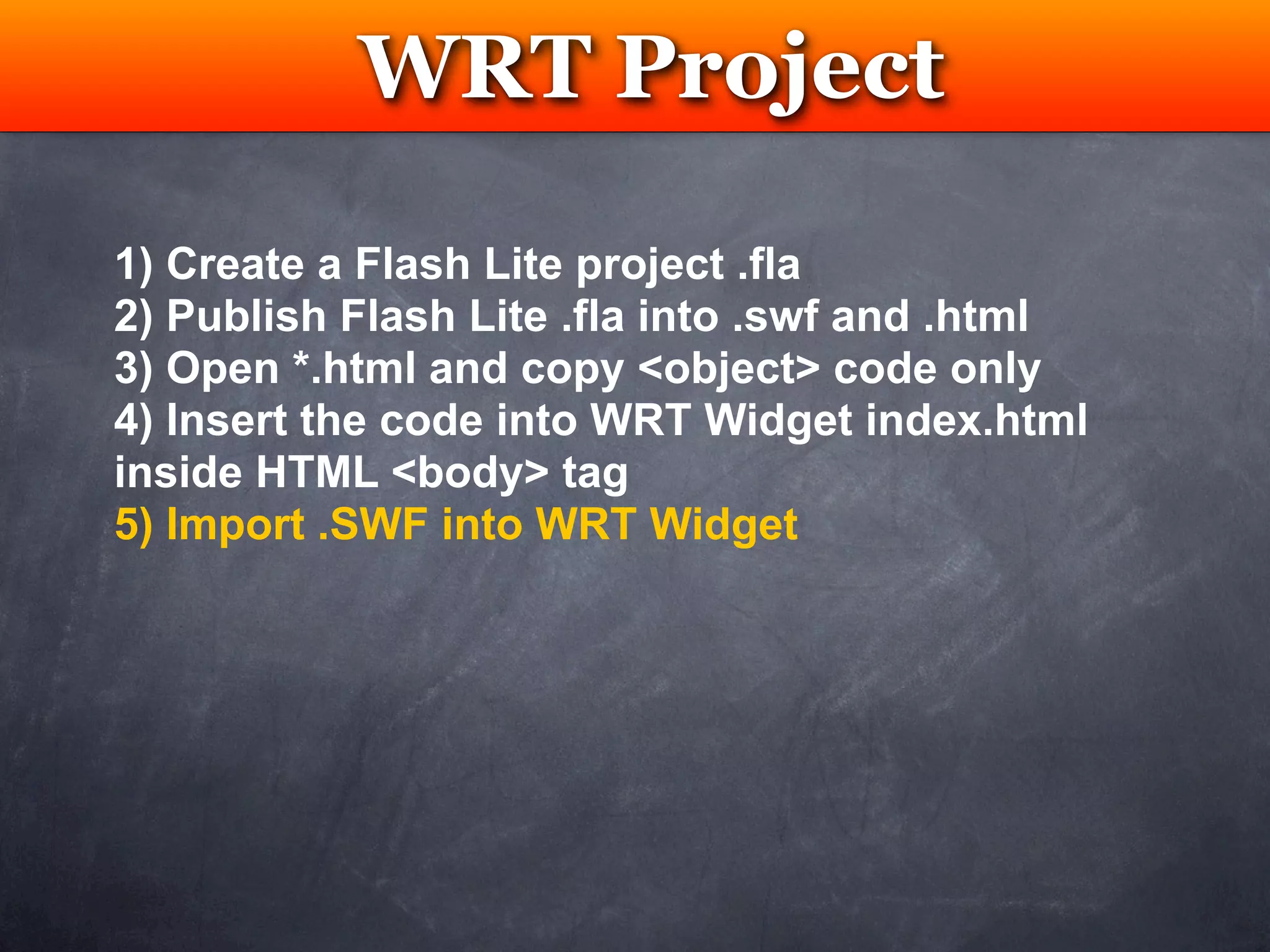

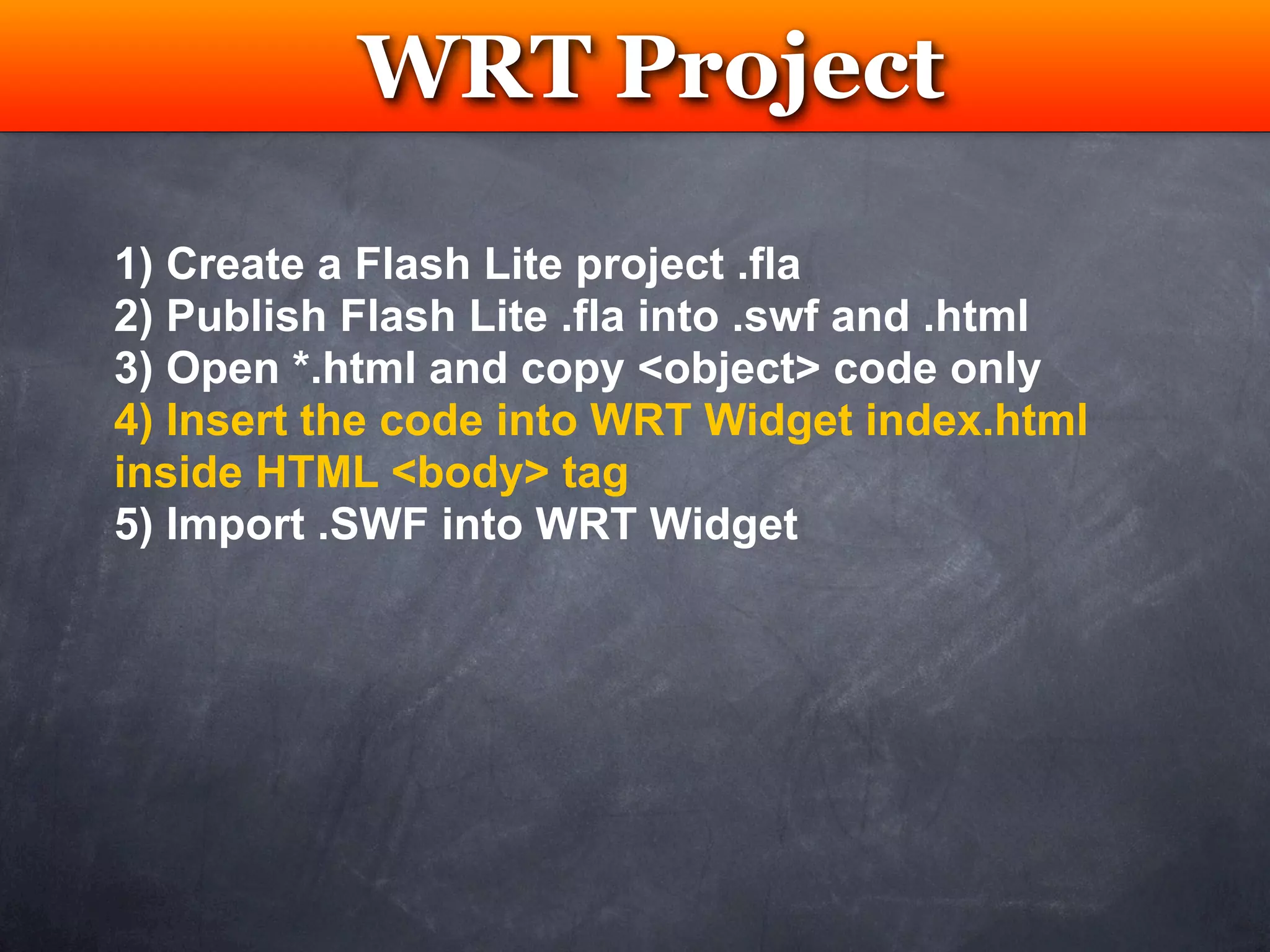

1) Create a Flash Lite project .fla
2) Publish Flash Lite .fla into .swf and .html
3) Open *.html and copy <object> code only
4) Insert the code into WRT Widget index.html
inside HTML <body> tag
5) Import .SWF into WRT Widget

Adobe Flash
Testing
Create a New Flash file (Mobile)

Adobe Flash
Testing

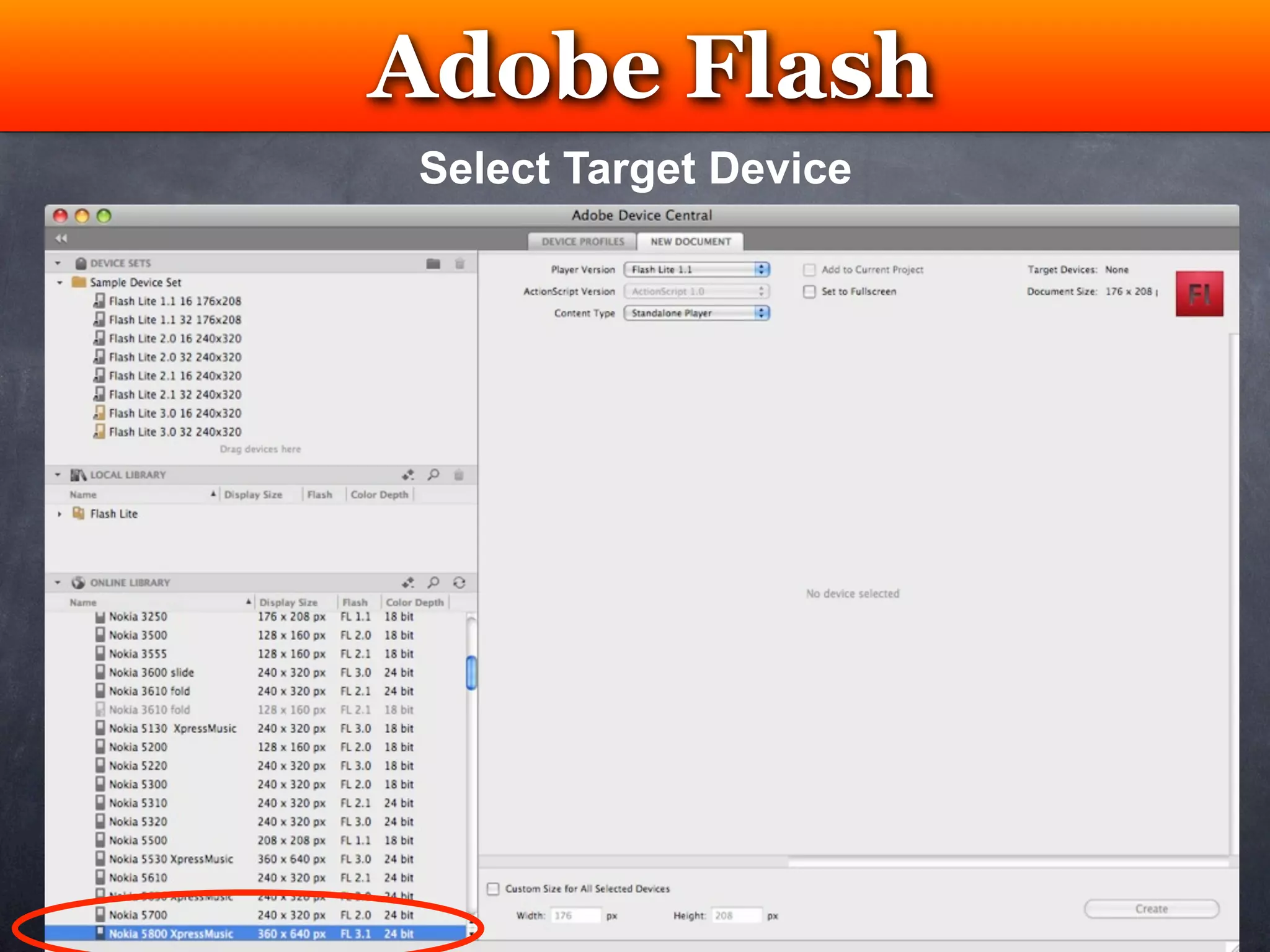

Select Target Device

Adobe Flash
Testing

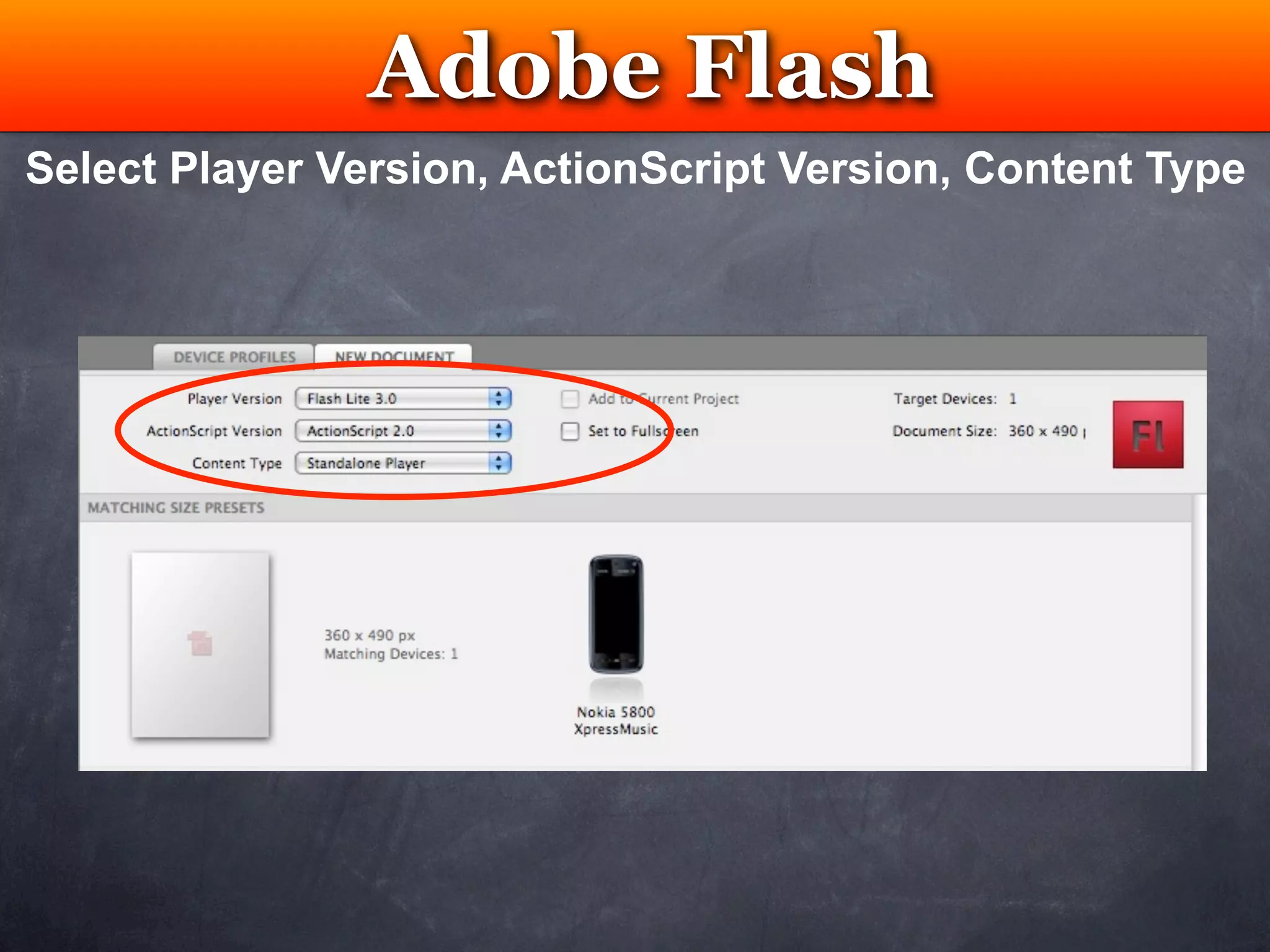

Select Player Version, ActionScript Version, Content Type

Adobe Flash
Testing

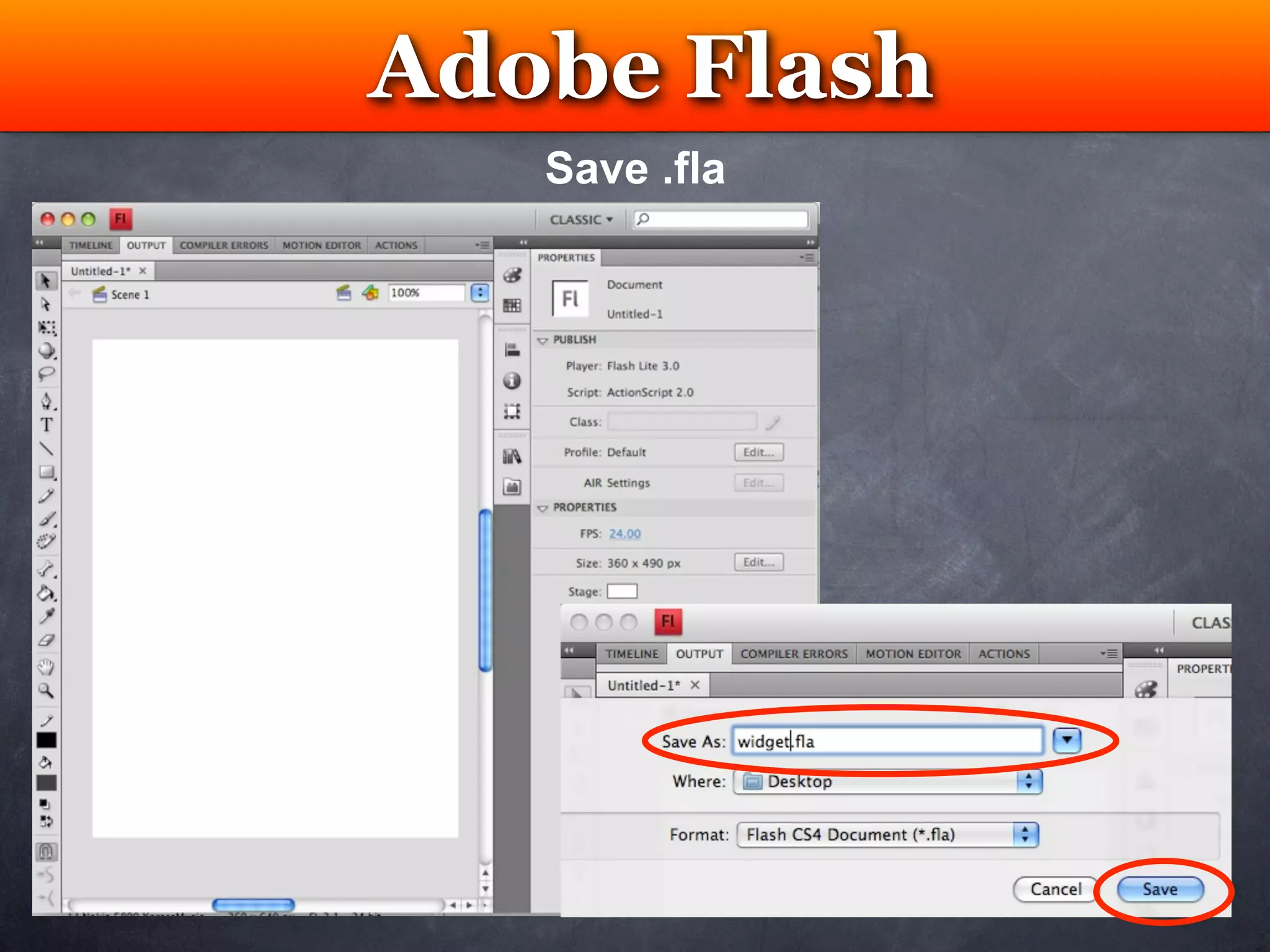

Save .fla

Adobe Flash
Testing

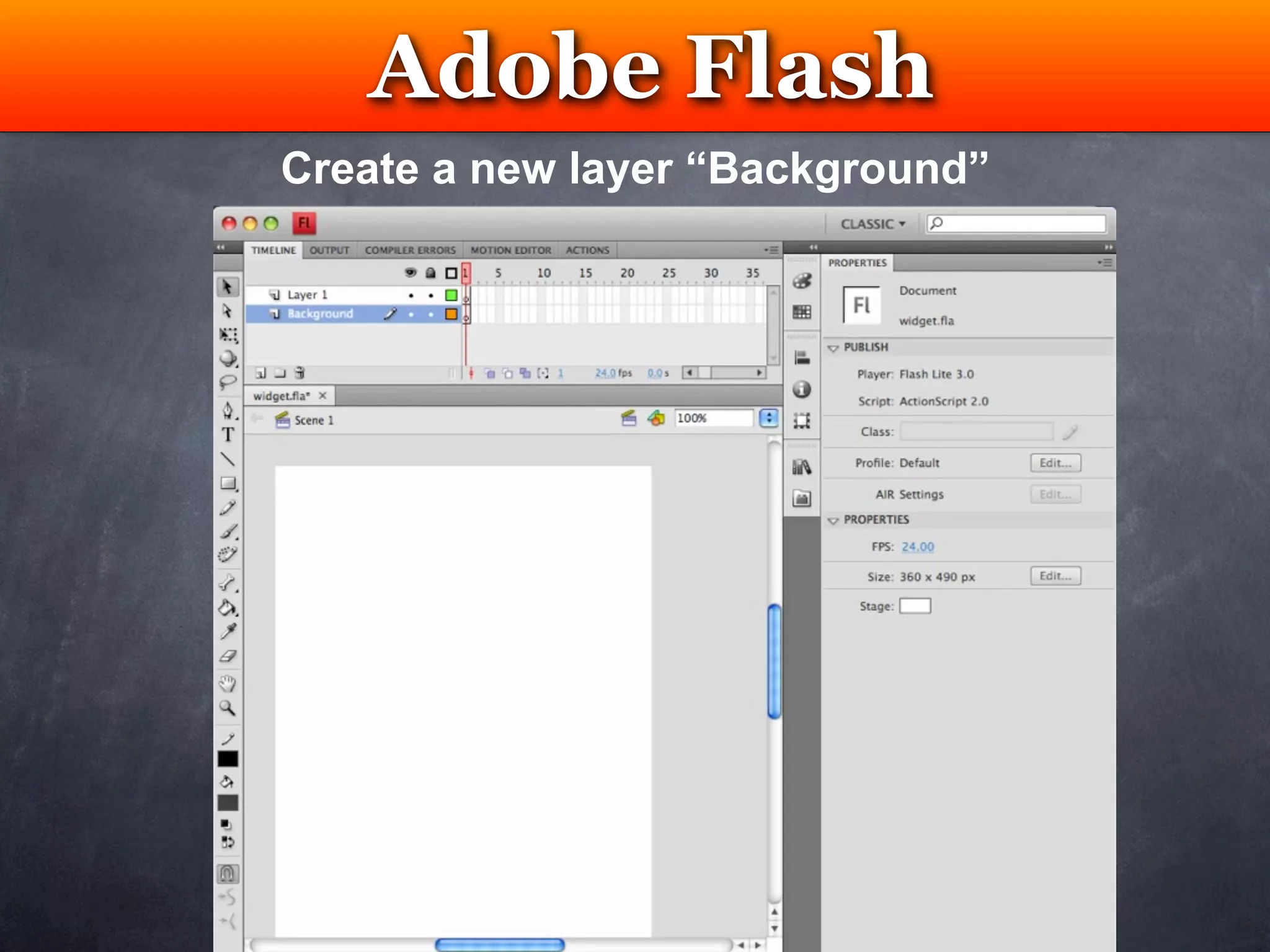

Create a new layer “Background”

Adobe Flash
Testing

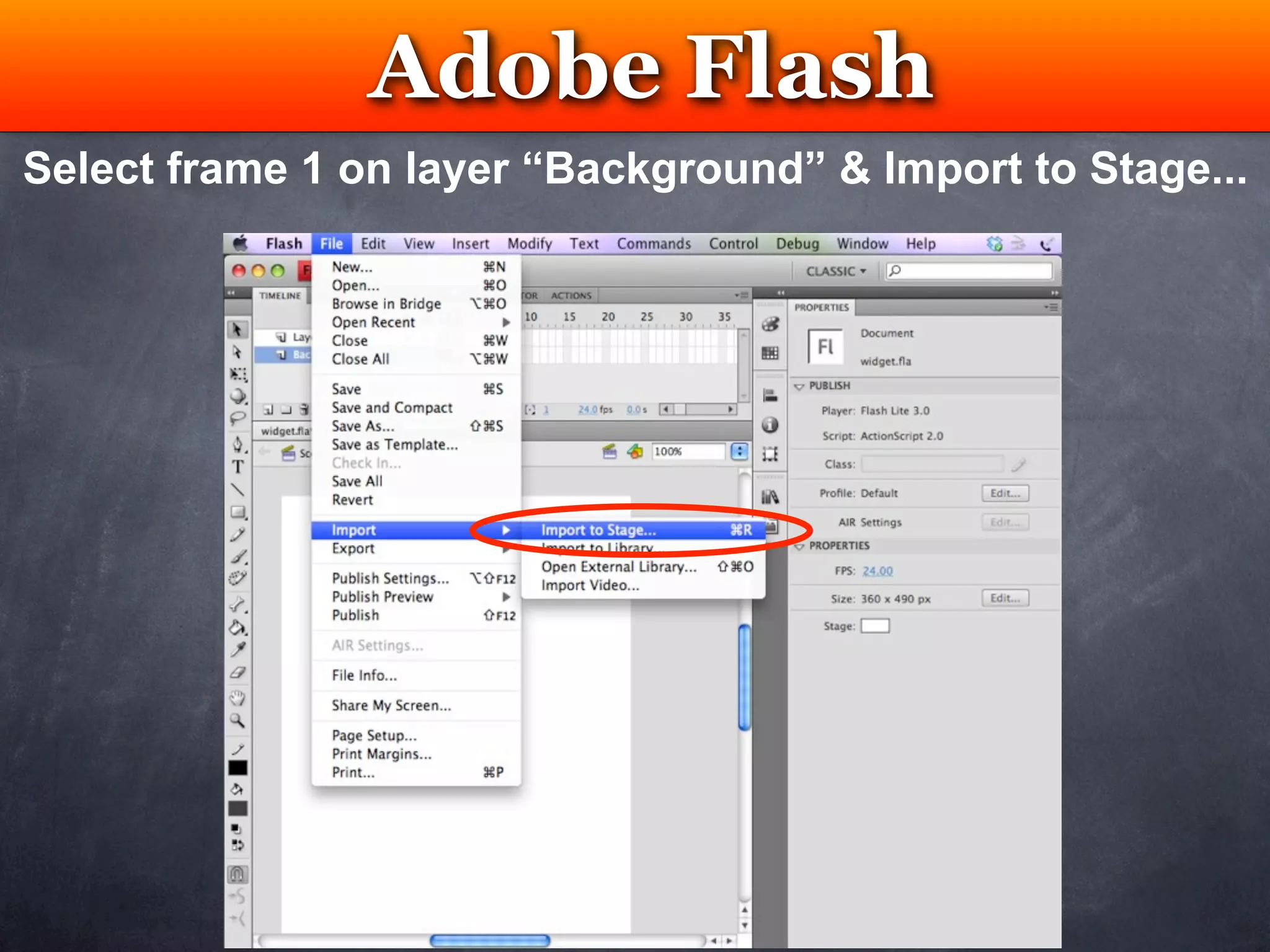

Select frame 1 on layer “Background” & Import to Stage...

Adobe Flash
Testing

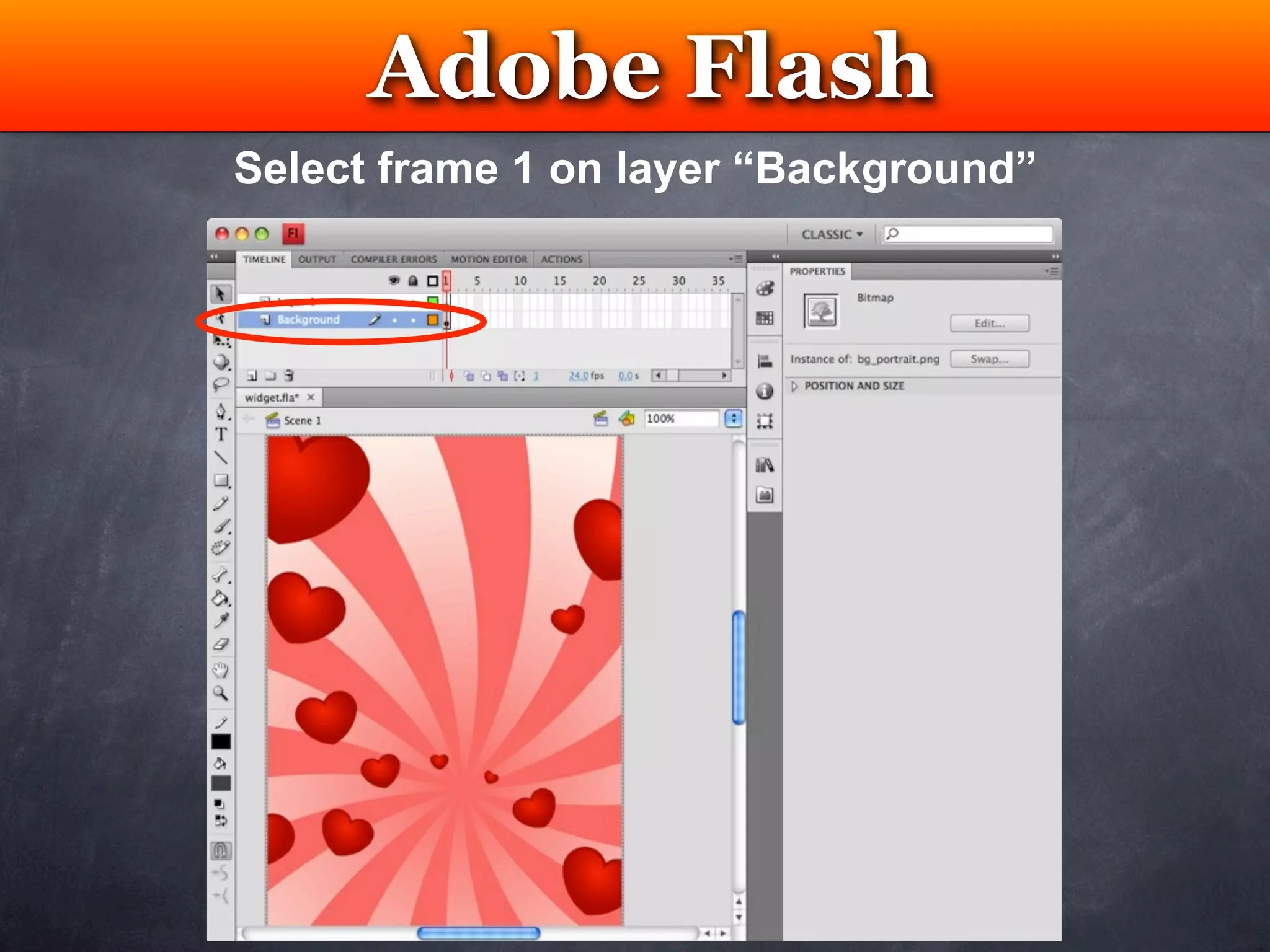

Select frame 1 on layer “Background”

Adobe Flash
Testing

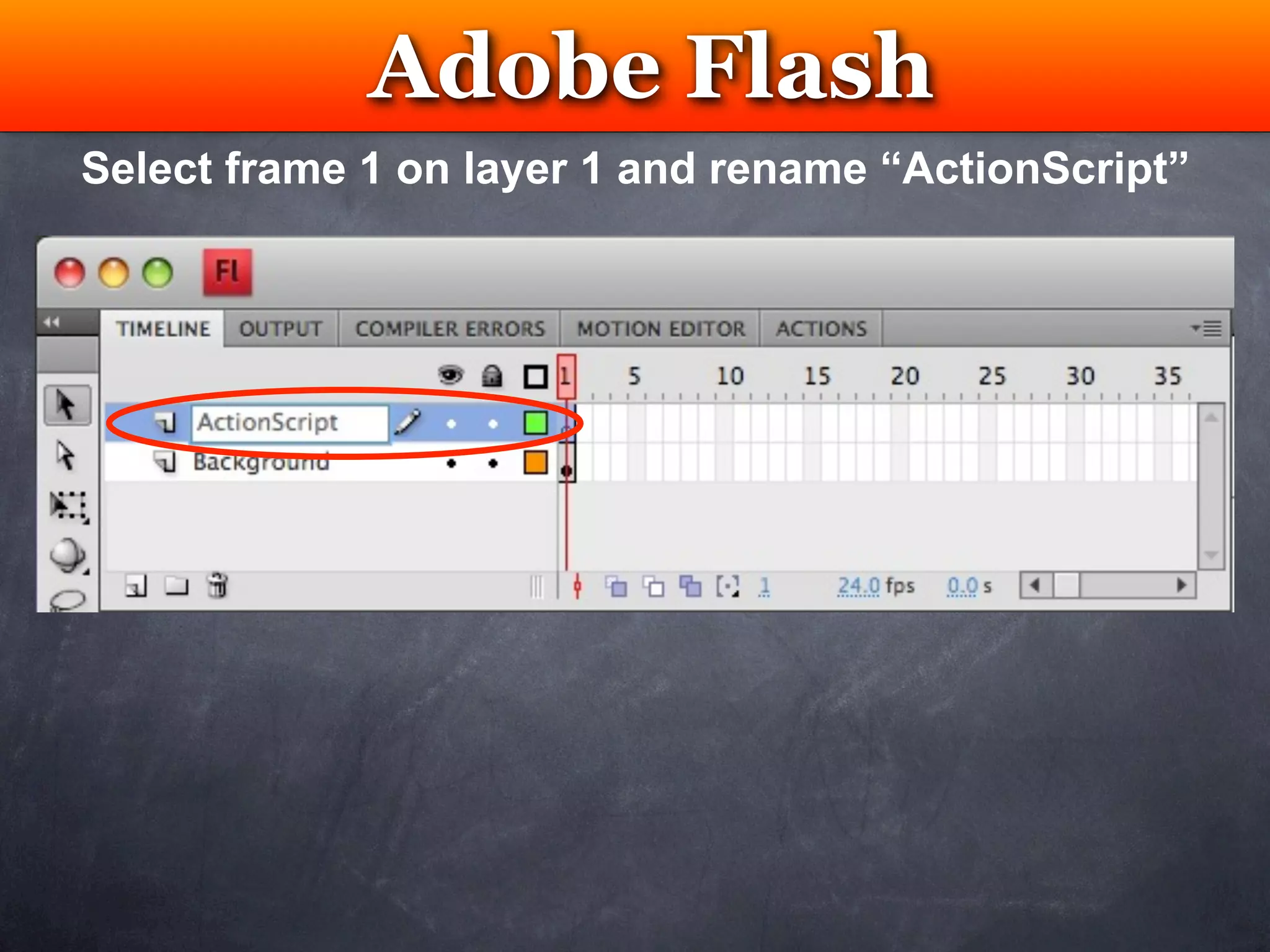

Select frame 1 on layer 1 and rename “ActionScript”

Adobe Flash
Testing

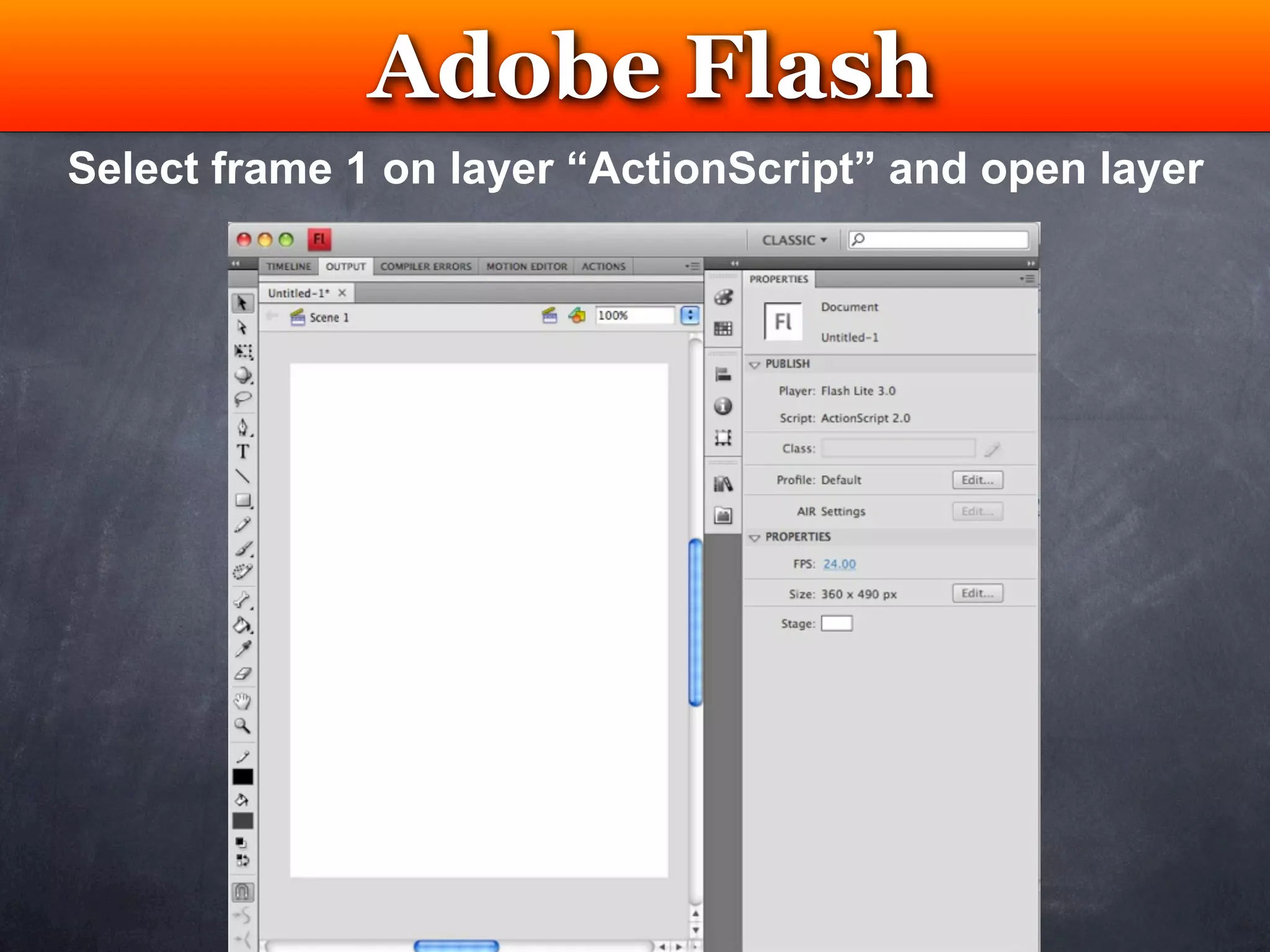

Select frame 1 on layer “ActionScript” and open layer

Adobe Flash
Testing

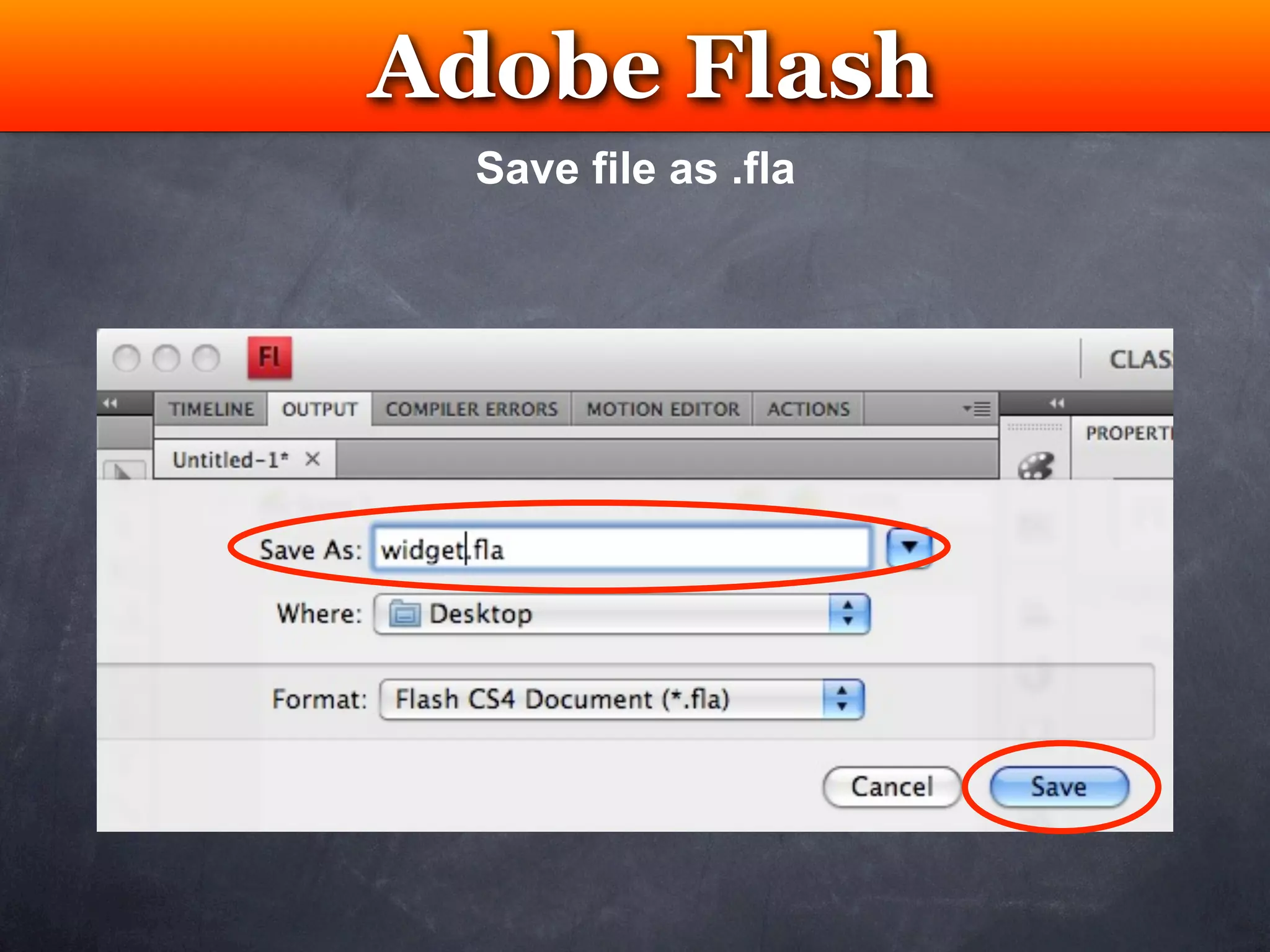

Save file as .fla

Adobe Flash
Testing

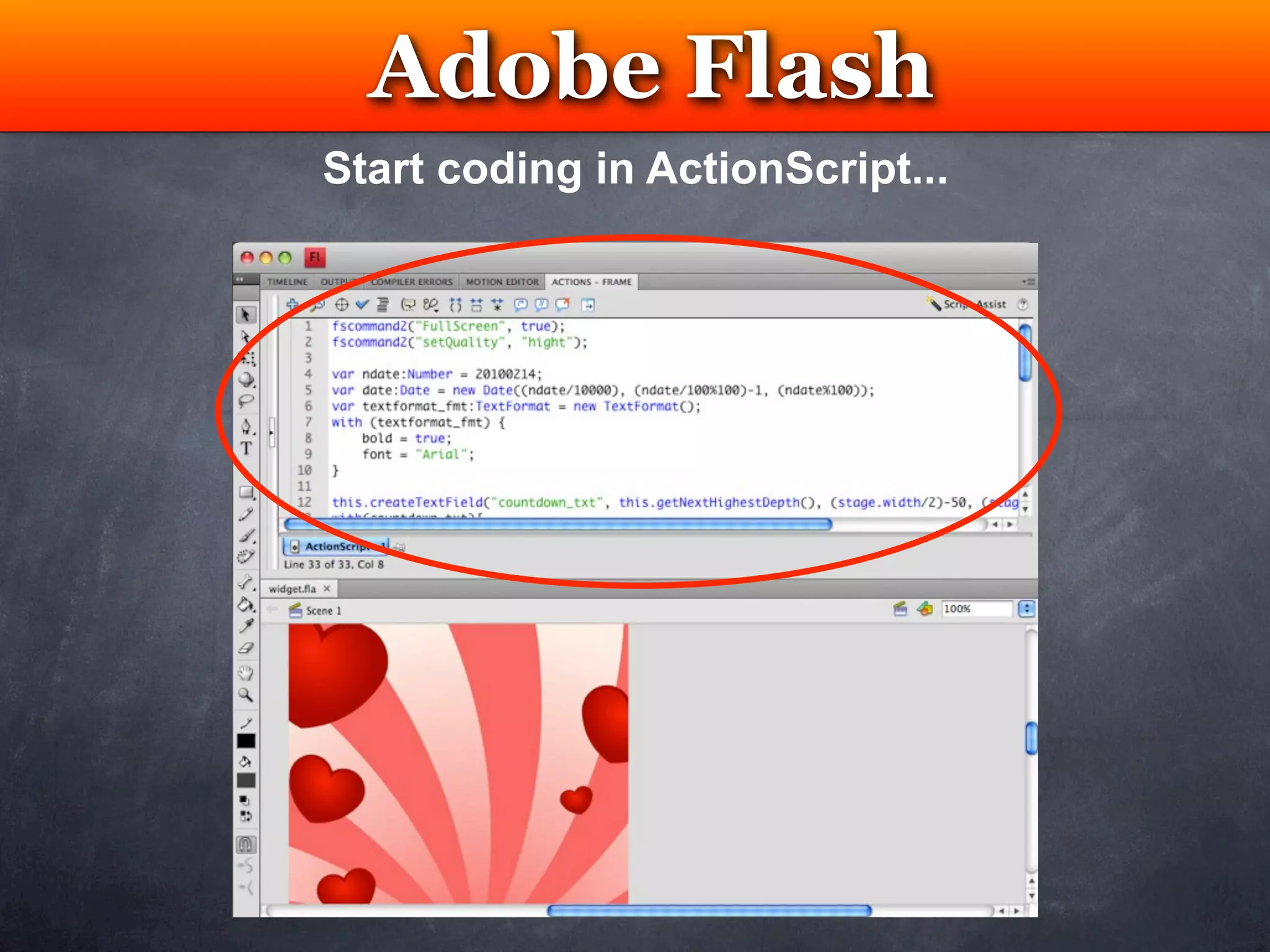

Start coding in ActionScript...

Adobe Flash
Testing

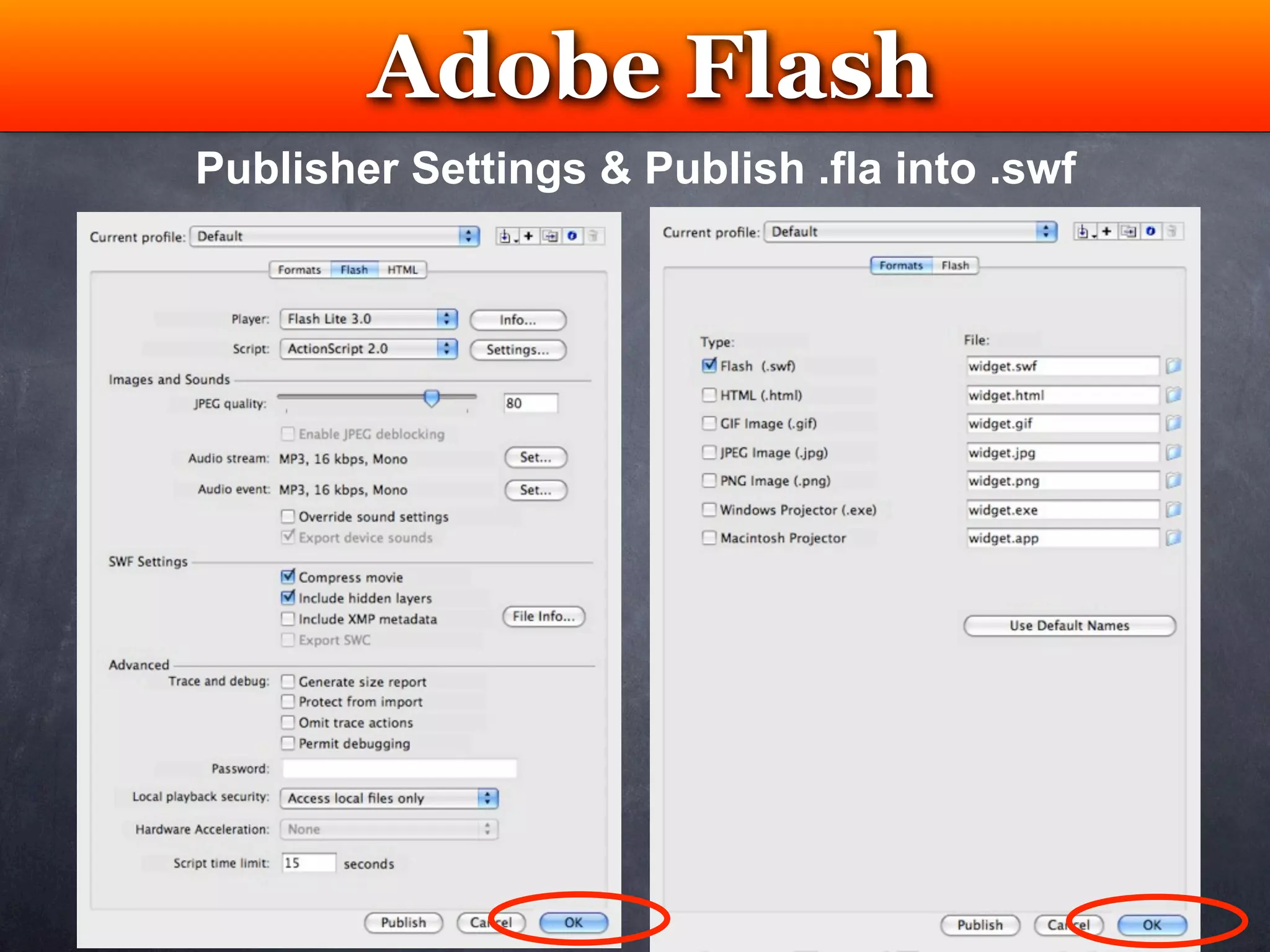

Publisher Settings & Publish .fla into .swf

WRT Project
Testing

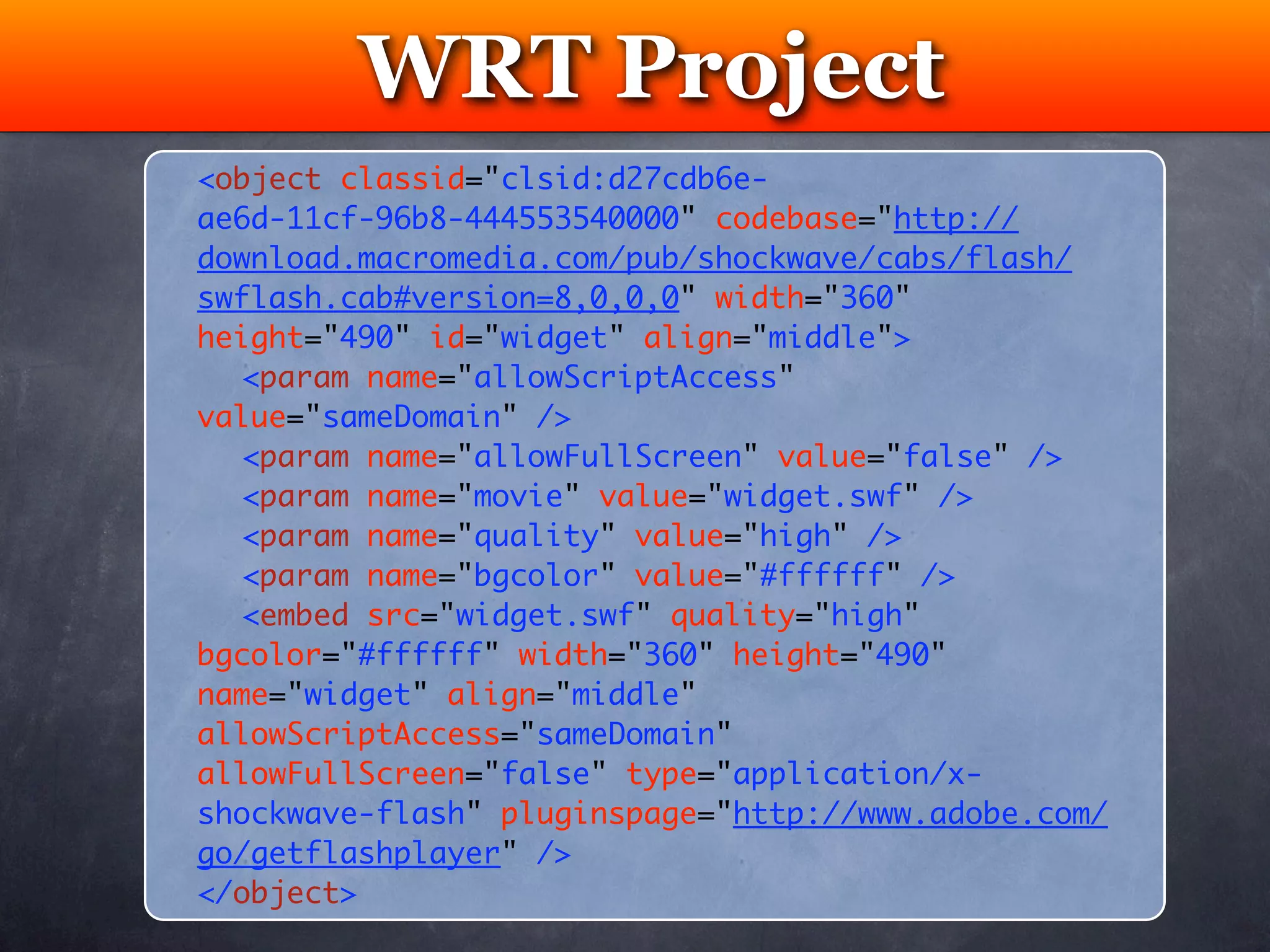

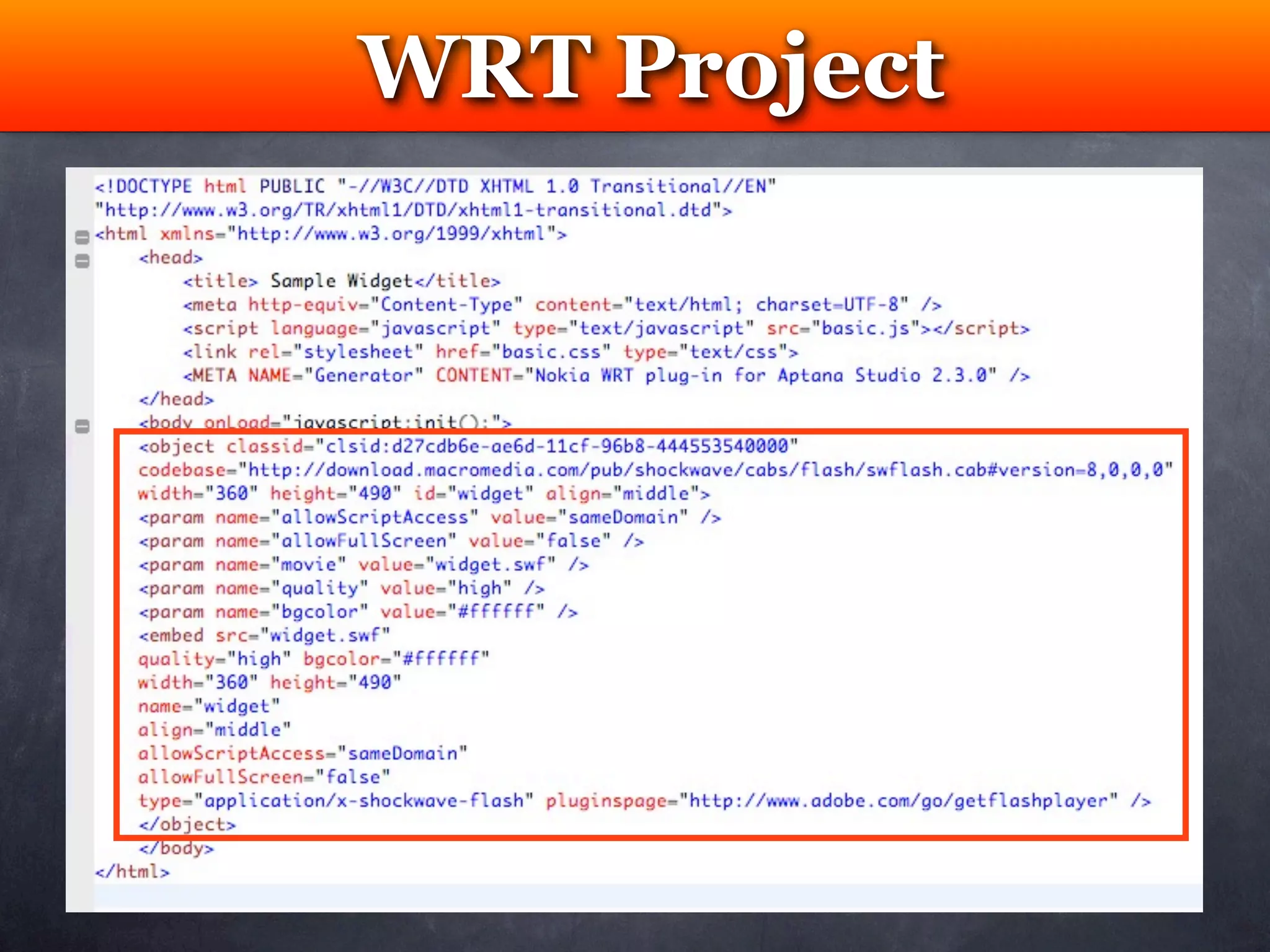

<object classid="clsid:d27cdb6e-
ae6d-11cf-96b8-444553540000" codebase="http://
download.macromedia.com/pub/shockwave/cabs/flash/
swflash.cab#version=8,0,0,0" width="360"
height="490" id="widget" align="middle">
<param name="allowScriptAccess"
value="sameDomain" />
<param name="allowFullScreen" value="false" />
<param name="movie" value="widget.swf" />
<param name="quality" value="high" />
<param name="bgcolor" value="#ffffff" />
<embed src="widget.swf" quality="high"
bgcolor="#ffffff" width="360" height="490"
name="widget" align="middle"
allowScriptAccess="sameDomain"
allowFullScreen="false" type="application/x-
shockwave-flash" pluginspage="http://www.adobe.com/
go/getflashplayer" />
</object>

WRT Project
Testing

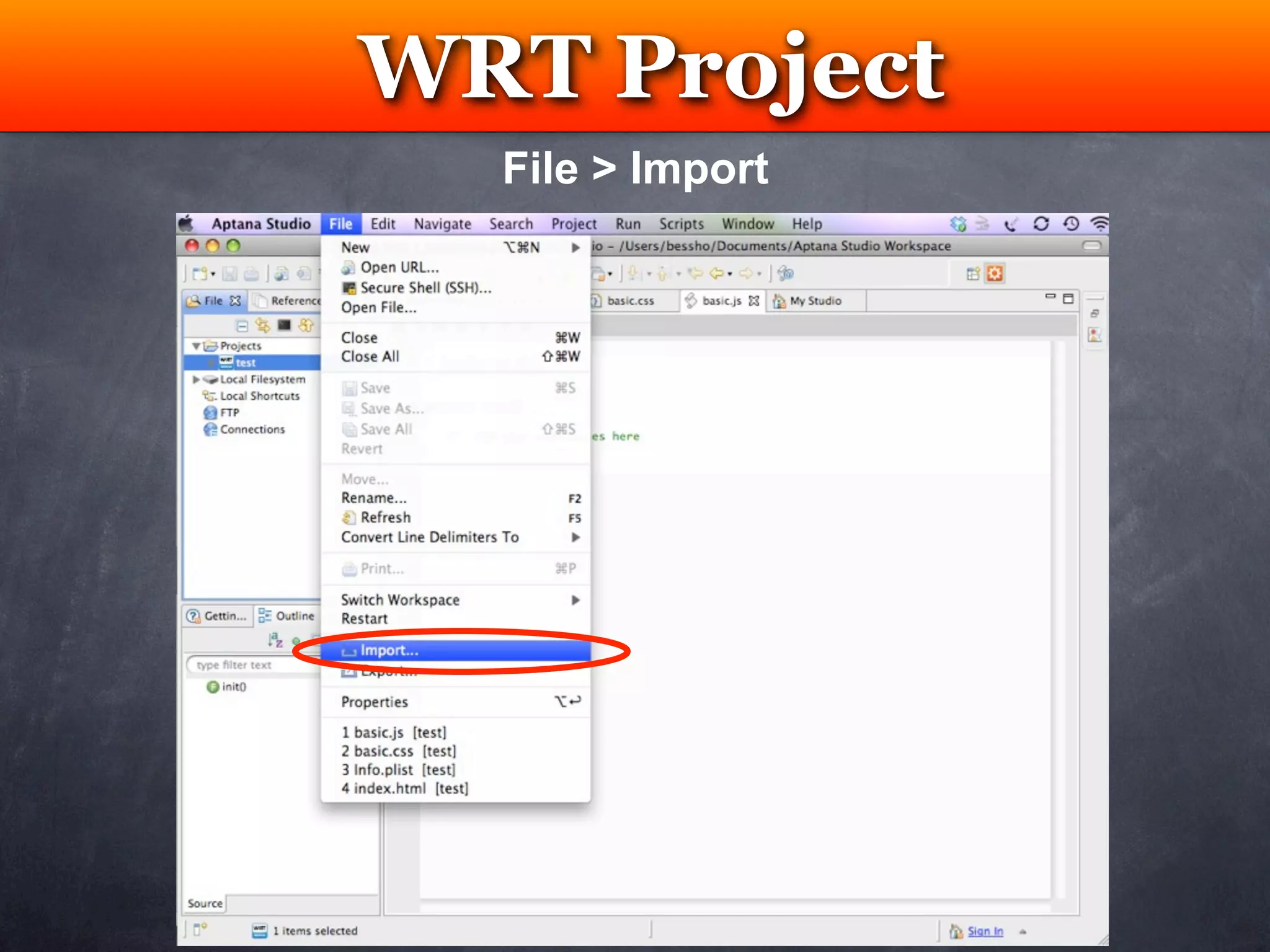

File > Import

WRT Project
Testing

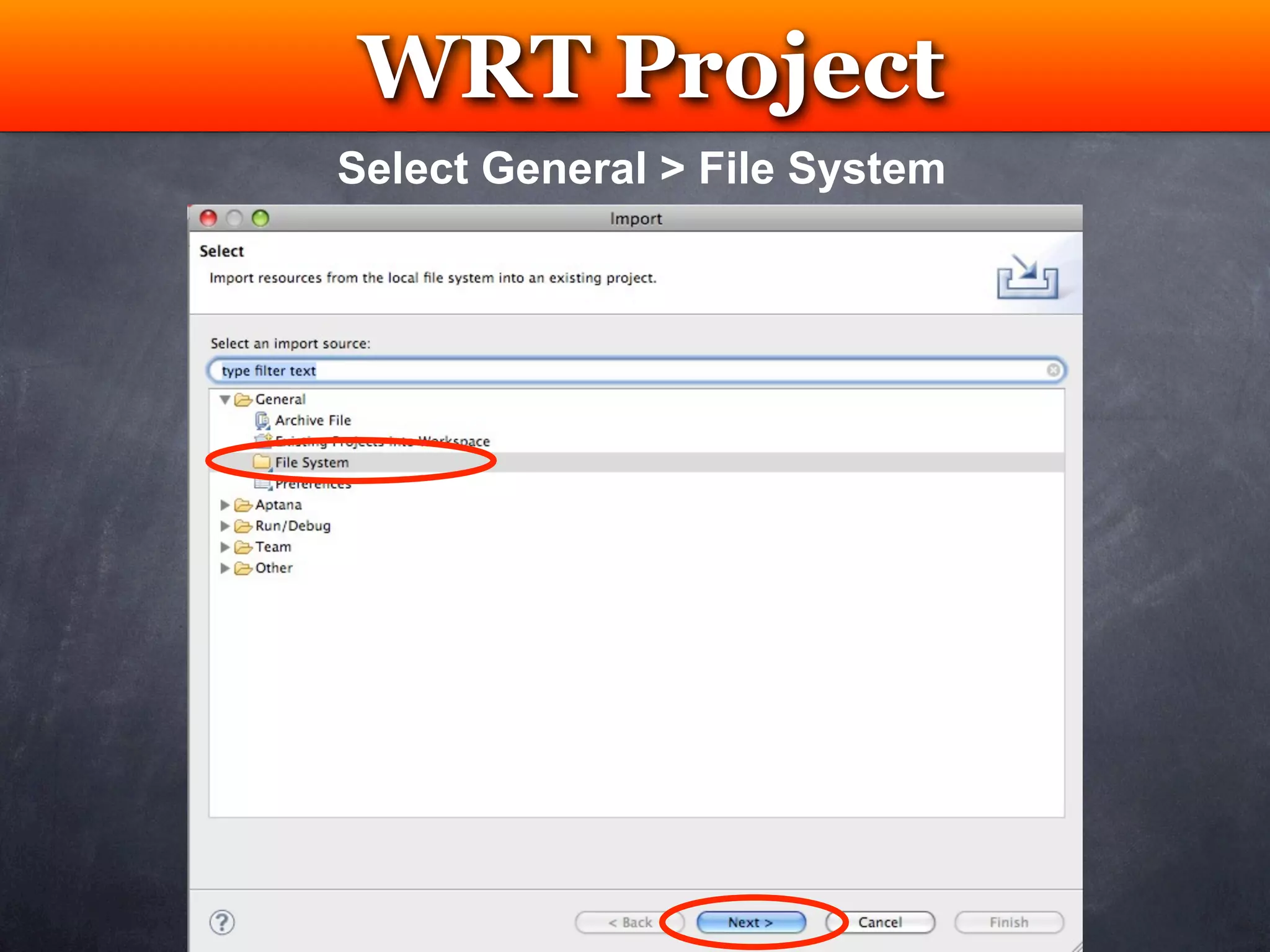

Select General > File System

WRT Project
Testing

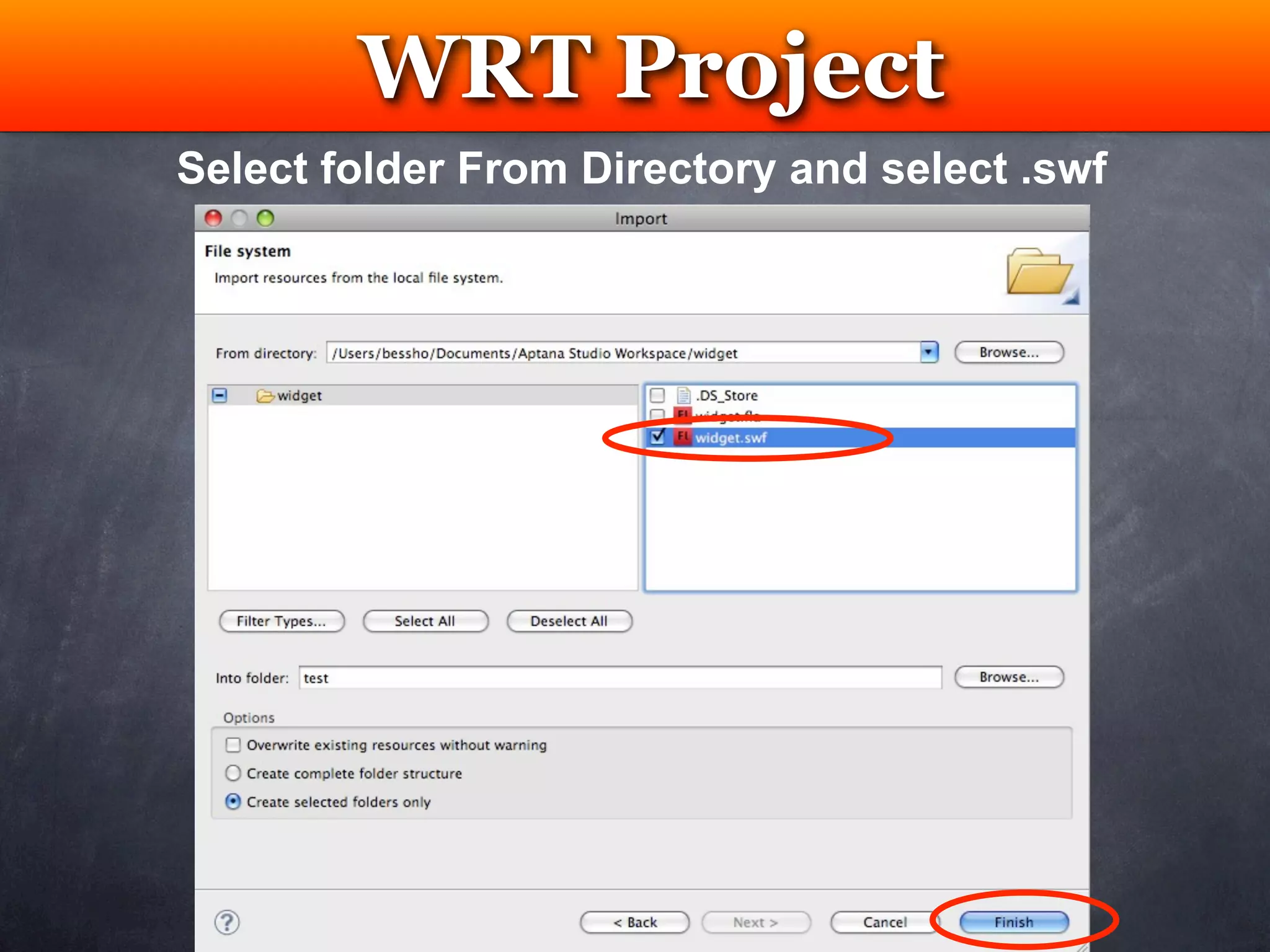

Select folder From Directory and select .swf

WRT Project
Testing

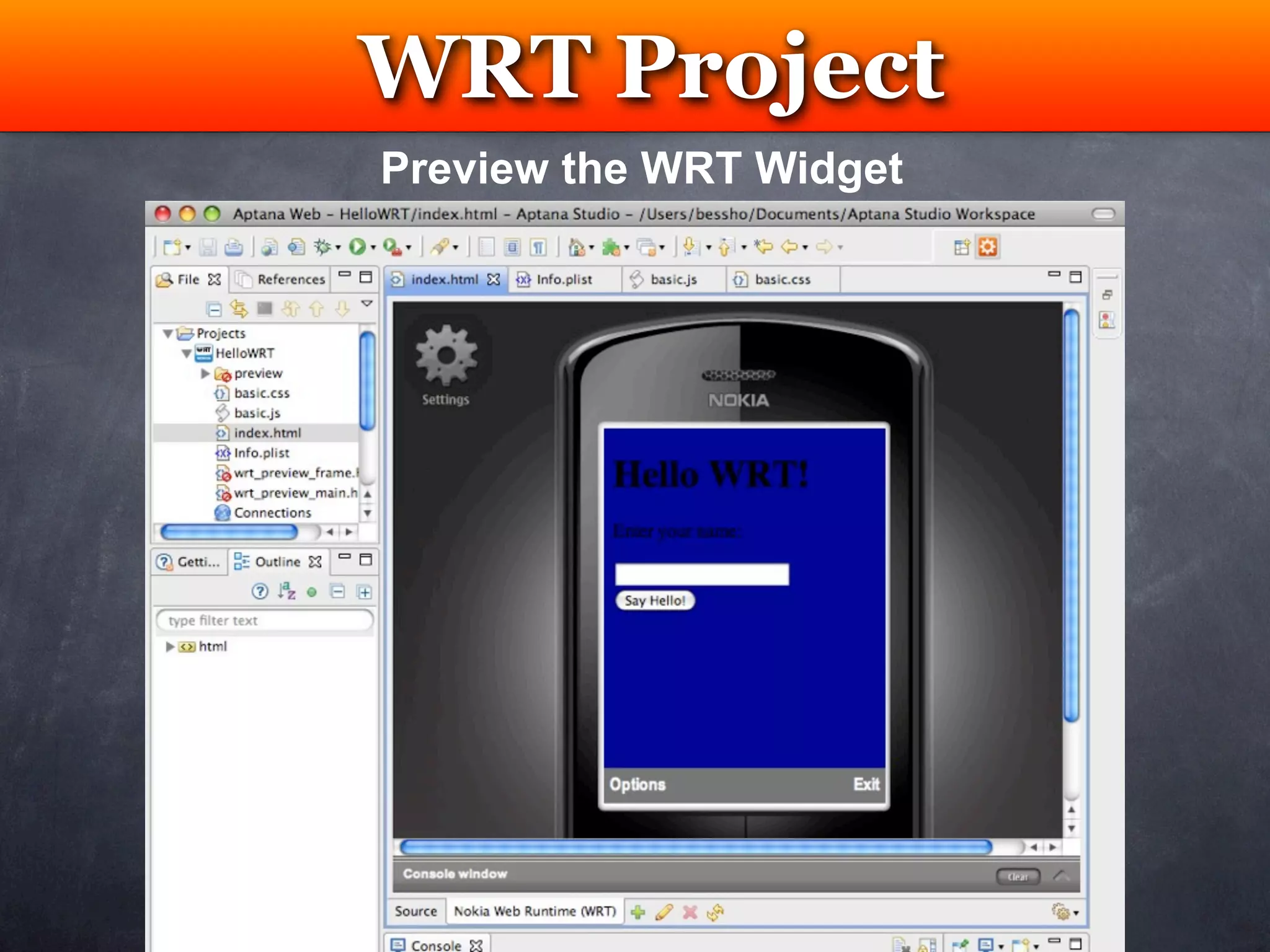

Preview the WRT Widget

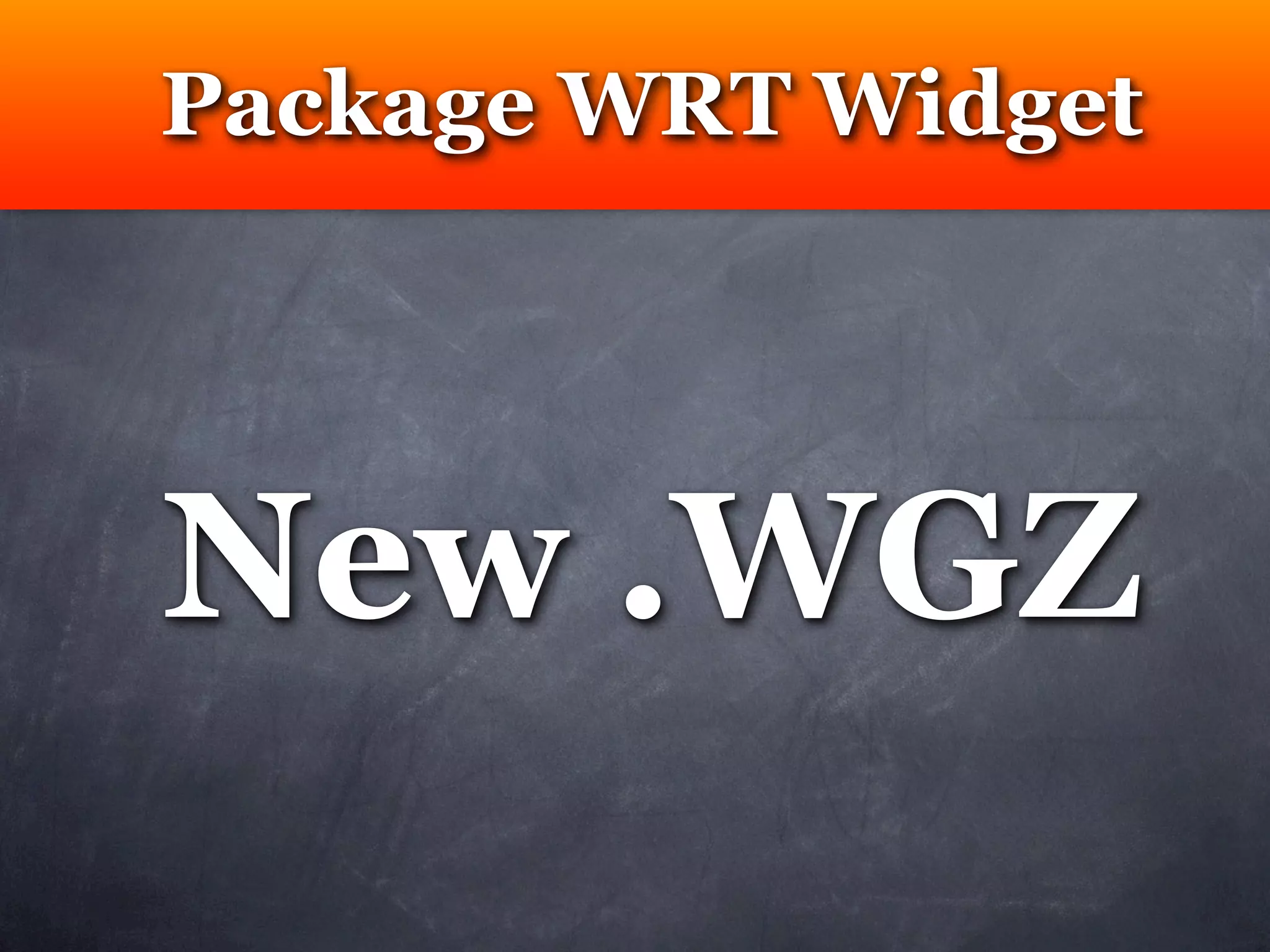

Package WRT Widget

New .WGZ

WRT Project
Testing

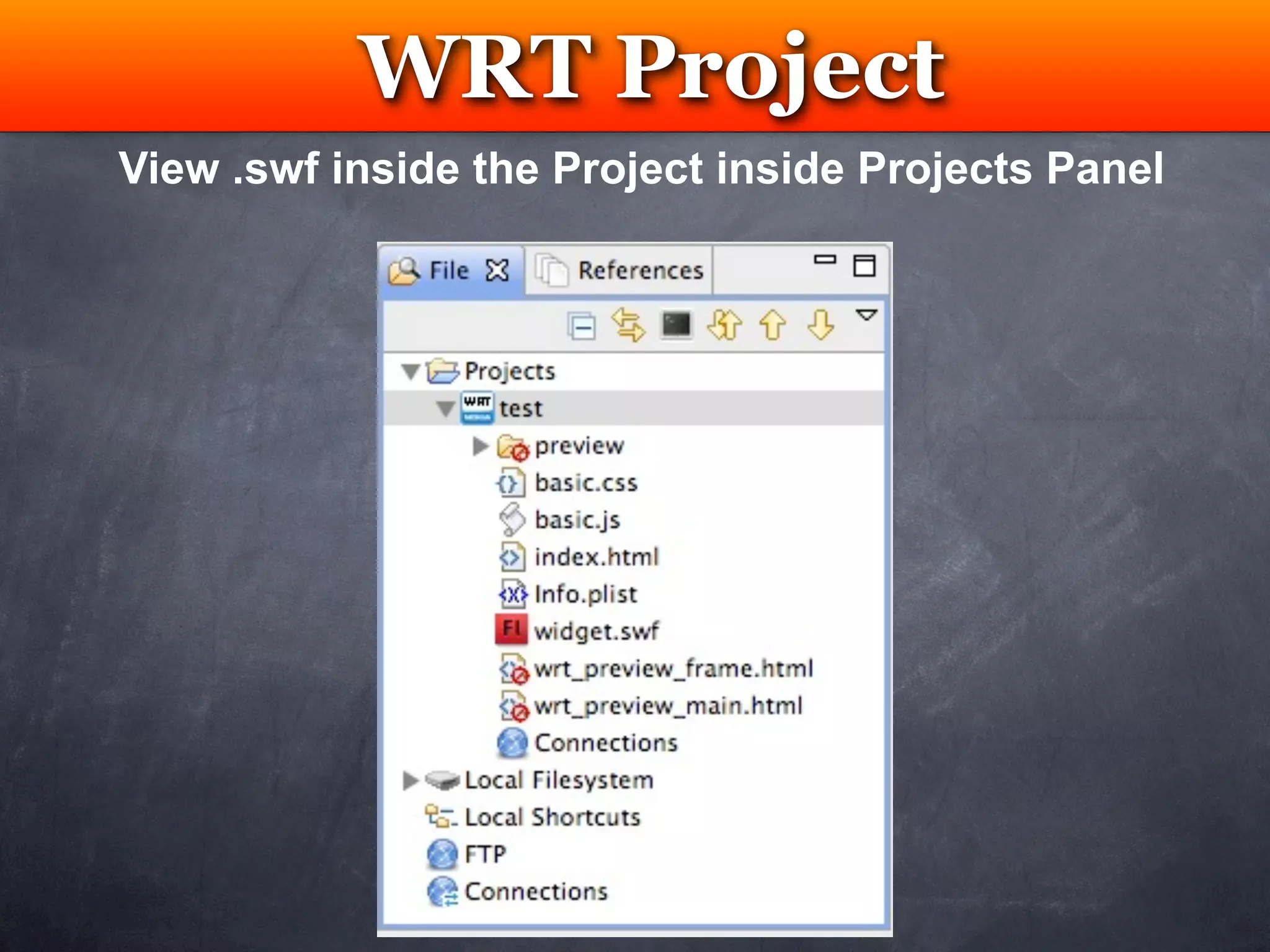

View .swf inside the Project inside Projects Panel

WRT Project
Testing

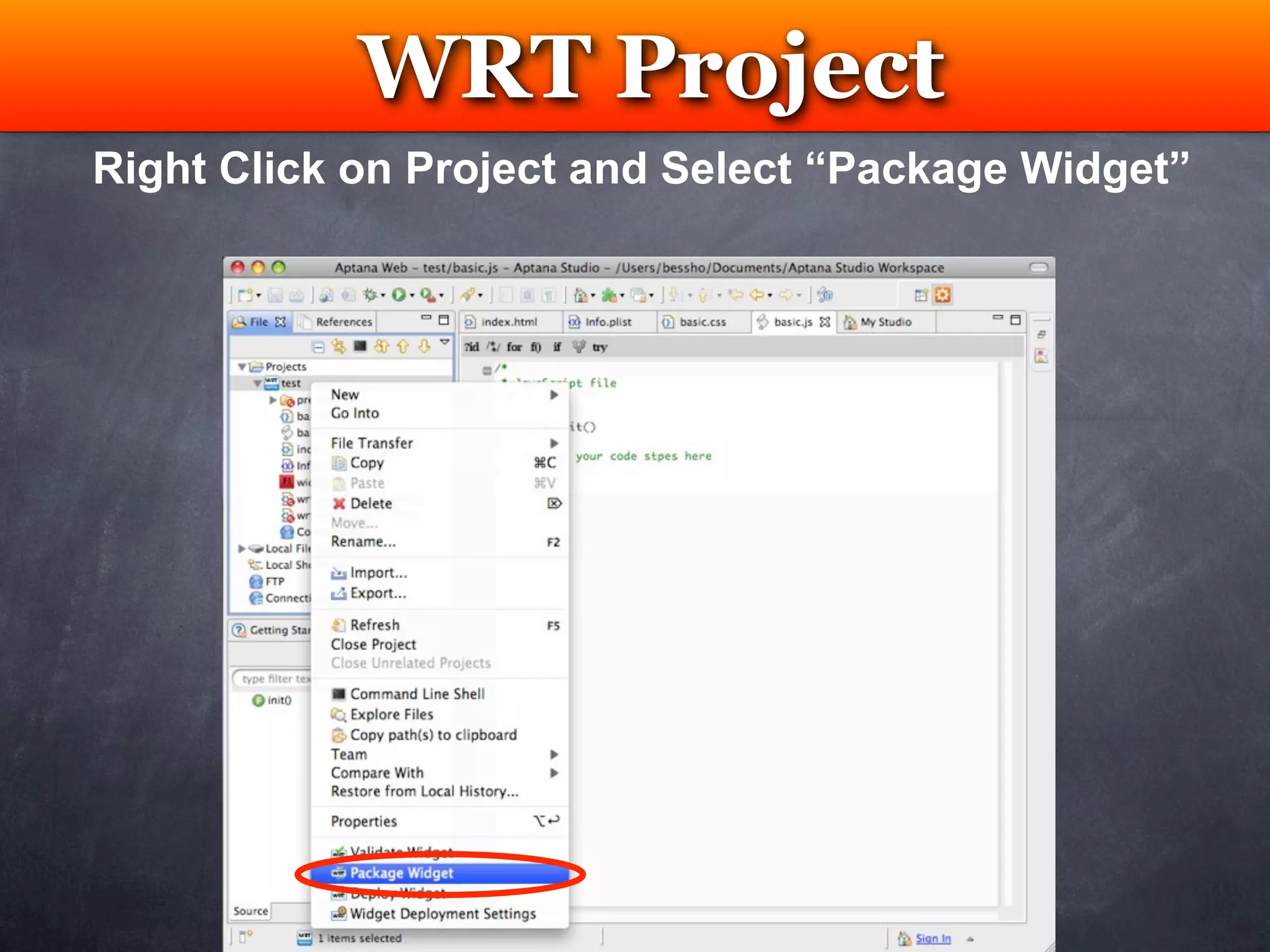

Right Click on Project and Select “Package Widget”

Testing

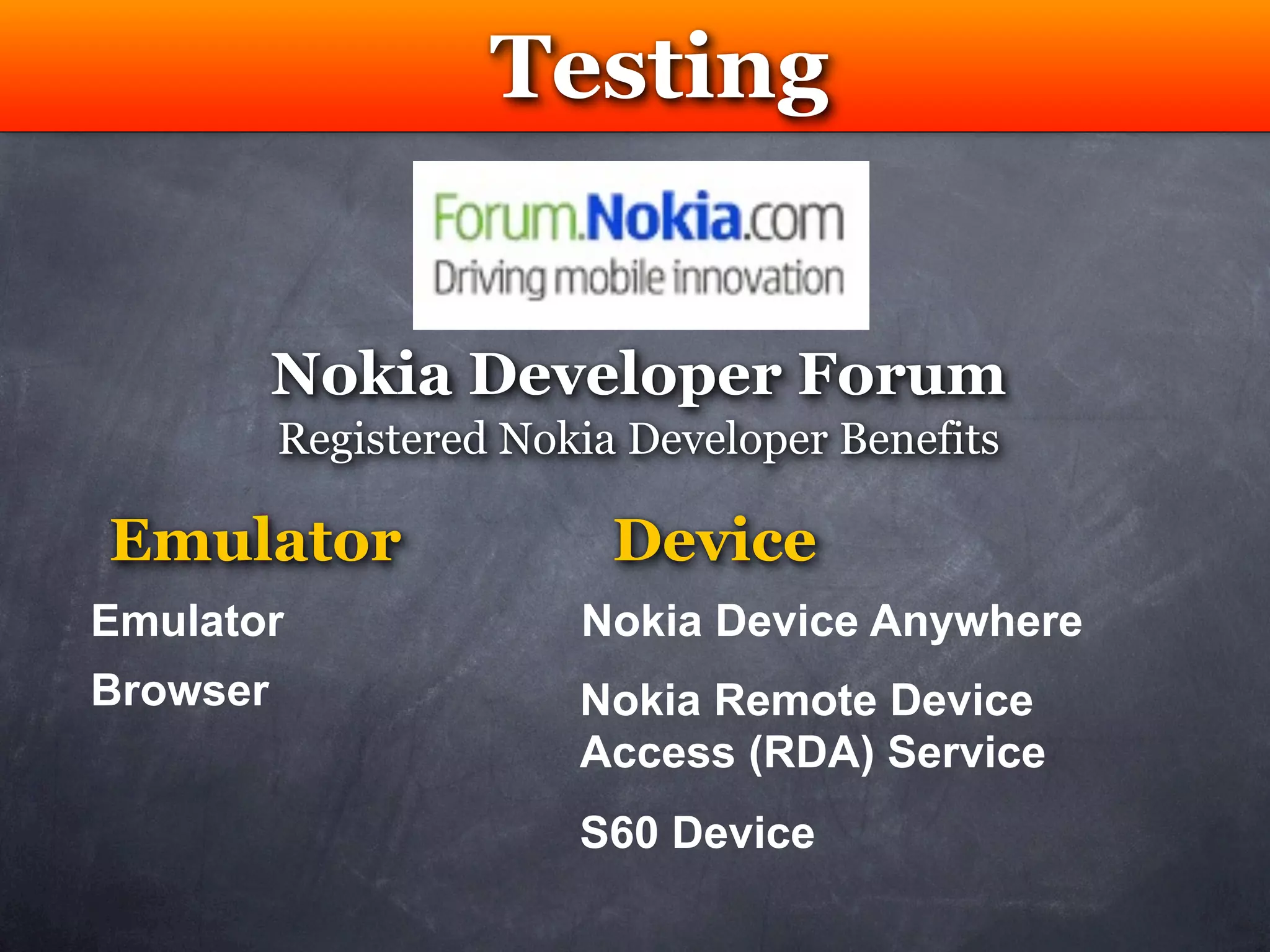

Nokia Developer Forum
Registered Nokia Developer Benefits

Emulator Device
Emulator Nokia Device Anywhere
Browser Nokia Remote Device
Access (RDA) Service
S60 Device

Testing
Browser

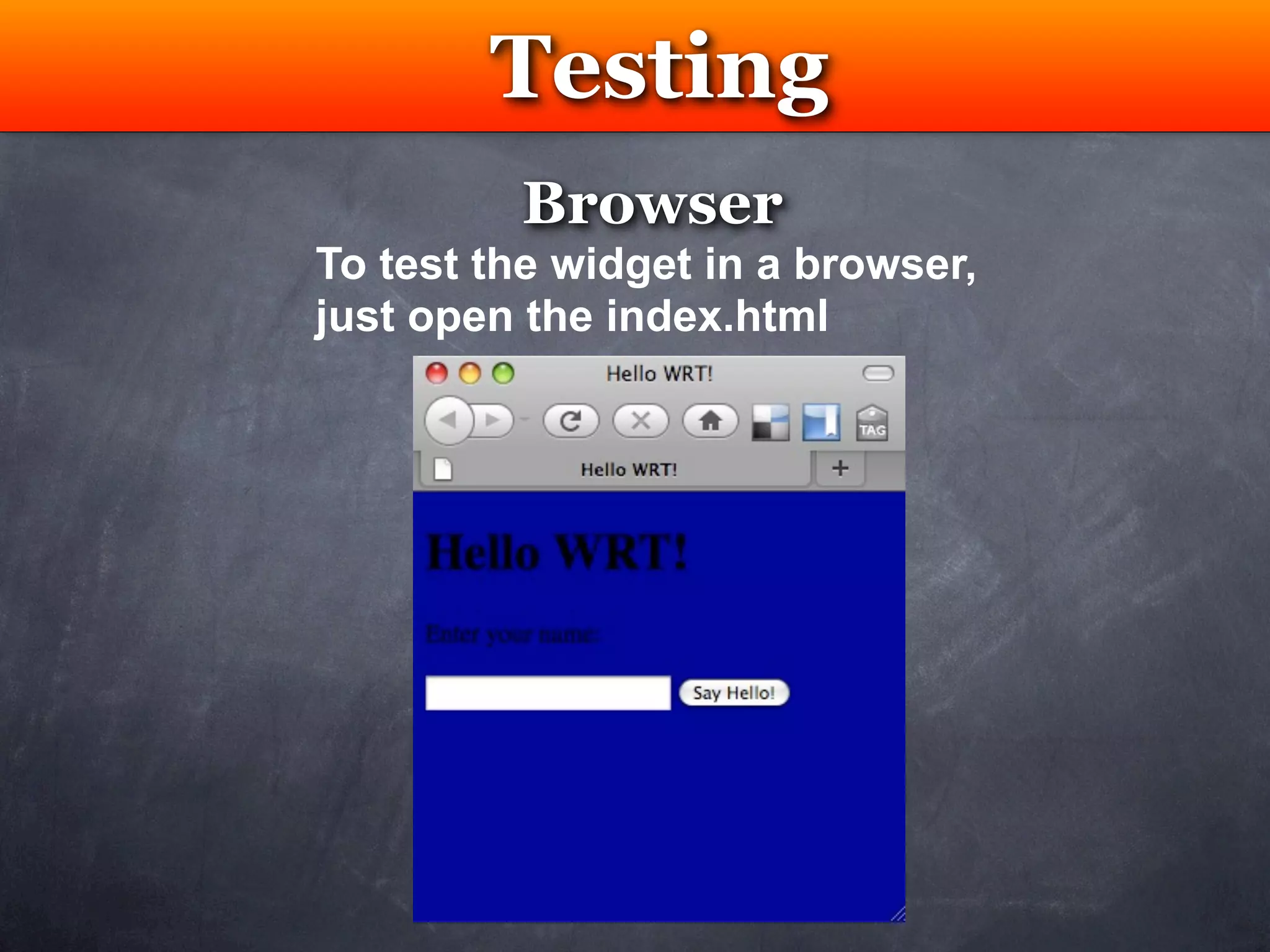

To test the widget in a browser,
just open the index.html

Testing
Emulator

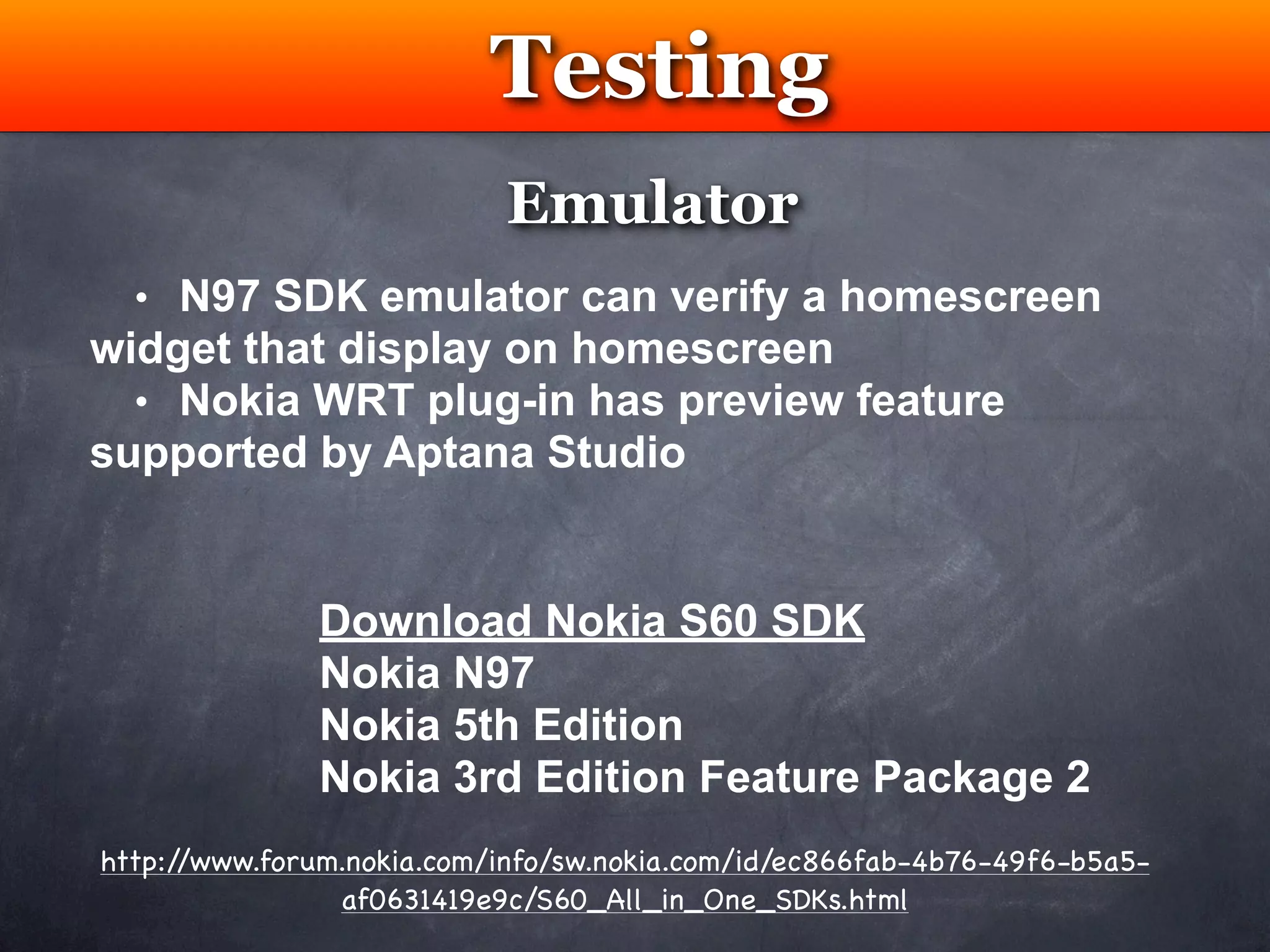

• N97 SDK emulator can verify a homescreen
widget that display on homescreen
• Nokia WRT plug-in has preview feature
supported by Aptana Studio

Download Nokia S60 SDK
Nokia N97
Nokia 5th Edition
Nokia 3rd Edition Feature Package 2
http://www.forum.nokia.com/info/sw.nokia.com/id/ec866fab-4b76-49f6-b5a5-
af0631419e9c/S60_All_in_One_SDKs.html

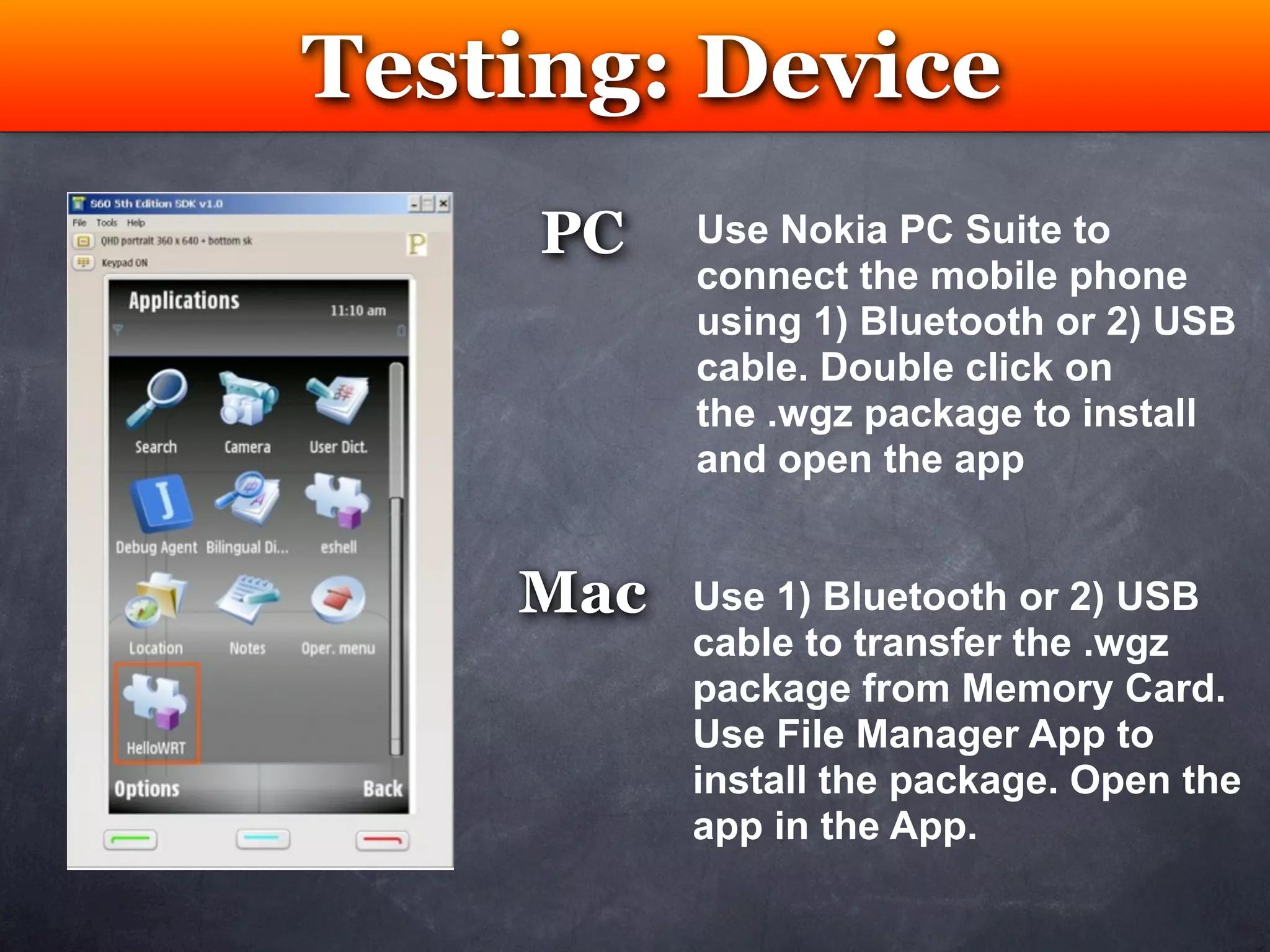

Testing: Device
Testing
PC Use Nokia PC Suite to
connect the mobile phone
using 1) Bluetooth or 2) USB
cable. Double click on
the .wgz package to install
and open the app

Mac Use 1) Bluetooth or 2) USB
cable to transfer the .wgz
package from Memory Card.
Use File Manager App to
install the package. Open the
app in the App.

Testing

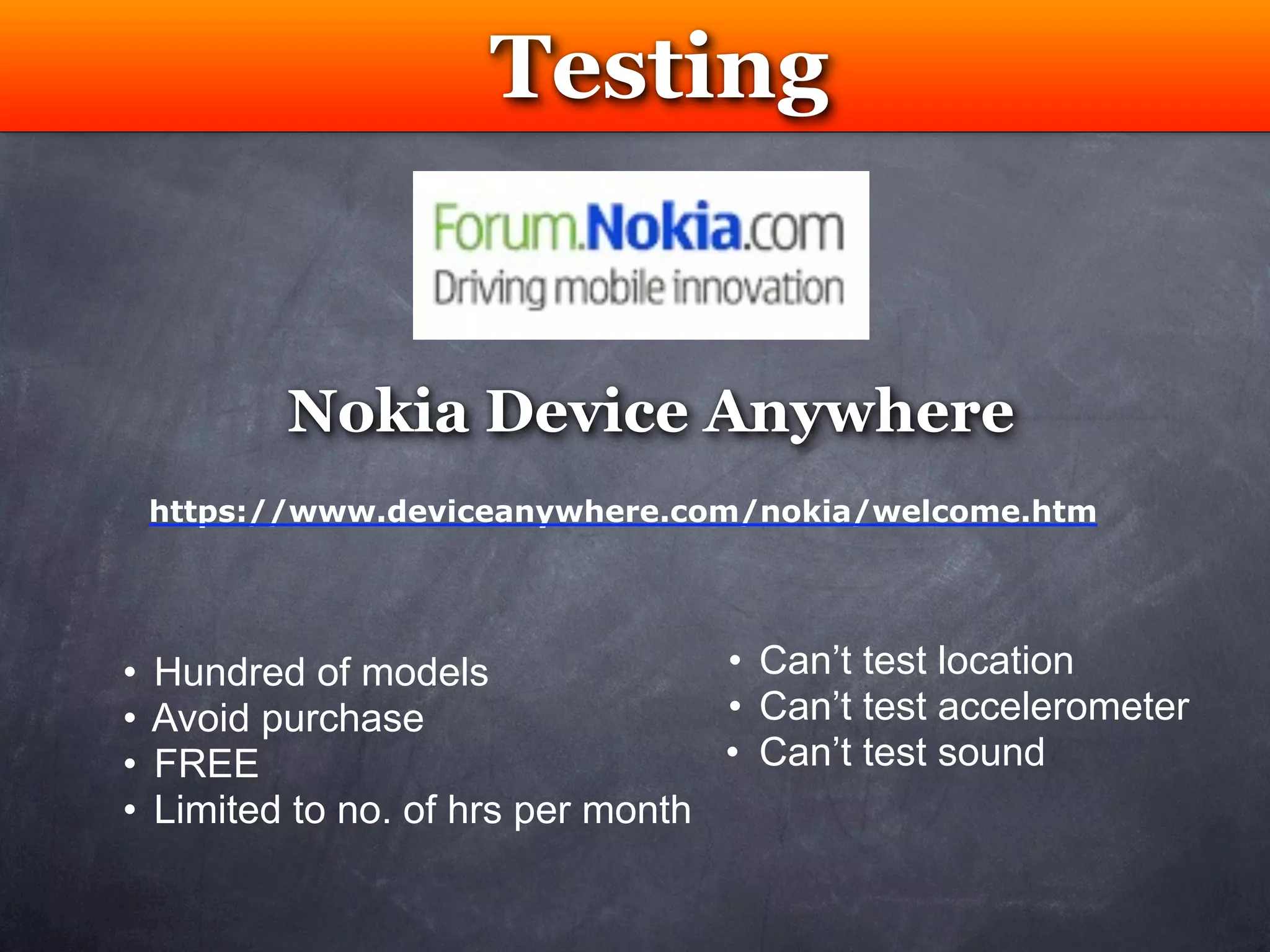

Nokia Device Anywhere
https://www.deviceanywhere.com/nokia/welcome.htm

• Hundred of models • Can’t test location
• Avoid purchase • Can’t test accelerometer
• FREE • Can’t test sound
• Limited to no. of hrs per month

Testing

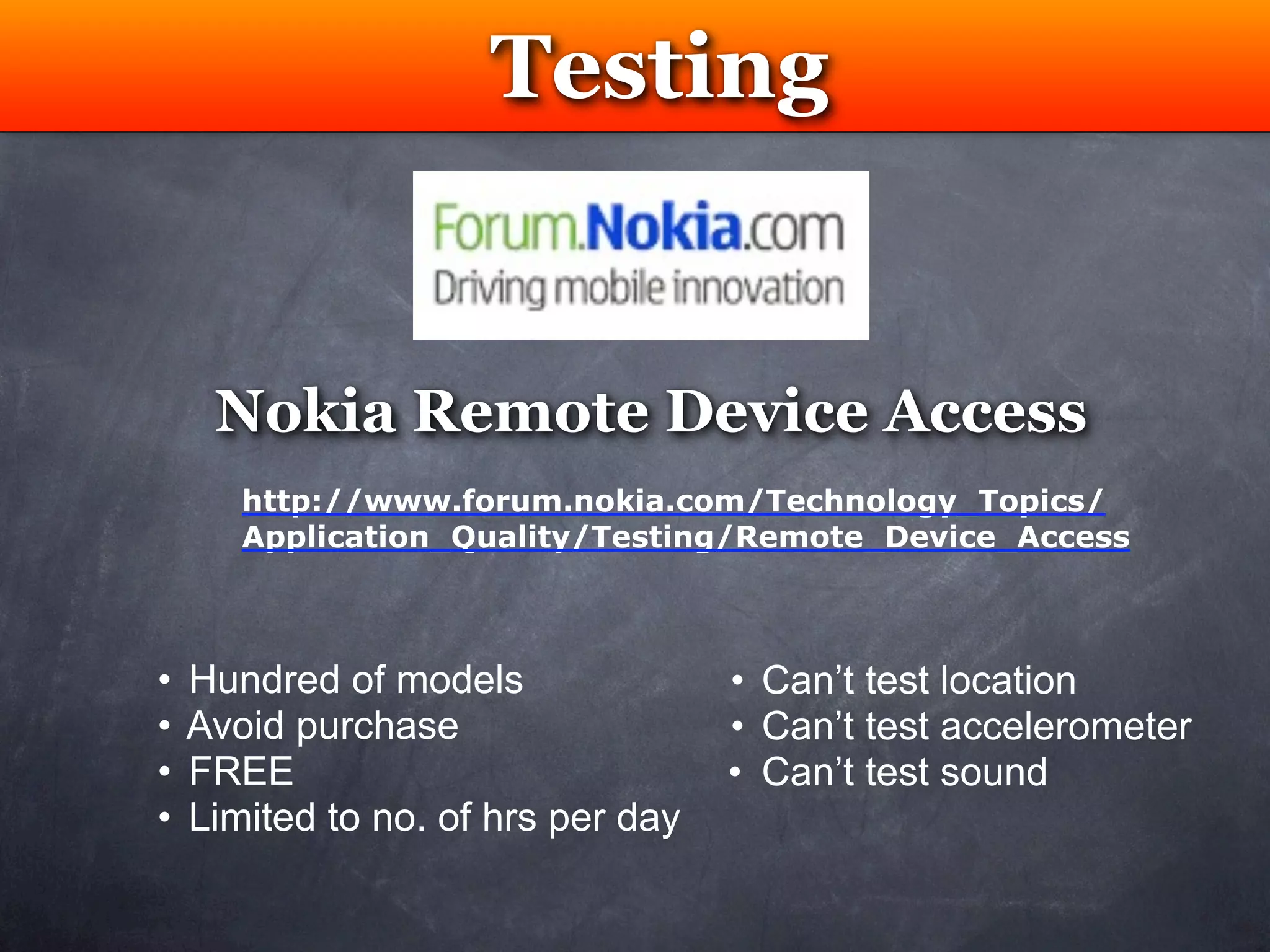

Nokia Remote Device Access
http://www.forum.nokia.com/Technology_Topics/
Application_Quality/Testing/Remote_Device_Access

• Hundred of models • Can’t test location
• Avoid purchase • Can’t test accelerometer
• FREE • Can’t test sound
• Limited to no. of hrs per day

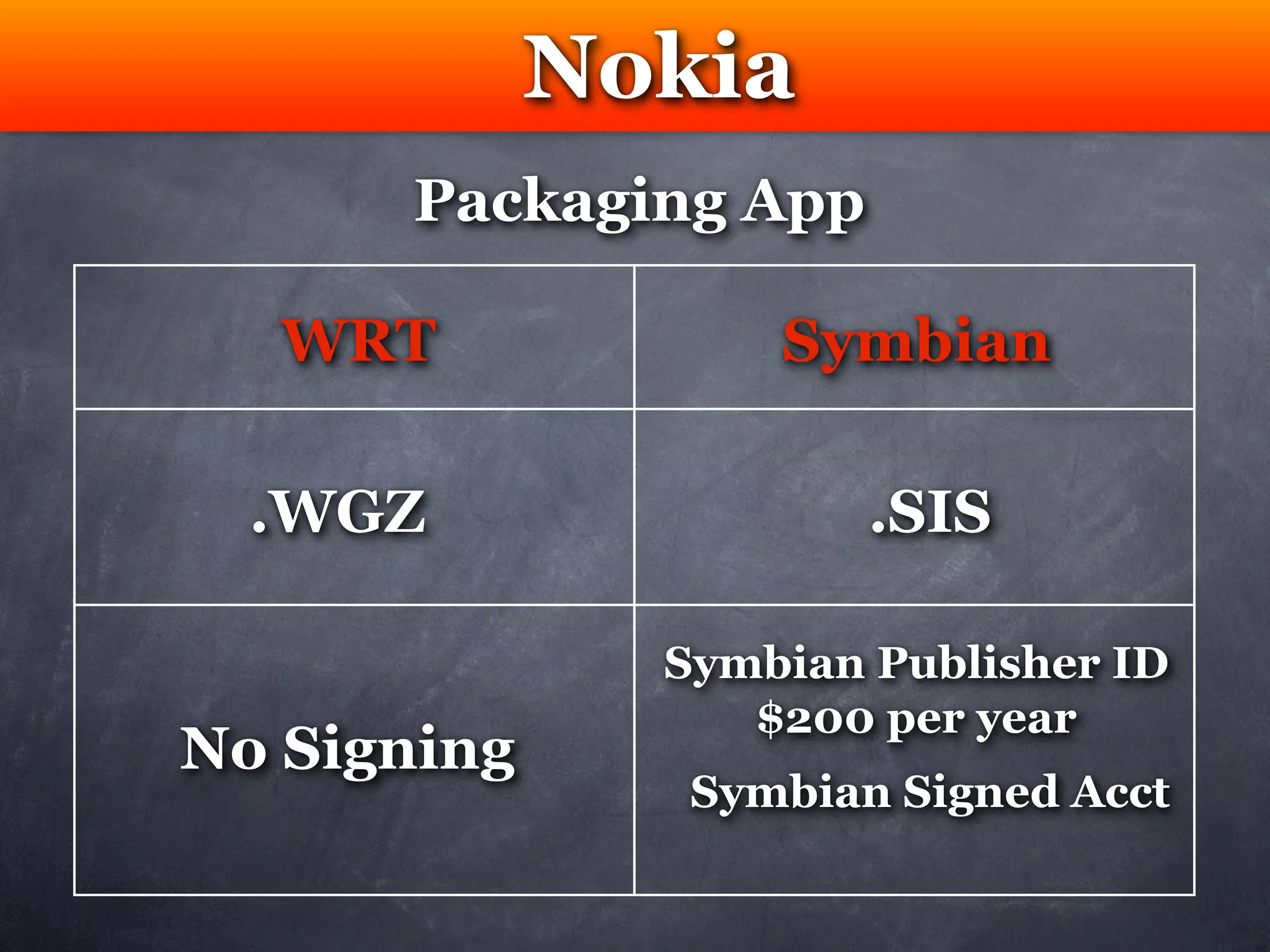

Nokia
Packaging App

WRT Symbian

.WGZ .SIS

Symbian Publisher ID
$200 per year
No Signing
Symbian Signed Acct

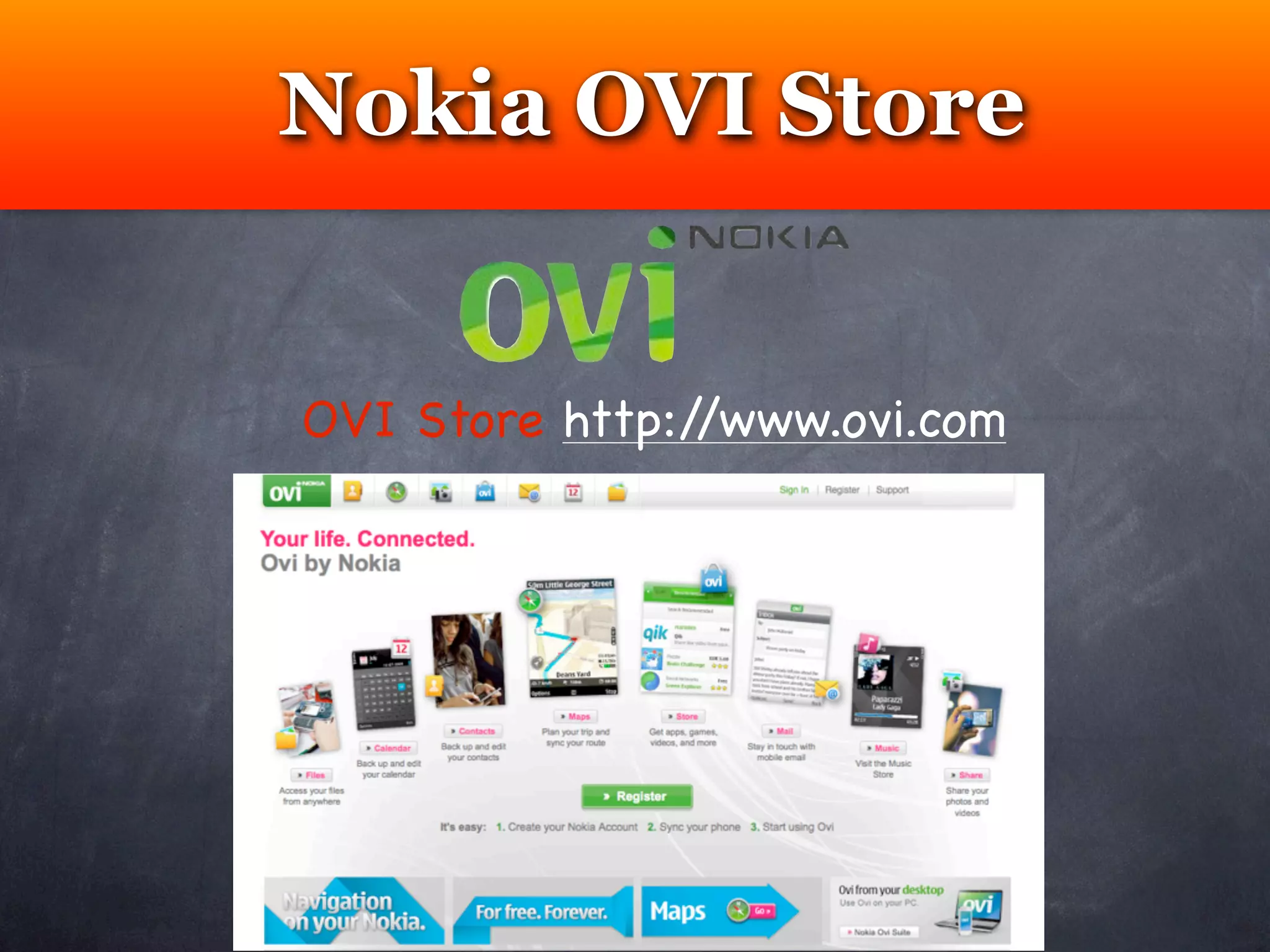

Nokia OVI Store

OVI Store http://www.ovi.com

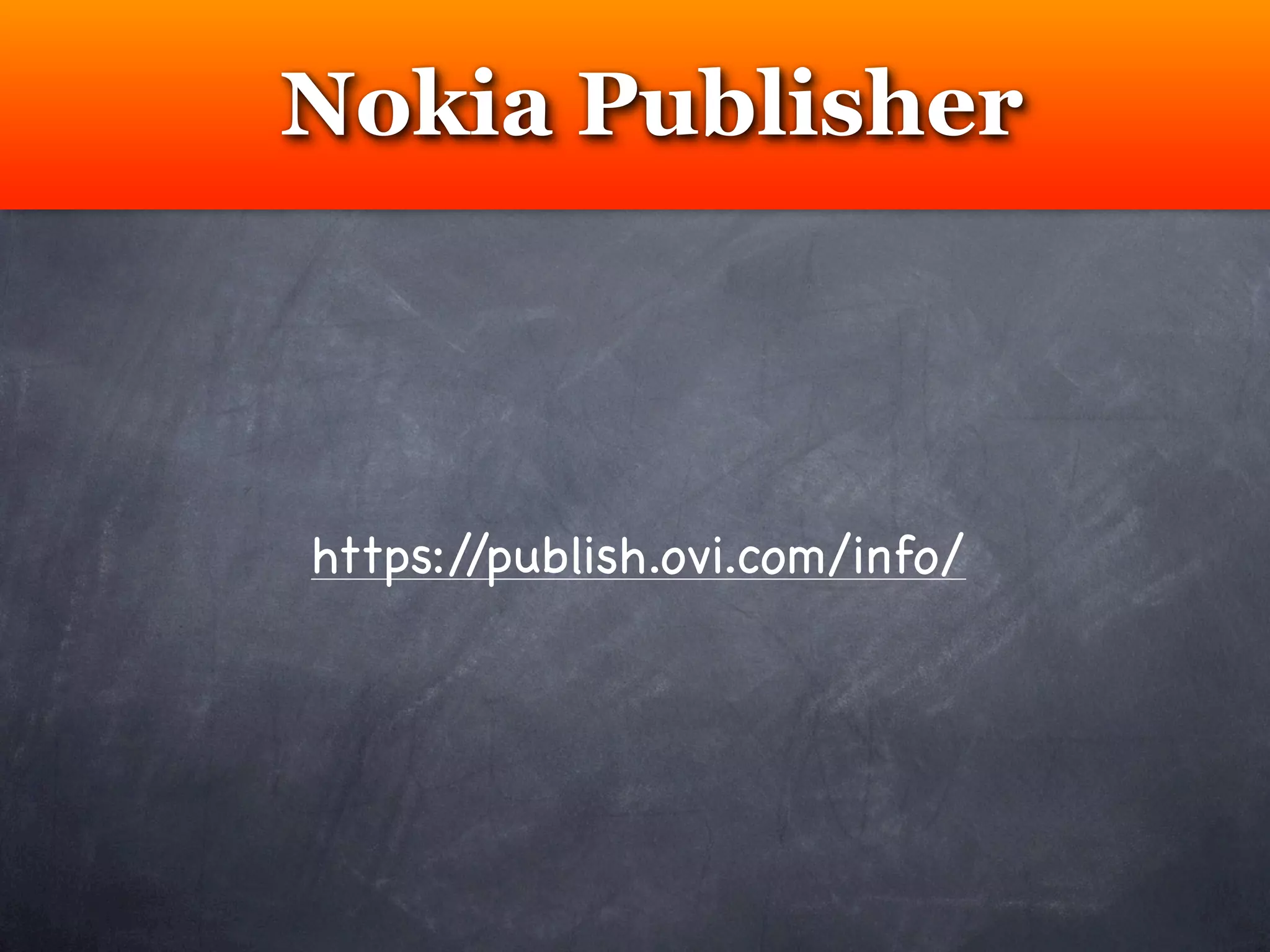

Nokia Publisher

https://publish.ovi.com/info/

Nokia Developer

http://www.forum.nokia.com/

WRT Widget
Testing
Create 1st WRT Widget

http://wiki.forum.nokia.com/index.php/
Create_your_ﬁrst_WRT_widget

WRT Widget
Testing

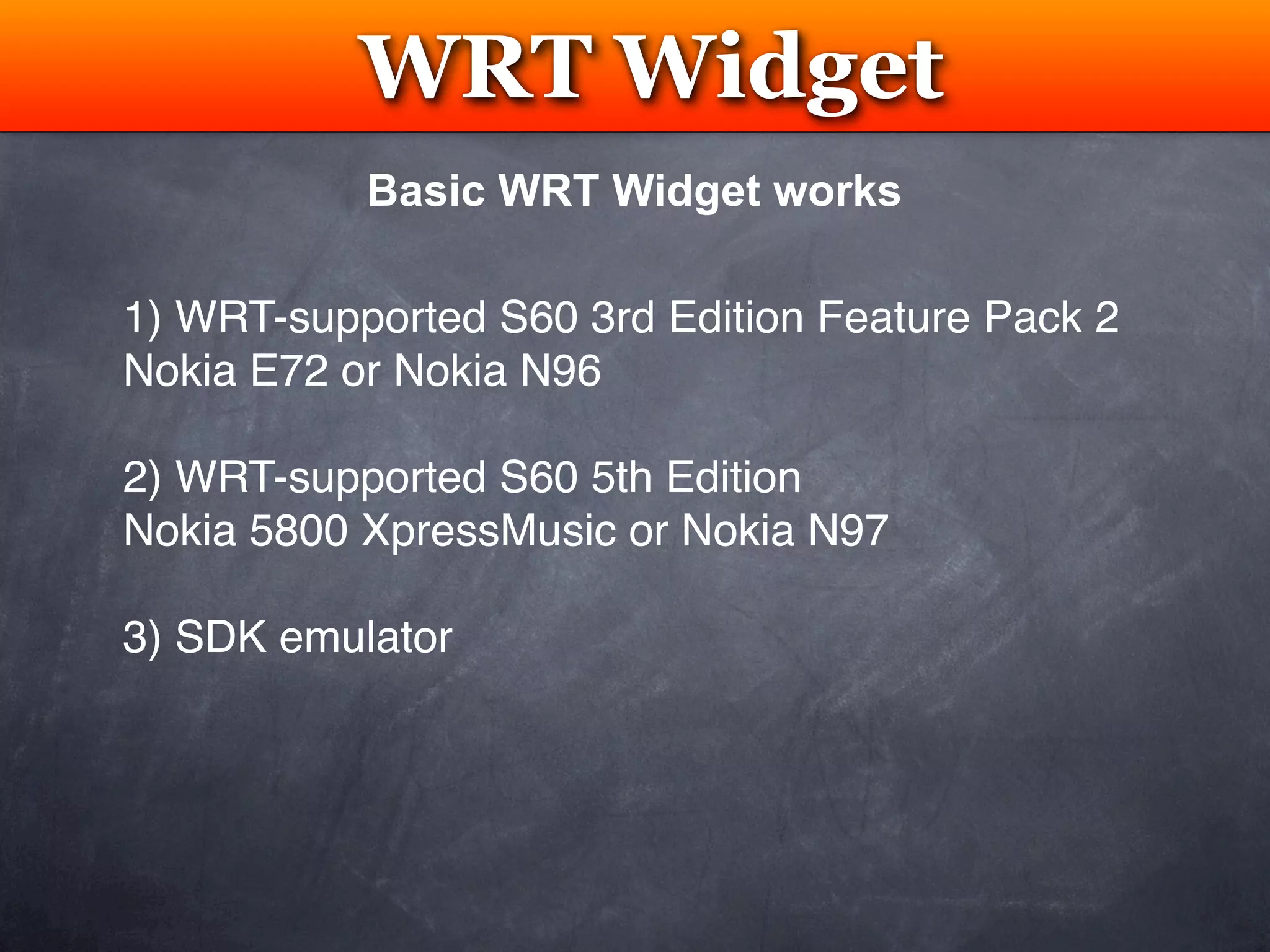

Basic WRT Widget works

1) WRT-supported S60 3rd Edition Feature Pack 2
Nokia E72 or Nokia N96

2) WRT-supported S60 5th Edition
Nokia 5800 XpressMusic or Nokia N97

3) SDK emulator

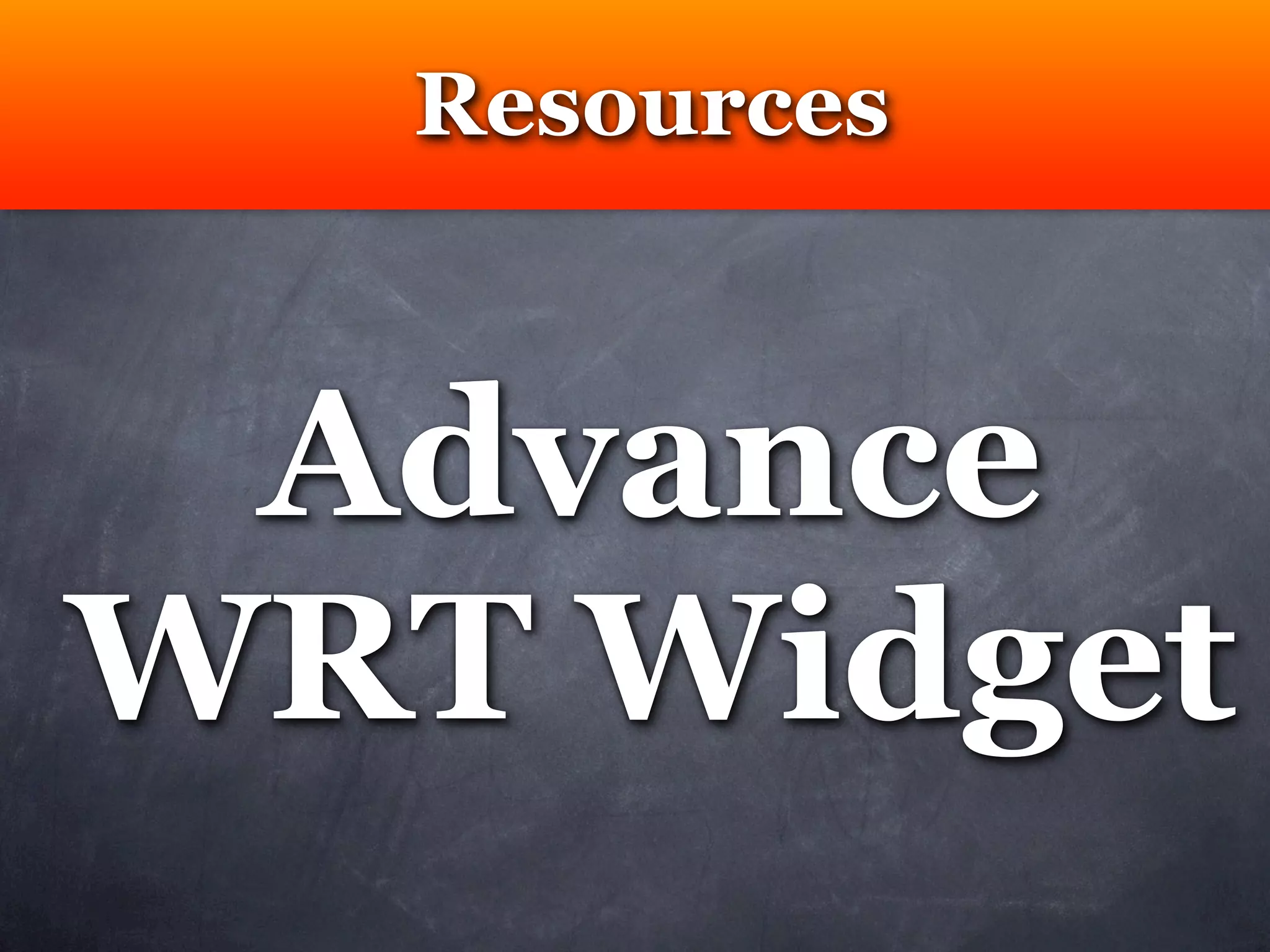

Resources

Advance
WRT Widget

WRT Widget
Testing

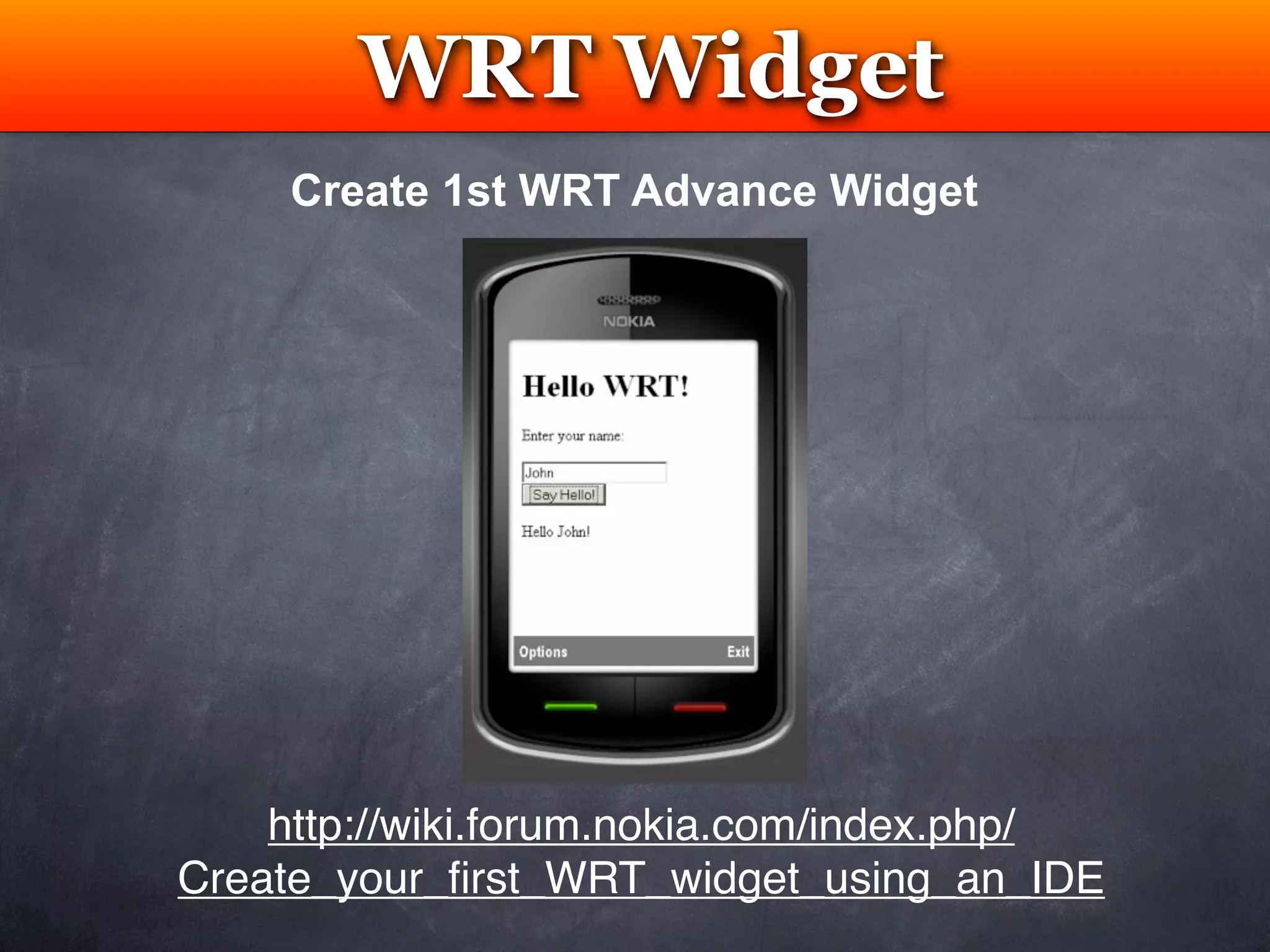

Create 1st WRT Advance Widget

http://wiki.forum.nokia.com/index.php/
Create_your_ﬁrst_WRT_widget_using_an_IDE

Advance WRT Widget
Testing

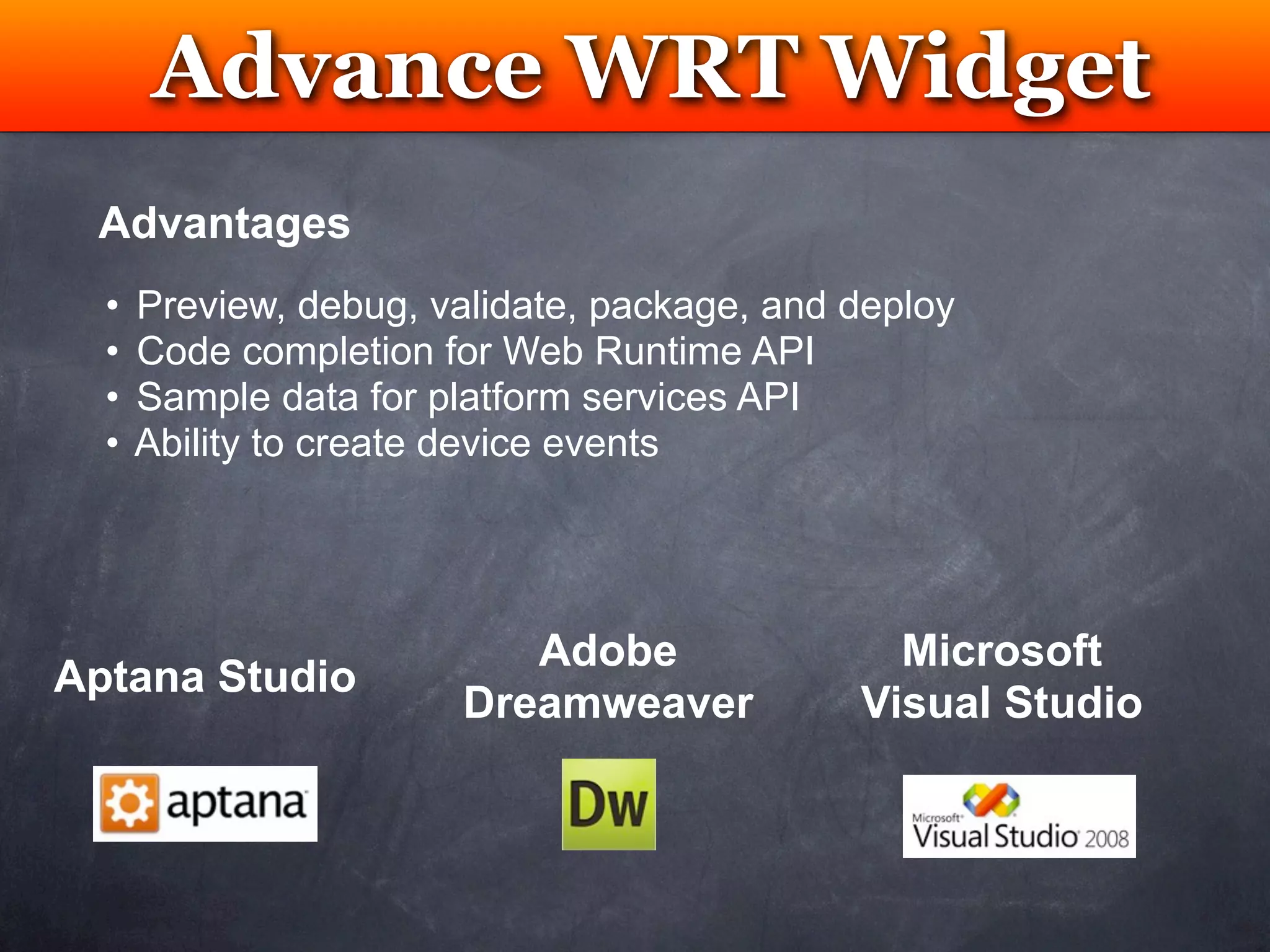

Advantages
• Preview, debug, validate, package, and deploy
• Code completion for Web Runtime API
• Sample data for platform services API
• Ability to create device events

Adobe Microsoft
Aptana Studio
Dreamweaver Visual Studio

Advance WRT Widget
Testing

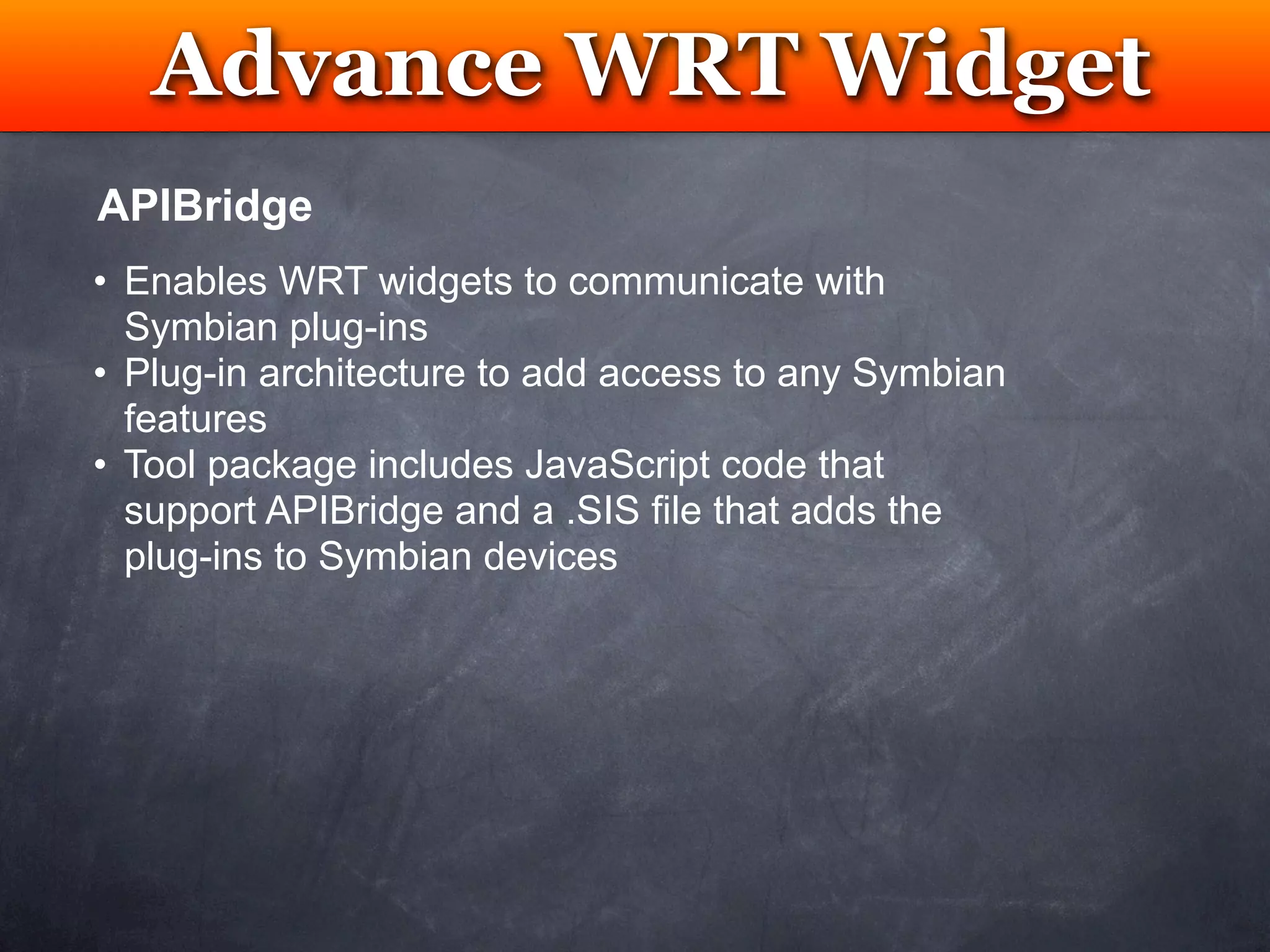

APIBridge
• Enables WRT widgets to communicate with
Symbian plug-ins
• Plug-in architecture to add access to any Symbian
features
• Tool package includes JavaScript code that
support APIBridge and a .SIS file that adds the
plug-ins to Symbian devices

Advance WRT Widget
Testing

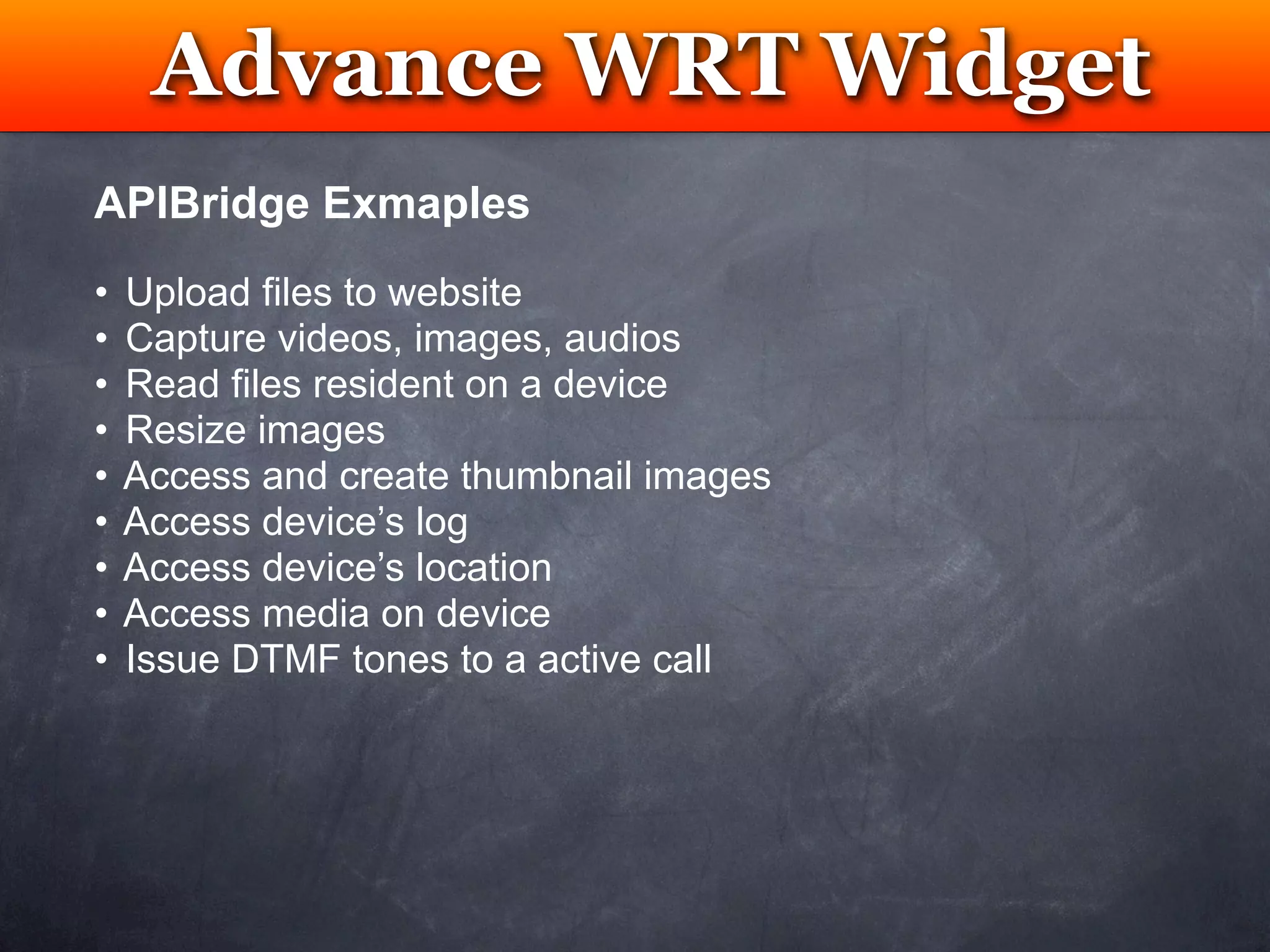

APIBridge Exmaples
• Upload files to website
• Capture videos, images, audios
• Read files resident on a device
• Resize images
• Access and create thumbnail images
• Access device’s log
• Access device’s location
• Access media on device
• Issue DTMF tones to a active call

Advance WRT Widget
Testing

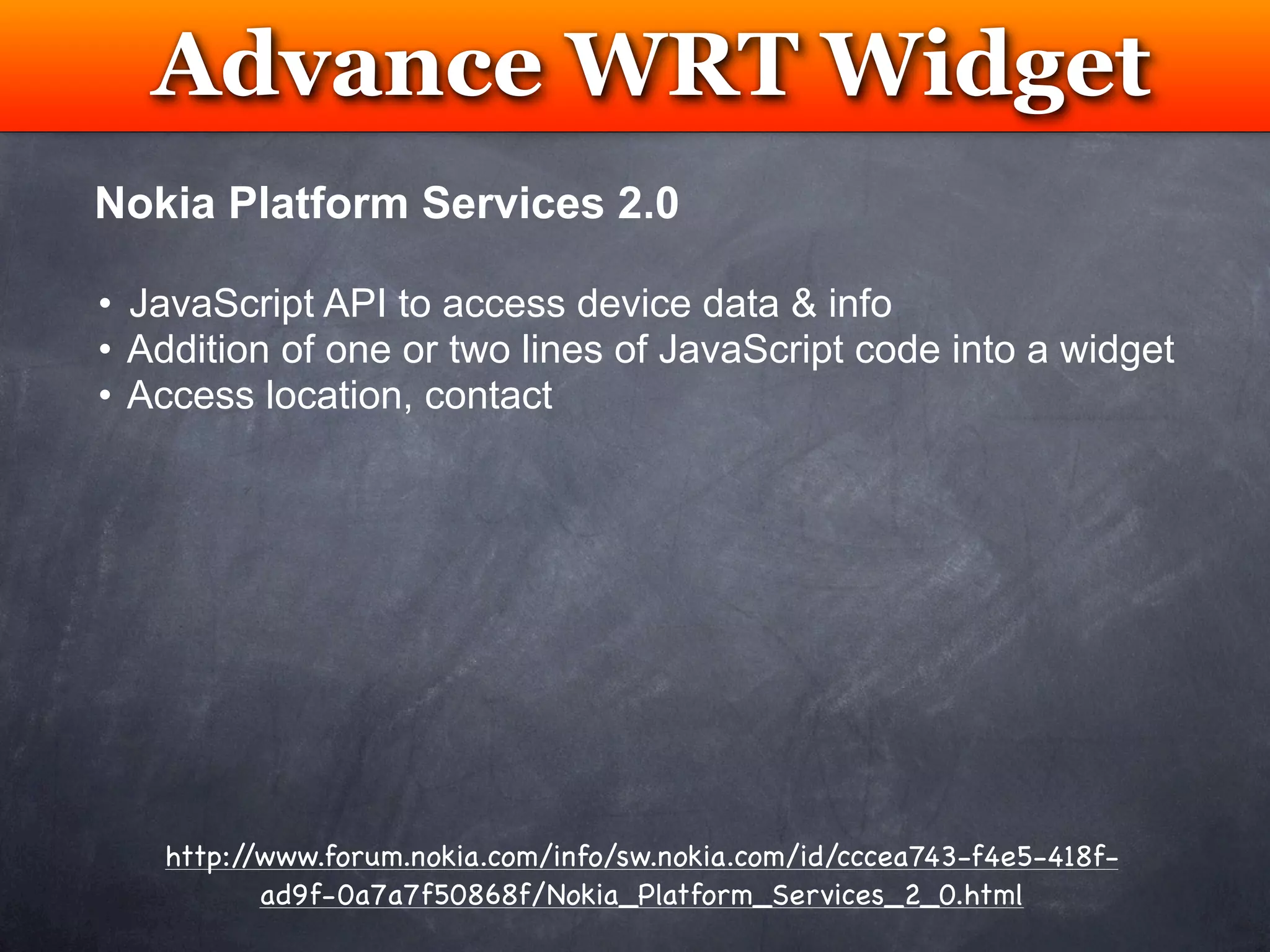

Nokia Platform Services 2.0

• JavaScript API to access device data & info
• Addition of one or two lines of JavaScript code into a widget
• Access location, contact

http://www.forum.nokia.com/info/sw.nokia.com/id/cccea743-f4e5-418f-
ad9f-0a7a7f50868f/Nokia_Platform_Services_2_0.html
