COSCUP 2020 RISC-V 32 bit linux highmem porting
- 1. Experience on porting HIGHMEMto 32bit RISC-V Linux Eric Lin 2020.8.2
- 2. About me • 2016~ 2018 NCKU – MS • 2018.12 ~ 2020.7 Andes technology – Software engineer in Linux kernel team • Experience – RISC-V Linux kernel – Device driver – U-BOOT

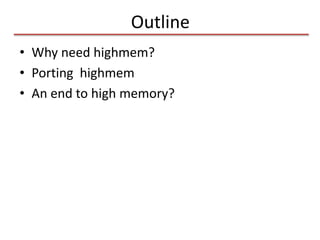

- 3. Outline • Why needhighmem? • Porting highmem • An end to high memory?

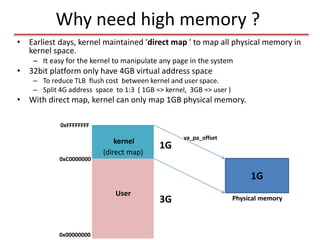

- 4. Why need highmemory ? • Earliest days, kernel maintained ′direct map ′ to map all physical memory in kernel space. – It easy for the kernel to manipulate any page in the system • 32bit platform only have 4GB virtual address space – To reduce TLB flush cost between kernel and user space. – Split 4G address space to 1:3 ( 1GB => kernel, 3GB => user ) • With direct map, kernel can only map 1GB physical memory. 1G 3G 1G 0x00000000 0xC0000000 0xFFFFFFFF Physical memory User kernel (direct map) va_pa_offset

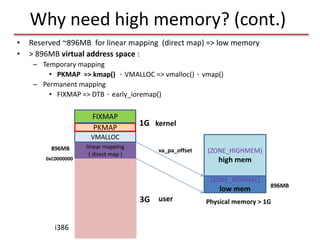

- 5. Why need highmemory? (cont.) • Reserved ~896MB for linear mapping (direct map) => low memory • > 896MB virtual address space : – Temporary mapping • PKMAP => kmap() 、VMALLOC => vmalloc()、vmap() – Permanent mapping • FIXMAP => DTB、early_ioremap() (ZONE_NORMAL) low mem 3G 1G Physical memory > 1G user kernel (ZONE_HIGHMEM) high mem linear mapping ( direct map ) 896MB 0xC0000000 VMALLOC PKMAP FIXMAP 896MB i386 va_pa_offset
- 6. Porting highmem • DecideRV32 linux memory layout – Refer other architecture (arm, x86, nds32) – (option) Move VMALLOC、FIXMAP..etc after PAGE_OFFSET • Leave user-process more address space. • Add a PKMAP region in virtual address space – for kmap() • Temporary mapping for a single page • alloc_page(__GFP_HIGHMEM) from ZONE_HIGHMEM • Create a page table for pkmap • Add memory slots in FIXMAP for kmap_atomic() • Add architecture kmap() and kmap_atomic()
- 7. 7 • 64bit platformneedn’t highmem => kernel have 128GB address space. • After porting highmem, we would like RV32 linux memory layout as below: RISC-V 5.6 Linux Memory layout linear mapping (direct map) PKMAP kernel user 3G VMALLOC FIXMAP Reserved VMEMMAP PCI_IO linear mapping (direct map) kernel user VMALLOC FIXMAP VMEMMAP PCI_IO 0xffffffe0_00000000 0xffffffff_ffffffff 0xffffffff 0xc0000000 0x00000000 0x00000000_00000000 128 GB 16777215 TB PAGE_OFFSET PAGE_OFFSET RV64 RV32

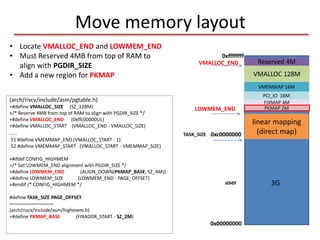

- 8. Move memory layout (arch/riscv/include/asm/pgtable.h) +#defineVMALLOC_SIZE (SZ_128M) +/* Reserve 4MB from top of RAM to align with PGDIR_SIZE */ +#define VMALLOC_END (0xffc00000UL) +#define VMALLOC_START (VMALLOC_END - VMALLOC_SIZE) ….. 51 #define VMEMMAP_END (VMALLOC_START - 1) 52 #define VMEMMAP_START (VMALLOC_START - VMEMMAP_SIZE) +#ifdef CONFIG_HIGHMEM +/* Set LOWMEM_END alignment with PGDIR_SIZE */ +#define LOWMEM_END (ALIGN_DOWN(PKMAP_BASE, SZ_4M)) +#define LOWMEM_SIZE (LOWMEM_END - PAGE_OFFSET) +#endif /* CONFIG_HIGHMEM */ #define TASK_SIZE PAGE_OFFSET --------------------------- (arch/riscv/include/asm/highmem.h) +#define PKMAP_BASE (FIXADDR_START - SZ_2M) linear mapping (direct map) PKMAP 2M user 3G VMALLOC 128M FIXMAP 4M Reserved 4M VMEMMAP 16M PCI_IO 16M 0xffffffff 0xc0000000 0x00000000 LOWMEM_END • Locate VMALLOC_END and LOWMEM_END • Must Reserved 4MB from top of RAM to align with PGDIR_SIZE • Add a new region for PKMAP VMALLOC_END TASK_SIZE
- 9. Porting highmem setup_bootm() – max_low_pfn=> the end of low_memory – max_pfn => the end of physical memory (arch/riscv/mm/init.c) 150 void __init setup_bootmem(void) 151 { … 188 #ifdef CONFIG_HIGHMEM 189 max_low_pfn = (PFN_DOWN(__pa(LOWMEM_END))); 190 max_pfn = PFN_DOWN(memblock_end_of_DRAM()); 191 memblock_set_current_limit(__pa(LOWMEM_END)); 192 #else low mem Physical memory high mem max_low_pfn max_pfn 27 static void __init zone_sizes_init(void) 28 { ……. 34 #endif 35 max_zone_pfns[ZONE_NORMAL] = max_low_pfn; 36 #ifdef CONFIG_HIGHMEM 37 max_zone_pfns[ZONE_HIGHMEM] = max_pfn; 38 #endif 39 free_area_init_nodes(max_zone_pfns); 40 }

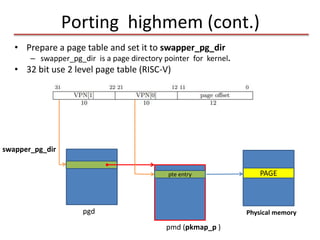

- 10. Porting highmem (cont.) •Prepare a page table and set it to swapper_pg_dir – swapper_pg_dir is a page directory pointer for kernel. • 32 bit use 2 level page table (RISC-V) pte entry pgd pmd (pkmap_p ) PAGE swapper_pg_dir Physical memory

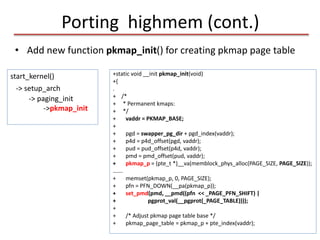

- 11. Porting highmem (cont.) +staticvoid __init pkmap_init(void) +{ . + /* + * Permanent kmaps: + */ + vaddr = PKMAP_BASE; + + pgd = swapper_pg_dir + pgd_index(vaddr); + p4d = p4d_offset(pgd, vaddr); + pud = pud_offset(p4d, vaddr); + pmd = pmd_offset(pud, vaddr); + pkmap_p = (pte_t *)__va(memblock_phys_alloc(PAGE_SIZE, PAGE_SIZE)); ……. + memset(pkmap_p, 0, PAGE_SIZE); + pfn = PFN_DOWN(__pa(pkmap_p)); + set_pmd(pmd, __pmd((pfn << _PAGE_PFN_SHIFT) | + pgprot_val(__pgprot(_PAGE_TABLE)))); + + /* Adjust pkmap page table base */ + pkmap_page_table = pkmap_p + pte_index(vaddr); start_kernel() -> setup_arch -> paging_init ->pkmap_init • Add new function pkmap_init() for creating pkmap page table
- 12. Porting highmem (cont.) //arch/riscv/include/asm/fixmap.h enumfixed_addresses { FIX_PTE, FIX_PMD, FIX_EARLYCON_MEM_BASE, +#ifdef CONFIG_HIGHMEM + FIX_KMAP_RESERVED, + FIX_KMAP_BEGIN, + FIX_KMAP_END = FIX_KMAP_BEGIN + (KM_TYPE_NR * NR_CPUS), +#endif + __end_of_fixed_addresses, }; 23 #define FIXADDR_TOP (PKMAP_BASE) 24 #define FIXADDR_SIZE ((__end_of_fixed_addresses) << PAGE_SHIFT) 25 #define FIXADDR_START (FIXADDR_TOP - FIXADDR_SIZE) FIXADDR_TOP FIXADDR_START (__end_of_fixed_address) FIX_KMAP_BEGIN 4K 4K 4K 4K FIX_KMAP_END kmap_atomic • Add memory slots in FIXMAP

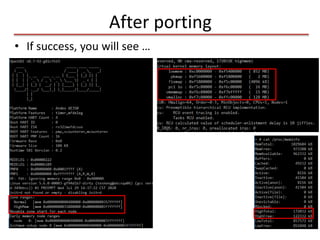

- 13. After porting • Ifsuccess, you will see …
- 14. After porting • Iffail, you will see … ????
- 15. An end tohigh memory? • Upstream my first kernel patch, but … • Arnd Bergmann (Linaro) reply … – I would much prefer to not see highmem added to new architectures at all if possible, see https://lwn.net/Articles/813201/ • Weiner like to improve memory-reclaim performance – Inode-cache shrinking vs. highmem • Inodes, being kernel data structures => low memory • page-cache pages => can be placed in high memory • With a large number of one-byte files on a 7G machine, it invoke inode shrinker to reclaim inode with populated page cache. It can drop gigabytes of hot and active page cache. • Linus Torvalds say …
- 16. Reference • https://www.kernel.org/doc/Documentation/vm/highmem.txt • https://lwn.net/Articles/813201/ •https://lkml.org/lkml/2020/4/2/253
- 17.
Editor's Notes
- #2 Hi 大家好 我是Eric~ 今天很高興來到coscup跟大家分享如何把 HIGHMEM porting到 32bit RISC-V linux kernel
- #3 這邊簡單自我介紹一下，主要在碩士到晶心科技Linux kernel team 對於Linux kernel也還在學習階段~
- #4 主要跟大家簡介Linux 為何HIGHMEM這個機制 如何porting highmem Highmem 機制是不是要被deprecate , 主要來自於今年2月LWN 一篇文章
- #5 早期kernel使用direct map，來map所有的physical memory到kernel space,這樣好處方便Linux kernel 管理這些page 在32bit platform只有4GB address sapce Kernel 為了要減少, kernel與user space之間切換 TLB flush的overhead,就把4G address 切成1:3 這樣kernel direct map 就只能夠有1GB physical memory 如果physical memory > 1GB，如何讓kernel可以map超過1GB的記憶體
- #6 highmem 主要是保留896MB給direct map，對應到physical就稱為low mem(normal zone)，大於896M就稱為high mem (high memory zone) 在virtual address space 部分主要會有2種mapping機制 Temporary mapping (暫時映射) => PKMAP (kmap) 、VMALLOC(vmamlloc,vmap) 永久映射: FIXADDR or FIXMAP => (DTB or early ioremap )
- #7 有了上面的觀念後，接下來就可以開始porting highmem部分 這邊主要分享porting的幾個重點， 要知道rv32 linux memory layout，這邊主要是參考arm、x86 新增一個PKMAP個空間給kmap()、kmap主要是當我們從highmem zone allocate 一塊page時候，建立va ->pa之間的mapping，因此需要建立一塊page table 給pkmap 新增一些memory slot 新增architecture kmap kmap atomic()
- #8 首先我們要先了解rv64 memory layout 以5.6 ，右邊這張圖 這邊順便跟提醒一下64bit是不需要highmem這個機制，因為它的direct map就有128G，已經很夠用 再來就是希望把vmlloc..fixmap部分往上移，讓user 可以比較多空間
- #9 主要是在pagetable.h檔案，定出整個layout開始跟結束的位置， 另外需要注意的是保留4MB空間，因為要align PGDIR_SIZE，如果不align會無法開機
- #10 接下來就是要在setup bootm()定義2個重要參數 max_low_pfn => low memory結束的pfn max_pfn => 整個physical memory Linux在對每個zone做初始化的時候就需要這2個參數，也就是開機畫面會看到 這是在計算每個zone的範圍
- #11 再來就是剛才提到我們需要幫PKMAP region建立page table ，主要就是幫kmap的建立va 與pa 對應的關係 需要先跟系統要一塊page (紅色框) 5這塊就是pkamp的page table 把它assign給swapper_pg_dir ，swapper_pg_dir主要是kernel page directory pointer 剛才有提到為何要保留4MB，主要是我們可以看到一個pgd entry 管理4MB，一開始如果沒有把它會找不到level的pmd entry
- #12 這邊主要就是在做上一張投影片的實作， 需要在start_kernel的paging_init新增一個pkmap_init
- #14 在porting之後，如果順利的話我們會看到機畫面會有2個zone，在memory layout可以看到我們剛才加入的PKMAP region 之後進入shell, 在memory info 可以看到kernel的high memory page有多少
- #15 通常就要開始debug，
- #16 把highmem porting好之後就想要upstream人生的第一個kernel patch，不過送完patch之後可以linaro
