- 1. © 2014 VMwareInc. All rights reserved. Real-time Data Loading from Oracle and MySQL to Data Warehouses and Oracle to Analytics MC Brown, Senior Product Line Manager
- 2. Continuent Quick Introduction 2 History Products 2004 Continuent established in USA 2009 3rd Generation Continuent Tungsten (aka VMware Continuent) ships 2014 100+ customers running business- critical applications Oct 2014 Acquisition by VMware: Now part of the vCloud Air Business Unit Oct 2015 Continuent solutions available through VMware sales Industry-leading clustering and replication for open source DBMS Clustering – Commercial-grade HA, performance scaling, and data management for MySQL Replication– Flexible, high- performance data movement

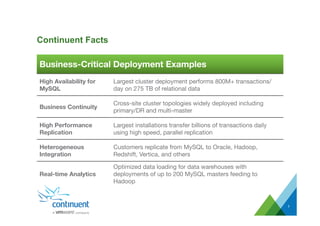

- 3. Business-Critical Deployment Examples HighAvailability for MySQL Largest cluster deployment performs 800M+ transactions/ day on 275 TB of relational data Business Continuity Cross-site cluster topologies widely deployed including primary/DR and multi-master High Performance Replication Largest installations transfer billions of transactions daily using high speed, parallel replication Heterogeneous Integration Customers replicate from MySQL to Oracle, Hadoop, Redshift, Vertica, and others Real-time Analytics Optimized data loading for data warehouses with deployments of up to 200 MySQL masters feeding to Hadoop Continuent Facts 3
- 4.
- 5. Data Warehouse Integrationis Changing • Traditional data warehouse usage was based on dump from transactional store, loads into data warehouse • Data warehouse and analytics were done off historical data loaded • Data warehouses often use merged data from multiple sources, which was hard to handled • Data warehouses are now frequently sources as well as targets for data, i.e.: – Export data to data warehouse – Analyze data – Feed summary data back to application to display stats to users

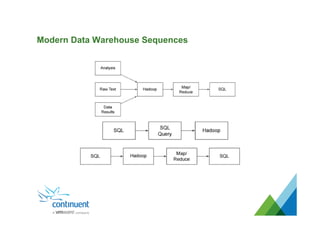

- 6. Modern Data WarehouseSequences

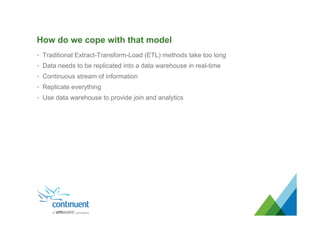

- 7. How do wecope with that model • Traditional Extract-Transform-Load (ETL) methods take too long • Data needs to be replicated into a data warehouse in real-time • Continuous stream of information • Replicate everything • Use data warehouse to provide join and analytics
- 8. Data Warehouse Choices • Hadoop – General purpose storage platform – Map Reduce for data processing – Front-end interfaces for interaction in SQL-like (Hive, HBase, Impala) and non- SQL (Pig, native, Spark) – JDBC/ODBC Interfaces improving • Vertica – Massive cluster-based column store – SQL and ODBC/JDBC Interface • Amazon Redshift – Highly flexible column store – Easy to deploy

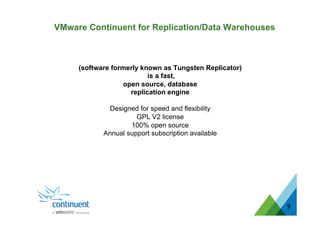

- 9. 9 (software formerly knownas Tungsten Replicator) is a fast, open source, database replication engine Designed for speed and flexibility GPL V2 license 100% open source Annual support subscription available VMware Continuent for Replication/Data Warehouses

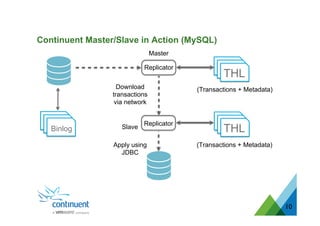

- 10. 10 Master (Transactions + Metadata) Slave Replicator (Transactions+ Metadata) Replicator Download transactions via network Apply using JDBC Binlog THL THL Continuent Master/Slave in Action (MySQL)

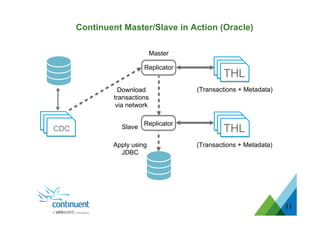

- 11. 11 Master (Transactions + Metadata) Slave Replicator (Transactions+ Metadata) Replicator Download transactions via network Apply using JDBC CDC THL THL Continuent Master/Slave in Action (Oracle)

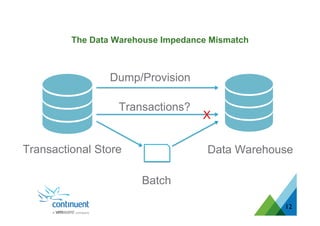

- 12. 12 Transactional Store DataWarehouse Dump/Provision Transactions? X Batch The Data Warehouse Impedance Mismatch

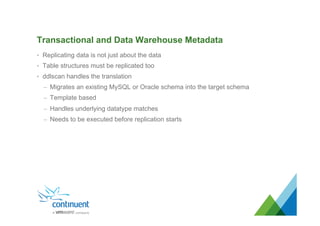

- 13. Transactional and DataWarehouse Metadata • Replicating data is not just about the data • Table structures must be replicated too • ddlscan handles the translation – Migrates an existing MySQL or Oracle schema into the target schema – Template based – Handles underlying datatype matches – Needs to be executed before replication starts
- 14.
- 15.
- 16.
- 17.
- 18. Initial Materialization withinHadoop load-reduce-check Migrate staging/base DDL Hive materialization CSV Staging Table Base Table
- 19.

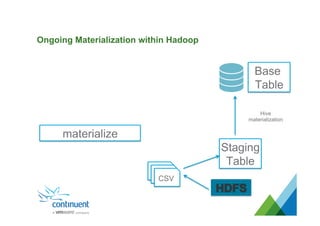

- 20. Ongoing Materialization withinHadoop materialize Hive materialization CSV Staging Table Base Table
- 21.

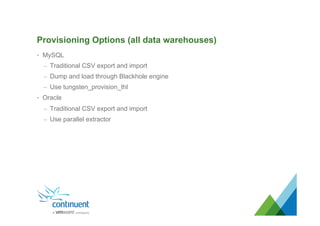

- 22. Provisioning Options (alldata warehouses) • MySQL – Traditional CSV export and import – Dump and load through Blackhole engine – Use tungsten_provision_thl • Oracle – Traditional CSV export and import – Use parallel extractor

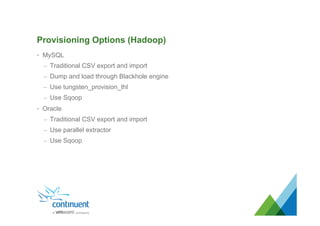

- 23. Provisioning Options (Hadoop) • MySQL – Traditional CSV export and import – Dump and load through Blackhole engine – Use tungsten_provision_thl – Use Sqoop • Oracle – Traditional CSV export and import – Use parallel extractor – Use Sqoop
- 24. Comparing Loading Methodsfor Hadoop Manual via CSV Sqoop Tungsten Replicator Process Manual/Scripted Manual/Scripted Fully Automated Incremental Loading Possible with DDL changes Requires DDL changes Fully Supported Latency Full-load Intermittent Real-time Extraction Requirements Full table scan Full and partial table scans Low-impact CDC/ binlog scan
- 25.

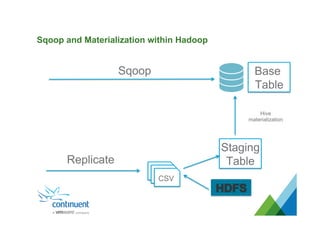

- 26. Sqoop and Materializationwithin Hadoop Hive materialization CSV Staging Table Base Table Sqoop Replicate

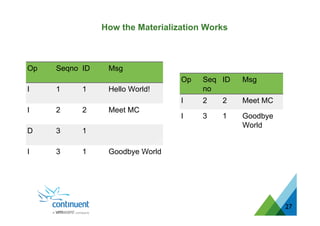

- 27. 27 Op Seqno IDMsg I 1 1 Hello World! I 2 2 Meet MC D 3 1 I 3 1 Goodbye World Op Seq no ID Msg I 2 2 Meet MC I 3 1 Goodbye World How the Materialization Works
- 28. • Extract fromMySQL or Oracle • Hadoop Support – Cloudera (Certified), HortonWorks, MapR, Pivotal, Amazon EMR, IBM (Certified), Apache • Provision using Sqoop or parallel extraction • Schema generation for Hive • Tools for generating materialized views • Parallel CSV file loading • Partition loaded data by commit time • Schema Change Notification 28 Replication support (Hadoop specific)
- 29. 29 1 2 34 5 6 7 8 9 1 0 1 1 1 2 1 3 1 4 1 5 1 6 1 7 1 8 1 9 2 0 2 1 2 2 2 3 2 4 2 5 2 6 2 7 2 8 2 9 3 0 3 1 3 2 3 3 3 4 3 5 3 6 3 7 3 8 3 9 4 0 4 1 4 2 4 3 4 4 4 5 Monday Wednesday Friday Data Warehouse Possibilities: Point in Time Tables

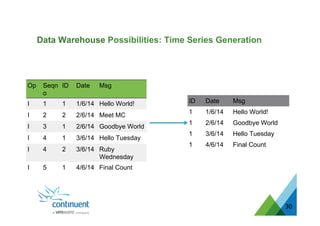

- 30. 30 Op Seqn o ID DateMsg I 1 1 1/6/14 Hello World! I 2 2 2/6/14 Meet MC I 3 1 2/6/14 Goodbye World I 4 1 3/6/14 Hello Tuesday I 4 2 3/6/14 Ruby Wednesday I 5 1 4/6/14 Final Count ID Date Msg 1 1/6/14 Hello World! 1 2/6/14 Goodbye World 1 3/6/14 Hello Tuesday 1 4/6/14 Final Count Data Warehouse Possibilities: Time Series Generation
- 31. • Tungsten Replicatorbuilds are available on code.google.com http://code.google.com/p/tungsten-replicator/ • Replicator documentation is available on Continuent website http://docs.continuent.com/tungsten-replicator-3.0/deployment-hadoop.html • Tungsten Hadoop tools are available on GitHub https://github.com/continuent/continuent-tools-hadoop 31 Contact Continuent for support Getting Started!
- 32. For more information,contact us: Robert Noyes Alliance Manager, USA & Canada rnoyes@vmware.com +1 (650) 575-0958 Philippe Bernard Alliance Manager, EMEA & APAC pbernard@vmware.com +41 79 347 1385 MC Brown Senior Product Line Manager mcb@vmware.com Eero Teerikorpi Sr. Director, Strategic Alliances eteerikorpi@vmware.com +1 (408) 431-3305
